Android自定義View實現數字密碼鎖

 更新時間：2018年06月04日 16:49:29   作者：IT_ZJYANG
這篇文章主要為大家詳細介紹了Android自定義View實現數字密碼鎖，具有一定的參考價值，感興趣的小伙伴們可以參考一下

最近項目上用到一個密碼加鎖功能，需要一個數字密碼界面，就想著封裝成一個View來方便管理和使用。

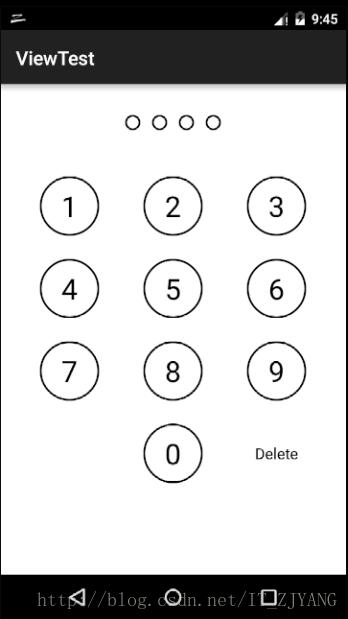

廢話不多說，先上最終效果圖：

思路

整體可分為2個部分來實現，1.頂部是4個密碼位的填充；2.數字鍵盤部分。整體可以是一個縱向LinearLayout，4個密碼位用橫向LinearLayout即可，鍵盤由于是宮格形式，因此可用GridLayout來布局。由于密碼位和鍵盤數字都是以圓圈為背景，這里采用自定義一個圓形背景ImageView來使用。

實現

1.頁面布局

首先定義一個圓形背景的ImageView，由于最終實現的效果是點擊的時候要填充圓背景，非點擊狀態下是空心圓，因此可通過改變Paint的style來動態更改顯示:

/**
 * 圓形背景ImageView（設置實心或空心）
 */
 public class CircleImageView extends ImageView{

   private Paint mPaint;
   private int mWidth;
   private int mHeight;

   public CircleImageView(Context context) {
     this(context, null);
   }

   public CircleImageView(Context context, AttributeSet attrs) {
     this(context, attrs, 0);
   }

   public CircleImageView(Context context, AttributeSet attrs, int defStyleAttr) {
     super(context, attrs, defStyleAttr);
     initView(context);
   }

   public void initView(Context context){
     mPaint = new Paint();
     mPaint.setStyle(Paint.Style.STROKE);
     mPaint.setColor(mPanelColor);
     mPaint.setStrokeWidth(mStrokeWidth);
     mPaint.setAntiAlias(true);
   }

   @Override
   protected void onSizeChanged(int w, int h, int oldw, int oldh) {
     super.onSizeChanged(w, h, oldw, oldh);
     mWidth = w;
     mHeight = h;
   }

   @Override
   public void draw(Canvas canvas) {
     canvas.drawCircle(mWidth/2, mHeight/2, mWidth/2 - 6, mPaint);
     super.draw(canvas);
   }

   /**
   * 設置圓為實心狀態
   */
   public void setFillCircle(){
     mPaint.setStyle(Paint.Style.FILL);
     invalidate();
   }

   /**
   * 設置圓為空心狀態
   */
   public void setStrokeCircle(){
     mPaint.setStyle(Paint.Style.STROKE);
     invalidate();
   }
 }

可以看到，在onDraw中繪制了一個圓，默認為空心狀態，定義setFillCircle和setStrokeCircle這兩個方法以便外界可以方便地切換圓為實心或者空心。

圓形ImageView定義好了，開始添加密碼位，布局如下:

inputResultView = new LinearLayout(context);
for(int i=0; i<4; i++){
   CircleImageView mResultItem = new CircleImageView(context);
   mResultIvList.add(mResultItem);
   LinearLayout.LayoutParams params = new LinearLayout.LayoutParams(mResultIvRadius, mResultIvRadius);
   params.leftMargin = dip2px(context, 4);
   params.rightMargin = dip2px(context, 4);
   mResultItem.setPadding(dip2px(context, 2),dip2px(context, 2),dip2px(context, 2),dip2px(context, 2));
   mResultItem.setLayoutParams(params);
   inputResultView.addView(mResultItem);
}
LinearLayout.LayoutParams params = new LinearLayout.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT, ViewGroup.LayoutParams.WRAP_CONTENT);
params.gravity = Gravity.CENTER_HORIZONTAL;
params.bottomMargin = dip2px(context, 34);
inputResultView.setLayoutParams(params);
addView(inputResultView);

接著添加數字鍵盤部分的布局:

GridLayout numContainer = new GridLayout(context);
numContainer.setColumnCount(3);
for(int i=0; i<numArr.length; i++){
  RelativeLayout numItem = new RelativeLayout(context);
  numItem.setPadding(mPaddingLeftRight,mPaddingTopBottom,mPaddingLeftRight,mPaddingTopBottom);
  RelativeLayout.LayoutParams gridItemParams = new RelativeLayout.LayoutParams(mNumRadius, mNumRadius);
  gridItemParams.addRule(CENTER_IN_PARENT);
  final TextView numTv = new TextView(context);
  numTv.setText(numArr[i]);
  numTv.setTextColor(mPanelColor);
  numTv.setTextSize(30);
  numTv.setGravity(Gravity.CENTER);
  numTv.setLayoutParams(gridItemParams);
  final CircleImageView numBgIv = new CircleImageView(context);
  numBgIv.setLayoutParams(gridItemParams);
  numItem.addView(numBgIv);
  numItem.addView(numTv);
  numContainer.addView(numItem);
  if(i == 9){
    numItem.setVisibility(INVISIBLE);
  }
}

//刪除按鈕
RelativeLayout deleteItem = new RelativeLayout(context);
deleteItem.setPadding(mPaddingLeftRight,mPaddingTopBottom,mPaddingLeftRight,mPaddingTopBottom);
RelativeLayout.LayoutParams gridItemParams = new RelativeLayout.LayoutParams(mNumRadius, mNumRadius);
gridItemParams.addRule(CENTER_IN_PARENT);
//假如刪除按鈕是設置自定義圖片資源的話，可用注釋這段
//ImageView deleteIv = new ImageView(context);
//deleteIv.setImageResource(R.drawable.icn_delete_pw);
//deleteIv.setLayoutParams(gridItemParams);
//deleteItem.addView(deleteIv);
TextView deleteTv = new TextView(context);
deleteTv.setText("Delete");
deleteTv.setTextColor(mPanelColor);
deleteTv.setTextSize(dip2px(context, 8));
deleteTv.setLayoutParams(gridItemParams);
deleteTv.setGravity(Gravity.CENTER);
deleteItem.addView(deleteTv);
numContainer.addView(deleteItem);

LinearLayout.LayoutParams gridParams = new LinearLayout.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT, ViewGroup.LayoutParams.WRAP_CONTENT);
gridParams.gravity = Gravity.CENTER_HORIZONTAL;
numContainer.setLayoutParams(gridParams);
addView(numContainer);

數字鍵盤這里用一個數組存數字內容，遍歷添加，注意此處由于第10個的子View的時候是空白的，所以當遍歷到第10個元素的時候，可以將其隱藏。遍歷完后再單獨添加刪除按鈕。

2.輸入邏輯

頁面布局完成了，接下來就是密碼輸入的邏輯部分，最終的效果是每點擊一次數字，密碼位就填充一個，每點擊刪除按鈕一次，密碼位就回退一個，輸入4個數字之后，即完成輸入，獲取結果，并重置密碼位。這里用一個StringBuilder變量來記錄當前已輸入的密碼，每次添加就append進去，每次刪除就調用deleteCharAt。

由于點擊數字按下的時候填充，松開的時候?yàn)榭招臓顟B(tài)，所以可以在ACTION_DOWN和ACTION_UP事件中分別操作:

numTv.setOnTouchListener(new OnTouchListener() {
    @Override
    public boolean onTouch(View v, MotionEvent event) {
      switch (event.getAction()){
        case MotionEvent.ACTION_DOWN:
          numBgIv.setFillCircle();
          numTv.setTextColor(Color.WHITE);
          if(mPassWord.length() < 4){
            mPassWord.append(numTv.getText());
            mResultIvList.get(mPassWord.length()-1).setFillCircle();
            if(mInputListener!=null && mPassWord.length() == 4){
              //已完整輸入4個
            }
          }
          break;
        case MotionEvent.ACTION_UP:
          numBgIv.setStrokeCircle();
          numTv.setTextColor(mPanelColor);
          break;
      }
      return true;
    }
 });

每次點擊的時候，判斷當前已輸入的密碼位是否已經超過4位，如果沒超過，就繼續追加。如果等于4，就說明輸入完成，此時的mPassWord的內容就是最終的密碼，可以用一個接口將其回調出去方便Activity中獲取輸入的密碼：

/**
 * 監聽輸入完畢的接口
 */
private InputListener mInputListener;

public void setInputListener(InputListener mInputListener) {
  his.mInputListener = mInputListener;
}

public interface InputListener{
  void inputFinish(String result);
}

然后在上面的ACTION_DOWN中輸入數字等于4的時候，回調該接口：

if(mInputListener!=null && mPassWord.length() == 4){
   mInputListener.inputFinish(mPassWord.toString());
}

另外，刪除的操作單獨封裝為一個方法：

/**
 * 刪除
 */
public void delete(){
  if(mPassWord.length() == 0){
    return;
  }
  mResultIvList.get(mPassWord.length()-1).setStrokeCircle();
  mPassWord.deleteCharAt(mPassWord.length()-1);
}

注意點：當前無輸入密碼時，直接return不作任何操作，假如已有輸入數字，就刪除最尾部的那個數字。

最后，還要考慮一種情況，即用戶輸入密碼錯誤時的一些反饋，參照平時的習慣，一般是4個密碼位左右擺動并且手機震動效果，震動結束之后，當前存儲的密碼位重置為初始狀態，如下：

/**
 * 輸入錯誤的狀態顯示(包括震動，密碼位左右搖擺效果，重置密碼位)
 */
public void showErrorStatus(){
  mVibrator.vibrate(new long[]{100,100,100,100},-1);
  List<Animator> animators = new ArrayList<>();
  ObjectAnimator translationXAnim = ObjectAnimator.ofFloat(inputResultView, "translationX", -50.0f,50.0f,-50.0f,0.0f);
  translationXAnim.setDuration(400);
  animators.add(translationXAnim);
  AnimatorSet btnSexAnimatorSet = new AnimatorSet();
  btnSexAnimatorSet.playTogether(animators);
  btnSexAnimatorSet.start();
  btnSexAnimatorSet.addListener(new Animator.AnimatorListener() {
    @Override
    public void onAnimationStart(Animator animation) {

    }

    @Override
    public void onAnimationEnd(Animator animation) {
      resetResult();
    }

    @Override
    public void onAnimationCancel(Animator animation) {

    }

    @Override
    public void onAnimationRepeat(Animator animation) {

    }
  });
}

可以看到，在onAnimationEnd中調用了resetResult，即動畫結束時重置密碼，resetResult方法如下：

/**
 * 重置密碼輸入
 */
public void resetResult(){
  for(int i=0; i<mResultIvList.size(); i++){
    mResultIvList.get(i).setStrokeCircle();
  }
  mPassWord.delete(0, 4);
}

遍歷所有密碼位View設置為空心，并且刪除當前mPassWord變量存儲的所有內容。

完整代碼

完整的自定義數字密碼鎖代碼如下：

package com.example.zjyang.viewtest.view;

import android.animation.Animator;
import android.animation.AnimatorSet;
import android.animation.ObjectAnimator;
import android.app.Service;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.os.Vibrator;
import android.util.AttributeSet;
import android.util.DisplayMetrics;
import android.view.Gravity;
import android.view.MotionEvent;
import android.view.View;
import android.view.ViewGroup;
import android.widget.GridLayout;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.RelativeLayout;
import android.widget.TextView;

import java.util.ArrayList;
import java.util.List;

import static android.widget.RelativeLayout.CENTER_HORIZONTAL;
import static android.widget.RelativeLayout.CENTER_IN_PARENT;

/**
 * Created by IT_ZJYANG on 2018/1/22.
 * 數字解鎖鍵盤View
 */

public class NumLockPanel extends LinearLayout {

  private String[] numArr = new String[]{"1","2","3","4","5","6","7","8","9", "", "0"};

  private int mPaddingLeftRight;
  private int mPaddingTopBottom;
  //4個密碼位ImageView
  private ArrayList<CircleImageView> mResultIvList;

  private LinearLayout inputResultView;
  //存儲當前輸入內容
  private StringBuilder mPassWord;
  //振動效果
  private Vibrator mVibrator;
  //整個鍵盤的顏色
  private int mPanelColor;
  //4個密碼位的寬度
  private int mResultIvRadius;
  //數字鍵盤的每個圓的寬度
  private int mNumRadius;
  //每個圓的邊界寬度
  private int mStrokeWidth;

  public NumLockPanel(Context context) {
    this(context, null);
  }

  public NumLockPanel(Context context, AttributeSet attrs) {
    this(context, attrs, 0);
  }

  public NumLockPanel(Context context, AttributeSet attrs, int defStyleAttr) {
    super(context, attrs, defStyleAttr);
    mPaddingLeftRight = dip2px(context, 21);
    mPaddingTopBottom = dip2px(context, 10);
    mPanelColor = Color.BLACK; //顏色代碼可采用Color.parse("#000000");
    mResultIvRadius = dip2px(context, 20);
    mNumRadius = dip2px(context, 66);
    mStrokeWidth = dip2px(context, 2);
    mVibrator = (Vibrator)context.getSystemService(Service.VIBRATOR_SERVICE);
    mResultIvList = new ArrayList<>();
    mPassWord = new StringBuilder();
    setOrientation(VERTICAL);
    setGravity(CENTER_HORIZONTAL);
    initView(context);
  }

  public void initView(Context context){
    //4個結果號碼
    inputResultView = new LinearLayout(context);
    for(int i=0; i<4; i++){
      CircleImageView mResultItem = new CircleImageView(context);
      mResultIvList.add(mResultItem);
      LinearLayout.LayoutParams params = new LinearLayout.LayoutParams(mResultIvRadius, mResultIvRadius);
      params.leftMargin = dip2px(context, 4);
      params.rightMargin = dip2px(context, 4);
      mResultItem.setPadding(dip2px(context, 2),dip2px(context, 2),dip2px(context, 2),dip2px(context, 2));
      mResultItem.setLayoutParams(params);
      inputResultView.addView(mResultItem);
    }
    LinearLayout.LayoutParams params = new LinearLayout.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT, ViewGroup.LayoutParams.WRAP_CONTENT);
    params.gravity = Gravity.CENTER_HORIZONTAL;
    params.bottomMargin = dip2px(context, 34);
    inputResultView.setLayoutParams(params);
    addView(inputResultView);

    //數字鍵盤
    GridLayout numContainer = new GridLayout(context);
    numContainer.setColumnCount(3);
    for(int i=0; i<numArr.length; i++){
      RelativeLayout numItem = new RelativeLayout(context);
      numItem.setPadding(mPaddingLeftRight,mPaddingTopBottom,mPaddingLeftRight,mPaddingTopBottom);
      RelativeLayout.LayoutParams gridItemParams = new RelativeLayout.LayoutParams(mNumRadius, mNumRadius);
      gridItemParams.addRule(CENTER_IN_PARENT);
      final TextView numTv = new TextView(context);
      numTv.setText(numArr[i]);
      numTv.setTextColor(mPanelColor);
      numTv.setTextSize(30);
      numTv.setGravity(Gravity.CENTER);
      numTv.setLayoutParams(gridItemParams);
      final CircleImageView numBgIv = new CircleImageView(context);
      numBgIv.setLayoutParams(gridItemParams);
      numTv.setOnTouchListener(new OnTouchListener() {
        @Override
        public boolean onTouch(View v, MotionEvent event) {
          switch (event.getAction()){
            case MotionEvent.ACTION_DOWN:
              numBgIv.setFillCircle();
              numTv.setTextColor(Color.WHITE);
              if(mPassWord.length() < 4){
                mPassWord.append(numTv.getText());
                mResultIvList.get(mPassWord.length()-1).setFillCircle();
                if(mInputListener!=null && mPassWord.length() == 4){
                  mInputListener.inputFinish(mPassWord.toString());
                }
              }
              break;
            case MotionEvent.ACTION_UP:
              numBgIv.setStrokeCircle();
              numTv.setTextColor(mPanelColor);
              break;
          }
          return true;
        }
      });

      numItem.addView(numBgIv);
      numItem.addView(numTv);
      numContainer.addView(numItem);
      if(i == 9){
        numItem.setVisibility(INVISIBLE);
      }
    }

    //刪除按鈕
    RelativeLayout deleteItem = new RelativeLayout(context);
    deleteItem.setPadding(mPaddingLeftRight,mPaddingTopBottom,mPaddingLeftRight,mPaddingTopBottom);
    RelativeLayout.LayoutParams gridItemParams = new RelativeLayout.LayoutParams(mNumRadius, mNumRadius);
    gridItemParams.addRule(CENTER_IN_PARENT);
    //假如刪除按鈕是設置自定義圖片資源的話，可用注釋這段
    //ImageView deleteIv = new ImageView(context);
    //deleteIv.setImageResource(R.drawable.icn_delete_pw);
    //deleteIv.setLayoutParams(gridItemParams);
    //deleteItem.addView(deleteIv);
    TextView deleteTv = new TextView(context);
    deleteTv.setText("Delete");
    deleteTv.setTextColor(mPanelColor);
    deleteTv.setTextSize(dip2px(context, 8));
    deleteTv.setLayoutParams(gridItemParams);
    deleteTv.setGravity(Gravity.CENTER);
    deleteItem.addView(deleteTv);
    numContainer.addView(deleteItem);
    deleteTv.setOnClickListener(new OnClickListener() {
      @Override
      public void onClick(View v) {
        delete();
      }
    });

    LinearLayout.LayoutParams gridParams = new LinearLayout.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT, ViewGroup.LayoutParams.WRAP_CONTENT);
    gridParams.gravity = Gravity.CENTER_HORIZONTAL;
    numContainer.setLayoutParams(gridParams);
    addView(numContainer);
  }

  /**
   * 輸入錯誤的狀態顯示(包括震動，密碼位左右搖擺效果，重置密碼位)
   */
  public void showErrorStatus(){
    mVibrator.vibrate(new long[]{100,100,100,100},-1);
    List<Animator> animators = new ArrayList<>();
    ObjectAnimator translationXAnim = ObjectAnimator.ofFloat(inputResultView, "translationX", -50.0f,50.0f,-50.0f,0.0f);
    translationXAnim.setDuration(400);
    animators.add(translationXAnim);
    AnimatorSet btnSexAnimatorSet = new AnimatorSet();
    btnSexAnimatorSet.playTogether(animators);
    btnSexAnimatorSet.start();
    btnSexAnimatorSet.addListener(new Animator.AnimatorListener() {
      @Override
      public void onAnimationStart(Animator animation) {

      }

      @Override
      public void onAnimationEnd(Animator animation) {
        resetResult();
      }

      @Override
      public void onAnimationCancel(Animator animation) {

      }

      @Override
      public void onAnimationRepeat(Animator animation) {

      }
    });
  }

  /**
   * 刪除
   */
  public void delete(){
    if(mPassWord.length() == 0){
      return;
    }
    mResultIvList.get(mPassWord.length()-1).setStrokeCircle();
    mPassWord.deleteCharAt(mPassWord.length()-1);
  }

  /**
   * 重置密碼輸入
   */
  public void resetResult(){
    for(int i=0; i<mResultIvList.size(); i++){
      mResultIvList.get(i).setStrokeCircle();
    }
    mPassWord.delete(0, 4);
  }

  /**
   * 監聽輸入完畢的接口
   */
  private InputListener mInputListener;

  public void setInputListener(InputListener mInputListener) {
    this.mInputListener = mInputListener;
  }

  public interface InputListener{
    void inputFinish(String result);
  }


  /**
   * dip/dp轉像素
   *
   * @param dipValue
   *      dip或 dp大小
   * @return 像素值
   */
  public static int dip2px(Context context, float dipValue) {
    DisplayMetrics metrics = context.getResources().getDisplayMetrics();
    return (int) (dipValue * (metrics.density) + 0.5f);
  }

  /**
   * 圓形背景ImageView（設置實心或空心）
   */
  public class CircleImageView extends ImageView{

    private Paint mPaint;
    private int mWidth;
    private int mHeight;

    public CircleImageView(Context context) {
      this(context, null);
    }

    public CircleImageView(Context context, AttributeSet attrs) {
      this(context, attrs, 0);
    }

    public CircleImageView(Context context, AttributeSet attrs, int defStyleAttr) {
      super(context, attrs, defStyleAttr);
      initView(context);
    }

    public void initView(Context context){
      mPaint = new Paint();
      mPaint.setStyle(Paint.Style.STROKE);
      mPaint.setColor(mPanelColor);
      mPaint.setStrokeWidth(mStrokeWidth);
      mPaint.setAntiAlias(true);
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
      super.onSizeChanged(w, h, oldw, oldh);
      mWidth = w;
      mHeight = h;
    }

    @Override
    public void draw(Canvas canvas) {
      canvas.drawCircle(mWidth/2, mHeight/2, mWidth/2 - 6, mPaint);
      super.draw(canvas);
    }

    /**
     * 設置圓為實心狀態
     */
    public void setFillCircle(){
      mPaint.setStyle(Paint.Style.FILL);
      invalidate();
    }

    /**
     * 設置圓為空心狀態
     */
    public void setStrokeCircle(){
      mPaint.setStyle(Paint.Style.STROKE);
      invalidate();
    }
  }
}

使用

在Activity的布局文件中：

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:tools="http://schemas.android.com/tools"
  android:id="@+id/activity_main"
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  android:background="#ffffff"
  tools:context="com.example.zjyang.viewtest.MainActivity">

  <com.example.zjyang.viewtest.view.NumLockPanel
    android:id="@+id/num_lock"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_marginTop="30dp">

  </com.example.zjyang.viewtest.view.NumLockPanel>
</RelativeLayout>

在代碼中監聽輸入的密碼結果：

public class MainActivity extends AppCompatActivity {

  private NumLockPanel mNumLockPanel;

  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_main);

    mNumLockPanel = (NumLockPanel) findViewById(R.id.num_lock);
    mNumLockPanel.setInputListener(new NumLockPanel.InputListener() {
      @Override
      public void inputFinish(String result) {
        //此處result即為輸入結果
        Toast.makeText(MainActivity.this, result, Toast.LENGTH_SHORT).show();
        //錯誤效果示例
        mNumLockPanel.showErrorStatus();
      }
    });
  }
}

最后，在自定義View構造方法中初始化了圓圓和數字的顏色風格，以及空心圓的邊界粗細大小，可根據需求自行更改。

以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持腳本之家。

相關文章

最新評論
