Spring Boot Admin實現服務健康預警功能
Over View
上一篇文章主要介紹了Spring Boot Admin的概況以及我們?nèi)绾卧谙到y(tǒng)中引入和使用Spring Boot Admin,以此來幫助我們更加了解自己的系統,做到能快速發現、排查問題。本篇文章將用代碼演示Spring Boot Admin的消息通知功能,并利用這個開箱即用的特性來個性化我們的需求,優化我們在服務治理方面的工作效率。
Spring Boot Admin內置了多種開箱即用的系統通知渠道,包括郵件、Slack、Telegram、Hipchat等多種社交媒體的通知渠道。但是考慮到它所支持的大都是一些國外的主流社交媒體,在國內的本地化可能并不是那么的友好。不過沒關系Spring Boot Admin也提供了通用的接口,使得用戶可以基于他所提供的接口來自定義通知方式。下面使用Spring Boot Admin的通知功能來實現基于郵件和國內辦公軟件“飛書”的服務健康預警。
郵件預警
依賴引入
在Spring Boot Admin的服務端項目中引入郵件相關依賴
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-mail</artifactId> </dependency>
添加配置
添加Spring Mail相關配置,我們配置好我們郵箱的Smtp服務器相關信息
spring.mail.host=your email smtp server spring.mail.password=your password spring.mail.port=your email smtp server port spring.mail.test-connection=true spring.mail.username=837718548@qq.com
添加Spring Boot Admin(SBA)中相關的郵件配置,以下是SBA官方提供的郵件相關參數
Property name | Description | Default value |
---|---|---|
spring.boot.admin.notify.mail.enabled | Enable mail notifications | true |
spring.boot.admin.notify.mail.ignore-changes | Comma-delimited list of status changes to be ignored. Format: "<from-status>:<to-status>". Wildcards allowed. | "UNKNOWN:UP" |
spring.boot.admin.notify.mail.template | Resource path to the Thymeleaf template used for rendering. | "classpath:/META-INF/spring-boot-admin-server/mail/status-changed.html" |
spring.boot.admin.notify.mail.to | Comma-delimited list of mail recipients | "root@localhost" |
spring.boot.admin.notify.mail.cc | Comma-delimited list of carbon-copy recipients | |
spring.boot.admin.notify.mail.from | Mail sender | "Spring Boot Admin <noreply@localhost>" |
spring.boot.admin.notify.mail.additional-properties | Additional properties which can be accessed from the template |
我們這里使用如下配置
spring.boot.admin.notify.mail.from=837718548@qq.com spring.boot.admin.notify.mail.ignore-changes="" spring.boot.admin.notify.mail.to=目標郵箱
配置中的ignore-changes參數表示服務從一個狀態變成其他狀態時發出預警,例如:"UNKNOWN:UP" 表示服務從未知狀態變成UP時,發出通知。當其值是""時,表示任何狀態變更都會發出預警。若想指定其他參數,參考上面的參數表。

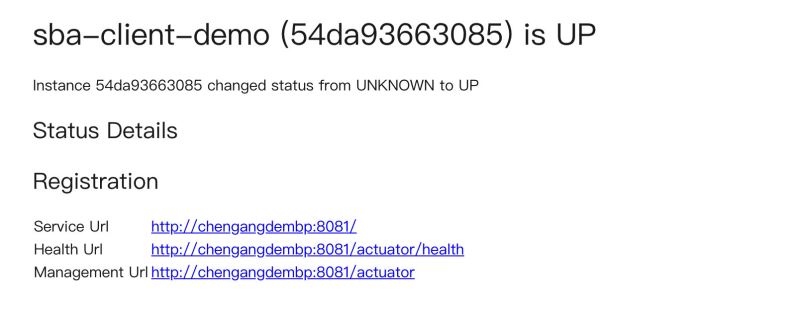

完成上述操作后,重啟Spring Boot Admin服務端,當客戶端服務注冊進來并且狀態變?yōu)閁P時,我們可以收到一封郵件:
添加郵件模版
Spring Boot admin發送的郵件可以自定義模板樣式,我們使用thymeleaf語法編寫郵件模板,示例模板代碼可參考本文在Github的代碼示例倉庫,編寫完模板文件之后,將文件放入項目src/main/resources/templates中,并且在配置文件中增加指定模板文件的地址:
spring.boot.admin.notify.mail.template=classpath:/templates/status-changed.html

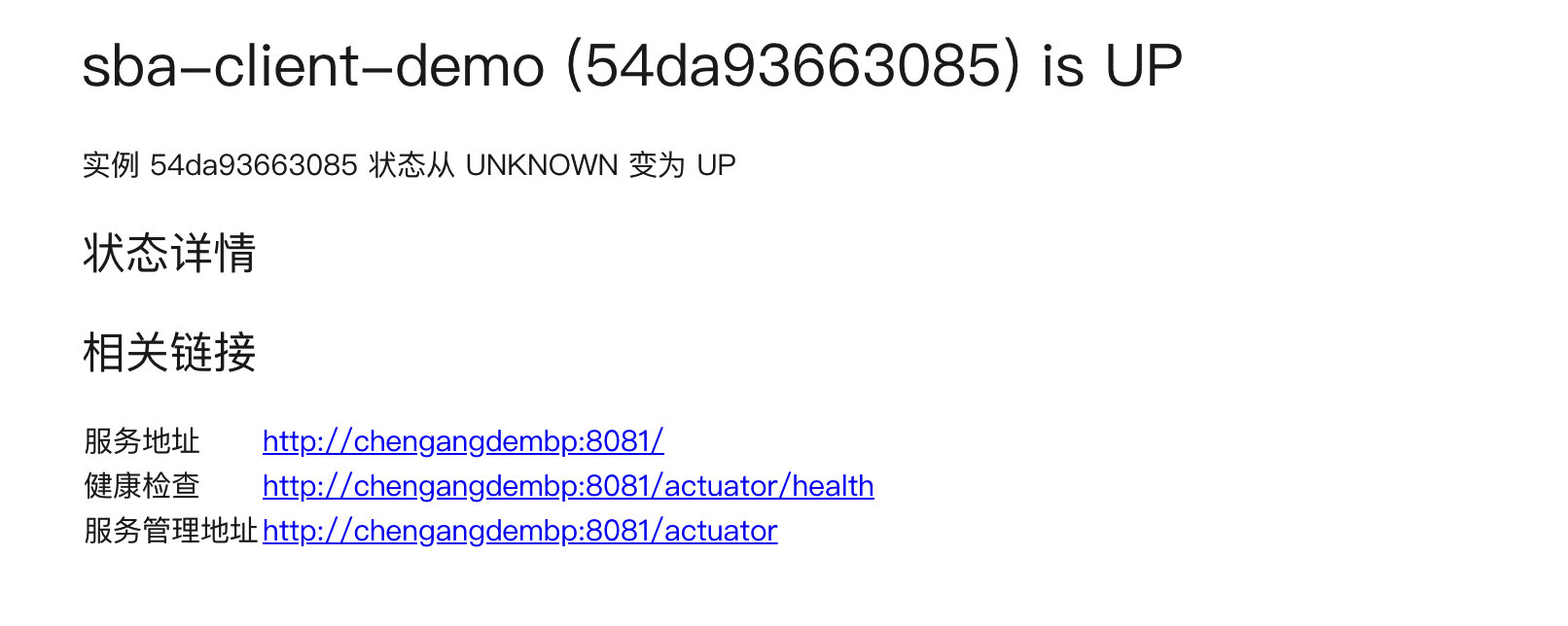

重啟Spring Boot Admin服務端,當客戶端服務注冊進來并且狀態變?yōu)閁P時,我們可以收到一封郵件,如下是我們對郵件進行本地化之后的樣式:
飛書預警
由于Spring Boot Admin內置的通知渠道都是國外的社交媒體,不過它也提供了自定義通知渠道的接口,所以我們很容易就可以自定義通知渠道,下面演示集成辦公軟件飛書的通知。
獲取通知地址
飛書中提供了聊天機器人,我們只需調用機器人的WebHook就可以實現詳細的推送(企業微信,釘釘也具有類似功能)。
自定義通知渠道
Spring Boot Admin中提供了一個AbstractStatusChangeNotifier抽象類,我們可以通過繼承它來自定義通知渠道
public class FlyBookNotifier extends AbstractStatusChangeNotifier { private static final String DEFAULT_MESSAGE = "#{instance.registration.name} (#{instance.id}) 狀態發生轉變 #{lastStatus} ➡️ #{instance.statusInfo.status} " + "\n" + "\n 實例詳情:#{instanceEndpoint}"; private final SpelExpressionParser parser = new SpelExpressionParser(); private RestTemplate restTemplate; private URI webhookUrl; private Expression message; public FlyBookNotifier(InstanceRepository repository, RestTemplate restTemplate) { super(repository); this.restTemplate = restTemplate; this.message = parser.parseExpression(DEFAULT_MESSAGE, ParserContext.TEMPLATE_EXPRESSION); } @Override protected Mono<Void> doNotify( InstanceEvent event, Instance instance) { if (webhookUrl == null) { return Mono.error(new IllegalStateException("'webhookUrl' must not be null.")); } return Mono .fromRunnable(() -> restTemplate.postForEntity(webhookUrl, createMessage(event, instance), Void.class)); } public void setRestTemplate(RestTemplate restTemplate) { this.restTemplate = restTemplate; } protected Object createMessage(InstanceEvent event, Instance instance) { Map<String, Object> messageJson = new HashMap<>(); messageJson.put("title", "👹警告&👼提醒"); messageJson.put("text", getText(event, instance)); HttpHeaders headers = new HttpHeaders(); headers.setContentType(MediaType.APPLICATION_JSON); return new HttpEntity<>(messageJson, headers); } protected String getText(InstanceEvent event, Instance instance) { Map<String, Object> root = new HashMap<>(); root.put("event", event); root.put("instance", instance); root.put("instanceEndpoint", instance.getEndpoints().toString()); root.put("lastStatus", getLastStatus(event.getInstance())); StandardEvaluationContext context = new StandardEvaluationContext(root); context.addPropertyAccessor(new MapAccessor()); return message.getValue(context, String.class); } public URI getWebhookUrl() { return webhookUrl; } public void setWebhookUrl(URI webhookUrl) { this.webhookUrl = webhookUrl; } public String getMessage() { return message.getExpressionString(); } public void setMessage(String message) { this.message = parser.parseExpression(message, ParserContext.TEMPLATE_EXPRESSION); } }
上面代碼是一個示例,用戶可以根據自己的需求來自定義消息體的格式和內容。
隨后我們在Spring中創建該通知類的bean
@Configuration public static class NotifierConfiguration { @Bean @ConditionalOnMissingBean @ConfigurationProperties("spring.boot.admin.notify.flybook") public FlyBookNotifier flyBookNotifier(InstanceRepository repository) { return new FlyBookNotifier(repository, new RestTemplate()); } }
最后我們在項目的配置文件中添加我們飛書渠道的配置信息
spring.boot.admin.notify.flybook.ignore-changes="" spring.boot.admin.notify.flybook.webhook-url=https://open.feishu.cn/open-apis/bot/hook...

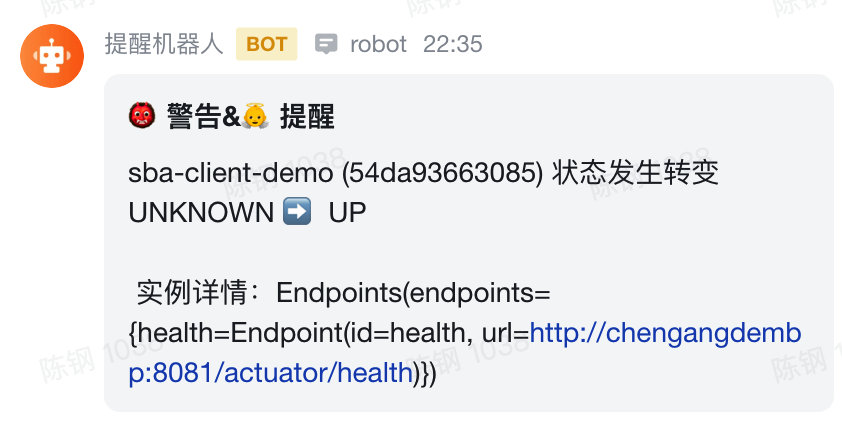

完成上述操作后,重啟Spring Boot Admin服務端,當客戶端服務注冊進來并且狀態變?yōu)閁P時,我們可以在飛書端收到Spring Boot Admin自動推過來的預警信息:
至此,我們的自定義消息渠道就已經完成。通過繼承AbstractStatusChangeNotifier抽象類,我們可以很輕易的自定義自己想要實現的推送渠道(設計模式:模板方法模式)。
總結
本文主要介紹了Spring Boot Admin中所提供的多種消息預警推送渠道,并且我們可以通過自定義消息預警渠道來滿足我們自身的需求,整個過程并不需要耗費太多的人力和時間成本。我們用了兩個示例來演示如何實現Spring Boot Admin的消息預警功能,分別是郵件預警和自定義的飛書預警。
本文的示例代碼
SBA-client:https://github.com/cg837718548/sba-client-demo.git
SBA-server:https://github.com/cg837718548/sba-server-demo.git
