openlayers4.6.5實現距離量測和面積量測
本文實例為大家分享了openlayers4.6.5實現距離量測和面積量測的具體代碼,供大家參考,具體內容如下
版本: openlayers4.6.5

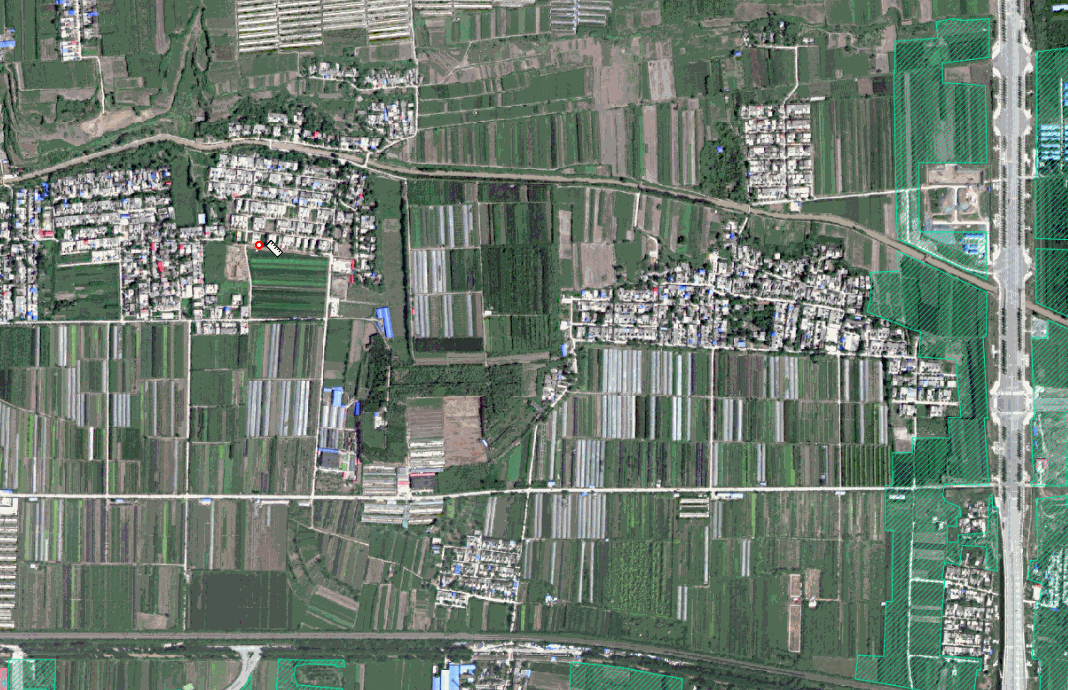

效果圖:
小插曲:
原本使用ol官方提供的 量測例子,就挺不錯的。但是由于放在項目中后。量測樣式不知道為啥出不來,找了半天原因 也沒有找到,單獨在一個html中完全沒問題。所以推測可能和項目中哪些地方有沖突,但是問題暫時沒找出來,項目也比較急,所以只能自己實現文字標注部門的樣式,實現效果如上圖gif所示。
實現原理:
量測功能還是使用了ol例子提供的源碼,修改部分主要是在標注這一塊,另外就是時刻去添加這個標注 然后時刻刪除這個標注 就可以了。
完整的js代碼如下(鼠標樣式圖標 我沒放上來,有需要的我給你發郵箱):
var draw; var click=false; var output=0; var vector; var source; var lastPolygonLabelFeature;//記錄上一個面標注要素 var lastLengthLabelFeature;//記錄上一個點標注要素 $( function(){ $("#measureDistance").click(function(){ if(draw){ map.removeInteraction(draw); } addInteraction("length"); setMeasureCur(); }) $("#measureArea").click(function(){ if(draw){ map.removeInteraction(draw); } addInteraction("area"); setMeasureCur(); }) $("#measureClear").click(function(){ map.removeInteraction(draw); vector.setSource(null); source=new ol.source.Vector(); vector.setSource(source); lastPolygonLabelFeature=null; lastLengthLabelFeature=null; click=false; sketch = null; output="0"; reSetCur(); }) function setMeasureCur(){ $('#map').css({ cursor:"url(../../static/images/measureIcon/measure.cur), auto" }); } function reSetCur(){ $('#map').css('cursor','default'); } source = new ol.source.Vector(); vector = new ol.layer.Vector({ source: source, style: new ol.style.Style({ fill: new ol.style.Fill({//面的填充顏色 color: 'rgba(255, 0, 0, 0.1)' }), stroke: new ol.style.Stroke({ color: 'rgb(255,116,3)', width: 2 }), image: new ol.style.Circle({ radius: 3, stroke: new ol.style.Stroke({ color: 'rgba(255, 0, 0,1)', width: 2 }), fill: new ol.style.Fill({ color: 'rgba(255,255,255)' }) }) }) }); map.addLayer(vector); var sketch; var pointerMoveHandler = function(evt) { if (evt.dragging) { return; } var Coord; if(sketch){ var geom = sketch.getGeometry(); if (geom instanceof ol.geom.Polygon) { if(lastPolygonLabelFeature){ //鼠標移動 不停的添加和刪除 source.removeFeature(lastPolygonLabelFeature); } Coord = geom.getInteriorPoint().getCoordinates(); //新建一個要素ol.Feature var newFeature = new ol.Feature({ geometry: new ol.geom.Point(Coord), //幾何信息 name: output }); lastPolygonLabelFeature=newFeature; newFeature.setStyle(createLabelStyle(newFeature,0,0)); } else if (geom instanceof ol.geom.LineString) { if(lastLengthLabelFeature){ source.removeFeature(lastLengthLabelFeature); } Coord = geom.getLastCoordinate(); //新建一個要素ol.Feature var newFeature = new ol.Feature({ geometry: new ol.geom.Point(Coord), //幾何信息 name: output }); lastLengthLabelFeature=newFeature; newFeature.setStyle(createLabelStyle(newFeature,35,-10)); } //設置要素樣式 source.addFeature(newFeature); } }; map.on('pointermove', pointerMoveHandler); map.on('click', function(evt){ var coordinate = evt.coordinate; //鼠標單擊點的坐標 console.log(coordinate); if(output=="0"){ lastPolygonLabelFeature=null; if(lastLengthLabelFeature){ source.removeFeature(lastLengthLabelFeature); lastLengthLabelFeature=null; } return; } var Coord; if(sketch){ var geom = sketch.getGeometry(); if (geom instanceof ol.geom.Polygon) { if(lastPolygonLabelFeature){ source.removeFeature(lastPolygonLabelFeature); } Coord = geom.getInteriorPoint().getCoordinates(); //新建一個要素ol.Feature var newFeature = new ol.Feature({ geometry: new ol.geom.Point(Coord), //幾何信息 name: output }); lastPolygonLabelFeature=newFeature; newFeature.setStyle(createLabelStyle(newFeature,0,0)); //設置要素樣式 source.addFeature(newFeature); } else if (geom instanceof ol.geom.LineString) { Coord = geom.getLastCoordinate(); //新建一個要素ol.Feature var newFeature = new ol.Feature({ geometry: new ol.geom.Point(Coord), //幾何信息 name: output }); newFeature.setStyle(createLabelStyle(newFeature,35,-10)); //設置要素樣式 source.addFeature(newFeature); } var pointFeature = new ol.Feature({ geometry: new ol.geom.Point(coordinate), //幾何信息 name: output }); source.addFeature(pointFeature); } }); //矢量標注樣式設置函數,設置image為圖標ol.style.Icon function createLabelStyle(feature,offsetX,offsetY){ return new ol.style.Style({ // image: new ol.style.Icon({ // anchor: [0.5, 60], //錨點 // anchorOrigin:'top-right', //錨點源 // anchorXUnits: 'fraction', //錨點X值單位 // anchorYUnits: 'pixels', //錨點Y值單位 // offsetOrigin: 'top-right', //偏移原點 // opacity: 0.75, // src: 'OL3Demo/images/label/blueIcon.png' //圖標的URL // }), text: new ol.style.Text({ textAlign: 'center', //位置 textBaseline: 'middle', //基準線 font: 'normal 10px sans-serif', //文字樣式 text: feature.get('name'), //文本內容 fill: new ol.style.Fill({ //文本填充樣式(即文字顏色) color: 'white' }), stroke: new ol.style.Stroke({ color: 'black', width: 5 }), offsetX:offsetX, offsetY:offsetY }) }); } function addInteraction(drawType) { var type = (drawType== 'area' ? 'Polygon' : 'LineString'); draw = new ol.interaction.Draw({ source: source, type: type, style: new ol.style.Style({ fill: new ol.style.Fill({ color: 'rgba(255, 0, 0, 0.2)' }), stroke: new ol.style.Stroke({ color: 'rgb(255,116,3)', // lineDash: [10, 10],//虛線 width: 2 }), image: new ol.style.Circle({ radius: 5, stroke: new ol.style.Stroke({ color: 'rgba(255, 0, 0, 0.1)' }), fill: new ol.style.Fill({ color: 'rgba(255,116,3, 0.3)' }) }) }) }); map.addInteraction(draw); var listener; draw.on('drawstart', function(evt) { // set sketch sketch = evt.feature; listener = sketch.getGeometry().on('change', function(evt) { var geom = evt.target; if (geom instanceof ol.geom.Polygon) { output = formatArea(geom); } else if (geom instanceof ol.geom.LineString) { output = formatLength(geom); } }); }, this); draw.on('drawend', function() { // unset sketch sketch = null; ol.Observable.unByKey(listener); output="0"; }, this); } var formatLength = function(line) { var length = ol.Sphere.getLength(line); var output; if (length > 100) { output = (Math.round(length / 1000 * 100) / 100) + ' ' + '千米'; } else { output = (Math.round(length * 100) / 100) + ' ' + '米'; } return output; }; var formatArea = function(polygon) { var area = ol.Sphere.getArea(polygon); var output; if (area > 10000) { output = (Math.round(area / 1000000 * 100) / 100) + ' ' + '平方千米'; } else { output = (Math.round(area * 100) / 100) + ' ' + '平方米'; } return output; }; })
以上就是本文的全部?jī)?nèi)容,希望對大家的學習有所幫助,也希望大家多多支持腳本之家。
