Springboot整合camunda+mysql的集成流程分析

更新時間：2021年06月24日 14:26:08 作者：大齡碼農有夢想

本文介紹基于mysql數據庫，如何實現camunda與springboot的集成，如何實現基于springboot運行camunda開源流程引擎，本文分步驟圖文相結合給大家介紹的非常詳細，需要的朋友參考下吧

一、創建springboot工程

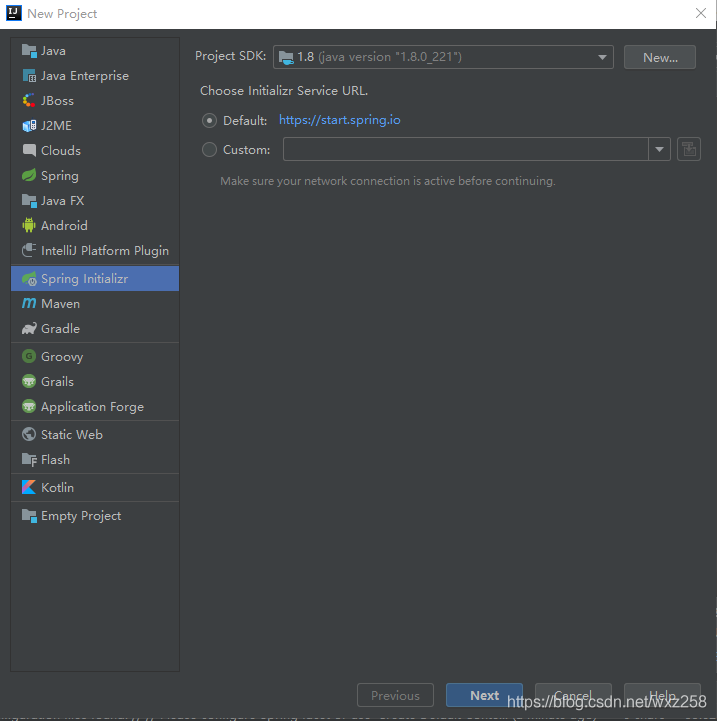

使用IDEA工具，選擇File->New->Project，選擇Spring Initialzr

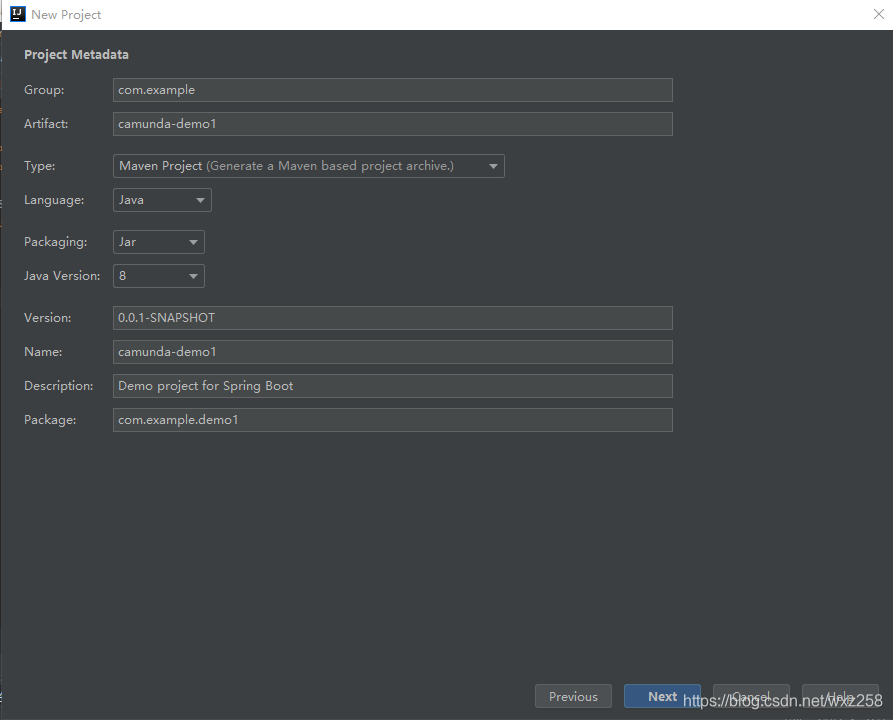

輸入springboot工程基本信息，本示例命名為“camunda-demo1”, jdk版本選擇8

在選擇springboot組件的時候，需要選擇Spring Web、JDBC API、MySql Driver 這三個組件。點擊下一步完成即可。

二、修改maven配置

2.1、修改springboot版本號

由于camunda版本與springboot版本有匹配關系，所以需要修改springboot版本為2.4.3，

官方推薦Camunda7.1.5版本使用Spring Boot 2.4.x版本

具體配置參考camunda官方說明文檔：https://docs.camunda.org/manual/7.15/user-guide/spring-boot-integration/version-compatibility/

Pom.xm代碼片段:

<parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.4.3</version>
        <relativePath/>
    </parent>

2.2、引入camunda包

由于本示例要使用camunda流程引擎、web界面、Rest服務接口，所以需要導入camunda-bpm-spring-boot-starter、camunda-bpm-spring-boot-starter-rest、camunda-bpm-spring-boot-starter-webapp這三個依賴包，如果僅僅是使用流程引擎，只需要引入camunda-bpm-spring-boot-starter就可以了。

完整的pom.xml文件如下：

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">

    <modelVersion>4.0.0</modelVersion>

    <parent>

        <groupId>org.springframework.boot</groupId>

        <artifactId>spring-boot-starter-parent</artifactId>

        <version>2.4.3</version>

        <relativePath/> <!-- lookup parent from repository -->

    </parent>

    <groupId>com.example</groupId>

    <artifactId>camunda-demo1</artifactId>

    <version>0.0.1-SNAPSHOT</version>

    <name>camunda-demo1</name>

    <description>Demo project for Spring Boot</description>

    <properties>

        <java.version>1.8</java.version>

    </properties>

    <dependencies>

        <dependency>

            <groupId>org.springframework.boot</groupId>

            <artifactId>spring-boot-starter-web</artifactId>

        </dependency>

        <dependency>

            <groupId>org.springframework.boot</groupId>

            <artifactId>spring-boot-starter-jdbc</artifactId>

        </dependency>

        <dependency>

            <groupId>mysql</groupId>

            <artifactId>mysql-connector-java</artifactId>

            <scope>runtime</scope>

        </dependency>

        <dependency>

            <groupId>org.springframework.boot</groupId>

            <artifactId>spring-boot-starter-test</artifactId>

            <scope>test</scope>

        </dependency>

        <dependency>

            <groupId>org.camunda.bpm.springboot</groupId>

            <artifactId>camunda-bpm-spring-boot-starter</artifactId>

            <version>7.15.0</version>

        </dependency>

        <dependency>

            <groupId>org.camunda.bpm.springboot</groupId>

            <artifactId>camunda-bpm-spring-boot-starter-rest</artifactId>

            <version>7.15.0</version>

        </dependency>

        <dependency>

            <groupId>org.camunda.bpm.springboot</groupId>

            <artifactId>camunda-bpm-spring-boot-starter-webapp</artifactId>

            <version>7.15.0</version>

        </dependency>

    </dependencies>

    <build>

        <plugins>

            <plugin>

                <groupId>org.springframework.boot</groupId>

                <artifactId>spring-boot-maven-plugin</artifactId>

            </plugin>

        </plugins>

    </build>

</project>

三、修改application.yaml配置

打開工程目錄下的main\resources\application.yaml文件，如果沒有該文件，手動新建一個，錄入如下信息。

# Find more available configuration properties on the following pages of the documentation.

# https://docs.camunda.org/manual/latest/user-guide/camunda-bpm-run/#configure-camunda-bpm-run

# https://docs.camunda.org/manual/latest/user-guide/spring-boot-integration/configuration/#camunda-engine-properties

camunda.bpm:

  generic-properties.properties:

     javaSerializationFormatEnabled: true

  admin-user:

    id: demo

    password: demo

  run:

# https://docs.camunda.org/manual/latest/user-guide/camunda-bpm-run/#cross-origin-resource-sharing

    cors:

      enabled: true

      allowed-origins: "*"

# datasource configuration is required

spring.datasource:

  url: jdbc:mysql://127.0.0.1:3306/camunda715?characterEncoding=UTF-8&useUnicode=true&useSSL=false&zeroDateTimeBehavior=convertToNull&serverTimezone=Asia/Shanghai

  driver-class-name: com.mysql.cj.jdbc.Driver

  username: root

  password: root

# By default, Spring Boot serves static content from any directories called /static or /public or /resources or

# /META-INF/resources in the classpath. To prevent users from accidentally sharing files, this is disabled here by setting static locations to NULL.

# https://docs.spring.io/spring-boot/docs/current/reference/htmlsingle/#boot-features-spring-mvc-static-content

spring.web.resources:

  static-locations: NULL

本示例使用的是mysql數據庫，數據庫URL、username、 password 跟后面數據庫信息保存一致。

四、創建mysql數據庫

Camunda默認使用已預先配置好的H2數據庫，本示例使用mysql數據庫，需要提前創建mysql數據庫并導入Camunda建表腳本。

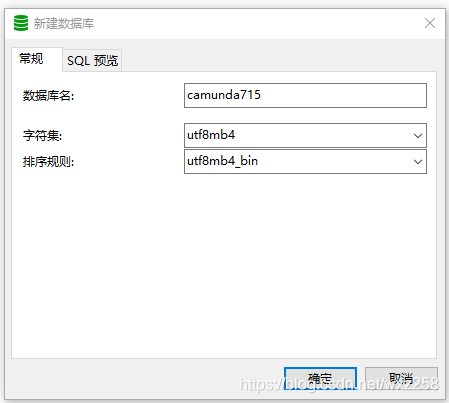

為Camunda平臺創建一個數據庫模式，名稱為camunda715

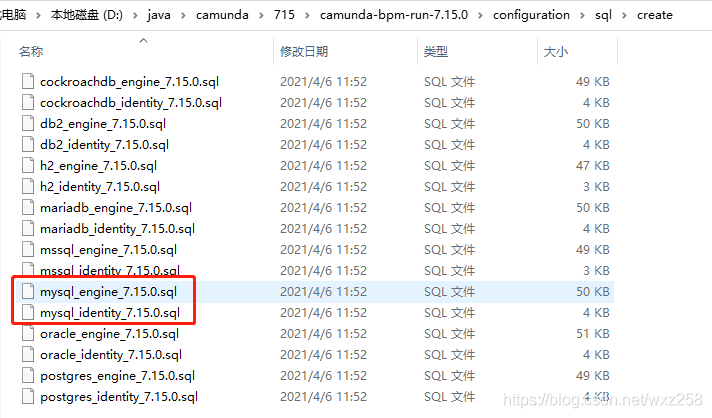

導入SQL腳本。執行創建所有必需的表和默認索引的SQL DDL腳本。這些腳本可以在configuration/sql/create文件夾中找到。共2個腳本，都需要導入。

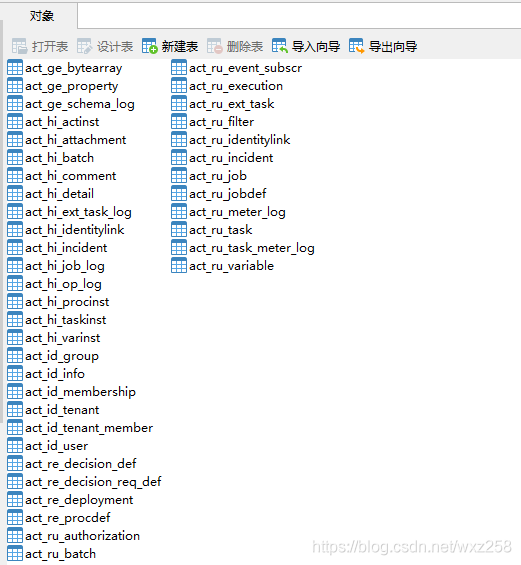

導入完成后的表結構，共40張表：

詳細配置方法參考：https://lowcode.blog.csdn.net/article/details/117564836

五、啟動springboot工程

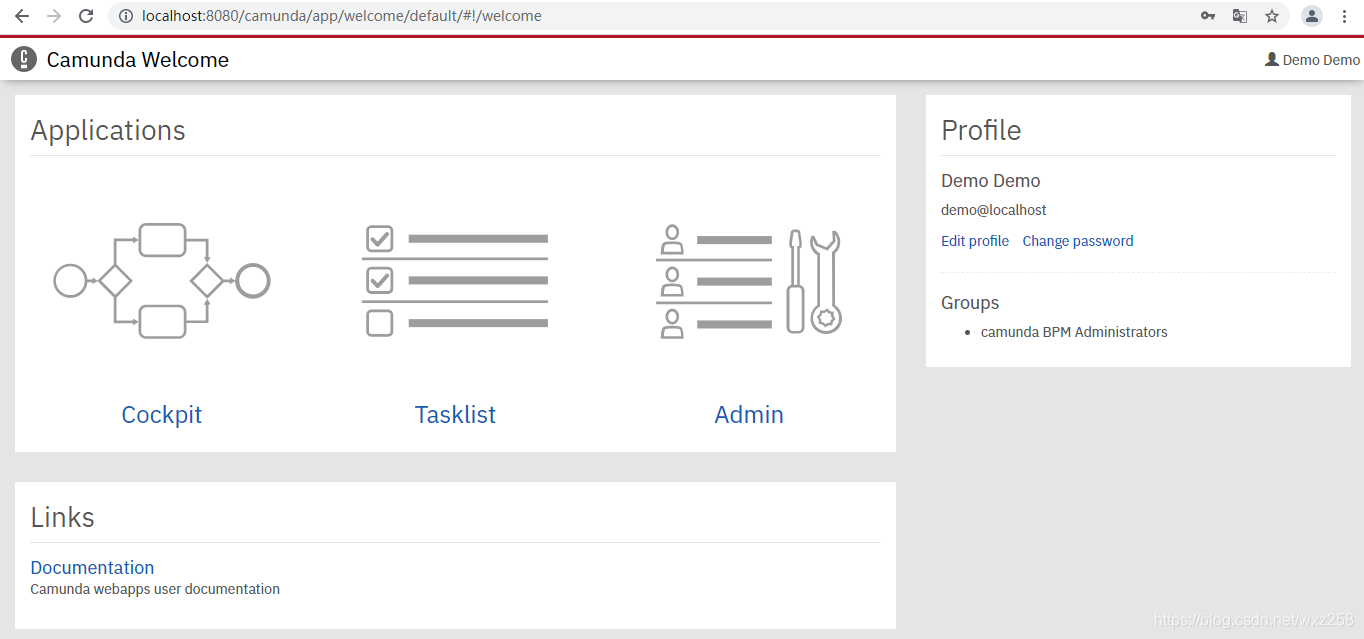

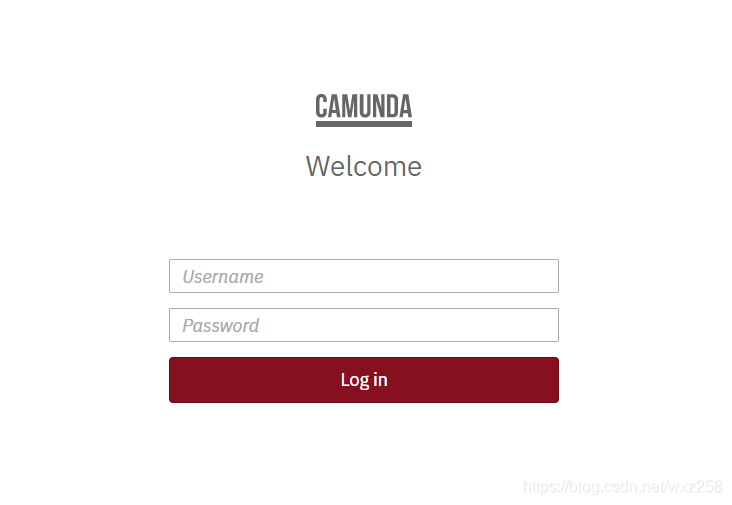

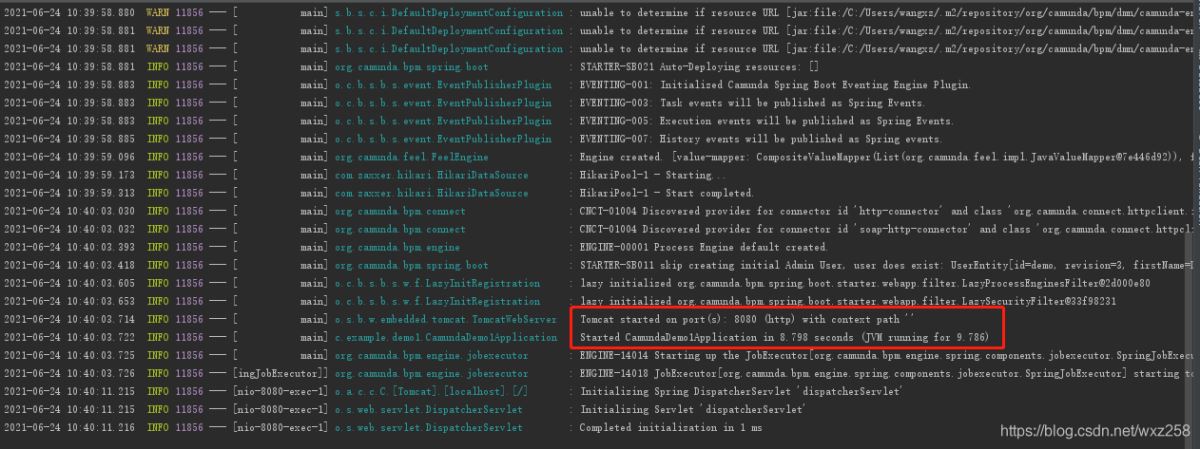

創建springboot工程的時候，自動生成了SpringBootApplication啟動類，運行改類啟動即可。

package com.example.demo1;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class CamundaDemo1Application {

public static void main(String[] args) {
SpringApplication.run(CamundaDemo1Application.class, args);
}

}
