阿里nacos+springboot+dubbo2.7.3統一處理異常的兩種方式
在網上很多關于dubbo異常統一處理的博文，90%都是抄來抄去。大多都是先上一段dubbo中對于異常的統一處理的原碼，然后說一堆的（甚至有12345，五種）不靠譜方案，最后再說“本篇使用的是方案4”，然后再對所謂的方案4寫了一段文字，最后還說不清?。?！
本篇解決方案不會那么羅里吧嗦也不會貼dubbo源碼來湊字?jǐn)?shù)，我就直接從剛結束不久的雙11保衛戰性能全鏈路優化中我們的面對10萬級別TPS的方案中提取的代碼來說明這個dubbo統一處理異常是怎么個處理方式吧！
1. 為什么要拋異常？
不同開發團隊間便于追溯異常的來源以及為了便于定位問題的需要
往往實際開發中的架構是這么一個樣子的：

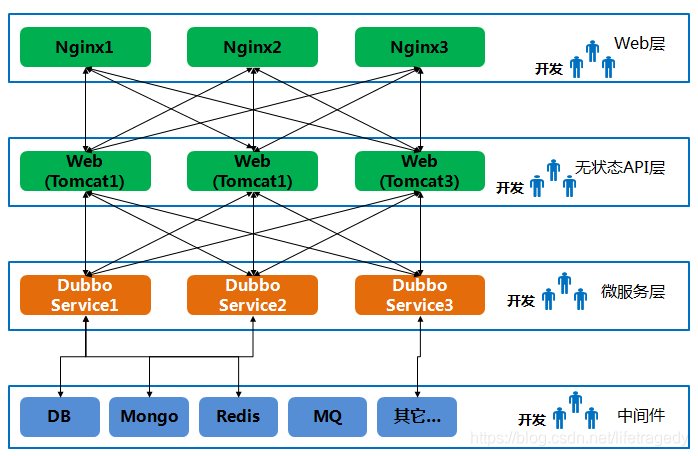

dubbo微服務架構簡圖
不同層的開發人員都是不同的人或者是不同的幾波人馬；
無狀態的API層（一組Tomcat對Nginx Web層的API暴露）是一組開發團隊；
微服務Dubbo層是另一組開發團隊；
在調試、測試、上線后我們經常會發生各種Exception，此時這幾個不同的開發團隊間會互相扯皮、打架，并且大家都要忙于定位這個Exception到底是發生在哪一層，甚至需要追溯Exception發生在哪個點（stackTrace）。
Service層有數據庫事務一致性的問題必須拋出異常
我們都知道在spring中的Service層必須拋出Runtime Exception，否則Service層的方法如果有涉及數據庫的修改操作是不會回滾的。
2. 給出解決方案
其實解決方案真正的無外乎就2種：
- provider向遠程consumer層直接拋RuntimeException即可；
- provider端把所有的Exception進行統一包裝，向consumer端返回json報文體的類似message:xxx,code:500,data{xxx:xxx,xxx:xxx}這樣的消息而在provider端進行“logger.error”的記錄即可；
本文把這2種實現方式都給實現了，下面開始直接show me the code的方式來說話吧。
3. 兩種拋異常的實例解說
環境搭建
nacos1.1.4
我們這邊不用dubbo admin，因?yàn)閐ubbo admin太老且使用不方便，缺少了很多管理微服務所需要的基本功能。并且dubbo從2.6開始已經把dubbo admin從它的主工程里分離了出去，同時dubbo2.6開始支持nacos registry了。
目前來說nacos是最方便、效率最高、功能最強大的微服務發現組件（甚至支持spring cloud）。
下載地址在這里（請戳）：阿里nacos最新下載地址
下載后直接解壓，然后進行nacos配置

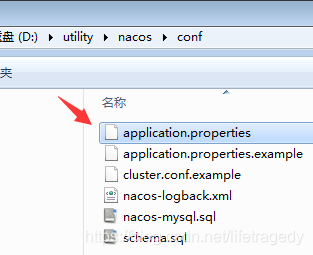

編輯這個application.properties文件，我們把nacos自動服務發現管理端連上自己開發環境上的mysql。
# spring spring.datasource.platform=mysql server.contextPath=/nacos server.servlet.contextPath=/nacos server.port=8848 db.num=1 db.url.0=jdbc:mysql://192.168.56.101:3306/nacos?useUnicode=true&characterEncoding=utf-8&useSSL=false db.user=nacos db.password=111111

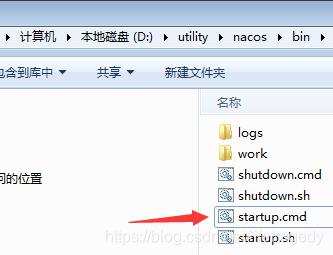

配完后直接雙擊：startup.cmd啟動nacos
登錄界面中使用nacos/nacos即可進行登錄了。

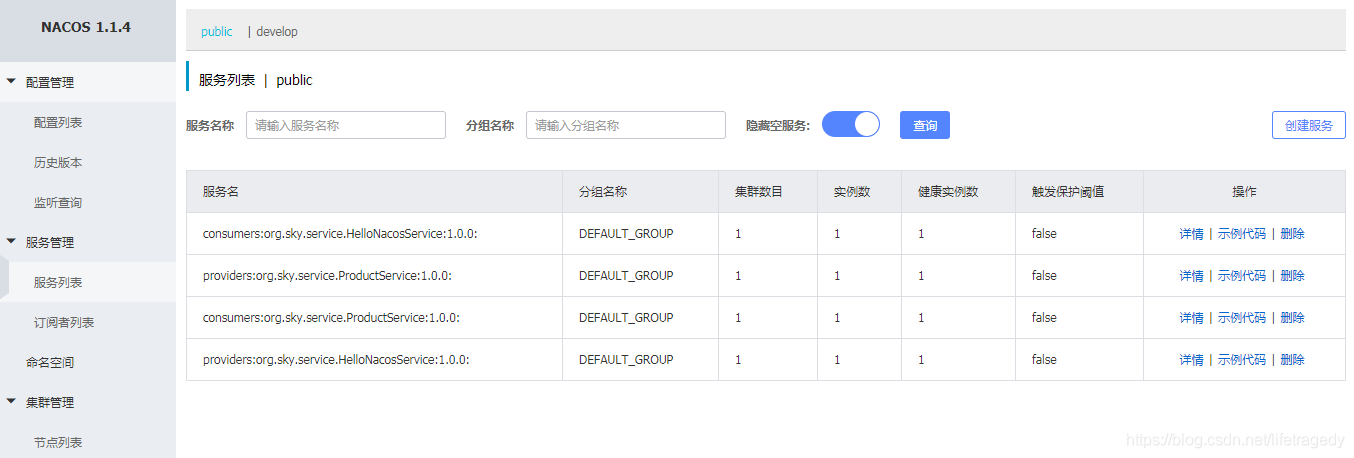

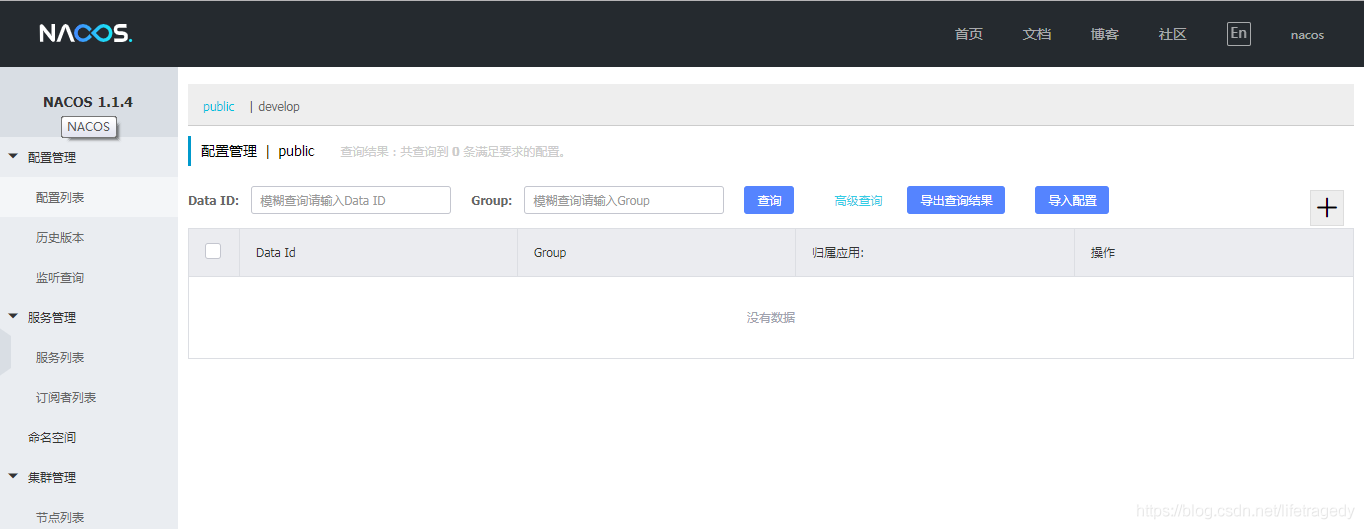

登錄后看到nacos管理界面就說明nacos配置和啟動成功了。接下來我們就要開始書寫dubbo的provider端與consumer端了。
dubbo工程搭建
nacos-parent工程
整個工程我已經放在git上了，地址請戳這里：nacos-dubbo-demo

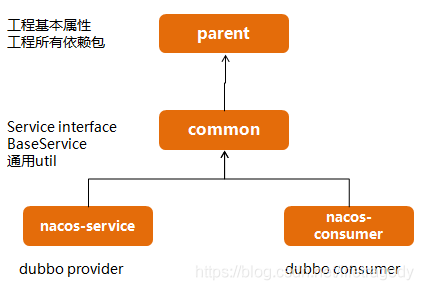

工程的依賴結構如下：
由于dubbo與springboot結合的項目不多，很多網上有的博客也充斥著亂抄、自己都沒有驗證過就上代碼的，因此大多網友們通過網上之言片語拼湊起來的項目在本地很難運行起來，不是maven包沖突就是少這個、那個包。下面給出工程的parent pom文件。
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>org.sky.demo</groupId>
<artifactId>nacos-parent</artifactId>
<version>0.0.1-SNAPSHOT</version>
<packaging>pom</packaging>
<description>Demo project for Spring Boot Dubbo Nacos</description>
<modules>
</modules>
<properties>
<java.version>1.8</java.version>
<spring-boot.version>1.5.15.RELEASE</spring-boot.version>
<dubbo.version>2.7.3</dubbo.version>
<curator-framework.version>4.0.1</curator-framework.version>
<curator-recipes.version>2.8.0</curator-recipes.version>
<druid.version>1.1.20</druid.version>
<guava.version>27.0.1-jre</guava.version>
<fastjson.version>1.2.59</fastjson.version>
<dubbo-registry-nacos.version>2.7.3</dubbo-registry-nacos.version>
<nacos-client.version>1.1.4</nacos-client.version>
<mysql-connector-java.version>5.1.46</mysql-connector-java.version>
<disruptor.version>3.4.2</disruptor.version>
<aspectj.version>1.8.13</aspectj.version>
<nacos-service.version>0.0.1-SNAPSHOT</nacos-service.version>
<skycommon.version>0.0.1-SNAPSHOT</skycommon.version>
<maven.compiler.source>${java.version}</maven.compiler.source>
<maven.compiler.target>${java.version}</maven.compiler.target>
<compiler.plugin.version>3.8.1</compiler.plugin.version>
<war.plugin.version>3.2.3</war.plugin.version>
<jar.plugin.version>3.1.2</jar.plugin.version>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
</properties>
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<version>${spring-boot.version}</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-dependencies</artifactId>
<version>${spring-boot.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
<dependency>
<groupId>org.apache.dubbo</groupId>
<artifactId>dubbo-spring-boot-starter</artifactId>
<version>${dubbo.version}</version>
<exclusions>
<exclusion>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-log4j12</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>org.apache.dubbo</groupId>
<artifactId>dubbo</artifactId>
<version>${dubbo.version}</version>
</dependency>
<dependency>
<groupId>org.apache.curator</groupId>
<artifactId>curator-framework</artifactId>
<version>${curator-framework.version}</version>
</dependency>
<dependency>
<groupId>org.apache.curator</groupId>
<artifactId>curator-recipes</artifactId>
<version>${curator-recipes.version}</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>${mysql-connector-java.version}</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>${druid.version}</version>
</dependency>
<dependency>
<groupId>com.lmax</groupId>
<artifactId>disruptor</artifactId>
<version>${disruptor.version}</version>
</dependency>
<dependency>
<groupId>com.google.guava</groupId>
<artifactId>guava</artifactId>
<version>${guava.version}</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>${fastjson.version}</version>
</dependency>
<dependency>
<groupId>org.apache.dubbo</groupId>
<artifactId>dubbo-registry-nacos</artifactId>
<version>${dubbo-registry-nacos.version}</version>
</dependency>
<dependency>
<groupId>com.alibaba.nacos</groupId>
<artifactId>nacos-client</artifactId>
<version>${nacos-client.version}</version>
</dependency>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>${aspectj.version}</version>
</dependency>
</dependencies>
</dependencyManagement>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>${compiler.plugin.version}</version>
<configuration>
<source>${java.version}</source>
<target>${java.version}</target>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-war-plugin</artifactId>
<version>${war.plugin.version}</version>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-jar-plugin</artifactId>
<version>${jar.plugin.version}</version>
</plugin>
</plugins>
</build>
</project>演示用數據庫(mySQL5.7)建表語句
CREATE TABLE `t_product` ( `product_id` int(11) NOT NULL AUTO_INCREMENT, `product_name` varchar(45) DEFAULT NULL, PRIMARY KEY (`product_id`) ); CREATE TABLE `t_stock` ( `stock_id` int(11) NOT NULL AUTO_INCREMENT, `stock` int(11) DEFAULT NULL, `product_id` int(11) NOT NULL, PRIMARY KEY (`stock_id`) );

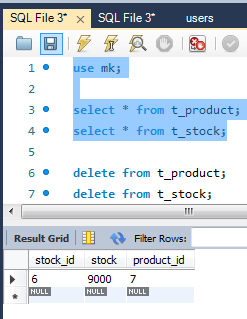

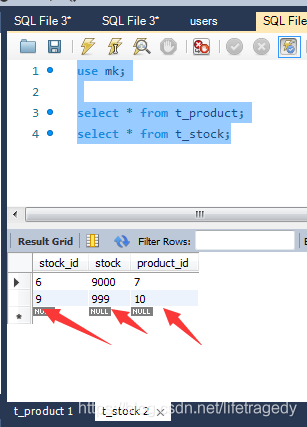

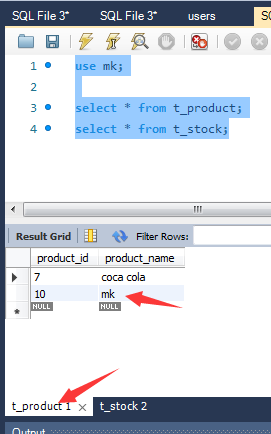

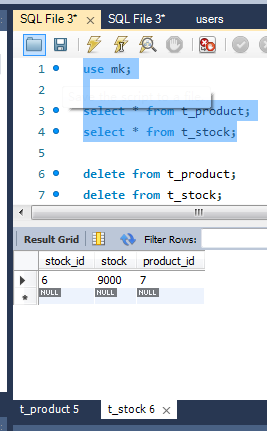

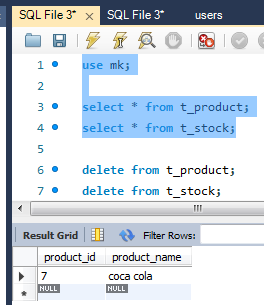

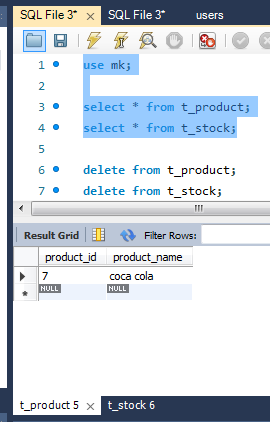

它建了兩張表，t_product表和t_stock表。這兩張表我們會用于演示dubbo provider中對于數據庫一致性插入時在碰到Exception時怎么處理回滾的場景。
nacos-service工程搭建說明
先上pom.xml（很重要，這里面的依賴是正確的springboot+dubbo+nacos客戶端的完整配置）
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>org.sky.demo</groupId>
<artifactId>nacos-service</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>nacos-service</name>
<description>服務者 Demo project for Spring Boot dubbo nacos</description>
<parent>
<groupId>org.sky.demo</groupId>
<artifactId>nacos-parent</artifactId>
<version>0.0.1-SNAPSHOT</version>
</parent>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jdbc</artifactId>
<exclusions>
<exclusion>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-logging</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>org.apache.dubbo</groupId>
<artifactId>dubbo</artifactId>
</dependency>
<dependency>
<groupId>org.apache.curator</groupId>
<artifactId>curator-framework</artifactId>
</dependency>
<dependency>
<groupId>org.apache.curator</groupId>
<artifactId>curator-recipes</artifactId>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.spockframework</groupId>
<artifactId>spock-core</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.spockframework</groupId>
<artifactId>spock-spring</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-configuration-processor</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-log4j2</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<exclusions>
<exclusion>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-logging</artifactId>
</exclusion>
</exclusions>
<exclusion>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-tomcat</artifactId>
</exclusion>
</dependency>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
</dependency>
<dependency>
<groupId>com.lmax</groupId>
<artifactId>disruptor</artifactId>
</dependency>
<dependency>
<groupId>redis.clients</groupId>
<artifactId>jedis</artifactId>
</dependency>
<dependency>
<groupId>com.google.guava</groupId>
<artifactId>guava</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
</dependency>
<!-- Dubbo Registry Nacos -->
<dependency>
<groupId>org.apache.dubbo</groupId>
<artifactId>dubbo-registry-nacos</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba.nacos</groupId>
<artifactId>nacos-client</artifactId>
</dependency>
<dependency>
<groupId>org.sky.demo</groupId>
<artifactId>skycommon</artifactId>
<version>${skycommon.version}</version>
</dependency>
</dependencies>
<build>
<sourceDirectory>src/main/java</sourceDirectory>
<testSourceDirectory>src/test/java</testSourceDirectory>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
<resources>
<resource>
<directory>src/main/resources</directory>
</resource>
<resource>
<directory>src/main/webapp</directory>
<targetPath>META-INF/resources</targetPath>
<includes>
<include>**/**</include>
</includes>
</resource>
<resource>
<directory>src/main/resources</directory>
<filtering>true</filtering>
<includes>
<include>application.properties</include>
<include>application-${profileActive}.properties</include>
</includes>
</resource>
</resources>
</build>

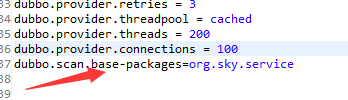

</project>然后我們?cè)O(shè)置application.properties文件內容
這邊dubbo的部分配置是相對于我虛擬出來的模擬環境4C CPU，4GB內存來設的，具體更多設置參數可以直接參照于dubbo官方文檔。
spring.datasource.type=com.alibaba.druid.pool.DruidDataSource spring.datasource.driverClassName=com.mysql.jdbc.Driver spring.datasource.url=jdbc:mysql://192.168.56.101:3306/mk?useUnicode=true&characterEncoding=utf-8&useSSL=false spring.datasource.username=mk spring.datasource.password=111111 server.port=8080 server.tomcat.max-connections=300 server.tomcat.max-threads=300 server.tomcat.uri-encoding=UTF-8 server.tomcat.max-http-post-size=0 #Dubbo provider configuration dubbo.application.name=nacos-service-demo dubbo.registry.protocol=dubbo dubbo.registry.address=nacos://127.0.0.1:8848 dubbo.protocol.name=dubbo dubbo.protocol.port=20880 dubbo.protocol.threads=200 dubbo.protocol.queues=100 dubbo.protocol.threadpool=cached dubbo.provider.retries = 3 dubbo.provider.threadpool = cached dubbo.provider.threads = 200 dubbo.provider.connections = 100 dubbo.scan.base-packages=org.sky.service logging.config=classpath:log4j2.xml
我們可以看到要把dubbo與nacos連接起來只需要在pom.xml文件中引入
<!-- Dubbo Registry Nacos --> <dependency> <groupId>org.apache.dubbo</groupId> <artifactId>dubbo-registry-nacos</artifactId> </dependency> <dependency> <groupId>com.alibaba.nacos</groupId> <artifactId>nacos-client</artifactId> </dependency> <dependency> <groupId>org.apache.dubbo</groupId> <artifactId>dubbo</artifactId> </dependency>
以及在application.properties文件中把相應的dubbo協議依舊使用dubbo，這是因?yàn)閐ubbo2.6中已經帶入了nacos-registry了，因此就必須把dubbo.registry.address設成指向你本機的nacos啟動實例（默認為8848端口）即可。
dubbo.registry.protocol=dubbo dubbo.registry.address=nacos://127.0.0.1:8848
springboot的啟動代碼,Application.java
package org.sky;
import org.apache.dubbo.config.spring.context.annotation.EnableDubbo;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.transaction.annotation.EnableTransactionManagement;
@EnableDubbo
@EnableAutoConfiguration
@ComponentScan(basePackages = { "org.sky" })
@EnableTransactionManagement
public class Application {
public static void main(String[] args) {
SpringApplication.run(Application.class, args);
}
}有兩個重要的注解
@EnableDubbo申明該項目啟用dubbo的自動注解；
@EnableTransactionManagement申明該項目會使用數據庫事務；
把項目連接上數據庫
我們使用druid做數據庫的連接池。
package org.sky.config;
import javax.sql.DataSource;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import com.alibaba.druid.pool.DruidDataSource;
import com.alibaba.druid.support.http.StatViewServlet;
import com.alibaba.druid.support.http.WebStatFilter;
@Configuration
@EnableAutoConfiguration
public class DruidConfig {
@ConfigurationProperties(prefix = "spring.datasource")
@Bean
public DruidDataSource dataSource() {
return new DruidDataSource();
}
}制作一個自定義的全局Exception,DemoRpcRunTimeException
把它放置于common項目?jī)?nèi)
package org.sky.exception;
import java.io.Serializable;
public class DemoRpcRunTimeException extends RuntimeException implements Serializable {
public DemoRpcRunTimeException() {
}
public DemoRpcRunTimeException(String msg) {
super(msg);
}
public DemoRpcRunTimeException(Throwable cause) {
super(cause);
}
public DemoRpcRunTimeException(String message, Throwable cause) {
super(message, cause);
}

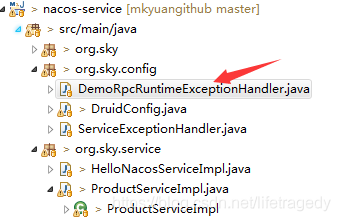

}制作一個AOP, DemoRpcRuntimeExceptionHandler
用于包裝自定的異常用，它位于nacos-service項目中，做它會以AOP的方式注入。
package org.sky.config;
import org.apache.logging.log4j.LogManager;
import org.apache.logging.log4j.Logger;
import org.aspectj.lang.annotation.AfterThrowing;
import org.aspectj.lang.annotation.Aspect;
import org.sky.exception.DemoRpcRunTimeException;
import org.springframework.stereotype.Component;
@Aspect
@Component
public class DemoRpcRuntimeExceptionHandler {
protected Logger logger = LogManager.getLogger(this.getClass());
/**
* service層的RuntimeException統一處理器
* 可以將RuntimeException分裝成RpcRuntimeException拋給調用端處理 或自行處理
*
* @param exception
*/
@AfterThrowing(throwing = "exception", pointcut = "execution(* org.sky.service.*.*(..))")
public void afterThrow(Throwable exception) {
if (exception instanceof RuntimeException) {
logger.error("DemoRpcRuntimeExceptionHandler side->exception occured: " + exception.getMessage(),
exception);
throw new DemoRpcRunTimeException(exception);
}
// logger.error("DemoRpcRuntimeExceptionHandler side->exception occured: " +
// exception.getMessage(), exception);
}
}開始進入核心provider Service端的制作。
ProductService接口
我們把它放置于common工程，這樣consumer工程也就可以通過nacos的注冊中心找到這個接口名，然后通過spring的invoke來對于遠程的用于具體實現service邏輯的xxxServiceImpl類進行調用了。
package org.sky.service;
import org.sky.exception.DemoRpcRunTimeException;
import org.sky.platform.util.DubboResponse;
import org.sky.vo.ProductVO;
public interface ProductService {
public DubboResponse addProductAndStock(ProductVO prod) throws DemoRpcRunTimeException;
}具體業務邏輯實現類，ProductServiceImpl
該類做這么一件事：
1）插入t_product表數據
2）插入t_stock表數據
插兩張表時，只要有一點點錯誤那么整個插入事務回滾，否則成功。這邊需要注意的就是：
- springboot service只有接到RuntimeException才會回滾；
- 要把RuntimeException從provider遠程傳遞到consumer端，包括把stackTrace這些信息也遠程傳遞到consumer端，那么這個exception必須是serializable的；
- 暴露成dubbo provider service的service方法必須加上@Service注解，這個Service可不是spring annotation的service而是ali dubbo的service，在2.7.3開始變成了org.apache.dubbo包了。它配合著springboot的主啟動文件中的@EnableDubbo來啟作用，它在啟動后會通過application.properties中的dubbo.scan.base-packages中所指的路徑把這個路徑下所有的類尋找是否帶有@Service注解，如有那么就把它通過nacos-registry給注冊到nacos中去；
ProductServiceImpl.java
package org.sky.service;
import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.SQLException;
import org.apache.dubbo.config.annotation.Service;
import org.sky.exception.DemoRpcRunTimeException;
import org.sky.platform.util.DubboResponse;
import org.sky.vo.ProductVO;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.jdbc.core.PreparedStatementCreator;
import org.springframework.jdbc.support.GeneratedKeyHolder;
import org.springframework.jdbc.support.KeyHolder;
import org.springframework.transaction.annotation.Transactional;
@Service(version = "1.0.0", interfaceClass = ProductService.class, timeout = 120000)
public class ProductServiceImpl extends BaseService implements ProductService {
@Autowired
JdbcTemplate jdbcTemplate;
@Override
@Transactional
public DubboResponse<ProductVO> addProductAndStock(ProductVO prod) throws DemoRpcRunTimeException {
DubboResponse<ProductVO> response = null;
int newProdId = 0;
String prodSql = "insert into t_product(product_name)values(?)";
String stockSql = "insert into t_stock(product_id,stock)values(?,?)";
try {
if (prod != null) {
KeyHolder keyHolder = new GeneratedKeyHolder();
jdbcTemplate.update(new PreparedStatementCreator() {
@Override
public PreparedStatement createPreparedStatement(Connection connection) throws SQLException {
PreparedStatement ps = connection.prepareStatement(prodSql, new String[] { "id" });
ps.setString(1, prod.getProductName());
return ps;
}
}, keyHolder);
newProdId = keyHolder.getKey().intValue();
logger.info("======>insert into t_product with product_id:" + newProdId);
if (newProdId > 0) {
jdbcTemplate.update(stockSql, newProdId, prod.getStock());
logger.info("======>insert into t_stock with successful");
ProductVO returnData = new ProductVO();
returnData.setProductId(newProdId);
returnData.setProductName(prod.getProductName());
returnData.setStock(prod.getStock());
response = new DubboResponse(HttpStatus.OK.value(), "success", returnData);

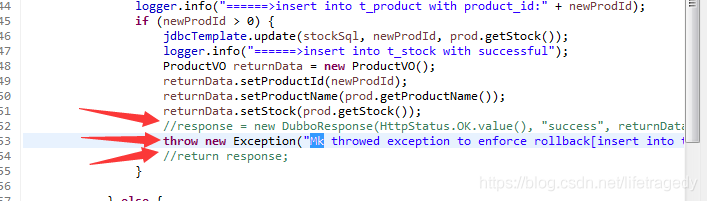

//throw new Exception("Mk throwed exception to enforce rollback[insert into t_stock]");
return response;
}
} else {
throw new DemoRpcRunTimeException("error occured on ProductVO is null");
}
} catch (Exception e) {
logger.error("error occured on Dubbo Service Side: " + e.getMessage(), e);
throw new DemoRpcRunTimeException("error occured on Dubbo Service Side: " + e.getMessage(), e);
}
return response;
}
}這個類目前是正常狀態，我們先調用一把正常的provider到service端的過程然后接下來就來演示如何把exception遠程傳遞到consumer端。
nacos-consumer工程搭建說明
先上pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>org.sky.demo</groupId>
<artifactId>nacos-consumer</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>nacos-service</name>
<description>消費者 Demo project for Spring Boot dubbo nacos</description>
<parent>
<groupId>org.sky.demo</groupId>
<artifactId>nacos-parent</artifactId>
<version>0.0.1-SNAPSHOT</version>
</parent>
<dependencies>
<dependency>
<groupId>org.apache.dubbo</groupId>
<artifactId>dubbo</artifactId>
</dependency>
<dependency>
<groupId>org.apache.curator</groupId>
<artifactId>curator-framework</artifactId>
</dependency>
<dependency>
<groupId>org.apache.curator</groupId>
<artifactId>curator-recipes</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.spockframework</groupId>
<artifactId>spock-core</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.spockframework</groupId>
<artifactId>spock-spring</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-configuration-processor</artifactId>
<optional>true</optional>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-log4j2</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<exclusions><!-- 去掉默認配置 -->
<exclusion>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-logging</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>com.lmax</groupId>
<artifactId>disruptor</artifactId>
</dependency>
<dependency>
<groupId>com.google.guava</groupId>
<artifactId>guava</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
</dependency>
<!-- Dubbo Registry Nacos -->
<dependency>
<groupId>org.apache.dubbo</groupId>
<artifactId>dubbo-registry-nacos</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba.nacos</groupId>
<artifactId>nacos-client</artifactId>
</dependency>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
</dependency>
<!-- import sky common package -->
<dependency>
<groupId>org.sky.demo</groupId>
<artifactId>skycommon</artifactId>
<version>${skycommon.version}</version>
</dependency>
</dependencies>
<build>
<sourceDirectory>src/main/java</sourceDirectory>
<testSourceDirectory>src/test/java</testSourceDirectory>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
<resources>
<resource>
<directory>src/main/resources</directory>
</resource>
<resource>
<directory>src/main/webapp</directory>
<targetPath>META-INF/resources</targetPath>
<includes>
<include>**/**</include>
</includes>
</resource>
<resource>
<directory>src/main/resources</directory>
<filtering>true</filtering>
<includes>
<include>application.properties</include>
<include>application-${profileActive}.properties</include>
</includes>
</resource>
</resources>
</build>
</project>nacos-consumer端的application.properties
server.port=8082 server.tomcat.max-connections=50 server.tomcat.max-threads=50 server.tomcat.uri-encoding=UTF-8 server.tomcat.max-http-post-size=0 #Dubbo provider configuration dubbo.application.name=nacos-consumer dubbo.registry.address=nacos://127.0.0.1:8848 #dubbo.consumer.time=120000 logging.config=classpath:log4j2.xml
同樣，consumer端也需要連上本地的nacos實例。
另外多說一點的是，不要在consumer端去做類似dubbo通訊超時或者是一些個性化的dubbo參數設置。因?yàn)閐ubbo有3個核心參數集，provider, protocol, consumer。而在consumer做的設置由于這3者的優先級問題，它是會覆蓋掉provider端的設置。如果是在大規模微服務開發場景中，每個consumer都做自己的個性化設置，這不利于全局上對系統性能進行集中統一的管控，因此這需要公司的架構師對這些規范進行provider端的統一管控，一定盡量避免在consumer端去設置本該屬于central（provider）端的一些參數。
consumer端的Application.java
package org.sky;
import org.apache.dubbo.config.spring.context.annotation.EnableDubbo;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ComponentScan;
@EnableDubbo
@ComponentScan(basePackages = { "org.sky" })
@EnableAutoConfiguration
public class Application {
public static void main(String[] args) {
SpringApplication.run(Application.class, args);
}
}和provider端的naco-service沒多少區別，注意要@EnableDubbo，要不然spring不會在項目啟動時把consumer端給注冊到nacos的注冊中心去。

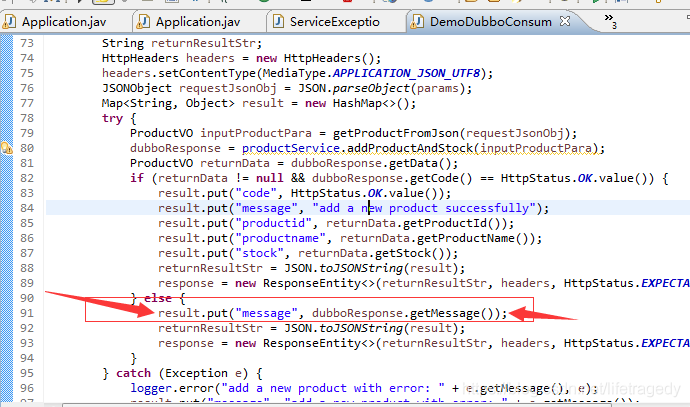

consumer端的Controller
這個consumer端正是我第一張圖中的無狀態的API層，這一層會有一堆tomcat/netty/jboss一類的東西，它們做的事就是路由API，以json格式向客戶端（手機、網頁、小程序）進行返回。這一層是不會去和DB、NOSQL、緩存一類的打交道的，它們要做的就是調用“后端”微服務的dubbo服務，因此我們?cè)谶@一端基本以spring中的controller為主。
為了讓consumer端可以調用provider端的service方法，必須在注入時加上@Reference注解，這樣dubbos的consumer在注冊進“注冊中心”，如：nacos這一類東西時就知道要找哪個provider的service（殘根-stub）了（尋址作用）。
package org.sky.controller;
import org.springframework.web.bind.annotation.RestController;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import org.springframework.web.bind.annotation.RequestMapping;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import javax.annotation.Resource;
import org.apache.dubbo.config.annotation.Reference;
import org.apache.logging.log4j.LogManager;
import org.apache.logging.log4j.Logger;
import org.sky.platform.util.AppConstants;
import org.sky.platform.util.DubboResponse;
import org.sky.platform.util.ResponseResult;
import org.sky.platform.util.ResponseStatusEnum;
import org.sky.platform.util.ResponseUtil;
import org.sky.service.HelloNacosService;
import org.sky.service.ProductService;
import org.sky.vo.ProductVO;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
@RestController
@RequestMapping("nacosconsumer")
public class DemoDubboConsumer extends BaseController {
@Reference(version = "1.0.0",loadbalance="roundrobin")
private HelloNacosService helloNacosService;
@Reference(version = "1.0.0")
private ProductService productService;
@PostMapping(value = "/sayHello", produces = "application/json")
public ResponseEntity<String> sayHello(@RequestBody String params) throws Exception {
ResponseEntity<String> response;
HttpHeaders headers = new HttpHeaders();
headers.setContentType(MediaType.APPLICATION_JSON_UTF8);
Map<String, Object> resultMap = new HashMap<>();
JSONObject requestJsonObj = JSON.parseObject(params);
try {
String name = getHelloNameFromJson(requestJsonObj);
String answer = helloNacosService.sayHello(name);
logger.info("answer======>" + answer);
Map<String, String> result = new HashMap<>();
result.put("result", answer);
String resultStr = JSON.toJSONString(result);
response = new ResponseEntity<>(resultStr, headers, HttpStatus.OK);
} catch (Exception e) {
logger.error("dubbo-clinet has an exception occured: " + e.getMessage(), e);
String resultStr = e.getMessage();
response = new ResponseEntity<>(resultStr, headers, HttpStatus.EXPECTATION_FAILED);
}
return response;
}
@PostMapping(value = "/addProductAndStock", produces = "application/json")
public ResponseEntity<String> addProduct(@RequestBody String params) throws Exception {
ResponseEntity<String> response = null;
DubboResponse<ProductVO> dubboResponse;
String returnResultStr;
HttpHeaders headers = new HttpHeaders();
headers.setContentType(MediaType.APPLICATION_JSON_UTF8);
JSONObject requestJsonObj = JSON.parseObject(params);
Map<String, Object> result = new HashMap<>();
try {
ProductVO inputProductPara = getProductFromJson(requestJsonObj);
dubboResponse = productService.addProductAndStock(inputProductPara);
ProductVO returnData = dubboResponse.getData();
if (returnData != null && dubboResponse.getCode() == HttpStatus.OK.value()) {
result.put("code", HttpStatus.OK.value());
result.put("message", "add a new product successfully");
result.put("productid", returnData.getProductId());
result.put("productname", returnData.getProductName());
result.put("stock", returnData.getStock());
returnResultStr = JSON.toJSONString(result);
response = new ResponseEntity<>(returnResultStr, headers, HttpStatus.OK);
} else {
result.put("message", "dubbo service ProductService get nullpoint exception");
returnResultStr = JSON.toJSONString(result);
response = new ResponseEntity<>(returnResultStr, headers, HttpStatus.EXPECTATION_FAILED);
}
} catch (Exception e) {
logger.error("add a new product with error: " + e.getMessage(), e);
result.put("message", "add a new product with error: " + e.getMessage());
returnResultStr = JSON.toJSONString(result);
response = new ResponseEntity<>(returnResultStr, headers, HttpStatus.EXPECTATION_FAILED);
}
return response;
}
private String getHelloNameFromJson(JSONObject requestObj) {
String helloName = requestObj.getString("name");
return helloName;
}
private ProductVO getProductFromJson(JSONObject requestObj) {
String productName = requestObj.getString("productname");
int stock = requestObj.getIntValue("stock");
ProductVO prod = new ProductVO();
prod.setProductName(productName);
prod.setStock(stock);
return prod;
}
}這個consumer相當?shù)暮?jiǎn)單，直接通過遠程接口調用dubbo得到一個返回。
運行例子
確保我們的nacos1.1.4運行在那。
然后先運行nacos-service的Application.java再運行nacos-consumer的Application.java

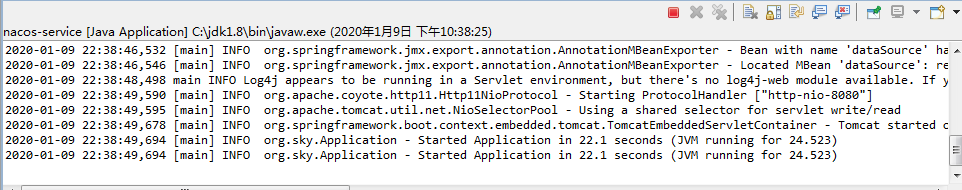

nacos-service運行示例：

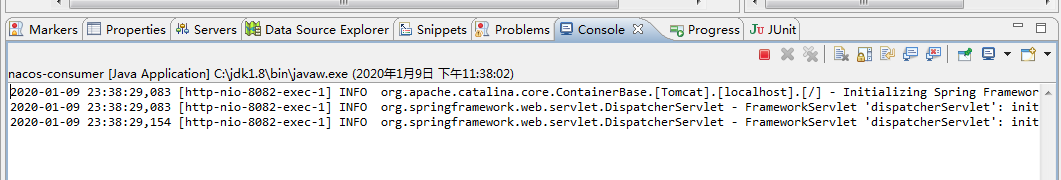

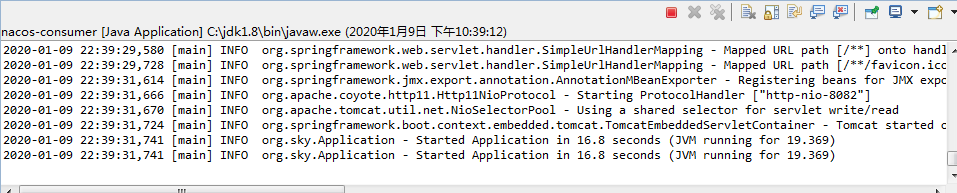

nacos-consumer運行示例：
然后我們?nèi)acos的管理界面查看一下，就能發現provider和consumer都注冊成功了。

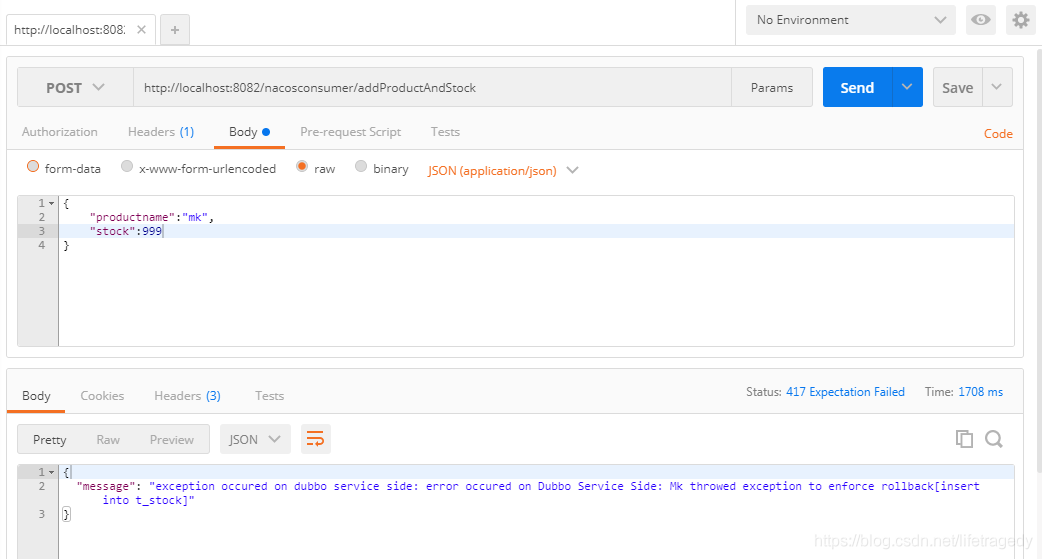

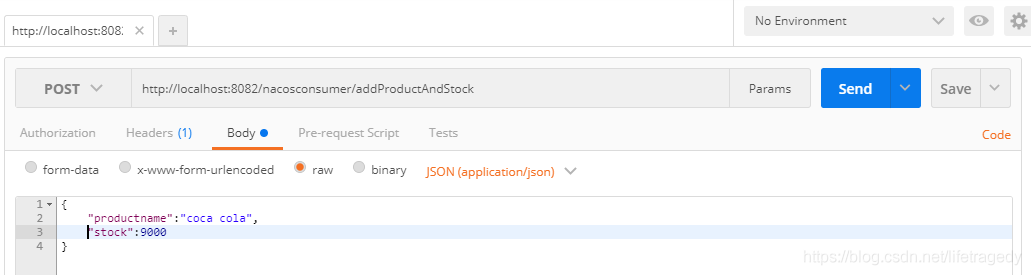

接著我們使用postman對consumer發一個json請求

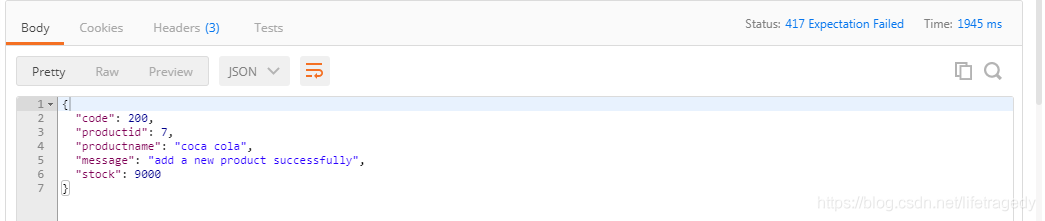

得到返回如下所示
再看數據庫中
這說明我們的dubbo+nacos搭建完全運行正常，接下來就要演示兩種Exception的拋出了。
第1種：直接從provider端拋RuntimeException到consumer端
在provider端我們對ProductServiceImpl進行一個小修改如下：
我們寫了一句：
throw new Exception("Mk throwed exception to enforce rollback[insert into t_stock]");我們前文說過，在provider端的service里一定要拋出RuntimeException才會讓數據庫事物回滾，但是我們也不用擔心，還記得我們?cè)趎acos-service中已經注入了一個aop的攔截器叫“DemoRpcRuntimeExceptionHandler”嗎？
它的作用就是攔住一切Exception然后把它轉化成RuntimeException。

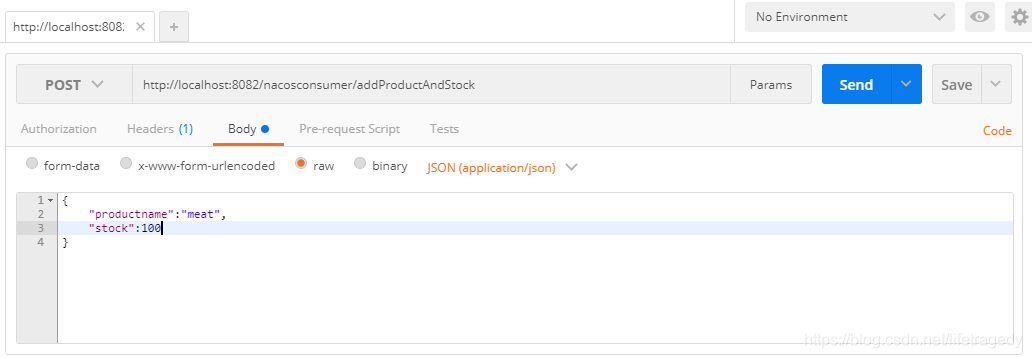

好，我們加完這一句話后重新依次運行nacose-service和nacos-consumer。然后同樣通過postman來訪問http://localhost:8082/nacosconsumer/addProductAndStock，然后我們使用新的產品品名，post請求體內的報文如下所 示：

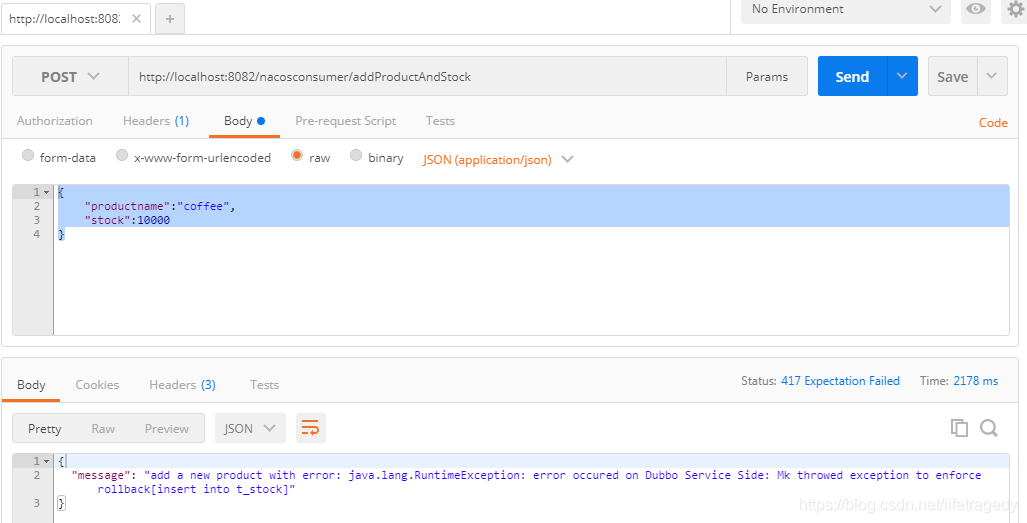

{"productname":"coffee","stock":10000}看，我們這次請求過去后直接在response中出現的是什么？

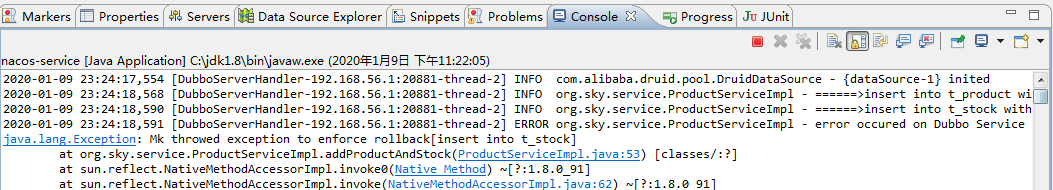

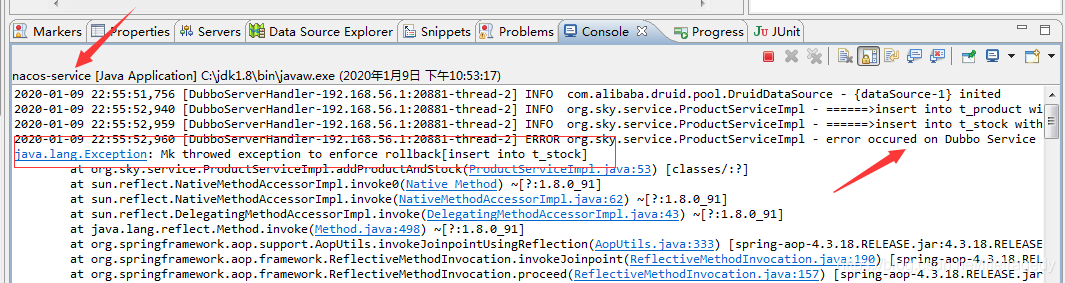

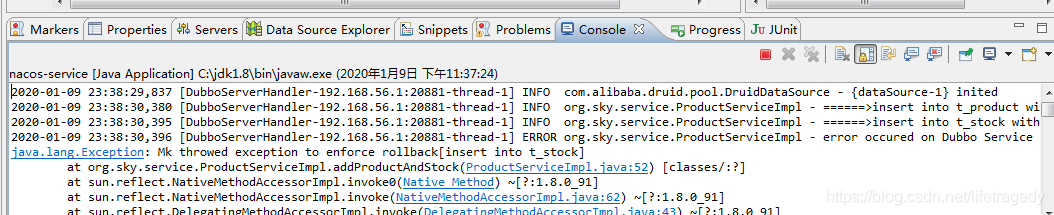

來看nacos-service端的日志，這是我們?cè)趐rovider端人為手工拋出的一條日志：

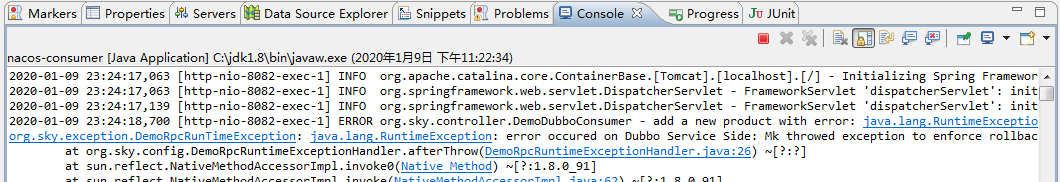

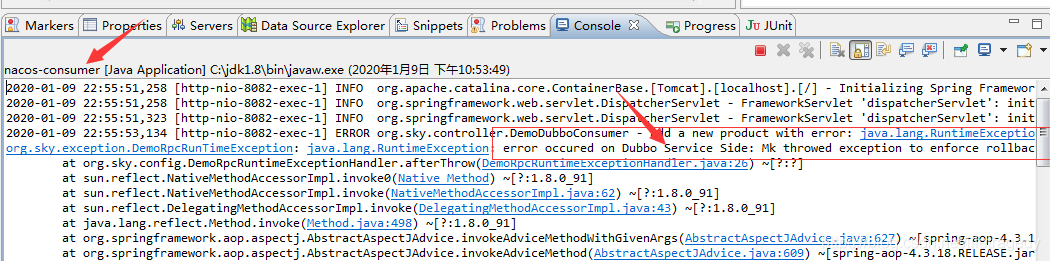

來看nacos-consumer端的日志，我們可以看到provider端的異常甚至包括它的stackTrace信息都已經傳遞到了consumer端了：
這樣的話consumer端的開發人員一看傳過來了這個錯誤就會跑到dubbo開發團隊處吼一下：喂，生產上有一個bug，你看這就是你們provider端拋出來的，改吧！
為了確保我們的ExceptionHandler攔截的是否成功，我們來看數據庫端：
t_product表沒有插入coffee的記錄
t_stock表也沒有插入相關coffee的庫存
說明Exception確實是被轉成了RuntimeException并被spring框架所捕捉然后進行了一次回滾。
第2種：把一切Exception包裝成json返回報文不向consumer端輸出異常具體信息
我們希望把provider端的Exception包裝成如下這種json報文：
{
"message" : "exception",
"code" : "500",
"add new product failed",
"productid" : xxx,
"productname" : xxx,
"stock" : xxx
}轉而把：
異常的stackTrace以log方式記錄在provider端，在出了問題讓provider端的開發人員通過日志查詢和定位問題即可。
為什么還有這種做法？
很簡單，因?yàn)閟tackTrace是異常追溯，調用到了jvm的棧內信息了，這個是“很重”的一件活 。我們把一堆的異常Exception通過provider和consumer端拋來拋去，本來我們用dubbo就是用來做微服務的、就是為了應對大規模的并發請求的、就是為了做系統的彈性伸縮和高冗余的，你還在用這么大一陀stackTrace在兩端傳來傳去不說，還要加上傳時序列化、接到時反序列化，這不是增加了系統的開銷嗎？
下面直接show me the code，在nacos-service的org.sky.config處增加一個aop叫“ServiceExceptionHandler”，代碼如下：
package org.sky.config;
import org.apache.logging.log4j.LogManager;
import org.apache.logging.log4j.Logger;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Pointcut;
import org.sky.platform.util.DubboResponse;
import org.springframework.stereotype.Component;
import com.google.common.base.Throwables;
@Component
@Aspect
public class ServiceExceptionHandler {
protected Logger logger = LogManager.getLogger(this.getClass());
/**
* 返回值類型為Response的Service
*/
@Pointcut(value = "execution(* org.sky.service.*.*(..))")
private void servicePointcut() {
}
/**
* 任何持有@Transactional注解的方法
*/
@Pointcut(value = "@annotation(org.springframework.transaction.annotation.Transactional)")
private void transactionalPointcut() {
}
/**
* 異常處理切面 將異常包裝為Response，避免dubbo進行包裝
*
* @param pjp 處理點
* @return Object
*/
@Around("servicePointcut() && !transactionalPointcut()")
public Object doAround(ProceedingJoinPoint pjp) {
Object[] args = pjp.getArgs();
try {
return pjp.proceed();
} catch (Exception e) {
processException(pjp, args, e);
return DubboResponse.error("exception occured on dubbo service side: " + e.getMessage());
} catch (Throwable throwable) {
processException(pjp, args, throwable);
return DubboResponse.error("exception occured on dubbo service side: " + throwable.getMessage());
}
}
/**
* 任何持有@Transactional注解的方法異常處理切面 將自定義的業務異常轉為RuntimeException:
* 1.規避dubbo的包裝，讓customer可以正常獲取message 2.拋出RuntimeException使事務可以正確回滾 其他異常不處理
*
* @param pjp 處理點
* @return Object
*/
@Around("servicePointcut() && transactionalPointcut()")
public Object doTransactionalAround(ProceedingJoinPoint pjp) throws Throwable {
try {
return pjp.proceed();
} catch (Exception e) {
Object[] args = pjp.getArgs();
// dubbo會將異常捕獲進行打印，這里就不打印了
processException(pjp, args, e);
// logger.error("service with @Transactional exception occured on dubbo service
// side: " + e.getMessage(), e);
throw new RuntimeException(e.getMessage(), e);
}
}
/**
* 處理異常
*
* @param joinPoint 切點
* @param args 參數
* @param throwable 異常
*/
private void processException(final ProceedingJoinPoint joinPoint, final Object[] args, Throwable throwable) {
String inputParam = "";
if (args != null && args.length > 0) {
StringBuilder sb = new StringBuilder();
for (Object arg : args) {
sb.append(",");
sb.append(arg);
}
inputParam = sb.toString().substring(1);
}
logger.error("\n 方法: {}\n 入?yún)? {} \n 錯誤信息: {}", joinPoint.toLongString(), inputParam,
Throwables.getStackTraceAsString(throwable));
}
}它的作用就是：
- 把一切Exception使用一個叫DubboResponse的請求體來返回provider端的service報文；
- 如果provider端出錯，那么也把錯誤的系統code與系統message“包”在DubboResponse內
等等等等。。。。。。出問題了！此處還沒全完，為什么？
一切Exception？這樣一來那么包完后在Service層豈不是沒有Exception被拋出了？如果Service方法涉及到數據庫操作沒有拋RuntimeException時數據庫事務怎么回滾？
這才有了我們?cè)谶@個handler類中有這么一段內容，它的作用就是對一切有@Transactional注解的Service方法在其出錯時，還是照樣要拋"RuntimeException"，對于其它的就都包成DubboResponse返回給調用者了（如下對于非事務型Service方法的異常的統一包裝）：
@Around("servicePointcut() && !transactionalPointcut()")
public Object doAround(ProceedingJoinPoint pjp) {
Object[] args = pjp.getArgs();
try {
return pjp.proceed();
} catch (Exception e) {
processException(pjp, args, e);
return DubboResponse.error("exception occured on dubbo service side: " + e.getMessage());
} catch (Throwable throwable) {
processException(pjp, args, throwable);
return DubboResponse.error("exception occured on dubbo service side: " + throwable.getMessage());
}
}好了，然后我們現在重新啟動我們的系統，我們?cè)賮?lái)看下面的運行示例。。。。。。
等！
忘記一件事，下面我給出位于“common”工程中的ProductVO和DubboResponse這兩個類的結構先，我寫博文不喜歡“藏”一手。
ProductVO.java
package org.sky.vo;
import java.io.Serializable;
public class ProductVO implements Serializable {
private int stock = 0;
public int getStock() {
return stock;
}
public void setStock(int stock) {
this.stock = stock;
}
public String getProductName() {
return productName;
}
public int getProductId() {
return productId;
}
public void setProductId(int productId) {
this.productId = productId;
}
public void setProductName(String productName) {
this.productName = productName;
}
private int productId = 0;
private String productName = "";
}DubboResponse.java
package org.sky.platform.util;
import java.io.Serializable;
import org.springframework.http.HttpStatus;
import com.alibaba.fastjson.JSON;
public class DubboResponse<T> implements Serializable {
/**
*
*/
private static final long serialVersionUID = 1L;
/**
* 狀態碼
*/
private int code;
/**
* 返回信息
*/
private String message;
/**
*
* 返回json對象
*/
private T data;
public DubboResponse(int code, String message) {
this.code = code;
this.message = message;
}
public DubboResponse(int code, String message, T data) {
this.code = code;
this.message = message;
this.data = data;
}
public T getData() {
return data;
}
public void setData(T data) {
this.data = data;
}
public static <T> DubboResponse success(String message, T data) {
String resultStr = JSON.toJSONString(data);
return new DubboResponse(HttpStatus.OK.value(), message, data);
}
public static DubboResponse success(String message) {
return success(message, null);
}
public static DubboResponse error(String message) {
return new DubboResponse(HttpStatus.INTERNAL_SERVER_ERROR.value(), message, null);
}
public static DubboResponse error(int code, String message) {
return new DubboResponse(code, message, null);
}
public int getCode() {
return code;
}
public void setCode(int code) {
this.code = code;
}
public String getMessage() {
return message;
}
public void setMessage(String message) {
this.message = message;
}
}“正常”據有@Transactional的Service方法拋異常演示：
現在我們把nacose-service和nacos-consumer運行起來看效果，試圖插入一個新的prouct：
得到返回：
再來看nacos-service端、nacos-consumer端以及數據庫
可以看到provider與consumer端都正確拋錯且數據庫中沒有插進去值。
“不正常”的不含有Transactional的（普通）Service方法拋異常被封裝演示：
我們現在做點小手腳，我們把provider端的“addProductAndStock(ProductVO prod)”方法上的@Transactional拿走來看看效果。
@Override
public DubboResponse<ProductVO> addProductAndStock(ProductVO prod) throws DemoRpcRunTimeException {
DubboResponse<ProductVO> response = null;
int newProdId = 0;
String prodSql = "insert into t_product(product_name)values(?)";
String stockSql = "insert into t_stock(product_id,stock)values(?,?)";
try {
if (prod != null) {
KeyHolder keyHolder = new GeneratedKeyHolder();
jdbcTemplate.update(new PreparedStatementCreator() {
@Override請像上面這樣的代碼片端
我們?cè)僭趎acos-consume端做一個小小的修改，如下所示，讓consumer端直接把provider端組裝好的{ "message" : "xxxx..."}顯示在“最前端”（一切通過 nginx端來訪問consumer，consumer再通過provider調用數據庫，在這邊我們使用的是postman）。
然后我們來運行起來看一下效果：
我們可以看到，這一次在去除了@Transactional注解后，當Service方法拋錯時，請求端拿到的是我們經過包裝過的DubboResponse內的東西
provider端包裝普通Service拋出的異常的核心代碼：
@Around("servicePointcut() && !transactionalPointcut()")
public Object doAround(ProceedingJoinPoint pjp) {
Object[] args = pjp.getArgs();
try {
return pjp.proceed();
} catch (Exception e) {
processException(pjp, args, e);
return DubboResponse.error("exception occured on dubbo service side: " + e.getMessage());
} catch (Throwable throwable) {
processException(pjp, args, throwable);
return DubboResponse.error("exception occured on dubbo service side: " + throwable.getMessage());
}
}我們查看我們的Provider端，它正是通過上述代碼catch(Exception e)中的這一段來進行服務端日志的記錯和把錯誤包裝后返回給到consumer端的，就是下面這兩句：
processException(pjp, args, e);
return DubboResponse.error("exception occured on dubbo service side: " + e.getMessage());來看看nacos-service端的日志輸出：
來看看nacos-consumer端的日志輸出：
哈哈，這次nacos-consumer端無任何拋錯，因?yàn)殄e(cuò)誤已經被provider端包裝起來了。
當然，當我們看我們的DB端時，肯定，是有數據插入成功的。
因?yàn)榍拔恼f(shuō)了，對于無@Transactional注解的方法，我們的aop handler類會把一切錯誤 “吃掉”，在后臺僅作記錄然后包成正常返回結果給到consumer端的，那么provider端的Service方法既無RuntimeException拋出，何來回滾？
當然是插入成功的！
t_product表
t_stock表
總結
- 所以在dubbo的provider端的RuntimeExeption并且是"implements Serializable"的就可以連著stackTrace拋到遠程的consumer端；
- 實際項目中dubbo的provider（dubbo群）與dubbo的consumer（一堆無狀態的tomcat為容器布署的api controller）間如果只是為了傳stackTrace來消耗網絡硬件等資源只是為了“排查定位問題”方便，這么做是不值的，那么就要包一層，包時不要包的太過了，記得涉及數據庫事務的方法一定要拋RuntimeException，要不然就是插進去一堆臟數據；
到此這篇關于阿里nacos+springboot+dubbo2.7.3統一處理異常的兩種方式的文章就介紹到這了,更多相關nacos+springboot+dubbo統一處理異常內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
相關文章
Java實現經典游戲打磚塊游戲的示例代碼
這篇文章主要介紹了如何利用Java實現經典的游戲—打磚塊。玩家操作一根螢?zāi)簧纤降摹鞍糇印保屢活w不斷彈來彈去的“球”在撞擊作為過關目標消去的“磚塊”的途中不會落到螢?zāi)坏紫?。感興趣的小伙伴可以了解一下2022-02-02
J2ee 高并發情況下監聽器實例詳解
這篇文章主要介紹了J2ee 高并發情況下監聽器實例詳解的相關資料,需要的朋友可以參考下2017-02-02
這篇文章主要介紹了java二路歸并排序示例,需要的朋友可以參考下2014-02-02
完美解決IDEA Ctrl+Shift+f快捷鍵突然無效的問題
這篇文章主要介紹了完美解決IDEA Ctrl+Shift+f快捷鍵突然無效的問題，具有很好的參考價值，希望對大家有所幫助。一起跟隨小編過來看看吧2021-02-02
java實現全局監聽鍵盤詳解
這篇文章主要為大家詳細介紹了java實現全局監聽鍵盤的相關知識，文中的示例代碼講解詳細，具有一定的學習價值，感興趣的小伙伴可以了解下2024-01-01
這篇文章主要介紹了springboot如何獲取yml里面的屬性值，具有很好的參考價值，希望對大家有所幫助。如有錯誤或未考慮完全的地方，望不吝賜教2022-02-02
Java Swing JList列表框的實現
這篇文章主要介紹了Java Swing JList列表框的實現，文中通過示例代碼介紹的非常詳細，對大家的學習或者工作具有一定的參考學習價值，需要的朋友們下面隨著小編來一起學習學習吧2019-12-12
Java Swing窗體關閉事件的調用關系
這篇文章主要為大家詳細介紹了Java Swing窗體關閉事件的調用關系，具有一定的參考價值，感興趣的小伙伴們可以參考一下2019-07-07
java并發編程專題（一）----線程基礎知識
這篇文章主要介紹了java并發編程線程的基礎知識，文中講解非常詳細，幫助大家更好的學習JAVA并發編程，感興趣想學習JAVA的可以了解下2020-06-06
Java的位操作符用來操作整數基本數據類型中的單個“比特”(bit)，即代進制位。下面通過本文給大家分享Java的按位操作符，感興趣的朋友一起看看吧2017-09-09
