C語言用Easyx繪制圍棋和象棋的棋盤
更新時間:2022年05月12日 15:42:45 作者:輝小歌
這篇文章主要為大家詳細介紹了C語言用Easyx繪制圍棋和象棋的棋盤,文中示例代碼介紹的非常詳細,具有一定的參考價值,感興趣的小伙伴們可以參考一下
本文實例為大家分享了C語言繪制圍棋和象棋棋盤的具體代碼,供大家參考,具體內容如下
一、繪制圍棋棋盤
代碼如下:
#include<graphics.h> #include<conio.h> int main() { ?? ?int step=30; ?? ?//初始化繪圖窗口 ?? ?initgraph(600,600); ?? ?//設置背景色為黃色 ?? ?setbkcolor(YELLOW); ?? ?//用背景色清空屏幕 ?? ?cleardevice(); ?? ?setlinestyle(PS_SOLID,2);//畫實線,寬度為兩個像素 ?? ?setcolor(RGB(0,0,0));//設置為黑色 ?? ?int i; ?? ?for(i=1;i<=19;i++)//畫橫線和豎線 ?? ?{ ?? ??? ?line(i*step,1*step,i*step,19*step); ?? ??? ?line(1*step,i*step,19*step,i*step); ?? ?} ?? ?getch(); ?? ?closegraph(); ?? ?return 0; }
效果圖如下:
二、繪制象棋棋盤
代碼如下:
#include<graphics.h> #include<conio.h> int main(void) { ?? ?int step=50; ?? ?//初始化繪圖窗口 ?? ?initgraph(500,500); ?? ?//設置背景色為黃色 ?? ?setbkcolor(YELLOW); ?? ?//用背景色清空屏幕 ?? ?cleardevice(); ?? ?int i,j; ?? ?for(i=1;i<=8;i++) ?? ?{ ?? ??? ?for(j=1;j<=8;j++) ?? ??? ?{ ?? ??? ??? ?if((i+j)%2==1) ?? ??? ??? ?{ ?? ??? ??? ??? ?setfillcolor(BLACK); ?? ??? ??? ??? ?solidrectangle(i*step,j*step,(i+1)*step,(j+1)*step); ?? ??? ??? ??? ?//繪制黑色磚塊 ?? ??? ??? ?} ?? ??? ??? ?else ?? ??? ??? ?{ ?? ??? ??? ??? ?setfillcolor(WHITE); ?? ??? ??? ??? ?solidrectangle(i*step,j*step,(i+1)*step,(j+1)*step); ?? ??? ??? ??? ?//繪制白色磚塊 ?? ??? ??? ?} ?? ??? ?} ?? ?} ?? ?getch(); ?? ?closegraph(); ?? ?return 0; }

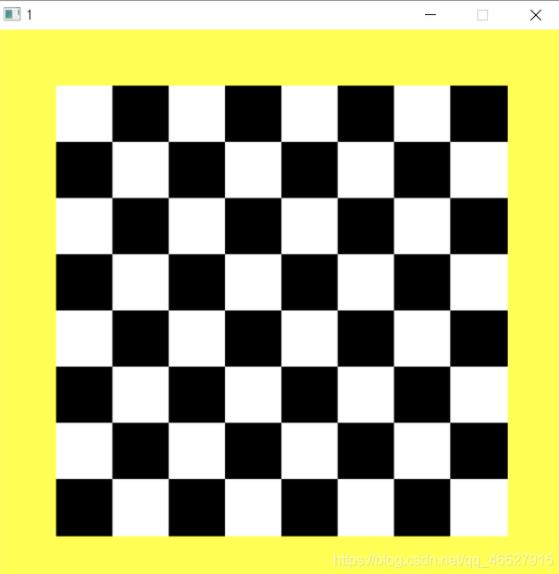

效果圖如下:
以上就是本文的全部?jī)?nèi)容,希望對大家的學習有所幫助,也希望大家多多支持腳本之家。
