OpenStack云平臺Train版搭建與基礎環境準備

 更新時間:2023年03月29日 11:33:48   作者:小強在學習的路上
這篇文章主要介紹了OpenStack云平臺Train版搭建與基礎環境準備,OpenStack用于部署公有云、私有云,并實現對云項目管理,需要的朋友可以參考下

OpenStack簡介

OpenStack是由美國國家航空航天局NASA)與Rackspace公司合作研發并發起的,以Apache許可證授權的自由軟件和開放源代碼的云計算技術解決方案,其是一個項目也是一個軟件,主要用于實現云項目,以云項目操作系統而存在。作用: 用于部署公有云、私有云,并實現對云項目管理。

開發語言: Python

網址: http://www.openstack.org

 一、環境準備

名稱IP地址主機名稱備注
控制節點192.168.124.88controller最小4G,開啟虛擬化
計算節點192.168.124.89computel最小2G,開啟虛擬化

1.1、關閉selinxu

[root@localhost ~]# setenforce 0
[root@localhost ~]# vi /etc/selinux/config
[root@localhost ~]# sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config

1.2、關閉防火墻

[root@localhost ~]# systemctl stop firewalld
[root@localhost ~]# systemctl disable firewalld
Removed symlink /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.

1.3、修改主機名

[root@localhost ~]# hostnamectl set-hostname controller
[root@localhost ~]# hostnamectl set-hostname computer

1.4、配置時間同步服務器

[root@computer ~]# yum install -y chrony
[root@controller ~]# yum install -y chrony

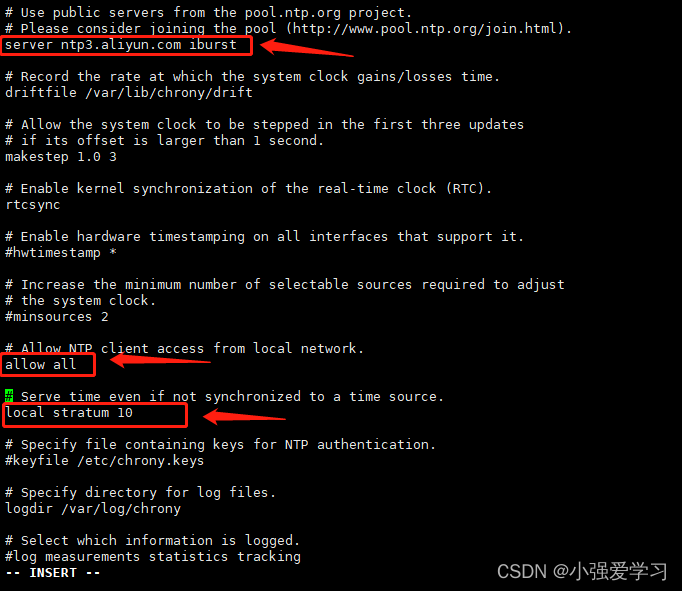

  • controller修改時間同步服務器配置:
[root@controller ~]# vi /etc/chrony.conf

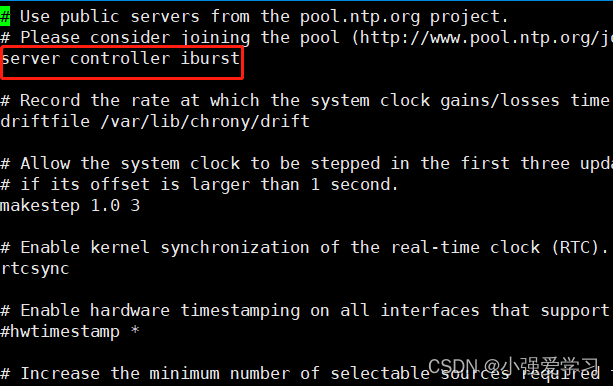

  • computer修改時間同步服務器配置:
[root@computer ~]# vi /etc/chrony.conf

  •  兩個節點都重啟時間同步服務器
[root@controller ~]# systemctl restart chronyd
  • 查看一下已經同步好了
[root@controller ~]# chronyc sources
210 Number of sources = 1
MS Name/IP address         Stratum Poll Reach LastRx Last sample
===============================================================================
^* 203.107.6.88                  2   6    17    50  +2663us[+4287us] +/-   30ms
[root@controller ~]# date
Tue Feb  7 10:06:43 EST 2023

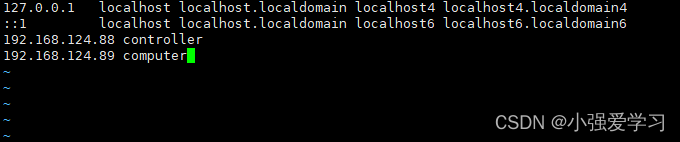

1.5、配置域名

[root@controller ~]# vi /etc/hosts
[root@computer ~]# vi /etc/hosts

 二、安裝OpenStack庫

2.1、啟用OpenStack倉庫的包

[root@controller ~]# yum install centos-release-openstack-train -y
[root@computer ~]# yum install centos-release-openstack-train -y

2.2、安裝python-openstackclient

先安裝源

[root@controller ~]# yum install python-openstackclient -y
[root@computer ~]# yum install centos-release-openstack-train -y

繼續安裝

[root@controller ~]# yum install openstack-selinux -y
[root@computer ~]# yum install openstack-selinux -y

2.3、controller安裝數據庫

[root@controller ~]# yum install mariadb mariadb-server python2-PyMySQL -y

 創建配置并修改IP

[root@controller ~]# vi /etc/my.cnf.d/openstack.cnf
[mysqld]
bind-address = 192.168.124.88

default-storage-engine = innodb
innodb_file_per_table = on
max_connections = 4096
collation-server = utf8_general_ci
character-set-server = utf8
~

重啟數據庫

[root@controller ~]# systemctl enable mariadb.service[root@controller ~]# systemctl start mariadb.service

初始化數據庫

[root@controller ~]# mysql_secure_installation

NOTE: RUNNING ALL PARTS OF THIS SCRIPT IS RECOMMENDED FOR ALL MariaDB
      SERVERS IN PRODUCTION USE!  PLEASE READ EACH STEP CAREFULLY!

In order to log into MariaDB to secure it, we'll need the current
password for the root user.  If you've just installed MariaDB, and
you haven't set the root password yet, the password will be blank,
so you should just press enter here.

Enter current password for root (enter for none):
OK, successfully used password, moving on...

Setting the root password ensures that nobody can log into the MariaDB
root user without the proper authorisation.

Set root password? [Y/n] y
New password:
Re-enter new password:
Password updated successfully!
Reloading privilege tables..
 ... Success!


By default, a MariaDB installation has an anonymous user, allowing anyone
to log into MariaDB without having to have a user account created for
them.  This is intended only for testing, and to make the installation
go a bit smoother.  You should remove them before moving into a
production environment.

Remove anonymous users? [Y/n] y
 ... Success!

Normally, root should only be allowed to connect from 'localhost'.  This
ensures that someone cannot guess at the root password from the network.

Disallow root login remotely? [Y/n] n
 ... skipping.

By default, MariaDB comes with a database named 'test' that anyone can
access.  This is also intended only for testing, and should be removed
before moving into a production environment.

Remove test database and access to it? [Y/n] y
 - Dropping test database...
 ... Success!
 - Removing privileges on test database...
 ... Success!

Reloading the privilege tables will ensure that all changes made so far
will take effect immediately.

Reload privilege tables now? [Y/n] y
 ... Success!

Cleaning up...

All done!  If you've completed all of the above steps, your MariaDB
installation should now be secure.

Thanks for using MariaDB!

輸入密碼(這里輸入123密碼)

2.4、安裝消息隊列

[root@controller ~]# yum install rabbitmq-server -y

重啟

[root@controller ~]# systemctl enable rabbitmq-server.service
[root@controller ~]# systemctl start rabbitmq-server.service

 增加用戶

[root@controller ~]# rabbitmqctl add_user openstack 123Creating user "openstack"

開放權限

[root@controller ~]# rabbitmqctl set_permissions openstack ".*" ".*" ".*"Setting permissions for user "openstack" in vhost "/"

 #下面引住的不需要做

(這里不需要做)查看消息隊列有的服務

[root@controller ~]# rabbitmq-plugins list

(這里不需要做)打開這兩個服務開啟圖像化界面

[root@controller ~]# rabbitmq-plugins enable rabbitmq_management rabbitmq_management_agent

(這里不需要做)查看端口

[root@controller ~]# ss  -tln
State       Recv-Q Send-Q                     Local Address:Port                                    Peer Address:Port
LISTEN      0      128                                    *:25672                                              *:*
LISTEN      0      128                       192.168.124.88:3306                                               *:*
LISTEN      0      128                                    *:4369                                               *:*
LISTEN      0      128                                    *:22                                                 *:*
LISTEN      0      128                                    *:15672                                              *:*
LISTEN      0      100                            127.0.0.1:25                                                 *:*
LISTEN      0      128                                   :::5672                                              :::*
LISTEN      0      128                                   :::22                                                :::*
LISTEN      0      100                                  ::1:25                                                :::*

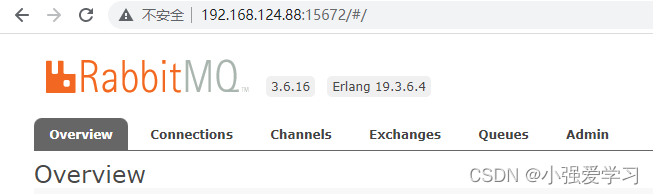

(這里不需要做)通過15672端口可以登錄消息隊列用戶:guest 密碼:guest

2.5、配置緩存

[root@controller ~]# yum install memcached python-memcached -y
[root@controller ~]# vi /etc/sysconfig/memcached

修改配置文件

PORT="11211"
USER="memcached"
MAXCONN="1024"
CACHESIZE="1024"
OPTIONS="-l 127.0.0.1,::1,controller"
~
[root@controller ~]# systemctl enable memcached.service
[root@controller ~]# systemctl start memcached.service

查看一下配置

[root@controller ~]# cat /etc/sysconfig/memcached
PORT="11211"
USER="memcached"
MAXCONN="1024"
CACHESIZE="1024"
OPTIONS="-l 127.0.0.1,::1,controller"

2.6、配置etcd(這次不用,所以沒有裝)

下面我們開始安裝部署組件,下一篇開始安裝Keystone

ldentity 身份認證

代號: Keystone

為OpenStack中其它服務提供身份驗證、服務注冊、服務令牌等功能。

到此這篇關于OpenStack云平臺Train版搭建與基礎環境準備的文章就介紹到這了,更多相關OpenStack搭建與基礎環境準備內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
