MySQL跨實例進行數據查詢的項目實踐

更新時間：2025年05月09日 09:43:59 作者：DK_Allen

本文介紹了MySQL的FEDERATED引擎,該引擎允許在不切換數據庫實例的情況下進行跨實例數據查詢,具有一定的參考價值,感興趣的可以了解一下

前言：

在實際工作中，我們可能會遇到需要操作其他數據庫實例的部分表，但又不想系統連接多庫。此時我們就需要用到數據表映射。如同Oracle中的DBlink一般，使用過Oracle DBlink數據庫鏈接的人都知道可以跨實例來進行數據查詢，同樣的，Mysql自帶的FEDERATED引擎完美的幫我們解決了該問題。本篇文章介紹FEDERATED引擎的開啟和使用。

1.開啟FEDERATED引擎

若需要?jiǎng)?chuàng)建FEDERATED引擎表，則目標端實例要開啟FEDERATED引擎。從MySQL5.5開始FEDERATED引擎默認安裝只是沒有啟用，進入命令行輸入 show engines; FEDERATED行狀態為NO。

mysql> show engines;

+--------------------+---------+----------------------------------------------------------------+--------------+------+------------+

| Engine             | Support | Comment                                                        | Transactions | XA   | Savepoints |

+--------------------+---------+----------------------------------------------------------------+--------------+------+------------+

| PERFORMANCE_SCHEMA | YES     | Performance Schema                                             | NO           | NO   | NO         |

| MRG_MYISAM         | YES     | Collection of identical MyISAM tables                          | NO           | NO   | NO         |

| CSV                | YES     | CSV storage engine                                             | NO           | NO   | NO         |

| BLACKHOLE          | YES     | /dev/null storage engine (anything you write to it disappears) | NO           | NO   | NO         |

| MyISAM             | YES     | MyISAM storage engine                                          | NO           | NO   | NO         |

| InnoDB             | DEFAULT | Supports transactions, row-level locking, and foreign keys     | YES          | YES  | YES        |

| ARCHIVE            | YES     | Archive storage engine                                         | NO           | NO   | NO         |

| MEMORY             | YES     | Hash based, stored in memory, useful for temporary tables      | NO           | NO   | NO         |

| FEDERATED          | NO      | Federated MySQL storage engine                                 | NULL         | NULL | NULL       |

+--------------------+---------+----------------------------------------------------------------+--------------+------+------------+

9 rows in set (0.00 sec)

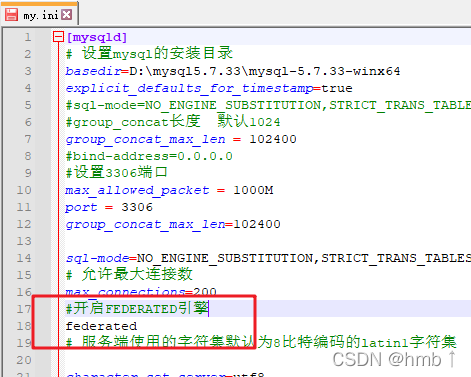

在配置文件[mysqld]中加入一行：federated，

然后重啟數據庫，F(xiàn)EDERATED引擎就開啟了。

mysql> show engines;

+--------------------+---------+----------------------------------------------------------------+--------------+------+------------+

| Engine             | Support | Comment                                                        | Transactions | XA   | Savepoints |

+--------------------+---------+----------------------------------------------------------------+--------------+------+------------+

| CSV                | YES     | CSV storage engine                                             | NO           | NO   | NO         |

| MRG_MYISAM         | YES     | Collection of identical MyISAM tables                          | NO           | NO   | NO         |

| MyISAM             | YES     | MyISAM storage engine                                          | NO           | NO   | NO         |

| BLACKHOLE          | YES     | /dev/null storage engine (anything you write to it disappears) | NO           | NO   | NO         |

| PERFORMANCE_SCHEMA | YES     | Performance Schema                                             | NO           | NO   | NO         |

| MEMORY             | YES     | Hash based, stored in memory, useful for temporary tables      | NO           | NO   | NO         |

| ARCHIVE            | YES     | Archive storage engine                                         | NO           | NO   | NO         |

| InnoDB             | DEFAULT | Supports transactions, row-level locking, and foreign keys     | YES          | YES  | YES        |

| FEDERATED          | YES     | Federated MySQL storage engine                                 | NO           | NO   | NO         |

+--------------------+---------+----------------------------------------------------------------+--------------+------+------------+

9 rows in set (0.00 sec)

2.使用CONNECTION創建FEDERATED表

使用CONNECTION創建FEDERATED引擎表通用模型：

CREATE TABLE (......)

ENGINE =FEDERATED CONNECTION='mysql://username:password@hostname:port/database/tablename'

簡單創建測試：

# 源端表結構及數據

mysql> show create table test_table\G

*************************** 1. row ***************************

       Table: test_table

Create Table: CREATE TABLE `test_table` (

  `increment_id` int(11) NOT NULL AUTO_INCREMENT COMMENT '自增主鍵',

  `stu_id` int(11) NOT NULL COMMENT '學號',

  `stu_name` varchar(20) DEFAULT NULL COMMENT '學生姓名',

  `create_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '創建時間',

  `update_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '修改時間',

  PRIMARY KEY (`increment_id`),

  UNIQUE KEY `uk_stu_id` (`stu_id`)

) ENGINE=InnoDB AUTO_INCREMENT=7 DEFAULT CHARSET=utf8 COMMENT='學生表'

1 row in set (0.00 sec)




mysql> select * from test_table;

+--------------+--------+----------+---------------------+---------------------+

| increment_id | stu_id | stu_name | create_time         | update_time         |

+--------------+--------+----------+---------------------+---------------------+

|            1 |   1001 | wang     | 2019-06-21 10:52:03 | 2019-06-21 10:52:03 |

|            2 |   1002 | dfsfd    | 2019-06-21 10:52:03 | 2019-06-21 10:52:03 |

|            3 |   1003 | fdgfg    | 2019-06-21 10:52:03 | 2019-06-21 10:52:03 |

|            4 |   1004 | sdfsdf   | 2019-06-21 10:52:03 | 2019-06-21 10:52:03 |

|            5 |   1005 | dsfsdg   | 2019-06-21 10:52:03 | 2019-06-21 10:52:03 |

|            6 |   1006 | fgd      | 2019-06-21 10:52:03 | 2019-06-21 10:52:03 |

+--------------+--------+----------+---------------------+---------------------+

6 rows in set (0.00 sec)




# 目標端建表及查詢

# 注意ENGINE=FEDERATED CONNECTION后為源端地址 避免使用帶@的密碼

mysql> CREATE TABLE `test_table` (

    ->   `increment_id` int(11) NOT NULL AUTO_INCREMENT COMMENT '自增主鍵',

    ->   `stu_id` int(11) NOT NULL COMMENT '學號',

    ->   `stu_name` varchar(20) DEFAULT NULL COMMENT '學生姓名',

    ->   `create_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '創建時間',

    ->   `update_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '修改時間',

    ->   PRIMARY KEY (`increment_id`),

    ->   UNIQUE KEY `uk_stu_id` (`stu_id`)

    -> ) ENGINE=FEDERATED DEFAULT CHARSET=utf8 COMMENT='學生表' CONNECTION='mysql://root:root@10.50.60.212:3306/source/test_table';

Query OK, 0 rows affected (0.01 sec)




mysql> select * from test_table;

+--------------+--------+----------+---------------------+---------------------+

| increment_id | stu_id | stu_name | create_time         | update_time         |

+--------------+--------+----------+---------------------+---------------------+

|            1 |   1001 | wang     | 2019-06-21 10:52:03 | 2019-06-21 10:52:03 |

|            2 |   1002 | dfsfd    | 2019-06-21 10:52:03 | 2019-06-21 10:52:03 |

|            3 |   1003 | fdgfg    | 2019-06-21 10:52:03 | 2019-06-21 10:52:03 |

|            4 |   1004 | sdfsdf   | 2019-06-21 10:52:03 | 2019-06-21 10:52:03 |

|            5 |   1005 | dsfsdg   | 2019-06-21 10:52:03 | 2019-06-21 10:52:03 |

|            6 |   1006 | fgd      | 2019-06-21 10:52:03 | 2019-06-21 10:52:03 |

+--------------+--------+----------+---------------------+---------------------+

6 rows in set (0.00 sec)

3.使用CREATE SERVER創建FEDERATED表

如果要在同一服務器上創建多個FEDERATED表，或者想簡化創建FEDERATED表的過程，則可以使用該CREATE SERVER語句定義服務器連接參數，這樣多個表可以使用同一個server。

CREATE SERVER創建的格式是：

CREATE SERVER fedlink

FOREIGN DATA WRAPPER mysql

OPTIONS (USER 'fed_user', PASSWORD '123456', HOST 'remote_host', PORT 3306, DATABASE 'federated');

之后創建FEDERATED表可采用如下格式：

CREATE TABLE (......)

ENGINE =FEDERATED CONNECTION='test_link/tablename'

示例演示：

# 目標端創建指向源端的server

mysql> CREATE SERVER test_link

    ->   FOREIGN DATA WRAPPER mysql

    ->   OPTIONS (USER 'root', PASSWORD 'root',HOST '10.50.60.212',PORT 3306,DATABASE 'source');

Query OK, 1 row affected (0.00 sec)




mysql> select * from mysql.servers\G

*************************** 1. row ***************************

Server_name: test_link

       Host: 10.50.60.212

         Db: source

   Username: root

   Password: root

       Port: 3306

     Socket:

    Wrapper: mysql

      Owner:

1 row in set (0.00 sec)




# 目標端創建FEDERATED表

mysql> CREATE TABLE `s1` (

    ->   `increment_id` int(11) NOT NULL AUTO_INCREMENT COMMENT '自增主鍵',

    ->   `stu_id` int(11) NOT NULL COMMENT '學號',

    ->   `stu_name` varchar(20) DEFAULT NULL COMMENT '學生姓名',

    ->   `create_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '創建時間',

    ->   `update_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '修改時間',

    ->   PRIMARY KEY (`increment_id`),

    ->   UNIQUE KEY `uk_stu_id` (`stu_id`)

    -> ) ENGINE=FEDERATED DEFAULT CHARSET=utf8 COMMENT='學生表' CONNECTION='test_link/s1';

Query OK, 0 rows affected (0.01 sec)




mysql> CREATE TABLE `s2` (

    ->   `increment_id` int(11) NOT NULL AUTO_INCREMENT COMMENT '自增主鍵',

    ->   `stu_id` int(11) NOT NULL COMMENT '學號',

    ->   `stu_name` varchar(20) DEFAULT NULL COMMENT '學生姓名',

    ->   `create_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '創建時間',

    ->   `update_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '修改時間',

    ->   PRIMARY KEY (`increment_id`),

    ->   UNIQUE KEY `uk_stu_id` (`stu_id`)

    -> ) ENGINE=FEDERATED DEFAULT CHARSET=utf8 COMMENT='學生表' CONNECTION='test_link/s2';

Query OK, 0 rows affected (0.01 sec)

4.FEDERATED使用總結

基于MySQL5.7.23版本，筆者在源端及目標端實驗了多種DDL及DML，現簡單總結如下，有興趣的同學可以試試看。

目標端建表結構可以與源端不一樣推薦與源端結構一致
源端DDL語句更改表結構 目標端不會變化
源端DML語句目標端查詢會同步
源端drop表目標端結構還在但無法查詢
目標端不能執行DDL語句
目標端執行DML語句源端數據也會變化
目標端truncate表源端表數據也會被清空
目標端drop表對源端無影響

5.FEDERATED引擎最佳實踐

目前FEDERATED引擎使用范圍還不多，若確實有跨實例訪問的需求，建議做好規范，個人總結最佳實踐如下：

源端專門創建只讀權限的用戶來供目標端使用。
目標端建議用CREATE SERVER方式創建FEDERATED表。
FEDERATED表不宜太多，遷移時要特別注意。
目標端應該只做查詢使用，禁止在目標端更改FEDERATED表。
建議目標端表名及結構和源端保持一致。
源端表結構變更后目標端要及時刪除重建。

參考：

https://dev.mysql.com/doc/refman/5.7/en/federated-create.html

https://dev.mysql.com/doc/refman/5.7/en/create-server.html

到此這篇關于MySQL跨實例進行數據查詢的文章就介紹到這了,更多相關MySQL跨實例進行數據查詢內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
