vue3+ElementPlus+VueCropper實現上傳圖片功能
更新時間：2025年01月14日 09:58:18 作者：An_s
文章介紹了如何在Vue3、ElementPlus和VueCropper組件中實現圖片上傳和裁剪功能,包括放大、縮小等操作,感興趣的朋友跟隨小編一起看看吧
前言
我們需要上傳圖片，然后彈框進行裁剪（放大、縮小）。

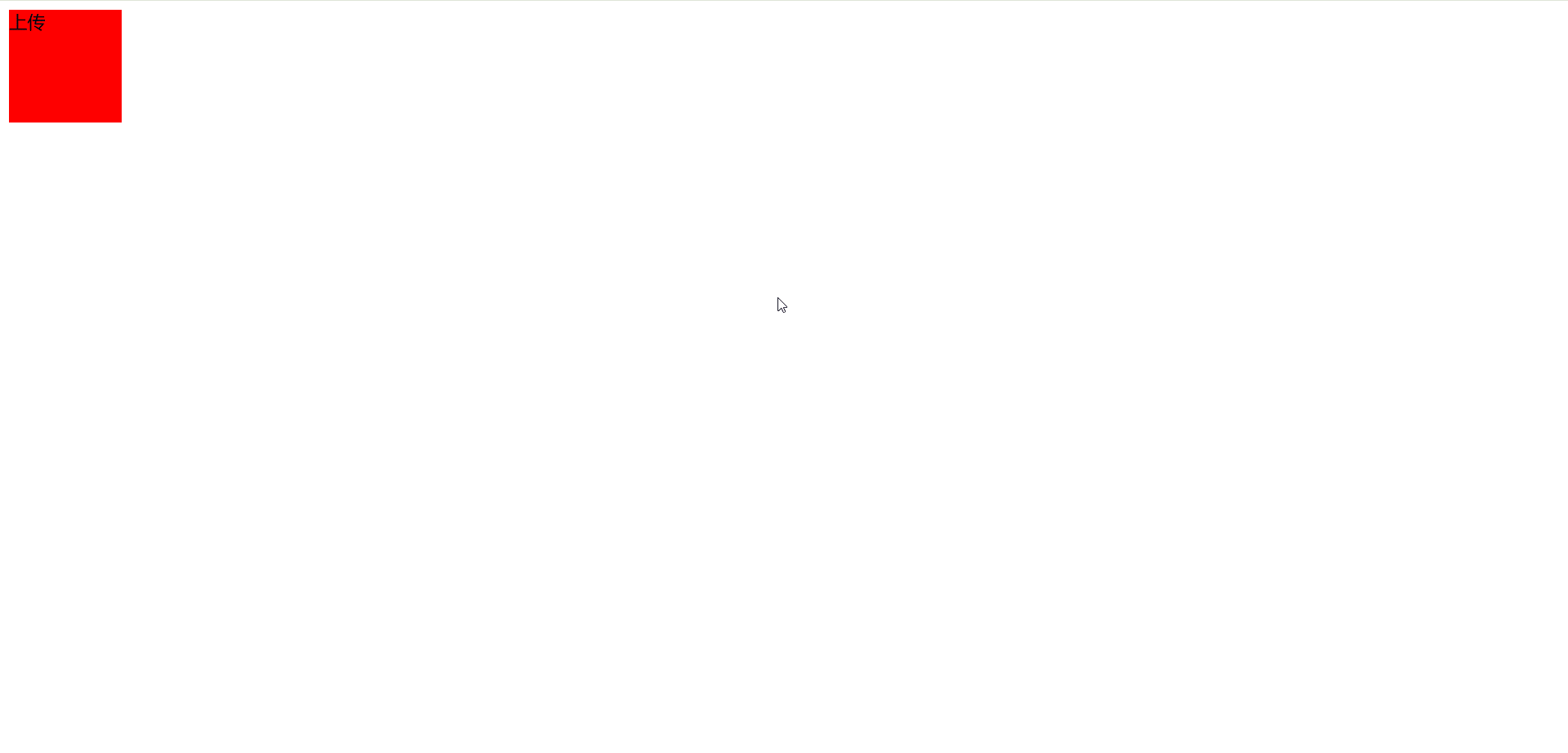

效果
實現
裁剪組件.vue
<template>
<div>
<!--裁剪圖片-->
<el-dialog v-model="tailorDialogVisible" @open="onTailorDialogOpen" @close="onTailorDialogCancel" title="編輯圖片" width="680" align-center>
<div style=" width: 550px; height: 450px; margin: 30px auto;" v-loading="loading"
element-loading-text="Loading...">
<vue-cropper ref="cropper"
:img="tailorOption.img"
:output-type="tailorOption.outputType"
:full="tailorOption.full"
:auto-crop="tailorOption.autoCrop"
:auto-crop-width="tailorOption.autoCropWidth"
:auto-crop-height="tailorOption.autoCropHeight"
:center-box="tailorOption.centerBox"
:max-img-size="tailorOption.max"
mode="cover"
@imgLoad="onTailorLoad"
></vue-cropper>
</div>
<div style="display: flex; margin: 0 200px; justify-content: center; align-items: center">
<div style="width: 40px;text-align: left; cursor: pointer;">
<!-- <el-icon @click="onScaleMinus(0.1)" :size="16"><Minus /></el-icon> -->
<span @click="onScaleMinus(0.1)">-號</span>
</div>
<div style="flex: 1">
<el-slider v-model="tailorAmplificationValue" :min="1" :max="3" :step="0.1" @change="onChangTailorAmplificationSlider" />
</div>
<div style="width: 40px;text-align: right; cursor: pointer;">
<!-- <el-icon @click="onScaleAdd(0.1)" :size="16"><Plus /></el-icon> -->
<span @click="onScaleAdd(0.1)">+號</span>
</div>
</div>
<div style="display: flex; margin: 10px 200px 40px 200px; justify-content: center; align-items: center">
<div style="width: 40px;text-align: left; cursor: pointer;">
<span @click="onRotateLeft">左旋</span>
<!-- <el-icon @click="onRotateLeft" :size="16"><Plus /></el-icon> -->
<!-- <img @click="onRotateLeft" style="width: 14px; height: 14px" src="../../../public/img/recipeManage/left_rotate.png" alt=""> -->
</div>
<div style="flex: 1">
<el-slider v-model="tailorSpinValue" :min="-180" :max="180" :step="90" @change="onChangTailorSpinSlider" />
</div>
<div style="width: 40px;text-align: right; cursor: pointer;">
<span @click="onRotateRight">右旋</span>
<!-- <el-icon @click="onRotateRight" :size="16"><Plus /></el-icon> -->
<!-- <img @click="onRotateRight" style="width: 14px; height: 14px" src="../../../public/img/recipeManage/right_rotate.png" alt=""> -->
</div>
</div>
<div style="padding-top: 20px;" class="recipeManage_border_top">
<div style="display: flex; align-items: center; justify-content: center">
<div>
<el-button type="primary" plain @click="onTailorDialogCancel">取消</el-button>
</div>
<div style="margin-left: 20px">
<el-button type="primary" @click="onTailorDialogSubmit">確認</el-button>
</div>
</div>
</div>
</el-dialog>
</div>
</template>
<script setup>
import 'vue-cropper/dist/index.css'
import { VueCropper } from "vue-cropper";
// import { postImgData } from '@/api/base/public';
import { ref, defineProps, toRefs, defineEmits } from 'vue';
const emit = defineEmits(['close', 'submit']);
const props = defineProps({
tailorDialogImg: {
default: ''
},
autoCropWidth: {
default: 180
},
autoCropHeight: {
default: 180
},
tailorDialogVisible: {
type: Boolean,
required: true,
default: false
},
});
const { tailorDialogVisible, tailorDialogImg, autoCropWidth, autoCropHeight } = toRefs(props);
const loading = ref(false);
// 裁剪圖片
const cropper = ref("");
// const tailorDialogVisible = ref(visible.value);
const tailorAmplificationValue = ref(0);
const tailorSpinValue = ref(0);
const tailorOption = ref({
img: "",
full: false,
outputType: 'png',
autoCrop: true,
autoCropWidth: 180,
autoCropHeight: 180,
centerBox: true,
max: 99999,
});
// 放大
let oldTailorAmplificationValue = 0;
const onScaleAdd = (num) => {
if (tailorAmplificationValue.value === 3) return;
// tailorAmplificationValue.value = Number(parseFloat(tailorAmplificationValue.value + num).toFixed(1));
tailorAmplificationValue.value = +(parseFloat(tailorAmplificationValue.value + num).toFixed(1));
oldTailorAmplificationValue = tailorAmplificationValue.value;
cropper.value.changeScale(tailorAmplificationValue.value);
};
const onScaleMinus = (num) => {
if (tailorAmplificationValue.value === 1) return;
tailorAmplificationValue.value = tailorAmplificationValue.value - num;
oldTailorAmplificationValue = -tailorAmplificationValue.value;
cropper.value.changeScale(-tailorAmplificationValue.value);
};
const onChangTailorAmplificationSlider = (value) => {
if (oldTailorAmplificationValue > value) {
cropper.value.changeScale(-value);
} else {
cropper.value.changeScale(value);
}
oldTailorAmplificationValue = value;
};
// 旋轉
let oldTailorRotateValue = 0;
const onChangTailorSpinSlider = (value) => {
if (value > 0) {
cropper.value.rotateRight();
} else {
cropper.value.rotateLeft();
}
};
const onRotateLeft = () => {
if (cropper.value.rotate === -2) return false;
cropper.value.rotateLeft();
oldTailorRotateValue = cropper.value.rotate * 90
console.log("===oldTailorRotateValue===", oldTailorRotateValue)
tailorSpinValue.value = cropper.value.rotate * 90
};
const onRotateRight = () => {
if (cropper.value.rotate === 2) return false;
cropper.value.rotateRight();
oldTailorRotateValue = cropper.value.rotate * 90
console.log("===oldTailorRotateValue===", oldTailorRotateValue)
tailorSpinValue.value = cropper.value.rotate * 90
};
const onTailorDialogOpen = () => {
console.log("===彈框打開===");
loading.value = true;
tailorOption.value.img = tailorDialogImg.value;
tailorOption.value.autoCropWidth = autoCropWidth.value;
tailorOption.value.autoCropHeight = autoCropHeight.value;
};
const onTailorLoad = (msg) => {
console.log("===msg===", msg)
loading.value = false;
};
const onTailorDialogCancel = () => {
emit('close');
loading.value = false;
tailorOption.value.img = "";
tailorAmplificationValue.value = 0;
tailorSpinValue.value = 0;
};
const onTailorDialogSubmit = () => {
cropper.value.getCropData(data => {
tailorAmplificationValue.value = 0;
tailorSpinValue.value = 0;
tailorOption.value.img = "";
emit('submit', data);
})
// cropper.value.getCropBlob(data => {
// // 創建 FormData 對象并添加 Blob 對象
// const formData = new FormData();
// formData.append('file', data, '1.png');
// // postImgData(formData).then((res) => {
// // if (res.data.code === 200) {
// // emit('submit', res.data.data);
// // }
// // }).catch(err => {});
// tailorAmplificationValue.value = 0;
// tailorSpinValue.value = 0;
// tailorOption.value.img = "";
// emit('submit', '');
// })
// let blob = await cropper.value.getCropBlob();
// // 創建 FormData 對象并添加 Blob 對象
// const formData = new FormData();
// formData.append('file', blob, '1.png');
// let res = postImgData(formData);
//
// emit('submit', res.data.data);
//
// tailorAmplificationValue.value = 0;
// tailorSpinValue.value = 0;
// tailorOption.value.img = "";
};
</script>
<style>
</style>使用組件.vue
<template>
<div>
<el-upload action="#" :http-request="onImgRequest" :show-file-list="false" :before-upload="(file) => onImgUpload(file)">
<div style="height: 100px; width: 100px; background-color: red;">上傳</div>
</el-upload>
<el-image v-if="imagesUrl" :src="imagesUrl"></el-image>
<tailorImage :tailorDialogVisible="tailorDialogVisible" :tailorDialogImg="tailorDialogImg" @submit="tailorDialogImgSucc"></tailorImage>
<!-- <el-image :src="src" /> -->
</div>
</template>
<script setup>
import tailorImage from "./components/TailorImage.vue"
import {ref} from "vue"
import { ElMessage } from 'element-plus';
const tailorDialogVisible = ref(false)
const tailorDialogImg = ref("")
const imagesUrl = ref("")
const onImgRequest = () => {};
const onImgUpload = (rawFile) => {
if (rawFile.type.indexOf('image/') === -1) {
ElMessage.error('文件格式錯誤,請上傳圖片類型,如: JPG，PNG后綴的文件');
return false;
} else {
const reader = new FileReader();
reader.readAsDataURL(rawFile);
reader.onload = () => {
tailorDialogImg.value = reader.result;
tailorDialogVisible.value = true;
};
}
};
const tailorDialogImgSucc = (data) => {
// console.log("===tailorDialogImgSucc===", data)
imagesUrl.value = data;
tailorDialogVisible.value = false;
tailorDialogImg.value = "";
}
// const test = () => {
// tailorDialogVisible.value = true
// console.log("===裁剪圖片====");
// }
</script>
<style>
</style>到此這篇關于vue3+ElementPlus+VueCropper實現上傳圖片的文章就介紹到這了,更多相關vue3 ElementPlus VueCropper上傳圖片內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
