純前端使用插件pdfjs實現將pdf轉為圖片的步驟

 更新時間:2025年01月18日 09:08:07   作者:鍵.
這篇文章主要介紹了純前端使用插件pdfjs實現將pdf轉為圖片的步驟,在實現過程中遇到了跨域問題,后臺設置跨域但前端配置無效,最終采用后臺返回PDF的base64格式,通過PDF.js將base64轉換為二進制數據加載PDF,需要的朋友可以參考下

需求來源

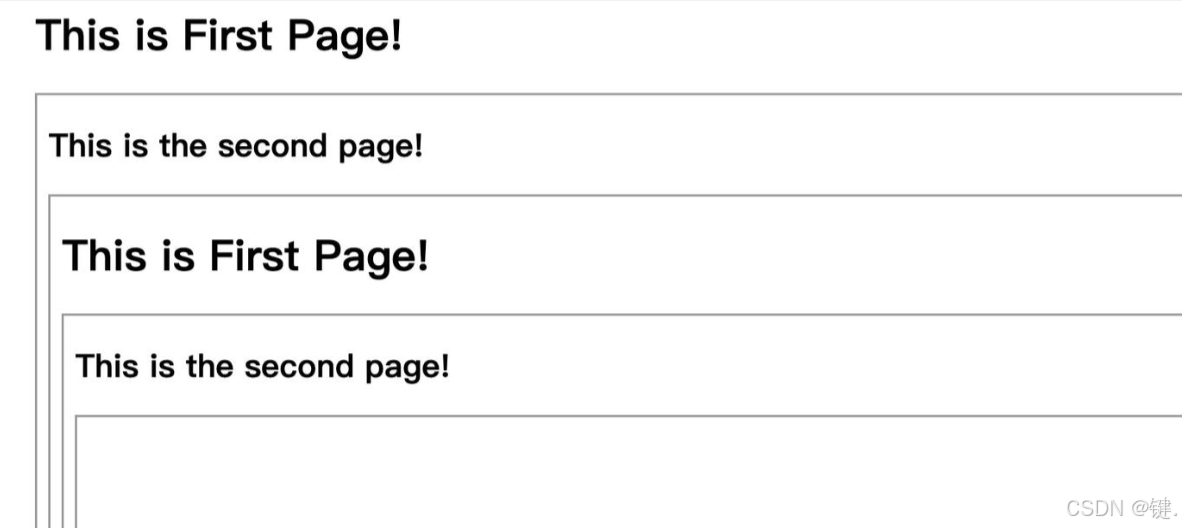

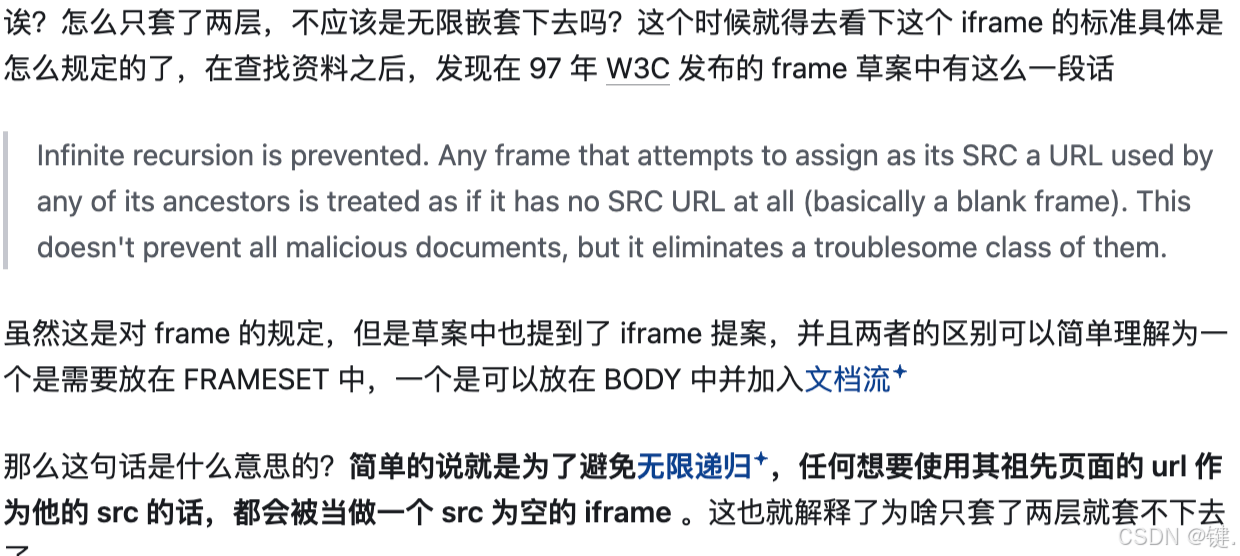

預覽簡歷功能在移動端,由于用了一層iframe把這個功能嵌套在了app端,再用一個iframe來預覽,只有ios能看到,安卓就不支持,查了很多資料和插件,原理基本上都是用iframe實現的。最終轉換思路,將pdf下載轉為圖片然后繪制到canvans中也是一樣的效果。

實現步驟

先安裝pdfjs插件,插件開源免費

官網:

https://github.com/mozilla/pdf.js

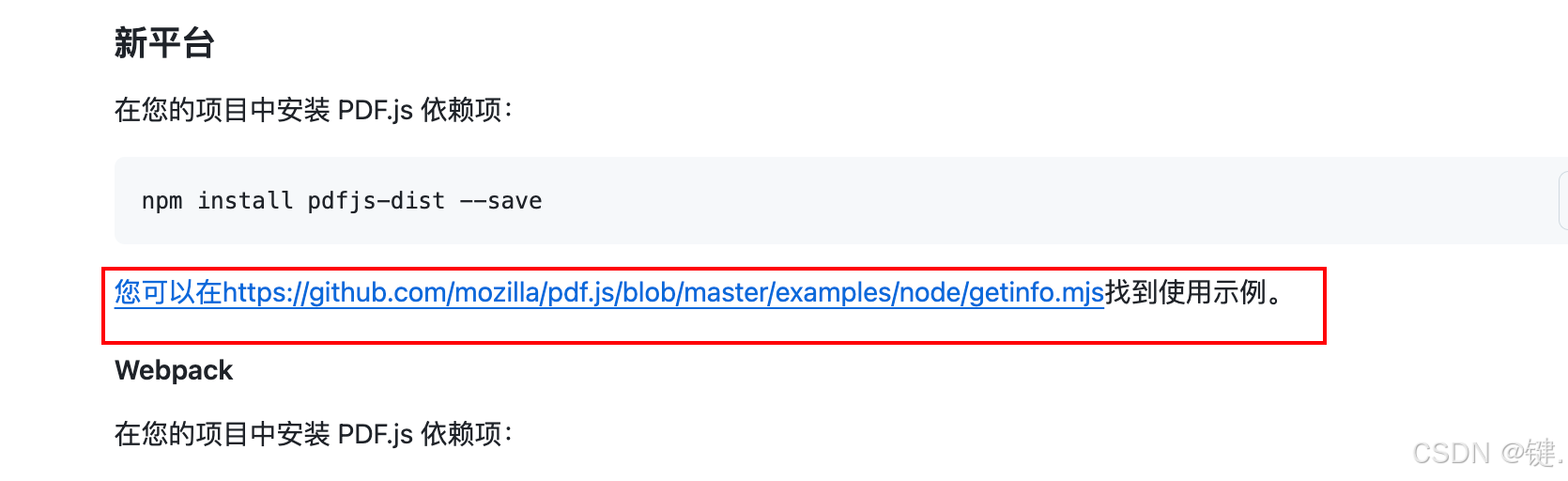

在vue或react項目中使用
https://github.com/mozilla/pdf.js/wiki/Setup-pdf.js-in-a-website

npm install pdfjs-dist --save

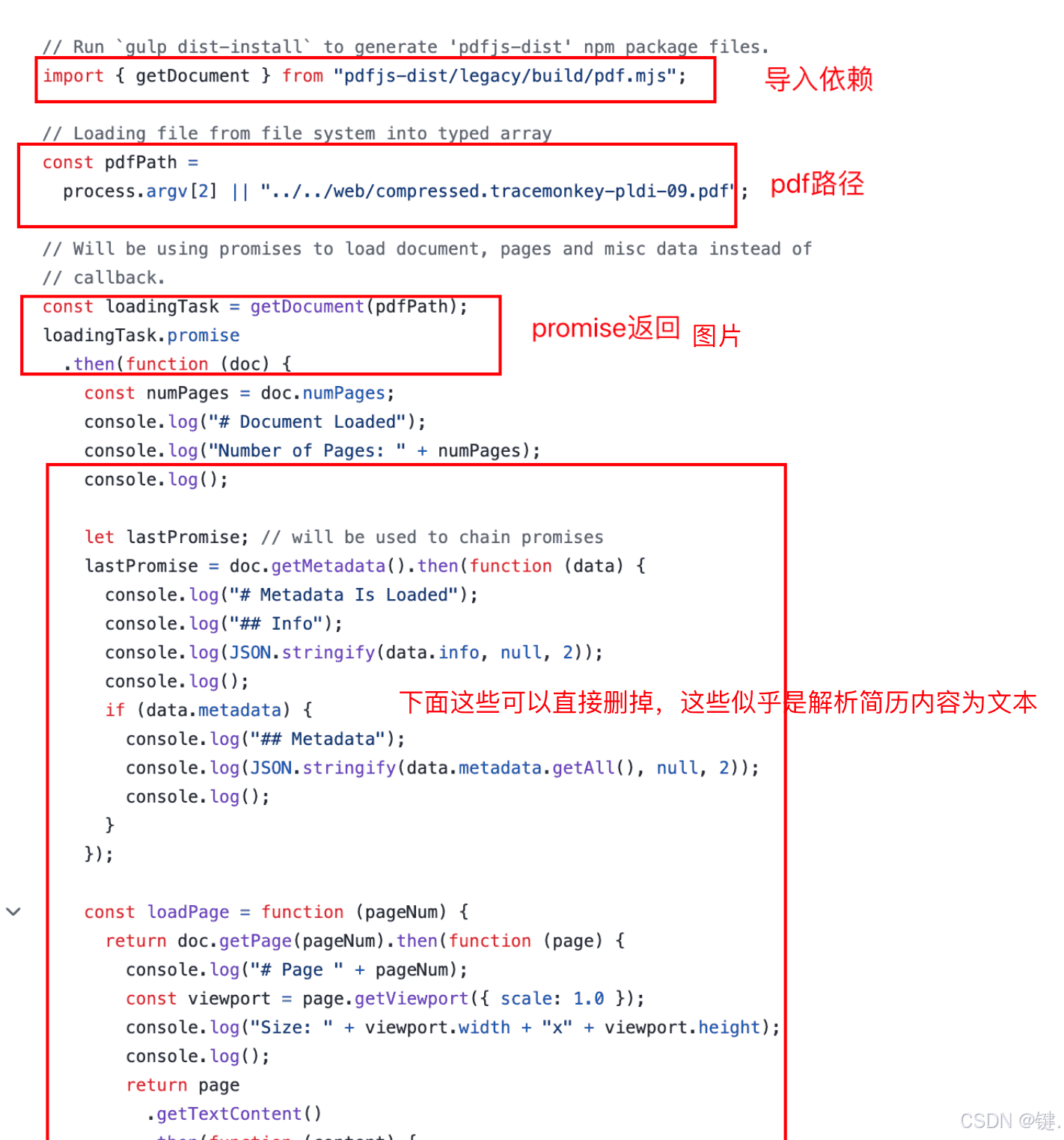

上面幾步完成后就完成80%了,剩下的就是把圖片繪制到canvans了

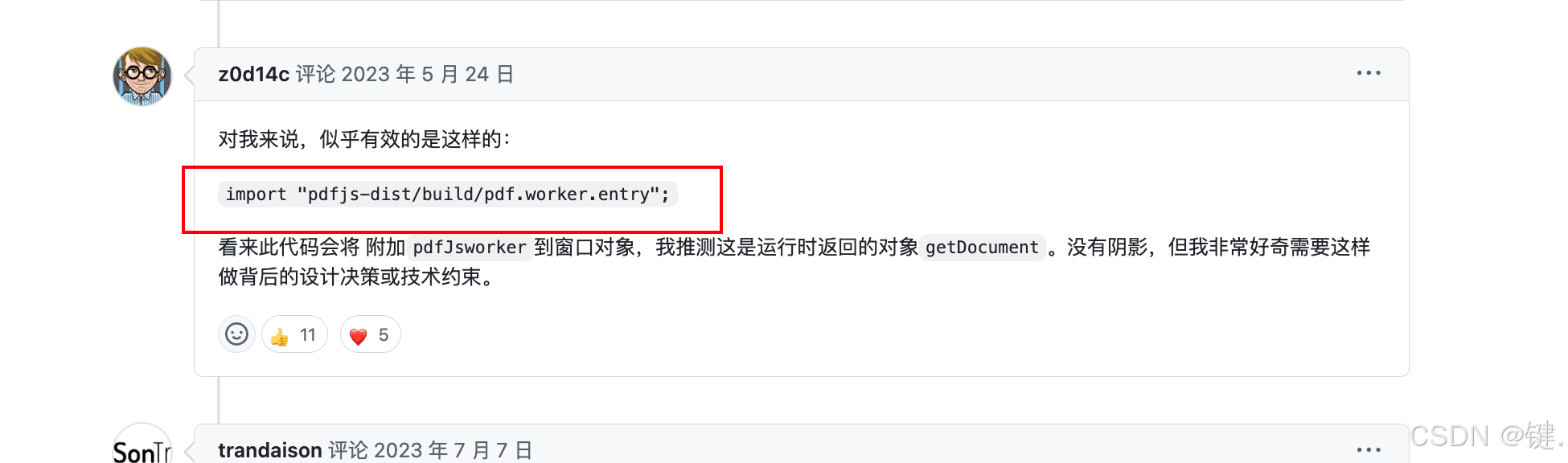

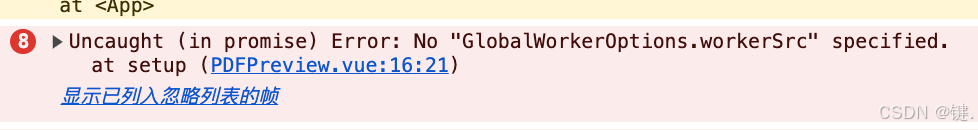

這里我直接貼源碼了,注意一點,官方的示例中沒有import 'pdfjs-dist/build/pdf.worker.mjs'; 這一段導入,會有一個報錯

gihub上有解釋
https://github.com/mozilla/pdf.js/issues/10478

<template>
  <div ref="showpdfRef"></div>
</template>

<script setup>
import { ref } from 'vue';
import { getDocument } from 'pdfjs-dist/legacy/build/pdf.mjs';
import 'pdfjs-dist/build/pdf.worker.mjs';

const showpdfRef = ref(null);

const pdfPath ='xxxxxxxx'

const loadingTask = getDocument(pdfPath);
loadingTask.promise
  .then(async (pdf) => {
    const canvas = document.createElement('canvas');
    const context = canvas.getContext('2d');
    // 循環遍歷每一頁pdf,將其轉成圖片
    for (let i = 1; i <= pdf._pdfInfo.numPages; i++) {
      // 獲取pdf頁
      const page = await pdf.getPage(i);
      // 獲取頁的尺寸
      const viewport = page.getViewport({ scale: 1 });
      // 設置canvas的尺寸
      canvas.width = viewport.width;
      canvas.height = viewport.height;
      // 將pdf頁渲染到canvas上
      await page.render({ canvasContext: context, viewport: viewport }).promise;
      // 將canvas轉成圖片,并添加到頁面上
      const img = document.createElement('img');
      img.src = canvas.toDataURL('image/png');
      showpdfRef.value.appendChild(img);
    }

  })
  .then(
    function () {
      console.log('# End of Document');
    },
    function (err) {
      console.error('Error: ' + err);
    },
  );
</script>

<style scoped></style>

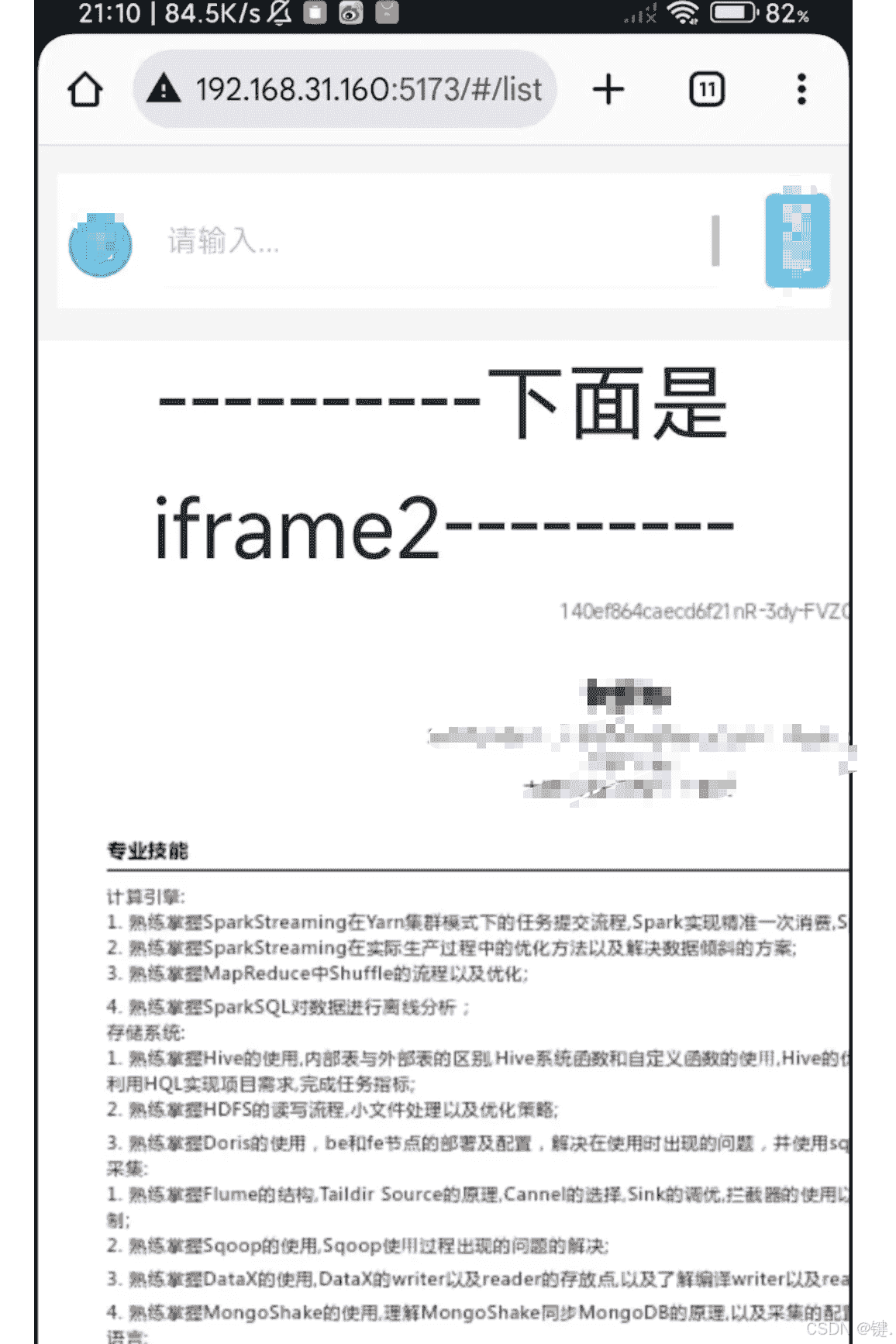

最終效果:

問題

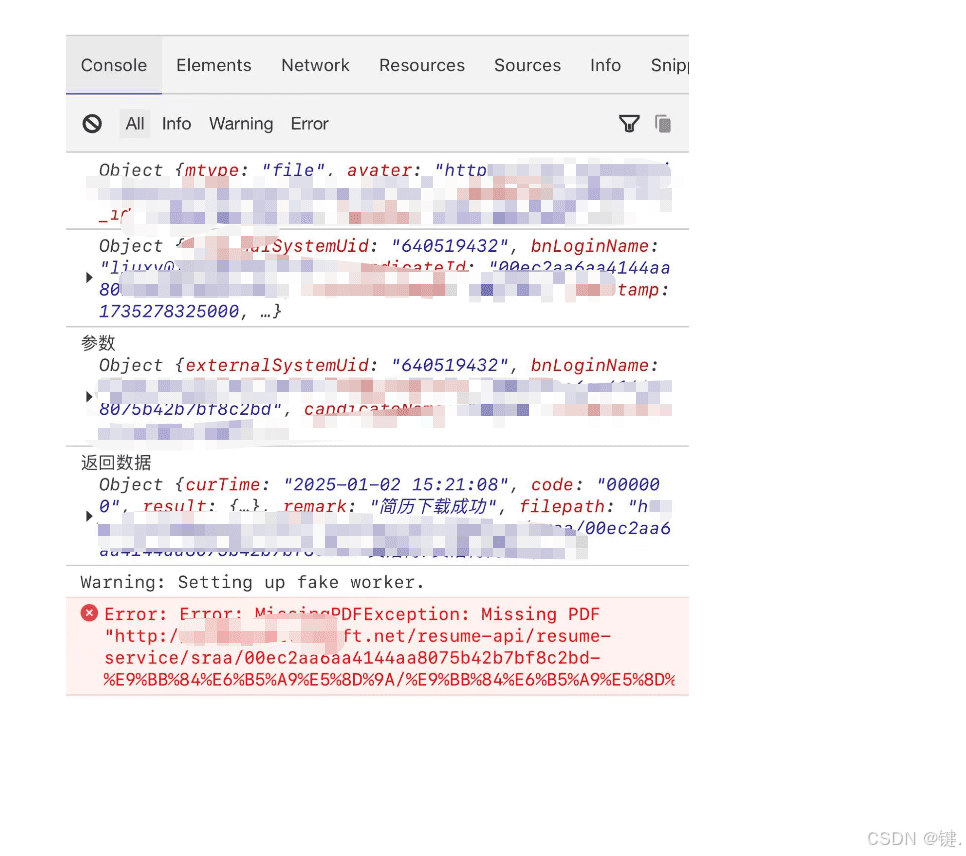

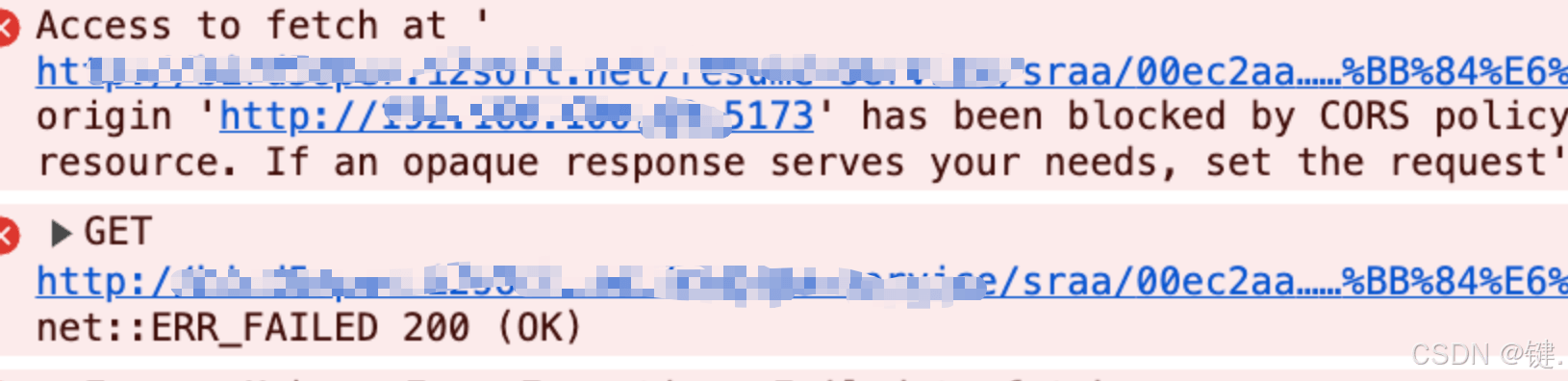

跨域

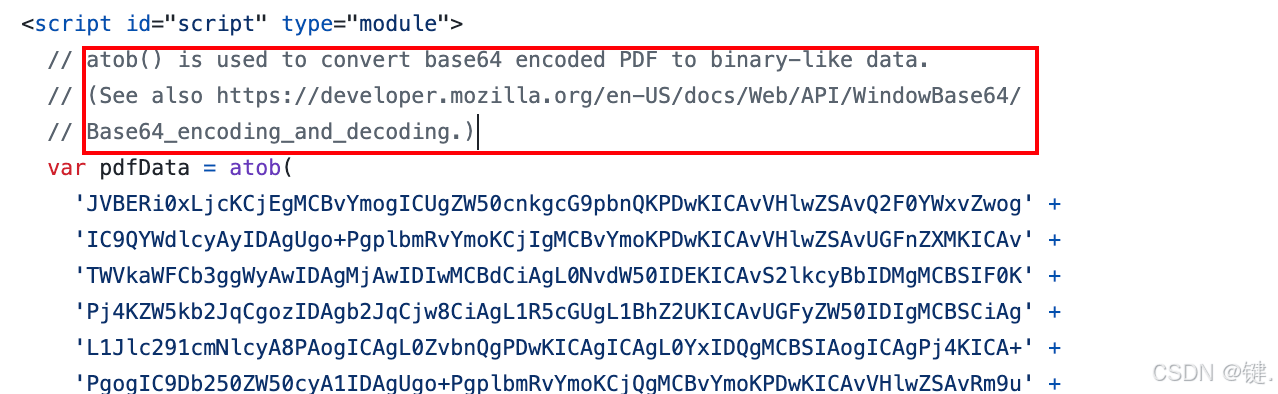

我直接放入設置了跨域的鏈接到url是可以直接得到pdf的,但是目前這個跨域問題,后臺說是有設置跨域,但是我請求有跨域,我在前端配置了跨域也還是不行。多番嘗試后這個問題還是沒有解決。由于時間緊迫,所以采用備用方案:后臺在接口返回了pdf的base64格式,pdfjs官方案例中說需要將base64轉為二進制數據就可以加載。
https://github.com/mozilla/pdf.js/blob/master/examples/learning/helloworld64.html

總結

到此這篇關于純前端使用插件pdfjs實現將pdf轉為圖片的文章就介紹到這了,更多相關插件pdfjs將pdf轉為圖片內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
