如何基于uniapp開發android播放webrtc流詳解
一、播放rtsp協議流
如果 webrtc 流以 rtsp 協議返回,流地址如:rtsp://127.0.0.1:5115/session.mpg,uniapp的 <video> 編譯到android上直接就能播放,但通常會有2-3秒的延遲。
二、播放webrtc協議流
如果 webrtc 流以 webrtc 協議返回,流地址如:webrtc://127.0.0.1:1988/live/livestream,我們需要通過sdp協商、連接推流服務端、搭建音視頻流通道來播放音視頻流,通常有500毫秒左右的延遲。
封裝 WebrtcVideo 組件
<template>
<video id="rtc_media_player" width="100%" height="100%" autoplay playsinline></video>
</template>
<!-- 因?yàn)槲覀兪褂玫?js 庫,所以需要使用 uniapp 的 renderjs -->
<script module="webrtcVideo" lang="renderjs">
import $ from "./jquery-1.10.2.min.js";
import {prepareUrl} from "./utils.js";
export default {
data() {
return {
//RTCPeerConnection 對象
peerConnection: null,
//需要播放的webrtc流地址
playUrl: 'webrtc://127.0.0.1:1988/live/livestream'
}
},
methods: {
createPeerConnection() {
const that = this
//創建 WebRTC 通信通道
that.peerConnection = new RTCPeerConnection(null);
//添加一個單向的音視頻流收發器
that.peerConnection.addTransceiver("audio", { direction: "recvonly" });
that.peerConnection.addTransceiver("video", { direction: "recvonly" });
//收到服務器碼流,將音視頻流寫入播放器
that.peerConnection.ontrack = (event) => {
const remoteVideo = document.getElementById("rtc_media_player");
if (remoteVideo.srcObject !== event.streams[0]) {
remoteVideo.srcObject = event.streams[0];
}
};
},
async makeCall() {
const that = this
const url = this.playUrl
this.createPeerConnection()
//拼接服務端請求地址,如:http://192.168.0.1:1988/rtc/v1/play/
const conf = prepareUrl(url);
//生成 offer sdp
const offer = await this.peerConnection.createOffer();
await this.peerConnection.setLocalDescription(offer);
var session = await new Promise(function (resolve, reject) {
$.ajax({
type: "POST",
url: conf.apiUrl,
data: offer.sdp,
contentType: "text/plain",
dataType: "json",
crossDomain: true,
})
.done(function (data) {
//服務端返回 answer sdp
if (data.code) {
reject(data);
return;
}
resolve(data);
})
.fail(function (reason) {
reject(reason);
});
});
//設置遠端的描述信息,協商sdp,通過后搭建通道成功
await this.peerConnection.setRemoteDescription(
new RTCSessionDescription({ type: "answer", sdp: session.sdp })
);
session.simulator = conf.schema + '//' + conf.urlObject.server + ':' + conf.port + '/rtc/v1/nack/'
return session;
}
},
mounted() {
try {
this.makeCall().then((res) => {
// webrtc 通道建立成功
})
} catch (error) {
// webrtc 通道建立失敗
console.log(error)
}
}
}
</script>
utils.js
const defaultPath = "/rtc/v1/play/";
export const prepareUrl = webrtcUrl => {
var urlObject = parseUrl(webrtcUrl);
var schema = "http:";
var port = urlObject.port || 1985;
if (schema === "https:") {
port = urlObject.port || 443;
}
// @see https://github.com/rtcdn/rtcdn-draft
var api = urlObject.user_query.play || defaultPath;
if (api.lastIndexOf("/") !== api.length - 1) {
api += "/";
}
apiUrl = schema + "http://" + urlObject.server + ":" + port + api;
for (var key in urlObject.user_query) {
if (key !== "api" && key !== "play") {
apiUrl += "&" + key + "=" + urlObject.user_query[key];
}
}
// Replace /rtc/v1/play/&k=v to /rtc/v1/play/?k=v
var apiUrl = apiUrl.replace(api + "&", api + "?");
var streamUrl = urlObject.url;
return {
apiUrl: apiUrl,
streamUrl: streamUrl,
schema: schema,
urlObject: urlObject,
port: port,
tid: Number(parseInt(new Date().getTime() * Math.random() * 100))
.toString(16)
.substr(0, 7)
};
};
export const parseUrl = url => {
// @see: http://stackoverflow.com/questions/10469575/how-to-use-location-object-to-parse-url-without-redirecting-the-page-in-javascri
var a = document.createElement("a");
a.href = url
.replace("rtmp://", "http://")
.replace("webrtc://", "http://")
.replace("rtc://", "http://");
var vhost = a.hostname;
var app = a.pathname.substr(1, a.pathname.lastIndexOf("/") - 1);
var stream = a.pathname.substr(a.pathname.lastIndexOf("/") + 1);
// parse the vhost in the params of app, that srs supports.
app = app.replace("...vhost...", "?vhost=");
if (app.indexOf("?") >= 0) {
var params = app.substr(app.indexOf("?"));
app = app.substr(0, app.indexOf("?"));
if (params.indexOf("vhost=") > 0) {
vhost = params.substr(params.indexOf("vhost=") + "vhost=".length);
if (vhost.indexOf("&") > 0) {
vhost = vhost.substr(0, vhost.indexOf("&"));
}
}
}
// when vhost equals to server, and server is ip,
// the vhost is __defaultVhost__
if (a.hostname === vhost) {
var re = /^(\d+)\.(\d+)\.(\d+)\.(\d+)$/;
if (re.test(a.hostname)) {
vhost = "__defaultVhost__";
}
}
// parse the schema
var schema = "rtmp";
if (url.indexOf("://") > 0) {
schema = url.substr(0, url.indexOf("://"));
}
var port = a.port;
if (!port) {
if (schema === "http") {
port = 80;
} else if (schema === "https") {
port = 443;
} else if (schema === "rtmp") {
port = 1935;
}
}
var ret = {
url: url,
schema: schema,
server: a.hostname,
port: port,
vhost: vhost,
app: app,
stream: stream
};
fill_query(a.search, ret);
// For webrtc API, we use 443 if page is https, or schema specified it.
if (!ret.port) {
if (schema === "webrtc" || schema === "rtc") {
if (ret.user_query.schema === "https") {
ret.port = 443;
} else if (window.location.href.indexOf("https://") === 0) {
ret.port = 443;
} else {
// For WebRTC, SRS use 1985 as default API port.
ret.port = 1985;
}
}
}
return ret;
};
export const fill_query = (query_string, obj) => {
// pure user query object.
obj.user_query = {};
if (query_string.length === 0) {
return;
}
// split again for angularjs.
if (query_string.indexOf("?") >= 0) {
query_string = query_string.split("?")[1];
}
var queries = query_string.split("&");
for (var i = 0; i < queries.length; i++) {
var elem = queries[i];
var query = elem.split("=");
obj[query[0]] = query[1];
obj.user_query[query[0]] = query[1];
}
// alias domain for vhost.
if (obj.domain) {
obj.vhost = obj.domain;
}
};
頁面中使用
<template> <VideoWebrtc /> </template> <script setup> import VideoWebrtc from "@/components/videoWebrtc"; </script>
需要注意的事項:

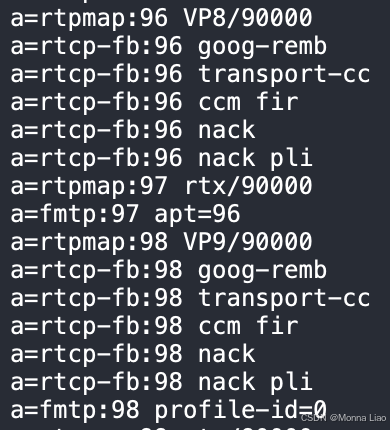

1.spd 協商的重要標識之一為媒體描述: m=xxx <type> <code>,示例行如下:

一個完整的媒體描述,從第一個m=xxx <type> <code>開始,到下一個m=xxx <type> <code>結束,以video為例,媒體描述包含了當前設備允許播放的視頻流編碼格式,常見如:VP8/VP9/H264 等:

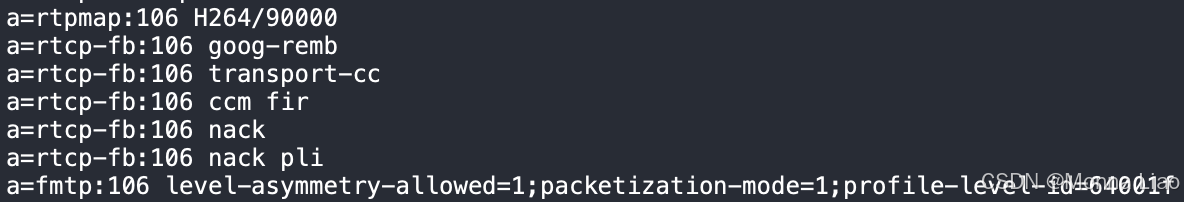

對照 m=video 后邊的編碼發現,其包含所有 a=rtpmap 后的編碼,a=rtpmap 編碼后的字符串代表視頻流格式,但視頻編碼與視頻流格式卻不是固定的匹配關系,也就是說,在設備A中,可能存在 a=rtpmap:106 H264/90000 表示h264,在設備B中,a=rtpmap:100 H264/90000 表示h264。
因此,如果要鑒別設備允許播放的視頻流格式,我們需要觀察 a=rtpmap code 后的字符串。
協商通過的部分標準為:
- offer sdp 的 m=xxx 數量需要與 answer sdp 的 m=xxx 數量保持一致;
- offer sdp 的 m=xxx 順序需要與 answer sdp 的 m=xxx 順序保持一致;如兩者都需要將 m=audio 放在第一位,m=video放在第二位,或者反過來;
- answer sdp 返回的 m=audio 后的
<code>,需要被包含在 offer sdp 的 m=audio 后的<code>中;
offer sdp 的 m=xxx 由 addTransceiver 創建,首個參數為 audio 時,生成 m=audio,首個參數為video時,生成 m=video ,創建順序?qū)?yīng) m=xxx 順序
"recvonly" }); that.peerConnection.addTransceiver("video", { direction: "recvonly" }); ```
- 在 sdp 中存在一項
a=mid:xxxxxx在瀏覽器中可能為audio、video,在 android 設備上為0、1,服務端需注意與 offer sdp 匹配。 - 關于音視頻流收發器,上面使用的api是
addTransceiver,但在部分android設備上會提示沒有這個api,我們可以替換為getUserMedia+addTrack:
data() {
return {
......
localStream: null,
......
}
},
methods: {
createPeerConnection() {
const that = this
//創建 WebRTC 通信通道
that.peerConnection = new RTCPeerConnection(null);
that.localStream.getTracks().forEach((track) => {
that.peerConnection.addTrack(track, that.localStream);
});
//收到服務器碼流,將音視頻流寫入播放器
that.peerConnection.ontrack = (event) => {
......
};
},
async makeCall() {
const that = this
that.localStream = await navigator.mediaDevices.getUserMedia({
video: true,
audio: true,
});
const url = this.playUrl
......
......
}
}
需要注意的是,
navigator.mediaDevices.getUserMedia獲取的是設備攝像頭、錄音的媒體流,所以設備首先要具備攝像、錄音功能,并開啟對應權限,否則 api 將調用失敗。
三、音視頻實時通訊
這種 p2p 場景的流播放,通常需要使用 websocket 建立服務器連接,然后同時播放本地、服務端的流。
<template>
<div>Local Video</div>
<video id="localVideo" autoplay playsinline></video>
<div>Remote Video</div>
<video id="remoteVideo" autoplay playsinline></video>
</template>
<script module="webrtcVideo" lang="renderjs">
import $ from "./jquery-1.10.2.min.js";
export default {
data() {
return {
signalingServerUrl: "ws://127.0.0.1:8085",
iceServersUrl: 'stun:stun.l.google.com:19302',
localStream: null,
peerConnection: null
}
},
methods: {
async startLocalStream(){
try {
this.localStream = await navigator.mediaDevices.getUserMedia({
video: true,
audio: true,
});
document.getElementById("localVideo").srcObject = this.localStream;
}catch (err) {
console.error("Error accessing media devices.", err);
}
},
createPeerConnection() {
const configuration = { iceServers: [{
urls: this.iceServersUrl
}]};
this.peerConnection = new RTCPeerConnection(configuration);
this.localStream.getTracks().forEach((track) => {
this.peerConnection.addTrack(track, this.localStream);
});
this.peerConnection.onicecandidate = (event) => {
if (event.candidate) {
ws.send(
JSON.stringify({
type: "candidate",
candidate: event.candidate,
})
);
}
};
this.peerConnection.ontrack = (event) => {
const remoteVideo = document.getElementById("remoteVideo");
if (remoteVideo.srcObject !== event.streams[0]) {
remoteVideo.srcObject = event.streams[0];
}
};
},
async makeCall() {
this.createPeerConnection();
const offer = await this.peerConnection.createOffer();
await this.peerConnection.setLocalDescription(offer);
ws.send(JSON.stringify(offer));
}
},
mounted() {
this.makeCall()
const ws = new WebSocket(this.signalingServerUrl);
ws.onopen = () => {
console.log("Connected to the signaling server");
this.startLocalStream();
};
ws.onmessage = async (message) => {
const data = JSON.parse(message.data);
if (data.type === "offer") {
if (!this.peerConnection) createPeerConnection();
await this.peerConnection.setRemoteDescription(
new RTCSessionDescription(data)
);
const answer = await this.peerConnection.createAnswer();
await this.peerConnection.setLocalDescription(answer);
ws.send(JSON.stringify(this.peerConnection.localDescription));
} else if (data.type === "answer") {
if (!this.peerConnection) createPeerConnection();
await this.peerConnection.setRemoteDescription(
new RTCSessionDescription(data)
);
} else if (data.type === "candidate") {
if (this.peerConnection) {
try {
await this.peerConnection.addIceCandidate(
new RTCIceCandidate(data.candidate)
);
} catch (e) {
console.error("Error adding received ICE candidate", e);
}
}
}
}
}
}
</script>
與播放webrtc協議流相比,p2p 以 WebSocket 替代 ajax 實現 sdp 的發送與接收,增加了本地流的播放功能,其他與播放協議流的代碼一致。
總結
到此這篇關于如何基于uniapp開發android播放webrtc流的文章就介紹到這了,更多相關uniapp開發android播放webrtc流內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
