Vue封裝的標準漏斗圖教程
更新時間:2025年02月12日 15:37:17 作者:努力奮斗小白
文章展示了基于Vue封裝的標準漏斗圖的代碼,包括權重算法、滾輪監聽和點擊示例功能,旨在提供實用的圖表展示技巧
Vue封裝的標準漏斗圖


代碼展示

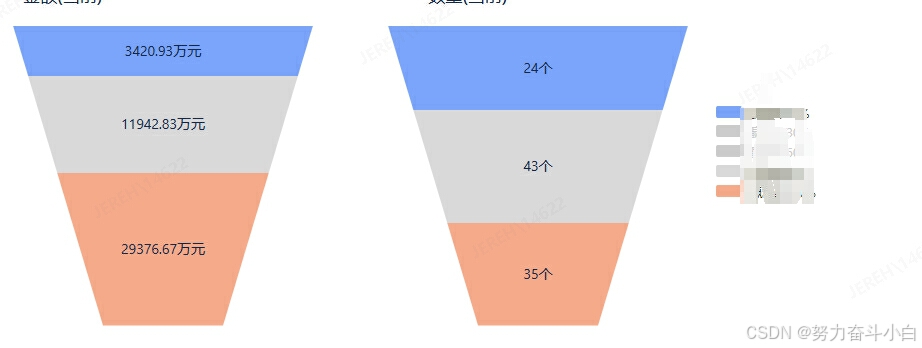

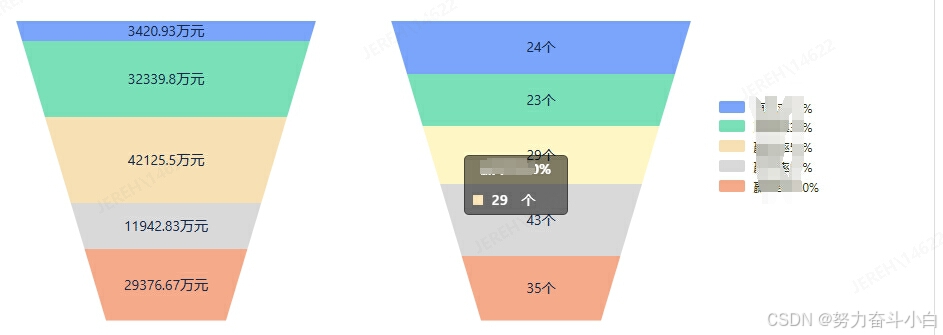

基于Vue封裝的標準漏斗圖,增加權重算法,避免數值很小時圖表顯示過小,監聽滾輪高度,防止彈窗飛走,點擊示例動態顯示對應的梯形圖表塊。
/**
* 權重
*/
export function qz(arr) {
// 計算數列的總和
const total = arr.reduce((sum, val) => sum + val, 0)
// 如果總和為零,則無法平衡,直接返回原數組
if (total === 0) {
return arr
}
function nonlinearScale(val) {
return Math.sqrt(val) // 對數值進行平方根變換
}
// 平方根為了讓數小點,一般降級都采用平方根處理
const scaledArr = arr.map(val => nonlinearScale(val))
// 計算縮放后數列的總和
const scaledTotal = scaledArr.reduce((sum, val) => sum + val, 0)
// 將縮放后的數列歸一到100%,超過100就越界了
let balancedArr = scaledArr.map(val => (val / scaledTotal) * 100)
// 由于浮點數的精度問題,總和可能不是精確的100%,問題不大
const error = 100 - balancedArr.reduce((sum, val) => sum + val, 0)
const nonZeroCount = balancedArr.filter(val => val > 0).length
if (nonZeroCount > 0) {
const adjustment = error / nonZeroCount
balancedArr = balancedArr.map(val => val + (val > 0 ? adjustment : 0))
}
// 四舍五入到小數點后兩
balancedArr = balancedArr.map(val => Math.round(val * 100) / 100)
return balancedArr
} <LdChart :chart-data="charDataArray" :flag-type="flagType" />
// 接口返回
this.charDataArray = []
this.charDataTwoArray = []
this.num1 = 0
this.num2 = 0
if (res.data && res.data.length > 0) {
this.loading = false
// 數據都是固定的五個!!!1
const obj1 = [
{ height: '20%', top: '0%', name: '名稱1', value: '', type: '10%', unit: '萬元', color: '#7aa5fa', checkItem: false, itemColor: '#7aa5fa', fontColor: '#303313' },
{ height: '20%', top: '20%', name: '名稱2', value: '', type: '30%', unit: '萬元', color: '#7ae0b8', checkItem: false, itemColor: '#7ae0b8', fontColor: '#303313' },
{ height: '20%', top: '40%', name: '名稱3', value: '', type: '50%', unit: '萬元', color: '#f6e0b4', checkItem: false, itemColor: '#f6e0b4', fontColor: '#303313' },
{ height: '20%', top: '60%', name: '名稱4', value: '', type: '80%', unit: '萬元', color: '#d9d9d9', checkItem: false, itemColor: '#d9d9d9', fontColor: '#303313' },
{ height: '20%', top: '80%', name: '名稱5', value: '', type: '100%', unit: '萬元', color: '#f5aa8a', checkItem: false, itemColor: '#f5aa8a', fontColor: '#303313' }
]
const obj2 = [
{ height: '20%', top: '0%', name: '名稱1', value: '', type: '10%', unit: '個', color: '#7aa5fa', checkItem: false, itemColor: '#7aa5fa', fontColor: '#303313' },
{ height: '20%', top: '20%', name: '名稱2', value: '', type: '30%', unit: '個', color: '#7ae0b8', checkItem: false, itemColor: '#7ae0b8', fontColor: '#303313' },
{ height: '20%', top: '40%', name: '名稱3', value: '', type: '50%', unit: '個', color: '#f6e0b4', checkItem: false, itemColor: '#f6e0b4', fontColor: '#303313' },
{ height: '20%', top: '60%', name: '名稱4', value: '', type: '80%', unit: '個', color: '#d9d9d9', checkItem: false, itemColor: '#d9d9d9', fontColor: '#303313' },
{ height: '20%', top: '80%', name: '名稱5', value: '', type: '100%', unit: '個', color: '#f5aa8a', checkItem: false, itemColor: '#f5aa8a', fontColor: '#303313' }
]
const sumOne = res.data[0].reduce((sum, current) => sum + Number(current.sales), 0)
const sumTwo = res.data[1].reduce((sum, current) => sum + Number(current.sales), 0)
this.num1 = sumOne.toFixed(2)
this.num2 = sumTwo
obj1.forEach(item => {
res.data[0].forEach(it => {
if (item.type === it.winOrderRate) {
item.value = it.sales
// 計算比例
let bl = 0
sumOne === 0 ? bl = 0 : bl = Math.floor(Number(it.sales) / sumOne * 100)
Number(it.sales) > 0 && bl === 0 ? bl = 1 : ''
// 設置合適的比例1
item.height = bl + '%'
}
})
})
obj2.forEach(item => {
res.data[1].forEach(it => {
if (item.type === it.winOrderRate) {
item.value = it.sales
// 計算比例
let bl = 0
sumTwo === 0 ? bl = 0 : bl = Math.floor(Number(it.sales) / sumTwo * 100)
Number(it.sales) > 0 && bl === 0 ? bl = 1 : ''
// 設置合適的比例
item.height = bl + '%'
}
})
})
const qzOne = qz(obj1.map(it => Number(it.height.split('%')[0])))
const qzTwo = qz(obj2.map(it => Number(it.height.split('%')[0])))
obj1.forEach((it, index) => {
it.height = qzOne[index] + '%'
})
obj2.forEach((it, index) => {
it.height = qzTwo[index] + '%'
})
// 排除0的,
const objNew1 = obj1.filter(item => item.value !== 0 && item.value !== '0')
const objNew2 = obj2.filter(item => item.value !== 0 && item.value !== '0')
// 第一個是 0, 第二個是 第一個的高度, 第三個是 第一個+ 第二個 第四個是 1+2+3
const result = []
const result1 = []
let sum = 0
let sum1 = 0
for (let i = 0; i < objNew1.length; i++) {
sum += Number(objNew1[i].height.split('%')[0])
result.push(sum)
}
for (let i = 0; i < objNew2.length; i++) {
sum1 += Number(objNew2[i].height.split('%')[0])
result1.push(sum1)
}
result.pop()
result1.pop()
objNew1.forEach((it, index) => {
// 第一個是 0, 之后的每一個都是 前面的相加!!!1
if (index === 0) {
it.top = '0%'
} else {
it.top = result[index - 1] + '%'
}
})
objNew2.forEach((it, index) => {
// 第一個是 0, 之后的每一個都是 前面的相加
if (index === 0) {
it.top = '0%'
} else {
it.top = result1[index - 1] + '%'
}
})
// 計算比例得
const one = '名稱1'
const two = '名稱2'
const three = '名稱3'
const four = '名稱4'
const five = '名稱5'
const all = [one, two, three, four, five]
this.charDataArray.push(all)
this.charDataArray.push(objNew1)
this.charDataArray.push(objNew2)
this.charDataArray.push('類型1')總結
以上為個人經驗,希望能給大家一個參考,也希望大家多多支持腳本之家。
