vue如何使用 jsplumb 生成流程圖
更新時間：2025年02月28日 11:03:13 作者：陳大大小
文章介紹了如何在Vue項目中使用jsPlumb庫來生成流程圖,文章提供了兩個簡單的示例代碼,展示了如何定義流程圖的數據字段和如何配置連線樣式,最后,文章鼓勵讀者繼續探索更多關于vue和jsPlumb的使用技巧,感興趣的朋友一起看看吧
1、安裝jsPlumb：
npm install jsplumb
2、 在使用的 .vue 文件中引入

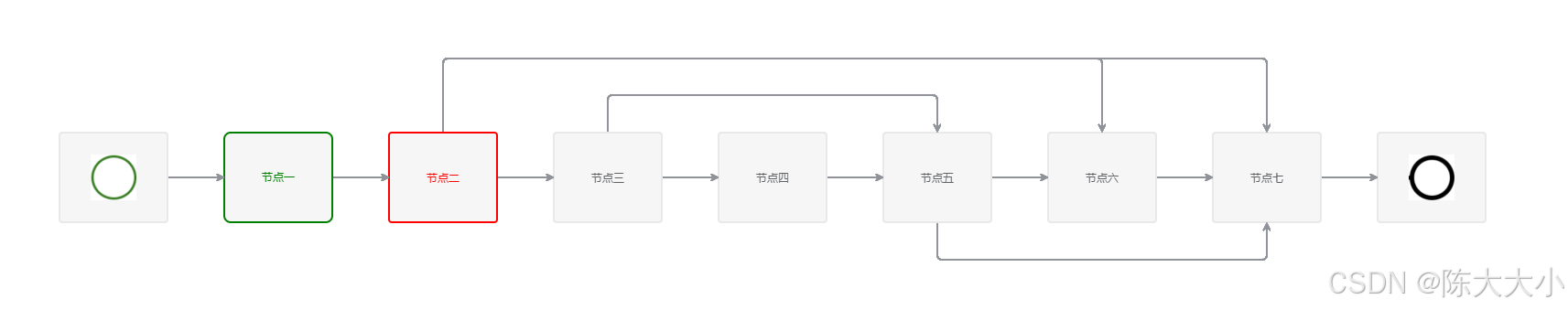

import { jsPlumb } from "jsplumb";圖一：

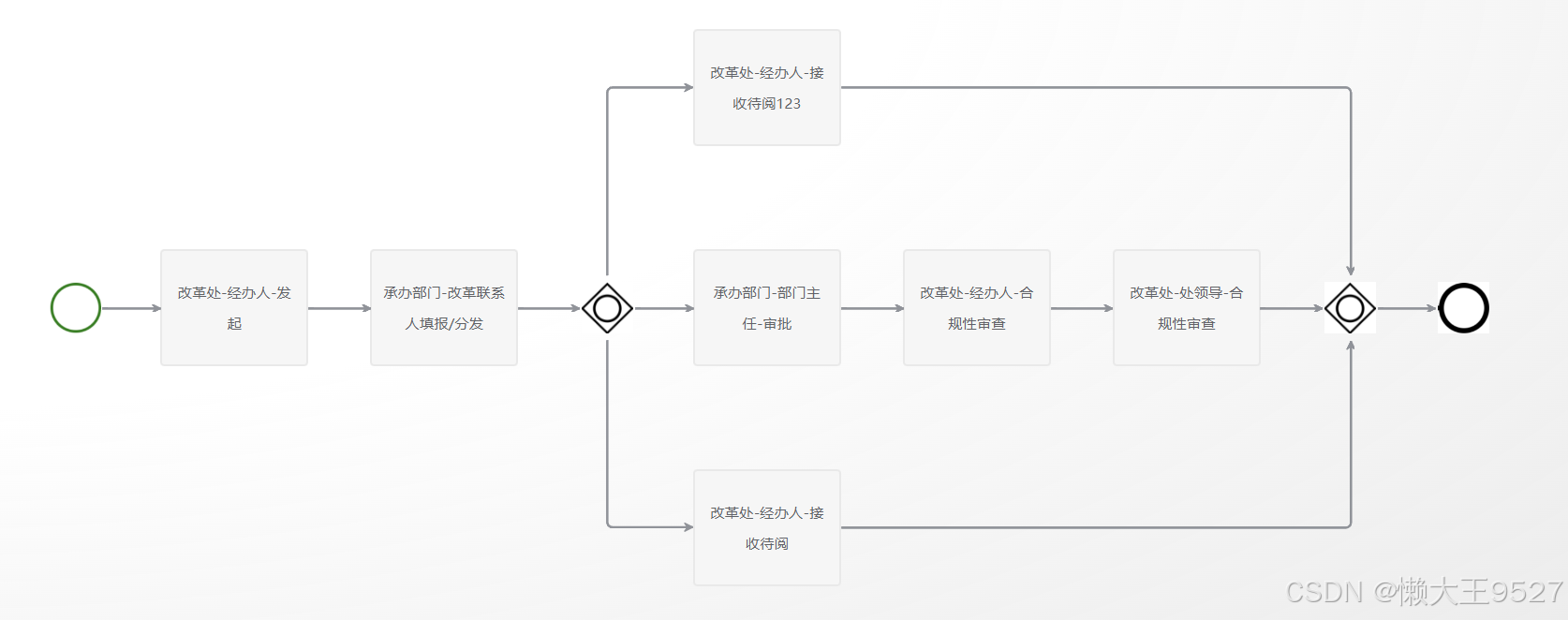

圖二：
圖一簡單示例：
流程圖的數據字段：
id: "item-12", // id(必傳)
label: "節點一", // 節點名稱(必傳)
nodeName: "start", // 節點標識：start：開始節點；end：結束節點；
connectId:
[
{
source: "item-12", // 連接線起點(必傳)
target: "item-7", // 連接線終點(必傳)
stub: 40, // 連接線距離主流程線的位置高度(同一個節點有第二條連接線的時候
必傳，值越大距離主流程距離越遠)
direction: "Bottom", // 連接線距離主流程線的位置方向(同一個節點有第二條連接
線的時候必傳)
}
],
tipContent:
[
{
handleUser: "業務部", // 節點內容信息
handleTime: "2024-10-23 15:20:08" // 節點內容信息
}
]（代碼直接復制即可食用）
templete 代碼
<template>
<div class="bfd-pages">
<!-- 流程圖 -->
<div class="title-box">
<div class="title">
<span>流程圖</span>
</div>
</div>
<div class="table-page-search-wrapper">
<div class="line-wrap">
<div
v-for="(item, index) in flowChartDataList"
:key="index"
:id="item.id"
:class="
getColor(item.id) == '1'
? 'state-item-during'
: getColor(item.id) == '2'
? 'state-item-finish'
: 'state-item'
"
>
<img
v-if="item.nodeName == 'start'"
class="imgs"
src="@/assets/images/start.png"
alt=""
/>
<img
v-else-if="item.nodeName == 'summary'"
class="imgs"
src="@/assets/images/cent.png"
alt=""
/>
<img
v-else-if="item.nodeName == 'end'"
class="imgs"
src="@/assets/images/end.png"
alt=""
/>
<div v-else>
<div v-if="item.tipContent">
<a-tooltip>
<template #title>
<div v-for="(detailInfoItem, i) in item.tipContent" :key="i">
<div>{{ detailInfoItem.handleUser }}</div>
<div>{{ detailInfoItem.handleTime }}</div>
</div>
</template>
{{ item.label }}
</a-tooltip>
</div>
<div v-else>
{{ item.label }}
</div>
</div>
</div>
</div>
</div>
</div>
</template>script 代碼
<script>
import { jsPlumb } from "jsplumb";
export default {
name: "LiuChengTu",
props: {
// 流程編碼
flowCode: {
type: String,
default: "",
},
// id
businessId: {
type: String,
default: "",
},
flowVersion: {
type: String,
default: "",
},
},
data() {
return {
url: {
info: "/api/system/common/statusSet/approval/getFlowConfigForShow",
},
// 流程圖數據
flowChartData: [
{
"id": "0",
"label": "",
"nodeName": "start",
"connectId": [
{
"source": "0",
"target": "10",
"stub": 5
}
]
},
{
"id": "10",
"label": "節點一",
"nodeName": "",
"connectId": [
{
"source": "10",
"target": "20",
"stub": 5
}
]
},
{
"id": "20",
"label": "節點二",
"nodeName": "",
"connectId": [
{
"source": "20",
"target": "30",
"stub": 5
},
{
"source": "20",
"target": "60",
"stub": 80,
"direction": "Top"
},
{
"source": "20",
"target": "70",
"stub": 80,
"direction": "Top"
}
]
},
{
"id": "30",
"label": "節點三",
"nodeName": "",
"connectId": [
{
"source": "30",
"target": "40",
"stub": 5
},
{
"source": "30",
"target": "50",
"stub": 40,
"direction": "Top"
}
]
},
{
"id": "40",
"label": "節點四",
"nodeName": "",
"connectId": [
{
"source": "40",
"target": "50",
"stub": 5
}
]
},
{
"id": "50",
"label": "節點五",
"nodeName": "",
"connectId": [
{
"source": "50",
"target": "60",
"stub": 5
},
{
"source": "50",
"target": "70",
"stub": 40,
"direction": "Bottom"
}
]
},
{
"id": "60",
"label": "節點六",
"nodeName": "",
"connectId": [
{
"source": "60",
"target": "70",
"stub": 5
}
]
},
{
"id": "70",
"label": "節點七",
"nodeName": "",
"connectId": [
{
"source": "70",
"target": "999",
"stub": 5
}
]
},
{
"id": "999",
"label": "",
"nodeName": "end",
"connectId": []
}
],
defatltDirection: [
"Left",
"Right",
"Top",
"Bottom",
[0.3, 0, 0, -1],
[0.7, 0, 0, -1],
[0.3, 1, 0, 1],
[0.7, 1, 0, 1],
],
topDirection: ["Top", "Top"],
bottomDirection: ["Bottom", "Bottom"],
flowChartDataList: [], // 流程圖數據
duringNode: "20", // 在節點期間
finishedNode: "10", // 已完成節點
plumbInsInfo: null, // 暫存流程圖圖像數據
};
},
mounted() {
this.initJsPlumb();
},
methods: {
getColor(val) {
let duringStatus = null;
let finishStatus = null;
if (this.duringNode !== null) {
let dataInfo = this.duringNode.split(',');
duringStatus = dataInfo.includes(val);
}
if (this.finishedNode !== null) {
let dataInfo = this.finishedNode.split(',');
finishStatus = dataInfo.includes(val);
}
if (duringStatus == true) {
// 當前節點
return "2";
} else if (finishStatus == true) {
// 已完成節點
return "1";
} else {
return "0";
}
},
initJsPlumb() {
if(this.plumbInsInfo !== null) {
// 首先刪除所有的連線
this.plumbInsInfo.deleteEveryConnection();
}
let plumbIns = jsPlumb.getInstance();
let jsPlumbConnectList = [];
// 處理數據
this.flowChartData.forEach((item, index) => {
if (item.connectId.length > 1) {
item.connectId.forEach((eleInfo, ind) => {
if (ind == 0) {
let plumbInsInfo = {
source: eleInfo.source,
target: eleInfo.target,
anchor: [
"Left",
"Right",
"Top",
"Bottom",
[0.3, 0, 0, -1],
[0.7, 0, 0, -1],
[0.3, 1, 0, 1],
[0.7, 1, 0, 1],
],
connector: [
"Flowchart",
{
cornerRadius: 5,
alwaysRespectStubs: true,
stub: eleInfo.stub,
},
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: {
stroke:
eleInfo.nodeDescribe == "pass"
? "#008000"
: eleInfo.nodeDescribe == "reject"
? "#ff0000"
: "#909399",
strokeWidth: 2,
}, // connector
};
jsPlumbConnectList.push(plumbInsInfo);
} else {
let plumbInsInfo = {
source: eleInfo.source,
target: eleInfo.target,
anchor:
eleInfo.direction == "Top"
? this.topDirection
: eleInfo.direction == "Bottom"
? this.bottomDirection
: this.defatltDirection,
connector: [
"Flowchart",
{
cornerRadius: 5,
alwaysRespectStubs: true,
stub: eleInfo.stub,
},
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: {
stroke:
eleInfo.nodeDescribe == "pass"
? "#008000"
: eleInfo.nodeDescribe == "reject"
? "#ff0000"
: "#909399",
strokeWidth: 2,
}, // connector
};
jsPlumbConnectList.push(plumbInsInfo);
}
});
} else {
if (item.nodeName !== "end") {
let plumbInsInfo = {
source: item.connectId[0].source,
target: item.connectId[0].target,
anchor: [
"Left",
"Right",
"Top",
"Bottom",
[0.3, 0, 0, -1],
[0.7, 0, 0, -1],
[0.3, 1, 0, 1],
[0.7, 1, 0, 1],
],
connector: [
"Flowchart",
{
cornerRadius: 5,
alwaysRespectStubs: true,
stub: item.connectId[0].stub,
},
],
endpoint: "Blank",
overlays: [
["Arrow", { width: 8, length: 8, location: 1 }],
[
"Label",
{
label: item.connectId[0].lableName
? item.connectId[0].lableName
: "",
location: 0.5,
cssClass: "jsplumb-flowchart-label",
visible: true,
},
],
], // overlay
paintStyle: {
stroke:
item.connectId[0].nodeDescribe == "pass"
? "#008000"
: item.connectId[0].nodeDescribe == "reject"
? "#ff0000"
: "#909399",
strokeWidth: 2,
}, // 連接線樣式
};
jsPlumbConnectList.push(plumbInsInfo);
}
}
});
this.flowChartDataList = this.flowChartData;
console.log("------", jsPlumbConnectList);
setTimeout(() => {
plumbIns.ready(function () {
jsPlumbConnectList.forEach((ele) => {
plumbIns.connect(ele);
});
});
this.plumbInsInfo = plumbIns;
}, 500);
},
},
};
</script>style 代碼
<style lang="less" scoped>
.title-box {
display: flex;
justify-content: space-between;
border-bottom: 1px solid #2464b0;
margin-bottom: 20px;
.title {
height: 40px;
font-size: 16px;
color: #2464b0;
font-weight: 650;
// border-bottom: 1px solid #2464b0;
display: flex;
-webkit-box-align: center;
align-items: center;
// margin-bottom: 20px;
}
.title:before {
display: inline-block;
height: 30px;
margin-right: 10px;
border-right: 7px solid #2464b0;
content: "";
}
}
.table-page-search-wrapper {
padding: 150px 0 10px 0;
.line-wrap {
display: flex;
margin-bottom: 100px;
justify-content: center;
align-items: center;
.state-item {
width: 120px;
height: 100px;
color: #606266;
background: #f6f6f6;
border: 2px solid rgba(0, 0, 0, 0.05);
text-align: center;
// line-height: 30px;
font-family: sans-serif;
border-radius: 4px;
margin-right: 60px;
font-size: 12px;
padding: 5px 10px;
display: flex;
justify-content: center;
align-items: center;
font-weight: normal;
.imgs {
width: 50px;
height: 50px;
}
}
.state-item-during {
width: 120px;
height: 100px;
color: green;
background: #f6f6f6;
border: 2px solid green;
text-align: center;
// line-height: 30px;
font-family: Arial, sans-serif;
border-radius: 8px;
margin-right: 60px;
font-size: 12px;
padding: 5px 10px;
display: flex;
justify-content: center;
align-items: center;
font-weight: normal;
.imgs {
width: 50px;
height: 50px;
}
}
.state-item-finish {
width: 120px;
height: 100px;
color: red;
background: #f6f6f6;
border: 2px solid red;
text-align: center;
// line-height: 30px;
font-family: sans-serif;
border-radius: 4px;
margin-right: 60px;
font-size: 12px;
padding: 5px 10px;
display: flex;
justify-content: center;
align-items: center;
font-weight: normal;
.imgs {
width: 50px;
height: 50px;
}
}
}
}
</style>圖二簡單示例：
注意：注意看 id 為"item-3"和"item-9"那條數據的連線配置
其中有幾個小圖片，可以用自己的本地圖片代替（圖標大小的）
<template>
<div id="wrapper">
<div class="line-wrap" v-if="flowChartData1.length == 2">
<div :id="flowChartData1[1].id" class="state-item">
{{ flowChartData1[1].lable }}
</div>
</div>
<div class="line-wrap">
<div v-for="(item, index) in flowChartData" :key="index" :id="item.id" :class="item.nodeName == 'start' || item.nodeName == 'end' || item.nodeName == 'summary' ? 'state-item-img' : 'state-item'">
<img v-if="item.nodeName == 'start'" class="imgs" src="../assets/img/start.png" alt="" />
<img v-else-if="item.nodeName == 'summary'" class="imgs" src="../assets/img/cent.png" alt="" />
<img v-else-if="item.nodeName == 'end'" class="imgs" src="../assets/img/end.png" alt="" />
<div v-else>
{{ item.lable }}
</div>
</div>
</div>
<div class="line-wrap" v-if="flowChartData1.length > 0 && flowChartData1.length < 3">
<div :id="flowChartData1[0].id" class="state-item">
{{ flowChartData1[0].lable }}
</div>
</div>
</div>
</template>
<script>
import { jsPlumb } from "jsplumb";
export default {
name: "LiuChengTu",
data() {
return {
// 一行數據的
// flowChartData: [
// { id: "item-0", lable: "", nodeName: "start", connectId: [{source: "item-0", target: "item-1"}] }, // 開始
// { id: "item-1", lable: "改革處-經辦人-發起", nodeName: "", connectId: [{source: "item-1", target: "item-2"}] },
// { id: "item-2", lable: "承辦部門-改革聯系人填報/分發", nodeName: "", connectId: [{source: "item-2", target: "item-3"}] },
// { id: "item-3", lable: "", nodeName: "summary", connectId: [{source: "item-3", target: "item-4"}] }, // 匯總/分發
// { id: "item-4", lable: "承辦部門-部門主任-審批", nodeName: "", connectId: [{source: "item-4", target: "item-5"}] },
// { id: "item-5", lable: "改革處-經辦人-合規性審查", nodeName: "", connectId: [{source: "item-5", target: "item-6"}] },
// { id: "item-6", lable: "改革處-處領導-合規性審查", nodeName: "", connectId: [{source: "item-6", target: "item-7"}] },
// { id: "item-7", lable: "", nodeName: "summary", connectId: [{source: "item-7", target: "item-8"}] }, // 匯總/分發
// { id: "item-8", lable: "", nodeName: "end", connectId: [] }, // 結束
// ],
// 兩行數據的
// flowChartData: [
// { id: "item-0", lable: "", nodeName: "start", connectId: [{source: "item-0", target: "item-1"}] }, // 開始
// { id: "item-1", lable: "改革處-經辦人-發起", nodeName: "", connectId: [{source: "item-1", target: "item-2"}] },
// { id: "item-2", lable: "承辦部門-改革聯系人填報/分發", nodeName: "", connectId: [{source: "item-2", target: "item-3"}] },
// { id: "item-3", lable: "", nodeName: "summary", connectId: [{source: "item-3", target: "item-4"}, {source: "item-3", target: "item-9"}] }, // 匯總/分發
// { id: "item-4", lable: "承辦部門-部門主任-審批", nodeName: "", connectId: [{source: "item-4", target: "item-5"}] },
// { id: "item-5", lable: "改革處-經辦人-合規性審查", nodeName: "", connectId: [{source: "item-5", target: "item-6"}] },
// { id: "item-6", lable: "改革處-處領導-合規性審查", nodeName: "", connectId: [{source: "item-6", target: "item-7"}] },
// { id: "item-7", lable: "", nodeName: "summary", connectId: [{source: "item-7", target: "item-8"}] }, // 匯總/分發
// { id: "item-8", lable: "", nodeName: "end", connectId: [] }, // 結束
// { id: "item-9", lable: "改革處-經辦人-接收待閱", nodeName: "handleOut", connectId: [{source: "item-9", target: "item-7"}] }, // 第二行數據
// ],
// 三行數據的
flowChartData: [
{ id: "item-0", lable: "", nodeName: "start", connectId: [{source: "item-0", target: "item-1"}] }, // 開始
{ id: "item-1", lable: "改革處-經辦人-發起", nodeName: "", connectId: [{source: "item-1", target: "item-2"}] },
{ id: "item-2", lable: "承辦部門-改革聯系人填報/分發", nodeName: "", connectId: [{source: "item-2", target: "item-3"}] },
{ id: "item-3", lable: "", nodeName: "summary", connectId: [{source: "item-3", target: "item-4"}, {source: "item-3", target: "item-9"}, {source: "item-3", target: "item-10"}] }, // 匯總/分發
{ id: "item-4", lable: "承辦部門-部門主任-審批", nodeName: "", connectId: [{source: "item-4", target: "item-5"}] },
{ id: "item-5", lable: "改革處-經辦人-合規性審查", nodeName: "", connectId: [{source: "item-5", target: "item-6"}] },
{ id: "item-6", lable: "改革處-處領導-合規性審查", nodeName: "", connectId: [{source: "item-6", target: "item-7"}] },
{ id: "item-7", lable: "", nodeName: "summary", connectId: [{source: "item-7", target: "item-8"}] }, // 匯總/分發
{ id: "item-8", lable: "", nodeName: "end", connectId: [] }, // 結束
{ id: "item-9", lable: "改革處-經辦人-接收待閱", nodeName: "handleOut", connectId: [{source: "item-9", target: "item-7"}] }, // 第二行數據
{ id: "item-10", lable: "改革處-經辦人-接收待閱123", nodeName: "handleOut", connectId: [{source: "item-10", target: "item-7"}] }, // 第二行數據
],
flowChartData1: []
};
},
mounted() {
this.initJsPlumb();
},
methods: {
initJsPlumb() {
let jsPlumbConnectList = [];
let listData = [];
let fenfaData = [];
// 處理數據
this.flowChartData.forEach(ele=>{
if(ele.connectId.length == 1) {
if(ele.nodeName == "handleOut") {
fenfaData.push(ele);
}else {
listData.push(ele);
let plumbInsInfo = {
source: ele.connectId[0].source,
target: ele.connectId[0].target,
anchor: [
"Left",
"Right",
"Top",
"Bottom",
[0.3, 0, 0, -1],
[0.7, 0, 0, -1],
[0.3, 1, 0, 1],
[0.7, 1, 0, 1],
],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
}
jsPlumbConnectList.push(plumbInsInfo)
}
}else if(ele.connectId.length == 1){
if(ele.nodeName == "handleOut") {
fenfaData.push(ele);
}else {
listData.push(ele);
ele.connectId.forEach((itemInfo,index)=>{
if(index == 0) {
let plumbInsInfo = {
source: itemInfo.source,
target: itemInfo.target,
anchor: [
"Left",
"Right",
"Top",
"Bottom",
[0.3, 0, 0, -1],
[0.7, 0, 0, -1],
[0.3, 1, 0, 1],
[0.7, 1, 0, 1],
],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
}
jsPlumbConnectList.push(plumbInsInfo)
}else {
let plumbInsInfo = {
source: itemInfo.source,
target: itemInfo.target,
anchor: ["Bottom", "Left"],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
}
jsPlumbConnectList.push(plumbInsInfo)
}
})
}
}else {
if(ele.nodeName == "handleOut") {
fenfaData.push(ele);
}else {
listData.push(ele);
ele.connectId.forEach((itemInfo,index)=>{
if(index == 0) {
let plumbInsInfo = {
source: itemInfo.source,
target: itemInfo.target,
anchor: [
"Left",
"Right",
"Top",
"Bottom",
[0.3, 0, 0, -1],
[0.7, 0, 0, -1],
[0.3, 1, 0, 1],
[0.7, 1, 0, 1],
],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
}
jsPlumbConnectList.push(plumbInsInfo)
}else if(index == 1) {
let plumbInsInfo = {
source: itemInfo.source,
target: itemInfo.target,
anchor: ["Bottom", "Left"],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
}
jsPlumbConnectList.push(plumbInsInfo)
}else {
let plumbInsInfo = {
source: itemInfo.source,
target: itemInfo.target,
anchor: ["Top", "Left"],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
}
jsPlumbConnectList.push(plumbInsInfo)
}
})
}
}
})
this.flowChartData = listData;
this.flowChartData1 = fenfaData;
if(this.flowChartData1.length > 0) {
this.flowChartData1.forEach((ele, index)=>{
if(index==0) {
let plumbInsInfo = {
source: ele.connectId[0].source,
target: ele.connectId[0].target,
anchor: ["Right", "Bottom"],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
}
jsPlumbConnectList.push(plumbInsInfo)
}else {
let plumbInsInfo = {
source: ele.connectId[0].source,
target: ele.connectId[0].target,
anchor: ["Right", "Top"],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
}
jsPlumbConnectList.push(plumbInsInfo)
}
})
}
setTimeout(() => {
let plumbIns = jsPlumb.getInstance();
plumbIns.ready(function () {
jsPlumbConnectList.forEach(ele=>{
plumbIns.connect(ele);
})
})
}, 500);
return;
// let plumbIns = jsPlumb.getInstance();
plumbIns.ready(function () {
plumbIns.connect({
// 對應上述基本概念
source: "item-0",
target: "item-1",
anchor: [
"Left",
"Right",
"Top",
"Bottom",
[0.3, 0, 0, -1],
[0.7, 0, 0, -1],
[0.3, 1, 0, 1],
[0.7, 1, 0, 1],
],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
// endpointStyle: { fill: '#909399', outlineStroke: '#606266', outlineWidth: 1 } // endpoint
});
plumbIns.connect({
// 對應上述基本概念
source: "item-1",
target: "item-2",
anchor: [
"Left",
"Right",
"Top",
"Bottom",
[0.3, 0, 0, -1],
[0.7, 0, 0, -1],
[0.3, 1, 0, 1],
[0.7, 1, 0, 1],
],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
// endpointStyle: { fill: '#909399', outlineStroke: '#606266', outlineWidth: 1 } // endpoint
});
plumbIns.connect({
// 對應上述基本概念
source: "item-2",
target: "item-3",
anchor: [
"Left",
"Right",
"Top",
"Bottom",
[0.3, 0, 0, -1],
[0.7, 0, 0, -1],
[0.3, 1, 0, 1],
[0.7, 1, 0, 1],
],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
// endpointStyle: { fill: '#909399', outlineStroke: '#606266', outlineWidth: 1 } // endpoint
});
plumbIns.connect({
// 對應上述基本概念
source: "item-3",
target: "item-4",
anchor: [
"Left",
"Right",
"Top",
"Bottom",
[0.3, 0, 0, -1],
[0.7, 0, 0, -1],
[0.3, 1, 0, 1],
[0.7, 1, 0, 1],
],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
// endpointStyle: { fill: '#909399', outlineStroke: '#606266', outlineWidth: 1 } // endpoint
});
plumbIns.connect({
// 對應上述基本概念
source: "item-4",
target: "item-5",
anchor: [
"Left",
"Right",
"Top",
"Bottom",
[0.3, 0, 0, -1],
[0.7, 0, 0, -1],
[0.3, 1, 0, 1],
[0.7, 1, 0, 1],
],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
// endpointStyle: { fill: '#909399', outlineStroke: '#606266', outlineWidth: 1 } // endpoint
});
plumbIns.connect({
// 對應上述基本概念
source: "item-5",
target: "item-6",
anchor: [
"Left",
"Right",
"Top",
"Bottom",
[0.3, 0, 0, -1],
[0.7, 0, 0, -1],
[0.3, 1, 0, 1],
[0.7, 1, 0, 1],
],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
// endpointStyle: { fill: '#909399', outlineStroke: '#606266', outlineWidth: 1 } // endpoint
});
plumbIns.connect({
// 對應上述基本概念
source: "item-6",
target: "item-7",
anchor: [
"Left",
"Right",
"Top",
"Bottom",
[0.3, 0, 0, -1],
[0.7, 0, 0, -1],
[0.3, 1, 0, 1],
[0.7, 1, 0, 1],
],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
// endpointStyle: { fill: '#909399', outlineStroke: '#606266', outlineWidth: 1 } // endpoint
});
plumbIns.connect({
// 對應上述基本概念
source: "item-7",
target: "item-8",
anchor: [
"Left",
"Right",
"Top",
"Bottom",
[0.3, 0, 0, -1],
[0.7, 0, 0, -1],
[0.3, 1, 0, 1],
[0.7, 1, 0, 1],
],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
// endpointStyle: { fill: '#909399', outlineStroke: '#606266', outlineWidth: 1 } // endpoint
});
plumbIns.connect({
// 對應上述基本概念
source: "item-3",
target: "item-9",
anchor: ["Bottom", "Left"],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
// endpointStyle: { fill: '#909399', outlineStroke: '#606266', outlineWidth: 1 } // endpoint
});
plumbIns.connect({
// 對應上述基本概念
source: "item-9",
target: "item-7",
anchor: ["Right", "Bottom"],
connector: [
"Flowchart",
{ cornerRadius: 5, alwaysRespectStubs: true, stub: 5 },
],
endpoint: "Blank",
overlays: [["Arrow", { width: 8, length: 8, location: 1 }]], // overlay
// 添加樣式
paintStyle: { stroke: "#909399", strokeWidth: 2 }, // connector
// endpointStyle: { fill: '#909399', outlineStroke: '#606266', outlineWidth: 1 } // endpoint
});
});
},
},
};
</script>
<style lang="scss" scoped>
#wrapper {
background: radial-gradient(
ellipse at top left,
rgba(255, 255, 255, 1) 40%,
rgba(229, 229, 229, 0.9) 100%
);
padding: 60px 80px;
}
.state-item-img {
width: 50px;
height: 50px;
color: #606266;
border: 2px solid rgba(0, 0, 0, 0);
text-align: center;
line-height: 30px;
font-family: sans-serif;
border-radius: 4px;
margin-right: 56px;
font-size: 14px;
.imgs {
width: 50px;
height: 50px;
}
}
.state-item {
width: 120px;
height: 100px;
color: #606266;
background: #f6f6f6;
border: 2px solid rgba(0, 0, 0, 0.05);
text-align: center;
line-height: 30px;
font-family: sans-serif;
border-radius: 4px;
margin-right: 60px;
font-size: 14px;
padding: 5px 10px;
display: flex;
align-items: center;
}
.line-wrap {
display: flex;
margin-bottom: 100px;
justify-content: center;
align-items: center;
}
</style>到此這篇關于vue使用 jsplumb 生成流程圖的文章就介紹到這了,更多相關vue jsplumb 生成流程圖內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
相關文章
在Vue.js應用中實現分布式搜索和全文搜索
分布式搜索和全文搜索在現代應用程序中變得越來越重要,因?yàn)樗鼈兛梢詭椭脩艨焖俨檎液蜋z索大量數據,Elasticsearch是一種強大的分布式搜索引擎,本文將介紹如何在Vue.js應用程序中實現分布式搜索和全文搜索,以及如何與Elasticsearch集成,需要的朋友可以參考下2023-11-11
vue項目中如何將當前頁面生成圖片
這篇文章主要介紹了vue項目中如何將當前頁面生成圖片問題,具有很好的參考價值,希望對大家有所幫助,如有錯誤或未考慮完全的地方,望不吝賜教2023-10-10
element滾動條組件el-scrollbar的使用詳解
本文主要介紹了element滾動條組件el-scrollbar的使用詳解，文中通過示例代碼介紹的非常詳細，對大家的學習或者工作具有一定的參考學習價值，需要的朋友們下面隨著小編來一起學習學習吧2022-04-04
Vue使用echarts散點圖在區域內標點
這篇文章主要為大家詳細介紹了Vue使用echarts散點圖在區域內標點，文中示例代碼介紹的非常詳細，具有一定的參考價值，感興趣的小伙伴們可以參考一下2022-03-03
Vue3.2(21年8月10日)相比于Vue3新增了語法糖,減少了代碼冗余,下面這篇文章主要給大家介紹了關于Vue3.2語法糖使用的相關資料,文中通過實例代碼介紹的非常詳細,需要的朋友可以參考下2022-11-11
vue3實現數字滾動特效實例詳解
這篇文章主要為大家介紹了vue3實現數字滾動特效實例詳解，有需要的朋友可以借鑒參考下，希望能夠有所幫助，祝大家多多進步，早日升職加薪2022-09-09
vue項目環境變量配置的實現方法
這篇文章主要介紹了vue項目環境變量配置的實現方法，小編覺得挺不錯的，現在分享給大家，也給大家做個參考。一起跟隨小編過來看看吧2018-10-10
vue如何隨心所欲調整el-dialog中body的樣式
這篇文章主要介紹了vue如何隨心所欲調整el-dialog中body的樣式，具有很好的參考價值，希望對大家有所幫助。如有錯誤或未考慮完全的地方，望不吝賜教2022-05-05
vue3+echarts+折線投影(陰影)效果的實現
這篇文章主要介紹了vue3+echarts+折線投影(陰影)效果的實現方式,具有很好的參考價值,希望對大家有所幫助,如有錯誤或未考慮完全的地方,望不吝賜教2023-10-10
解決微信瀏覽器緩存站點入口文件(IIS部署Vue項目)
這篇文章主要介紹了解決微信瀏覽器緩存站點入口文件(IIS部署Vue項目),本文給大家介紹的非常詳細，具有一定的參考借鑒價值，需要的朋友可以參考下2019-06-06
