vue+d3js+fastapi實現天氣柱狀圖折線圖餅圖的示例

更新時間：2025年04月11日 08:27:29 作者：勘察加熊人

本文主要介紹了vue+d3js+fastapi實現天氣柱狀圖折線圖餅圖的示例,文中通過示例代碼介紹的非常詳細,對大家的學習或者工作具有一定的參考學習價值,需要的朋友們下面隨著小編來一起學習學習吧

說明：

vue+d3js+fastapi實現天氣柱狀圖折線圖餅圖

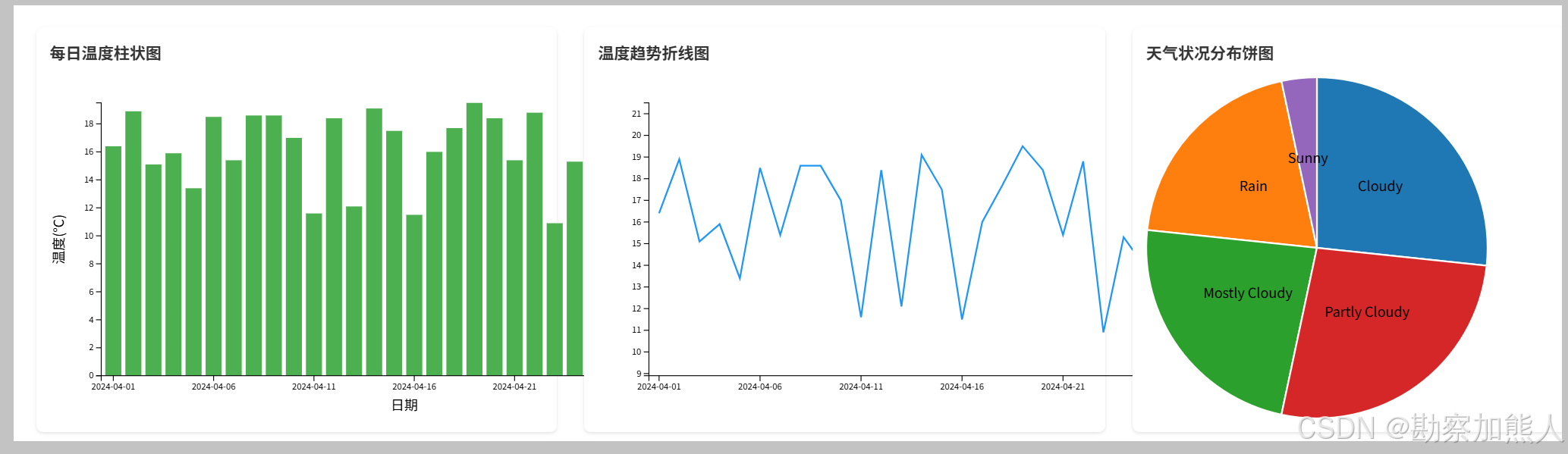

效果圖：

在這里插入圖片描述

step0:postman

1. 生成天氣數據（POST請求）：

URL: http://localhost:8000/generate-data/?year=2024&month=3&seed=42

方法: POST

Headers:
  Content-Type: application/json

成功響應示例：

{
    "status": "success",
    "message": "成功生成31條天氣數據",
    "year": 2024,
    "month": 3
}

2. 查詢天氣數據（GET請求）：

URL: http://localhost:8000/weather-data/?year=2024&month=4

方法: GET

成功響應示例：

{
    "status": "success",
    "count": 31,
    "year": 2024,
    "month": 3,
    "data": [
        {
            "record_date": "2024-03-01",
            "temperature": 16.4,
            "humidity": 72,
            "precipitation": 0.0,
            "wind_speed": 7.2,
            "weather_condition": "Cloudy"
        },

        {
            "record_date": "2024-03-31",
            "temperature": 17.3,
            "humidity": 62,
            "precipitation": 3.8,
            "wind_speed": 1.4,
            "weather_condition": "Rain"
        }
    ]
}

step1:sql

CREATE TABLE weather_data (
    id INT AUTO_INCREMENT PRIMARY KEY,
    record_date DATE NOT NULL,
    temperature DECIMAL(4,1) NOT NULL,  -- 格式：-99.9 到 99.9
    humidity TINYINT UNSIGNED NOT NULL,  -- 范圍：0-100
    precipitation DECIMAL(5,1) NOT NULL, -- 最大999.9mm
    wind_speed DECIMAL(4,1) NOT NULL,   -- 最大99.9m/s
    weather_condition VARCHAR(50) NOT NULL,  -- 修改列名
    INDEX (record_date)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;

select *from weather_data;

step2:python test
C:\Users\wangrusheng\PycharmProjects\FastAPIProject1\hello.py

import random
from datetime import date
from decimal import Decimal
import calendar
import pymysql.cursors
import json
# 數據庫配置（根據實際情況修改）
DB_CONFIG = {
    'host': 'localhost',
    'user': 'root',
    'password': '123456',
    'db': 'db_school',
    'charset': 'utf8mb4',
    'cursorclass': pymysql.cursors.DictCursor
}


def generate_temperature(rng, min_temp=10.0, max_temp=20.0):
    """生成溫度數據（均勻分布）"""
    temp = rng.uniform(min_temp, max_temp)
    return round(temp, 1)


def generate_humidity(rng):
    """生成濕度數據（正態分布）"""
    humidity = rng.gauss(60, 15)
    humidity = max(0, min(humidity, 100))
    return int(round(humidity))


def generate_precipitation(rng):
    """生成降水量數據（20%概率下雨）"""
    if rng.random() < 0.2:
        amount = rng.expovariate(1 / 5.0)  # 平均5mm
        amount = max(0.1, min(amount, 30.0))
        return round(amount, 1)
    return 0.0


def generate_wind_speed(rng):
    """生成風速數據（伽馬分布）"""
    speed = rng.gammavariate(2, 2)
    speed = max(0.0, min(speed, 20.0))
    return round(speed, 1)


def get_weather_condition(temperature, precipitation, humidity, rng):
    """根據天氣參數判斷天氣狀況"""
    if precipitation > 0:
        return 'Snow' if temperature < 3.0 else 'Rain'
    if humidity >= 70:
        return 'Cloudy'
    if humidity <= 30:
        return 'Sunny'
    return rng.choice(['Partly Cloudy', 'Mostly Cloudy'])


def generate_monthly_weather_data(year, month, rng=None):
    """生成整月天氣數據"""
    if rng is None:
        rng = random.Random()

    _, num_days = calendar.monthrange(year, month)
    data = []

    for day in range(1, num_days + 1):
        record_date = date(year, month, day)
        temperature = generate_temperature(rng)
        humidity = generate_humidity(rng)
        precipitation = generate_precipitation(rng)
        wind_speed = generate_wind_speed(rng)
        condition = get_weather_condition(
            temperature, precipitation, humidity, rng
        )

        data.append({
            'record_date': record_date,
            'temperature': temperature,
            'humidity': humidity,
            'precipitation': precipitation,
            'wind_speed': wind_speed,
            'weather_condition': condition
        })

    return data


def insert_weather_data(data):
    """批量插入天氣數據到數據庫"""
    connection = pymysql.connect(**DB_CONFIG)
    try:
        with connection.cursor() as cursor:
            sql = """
                INSERT INTO weather_data
                (record_date, temperature, humidity, precipitation, wind_speed, weather_condition)
                VALUES (%s, %s, %s, %s, %s, %s)
            """
            params = [
                (
                    d['record_date'],
                    d['temperature'],
                    d['humidity'],
                    d['precipitation'],
                    d['wind_speed'],
                    d['weather_condition']
                )
                for d in data
            ]
            cursor.executemany(sql, params)
        connection.commit()
        return len(data)
    except Exception as e:
        connection.rollback()
        raise e
    finally:
        connection.close()


def get_weather_data(year: int, month: int) -> list:
    """從數據庫獲取指定年月的天氣數據并轉換為JSON兼容格式"""
    connection = pymysql.connect(**DB_CONFIG)
    try:
        with connection.cursor() as cursor:
            sql = """
                SELECT record_date, temperature, humidity,
                       precipitation, wind_speed, weather_condition
                FROM weather_data
                WHERE YEAR(record_date) = %s AND MONTH(record_date) = %s
                ORDER BY record_date
            """
            cursor.execute(sql, (year, month))
            results = cursor.fetchall()

            # 轉換日期和數值類型
            for record in results:
                record['record_date'] = record['record_date'].isoformat()
                # 處理Decimal類型（如果存在）
                for key in ['temperature', 'precipitation', 'wind_speed']:
                    if isinstance(record[key], Decimal):
                        record[key] = float(record[key])
            return results
    finally:
        connection.close()


if __name__ == '__main__':
    # 示例：生成并插入2024年4月的天氣數據
    year = 2024
    month = 4

    # 創建帶種子的隨機生成器（保證結果可復現）
    rng = random.Random(42)

    try:
        # 生成模擬數據
        weather_data = generate_monthly_weather_data(year, month, rng)

        # 插入數據庫
        # inserted_count = insert_weather_data(weather_data)
        # print(f"成功插入{inserted_count}條天氣數據")
        # 獲取并打印JSON數據
        weather_json = get_weather_data(year, month)
        print(json.dumps(weather_json, indent=2, ensure_ascii=False))

    except Exception as e:
        print(f"操作失敗: {str(e)}")

step3:python fastapi
C:\Users\wangrusheng\PycharmProjects\FastAPIProject1\main.py

from fastapi import FastAPI, HTTPException, Query
from datetime import date
from decimal import Decimal
from typing import Optional
import random
import calendar
import pymysql.cursors
import json
from fastapi.middleware.cors import CORSMiddleware
app = FastAPI()
# CORS配置
app.add_middleware(
    CORSMiddleware,
    allow_origins=["*"],
    allow_credentials=True,
    allow_methods=["*"],
    allow_headers=["*"],
)
# 數據庫配置（根據實際情況修改）
DB_CONFIG = {
    'host': 'localhost',
    'user': 'root',
    'password': '123456',
    'db': 'db_school',
    'charset': 'utf8mb4',
    'cursorclass': pymysql.cursors.DictCursor
}

# 以下保持原有函數定義不變（generate_temperature、generate_humidity等）
# [原有函數定義區，保持與問題中完全相同的函數實現]


def generate_temperature(rng, min_temp=10.0, max_temp=20.0):
    """生成溫度數據（均勻分布）"""
    temp = rng.uniform(min_temp, max_temp)
    return round(temp, 1)


def generate_humidity(rng):
    """生成濕度數據（正態分布）"""
    humidity = rng.gauss(60, 15)
    humidity = max(0, min(humidity, 100))
    return int(round(humidity))


def generate_precipitation(rng):
    """生成降水量數據（20%概率下雨）"""
    if rng.random() < 0.2:
        amount = rng.expovariate(1 / 5.0)  # 平均5mm
        amount = max(0.1, min(amount, 30.0))
        return round(amount, 1)
    return 0.0


def generate_wind_speed(rng):
    """生成風速數據（伽馬分布）"""
    speed = rng.gammavariate(2, 2)
    speed = max(0.0, min(speed, 20.0))
    return round(speed, 1)


def get_weather_condition(temperature, precipitation, humidity, rng):
    """根據天氣參數判斷天氣狀況"""
    if precipitation > 0:
        return 'Snow' if temperature < 3.0 else 'Rain'
    if humidity >= 70:
        return 'Cloudy'
    if humidity <= 30:
        return 'Sunny'
    return rng.choice(['Partly Cloudy', 'Mostly Cloudy'])


def generate_monthly_weather_data(year, month, rng=None):
    """生成整月天氣數據"""
    if rng is None:
        rng = random.Random()

    _, num_days = calendar.monthrange(year, month)
    data = []

    for day in range(1, num_days + 1):
        record_date = date(year, month, day)
        temperature = generate_temperature(rng)
        humidity = generate_humidity(rng)
        precipitation = generate_precipitation(rng)
        wind_speed = generate_wind_speed(rng)
        condition = get_weather_condition(
            temperature, precipitation, humidity, rng
        )

        data.append({
            'record_date': record_date,
            'temperature': temperature,
            'humidity': humidity,
            'precipitation': precipitation,
            'wind_speed': wind_speed,
            'weather_condition': condition
        })

    return data


def insert_weather_data(data):
    """批量插入天氣數據到數據庫"""
    connection = pymysql.connect(**DB_CONFIG)
    try:
        with connection.cursor() as cursor:
            sql = """
                INSERT INTO weather_data
                (record_date, temperature, humidity, precipitation, wind_speed, weather_condition)
                VALUES (%s, %s, %s, %s, %s, %s)
            """
            params = [
                (
                    d['record_date'],
                    d['temperature'],
                    d['humidity'],
                    d['precipitation'],
                    d['wind_speed'],
                    d['weather_condition']
                )
                for d in data
            ]
            cursor.executemany(sql, params)
        connection.commit()
        return len(data)
    except Exception as e:
        connection.rollback()
        raise e
    finally:
        connection.close()


def get_weather_data(year: int, month: int) -> list:
    """從數據庫獲取指定年月的天氣數據并轉換為JSON兼容格式"""
    connection = pymysql.connect(**DB_CONFIG)
    try:
        with connection.cursor() as cursor:
            sql = """
                SELECT record_date, temperature, humidity,
                       precipitation, wind_speed, weather_condition
                FROM weather_data
                WHERE YEAR(record_date) = %s AND MONTH(record_date) = %s
                ORDER BY record_date
            """
            cursor.execute(sql, (year, month))
            results = cursor.fetchall()

            # 轉換日期和數值類型
            for record in results:
                record['record_date'] = record['record_date'].isoformat()
                # 處理Decimal類型（如果存在）
                for key in ['temperature', 'precipitation', 'wind_speed']:
                    if isinstance(record[key], Decimal):
                        record[key] = float(record[key])
            return results
    finally:
        connection.close()



@app.post("/generate-data/")
async def generate_weather_data(
    year: int = Query(..., ge=2000, le=2100, description="年份"),
    month: int = Query(..., ge=1, le=12, description="月份"),
    seed: Optional[int] = Query(None, description="隨機種子（可選）")
):
    """生成并插入指定月份的天氣數據"""
    try:
        rng = random.Random(seed) if seed else random.Random()
        weather_data = generate_monthly_weather_data(year, month, rng)
        inserted_count = insert_weather_data(weather_data)
        return {
            "status": "success",
            "message": f"成功生成{inserted_count}條天氣數據",
            "year": year,
            "month": month
        }
    except ValueError as e:
        raise HTTPException(status_code=400, detail=str(e))
    except Exception as e:
        raise HTTPException(status_code=500, detail=f"數據庫操作失敗: {str(e)}")

@app.get("/weather-data/")
async def get_weather(
    year: int = Query(..., ge=2000, le=2100, description="年份"),
    month: int = Query(..., ge=1, le=12, description="月份")
):
    """獲取指定月份的天氣數據"""
    try:
        data = get_weather_data(year, month)
        return {
            "status": "success",
            "count": len(data),
            "year": year,
            "month": month,
            "data": data
        }
    except Exception as e:
        raise HTTPException(status_code=500, detail=f"數據查詢失敗: {str(e)}")

if __name__ == "__main__":
    import uvicorn
    uvicorn.run(app, host="0.0.0.0", port=8000)

step4:vue
C:\Users\wangrusheng\PycharmProjects\untitled3\src\views\Lottery.vue

<template>
  <div>
    <div class="controls">
      <input v-model.number="year" type="number" placeholder="年份">
      <input v-model.number="month" type="number" placeholder="月份" min="1" max="12">
      <button @click="fetchData">查詢</button>
      <button @click="generateData">生成數據</button>
    </div>

    <div class="charts-container">
      <div class="chart-box">
        <h3>每日溫度柱狀圖</h3>
        <div ref="barChart" class="chart"></div>
      </div>

      <div class="chart-box">
        <h3>溫度趨勢折線圖</h3>
        <div ref="lineChart" class="chart"></div>
      </div>

      <div class="chart-box">
        <h3>天氣狀況分布餅圖</h3>
        <div ref="pieChart" class="chart"></div>
      </div>
    </div>
  </div>
</template>

<script>
import * as d3 from 'd3';
import axios from 'axios';

export default {
  data() {
    return {
      weatherData: [],
      year: null,
      month: null
    };
  },
  methods: {
    async fetchData() {
      if (!this.validateInput()) return;

      try {
        const response = await axios.get('http://localhost:8000/weather-data/', {
          params: { year: this.year, month: this.month }
        });
        this.weatherData = response.data.data;
        this.redrawCharts();
      } catch (error) {
        this.handleError(error, '查詢');
      }
    },

    async generateData() {
      if (!this.validateInput()) return;

      try {
        const response = await axios.post('http://localhost:8000/generate-data/', null, {
          params: { year: this.year, month: this.month, seed: 42 },
          headers: { 'Content-Type': 'application/json' }
        });
        alert(`生成成功：${response.data.message}`);
        await this.fetchData();
      } catch (error) {
        this.handleError(error, '生成');
      }
    },

    validateInput() {
      if (!this.year || !this.month) {
        alert('請?zhí)顚懩攴莺驮路?);
        return false;
      }
      if (this.month < 1 || this.month > 12) {
        alert('月份必須為1-12');
        return false;
      }
      return true;
    },

    handleError(error, operation) {
      console.error(`${operation}失敗:`, error);
      alert(`${operation}失敗，請檢查控制臺`);
    },

    redrawCharts() {
      this.clearCharts();
      this.drawBarChart();
      this.drawLineChart();
      this.drawPieChart();
    },

    clearCharts() {
      [this.$refs.barChart, this.$refs.lineChart, this.$refs.pieChart]
        .forEach(ref => ref.innerHTML = '');
    },

    // 各圖表繪制方法（保持原有實現，開頭添加清除邏輯）
    // 繪制柱狀圖
    drawBarChart() {
      const margin = { top: 30, right: 30, bottom: 50, left: 60 };
      const width = 800 - margin.left - margin.right;
      const height = 400 - margin.top - margin.bottom;

      const svg = d3.select(this.$refs.barChart)
        .append('svg')
        .attr('width', width + margin.left + margin.right)
        .attr('height', height + margin.top + margin.bottom)
        .append('g')
        .attr('transform', `translate(${margin.left},${margin.top})`);

      // 創建比例尺
      const x = d3.scaleBand()
        .domain(this.weatherData.map(d => d.record_date))
        .range([0, width])
        .padding(0.2);

      const y = d3.scaleLinear()
        .domain([0, d3.max(this.weatherData, d => d.temperature)])
        .range([height, 0]);

      // 添加柱狀
      svg.selectAll("rect")
        .data(this.weatherData)
        .join("rect")
          .attr("x", d => x(d.record_date))
          .attr("y", d => y(d.temperature))
          .attr("width", x.bandwidth())
          .attr("height", d => height - y(d.temperature))
          .attr("fill", "#4CAF50");

      // 添加坐標軸
      svg.append("g")
        .attr("transform", `translate(0,${height})`)
        .call(d3.axisBottom(x).tickValues(x.domain().filter((d,i) => !(i%5))));

      svg.append("g")
        .call(d3.axisLeft(y));

      // 添加標簽
      svg.append("text")
        .attr("transform", `translate(${width/2}, ${height + 40})`)
        .style("text-anchor", "middle")
        .text("日期");

      svg.append("text")
        .attr("transform", "rotate(-90)")
        .attr("y", 0 - margin.left)
        .attr("x",0 - (height / 2))
        .attr("dy", "1em")
        .style("text-anchor", "middle")
        .text("溫度(℃)");
    },



    // 繪制折線圖
    drawLineChart() {
      const margin = { top: 30, right: 30, bottom: 50, left: 60 };
      const width = 800 - margin.left - margin.right;
      const height = 400 - margin.top - margin.bottom;

      const svg = d3.select(this.$refs.lineChart)
        .append('svg')
        .attr('width', width + margin.left + margin.right)
        .attr('height', height + margin.top + margin.bottom)
        .append('g')
        .attr('transform', `translate(${margin.left},${margin.top})`);

      // 創建比例尺
      const x = d3.scaleBand()
        .domain(this.weatherData.map(d => d.record_date))
        .range([0, width]);

      const y = d3.scaleLinear()
        .domain([d3.min(this.weatherData, d => d.temperature) - 2, d3.max(this.weatherData, d => d.temperature) + 2])
        .range([height, 0]);

      // 創建折線生成器
      const line = d3.line()
        .x(d => x(d.record_date) + x.bandwidth()/2)
        .y(d => y(d.temperature));

      // 繪制折線
      svg.append("path")
        .datum(this.weatherData)
        .attr("fill", "none")
        .attr("stroke", "#2196F3")
        .attr("stroke-width", 2)
        .attr("d", line);

      // 添加坐標軸
      svg.append("g")
        .attr("transform", `translate(0,${height})`)
        .call(d3.axisBottom(x).tickValues(x.domain().filter((d,i) => !(i%5))));

      svg.append("g")
        .call(d3.axisLeft(y));
    },

    // 繪制餅圖
    drawPieChart() {
      const width = 400;
      const height = 400;
      const radius = Math.min(width, height) / 2;

      const svg = d3.select(this.$refs.pieChart)
        .append('svg')
        .attr('width', width)
        .attr('height', height)
        .append('g')
        .attr('transform', `translate(${width/2},${height/2})`);

      // 統計天氣狀況
      const data = Array.from(
        d3.rollup(this.weatherData,
          v => v.length,
          d => d.weather_condition
        ),
        ([name, value]) => ({name, value})
      );

      // 創建顏色比例尺
      const color = d3.scaleOrdinal()
        .domain(data.map(d => d.name))
        .range(d3.schemeCategory10);

      // 餅圖生成器
      const pie = d3.pie()
        .value(d => d.value);

      // 弧形生成器
      const arc = d3.arc()
        .innerRadius(0)
        .outerRadius(radius);

      // 繪制扇形
      const arcs = svg.selectAll("arc")
        .data(pie(data))
        .enter()
        .append("g")
        .attr("class", "arc");

      arcs.append("path")
        .attr("d", arc)
        .attr("fill", d => color(d.data.name))
        .attr("stroke", "white")
        .style("stroke-width", "2px");

      // 添加標簽
      arcs.append("text")
        .attr("transform", d => `translate(${arc.centroid(d)})`)
        .attr("text-anchor", "middle")
        .text(d => d.data.name);
    }


  }
};
</script>

<style>
.controls {
  padding: 1rem;
  display: flex;
  gap: 1rem;
  align-items: center;
}

.controls input {
  padding: 0.5rem;
  border: 1px solid #ddd;
  border-radius: 4px;
  width: 120px;
}

.controls button {
  padding: 0.5rem 1rem;
  background: #2196F3;
  color: white;
  border: none;
  border-radius: 4px;
  cursor: pointer;
}

.controls button:hover {
  background: #1976D2;
}

.charts-container {
  display: flex;
  flex-direction: column;
  gap: 2rem;
  padding: 2rem;
}

.chart-box {
  background: white;
  padding: 1rem;
  border-radius: 8px;
  box-shadow: 0 2px 4px rgba(0,0,0,0.1);
  width: 100%;
}

.chart-box h3 {
  margin: 0 0 1rem;
  color: #333;
}

.chart {
  width: 100%;
  height: 400px;
}
</style>

end

//我是分割線
step101: old vue

下面的代碼修改：

1.年份 月份 改為可選，
2.新增兩個按鈕，查詢和添加
3.查詢和添加，需要做網絡請求
4.三個圖表 需要垂直排列

1. 生成天氣數據（POST請求）：


URL: http://localhost:8000/generate-data/?year=2024&month=3&seed=42
方法: POST
Headers:
  Content-Type: application/json
成功響應示例：
{
    "status": "success",
    "message": "成功生成31條天氣數據",
    "year": 2024,
    "month": 3
}

<template>
  <div class="charts-container">
    <div class="chart-box">
      <h3>每日溫度柱狀圖</h3>
      <div ref="barChart" class="chart"></div>
    </div>

    <div class="chart-box">
      <h3>溫度趨勢折線圖</h3>
      <div ref="lineChart" class="chart"></div>
    </div>

    <div class="chart-box">
      <h3>天氣狀況分布餅圖</h3>
      <div ref="pieChart" class="chart"></div>
    </div>
  </div>
</template>

<script>
import * as d3 from 'd3';
import axios from 'axios';

export default {
  data() {
    return {
      weatherData: []
    };
  },
  async mounted() {
    try {
      const response = await axios.get('http://localhost:8000/weather-data/?year=2024&month=4');
      this.weatherData = response.data.data;
      this.drawBarChart();
      this.drawLineChart();
      this.drawPieChart();
    } catch (error) {
      console.error('數據獲取失敗:', error);
    }
  },
  methods: {
    // 繪制柱狀圖
    drawBarChart() {
      const margin = { top: 30, right: 30, bottom: 50, left: 60 };
      const width = 800 - margin.left - margin.right;
      const height = 400 - margin.top - margin.bottom;

      const svg = d3.select(this.$refs.barChart)
        .append('svg')
        .attr('width', width + margin.left + margin.right)
        .attr('height', height + margin.top + margin.bottom)
        .append('g')
        .attr('transform', `translate(${margin.left},${margin.top})`);

      // 創建比例尺
      const x = d3.scaleBand()
        .domain(this.weatherData.map(d => d.record_date))
        .range([0, width])
        .padding(0.2);

      const y = d3.scaleLinear()
        .domain([0, d3.max(this.weatherData, d => d.temperature)])
        .range([height, 0]);

      // 添加柱狀
      svg.selectAll("rect")
        .data(this.weatherData)
        .join("rect")
          .attr("x", d => x(d.record_date))
          .attr("y", d => y(d.temperature))
          .attr("width", x.bandwidth())
          .attr("height", d => height - y(d.temperature))
          .attr("fill", "#4CAF50");

      // 添加坐標軸
      svg.append("g")
        .attr("transform", `translate(0,${height})`)
        .call(d3.axisBottom(x).tickValues(x.domain().filter((d,i) => !(i%5))));

      svg.append("g")
        .call(d3.axisLeft(y));

      // 添加標簽
      svg.append("text")
        .attr("transform", `translate(${width/2}, ${height + 40})`)
        .style("text-anchor", "middle")
        .text("日期");

      svg.append("text")
        .attr("transform", "rotate(-90)")
        .attr("y", 0 - margin.left)
        .attr("x",0 - (height / 2))
        .attr("dy", "1em")
        .style("text-anchor", "middle")
        .text("溫度(℃)");
    },

    // 繪制折線圖
    drawLineChart() {
      const margin = { top: 30, right: 30, bottom: 50, left: 60 };
      const width = 800 - margin.left - margin.right;
      const height = 400 - margin.top - margin.bottom;

      const svg = d3.select(this.$refs.lineChart)
        .append('svg')
        .attr('width', width + margin.left + margin.right)
        .attr('height', height + margin.top + margin.bottom)
        .append('g')
        .attr('transform', `translate(${margin.left},${margin.top})`);

      // 創建比例尺
      const x = d3.scaleBand()
        .domain(this.weatherData.map(d => d.record_date))
        .range([0, width]);

      const y = d3.scaleLinear()
        .domain([d3.min(this.weatherData, d => d.temperature) - 2, d3.max(this.weatherData, d => d.temperature) + 2])
        .range([height, 0]);

      // 創建折線生成器
      const line = d3.line()
        .x(d => x(d.record_date) + x.bandwidth()/2)
        .y(d => y(d.temperature));

      // 繪制折線
      svg.append("path")
        .datum(this.weatherData)
        .attr("fill", "none")
        .attr("stroke", "#2196F3")
        .attr("stroke-width", 2)
        .attr("d", line);

      // 添加坐標軸
      svg.append("g")
        .attr("transform", `translate(0,${height})`)
        .call(d3.axisBottom(x).tickValues(x.domain().filter((d,i) => !(i%5))));

      svg.append("g")
        .call(d3.axisLeft(y));
    },

    // 繪制餅圖
    drawPieChart() {
      const width = 400;
      const height = 400;
      const radius = Math.min(width, height) / 2;

      const svg = d3.select(this.$refs.pieChart)
        .append('svg')
        .attr('width', width)
        .attr('height', height)
        .append('g')
        .attr('transform', `translate(${width/2},${height/2})`);

      // 統計天氣狀況
      const data = Array.from(
        d3.rollup(this.weatherData,
          v => v.length,
          d => d.weather_condition
        ),
        ([name, value]) => ({name, value})
      );

      // 創建顏色比例尺
      const color = d3.scaleOrdinal()
        .domain(data.map(d => d.name))
        .range(d3.schemeCategory10);

      // 餅圖生成器
      const pie = d3.pie()
        .value(d => d.value);

      // 弧形生成器
      const arc = d3.arc()
        .innerRadius(0)
        .outerRadius(radius);

      // 繪制扇形
      const arcs = svg.selectAll("arc")
        .data(pie(data))
        .enter()
        .append("g")
        .attr("class", "arc");

      arcs.append("path")
        .attr("d", arc)
        .attr("fill", d => color(d.data.name))
        .attr("stroke", "white")
        .style("stroke-width", "2px");

      // 添加標簽
      arcs.append("text")
        .attr("transform", d => `translate(${arc.centroid(d)})`)
        .attr("text-anchor", "middle")
        .text(d => d.data.name);
    }
  }
};
</script>

<style>
.charts-container {
  display: grid;
  grid-template-columns: repeat(auto-fit, minmax(400px, 1fr));
  gap: 2rem;
  padding: 2rem;
}

.chart-box {
  background: white;
  padding: 1rem;
  border-radius: 8px;
  box-shadow: 0 2px 4px rgba(0,0,0,0.1);
}

.chart-box h3 {
  margin: 0 0 1rem;
  color: #333;
}

.chart {
  width: 100%;
  height: 400px;
}
</style>

step102：c++ 模擬數據
C:\Users\wangrusheng\source\repos\CMakeProject1\CMakeProject1\CMakeProject1.cpp

#include <iostream>
#include <random>
#include <vector>
#include <string>
#include <iomanip>
#include <cmath>

struct WeatherData {
    int day;
    double temperature;
    int humidity;
    double precipitation;
    double wind_speed;
    std::string condition;
};

// 生成溫度（可指定范圍）
double generate_temperature(std::mt19937& gen, double min_temp = 10.0, double max_temp = 20.0) {
    std::uniform_real_distribution<double> dist(min_temp, max_temp);
    return std::round(dist(gen) * 10) / 10.0; // 保留1位小數
}

// 生成濕度（正態分布）
int generate_humidity(std::mt19937& gen) {
    std::normal_distribution<double> dist(60.0, 15.0);
    double humidity = dist(gen);
    humidity = std::clamp(humidity, 0.0, 100.0);
    return static_cast<int>(std::round(humidity));
}

// 生成降水量（20%概率下雨）
double generate_precipitation(std::mt19937& gen) {
    std::bernoulli_distribution rain_dist(0.2);
    if (rain_dist(gen)) {
        std::exponential_distribution<double> amount_dist(1.0 / 5.0); // 平均5mm
        double amount = amount_dist(gen);
        amount = std::clamp(amount, 0.1, 30.0);
        return std::round(amount * 10) / 10.0; // 保留1位小數
    }
    return 0.0;
}

// 生成風速（伽馬分布）
double generate_wind_speed(std::mt19937& gen) {
    std::gamma_distribution<double> dist(2.0, 2.0);
    double speed = dist(gen);
    speed = std::clamp(speed, 0.0, 20.0);
    return std::round(speed * 10) / 10.0; // 保留1位小數
}

// 生成天氣狀況
std::string get_condition(double temp, double precip, int humidity) {
    if (precip > 0) {
        return (temp < 3.0) ? "Snow" : "Rain";
    }

    if (humidity >= 70) return "Cloudy";
    if (humidity <= 30) return "Sunny";

    // 隨機選擇部分多云或陰天
    static std::vector<std::string> options = { "Partly Cloudy", "Mostly Cloudy" };
    std::uniform_int_distribution<int> dist(0, 1);
    std::mt19937 temp_gen(std::random_device{}());
    return options[dist(temp_gen)];
}

// 生成完整月份數據
std::vector<WeatherData> generate_april_data(std::mt19937& gen) {
    std::vector<WeatherData> data;
    for (int day = 1; day <= 30; ++day) {
        WeatherData wd;
        wd.day = day;
        wd.temperature = generate_temperature(gen);
        wd.humidity = generate_humidity(gen);
        wd.precipitation = generate_precipitation(gen);
        wd.wind_speed = generate_wind_speed(gen);
        wd.condition = get_condition(wd.temperature, wd.precipitation, wd.humidity);
        data.push_back(wd);
    }
    return data;
}

int main() {
    // 初始化隨機數生成器
    std::random_device rd;
    std::mt19937 gen(rd());

    // 生成數據
    auto weather_data = generate_april_data(gen);

    // 輸出CSV格式
    std::cout << "Day,Temperature,Humidity,Precipitation,Wind Speed,Condition\n";
    for (const auto& wd : weather_data) {
        std::cout << wd.day << ","
            << std::fixed << std::setprecision(1) << wd.temperature << "°C,"
            << wd.humidity << "%,"
            << wd.precipitation << "mm,"
            << wd.wind_speed << "m/s,"
            << wd.condition << "\n";
    }

    return 0;
}

到此這篇關于vue+d3js+fastapi實現天氣柱狀圖折線圖餅圖的示例的文章就介紹到這了,更多相關vue+d3js+fastapi柱狀圖折線圖餅圖內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！

您可能感興趣的文章:
