vue3 實現牙位圖選擇器的實例代碼

 更新時間：2025年04月18日 09:19:33   作者：A_ugust__
這篇文章主要介紹了vue3 實現牙位圖選擇器的實例代碼,代碼簡單易懂,需要的朋友參考下吧

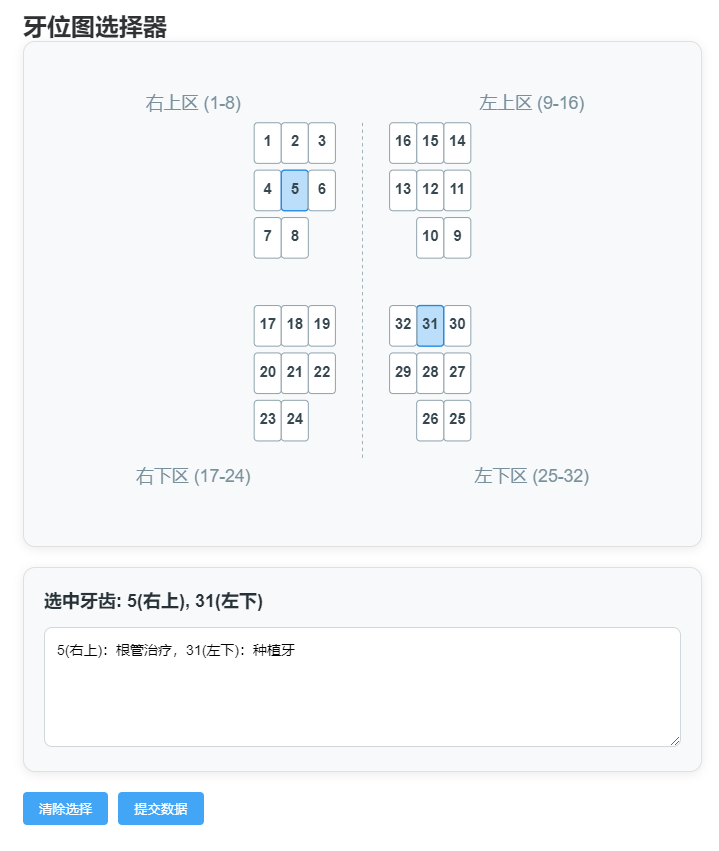

效果圖

封裝組件：ToothChart.vue

<template>
  <div class="tooth-chart-container">
    <div class="tooth-chart">
      <svg :width="computedWidth" :height="computedHeight" :viewBox="`0 0 ${viewBoxWidth} ${viewBoxHeight}`"
        xmlns="http://www.w3.org/2000/svg">
        <!-- 上頜牙齒 -->
        <g class="upper-jaw">
          <!-- 右上區 (1-8) -->
          <g v-for="tooth in upperRightTeeth" :key="tooth.number">
            <rect :x="tooth.x" :y="tooth.y" :width="toothWidth" :height="toothHeight" :rx="toothRadius"
              :class="['tooth', { selected: selectedTeeth.includes(tooth.number) }]"
              @click="toggleTooth(tooth.number)" />
            <text :x="tooth.x + toothWidth / 2" :y="tooth.y + toothHeight / 2 + 5" class="tooth-number"
              @click="toggleTooth(tooth.number)">
              {{ tooth.number }}
            </text>
          </g>
          <!-- 左上區 (9-16) -->
          <g v-for="tooth in upperLeftTeeth" :key="tooth.number">
            <rect :x="tooth.x" :y="tooth.y" :width="toothWidth" :height="toothHeight" :rx="toothRadius"
              :class="['tooth', { selected: selectedTeeth.includes(tooth.number) }]"
              @click="toggleTooth(tooth.number)" />
            <text :x="tooth.x + toothWidth / 2" :y="tooth.y + toothHeight / 2 + 5" class="tooth-number"
              @click="toggleTooth(tooth.number)">
              {{ tooth.number }}
            </text>
          </g>
        </g>
        <!-- 下頜牙齒 -->
        <g class="lower-jaw">
          <!-- 右下區 (17-24) -->
          <g v-for="tooth in lowerRightTeeth" :key="tooth.number">
            <rect :x="tooth.x" :y="tooth.y" :width="toothWidth" :height="toothHeight" :rx="toothRadius"
              :class="['tooth', { selected: selectedTeeth.includes(tooth.number) }]"
              @click="toggleTooth(tooth.number)" />
            <text :x="tooth.x + toothWidth / 2" :y="tooth.y + toothHeight / 2 + 5" class="tooth-number"
              @click="toggleTooth(tooth.number)">
              {{ tooth.number }}
            </text>
          </g>
          <!-- 左下區 (25-32) -->
          <g v-for="tooth in lowerLeftTeeth" :key="tooth.number">
            <rect :x="tooth.x" :y="tooth.y" :width="toothWidth" :height="toothHeight" :rx="toothRadius"
              :class="['tooth', { selected: selectedTeeth.includes(tooth.number) }]"
              @click="toggleTooth(tooth.number)" />
            <text :x="tooth.x + toothWidth / 2" :y="tooth.y + toothHeight / 2 + 5" class="tooth-number"
              @click="toggleTooth(tooth.number)">
              {{ tooth.number }}
            </text>
          </g>
        </g>
        <!-- 中線標識 -->
        <line :x1="viewBoxWidth / 2" y1="50" :x2="viewBoxWidth / 2" :y2="viewBoxHeight - 50" stroke="#78909C" stroke-width="1"
          stroke-dasharray="5,5" />
        <!-- 分區標識 -->
        <text :x="viewBoxWidth / 4" y="30" class="quadrant-label">右上區 (1-8)</text>
        <text :x="viewBoxWidth * 3 / 4" y="30" class="quadrant-label">左上區 (9-16)</text>
        <text :x="viewBoxWidth / 4" :y="viewBoxHeight - 20" class="quadrant-label">右下區 (17-24)</text>
        <text :x="viewBoxWidth * 3 / 4" :y="viewBoxHeight - 20" class="quadrant-label">左下區 (25-32)</text>
      </svg>
    </div>
    <!-- 備注區域 -->
    <div class="notes-section">
      <div v-if="selectedTeeth.length > 0">
        <h3>選中牙齒: {{ selectedTeethWithPosition.join(', ') }}</h3>
        <textarea v-model="notes" placeholder="請輸入治療備注..." class="notes-textarea"></textarea>
      </div>
      <div v-else class="no-selection">
        請點擊牙齒進行選擇
      </div>
    </div>
  </div>
</template>
<script setup>
import { ref, watch, computed } from 'vue'
const props = defineProps({
  modelValue: {
    type: Object,
    default: () => ({
      selectedTeeth: [],
      notes: ''
    })
  },
  width: {
    type: [Number, String],
    default: '100%'
  },
  height: {
    type: [Number, String],
    default: '600'
  },
  // 新增的尺寸相關props
  viewBoxWidth: {
    type: Number,
    default: 1000
  },
  viewBoxHeight: {
    type: Number,
    default: 600
  },
  toothWidth: {
    type: Number,
    default: 40
  },
  toothHeight: {
    type: Number,
    default: 60
  },
  toothRadius: {
    type: Number,
    default: 5
  }
})
const emit = defineEmits(['update:modelValue'])
const selectedTeeth = ref([...props.modelValue.selectedTeeth])
const notes = ref(props.modelValue.notes)
// 計算屬性
const computedWidth = computed(() => typeof props.width === 'number' ? `${props.width}px` : props.width)
const computedHeight = computed(() => typeof props.height === 'number' ? `${props.height}px` : props.height)
// 計算選中牙齒及其位置信息
const selectedTeethWithPosition = computed(() => {
  return selectedTeeth.value.map(num => {
    const tooth = getAllTeeth().find(t => t.number === num)
    return tooth ? `${num}(${getPositionName(num)})` : num
  })
})
// 獲取所有牙齒數據
const getAllTeeth = () => [...upperRightTeeth, ...upperLeftTeeth, ...lowerRightTeeth, ...lowerLeftTeeth]
// 獲取牙齒位置名稱
const getPositionName = (toothNumber) => {
  if (toothNumber >= 1 && toothNumber <= 8) return '右上'
  if (toothNumber >= 9 && toothNumber <= 16) return '左上'
  if (toothNumber >= 17 && toothNumber <= 24) return '右下'
  if (toothNumber >= 25 && toothNumber <= 32) return '左下'
  return ''
}
// 標準牙位布局?jǐn)?shù)據 - 基于viewBox動態計算
const upperRightTeeth = [
  { number: 1, x: props.viewBoxWidth / 2 - props.toothWidth * 4, y: 50 },
  { number: 2, x: props.viewBoxWidth / 2 - props.toothWidth * 3, y: 50 },
  { number: 3, x: props.viewBoxWidth / 2 - props.toothWidth * 2, y: 50 },
  { number: 4, x: props.viewBoxWidth / 2 - props.toothWidth * 4, y: 50 + props.toothHeight + 10 },
  { number: 5, x: props.viewBoxWidth / 2 - props.toothWidth * 3, y: 50 + props.toothHeight + 10 },
  { number: 6, x: props.viewBoxWidth / 2 - props.toothWidth * 2, y: 50 + props.toothHeight + 10 },
  { number: 7, x: props.viewBoxWidth / 2 - props.toothWidth * 4, y: 50 + (props.toothHeight + 10) * 2 },
  { number: 8, x: props.viewBoxWidth / 2 - props.toothWidth * 3, y: 50 + (props.toothHeight + 10) * 2 }
]
const upperLeftTeeth = [
  { number: 9, x: props.viewBoxWidth / 2 + props.toothWidth * 3, y: 50 + (props.toothHeight + 10) * 2 },
  { number: 10, x: props.viewBoxWidth / 2 + props.toothWidth * 2, y: 50 + (props.toothHeight + 10) * 2 },
  { number: 11, x: props.viewBoxWidth / 2 + props.toothWidth * 3, y: 50 + props.toothHeight + 10 },
  { number: 12, x: props.viewBoxWidth / 2 + props.toothWidth * 2, y: 50 + props.toothHeight + 10 },
  { number: 13, x: props.viewBoxWidth / 2 + props.toothWidth, y: 50 + props.toothHeight + 10 },
  { number: 14, x: props.viewBoxWidth / 2 + props.toothWidth * 3, y: 50 },
  { number: 15, x: props.viewBoxWidth / 2 + props.toothWidth * 2, y: 50 },
  { number: 16, x: props.viewBoxWidth / 2 + props.toothWidth, y: 50 }
]
const lowerRightTeeth = [
  { number: 17, x: props.viewBoxWidth / 2 - props.toothWidth * 4, y: props.viewBoxHeight / 2 + 20 },
  { number: 18, x: props.viewBoxWidth / 2 - props.toothWidth * 3, y: props.viewBoxHeight / 2 + 20 },
  { number: 19, x: props.viewBoxWidth / 2 - props.toothWidth * 2, y: props.viewBoxHeight / 2 + 20 },
  { number: 20, x: props.viewBoxWidth / 2 - props.toothWidth * 4, y: props.viewBoxHeight / 2 + 20 + props.toothHeight + 10 },
  { number: 21, x: props.viewBoxWidth / 2 - props.toothWidth * 3, y: props.viewBoxHeight / 2 + 20 + props.toothHeight + 10 },
  { number: 22, x: props.viewBoxWidth / 2 - props.toothWidth * 2, y: props.viewBoxHeight / 2 + 20 + props.toothHeight + 10 },
  { number: 23, x: props.viewBoxWidth / 2 - props.toothWidth * 4, y: props.viewBoxHeight / 2 + 20 + (props.toothHeight + 10) * 2 },
  { number: 24, x: props.viewBoxWidth / 2 - props.toothWidth * 3, y: props.viewBoxHeight / 2 + 20 + (props.toothHeight + 10) * 2 }
]
const lowerLeftTeeth = [
  { number: 25, x: props.viewBoxWidth / 2 + props.toothWidth * 3, y: props.viewBoxHeight / 2 + 20 + (props.toothHeight + 10) * 2 },
  { number: 26, x: props.viewBoxWidth / 2 + props.toothWidth * 2, y: props.viewBoxHeight / 2 + 20 + (props.toothHeight + 10) * 2 },
  { number: 27, x: props.viewBoxWidth / 2 + props.toothWidth * 3, y: props.viewBoxHeight / 2 + 20 + props.toothHeight + 10 },
  { number: 28, x: props.viewBoxWidth / 2 + props.toothWidth * 2, y: props.viewBoxHeight / 2 + 20 + props.toothHeight + 10 },
  { number: 29, x: props.viewBoxWidth / 2 + props.toothWidth, y: props.viewBoxHeight / 2 + 20 + props.toothHeight + 10 },
  { number: 30, x: props.viewBoxWidth / 2 + props.toothWidth * 3, y: props.viewBoxHeight / 2 + 20 },
  { number: 31, x: props.viewBoxWidth / 2 + props.toothWidth * 2, y: props.viewBoxHeight / 2 + 20 },
  { number: 32, x: props.viewBoxWidth / 2 + props.toothWidth, y: props.viewBoxHeight / 2 + 20 }
]
// 切換牙齒選擇狀態
const toggleTooth = (toothNumber) => {
  const index = selectedTeeth.value.indexOf(toothNumber)
  if (index === -1) {
    selectedTeeth.value.push(toothNumber)
  } else {
    selectedTeeth.value.splice(index, 1)
  }
  updateModelValue()
}
// 更新模型值
const updateModelValue = () => {
  emit('update:modelValue', {
    selectedTeeth: [...selectedTeeth.value],
    notes: notes.value,
    selectedTeethWithPosition: [...selectedTeethWithPosition.value]
  })
}
// 監聽notes變化
watch(notes, () => {
  updateModelValue()
})
// 監聽props變化
watch(() => props.modelValue, (newVal) => {
  if (JSON.stringify(newVal.selectedTeeth) !== JSON.stringify(selectedTeeth.value)) {
    selectedTeeth.value = [...newVal.selectedTeeth]
  }
  if (newVal.notes !== notes.value) {
    notes.value = newVal.notes
  }
}, { deep: true })
// 暴露方法
defineExpose({
  clearSelection: () => {
    selectedTeeth.value = []
    notes.value = ''
    updateModelValue()
  },
  getSelectedTeeth: () => [...selectedTeeth.value],
  getSelectedTeethWithPosition: () => [...selectedTeethWithPosition.value],
  getNotes: () => notes.value
})
</script>
<style scoped>
.tooth-chart-container {
  display: flex;
  flex-direction: column;
  gap: 20px;
  font-family: 'Arial', sans-serif;
  max-width: 100%;
  margin: 0 auto;
}
.tooth-chart {
  border: 1px solid #e0e0e0;
  border-radius: 12px;
  overflow: hidden;
  background-color: #f8f9fa;
  box-shadow: 0 2px 10px rgba(0, 0, 0, 0.08);
}
.tooth {
  fill: #ffffff;
  stroke: #90a4ae;
  stroke-width: 1.5;
  cursor: pointer;
  transition: all 0.3s ease;
}
.tooth:hover {
  fill: #e3f2fd;
  stroke: #42a5f5;
}
.tooth.selected {
  fill: #bbdefb;
  stroke: #1e88e5;
  stroke-width: 2;
  filter: drop-shadow(0 0 4px rgba(30, 136, 229, 0.4));
}
.tooth-number {
  font-size: 22px;
  font-weight: 600;
  text-anchor: middle;
  cursor: pointer;
  user-select: none;
  fill: #37474f;
}
.quadrant-label {
  font-size: 26px;
  fill: #78909C;
  text-anchor: middle;
  font-weight: 500;
}
.notes-section {
  padding: 20px;
  border: 1px solid #e0e0e0;
  border-radius: 12px;
  background-color: #f8f9fa;
  box-shadow: 0 2px 10px rgba(0, 0, 0, 0.08);
}
.notes-section h3 {
  margin-top: 0;
  margin-bottom: 15px;
  color: #263238;
  font-size: 18px;
}
.notes-textarea {
  width: 100%;
  min-height: 120px;
  padding: 12px;
  border: 1px solid #cfd8dc;
  border-radius: 8px;
  resize: vertical;
  font-family: inherit;
  font-size: 14px;
  line-height: 1.5;
  transition: border-color 0.3s;
}
.notes-textarea:focus {
  outline: none;
  border-color: #42a5f5;
  box-shadow: 0 0 0 2px rgba(66, 165, 245, 0.2);
}
.no-selection {
  color: #90a4ae;
  text-align: center;
  padding: 30px;
  font-size: 16px;
}
</style>

使用示例：

<template>
  <div class="demo-container">
    <h1>牙位圖選擇器</h1>
    <ToothChart v-model="toothData" :width="chartWidth" :height="chartHeight" :tooth-width="toothWidth"
      :tooth-height="toothHeight" />
    <div class="actions">
      <button @click="clearSelection">清除選擇</button>
      <button @click="submitData">提交數據</button>
    </div>
  </div>
</template>
<script setup>
import { ref } from 'vue'
import ToothChart from '@/components/ToothChart.vue';
const toothData = ref({
  selectedTeeth: [],
  notes: '',
  selectedTeethWithPosition: []
})
const chartWidth = ref('100%')
const chartHeight = ref('500px')
const toothWidth = ref(40)
const toothHeight = ref(60)
const clearSelection = () => {
  toothData.value = {
    selectedTeeth: [],
    notes: '',
    selectedTeethWithPosition: []
  }
}
const submitData = () => {
  alert(`已提交數據:\n選中牙齒: ${toothData.value.selectedTeethWithPosition.join(', ')}\n備注: ${toothData.value.notes}`)
}
</script>
<style scoped lang="scss">
.demo-container {
  max-width: 1000px;
  margin: 0 auto;
  padding: 20px;
  font-family: Arial, sans-serif;
}
.actions {
  display: flex;
  gap: 10px;
  margin: 20px 0;
}
.actions button {
  padding: 8px 16px;
  background: #42a5f5;
  color: white;
  border: none;
  border-radius: 4px;
  cursor: pointer;
  transition: background 0.3s;
}
.actions button:hover {
  background: #1e88e5;
}
</style>

到此這篇關于vue3 實現牙位圖選擇器的文章就介紹到這了,更多相關vue3 選擇器內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！

相關文章

  • vue中window.onresize的使用解析

    vue中window.onresize的使用解析

    這篇文章主要介紹了vue中window.onresize的使用方式，具有很好的參考價值，希望對大家有所幫助。如有錯誤或未考慮完全的地方，望不吝賜教
    2022-04-04
  • Vue判斷數組內是否存在某一項的兩種方法

    Vue判斷數組內是否存在某一項的兩種方法

    這篇文章主要介紹了Vue判斷數組內是否存在某一項,今天給大家分享兩種方法，分別是findIndex()和 indexOf()方法，本文結合實例代碼給大家介紹的非常詳細，需要的朋友可以參考下
    2023-07-07
  • vue3.2中的vuex使用詳解

    vue3.2中的vuex使用詳解

    這篇文章主要介紹了vue3.2中的vuex使用詳解,本文給大家介紹的非常詳細，對大家的學習或工作具有一定的參考借鑒價值，需要的朋友可以參考下
    2023-04-04
  • Vue項目識別不到@別名問題及解決

    Vue項目識別不到@別名問題及解決

    這篇文章主要介紹了Vue項目識別不到@別名問題及解決方案,具有很好的參考價值,希望對大家有所幫助,如有錯誤或未考慮完全的地方,望不吝賜教
    2023-10-10
  • vue 組件內獲取actions的response方式

    vue 組件內獲取actions的response方式

    今天小編就為大家分享一篇vue 組件內獲取actions的response方式，具有很好的參考價值，希望對大家有所幫助。一起跟隨小編過來看看吧
    2019-11-11
  • vue.js實現的綁定class操作示例

    vue.js實現的綁定class操作示例

    這篇文章主要介紹了vue.js實現的綁定class操作,結合實例形式分析了vue.js綁定class常見的3種操作技巧,需要的朋友可以參考下
    2018-07-07
  • Vue實現開心消消樂游戲算法

    Vue實現開心消消樂游戲算法

    這篇文章主要介紹了使用Vue寫一個開心消消樂游戲，游戲算法在文中給大家介紹的非常詳細，具有一定的參考借鑒價值,需要的朋友可以參考下
    2019-10-10
  • vue實現移動端拖動排序

    vue實現移動端拖動排序

    這篇文章主要為大家詳細介紹了vue實現移動端拖動排序，文中示例代碼介紹的非常詳細，具有一定的參考價值，感興趣的小伙伴們可以參考一下
    2020-08-08
  • 解決vue3中內存泄漏的問題

    解決vue3中內存泄漏的問題

    在項目中會發現一個奇怪的現象，當我們在使用element-plus中的圖標組件時會出現內存泄漏，所以本文講給大家講講如何解決vue3中的內存泄漏的問題,需要的朋友可以參考下
    2023-07-07
  • Vue引入highCharts實現數據可視化

    Vue引入highCharts實現數據可視化

    這篇文章主要為大家詳細介紹了Vue引入highCharts實現數據可視化，文中示例代碼介紹的非常詳細，具有一定的參考價值，感興趣的小伙伴們可以參考一下
    2022-03-03

最新評論
