前端使用pdf.js渲染pdf文件解決方案
一、前言
在前端開發中,渲染PDF文件一直是一項重要而挑戰性的任務。而今,我們可以借助pdf.js庫來輕松實現這一目標。pdf.js是一個開源的JavaScript庫,它可以在瀏覽器中渲染PDF文件,實現了在網頁上查看PDF文檔的功能。它提供了豐富的API和功能,使得在前端頁面展示PDF文件變得輕而易舉。讓我們一起探索pdf.js的奇妙之處,輕松實現前端PDF文件的渲染與展示吧!
二、簡介
1、pdf.js介紹
pdf.js是一款基于JavaScript的開源PDF閱讀器組件,可以在網頁中直接顯示和操作PDF文件,目前已知的前端渲染pdf組件都是基于pdf.js進行封裝。
git地址:https://github.com/mozilla/pdf.js
注:開源且免費
2、插件版本參數
插件 | 版本 |
Node | v22.13.0 |
@types/react | ^18.0.33 |
@types/react-dom | ^18.0.11 |
pdfjs-2.5.207-es5-dist.zip (viewer.js使用方式) | 2.5.207 |
pdfjs-dist (canvas渲染方式) | 3.6.172 |
三、通過viewer.html實現預覽(推薦)
1、介紹
除了PDF預覽,還待配套的工具欄,支持功搜索、縮放、目錄、打印等功能~

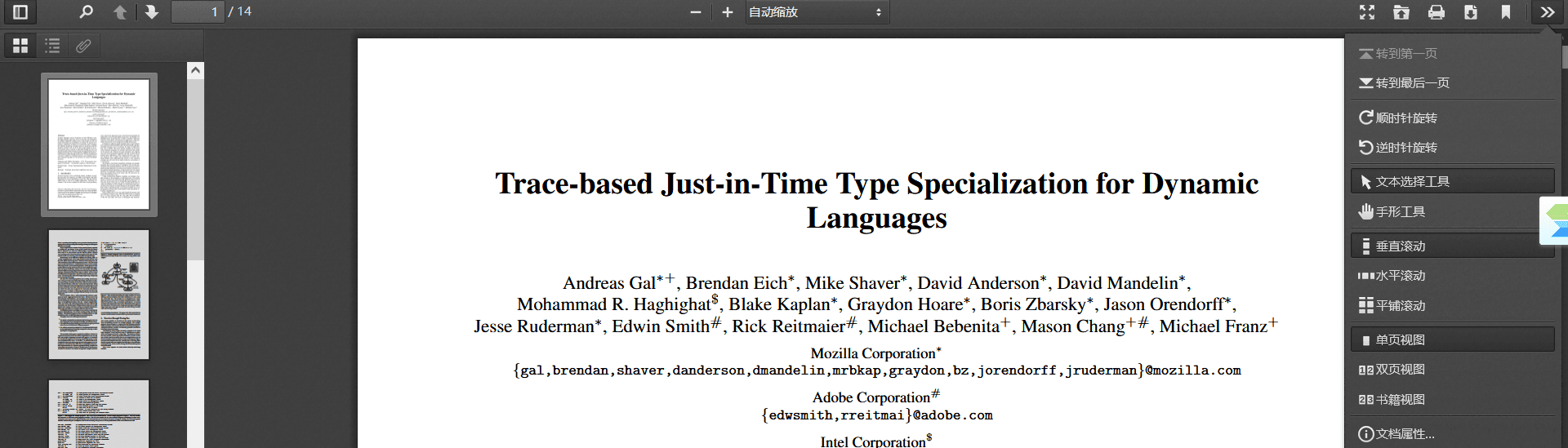

Demo如圖:
2、部署
【1】下載插件包

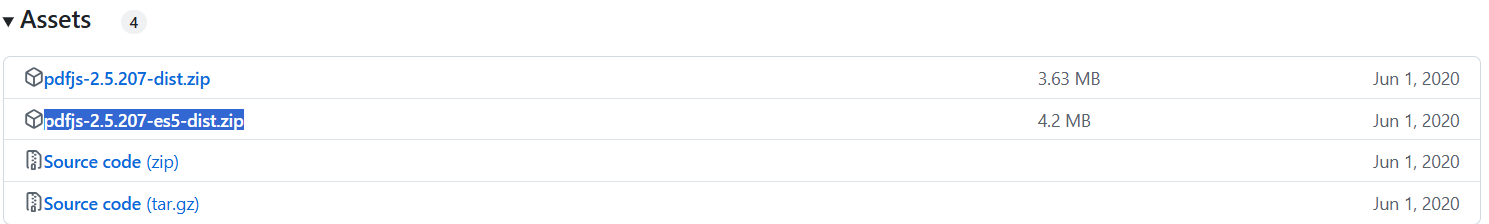

下載地址:https://github.com/mozilla/pdf.js/releases/tag/v2.5.207
【2】客戶端方式

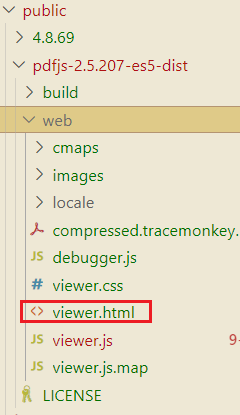

把下載后的pdfjs-2.5.207-es5-dist.zip解壓后,放在項目中的public文件夾下
【3】服務端方式
pdf.js包仍然放在public目錄下(或者服務端目錄下)
const pdfServerUrl = '/pdfjs-2.5.207-es5-dist/web/viewer.html'
一個可以獲取pdf文件二進制流的地址(需要同源)
.... const pdfInfoUrl = `${location.origin}/xxx/xx.pdf`; const url = `${pdfServerUrl}?file=${encodeURIComponent(pdfInfoUrl)}` ... <iframe id='pdfIframe' src={url} width="100%" height="100%"></iframe>
3、使用方法
【1】預覽PDF文件
1)客戶端方式(基于React框架為例)
const viewPDF: React.FC = () => { // pdf文件路徑,放在項目的public目錄下 const pdfUrl = '/A.pdf'; //pdf.js庫的代碼,放在項目的public目錄下 const pdfServerUrl = '/pdfjs-2.5.207-es5-dist/web/viewer.html' const url = `${pdfServerUrl}?file=${pdfUrl}` return <> <h1>pdf 搜索(基于pdf-dist,pdf_viewer.html)</h1> <iframe id='pdfIframe' src={url} width="100%" height="100%"></iframe> </>; }
2)服務端方式
通過axios接口獲取文件的arraybuffer,再把arraybuffer轉換成二進制Blob,最后把Bolb轉成blob:url傳給viewer.html
... import axios from 'axios'; ... const [pdfUrl, setPdfUrl] = useState<string>(''); const getPDFViewUrl = (fileName: any) => { axios({ method: 'get', url: `URL`,//文件下載的url responseType: 'arraybuffer' }).then(response =>{ const blob = new Blob([response.data], { type: 'application/pdf' }); const blobUrl = URL.createObjectURL(blob); console.log('zyk===>', blobUrl) setPdfUrl(`${pdfServerUrl}?file=${blobUrl}`) }) }; return ( <> <iframe id="pdfIframe" src={pdfUrl} width="100%" height="100%"></iframe> </> );
【2】外部搜索條件觸發pdf.js的搜索邏輯
- 跳轉至第一個匹配的內容
- 匹配內容高亮
const viewPDF: React.FC = () => { // pdf文件路徑,放在項目的public目錄下 const pdfUrl = '/A.pdf'; //pdf.js庫的代碼,放在項目的public目錄下 const pdfServerUrl = '/pdfjs-2.5.207-es5-dist/web/viewer.html' const url = `${pdfServerUrl}?file=${pdfUrl}` let pdfContentWindow: any = null; //緩存iframContent const getPdfContent = () => { const pdfFrame: any = document.getElementById('pdfIframe'); if (!pdfFrame) { return; } pdfContentWindow = pdfFrame.contentWindow; //pdf組件部分信息,包括:當前頁碼、總共頁碼等 console.log('page===>', pdfContentWindow.PDFViewerApplication); } const onSearchForOut = (searchText: string) => { pdfContentWindow.postMessage(searchText, '*'); pdfContentWindow.addEventListener('message', (e: any) => { // 高亮匹配結果 pdfContentWindow.PDFViewerApplication.findBar.findField.value = e.data; pdfContentWindow.PDFViewerApplication.findBar.highlightAll.checked = true; pdfContentWindow.PDFViewerApplication.findBar.dispatchEvent('highlightallchange'); //觸發搜索項‘下一個'事件 pdfContentWindow.PDFViewerApplication.findBar.dispatchEvent('again', false); }, false); } useEffect(() => { getPdfContent(); setTimeout(() => { // 外部的搜索條件 onSearchForOut('陽區CBD核心區') }, 3* 1000) }, []); return <> <h1>pdf 搜索(基于pdf-dist,pdf_viewer.html)</h1> <iframe id='pdfIframe' src={url} width="100%" height="100%"></iframe> </>; }
四、把pdf渲染為canvas實現預覽
1、安裝
npm install pdfjs-dist --save
2、功能實現
【1】實現pdf預覽
import { Button } from 'antd'; import { useState, useEffect, useRef } from 'react'; import * as pdfjsLib from 'pdfjs-dist'; // 引入pdfjs-dist const pdfUrl = '/zyk.pdf'; // pdf 文件路徑,pdf文件存放于public目錄下 const workerUrl = `/pdf.worker.min.js`; //webworker存放于public目錄下 pdfjsLib.GlobalWorkerOptions.workerSrc = workerUrl; const viewPdf = (props: {height: string}) => { const {height} = props; const pdfContainerRef = useRef<any>(null); const [pagesList, setPagesList] = useState<any>([]); const scale = 2; // 縮放比例 // 渲染單個頁面 const renderPage = async (page: any, pageNumber: number) => { const viewport = page.getViewport({ scale }); const pageContentDom = document.createElement('div'); pageContentDom.id = `pdfPage-content-${pageNumber}`; pageContentDom.style.width = `${viewport.width}px`; pageContentDom.style.height = `${viewport.height}px`; pageContentDom.style.position = 'relative'; // 創建 Canvas 元素 const canvas = document.createElement('canvas'); const context = canvas.getContext('2d'); canvas.id=`pdfPage-${pageNumber}` canvas.width = viewport.width; canvas.height = viewport.height; canvas.style.border = '1px solid black'; pageContentDom.appendChild(canvas); pdfContainerRef.current.appendChild(pageContentDom); // 渲染 PDF 頁面到 Canvas await page.render({ canvasContext: context, viewport, }).promise; }; // 渲染 PDF 頁面 const renderPagesGroup = ( pages: any) => { pages.forEach(({page}:any, index: number) => { renderPage(page, index); }); }; // 加載 PDF 文件 const loadPdf = async (url: any) => { const pdf = await pdfjsLib.getDocument(url).promise; const pages: any[] = []; for (let i = 1; i <= pdf.numPages; i++) { const page = await pdf.getPage(i); const textContent = await page.getTextContent(); pages.push({ page, textContent }); } setPagesList(pages); renderPagesGroup(pages); }; useEffect(() => { loadPdf(pdfUrl); }, []); return <> <div> <h1>PDF 搜索(基于@pdfjs-dist-自定義實現)</h1> <div> <div style={{ height: height || '500px' }}> {/* PDF 容器 */} <div ref={pdfContainerRef} style={{ position: 'relative', height: '100%', overflowY: 'scroll' }} /> </div> </div> </div> </> }; export default viewPdf;
【2】實現pdf內容文本可選進行復制
... //基于“【1】實現pdf預覽”代碼, 修改renderPage方法 // 渲染單個頁面 const renderPage = async (page: any, pageNumber: number) => { const viewport = page.getViewport({ scale }); const pageContentDom = document.createElement('div'); pageContentDom.id = `pdfPage-content-${pageNumber}`; //add-begin: 文本可選則 為了文本層和canvas層重疊,利用組件庫的類名(類名不能修改) pageContentDom.className = 'pdfViewer'; pageContentDom.style.setProperty('--scale-factor', scale as any); //add-end: 文本可選則 pageContentDom.style.width = `${viewport.width}px`; pageContentDom.style.height = `${viewport.height}px`; pageContentDom.style.position = 'relative'; // 創建 Canvas 元素 const canvas = document.createElement('canvas'); const context = canvas.getContext('2d'); canvas.id=`pdfPage-${pageNumber}` canvas.width = viewport.width; canvas.height = viewport.height; canvas.style.border = '1px solid black'; pageContentDom.appendChild(canvas); createHeightLightCanvas(viewport, pageNumber, pageContentDom); pdfContainerRef.current.appendChild(pageContentDom); // 渲染 PDF 頁面到 Canvas await page.render({ canvasContext: context, viewport, }).promise; //add-begin: 文本可選則 const textLayerDiv = document.createElement('div'); textLayerDiv.style.width = viewport.width; textLayerDiv.style.height = viewport.height; //為了文本層和canvas層重疊,利用組件庫的類名 textLayerDiv.className = 'textLayer'; const textContent = await page.getTextContent(); pdfjsLib.renderTextLayer({ textContentSource: textContent, container: textLayerDiv, viewport: viewport, textDivs: [], }); pageContentDom.appendChild(textLayerDiv); //add-end: 文本可選則 };
【3】實現搜索,匹配內容高亮,并且可以跳轉至匹配內容的位置
import { Button } from 'antd'; import { useState, useEffect, useRef } from 'react'; import * as pdfjsLib from 'pdfjs-dist'; // 引入pdfjs-dist const pdfUrl = '/zyk.pdf'; // pdf 文件路徑,pdf文件存放于public目錄下 const workerUrl = `/pdf.worker.min.js`; //webworker存放于public目錄下 pdfjsLib.GlobalWorkerOptions.workerSrc = workerUrl; const viewPdf = (props: {height: string}) => { const {height} = props; const [searchText, setSearchText] = useState(''); const pdfContainerRef = useRef<any>(null); const [pagesList, setPagesList] = useState<any>([]); const [matchList, setMatchList] = useState<any>([]); const scale = 2; // 縮放比例 const createHeightLightCanvas = (viewport: any, pageNumber: number, parentDom: any) => { // 為每頁創建一個高亮層canvas const highlightCanvas = document.createElement('canvas'); highlightCanvas.id = `highlightCanvas-${pageNumber}`; highlightCanvas.className = 'highlightCanvas'; highlightCanvas.width = viewport.width; highlightCanvas.height = viewport.height; highlightCanvas.style.position = 'absolute'; highlightCanvas.style.top = '0'; highlightCanvas.style.left = '0'; highlightCanvas.style.zIndex = '1'; parentDom.appendChild(highlightCanvas); } // pageNumber 頁碼(從0開始) const jumpToPage = (pageIndex: number) => { let beforeCanvasHeight = 0; for (let i = 0; i < pageIndex; i++) { const canvasParentDom = pdfContainerRef.current.querySelector(`#pdfPage-content-${i}`); let canvasParentHeight = canvasParentDom.style.height.replace('px', ''); beforeCanvasHeight += Number(canvasParentHeight); } pdfContainerRef.current.scrollTo({ top: beforeCanvasHeight, // 垂直滾動位置 behavior: 'smooth' }); } const getCurrentTextContentY = (canvas: any, match: any) => { // pdfjs 坐標系原點在左下角。transform[5]代表y軸的基線,所以需要減去高度 const {textBlock} = match; const { transform, height } = textBlock; return canvas.height - (transform[5] + height -2) * scale; } // 滾動到指定的匹配項 const scrollToMatch = (match: any) => { const { pageIndex, matchList } = match; const firstMatchContent = matchList[0]; // 獲取滾動區域的高度 const scrollHeight = pdfContainerRef.current.scrollHeight; console.log('滾動區域的高度:', scrollHeight); // 獲取當前頁碼之前dom的高度 let beforePageHeight = 0; for (let i = 0; i < pageIndex; i++) { const canvasParentDom = pdfContainerRef.current.querySelector(`#pdfPage-content-${i}`); let canvasParentHeight = canvasParentDom.style.height.replace('px', ''); beforePageHeight += Number(canvasParentHeight); } // todo 繼續計算 匹配項目的高度 const currentPageCanvas = pdfContainerRef.current.querySelector(`#pdfPage-${pageIndex}`); const textContentY = getCurrentTextContentY(currentPageCanvas, firstMatchContent); const offsetTop = 50; //為了滾動目標文字不頂格 const targetScrollTop = beforePageHeight + textContentY -offsetTop; pdfContainerRef.current.scrollTo({ top: targetScrollTop, // 垂直滾動位置 behavior: 'smooth' }); }; // 繪制高亮區域 const drawHighlights = async (canvas: any, matchesList: MatchBlockItem[]) => { if (matchesList.length === 0) { return; } const context = canvas.getContext('2d'); context.fillStyle = 'rgba(255, 255, 0, 0.5)'; // 黃色半透明填充 matchesList.forEach((match: any) => { const {textBlock} = match; const { transform, width, height, str } = textBlock; // 獲取每一個字符的寬度 const charWidth = width / str.length; const lightWidth = (match.textEndIndex - match.textStartIndex) * charWidth; const lightHeight = height; const x = transform[4] + match.textStartIndex * charWidth; const y = getCurrentTextContentY(canvas, match); context.fillRect( Math.floor(x * scale), Math.floor(y), Math.ceil(lightWidth * scale), Math.ceil(lightHeight * scale) ); }); }; // 渲染單個頁面 const renderPage = async (page: any, pageNumber: number) => { const viewport = page.getViewport({ scale }); const pageContentDom = document.createElement('div'); pageContentDom.id = `pdfPage-content-${pageNumber}`; //為了文本層和canvas層重疊,利用組件庫的類名 pageContentDom.className = 'pdfViewer'; pageContentDom.style.setProperty('--scale-factor', scale as any); pageContentDom.style.width = `${viewport.width}px`; pageContentDom.style.height = `${viewport.height}px`; pageContentDom.style.position = 'relative'; // 創建 Canvas 元素 const canvas = document.createElement('canvas'); const context = canvas.getContext('2d'); canvas.id=`pdfPage-${pageNumber}` canvas.width = viewport.width; canvas.height = viewport.height; canvas.style.border = '1px solid black'; pageContentDom.appendChild(canvas); createHeightLightCanvas(viewport, pageNumber, pageContentDom); pdfContainerRef.current.appendChild(pageContentDom); // 渲染 PDF 頁面到 Canvas await page.render({ canvasContext: context, viewport, }).promise; // 渲染文本框 const textLayerDiv = document.createElement('div'); textLayerDiv.style.width = viewport.width; textLayerDiv.style.height = viewport.height; //為了文本層和canvas層重疊,利用組件庫的類名 textLayerDiv.className = 'textLayer'; const textContent = await page.getTextContent(); pdfjsLib.renderTextLayer({ textContentSource: textContent, container: textLayerDiv, viewport: viewport, textDivs: [], }); pageContentDom.appendChild(textLayerDiv) }; // 渲染 PDF 頁面 const renderPagesGroup = ( pages: any) => { pages.forEach(({page}:any, index: number) => { renderPage(page, index); }); }; // 加載 PDF 文件 const loadPdf = async (url: any) => { const pdf = await pdfjsLib.getDocument(url).promise; const pages: any[] = []; for (let i = 1; i <= pdf.numPages; i++) { const page = await pdf.getPage(i); const textContent = await page.getTextContent(); pages.push({ page, textContent }); } setPagesList(pages); renderPagesGroup(pages); }; const findAllMatches = (text: string, pattern: string) => { // 創建正則表達式對象 const regex = new RegExp(pattern, 'g'); // 使用match方法找到所有匹配項 const matches = text.match(regex); // 如果沒有匹配項,返回空數組 if (!matches) { return []; } // 創建一個數組來存儲所有匹配的位置 const positions = []; // 遍歷所有匹配項,找到它們在字符串中的位置 let match; while ((match = regex.exec(text)) !== null) { positions.push(match.index); } return positions; } // todo 優化參數個數, const getMatchesList = ( items: any, currentItem: any, currentItemIndex: number, currentTextIndex: number, searchStr: string): MatchBlockItem[] => { let matchSearchList: MatchBlockItem[] = []; if(currentItem.str.length - (currentTextIndex + 1) < searchStr.length -1 ) { // 獲取當前文本塊中剩余字符,如果小于搜索字符長度,則繼續查找下一個文本塊 let itemText = currentItem.str.slice(currentTextIndex); // 獲取當前文本塊中剩余字符 let tempMatchSearchList = [{ blockIndex: currentItemIndex, textStartIndex: currentTextIndex, textEndIndex: currentItem.str.length,// 由于統一使用slice截取,所以不包括最后一位 textBlock: currentItem }]; // 存儲后續文本塊 let index = currentItemIndex; const otherSearchLength = searchStr.length -1; while (itemText.length <= otherSearchLength) { index = index + 1; const currentOtherSearchLength = otherSearchLength - itemText.length; // 當前剩余搜索字符長度 if (items[index].str.length > currentOtherSearchLength) { // 文本塊的長度大于剩余搜索字符長度,則截取剩余搜索字符長度的字符 itemText = `${itemText}${items[index].str.slice(0, currentOtherSearchLength+1)}`; tempMatchSearchList.push({ blockIndex: index, textStartIndex: 0, textEndIndex: currentOtherSearchLength + 1, textBlock: items[index] }) } else { // 文本塊的長度小于剩余搜索字符長度,則截取全部字符, 繼續 itemText = `${itemText}${items[index].str}`; tempMatchSearchList.push({ blockIndex: index, textStartIndex: 0, textEndIndex: items[index].str.length, textBlock: items[index] }) } } if (itemText === searchStr) { matchSearchList = matchSearchList.concat(tempMatchSearchList); } } else { // 獲取當前文本塊中剩余字符,如果大于等于搜索字符長度,則截取當前文本塊中搜索文本長度的字符 const textEndIndex = currentTextIndex + searchStr.length; const text = currentItem.str.slice(currentTextIndex, textEndIndex); // 取出匹配字符所在文本塊及后續文本塊 if (text === searchStr) { console.log('匹配到了:', currentItem, currentItemIndex) matchSearchList.push({ blockIndex: currentItemIndex, textStartIndex: currentTextIndex, textEndIndex: textEndIndex, textBlock: currentItem }) } } return matchSearchList; } // 查找文本的所有出現位置 const findAllOccurrences = (items: any, searchStr: string): MatchBlockItem[] => { const firstSearchStr = searchStr[0]; let matchSearchList: MatchBlockItem[] = []; for(let i=0; i<items.length; i++) { const currentItem = items[i]; const currentMatchIndexList = findAllMatches(currentItem.str, firstSearchStr); // 獲取當前文本塊中第一個匹配字符的索引列表 if (currentMatchIndexList.length > 0) { for(let j=0; j<currentMatchIndexList.length; j++){ matchSearchList = [...matchSearchList, ...getMatchesList(items, currentItem, i, currentMatchIndexList[j], searchStr)]; } } } return matchSearchList; }; const clearHeightLightsCanvas = () => { const highlightCanvases = Array.from(pdfContainerRef.current.querySelectorAll('.highlightCanvas')); highlightCanvases.forEach((canvas: any) => { const context = canvas.getContext('2d'); context.clearRect(0, 0, canvas.width, canvas.height); }); } const handleSearch = async () => { clearHeightLightsCanvas() if (!searchText) { jumpToPage(0); return; } const newMatches: any = []; console.log('pagesList', pagesList) // todo 目前是按照每頁來匹配,可能會匹配不到跨頁的內容 pagesList.forEach(async ({textContent}: any, pageIndex: number) => { const pageMatches = findAllOccurrences(textContent.items, searchText); newMatches.push({ pageIndex, // 頁面索引 matchList: pageMatches, // 匹配項列表 }); }) console.log('newMatches', newMatches); const isNotMatch = newMatches.every((match: any) => match.matchList.length === 0); if (isNotMatch) { alert('未找到匹配項'); return; } /// 重新繪制高亮區域 pagesList.forEach((_: any, pageIndex: number) => { const highlightCanvas = pdfContainerRef.current.querySelectorAll('.highlightCanvas')[pageIndex]; // 獲取高亮層 Canvas const currentMatches = newMatches.find((match: any) => match.pageIndex === pageIndex); drawHighlights( highlightCanvas, currentMatches?.matchList || [] ); }); // 跳轉 const isExistItem = newMatches.find((match: any) => match.matchList.length > 0); if (isExistItem) { scrollToMatch(isExistItem); } }; // 初始化 PDF.js useEffect(() => { loadPdf(pdfUrl); }, []); return <> <div> <h1>PDF 搜索(基于@pdfjs-dist-自定義實現)</h1> <input type="text" value={searchText} onChange={(e) => setSearchText(e.target.value)} placeholder="輸入要搜索的內容" /> <Button onClick={handleSearch}>搜索</Button> <div> <div style={{ height: height || '500px' }}> {/* PDF 容器 */} <div ref={pdfContainerRef} style={{ position: 'relative', height: '100%', overflowY: 'scroll' }} /> </div> </div> </div> </> }; export default viewPdf;

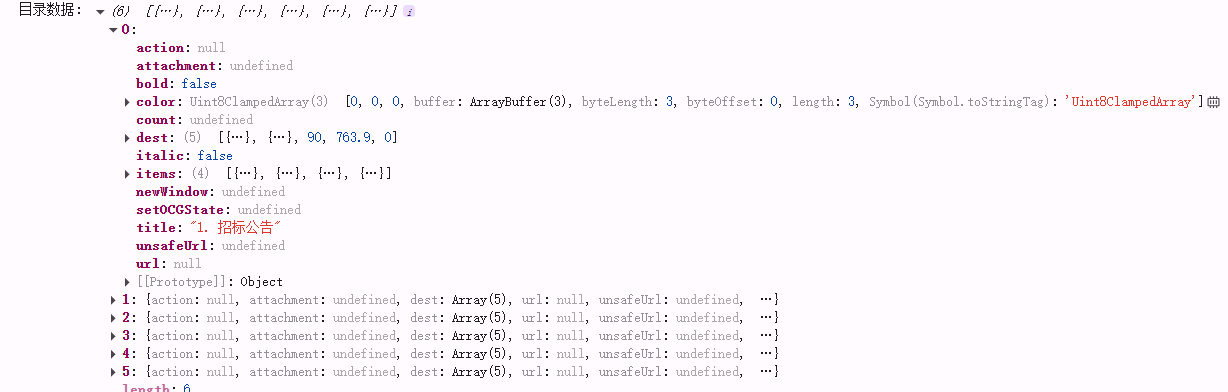

【4】獲取pdf文件中目錄的數據結構
.... //基于‘【1】實現pdf預覽'的代碼 const get= async (url: any) => { const pdf = await pdfjsLib.getDocument(url).promise; // 獲取目錄數據 const pdfCatalogue= await pdf.getOutline(); console.log('目錄數據:', pdfCatalogue); }; ...
總結
到此這篇關于前端使用pdf.js渲染pdf文件解決方案的文章就介紹到這了,更多相關前端pdf.js渲染pdf文件內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
