Spring boot啟動原理及相關組件整理

 更新時間:2024年12月19日 14:46:47   作者:程序猿進階
這篇文章主要介紹了Spring boot啟動原理及相關組件整理,本文通過實例代碼給大家介紹的非常詳細,感興趣的朋友一起看看吧

一、Spring Boot應用啟動

一個Spring Boot應用的啟動通常如下:

@SpringBootApplication
@Slf4j
public class ApplicationMain {
    public static void main(String[] args) {
        ConfigurableApplicationContext ctx = SpringApplication.run(ApplicationMain.class, args);
    }
}

執行如上代碼,Spring Boot程序啟動成功。事實上啟動Spring Boot應用離不開SpringApplication。
所以,我們跟隨SpringApplication的腳步,開始從源碼角度分析Spring Boot的初始化過程。

btw,可參看例子一節,我對Spring Boot啟動的拓展點都做了demo,可參照下面源碼分析進行理解。

文檔有一句話說了SpringApplication做了什么(目的):

Create an appropriate ApplicationContext instance (depending on your classpath) Register a CommandLinePropertySource to expose command line arguments as Spring properties Refresh the application context, loading all singleton beans Trigger any CommandLineRunner beans

二、SpringApplication構造函數

啟動代碼先創建SpringApplication示例,在執行run方法:

public static ConfigurableApplicationContext run(Class<?>[] primarySources,
        String[] args) {
    return new SpringApplication(primarySources).run(args);
}

如下是SpringApplication的構造函數代碼分析。

this.resourceLoader = resourceLoader;
Assert.notNull(primarySources, "PrimarySources must not be null");
this.primarySources = new LinkedHashSet<>(Arrays.asList(primarySources));
//通過Classloader探測不同web應用核心類是否存在,進而設置web應用類型
this.webApplicationType = WebApplicationType.deduceFromClasspath();
//找出所有spring.factories中聲明的ApplicationContextInitializer并設置,
//ApplicationContextInitializer定義了回調接口,在refresh()前初始化調用(即在prepareContext的applyInitializers方法中調用)
setInitializers((Collection) getSpringFactoriesInstances(
ApplicationContextInitializer.class));
//找出所有spring.factories中聲明的ApplicationListener(細節往后再敘),ApplicationListener繼承了
//java.util.EventListener,實現了類似觀察者模式的形式,通過實現ApplicationListener、SmartApplicationListener,能夠監聽Spring上下文的refresh、Prepared等事件或者是自定義事件
setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));
//找出主啟動類(有趣的是,是通過new一個runtime異常然后在異常棧里面找出來的)
this.mainApplicationClass = deduceMainApplicationClass();

在構造期間,主要做了:
1、判定應用類型,為后面創建不同類型的spring context做準備。
2、初始化ApplicationContextInitializer和ApplicationListener。
3、找出啟動類。

三、run()源碼解析

介紹run()方法前,先說說貫穿run方法的ApplicationRunListener,它有助于理解整個run()的運行周期。
寫在這里:Spring Application事件機制

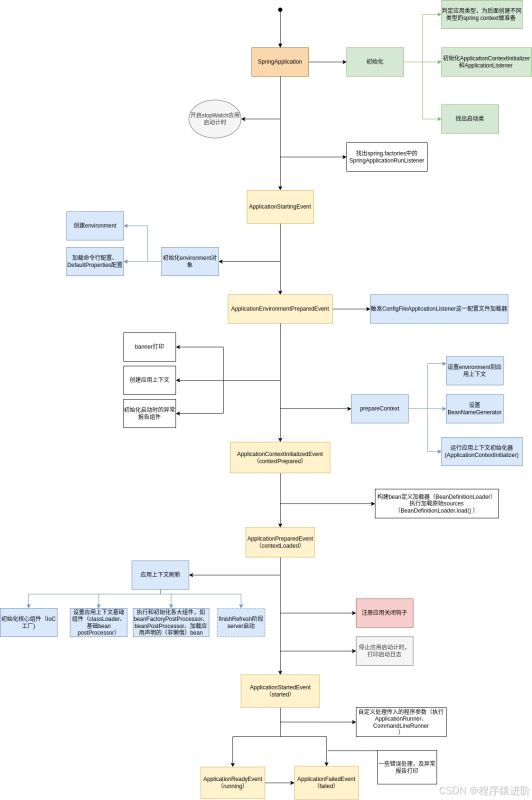

run()方法分析如下:

//java.awt.headless,是J2SE的一種模式,用于在缺失顯示屏、鼠標或者鍵盤時的系統配置。
configureHeadlessProperty();
//將spring.factories中的SpringApplicationRunListener接口實現類拖出來,塞到SpringApplicationRunListeners(一個集合)中,統一批量執行
SpringApplicationRunListeners listeners = getRunListeners(args);
//觸發runlistener的starting
listeners.starting();
try {
   ApplicationArguments applicationArguments = new DefaultApplicationArguments(
         args);
   ConfigurableEnvironment environment = prepareEnvironment(listeners,
         applicationArguments);
   //spring.beaninfo.ignore如果沒有設置值,則把它設為true,具體情況具體設置,
   //如果沒用的話,把它設為true可以ignore掉classloader對于不存在的BeanInfo的掃描,提高性能。
   configureIgnoreBeanInfo(environment);
   //banner打印。自定義banner挺好玩的
   Banner printedBanner = printBanner(environment);
   //根據webApplicationType(一開始推斷的應用類型)去新建applicationContext
   context = createApplicationContext();
   //獲取SpringBootExceptionReporter,回調接口類,提供啟動時的異常報告
   exceptionReporters = getSpringFactoriesInstances(
         SpringBootExceptionReporter.class,
         new Class[] { ConfigurableApplicationContext.class }, context);
   //下面會說
   prepareContext(context, environment, listeners, applicationArguments,
         printedBanner);
   refreshContext(context);
   //do nothing
   afterRefresh(context, applicationArguments);
   //計時停止
   stopWatch.stop();
   //打日志
   if (this.logStartupInfo) {
      new StartupInfoLogger(this.mainApplicationClass)
            .logStarted(getApplicationLog(), stopWatch);
   }
   //啟動
   listeners.started(context);
   //找出context的ApplicationRunner和CommandLineRunner,用AnnotationAwareOrderComparator排序,并執行
   callRunners(context, applicationArguments);

下面再分別說說兩個方法(prepareEnvironment、refreshContext)的代碼。

四、prepareEnvironment

private ConfigurableEnvironment prepareEnvironment(
      SpringApplicationRunListeners listeners,
      ApplicationArguments applicationArguments) {
   // Create and configure the environment
   ConfigurableEnvironment environment = getOrCreateEnvironment();
   configureEnvironment(environment, applicationArguments.getSourceArgs());
   //發布environment prepared事件
   listeners.environmentPrepared(environment);
   //將獲取到的environment中的spring.main配置綁定到SpringApplication中,
   //使用的是Binder這個spring boot2.0開始有的類
   bindToSpringApplication(environment);
   if (!this.isCustomEnvironment) {
      environment = new EnvironmentConverter(getClassLoader())
            .convertEnvironmentIfNecessary(environment, deduceEnvironmentClass());
   }
   //附加的解析器將動態跟蹤底層 Environment 屬性源的任何添加或刪除,
   //關于ConfigurationPropertySourcesPropertySource和MutablePropertiySource
   //將在Environment中作進一步講解
   ConfigurationPropertySources.attach(environment);
   return environment;
}

五、prepareContext

private void prepareContext(ConfigurableApplicationContext context,
      ConfigurableEnvironment environment, SpringApplicationRunListeners listeners,
      ApplicationArguments applicationArguments, Banner printedBanner) {
   //為上下文設置environment(配置、profile)
   context.setEnvironment(environment);
   //對application做一些處理,設置一些組件,
   //比如BeanNameGenerator,ApplicationConversionService(包含一些默認的Converter和formatter)
   postProcessApplicationContext(context);
   // 加載并運行ApplicationContextInitializer
   applyInitializers(context);
   listeners.contextPrepared(context);
   if (this.logStartupInfo) {
      logStartupInfo(context.getParent() == null);
      logStartupProfileInfo(context);
   }
   // Add boot specific singleton beans
   ConfigurableListableBeanFactory beanFactory = context.getBeanFactory();
   beanFactory.registerSingleton("springApplicationArguments", applicationArguments);
   if (printedBanner != null) {
      beanFactory.registerSingleton("springBootBanner", printedBanner);
   }
   if (beanFactory instanceof DefaultListableBeanFactory) {
      ((DefaultListableBeanFactory) beanFactory)
            .setAllowBeanDefinitionOverriding(this.allowBeanDefinitionOverriding);
   }
   // Load the sources
   Set<Object> sources = getAllSources();
   Assert.notEmpty(sources, "Sources must not be empty");
   //Load beans(其實是由sources構建beanDefinition) into the application context.
   //構建BeanDefinitionLoader并執行BeanDefinitionLoader.load()
   load(context, sources.toArray(new Object[0]));
   //執行contextLoaded事件
   listeners.contextLoaded(context);
}

六、容器refresh(refreshContext)

private void refreshContext(ConfigurableApplicationContext context) {
    refresh(context);
    if (this.registerShutdownHook) {
        try {
            context.registerShutdownHook();
        }
        catch (AccessControlException ex) {
            // Not allowed in some environments.
        }
    }
}

refreshContext會做兩件事,
1、應用上下文刷新
2、注冊shutdown鉤子

我們來看看ServletWebServer的刷新。

// ServletWebServerApplicationContext
public final void refresh() throws BeansException, IllegalStateException {
   try {
      super.refresh();
   }
   catch (RuntimeException ex) {
      //停止webserver
      stopAndReleaseWebServer();
      throw ex;
   }
}
org.springframework.context.support.AbstractApplicationContext refresh()
public void refresh() throws BeansException, IllegalStateException {
   // 單線程執行
   synchronized (this.startupShutdownMonitor) {
      // Prepare this context for refreshing.
      // 1、設置Spring容器的啟動時間,撤銷關閉狀態,開啟活躍狀態。2、初始化屬性源信息(Property)3、驗證環境信息里一些必須存在的屬性
      prepareRefresh();
      // Tell the subclass to refresh the internal bean factory.
      // 如果是RefreshtableApplicationContext會做了很多事情:
      // 1、讓子類刷新內部beanFactory ,創建IoC容器(DefaultListableBeanFactory--ConfigurableListableBeanFactory 的實現類)
      // 2、加載解析XML文件(最終存儲到Document對象中)
      // 3、讀取Document對象,并完成BeanDefinition的加載和注冊工作
      ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
      // Prepare the bean factory for use in this context.
      //從Spring容器獲取BeanFactory(Spring Bean容器)并進行相關的設置為后續的使用做準備:
      //1、設置classloader(用于加載bean),設置表達式解析器(解析bean定義中的一些表達式),添加屬性編輯注冊器(注冊屬性編輯器)
      //2、添加ApplicationContextAwareProcessor這個BeanPostProcessor。取消ResourceLoaderAware、ApplicationEventPublisherAware、MessageSourceAware、ApplicationContextAware、EnvironmentAware這5個接口的自動注入。因為ApplicationContextAwareProcessor把這5個接口的實現工作做了
      //3、設置特殊的類型對應的bean。BeanFactory對應剛剛獲取的BeanFactory;ResourceLoader、ApplicationEventPublisher、ApplicationContext這3個接口對應的bean都設置為當前的Spring容器
      //4、注入一些其它信息的bean,比如environment、systemProperties等
      prepareBeanFactory(beanFactory);
      try {
         // Allows post-processing of the bean factory in context subclasses.
         postProcessBeanFactory(beanFactory);
         // Invoke factory processors registered as beans in the context. 執行beanfactoryPostProcessor
         invokeBeanFactoryPostProcessors(beanFactory);
         // Register bean processors that intercept bean creation.
         // 注冊beanPostProcessor
         registerBeanPostProcessors(beanFactory);
         // Initialize message source for this context. 初始化messageSource
         initMessageSource();
         // Initialize event multicaster for this context.
         initApplicationEventMulticaster();
         // Initialize other special beans in specific context subclasses.
         onRefresh();
         // Check for listener beans and register them.
         registerListeners();
         // Instantiate all remaining (non-lazy-init) singletons.
         finishBeanFactoryInitialization(beanFactory);
         // Last step: publish corresponding event.
         finishRefresh();
      } catch (BeansException ex) {
         if (logger.isWarnEnabled()) {
            logger.warn("Exception encountered during context initialization - " +
                  "cancelling refresh attempt: " + ex);
         }
         // Destroy already created singletons to avoid dangling resources.
         destroyBeans();
         // Reset 'active' flag.
         cancelRefresh(ex);
         // Propagate exception to caller.
         throw ex;
      }
      finally {
         // Reset common introspection caches in Spring's core, since we
         // might not ever need metadata for singleton beans anymore...
         resetCommonCaches();
      }
   }
}

七、postProcessBeanFactory()

設置BeanFactory之后再進行后續的一些BeanFactory操作。

不同的Context會進行不同的操作。 比如,AnnotationConfigServletWebServerApplicationContext

protected void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) {
    // 父類實現,會注冊web應用特有的factory scope,
    super.postProcessBeanFactory(beanFactory);
    //查看basePackages屬性,如果設置了會使用ClassPathBeanDefinitionScanner去掃描basePackages包下的bean并注
    if (this.basePackages != null && this.basePackages.length > 0) {
        this.scanner.scan(this.basePackages);
    }
    // 查看annotatedClasses屬性,如果設置了會使用AnnotatedBeanDefinitionReader去注冊這些bean
    if (!this.annotatedClasses.isEmpty()) {
        this.reader.register(ClassUtils.toClassArray(this.annotatedClasses));
    }
}

八、invokeBeanFactoryPostProcessors()

/**
 * Instantiate and invoke all registered BeanFactoryPostProcessor beans,
 * respecting explicit order if given.
 * <p>Must be called before singleton instantiation.
 */
protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
    //執行AbstractContext持有的BeanFactory后置處理器
    //這些處理器是之前ContextInitializer
    PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());
    // Detect a LoadTimeWeaver and prepare for weaving, if found in the meantime
    // (e.g. through an @Bean method registered by ConfigurationClassPostProcessor)
    // 如果通過-javaagent參數設置了LTW的織入器類包,那么增加LTW的BeanProcessor。
    if (beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
        beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
        beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
    }
}

從容器中找出BeanDefinitionRegistryPostProcessor、BeanFactoryPostProcessor(二者的區別是,一個使用BeanDefinitionRegistry作處理,一個使用BeanFactory做處理), 并按一定的規則順序執行。

ConfigurationClassPostProcessor的優先級為最高,它會對項目中的@Configuration注解修飾的類(@Component、@ComponentScan、@Import、@ImportResource修飾的類也會被處理)進行解析,解析完成之后把這些bean注冊到BeanFactory中。 需要注意的是這個時候注冊進來的bean還沒有實例化。

ConfigurationClassPostProcessor的流程之后會獨立進行分析。

九、registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory)方法

···java
/**
Instantiate and invoke all registered BeanPostProcessor beans,respecting explicit order if given.
Must be called before any instantiation of application beans.
*/
protected void registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory) {
//委派PostProcessorRegistrationDelegate去做
PostProcessorRegistrationDelegate.registerBeanPostProcessors(beanFactory, this);
}
從Spring容器中按一定順序(PriorityOrdered、Ordered、非PriorityOrdered非Ordered)找出實現了BeanPostProcessor接口的bean,并設置到BeanFactory的屬性中。之后bean被實例化的時候會調用這個BeanPostProcessor。
## 十、initMessageSource()
初始化一些國際化相關的屬性。
Spring boot的國際化配置可閱讀MessageSourceAutoConfiguration。 默認情況會設置一個DelegatingMessageSource,是一個空實現,因為ApplicationContext接口拓展了MessageSource接口,所以Spring容器都有getMessage方法, 可是,在實現上又允許空MessageSource,所以,通過一個DelegatingMessageSource去適配。
## 十一、initApplicationEventMulticaster()
Initialize event multicaster for this context. 初始化事件廣播器。默認實現是SimpleApplicationEventMulticaster。
onRefresh()
模板方法,給不同的Spring應用容器去實例化一些特殊的類。
比如,AnnotationConfigServletWebServerApplicationContext、AnnotationConfigReactiveWebServerApplicationContext會去創建web server(createWebServer())。 spring boot的mvc內置支持有tomcat、Undertow、jetty三種server,而reactive web server則內置支持tomcat、jetty、netty三種。
java
// Unlike Jetty, all Tomcat threads are daemon threads. We create a
// blocking non-daemon to stop immediate shutdown
startDaemonAwaitThread();

btw,如果是tomcat server的話,spring boot會啟動多一個線程防止退出。

十二、registerListeners()

把BeanFactory的ApplicationListener拿出來塞到事件廣播器里。

如果ApplicationContext的earlyApplicationEvents屬性有值,則廣播該屬性持有的early事件。

十三、finishBeanFactoryInitialization(beanFactory)

實例化BeanFactory中已經被注冊但是未實例化的所有實例(懶加載的不需要實例化)。

比如invokeBeanFactoryPostProcessors方法中根據各種注解解析出來的類,在這個時候都會被初始化。

十四、finishRefresh()

// ReactiveWebServerApplicationContext
    @Override
    protected void finishRefresh() {
        super.finishRefresh();
        WebServer webServer = startReactiveWebServer();
        if (webServer != null) {
            publishEvent(new ReactiveWebServerInitializedEvent(webServer, this));
        }
    }
// AbstractApplicationContext
    /**
     * Finish the refresh of this context, invoking the LifecycleProcessor's
     * onRefresh() method and publishing the
     * {@link org.springframework.context.event.ContextRefreshedEvent}.
     */
    protected void finishRefresh() {
        // Clear context-level resource caches (such as ASM metadata from scanning).
        // 容器完成刷新,清除資源緩存
        clearResourceCaches();
        // Initialize lifecycle processor for this context.
        // 初始化lifeCycleProcessor, 默認實現是DefaultLifeCycleProcessor,實現了BeanFactoryAware接口,通過BeanFactory找出LifeCycle bean
        // 可通過自定義實現LifeCycle接口的Bean,來監聽容器的生命周期。
        initLifecycleProcessor();
        // Propagate refresh to lifecycle processor first.
        //粗發生命周期處理器的onRefresh方法,順帶一說,在程序正常退出時,會粗發shutdownHook,那時會粗發生命周期處理器的onClose方法
        getLifecycleProcessor().onRefresh();
        // Publish the final event.
        // 廣播ContextRefreshed事件
        publishEvent(new ContextRefreshedEvent(this));
        // Participate in LiveBeansView MBean, if active.
        // 將ApplicationContext注冊到Spring tool suite里
        LiveBeansView.registerApplicationContext(this);
    }

十五、resetCommonCaches()

// Reset common introspection caches in Spring's core, since we
// might not ever need metadata for singleton beans anymore...
resetCommonCaches();

最后會在finally執行resetCommonCaches(),清除一些Spring core、beans加載和解析的Bean信息緩存(因為對于singleton bean來說已經不需要了)。

十六、流程整理

最后,按照啟動階段整理一幅全景圖。

十七、例子

在github里,我把Spring Boot應用啟動的拓展組件(自定義的應用初始器、監聽器、事件、ApplicationRunner)都寫了例子,可參照閱讀。 代碼在這 | spring-boot-none-startup

日志如下:

2020-05-20 18:30:11.625 INFO 81568 --- [ main] n.t.d.s.b.s.n.s.r.SimpleRunListener : environmentPrepared, env:StandardEnvironment {activeProfiles=[dev], defaultProfiles=[default], propertySources=[MapPropertySource {name='systemProperties'}, OriginAwareSystemEnvironmentPropertySource {name='systemEnvironment'}, RandomValuePropertySource {name='random'}, OriginTrackedMapPropertySource {name='applicationConfig: [classpath:/application-dev.yml]'}, OriginTrackedMapPropertySource {name='applicationConfig: [classpath:/application.yml]'}]}

. ____ _ __ _ _
/\\ / ___'_ __ _ _(_)_ __ __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
\\/ ___)| |_)| | | | | || (_| | ) ) ) )
' |____| .__|_| |_|_| |_\__, | / / / /
=========|_|==============|___/=/_/_/_/
:: Spring Boot :: (v2.1.3.RELEASE)

2020-05-20 18:30:11.832 INFO 81568 --- [ main] n.t.d.s.b.s.n.s.r.SimpleRunListener : contextPrepared, ctx:org.springframework.context.annotation.AnnotationConfigApplicationContext@1d730606, started on Thu May 01 08:00:00 CST 1970
2020-05-20 18:30:11.838 INFO 81568 --- [ main] n.t.d.s.b.startup.none.ApplicationMain : Starting ApplicationMain on DESKTOP-OLDGHC1 with PID 81568 ( started by teash in )
2020-05-20 18:30:11.838 INFO 81568 --- [ main] n.t.d.s.b.startup.none.ApplicationMain : The following profiles are active: dev
2020-05-20 18:30:11.894 INFO 81568 --- [ main] n.t.d.s.b.s.n.s.r.SimpleRunListener : contextLoaded, context: org.springframework.context.annotation.AnnotationConfigApplicationContext@1d730606, started on Thu May 01 08:00:00 CST 1970
2020-05-20 18:30:12.404 INFO 81568 --- [ main] .s.b.s.n.s.SimpleApplicationContextAware : SimpleApplicationContextAware and send SimpleAppEvent
2020-05-20 18:30:12.441 INFO 81568 --- [ main] n.t.d.s.b.s.n.s.e.SimpleEventListener : event: net.teaho.demo.spring.boot.startup.none.spring.event.SimpleAppEvent[source=event source], source: event source
2020-05-20 18:30:12.444 INFO 81568 --- [ main] n.t.d.s.b.s.n.config.BeanConfiguration : [net.teaho.demo.spring.boot.startup.none.spring.spi.DemoSpringLoaderImpl@c96a4ea]
2020-05-20 18:30:12.484 INFO 81568 --- [ main] n.t.d.s.b.s.n.s.l.LoggingLifeCycle : In Life cycle bean start().
2020-05-20 18:30:12.496 INFO 81568 --- [ main] n.t.d.s.b.startup.none.ApplicationMain : Started ApplicationMain in 1.573 seconds (JVM running for 3.195)
2020-05-20 18:30:12.496 INFO 81568 --- [ main] n.t.d.s.b.s.n.s.r.SimpleRunListener : started, context: org.springframework.context.annotation.AnnotationConfigApplicationContext@1d730606, started on Mon May 25 18:30:11 CST 2020
2020-05-20 18:30:12.497 INFO 81568 --- [ main] n.t.d.s.b.s.n.s.r.EchoApplicationRunner : EchoApplicationRunner running, args:org.springframework.boot.DefaultApplicationArguments@45673f68
2020-05-20 18:30:12.497 INFO 81568 --- [ main] n.t.d.s.b.s.n.s.r.EchoCommandLineRunner : EchoCommandLineRunner running
2020-05-20 18:30:12.497 INFO 81568 --- [ main] n.t.d.s.b.s.n.s.r.SimpleRunListener : running, context: org.springframework.context.annotation.AnnotationConfigApplicationContext@1d730606, started on Mon May 25 18:30:11 CST 2020
2020-05-20 18:30:12.500 INFO 81568 --- [ Thread-3] n.t.d.s.b.s.n.s.l.LoggingLifeCycle : In Life cycle bean stop().

到此這篇關于Spring boot啟動原理及相關組件的文章就介紹到這了,更多相關Spring boot啟動原理內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!

相關文章

最新評論
