SpringBoot中WebClient的實踐
什么是 WebClient?
在 Spring Boot 中,WebClient 是 Spring WebFlux 提供的一個非阻塞、響應式的 HTTP 客戶端,用于與 RESTful 服務或其他 HTTP 服務交互。相比于傳統的 RestTemplate,WebClient 更加現代化,具有異步和非阻塞的特點,適合高性能、高并發的應用場景。
WebClient 的特點
非阻塞 I/O:適用于響應式編程模型,能高效處理大量并發請求。
功能強大:支持同步和異步調用,處理復雜的 HTTP 請求和響應,包括流式數據。
靈活的配置:可自定義超時、請求攔截器、認證方式等。
響應式編程支持:返回 Mono 或 Flux,與 Spring WebFlux 的響應式編程模型無縫集成。
引入依賴
在使用 WebClient 之前,需要確保 Spring Boot 項目已包含相關依賴。
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-webflux</artifactId> </dependency>
配置及使用 WebClient
現在有以下服務
- service1服務:http://localhost:8081/
- service2服務:http://localhost:8082/
- common服務:http://localhost:8079/
創建 WebClientConfig 配置類,為 service1 和 service2 配置獨立的 WebClient。
package com.example.common.config; import io.netty.channel.ChannelOption; import io.netty.handler.timeout.ReadTimeoutHandler; import io.netty.handler.timeout.WriteTimeoutHandler; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; import org.springframework.web.reactive.function.client.ExchangeFilterFunction; import org.springframework.web.reactive.function.client.ExchangeStrategies; import org.springframework.web.reactive.function.client.WebClient; import reactor.core.publisher.Mono; import reactor.netty.http.client.HttpClient; import reactor.netty.tcp.TcpClient; import org.springframework.http.client.reactive.ReactorClientHttpConnector; /** * 配置 WebClient,支持基礎功能(獨立 WebClient 實例)和高級特性(超時、攔截器、內存限制)。 */ @Configuration public class WebClientConfig { /** * 配置 WebClient,用于調用 service1(http://localhost:8081) * * @param builder WebClient.Builder 實例 * @return 針對 service1 的 WebClient 實例 */ @Bean(name = "service1WebClient") public WebClient service1WebClient(WebClient.Builder builder) { return builder .baseUrl("http://localhost:8081") // 配置 service1 的基本 URL .defaultHeader("Content-Type", "application/json") // 設置默認請求頭 .exchangeStrategies( ExchangeStrategies.builder() .codecs(configurer -> configurer .defaultCodecs() .maxInMemorySize(16 * 1024 * 1024)) // 設置最大內存限制為 16MB .build()) .filter(logRequest()) // 添加請求日志攔截器 .filter(logResponse()) // 添加響應日志攔截器 .build(); } /** * 配置 WebClient,用于調用 service2(http://localhost:8082) * * @param builder WebClient.Builder 實例 * @return 針對 service2 的 WebClient 實例 */ @Bean(name = "service2WebClient") public WebClient service2WebClient(WebClient.Builder builder) { return builder .baseUrl("http://localhost:8082") // 配置 service2 的基本 URL .defaultHeader("Content-Type", "application/json") // 設置默認請求頭 .filter(logRequest()) // 添加請求日志攔截器 .filter(logResponse()) // 添加響應日志攔截器 .build(); } /** * 提供全局的 WebClient.Builder 配置,支持超時和高級功能。 * * @return 配置好的 WebClient.Builder */ @Bean public WebClient.Builder webClientBuilder() { // 配置 TCP 客戶端,設置連接超時、讀超時和寫超時 TcpClient tcpClient = TcpClient.create() .option(ChannelOption.CONNECT_TIMEOUT_MILLIS, 5000) // 連接超時 5秒 .doOnConnected(connection -> connection.addHandlerLast(new ReadTimeoutHandler(5)) // 讀超時 5秒 .addHandlerLast(new WriteTimeoutHandler(5))); // 寫超時 5秒 // 使用配置的 TcpClient 創建 HttpClient HttpClient httpClient = HttpClient.from(tcpClient); // 創建 WebClient.Builder 并配置 HttpClient 和攔截器 return WebClient.builder() .clientConnector(new ReactorClientHttpConnector(httpClient)) // 配置 HttpClient .filter(logRequest()) // 請求日志攔截器 .filter(logResponse()); // 響應日志攔截器 } /** * 請求日志攔截器:記錄請求的詳細信息(方法和 URL) * * @return ExchangeFilterFunction 攔截器 */ private ExchangeFilterFunction logRequest() { return ExchangeFilterFunction.ofRequestProcessor(request -> { System.out.println("Request: " + request.method() + " " + request.url()); return Mono.just(request); }); } /** * 響應日志攔截器:記錄響應的狀態碼 * * @return ExchangeFilterFunction 攔截器 */ private ExchangeFilterFunction logResponse() { return ExchangeFilterFunction.ofResponseProcessor(response -> { System.out.println("Response status: " + response.statusCode()); return Mono.just(response); }); } }
service1相應的接口
package cloud.service1.controller; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; import java.util.Map; /** * Service1 的控制器類,用于處理與API相關的請求. * 該類被Spring框架管理,作為處理HTTP請求的一部分. */ @RestController @RequestMapping("/api/service1") public class Service1Controller { /** * 獲取Service1的數據信息. * * @return 包含服務信息的映射,包括服務名稱和問候消息. */ @GetMapping("/data") public Map<String, String> getData() { // 返回一個不可變的映射,包含服務名稱和問候消息 return Map.of("service", "service1", "message", "Hello from Service1"); } }
service2相應的接口
package cloud.service2.controller; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; import java.util.Map; /** * Service2的控制器類,用于處理與Service2相關的HTTP請求. * 該類被Spring框架管理,作為處理RESTful請求的控制器. */ @RestController @RequestMapping("/api/service2") public class Service2Controller { /** * 處理GET請求到/api/service2/info,返回Service2的信息. * * @return 包含服務信息的Map,包括服務名稱和歡迎消息. */ @GetMapping("/info") public Map<String, String> getInfo() { return Map.of("service", "service2", "message", "Hello from Service2"); } }
服務調用實現
package com.example.common.service; import org.springframework.beans.factory.annotation.Qualifier; import org.springframework.stereotype.Service; import org.springframework.web.reactive.function.client.WebClient; import reactor.core.publisher.Mono; /** * CommonService 類提供了對其他服務進行調用的方法 * 它通過 WebClient 實例與 service1 和 service2 進行通信 */ @Service public class CommonService { // 用于與 service1 通信的 WebClient 實例 private final WebClient service1WebClient; // 用于與 service2 通信的 WebClient 實例 private final WebClient service2WebClient; /** * 構造函數注入兩個 WebClient 實例 * * @param service1WebClient 用于 service1 的 WebClient * @param service2WebClient 用于 service2 的 WebClient */ public CommonService( @Qualifier("service1WebClient") WebClient service1WebClient, @Qualifier("service2WebClient") WebClient service2WebClient) { this.service1WebClient = service1WebClient; this.service2WebClient = service2WebClient; } /** * 調用 service1 的接口 * * @return 來自 service1 的數據 */ public Mono<String> callService1() { // 通過 service1WebClient 調用 service1 的 API,并處理可能的錯誤 return service1WebClient.get() .uri("/api/service1/data") .retrieve() .bodyToMono(String.class) .onErrorResume(e -> { // 錯誤處理:打印錯誤信息并返回錯誤提示 System.err.println("Error calling service1: " + e.getMessage()); return Mono.just("Error calling service1"); }); } /** * 調用 service2 的接口 * * @return 來自 service2 的數據 */ public Mono<String> callService2() { // 通過 service2WebClient 調用 service2 的 API,并處理可能的錯誤 return service2WebClient.get() .uri("/api/service2/info") .retrieve() .bodyToMono(String.class) .onErrorResume(e -> { // 錯誤處理:打印錯誤信息并返回錯誤提示 System.err.println("Error calling service2: " + e.getMessage()); return Mono.just("Error calling service2"); }); } }
package com.example.common.controller; import com.example.common.service.CommonService; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; import reactor.core.publisher.Mono; /** * 通用控制器類,處理與通用服務相關的API請求 */ @RestController @RequestMapping("/api/common") public class CommonController { // 注入通用服務接口,用于調用具體的服務方法 private final CommonService commonService; /** * 構造函數注入CommonService實例 * * @param commonService 通用服務接口實例 */ public CommonController(CommonService commonService) { this.commonService = commonService; } /** * 調用 service1 的接口 * * @return service1 的響應數據 */ @GetMapping("/service1") public Mono<String> getService1Data() { return commonService.callService1(); } /** * 調用 service2 的接口 * * @return service2 的響應數據 */ @GetMapping("/service2") public Mono<String> getService2Info() { return commonService.callService2(); } }

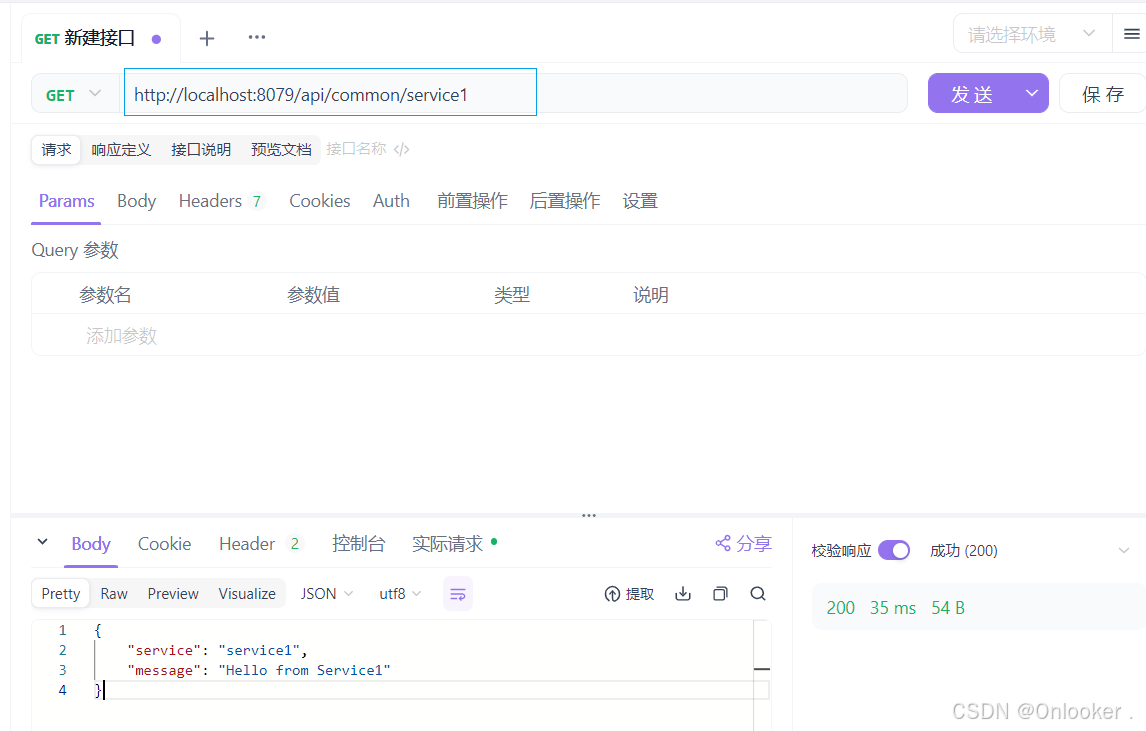

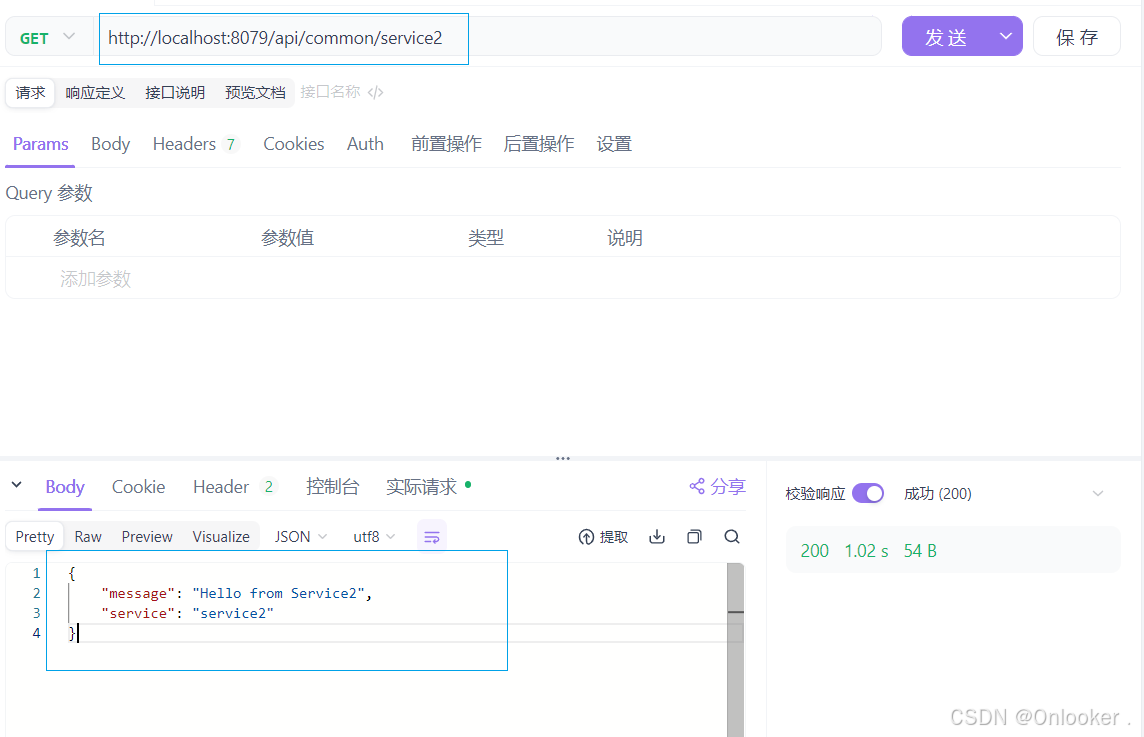

測試接口
優化實踐
將上述代碼進一步優化和整合以確保代碼可維護性和高效性。
package com.example.common.config; import io.netty.channel.ChannelOption; import io.netty.handler.timeout.ReadTimeoutHandler; import io.netty.handler.timeout.WriteTimeoutHandler; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; import org.springframework.http.client.reactive.ReactorClientHttpConnector; import org.springframework.web.reactive.function.client.ExchangeFilterFunction; import org.springframework.web.reactive.function.client.ExchangeStrategies; import org.springframework.web.reactive.function.client.WebClient; import reactor.core.publisher.Mono; import reactor.netty.http.client.HttpClient; import reactor.netty.tcp.TcpClient; /** * 配置 WebClient 的各類設置和日志記錄 */ @Configuration public class WebClientConfig { /** * 全局 WebClient.Builder 配置 * * @return 配置好的 WebClient.Builder */ @Bean public WebClient.Builder webClientBuilder() { // 配置 TCP 客戶端的連接、讀取、寫入超時時間 TcpClient tcpClient = TcpClient.create() .option(ChannelOption.CONNECT_TIMEOUT_MILLIS, 5000) // 連接超時 .doOnConnected(conn -> conn .addHandlerLast(new ReadTimeoutHandler(5)) // 讀超時 .addHandlerLast(new WriteTimeoutHandler(5))); // 寫超時 // 將 TCP 客戶端配置應用到 HTTP 客戶端 HttpClient httpClient = HttpClient.from(tcpClient); // 配置 WebClient 構建器,包括 HTTP 連接器、交換策略、請求和響應日志 return WebClient.builder() .clientConnector(new ReactorClientHttpConnector(httpClient)) .exchangeStrategies(ExchangeStrategies.builder() .codecs(configurer -> configurer.defaultCodecs().maxInMemorySize(16 * 1024 * 1024)) // 內存限制 .build()) .filter(logRequest()) // 請求日志 .filter(logResponse()); // 響應日志 } /** * 針對 service1 的 WebClient 配置 * * @param builder 全局配置的 WebClient.Builder * @return 配置好的 WebClient 實例 */ @Bean(name = "service1WebClient") public WebClient service1WebClient(WebClient.Builder builder) { // 為 service1 配置特定的 base URL 和默認頭部 return builder .baseUrl("http://localhost:8081") .defaultHeader("Content-Type", "application/json") .build(); } /** * 針對 service2 的 WebClient 配置 * * @param builder 全局配置的 WebClient.Builder * @return 配置好的 WebClient 實例 */ @Bean(name = "service2WebClient") public WebClient service2WebClient(WebClient.Builder builder) { // 為 service2 配置特定的 base URL 和默認頭部 return builder .baseUrl("http://localhost:8082") .defaultHeader("Content-Type", "application/json") .build(); } /** * 請求日志攔截器 * * @return 記錄請求日志的 ExchangeFilterFunction */ private ExchangeFilterFunction logRequest() { // 攔截請求并打印請求方法和URL return ExchangeFilterFunction.ofRequestProcessor(request -> { System.out.println("Request: " + request.method() + " " + request.url()); return Mono.just(request); }); } /** * 響應日志攔截器 * * @return 記錄響應日志的 ExchangeFilterFunction */ private ExchangeFilterFunction logResponse() { // 攔截響應并打印響應狀態碼 return ExchangeFilterFunction.ofResponseProcessor(response -> { System.out.println("Response status: " + response.statusCode()); return Mono.just(response); }); } }
package com.example.common.service; import org.springframework.core.ParameterizedTypeReference; import org.springframework.stereotype.Service; import org.springframework.web.reactive.function.client.WebClient; import reactor.core.publisher.Mono; import java.util.Map; /** * CommonService 類提供了調用兩個不同服務的公共方法,并合并其結果 */ @Service public class CommonService { // service1 的 WebClient 實例 private final WebClient service1WebClient; // service2 的 WebClient 實例 private final WebClient service2WebClient; /** * 構造函數注入 WebClient 實例 * * @param service1WebClient service1 的 WebClient * @param service2WebClient service2 的 WebClient */ public CommonService(WebClient service1WebClient, WebClient service2WebClient) { this.service1WebClient = service1WebClient; this.service2WebClient = service2WebClient; } /** * 異步調用 service1 和 service2,并返回合并結果(JSON 格式) * * @return 包含兩個服務響應的 Mono 對象 */ public Mono<Map<String, Map<String, String>>> callServicesAsync() { // 調用 service1,返回 Map 響應 Mono<Map<String, String>> service1Response = service1WebClient.get() // 設置請求的URI .uri("/api/service1/data") // 檢索響應 .retrieve() // 處理錯誤狀態 .onStatus( // 檢查狀態是否為4xx或5xx status -> status.is4xxClientError() || status.is5xxServerError(), // 如果是,創建一個運行時異常 response -> Mono.error(new RuntimeException("Service1 Error: " + response.statusCode())) ) // 將響應體轉換為Mono<Map<String, String>> .bodyToMono(new ParameterizedTypeReference<Map<String, String>>() {}) // 處理錯誤 .onErrorResume(e -> { // 打印錯誤信息 System.err.println("Error calling service1: " + e.getMessage()); // 返回一個包含錯誤信息的Map return Mono.just(Map.of("error", "Fallback response for service1")); }); // 調用 service2,返回 Map 響應 Mono<Map<String, String>> service2Response = service2WebClient.get() // 設置請求的URI .uri("/api/service2/info") // 檢索響應 .retrieve() // 處理錯誤狀態 .onStatus( // 檢查狀態是否為4xx或5xx status -> status.is4xxClientError() || status.is5xxServerError(), // 如果是,創建一個運行時異常 response -> Mono.error(new RuntimeException("Service2 Error: " + response.statusCode())) ) // 將響應體轉換為Mono<Map<String, String>> .bodyToMono(new ParameterizedTypeReference<Map<String, String>>() {}) // 處理錯誤 .onErrorResume(e -> { // 打印錯誤信息 System.err.println("Error calling service2: " + e.getMessage()); // 返回一個包含錯誤信息的Map return Mono.just(Map.of("error", "Fallback response for service2")); }); // 合并兩個響應 return Mono.zip(service1Response, service2Response, (response1, response2) -> Map.of( "service1", response1, "service2", response2 )) // 處理合并過程中的錯誤 .onErrorResume(e -> { // 打印錯誤信息 System.err.println("Error combining responses: " + e.getMessage()); // 返回一個包含錯誤信息的Map return Mono.just(Map.of( "error", Map.of( "status", "error", "message", e.getMessage() // 捕獲異常并輸出信息 ) )); }); } }
package com.example.common.controller; import com.example.common.service.CommonService; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; import reactor.core.publisher.Mono; import java.util.Map; @RestController @RequestMapping("/api/common") public class CommonController { private final CommonService commonService; public CommonController(CommonService commonService) { this.commonService = commonService; } /** * 提供異步調用的 REST 接口,返回 JSON 格式的數據 */ @GetMapping("/service") public Mono<Map<String, Map<String, String>>> getServicesData() { System.out.println("Received request for combined service data"); return commonService.callServicesAsync() .doOnSuccess(response -> System.out.println("Successfully retrieved data: " + response)) .doOnError(error -> System.err.println("Error occurred while fetching service data: " + error.getMessage())); } }
測試接口
結語
WebClient 是一個功能強大且靈活的非阻塞 HTTP 客戶端,特別適合在高并發和響應式編程場景下使用,是替代傳統 RestTemplate 的優秀選擇。在實際項目中,通過合理配置(如超時、連接池)和優化(如負載均衡、重試機制),可以顯著提高服務間通信的效率和可靠性,降低延遲和資源消耗。
同時,結合 Spring WebFlux 提供的響應式編程支持,WebClient 能夠更好地應對微服務架構中復雜的通信需求,成為開發現代分布式系統的重要工具。
到此這篇關于SpringBoot中WebClient的實踐的文章就介紹到這了,更多相關SpringBoot WebClient內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
