springboot集成screw反向生成數據庫說明文檔
一、screw介紹
不是大廠寫的,是個人寫的,但是不得不說,好使啊, 為愛發電。
二、使用步驟
1.新建一個空的springboot項目
這個使用idea,選擇springboot,下一步下一步就行。
我這里是maven項目,pom文件引入jar包。
我這里的整個pom.xml內容
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>3.3.3</version> <relativePath/> <!-- lookup parent from repository --> </parent> <groupId>com.easylinkin</groupId> <artifactId>my-screw</artifactId> <version>0.0.1-SNAPSHOT</version> <name>my-screw</name> <description>my-screw</description> <url/> <licenses> <license/> </licenses> <developers> <developer/> </developers> <scm> <connection/> <developerConnection/> <tag/> <url/> </scm> <properties> <java.version>17</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>cn.smallbun.screw</groupId> <artifactId>screw-core</artifactId> <version>1.0.5</version> </dependency> <dependency> <groupId>com.mysql</groupId> <artifactId>mysql-connector-j</artifactId> </dependency> <dependency> <groupId>com.zaxxer</groupId> <artifactId>HikariCP</artifactId> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project>
2.生成文檔的測試類
package com.easylinkin.myscrew; import cn.smallbun.screw.core.Configuration; import cn.smallbun.screw.core.engine.EngineConfig; import cn.smallbun.screw.core.engine.EngineFileType; import cn.smallbun.screw.core.engine.EngineTemplateType; import cn.smallbun.screw.core.execute.DocumentationExecute; import cn.smallbun.screw.core.process.ProcessConfig; import com.zaxxer.hikari.HikariDataSource; import lombok.extern.slf4j.Slf4j; import org.junit.jupiter.api.Test; import org.springframework.boot.test.context.SpringBootTest; import java.util.ArrayList; import java.util.Arrays; import java.util.List; @Slf4j @SpringBootTest class MyScrewApplicationTests { //@Test void contextLoads() { } /** * 獲取數據源配置 */ @Test void generate() { log.info("開始生成數據庫文檔"); String dbFilePath = "/Users/zwmac/work/ovu/數據庫"; // 生成文件配置 EngineConfig engineConfig = EngineConfig.builder() // 生成文件路徑,自己mac本地的地址,這里需要自己更換下路徑 .fileOutputDir(dbFilePath) // 打開目錄 .openOutputDir(false) // 文件類型 HTML/WORD/MD 三種格式 .fileType(EngineFileType.WORD) // 生成模板實現 .produceType(EngineTemplateType.freemarker).build(); //數據庫名稱 String[] dbNames = {"ovuhome"}; for (String dbName : dbNames) { HikariDataSource hikariDataSource = new HikariDataSource(); //設置數據庫連接 hikariDataSource.setJdbcUrl("jdbc:mysql://127.0.0.1:3306/" + dbName + "?characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useSSL=false&useJDBCCompliantTimezoneShift=true&useLegacyDatetimeCode=false&serverTimezone=GMT%2B8&allowMultiQueries=true&allowPublicKeyRetrieval=true"); hikariDataSource.setUsername("root"); hikariDataSource.setPassword("12345678"); // 生成文檔配置(包含以下自定義版本號、描述等配置連接) Configuration config = Configuration.builder() //文檔版本號 .version("1.0.1") //文檔名稱 .description("公寓數據庫設計文檔") //數據源 .dataSource(hikariDataSource) //生成引擎配置 .engineConfig(engineConfig) //高級配置 //.produceConfig(getProcessConfig()) .build(); // 執行生成 new DocumentationExecute(config).execute(); } log.info("生成數據庫文檔完成"); } /** * 配置想要生成的表+ 配置想要忽略的表 * @return 生成表配置 */ public static ProcessConfig getProcessConfig(){ // 忽略表名 List<String> ignoreTableName = Arrays.asList("testa_testa","testb_testb"); // 忽略表前綴 List<String> ignorePrefix = Arrays.asList("testa","testb"); // 忽略表后綴 List<String> ignoreSuffix = Arrays.asList("_testa","_testb"); return ProcessConfig.builder() //根據名稱指定表生成 我需要生成所有表 這里暫時不設置 .designatedTableName(new ArrayList<>()) //根據表前綴生成 我需要生成所有表 這里暫時不設置 .designatedTablePrefix(new ArrayList<>()) //根據表后綴生成 我需要生成所有表 這里暫時不設置 .designatedTableSuffix(new ArrayList<>()) //忽略表名 .ignoreTableName(ignoreTableName) //忽略表前綴 .ignoreTablePrefix(ignorePrefix) //忽略表后綴 .ignoreTableSuffix(ignoreSuffix).build(); } }
測試類運行,就不說了,自己摸索摸索。

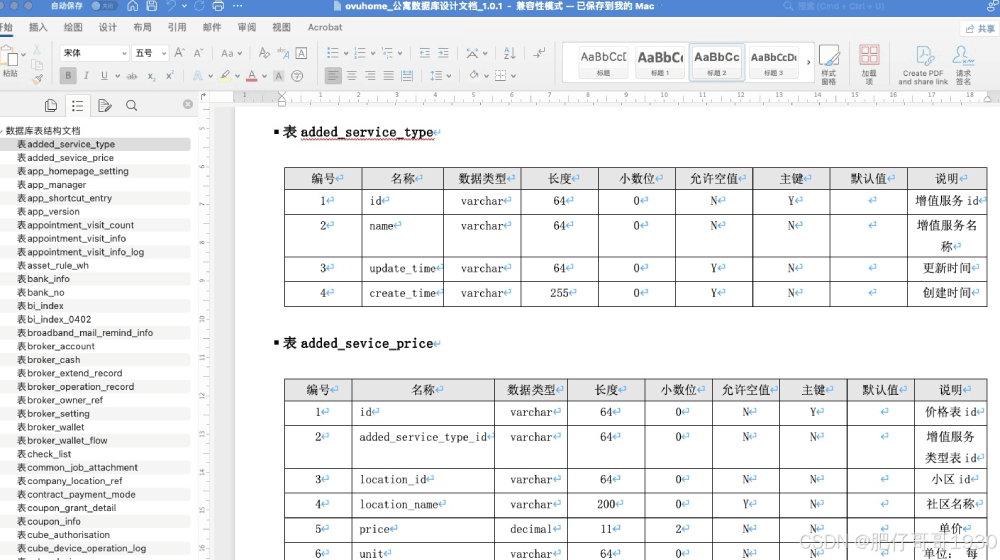

3.生成的word文檔效果
到此這篇關于springboot集成screw反向生成數據庫說明文檔的文章就介紹到這了,更多相關springboot screw生成數據庫說明文檔內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
