SpringBoot集成flink全過程

更新時間：2025年01月14日 14:45:36 作者：A塵埃

文章介紹了Flink作為批處理和流處理結合的統一計算框架,特別是其強大的流處理能力,文章還詳細描述了如何在本地和集群環境中搭建Flink,并通過Netcat工具生成一個無界流測試,文章最后提供了啟動socket流的步驟和示例代碼,希望對讀者有所幫助

SpringBoot集成flink

Flink是一個批處理和流處理結合的統一計算框架，其核心是一個提供了數據分發以及并行化計算的流數據處理引擎。

最大亮點是流處理，最適合的應用場景是低時延的數據處理。

場景

高并發pipeline處理數據，時延毫秒級，且兼具可靠性。

環境搭建

①、安裝flink

https://nightlies.apache.org/flink/flink-docs-master/zh/docs/try-flink/local_installation/

②、安裝Netcat

Netcat（又稱為NC）是一個計算機網絡工具，它可以在兩臺計算機之間建立 TCP/IP 或 UDP 連接。

用于測試網絡中的端口，發送文件等操作。

進行網絡調試和探測，也可以進行加密連接和遠程管理等高級網絡操作

yum install -y nc # 安裝nc命令
nc -lk 8888 # 啟動socket端口

無界流之讀取socket文本流

一、依賴

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springboot-demo</artifactId>
        <groupId>com.et</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>flink</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>
    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-autoconfigure</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!-- 添加 Flink 依賴 -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-streaming-java</artifactId>
            <version>1.17.0</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-java -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-java</artifactId>
            <version>1.17.0</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-clients -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients</artifactId>
            <version>1.17.0</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-connector-base -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-base</artifactId>
            <version>1.17.0</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-files</artifactId>
            <version>1.17.0</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-connector-kafka -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-kafka</artifactId>
            <version>1.17.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-runtime-web</artifactId>
            <version>1.17.0</version>
        </dependency>


    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-shade-plugin</artifactId>
                <executions>
                    <execution>
                        <phase>package</phase>
                        <goals>
                            <goal>shade</goal>
                        </goals>
                        <configuration>
                            <transformers>
                                <transformer
                                        implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                    <resource>META-INF/spring.handlers</resource>
                                </transformer>
                                <transformer
                                        implementation="org.springframework.boot.maven.PropertiesMergingResourceTransformer">
                                    <resource>META-INF/spring.factories</resource>
                                </transformer>
                                <transformer
                                        implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">
                                    <resource>META-INF/spring.schemas</resource>
                                </transformer>
                                <transformer
                                        implementation="org.apache.maven.plugins.shade.resource.ServicesResourceTransformer" />
                                <transformer
                                        implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
                                    <mainClass>com.et.flink.job.SocketJob</mainClass>
                                </transformer>
                            </transformers>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>

二、SoketJob

public class SocketJob{

	public static void main(String[] args)throws Exception{

		// 創建執行環境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        // 指定并行度,默認電腦線程數
        env.setParallelism(3);
        // 讀取數據socket文本流 指定監聽 IP 端口 只有在接收到數據才會執行任務
        DataStreamSource<String> socketDS = env.socketTextStream("172.24.4.193", 8888);

        // 處理數據: 切換、轉換、分組、聚合 得到統計結果
        SingleOutputStreamOperator<Tuple2<String, Integer>> sum = socketDS
                .flatMap(
                        (String value, Collector<Tuple2<String, Integer>> out) -> {
                            String[] words = value.split(" ");
                            for (String word : words) {
                                out.collect(Tuple2.of(word, 1));
                            }
                        }
                )
                .setParallelism(2)
                // // 顯式地提供類型信息:對于flatMap傳入Lambda表達式，系統只能推斷出返回的是Tuple2類型，而無法得到Tuple2<String, Long>。只有顯式設置系統當前返回類型，才能正確解析出完整數據
                .returns(new TypeHint<Tuple2<String, Integer>>() {
                })
//                .returns(Types.TUPLE(Types.STRING,Types.INT))
                .keyBy(value -> value.f0)
                .sum(1);


        // 輸出
        sum.print();

        // 執行
        env.execute();
	}
}

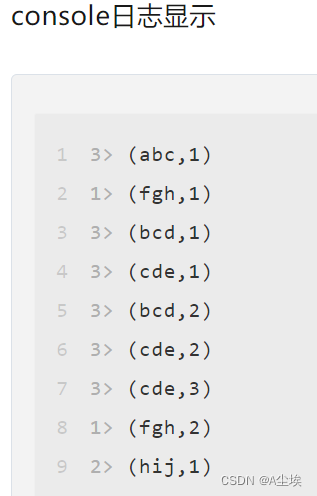

測試：

啟動socket流：
