C#實現Winform序在系統托盤顯示圖標和開機自啟動

更新時間：2025年01月19日 11:51:11 作者：VipSoft

這篇文章主要為大家詳細介紹了C#如何實現Winform序在系統托盤顯示圖標和開機自啟動功能,文中的示例代碼講解詳細,感興趣的小伙伴可以了解下

實現步驟

創建 NotifyIcon 控件并設置屬性；
編寫 NotifyIcon 響應控制事件；
在主窗體的Load事件中將 NotifyIcon 添加到系統托盤；
程序退出時，移除系統托盤的 NotifyIcon；

NotifyIcon 控件，通常用于在系統托盤中顯示圖標，通過使用它就可以我們想要的效果。

屬性	描述
Icon	在系統托盤中顯示的圖標
Text	鼠標懸停在圖標時顯示的文本
Visible	指定是否可見

常用方法

方法	描述
ShowContextMenu	在系統托盤上下文菜單中顯示指定的菜單

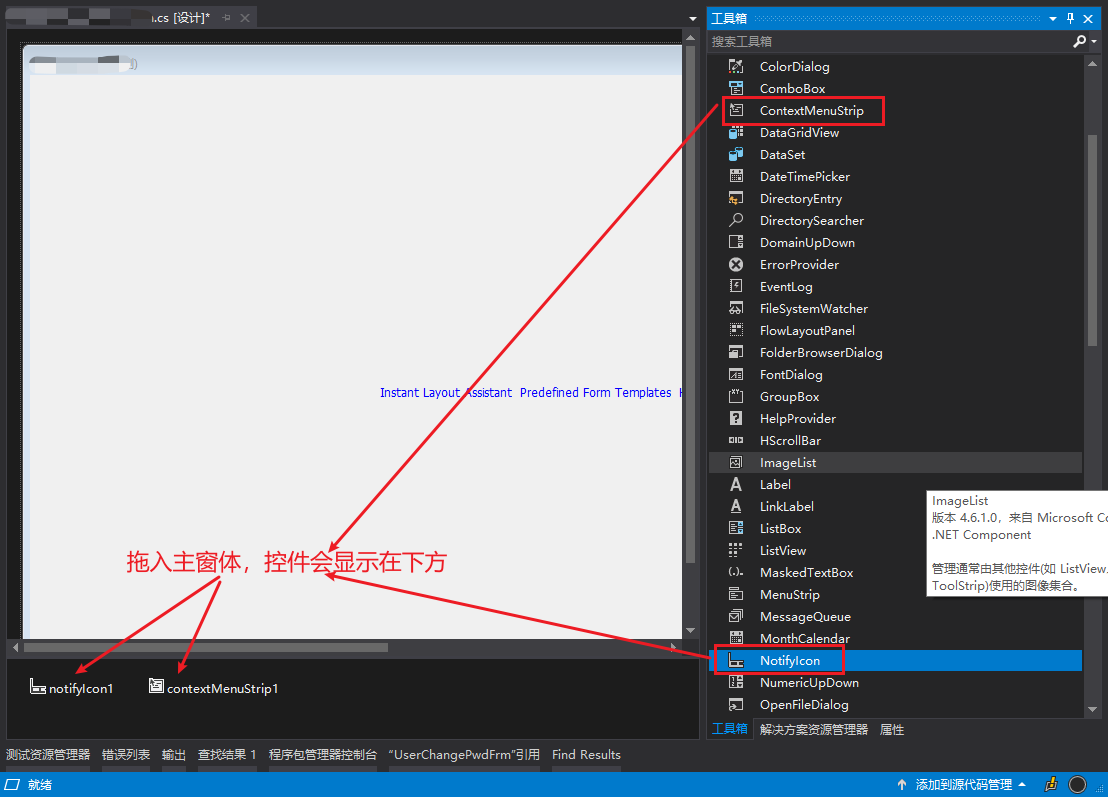

添加控件(拖拽方式)

將NotifyIcon和一個ContextMenuStrip控件。拖到主窗體中可以修改控件名稱

NotifyIcon 托盤圖標

ContextMenuStrip 托盤圖標右擊彈出的菜單

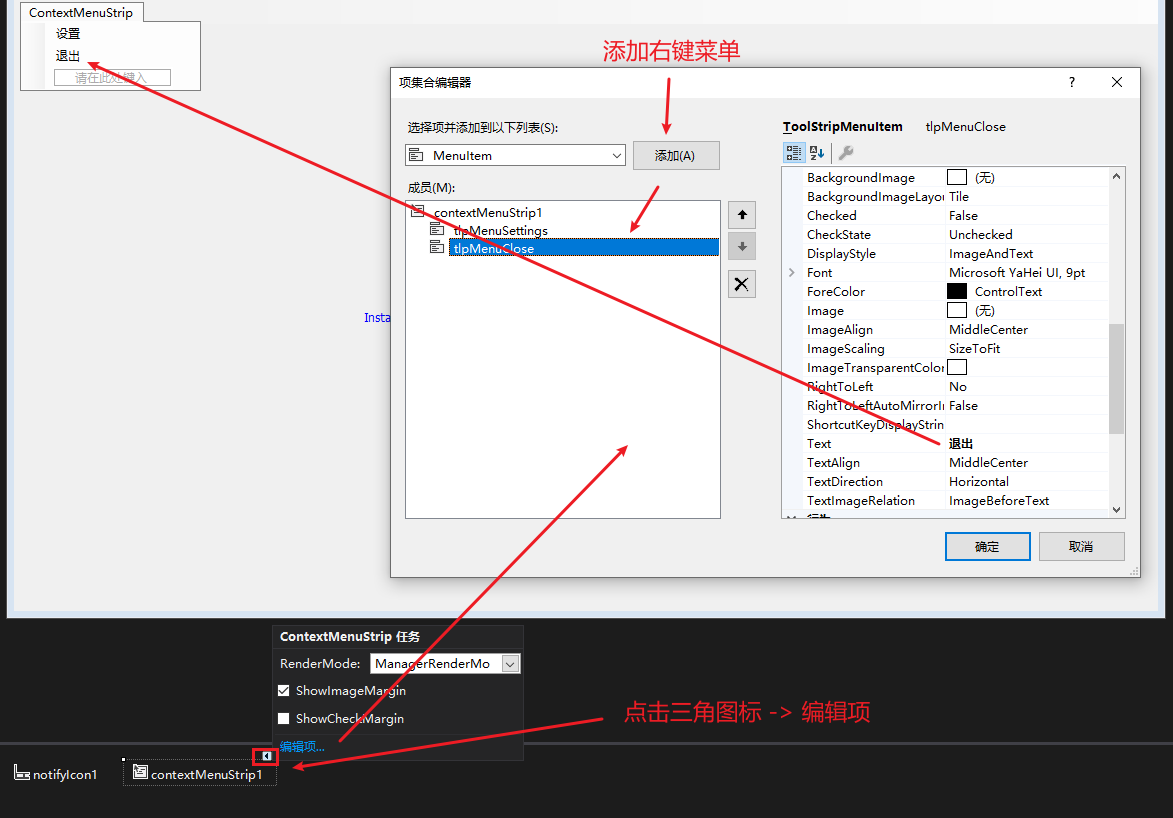

設置控件

點擊 ContextMenuStrip 右上方的三角圖標 -> 編輯項，彈出項信合編輯器

添加右健菜單信息

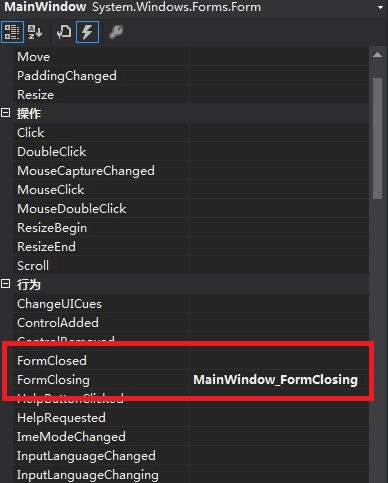

添加主窗體事件

在最小化或關閉主窗體時，顯示在任務欄托盤區域,實現了單擊關閉時，不真正關閉程序，而是將主界面隱藏HIDE掉，同時開始顯示托盤菜單。

//  只有Form_Closing事件中 e.Cancel可以用。
//  你的是Form_Closed事件。 Form_Closed事件時窗口已關了 ，Cancel沒用了；
//  Form_Closing是窗口即將關閉時詢問你是不是真的關閉才有Cancel事件

private void MainWindow_FormClosing(object sender, FormClosingEventArgs e)
{

    // 注意判斷關閉事件reason來源于窗體按鈕，否則用菜單退出時無法退出!
    if (e.CloseReason == CloseReason.UserClosing)
    {
        //取消"關閉窗口"事件
        e.Cancel = true; // 取消關閉窗體

        //使關閉時窗口向右下角縮小的效果
        this.WindowState = FormWindowState.Minimized;
        this.mainNotifyIcon.Visible = true;
        //this.m_cartoonForm.CartoonClose();
        this.Hide();
        return;
    }
}

實現雙擊托盤打開主程序

//  添加托盤程序
//  版本更新自1.0.1
private void mainNotifyIcon_MouseDoubleClick(object sender, MouseEventArgs e)
{
    if (this.Visible)
    {
        this.WindowState = FormWindowState.Minimized;
        this.mainNotifyIcon.Visible = true;
        this.Hide();
    }
    else
    {
        this.Visible = true;
        this.WindowState = FormWindowState.Normal;
        this.Activate();
    }
}

//  添加托盤程序右鍵菜單項
//  版本更新自1.0.1
//  退出
//  添加日期 --  2015-07-29 21:44
private async void toolStripMenuItemQuit_Click(object sender, EventArgs e)
{
    if (MessageBox.Show("你確定要退出？", "系統提示", MessageBoxButtons.YesNo, MessageBoxIcon.Information, MessageBoxDefaultButton.Button1) == DialogResult.Yes)
    {

        this.mainNotifyIcon.Visible = false;
        this.Close();
        this.Dispose();
        System.Environment.Exit(System.Environment.ExitCode);

    }
}

代碼方式添加

using System;
using System.Windows.Forms;


namespace Fountain.WinForm.NotifyDemo
{
    public partial class FormMain : Form
    {
        /// <summary>
        /// 通知控件
        /// </summary>
        private NotifyIcon notifyIcon = new NotifyIcon();
        /// <summary>
        /// 通知控件顯示菜單
        /// </summary>
        private ContextMenuStrip contextMenuStrip = new ContextMenuStrip();
        /// <summary>
        /// 構造方法
        /// </summary>
        public FormMain()
        {
            InitializeComponent();
        }
        /// <summary>
        /// 窗體加載
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void FormMain_Load(object sender, EventArgs e)
        {
            this.InitializeNotifyMenu();
            this.notifyIcon.Text = this.Text;
            this.notifyIcon.Visible = true;
            this.notifyIcon.Icon = this.Icon;
            this.notifyIcon.ContextMenuStrip = this.contextMenuStrip;
            this.notifyIcon.DoubleClick += notifyIcon_DoubleClick;
        }
        /// <summary>
        /// 托盤菜單
        /// </summary>
        private void InitializeNotifyMenu()
        {
            try
            {
                contextMenuStrip.Items.Clear();
                ToolStripMenuItem showMenuItem = new ToolStripMenuItem("顯示界面");
                showMenuItem.Tag = "顯示";
                showMenuItem.Click += new EventHandler(ShowMenuItem_Click);
                contextMenuStrip.Items.Add(showMenuItem);


                ToolStripMenuItem sboutMenuItem = new ToolStripMenuItem("關于");
                sboutMenuItem.Tag = "關于";
                sboutMenuItem.Click += new EventHandler(AboutMenuItem_Click);
                contextMenuStrip.Items.Add(sboutMenuItem);


                ToolStripMenuItem exitMenuItem = new ToolStripMenuItem("退出");
                exitMenuItem.Tag = "退出";
                exitMenuItem.Click += new EventHandler(ExistMenuItem_Click);
                contextMenuStrip.Items.Add(exitMenuItem);
            }
            catch(Exception exception)
            {
                throw new Exception(exception.Message);
            }
        }
        /// <summary>
        /// 右擊任務欄圖標
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void notifyIcon_DoubleClick(object sender, EventArgs e)
        {
            try
            {
                if (this.WindowState == FormWindowState.Normal)
                {
                    this.WindowState = FormWindowState.Minimized;
                    this.Hide();
                }
                else if (this.WindowState == FormWindowState.Minimized)
                {
                    this.Show();
                    this.WindowState = FormWindowState.Normal;
                    this.Activate();
                }
            }
            catch (Exception objException)
            {
                throw new Exception(objException.Message);
            }
        }
        /// <summary>
        /// 顯示
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void ShowMenuItem_Click(object sender, EventArgs e)
        {
            try
            {
                this.Show();
                this.WindowState = FormWindowState.Normal;
                this.Activate();
            }
            catch (Exception objException)
            {
                throw new Exception(objException.Message);
            }
        }
        /// <summary>
        /// 關于
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void AboutMenuItem_Click(object sender, EventArgs e)
        {
            try
            {
            }
            catch (Exception objException)
            {
                MessageBox.Show(objException.Message);
            }
        }
        /// <summary>
        /// 退出
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void ExistMenuItem_Click(object sender, EventArgs e)
        {
            try
            {
                if (MessageBox.Show("你確定要退出程序嗎？","提示", MessageBoxButtons.OKCancel, MessageBoxIcon.Question, MessageBoxDefaultButton.Button2) == DialogResult.OK)
                {
                    this.notifyIcon.Visible = false;
                    this.notifyIcon.Dispose();
                    this.Dispose();
                    Application.Exit();
                }
            }
            catch (Exception objException)
            {
                MessageBox.Show(objException.Message);
            }
        }
        /// <summary>
        /// 主窗體關閉
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void FormMain_FormClosing(object sender, FormClosingEventArgs e)
        {
            try
            {
                e.Cancel = true;
                this.Hide();
                this.notifyIcon.Dispose();
            }
            catch (Exception objException)
            {
                MessageBox.Show(objException.Message);
            }
        }
        /// <summary>
        /// 窗體大小變化
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void FormMain_Resize(object sender, EventArgs e)
        {
            if (this.WindowState == FormWindowState.Minimized)
            {
                this.ShowInTaskbar = false;
                this.Hide();
                this.notifyIcon.Visible = true;
            }
        }
    }
}

系統開機自啟動應用程序

using Microsoft.Win32;
using System;
using System.Diagnostics;
using System.Windows.Forms;


namespace Fountain.WinForm.NotifyDemo
{
    public partial class FormMain : Form
    {
        /// <summary>
        /// 構造方法
        /// </summary>
        public FormMain()
        {
            InitializeComponent();
        }
        /// <summary>
        /// 窗體加載
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void FormMain_Load(object sender, EventArgs e)
        {
            //一般不會放這個事件里去設置，而且設置時需要看下注冊表要有沒有寫入成功有的話可以不用調了，偷懶多調一次也沒事
            string applictionName = Process.GetCurrentProcess().MainModule.ModuleName;
            string applictionPath = Process.GetCurrentProcess().MainModule.FileName;
            #region 當前登陸用戶的注冊表啟動項
            RegistryKey registryKey = Registry.CurrentUser.CreateSubKey(@"SOFTWARE\Microsoft\Windows\CurrentVersion\Run");
            registryKey.SetValue(applictionName, applictionPath);
            #endregion
            #region 所有用戶的注冊表啟動項
            //RegistryKey registryKey = Registry.LocalMachine.CreateSubKey(@"SOFTWARE\Microsoft\Windows\CurrentVersion\Run");
            //registryKey.SetValue(applictionName, applictionPath);
            #endregion
        }
    }
}

到此這篇關于C#實現Winform序在系統托盤顯示圖標和開機自啟動的文章就介紹到這了,更多相關C# Winform開機自啟動內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
