springboot自動裝配之@ComponentScan使用方式
1.@ComponentScan注解作用
@ComponentScan
用于類或接口
上主要是指定掃描路徑
,spring會把指定路徑下帶有指定注解的類
自動裝配到bean容器里。
會被自動裝配的注解包括@Controller
、@Service
、@Component
、@Repository
等等。
與ComponentScan
注解相對應的XML配置就是<context:component-scan/>
, 根據指定的配置自動掃描package
,將符合條件的組件加入到IOC容器中;
XML的配置方式如下:
<context:component-scan base-package="com.example.test" use-default-filters="false"> <context:exclude-filter type="custom" expression="com.example.test.filter.MtyTypeFilter" /> </context:component-scan>
2. @ComponentScan注解屬性
@ComponentScan有如下常用屬性:
basePackages
和value
:指定要掃描的路徑(package
),如果為空則以@ComponentScan
注解的類所在的包為基本的掃描路徑。basePackageClasses
:指定具體掃描的類。includeFilters
:指定滿足Filter
條件的類。excludeFilters
:指定排除Filter
條件的類。useDefaultFilters=true/false
:指定是否需要使用Spring
默認的掃描規則:被@Component, @Repository, @Service, @Controller
或者已經聲明過@Component
自定義注解標記的組件;
在過濾規則Filter中:
FilterType:指定過濾規則,支持的過濾規則有:
ANNOTATION
:按照注解規則,過濾被指定注解標記的類(默認);ASSIGNABLE_TYPE
:按照給定的類型;ASPECTJ
:按照ASPECTJ表達式;REGEX
:按照正則表達式;CUSTOM
:自定義規則,自定義的Filter需要實現TypeFilter接口;
value和classes:指定在該規則下過濾的表達式;
@ComponentScan的常見的配置如下:
@ComponentScan( excludeFilters = {@Filter( type = FilterType.CUSTOM, classes = {TypeExcludeFilter.class} ), @Filter( type = FilterType.CUSTOM, classes = {AutoConfigurationExcludeFilter.class} )} )
3. @ComponentScan過濾規則說明
規則表達式說明:
- 1.掃描指定類文件
@ComponentScan(basePackageClasses = Person.class)
- 2.掃描指定包,使用默認掃描規則,即被@Component, @Repository, @Service, @Controller或者已經聲明過@Component自定義注解標記的組件;
@ComponentScan(value = "com.example")
- 3.掃描指定包,加載被@Component注解標記的組件和默認規則的掃描(因?yàn)閡seDefaultFilters默認為true)
@ComponentScan(value = "com.example", includeFilters = { @Filter(type = FilterType.ANNOTATION, value = Component.class) })
- 4.掃描指定包,只加載Person類型的組件
@ComponentScan(value = "com.example", includeFilters = { @Filter(type = FilterType.ASSIGNABLE_TYPE, value = Person.class) }, useDefaultFilters = false)
- 5.掃描指定包,過濾掉被@Component標記的組件
@ComponentScan(value = "com.example", excludeFilters = { @Filter(type = FilterType.ANNOTATION, value = Component.class) })
- 6.掃描指定包,自定義過濾規則
@ComponentScan(value = "com.example", includeFilters = { @Filter(type = FilterType.CUSTOM, value = MtyTypeFilter.class) }, useDefaultFilters = true)
4. 自定義掃描過濾規則
用戶自定義掃描過濾規則,需要實現org.springframework.core.type.filter.TypeFilter
接口。
//1.自定義類實現TypeFilter接口并重寫match()方法 public class MtyTypeFilter implements TypeFilter { /** * * @param metadataReader:讀取到當前正在掃描的類的信息 * @param metadataReaderFactory:可以獲取到其他任何類的信息 * @return * @throws IOException */ @Override public boolean match(MetadataReader metadataReader, MetadataReaderFactory metadataReaderFactory) throws IOException { System.out.println("========MtyTypeFilter==========="); //獲取當前類的注解的信息 AnnotationMetadata annotationMetadata = metadataReader.getAnnotationMetadata(); System.out.println("annotationMetadata: "+annotationMetadata); //輸出結果:annotationMetadata: com.example.test.bean.Color //獲取當前正在掃描的類的類信息 ClassMetadata classMetadata = metadataReader.getClassMetadata(); System.out.println("classMetadata: "+classMetadata); //輸出結果: classMetadata: com.example.test.bean.Color //獲取當前類資源(類的路徑) Resource resource = metadataReader.getResource(); System.out.println("resource: "+resource); //輸出結果:resource: file [D:\idea\demo-02\target\classes\com\example\test\bean\Color.class] //獲取類名 String className = classMetadata.getClassName(); System.out.println("className: "+className); //輸出結果:className: com.example.test.bean.Color Class<?> forName = null; try { forName = Class.forName(className); if (Color.class.isAssignableFrom(forName)) { // 如果是Color的子類,就加載到IOC容器 return true; } } catch (ClassNotFoundException e) { e.printStackTrace(); } System.out.println("========MtyTypeFilter==========="); return false; } }
5. @ComponentScans
可以一次聲明多個@ComponentScan
@Retention(RetentionPolicy.RUNTIME) @Target(ElementType.TYPE) @Documented @Repeatable(ComponentScans.class) //指定ComponentScan可以被ComponentScans作為數組使用 public @interface ComponentScan { } @Retention(RetentionPolicy.RUNTIME) @Target(ElementType.TYPE) @Documented public @interface ComponentScans { ComponentScan[] value(); }
@ComponentScans(value = { @ComponentScan(value = "com.example.test"), @ComponentScan(value = "com.example.test", includeFilters = { @Filter(type = FilterType.CUSTOM, value = MtyTypeFilter.class) }) }) public class MainConfig { @Bean(name = "pers", initMethod = "init", destroyMethod = "destory") public Person person() { return new Person(); } }
6. spring boot處理@ComponentScan源碼分析
spring
創建bean
對象的基本流程是先創建對應的BeanDefinition
對象,然后在基于BeanDefinition
對象來創建Bean
對象,SpringBoot
也是如此,只不過通過注解創建BeanDefinition對象的時機和解析方式不同而已。
SpringBoot
是通過ConfigurationClassPostProcessor
這個BeanFactoryPostProcessor
類來處理。
本演示的demo涉及到4個演示類,分別是:
- 帶有@SpringBootApplication注解的啟動類Demo02Application。
- 帶有@RestController注解的類HelloController。
- 帶有@Configuration注解且有通過@Bean注解來創建addInterceptors的方法的MyMvcConfig類。
- Account實體類無任何注解。
本文的最后會貼出所有代碼。先從啟動類為入口,SpringBoot啟動類如下:
@SpringBootApplication public class Demo02Application { public static void main(String[] args) { //1、返回我們IOC容器 ConfigurableApplicationContext run = SpringApplication.run(Demo02Application.class, args); } }
從:
SpringApplication.run(Demo02Application.class, args);
一路斷點到核心方法
SpringApplication.ConfigurableApplicationContext run(String... args)
run方法干了兩件事:
- 創建SpringApplication對象
- 利用創建好的SpringApplication對象調用run方法
public ConfigurableApplicationContext run(String... args) { long startTime = System.nanoTime(); DefaultBootstrapContext bootstrapContext = this.createBootstrapContext(); ConfigurableApplicationContext context = null; this.configureHeadlessProperty(); //初始化監聽器 SpringApplicationRunListeners listeners = this.getRunListeners(args); //發布ApplicationStartingEven listeners.starting(bootstrapContext, this.mainApplicationClass); try { //裝配參數和環境 ApplicationArguments applicationArguments = new DefaultApplicationArguments(args); //發布ApplicationEnvironmentPreparedEvent ConfigurableEnvironment environment = this.prepareEnvironment(listeners, bootstrapContext, applicationArguments); this.configureIgnoreBeanInfo(environment); Banner printedBanner = this.printBanner(environment); //創建ApplicationContext,并裝配 context = this.createApplicationContext(); context.setApplicationStartup(this.applicationStartup); //發布ApplicationPreparedEvent this.prepareContext(bootstrapContext, context, environment, listeners, applicationArguments, printedBanner); this.refreshContext(context); this.afterRefresh(context, applicationArguments); Duration timeTakenToStartup = Duration.ofNanos(System.nanoTime() - startTime); if (this.logStartupInfo) { (new StartupInfoLogger(this.mainApplicationClass)).logStarted(this.getApplicationLog(), timeTakenToStartup); } //發布ApplicationStartedEven listeners.started(context, timeTakenToStartup); //執行Spring中@Bean下的一些操作,如靜態方法 this.callRunners(context, applicationArguments); } catch (Throwable var12) { this.handleRunFailure(context, var12, listeners); throw new IllegalStateException(var12); } try { Duration timeTakenToReady = Duration.ofNanos(System.nanoTime() - startTime); listeners.ready(context, timeTakenToReady); return context; } catch (Throwable var11) { this.handleRunFailure(context, var11, (SpringApplicationRunListeners)null); throw new IllegalStateException(var11); } }
重點方法一:本方法法實現的重點功能:
- 本
demo
是web
工程,springboot
通過反射創建上下文context:AnnotationConfigServletWebServerApplicationContext
類 - 在構建context的無參構造方法中構建成員變量reader=new AnnotatedBeanDefinitionReader(this),在AnnotatedBeanDefinitionReader的無參構造方法中會beanFactory對象,并向beanFactory中注冊5個BeanDefinition對象,重點關注ConfigurationClassPostProcessor。
context = this.createApplicationContext();

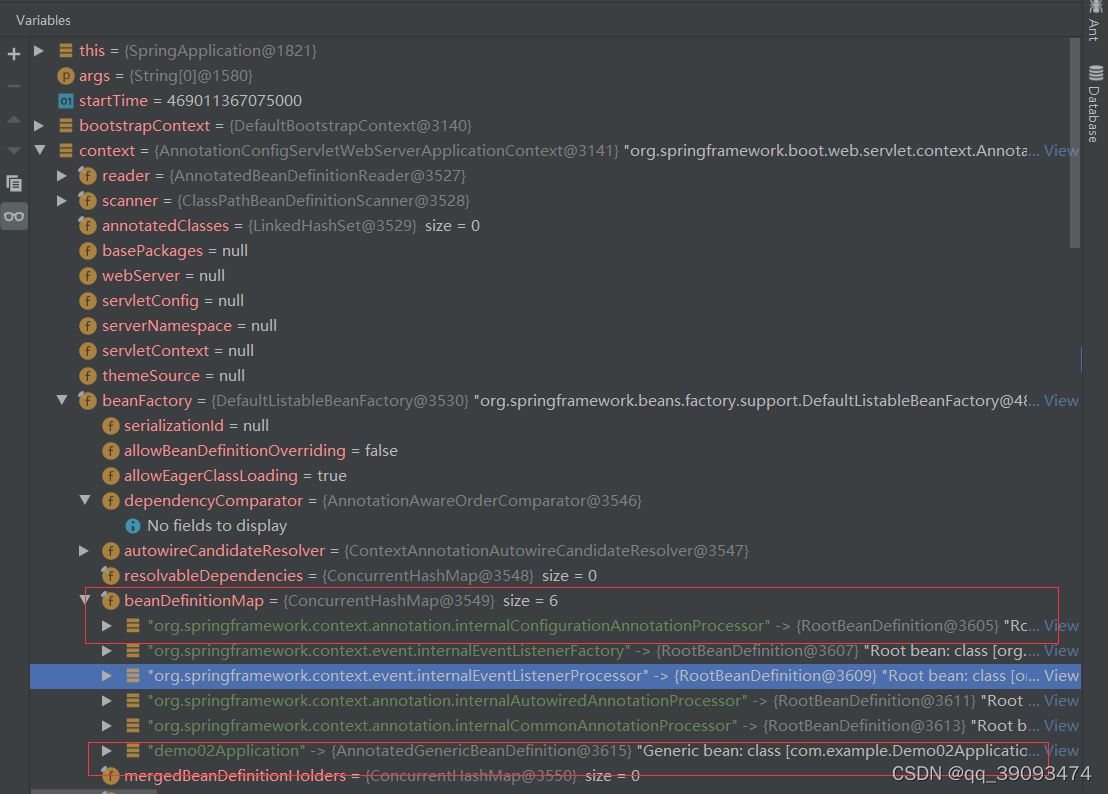

重點方法二:本方法實現的重點功能本方法會構建啟動類Demo02Application對應的BeanDefinition對象,并注冊到beanFactory中,此時的context對象可見下圖
this.prepareContext(context, environment, listeners, applicationArguments, printedBanner);
重點方法三:本方法實現的重點功能該方法實際調用applicationContext的refresh方法,本文后面只會分析ConfigurationClassPostProcessor對象的創建和postProcessBeanDefinitionRegistry方法的執行
this.refreshContext(context); this.afterRefresh(context, applicationArguments);
this.prepareContext(context, environment, listeners, applicationArguments, printedBanner);
代碼執行后的截圖如下:
ConfigurationClassPostProcessor實現BeanFactoryPostProcessor,關于BeanFactoryPostProcessor擴展接口的作用在此處不做介紹。

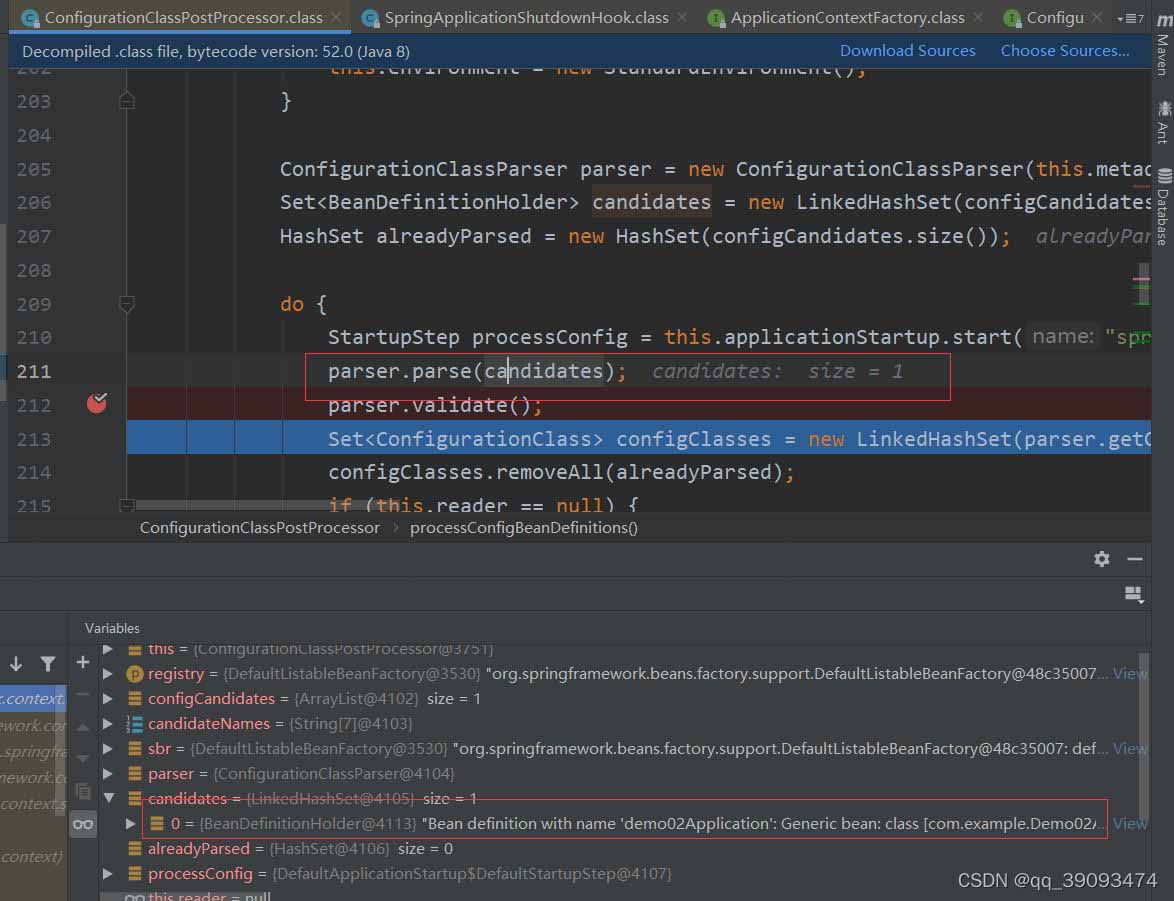

ConfigurationClassPostProcessor對象的創建和方法執行的斷點如下:
this.refreshContext(context);–> AbstractApplicationContext.refresh() --> invokeBeanFactoryPostProcessors() -->PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors()->invokeBeanDefinitionRegistryPostProcessors()
下面重點看ConfigurationClassPostProcessor類的postProcessBeanDefinitionRegistry()方法如何處理@ComponentScan注解:

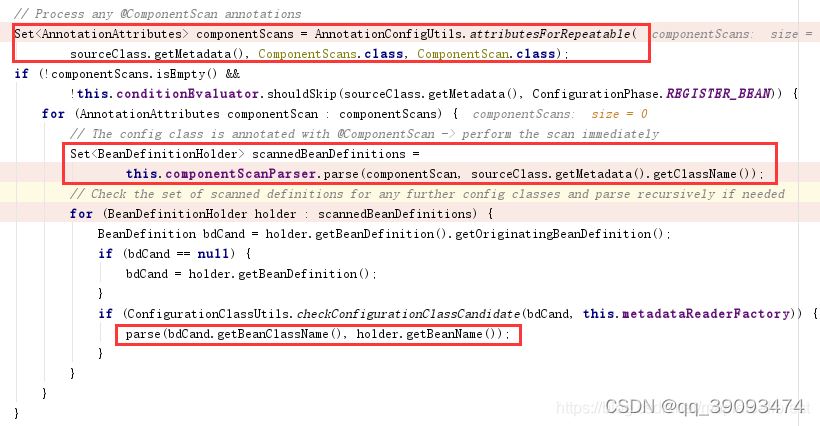

同過源代碼發現最終是由ConfigurationClassParser的解析類來處理,繼續查看ConfigurationClassParser.doProcessConfigurationClass
原來在這里對@ComponentScan注解做了判斷,上面一段代碼做了核心的幾件事:
- 掃描@ComponentScan注解包下面的所有的可自動裝備類,生成BeanDefinition對象,并注冊到beanFactory對象中。
- 通過DeferredImportSelectorHandler處理@EnableAutoConfiguration注解,后續會有專文介紹。
- 將帶有@Configuration 注解的類解析成ConfigurationClass對象并緩存,后面創建@Bean注解的Bean對象所對應的BeanDefinition時會用到到此為止MyFilter2對應的BeanDefinition已創建完畢。

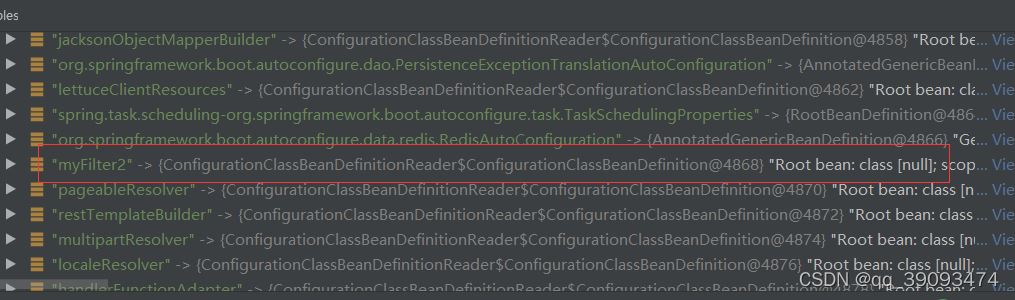

- 如下圖:
總結
以上為個人經驗,希望能給大家一個參考,也希望大家多多支持腳本之家。
