Java導出Excel動態表頭的示例詳解

更新時間：2025年02月07日 10:18:25 作者：伏顏.

這篇文章主要為大家詳細介紹了Java導出Excel動態表頭的相關知識,文中的示例代碼簡潔易懂,具有一定的借鑒價值,有需要的小伙伴可以了解下

前言

本文只記錄大致思路以及做法，代碼不進行詳細輸出

場景：

模板導出

1.按照模板內容類型分組(分sheet)：1.文本消息;2.文本卡片;3.富文本;4.圖文

2.每個類型的動態參數不同，即為每個sheet的表頭不同

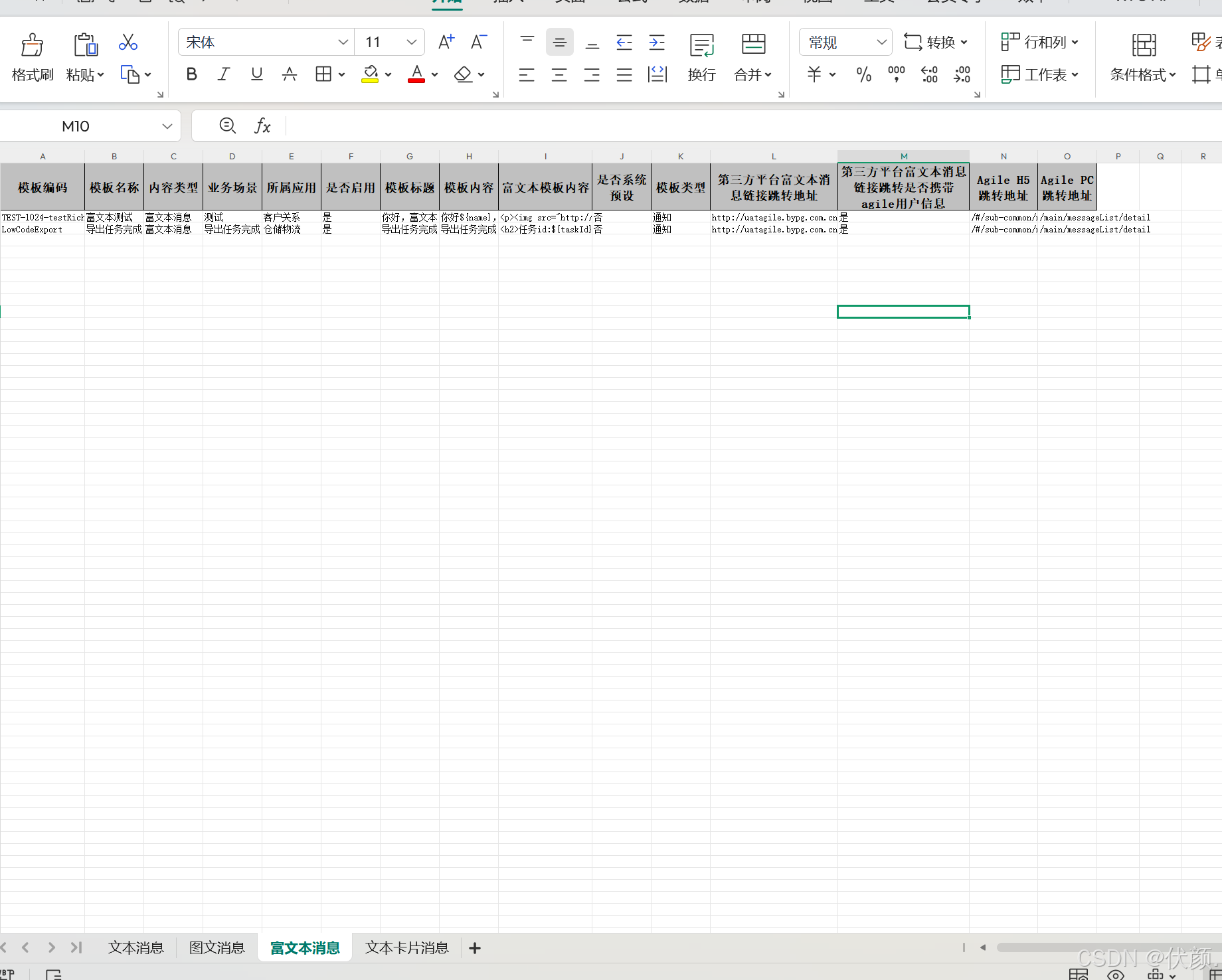

一、效果展示

二、代碼實現

1.固定頭實體類

@Data
@ApiModel
@ExcelIgnoreUnannotated
// @HeadRowHeight(value = 50)
// @ContentRowHeight(value = 50)
@ColumnWidth(value = 20)
public class MsgModuleInfoDTO {

    @ApiModelProperty(value = "模板id")
    private Long id;

    @ApiModelProperty(value = "模板ids")
    private List<Long> ids;

    @ApiModelProperty(value = "模板編碼")
    @ExcelProperty(value = "模板編碼")
    private String code;

    @ApiModelProperty(value = "模板名稱")
    @ExcelProperty(value = "模板名稱")
    private String name;

    @ApiModelProperty(value = "模板關聯的渠道內容類型Code")
    private String contentTypeCode;

    @ApiModelProperty(value = "模板關聯的渠道內容類型Value")
    @ExcelProperty(value = "內容類型")
    private String contentTypeValue;

    @ApiModelProperty(value = "業務場景")
    @ExcelProperty(value = "業務場景")
    private String condition;


    @ApiModelProperty(value = "所屬應用id")
    private Integer appId;

    @ApiModelProperty(value = "所屬應用名稱")
    @ExcelProperty(value = "所屬應用")
    private String appName;

    @ApiModelProperty(value = "是否啟用（1：?jiǎn)⒂?；0：不啟用）")
    @ExcelProperty(value = "是否啟用")
    private Integer isEnable;


    @ApiModelProperty(value = "app_消息跳轉url")
    private String appUrl;

    @ApiModelProperty(value = "pc_消息跳轉url")
    private String pcUrl;

    @ApiModelProperty(value = "模板標題")
    @ExcelProperty(value = "模板標題")
    private String title;

    @ApiModelProperty(value = "模板內容")
    @ExcelProperty(value = "模板內容")
    private String content;

    @ApiModelProperty(value = "富文本模板內容")
    @ExcelProperty(value = "富文本模板內容")
    private String richContent;

    private MessageTemplateDynamicProperties dynamicProperties;

    @ApiModelProperty(value = "修改時間")
    private LocalDateTime lastUpdateTime;

    @ApiModelProperty(value = "修改者用戶ID")
    private Long lastUpdateUser;

    @ApiModelProperty(value = "修改者用戶名稱")
    private String lastUpdateUserName;

    @ApiModelProperty(value = "是否系統預設(1：是；0：不是)")
    @ExcelProperty(value = "是否系統預設", converter = MsgSystemConverter.class)
    private Integer isSystemType;

    @ApiModelProperty(value = "模板類型編碼")
    private String msgFormCode;

    @ApiModelProperty(value = "模板類型名稱")
    @ExcelProperty(value = "模板類型")
    private String msgFormName;

}

2.動態頭實現

@Getter
@RequiredArgsConstructor(staticName = "of")
public class CodeAndValue {
    private final String code;
    private final String name;
    private final Object value;
}
/**
    渠道動態配置屬性數據提供接口
*/
public interface DynamicPropertiesGenerator {
    /**
     * 獲取動態配置字段信息
     *
     * @return List<DynamicProperties>
     */
    @ApiModelProperty(hidden = true)
    @JsonIgnore
    List<CodeAndValue> getDynamicPropertiesList();
}

@ApiModel("模板動態字段配置數據")
@JsonTypeInfo(use = JsonTypeInfo.Id.NAME, property = "contentType")
@JsonSubTypes(value = {
        @JsonSubTypes.Type(value = MessageRichTextConfigurationDynamicProperties.class, name = "richTextMessage"),
        @JsonSubTypes.Type(value = MessageTextConfigurationDynamicProperties.class, name = "textMessage"),
        @JsonSubTypes.Type(value = MessageCardConfigurationDynamicProperties.class, name = "textCardMessage"),
        @JsonSubTypes.Type(value = MessagePictureConfigurationDynamicProperties.class, name = "pictureMessage")
})
public interface MessageTemplateDynamicProperties extends DynamicPropertiesGenerator {
}

MessageRichTextConfigurationDynamicProperties 富文本動態參數

@Getter
public class MessageRichTextConfigurationDynamicProperties implements MessageTemplateDynamicProperties {
    private final List<CodeAndValue> dynamicPropertiesList;
    @JsonIgnore
    private final MessageRichConfiguration messageCardConfiguration;

    @JsonCreator
    public MessageRichTextConfigurationDynamicProperties(@JsonProperty String messagePlatformRedirectUri,
                                                         @JsonProperty Boolean messagePlatformRedirectWithAgileUserInfo,
                                                         @JsonProperty String agileAppRedirectUri,
                                                         @JsonProperty String agileMainRedirectUri) {
        this.messageCardConfiguration = new MessageRichConfiguration(messagePlatformRedirectUri, messagePlatformRedirectWithAgileUserInfo, agileAppRedirectUri, agileMainRedirectUri);
        this.dynamicPropertiesList = DynamicValueUtil.configurationToDynamicProperties(messageCardConfiguration, Mapper.values());
    }

    public String getMessagePlatformRedirectUri() {
        return messageCardConfiguration.getMessagePlatformRedirectUri();
    }

    public Boolean getMessagePlatformRedirectWithAgileUserInfo() {
        return messageCardConfiguration.getMessagePlatformRedirectWithAgileUserInfo();
    }

    public String getAgileAppRedirectUri() {
        return messageCardConfiguration.getAgileAppRedirectUri();
    }

    public String getAgileMainRedirectUri() {
        return messageCardConfiguration.getAgileMainRedirectUri();
    }


    @Data
    @AllArgsConstructor
    @NoArgsConstructor
    public static class MessageRichConfiguration {
        @ExcelProperty(value = "第三方平臺富文本消息鏈接跳轉地址")
        private String messagePlatformRedirectUri;
        @ExcelProperty(value = "第三方平臺富文本消息鏈接跳轉是否攜帶agile用戶信息")
        private Boolean messagePlatformRedirectWithAgileUserInfo;
        @ExcelProperty(value = "Agile H5跳轉地址")
        private String agileAppRedirectUri;
        @ExcelProperty(value = "Agile PC跳轉地址")
        private String agileMainRedirectUri;
    }

    @Getter
    @RequiredArgsConstructor
    enum Mapper implements DynamicValueMapper {
        MESSAGE_PLATFORM_REDIRECT_URI(LambdaUtil.getFieldName(MessageRichConfiguration::getMessagePlatformRedirectUri), "第三方平臺富文本消息鏈接跳轉地址"),

        MESSAGE_PLATFORM_REDIRECT_WITH_AGILE_USERINFO(LambdaUtil.getFieldName(MessageRichConfiguration::getMessagePlatformRedirectWithAgileUserInfo), "第三方平臺富文本消息鏈接跳轉是否攜帶agile用戶信息"),

        AGILE_APP_REDIRECT_URI(LambdaUtil.getFieldName(MessageRichConfiguration::getAgileAppRedirectUri), "Agile H5跳轉地址"),

        AGILE_MAIN_REDIRECT_URI(LambdaUtil.getFieldName(MessageRichConfiguration::getAgileMainRedirectUri), "Agile PC跳轉地址"),
        ;
        private final String code;
        private final String name;
    }
}

MessageCardConfigurationDynamicProperties 文本卡片動態參數

@Getter
@SuppressWarnings("unused")
public class MessageCardConfigurationDynamicProperties implements MessageTemplateDynamicProperties {
    private final List<CodeAndValue> dynamicPropertiesList;
    @JsonIgnore
    private final MessageCardConfiguration messageCardConfiguration;

    @JsonCreator
    public MessageCardConfigurationDynamicProperties(@JsonProperty Boolean enableOauth2Link,
                                                     @JsonProperty String btnTxt,
                                                     @JsonProperty String messagePlatformRedirectUri,
                                                     @JsonProperty Boolean messagePlatformRedirectWithAgileUserInfo,
                                                     @JsonProperty String agileAppRedirectUri,
                                                     @JsonProperty String agileMainRedirectUri) {
        this.messageCardConfiguration = new MessageCardConfiguration(enableOauth2Link, btnTxt, messagePlatformRedirectUri, messagePlatformRedirectWithAgileUserInfo,
                agileAppRedirectUri, agileMainRedirectUri);
        this.dynamicPropertiesList = DynamicValueUtil.configurationToDynamicProperties(messageCardConfiguration, Mapper.values());
    }

    public Boolean getEnableOauth2Link() {
        return messageCardConfiguration.getEnableOauth2Link();
    }

    public String getBtnTxt() {
        return messageCardConfiguration.getBtnTxt();
    }

    public String getMessagePlatformRedirectUri() {
        return messageCardConfiguration.getMessagePlatformRedirectUri();
    }

    public Boolean getMessagePlatformRedirectWithAgileUserInfo() {
        return messageCardConfiguration.getMessagePlatformRedirectWithAgileUserInfo();
    }

    public String getAgileAppRedirectUri() {
        return messageCardConfiguration.getAgileAppRedirectUri();
    }

    public String getAgileMainRedirectUri() {
        return messageCardConfiguration.getAgileMainRedirectUri();
    }

    @Data
    @AllArgsConstructor
    @NoArgsConstructor
    public static class MessageCardConfiguration {
        @ExcelProperty(value = "是否開啟跳轉鏈接")
        private Boolean enableOauth2Link;
        @ExcelProperty(value = "卡片消息跳轉描述")
        private String btnTxt;
        @ExcelProperty(value = "平臺跳轉鏈接")
        private String messagePlatformRedirectUri;
        @ExcelProperty(value = "是否攜帶Agile用戶信息")
        private Boolean messagePlatformRedirectWithAgileUserInfo;
        @ExcelProperty(value = "Agile H5跳轉地址")
        private String agileAppRedirectUri;
        @ExcelProperty(value = "Agile PC跳轉地址")
        private String agileMainRedirectUri;
    }

    @Getter
    @RequiredArgsConstructor
    enum Mapper implements DynamicValueMapper {
        ENABLE_OAUTH2_LINK(LambdaUtil.getFieldName(MessageCardConfiguration::getEnableOauth2Link), "跳轉鏈接開啟Oauth2授權"),
        BTN_TXT(LambdaUtil.getFieldName(MessageCardConfiguration::getBtnTxt), "卡片消息跳轉描述"),
        MESSAGE_PLATFORM_REDIRECT_URI(LambdaUtil.getFieldName(MessageCardConfiguration::getMessagePlatformRedirectUri), "平臺跳轉鏈接"),
        MESSAGE_PLATFORM_REDIRECT_WITH_AGILE_USERINFO(LambdaUtil.getFieldName(MessageCardConfiguration::getMessagePlatformRedirectWithAgileUserInfo), "是否攜帶Agile用戶信息"),
        AGILE_APP_REDIRECT_URI(LambdaUtil.getFieldName(MessageCardConfiguration::getAgileAppRedirectUri), "Agile H5 跳轉路由"),
        AGILE_MAIN_REDIRECT_URI(LambdaUtil.getFieldName(MessageCardConfiguration::getAgileMainRedirectUri), "Agile PC 跳轉路由"),
        ;
        private final String code;
        private final String name;
    }
}

3.導出動態頭

/**
     * 按照模板內容類型分組(分sheet)：1.文本消息;2.文本卡片;3.富文本;4.圖文
     *
     * @param queryDto 查詢條件
     * @param response 響應
     * @author zhumq
     * @date 2025/01/22 14:30:17
     */
    @Override
    @SneakyThrows
    public void exportExcel(QueryMsgModuleInfoDTO queryDto, HttpServletResponse response) {

        log.info("【模板導出】導出模板數據,傳入?yún)?shù)[queryDto = {}]", queryDto);

        // 獲取模板數據
        Page<MsgModuleInfoEntity> page = convertPageBean(new Paging(1, -1));
        List<MsgModuleInfoDTO> moduleList = msgModuleInfoMapper.selectPageInfo(queryDto, page);

        if (CollUtil.isEmpty(moduleList)) {
            log.info("【模板導出】查詢不到可導出的模板,傳入?yún)?shù)[queryDto = {}]", JsonUtil.toJson(queryDto));
            response.setContentType("application/json");
            response.setCharacterEncoding("utf-8");
            response.getWriter().println(JSONUtil.toJsonStr(ApiResult.failMessage("沒有數據可以導出")));
            return;
        }

        // 設置響應
        response.setCharacterEncoding("UTF-8");
        response.setContentType("application/vnd.ms-excel");
        String fileName = URLEncoder.encode("消息模板_" + System.currentTimeMillis(), "UTF-8");
        response.setHeader("Content-disposition", "attachment;filename=" + fileName + ".xlsx");

        ServletOutputStream outputStream = null;
        ExcelWriter excelWriter = null;

        try {
            outputStream = response.getOutputStream();
            excelWriter = EasyExcel.write(outputStream).build();

            // 按內容類型分組
            Map<String, List<MsgModuleInfoDTO>> contentMap = moduleList.stream()
                    .collect(Collectors.groupingBy(MsgModuleInfoDTO::getContentTypeCode));

            for (Map.Entry<String, List<MsgModuleInfoDTO>> entry : contentMap.entrySet()) {
                String contentType = entry.getKey();
                String sheetName = MsgEnum.ContentType.getLabelByKey(contentType);

                List<MsgModuleInfoDTO> items = entry.getValue();

                // 動態生成表頭
                Map<String, Field> headMap = this.generateHeader(items);
                List<List<String>> head = headMap.keySet().stream()
                        .map(Collections::singletonList)
                        .collect(Collectors.toList());

                // 提取數據行
                List<List<Object>> dataList = this.obtainExportData(items, headMap);
                // 寫入數據到不同的 sheet 使用動態生成的表頭
                WriteSheet writeSheet = EasyExcel.writerSheet(sheetName)
                        .head(head)
                        .registerWriteHandler(new CustomColumnWidthStyleStrategy())
                        .build();
                excelWriter.write(dataList, writeSheet);

            }

            // 刷新輸出流
            outputStream.flush();
        } catch (IOException e) {
            log.error("導出模板數據失敗", e);
            response.reset();
            response.setContentType("application/json");
            response.setCharacterEncoding("utf-8");
            response.getWriter().println(JSONUtil.toJsonStr(ApiResult.failMessage("下載文件失敗")));
        } finally {
            // 關閉 ExcelWriter
            if (excelWriter != null) {
                excelWriter.finish();
            }
            // 關閉輸出流
            if (outputStream != null) {
                try {
                    outputStream.close();
                } catch (IOException e) {
                    log.error("關閉輸出流失敗", e);
                }
            }
        }
    }

    /**
     * 提取數據行
     *
     * @param items
     * @param headMap
     * @return {@link List }<{@link List }<{@link Object }>>
     * @author zhumq
     * @date 2025/01/22 14:59:11
     */
    private List<List<Object>> obtainExportData(List<MsgModuleInfoDTO> items, Map<String, Field> headMap) {
        List<List<Object>> dataList = new ArrayList<>();
        for (MsgModuleInfoDTO item : items) {
            List<Object> dataListRow = new ArrayList<>();
            // 填充固定字段
            for (Map.Entry<String, Field> entryField : headMap.entrySet()) {
                String fieldName = entryField.getKey();
                Field field = entryField.getValue();
                if (field != null) {
                    // 固定字段通過反射獲取
                    try {
                        field.setAccessible(true);
                        Object value = field.get(item);
                        dataListRow.add(this.convertValue(value));
                    } catch (Exception e) {
                        log.error("反射獲取字段值失敗: {}", fieldName, e);
                        dataListRow.add("");
                    }
                } else {
                    // 動態字段通過getDynamicProperties獲取
                    Object value = Optional.ofNullable(item.getDynamicProperties())
                            .map(MessageTemplateDynamicProperties::getDynamicPropertiesList)
                            .orElse(Collections.emptyList())
                            .stream()
                            .filter(cv -> cv.getName().equals(fieldName))
                            .findFirst()
                            .map(CodeAndValue::getValue)
                            .orElse("");
                    dataListRow.add(this.convertValue(value));
                }
            }
            dataList.add(dataListRow);
        }
        return dataList;
    }

    /**
     * 生成Excel表頭結構
     *
     * @param items 模板數據
     * @return {@link Map }<{@link String }, {@link Field }>
     * @author zhumq
     * @date 2025/01/22 14:30:06
     */
    private Map<String, Field> generateHeader(List<MsgModuleInfoDTO> items) {

        // 1. 固定字段（通過反射獲取DTO的@ExcelProperty）
        Map<String, Field> headerMap = new LinkedHashMap<>(this.getExcelHeader(MsgModuleInfoDTO.class));

        // 2. 動態字段（直接從dynamicPropertiesList提取code）
        if (CollUtil.isNotEmpty(items)) {
            MsgModuleInfoDTO firstItem = items.get(0);
            MessageTemplateDynamicProperties dynamicProperties = firstItem.getDynamicProperties();
            if (dynamicProperties != null && CollUtil.isNotEmpty(dynamicProperties.getDynamicPropertiesList())) {
                // 去重處理code，避免重復表頭
                dynamicProperties.getDynamicPropertiesList().stream()
                        .map(CodeAndValue::getName)
                        .distinct()
                        .forEach(name -> headerMap.putIfAbsent(name, null));
            }
        }
        return headerMap;
    }

    /**
     * 工具方法：獲取類中帶有@ExcelProperty注解的字段
     *
     * @param clazz 類
     * @return {@link Map }<{@link String }, {@link Field }>
     * @author zhumq
     * @date 2025/01/22 14:29:55
     */
    private Map<String, Field> getExcelHeader(Class<?> clazz) {
        Map<String, Field> fieldMap = new LinkedHashMap<>();
        Field[] fields = clazz.getDeclaredFields();
        for (Field field : fields) {
            if (field.isAnnotationPresent(ExcelProperty.class)) {
                ExcelProperty excelProperty = field.getAnnotation(ExcelProperty.class);
                // 獲取注解中的字段名稱
                fieldMap.put(excelProperty.value()[0], field);
            }
        }
        return fieldMap;
    }

    /**
     * 轉換字段值為字符串
     *
     * @param value
     * @return {@link Object }
     * @author zhumq
     * @date 2025/01/22 14:50:16
     */
    private Object convertValue(Object value) {
        if (value instanceof Boolean) {
            return (Boolean) value ? "是" : "否";
        } else if (value instanceof Integer) {
            return (Integer) value == 1 ? "是" : "否";
        } else if (value == null) {
            return "";
        }
        return value;
    }

到此這篇關于Java導出Excel動態表頭的示例詳解的文章就介紹到這了,更多相關Java導出Excel動態表頭內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！

您可能感興趣的文章:
