Spring中OpenFeign的使用方法最佳實踐
1. RestTemplate存在的問題
觀察我們之前遠程調用的代碼
public OrderInfo selectOrder(Integer id){ OrderInfo orderInfo = orderMapper.selectOrderById(id); //把獲取到的服務URL拼接到遠程調用的URL中 String url = "http://product-service/product/select?id=" + orderInfo.getProductId(); ProductInfo productInfo = restTemplate.getForObject(url, ProductInfo.class); orderInfo.setProductInfo(productInfo); return orderInfo; }
雖然說RestTemplate對HTTP封裝之后,已經比直接使用HTTP Client方便很多,但是還是存在一些問題的.
- 需要拼接URL,靈活性高,但是封裝臃腫,URL復雜的時候,容易出錯.
- 代碼可讀性差,風格不統一.
微服務之間的通行主要有兩種方式,一種是RPC,一種是HTTP.在SpringCloud中,默認是使用HTTP進行通信的,最常用的實現形式有兩種:
- RestTemplate
- OpenFeign
接下來我們就來詳細介紹一下OpenFeign.
2. OpenFeign介紹
OpenFeign是一個聲明式的Web Service客戶端.它讓微服務之間的調用變得更加簡單,類似與Controller調用Service,只需要創建一個接口,然后再添加注解就可以使用OpenFeign.
2.1 引入依賴
首先我們需要在服務調用方(order-service)中引入依賴
<dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-openfeign</artifactId> </dependency>
2.2 添加注解
在order-service的啟動類添加注解,@EnableFeignClients
,開啟OpenFeign的功能.
@SpringBootApplication @EnableFeignClients public class OrderServiceApplication { public static void main(String[] args) { SpringApplication.run(OrderServiceApplication.class,args); } }
2.3 編寫OpenFeign客戶端
在調用其他服務的客戶端之下,編寫API調用接口,基于SpringMVC的注解來聲明遠程調用的信息.
@FeignClient(name = "product-service") public interface ProductApi { @RequestMapping("/product/select") ProductInfo getProductInfo(@RequestParam("id")Integer id); }
[注意]:在接口的參數前面必須使用@RequestParam加上所調用服務接口的對應參數,否則參數無法傳入,就相當于在請求的后面加上了?參數=xxx
.
也可以把該服務的接口的統一前綴(放在類上的@RequestMapping
)統一放到FeignClient注解的Path參數中.
@FeignClient(name = "product-service",path = "/product") public interface ProductApi { @RequestMapping("/select") ProductInfo getProductInfo(@RequestParam("id")Integer id); }
@FeignClient
注解作用在接口上,參數說明:
- name/value: 指定OpenFeign的名稱,也就是被調用的微服務的名稱,用于服務發現,Feign底層會使用SpringLoadBalance進行負載均衡.
當然也可以使用URL屬性指定一個具體的URL. - Path: 定義當前FeignClient的統一前綴,一般是被調用方Controller層的類注解.
2.4 遠程調用
修改遠程調用方法
@Service public class OrderService { @Autowired private OrderMapper orderMapper; @Autowired private ProductApi api; //設置原子類 public OrderInfo selectOrder(Integer id){ OrderInfo orderInfo = orderMapper.selectOrderById(id); //把獲取到的服務URL拼接到遠程調用的URL中 Integer productId = orderInfo.getProductId(); ProductInfo productInfo = api.getProductInfo(productId); orderInfo.setProductInfo(productInfo); return orderInfo; } }
2.5 測試

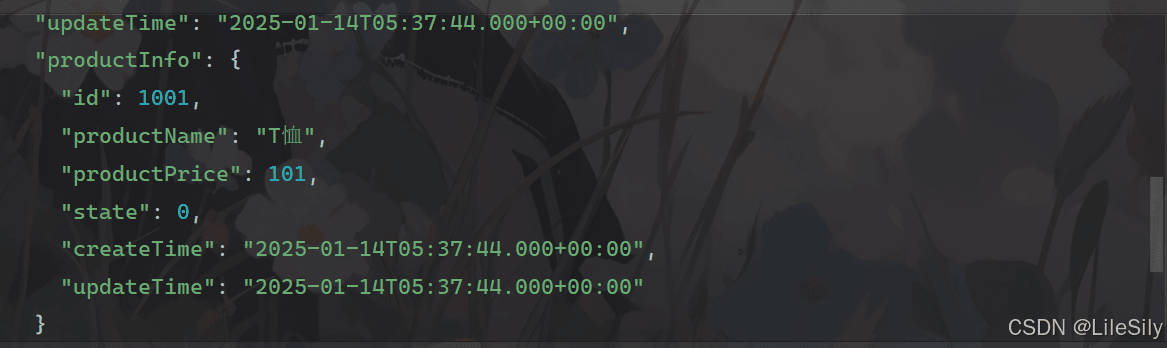

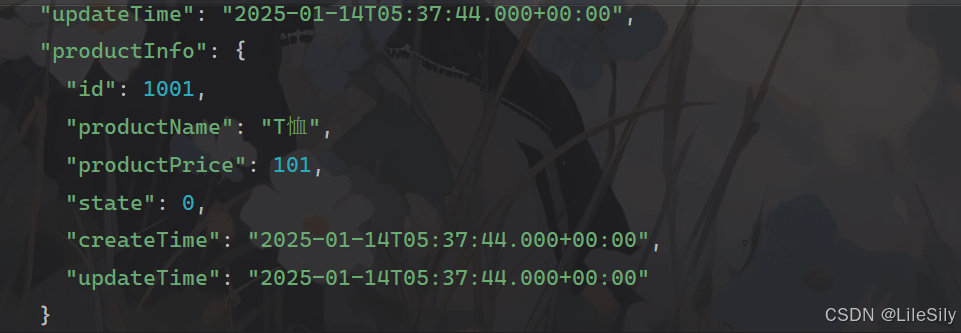

啟動服務.訪問接口,測試遠程調用.
3. OpenFeign參數傳遞
3.1 傳遞單個參數
我們上面2.4的例子就是單個參數的調用.下面我們再來舉一個例子
- 服務提供方product-service
@RestController @RequestMapping("/product") public class ProductController { @RequestMapping("/p1") public String p1(Integer id){ return "接收到參數"+id; } }
- FeginClient
@FeignClient(value = "product-service") public interface ProductApi { @RequestMapping("/product/p1") String p1(@RequestParam("id") Integer id); }
和我們上面提到的一樣,@RequestParam是用來做參數綁定的,不能省略.
3. order-service
@RequestMapping("/order") @RestController public class OrderController { @Autowired private ProductApi api; @RequestMapping("/p1") public String p1(Integer id){ return api.p1(id); } }

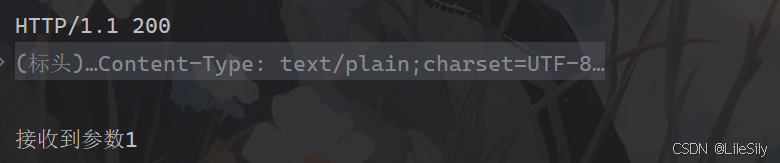

遠程測試調用:GET http://127.0.0.1:8080/order/p1?id=1
3.2 傳遞多個參數
使用多個@RequestParam
進行參數綁定即可
- 服務提供方product-service
@RestController @RequestMapping("/product") public class ProductController { @RequestMapping("/p2") public String p2(Integer id1,Integer id2){ return "接收到參數1:" + id1 + ",接收到參數2:" + id2; } }
- FeignClient
@FeignClient(value = "product-service") public interface ProductApi { @RequestMapping("/product/p2") String p2(@RequestParam("id1") Integer p1,@RequestParam("id2") Integer p2); }
- 服務消費方order-service
@RequestMapping("/order") @RestController public class OrderController { @Autowired private ProductApi api; @RequestMapping("/p2") public String p2(Integer p1,Integer p2){ return api.p2(p1,p2); } }

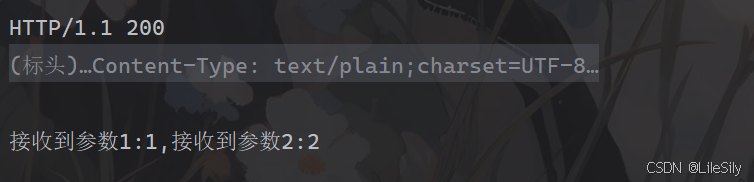

調用接口進行測試:GET http://127.0.0.1:8080/order/p2?p1=1&p2=2
4.3 傳遞對象
- 服務提供方product-service
@RequestMapping("/p3") public String p3(ProductInfo productInfo){ return "接收到對象:" + productInfo; }
- Feign
@RequestMapping("/product/p3") String p3(@SpringQueryMap ProductInfo productInfo);
其中@SpringQueryMap
注解表示的是:可以方便地將一個對象的屬性作為請求的查詢參數添加到請求的 URL中,避免了手動構建查詢參數字符串(如json)的繁瑣過程.
3. order-service
@RequestMapping("/p3") public String p3(ProductInfo productInfo){ return api.p3(productInfo); }

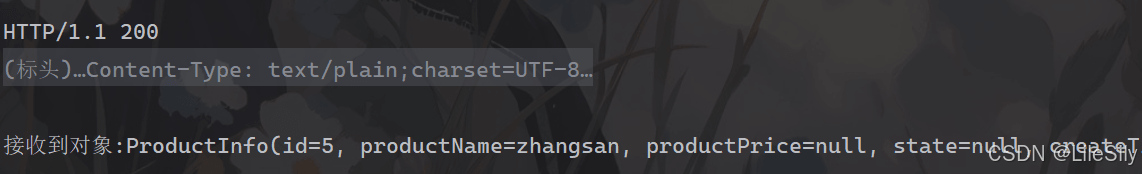

測試遠程調用:GET http://127.0.0.1:8080/order/p3?id=5&productName=zhangsan
3.4 傳遞Json
和我們之前學習SpringBoot的時候一樣,同樣是使用@RequestBody
注解進行綁定.
注意由于數據在服務之間一直是按照J(rèn)son格式傳遞的,所以服務方,服務調用方,FeignClient的參數上都需要加上注解.
- 服務提供方product-service
@RequestMapping("/p4") public String p4(@RequestBody ProductInfo productInfo){ return "接收到對象:" + productInfo; }
- FeignClient
@RequestMapping("/product/p4") String p4(@RequestBody ProductInfo productInfo);
- 服務消費方order-service
@RequestMapping("/p4") public String p4(@RequestBody ProductInfo productInfo){ return api.p4(productInfo); }

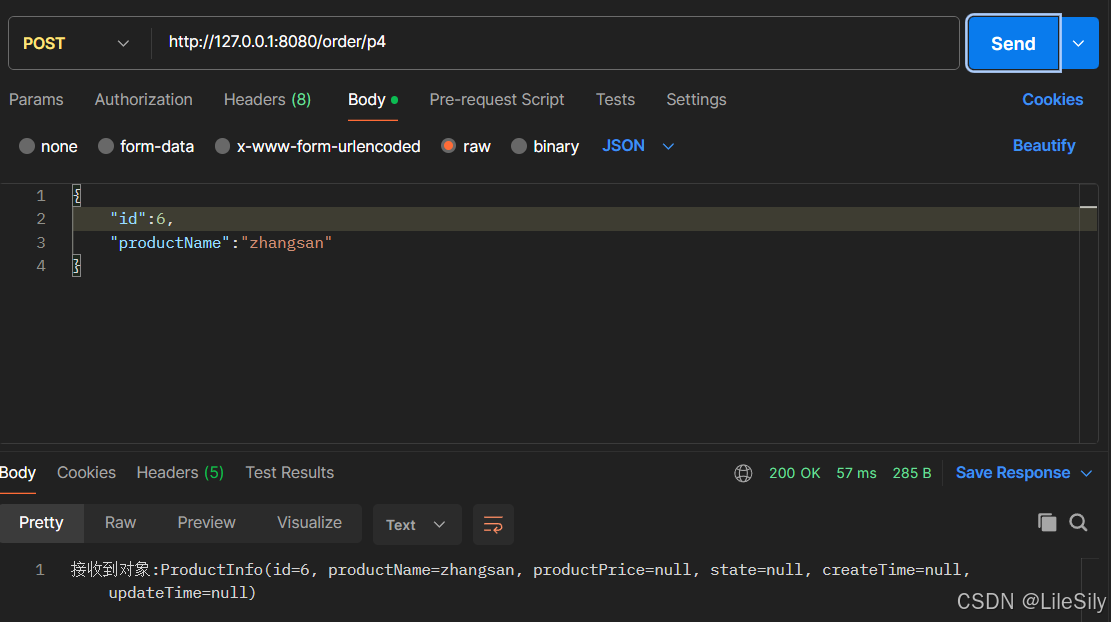

測試遠程調用:http://127.0.0.1:8080/order/p4
4. 最佳實踐
通過觀察,我們也能看出來,Feign的客戶端與服務提供者的controller代碼非常相似.
Feign客戶端:
@FeignClient(value = "product-service") public interface ProductApi { @RequestMapping("/product/p1") String p1(@RequestParam("id") Integer id); }
服務提供方Controller
@RestController @RequestMapping("/product") public class ProductController { @RequestMapping("/p1") public String p1(Integer id){ return "接收到參數"+id; } }
有沒有一種方法可以簡化這種寫法呢?
4.1 Feign繼承方式
Feign支持繼承的方式,我們可以把一些常見的操作封裝到接口里.
我可以定義好一個接口,服務提供方實現這個接口,服務消費方編寫Feign接口的時候,直接繼承這個接口.
接口可以放在一個公共的jar包中,供服務提供方和服務消費方使用.

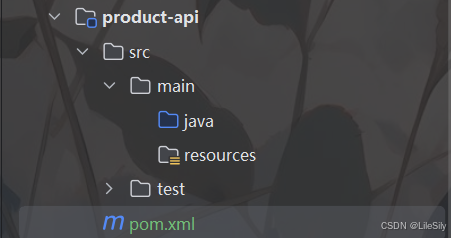

- 新建一個模塊
- 引入依賴
<dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-openfeign</artifactId> </dependency> </dependencies>
- 編寫接口

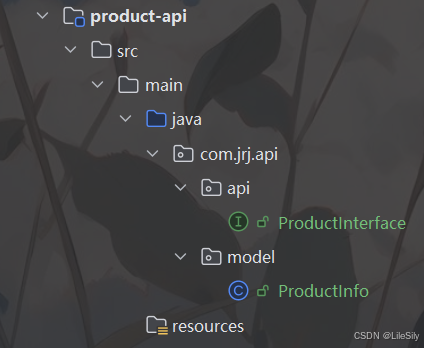

復制ProductInfo類和ProductApi到product-api模塊中.把ProductApi改名為ProductInterface - 打jar包,并安裝到本地Maven倉庫

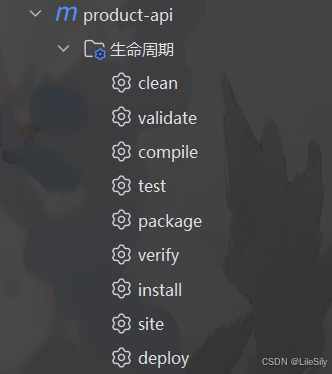

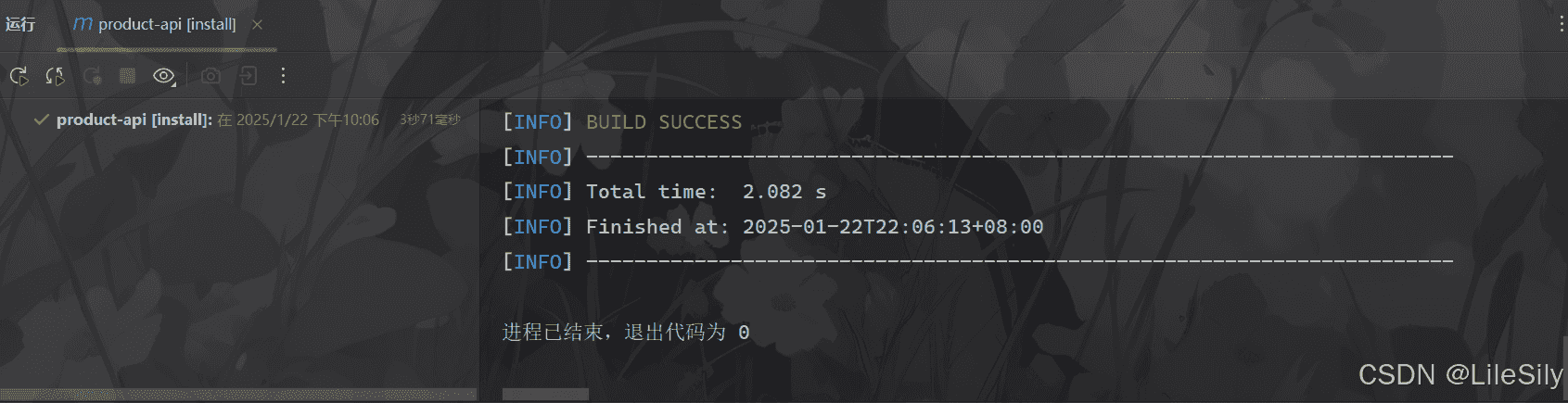

點擊install.該模塊就會被安裝到本地的Maven倉庫.
由于jar包中已經有了ProductInfo類,所以我們就可以把product-service和order-service的ProductInfo類注掉了. - 服務提供方
需要先在服務方中引入對應模塊的依賴.
<dependency> <groupId>org.example</groupId> <artifactId>product-api</artifactId> <version>1.0-SNAPSHOT</version> <scope>compile</scope> </dependency>
服務方product-service
直接實現接口ProductInterface
.
@RestController @RequestMapping("/product") public class ProductController implements ProductInterface { @Autowired private ProductService productService; @RequestMapping("/select") public ProductInfo getProductInfo(Integer id){ return productService.selectById(id); } @RequestMapping("/p1") public String p1(Integer id){ return "接收到參數"+id; } @RequestMapping("/p2") public String p2(Integer id1,Integer id2){ return "接收到參數1:" + id1 + ",接收到參數2:" + id2; } @RequestMapping("/p3") public String p3(ProductInfo productInfo){ return "接收到對象:" + productInfo; } @RequestMapping("/p4") public String p4(@RequestBody ProductInfo productInfo){ return "接收到對象:" + productInfo; } }
- 服務消費方
同樣,首先先添加依賴.
之后讓FeignClient繼承ProductInterface
@FeignClient(value = "product-service") public interface ProductApi extends ProductInterface { }
注意在上述步驟中,把ProductInfo類引入包的路徑全部改為之前打包的product-api模塊下ProductInfo類的路徑.
- 測試接口
http://127.0.0.1:8080/order/select?id=1
4.2 Feign抽取方式
官方推薦Feign的使用方式為繼承的方式,但是企業開發中,更多是把Feign接口抽取為?個獨立的模塊(做法和繼承相似,但理念不同).
操作方法:
將Feign的Client抽取為?個獨立的模塊,并把涉及到的實體類等都放在這個模塊中,打成?個Jar.服務消費方只需要依賴該Jar包即可.這種方式在企業中比較常見,Jar包通常由服務提供方來實現.

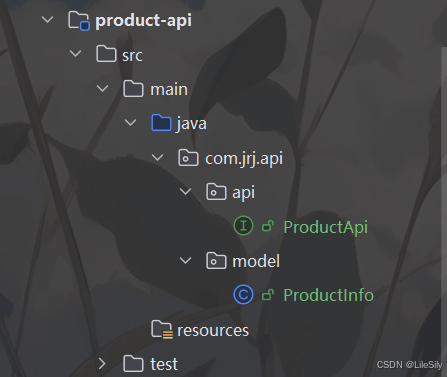

前4步和前面繼承的方式一樣.只不過接口ProductApi在復制到新模塊的時候不用修改名字
- 服務消費方使用product-api

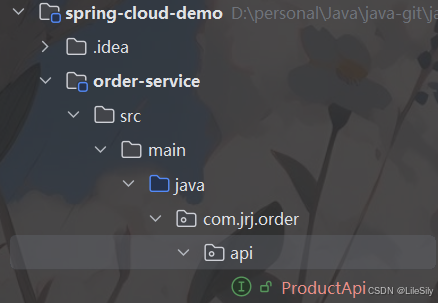

首先引入依賴,之后把該模塊中原有的ProductApi接口注掉.
<dependency> <groupId>org.example</groupId> <artifactId>product-api</artifactId> <version>1.0-SNAPSHOT</version> </dependency>
之后指定掃描類
在啟動類中添加需要加載的Feign客戶端.
@SpringBootApplication @EnableFeignClients(clients = ProductApi.class) public class OrderServiceApplication { public static void main(String[] args) { SpringApplication.run(OrderServiceApplication.class,args); } }
- 測試

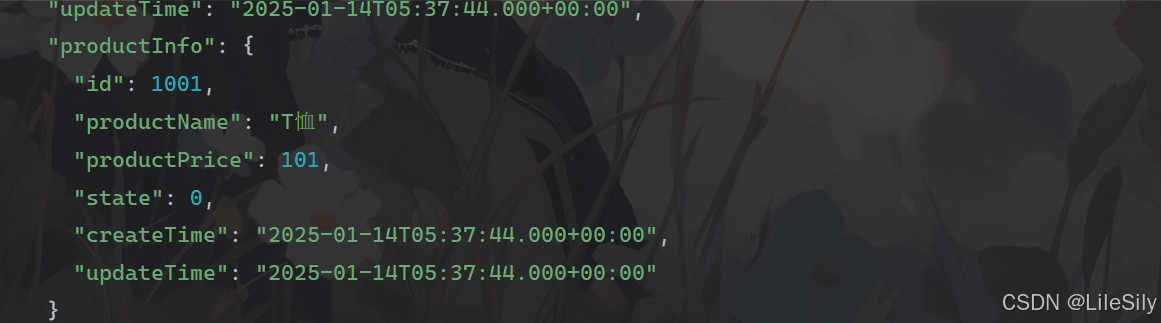

遠程調用接口http://127.0.0.1:8080/order/select?id=1
總結
到此這篇關于Spring中OpenFeign的使用方法的文章就介紹到這了,更多相關Spring OpenFeign的使用內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
