C++使用MIDI庫實現演奏晴天

更新時間：2025年02月14日 09:27:06 作者：TwilightLemon

這篇文章主要為大家詳細介紹了C++如何使用MIDI庫實現演奏晴天歌曲,文中的示例代碼講解詳細,具有一定的借鑒價值,感興趣的小伙伴可以了解下

前言

那些在MIDI庫里徘徊的十六分音符

終究沒能拼成告白的主歌

我把周杰倫的《晴天》寫成C++的類

在每個midiEvent里埋藏故事的小黃花

調試器的斷點比初戀更漫長

而青春不過是一串未導出的cmake工程文件

在堆棧溢出的夜晚

終將明白

有些旋律永遠停在#pragma once的注釋里

有些人永遠停在未定義的引用里

或許你我的心跳終歸運行在不同的時鐘頻率

卻愿始終記得如何編譯出一場永不落幕的晴天

--題記

就像在題記里說的一樣，這是一個從未導出成功的工程文件。

所以如果你也想聽聽，可以在PowerShell里運行以下指令：

git clone https://github.com/TwilightLemon/SunnyDays
cd SunnyDays
mkdir build
cd build
cmake .. -G "MinGW Makefiles"
mingw32-make
./SunnyDays.exe

沒環境？巧了，她也如是說。

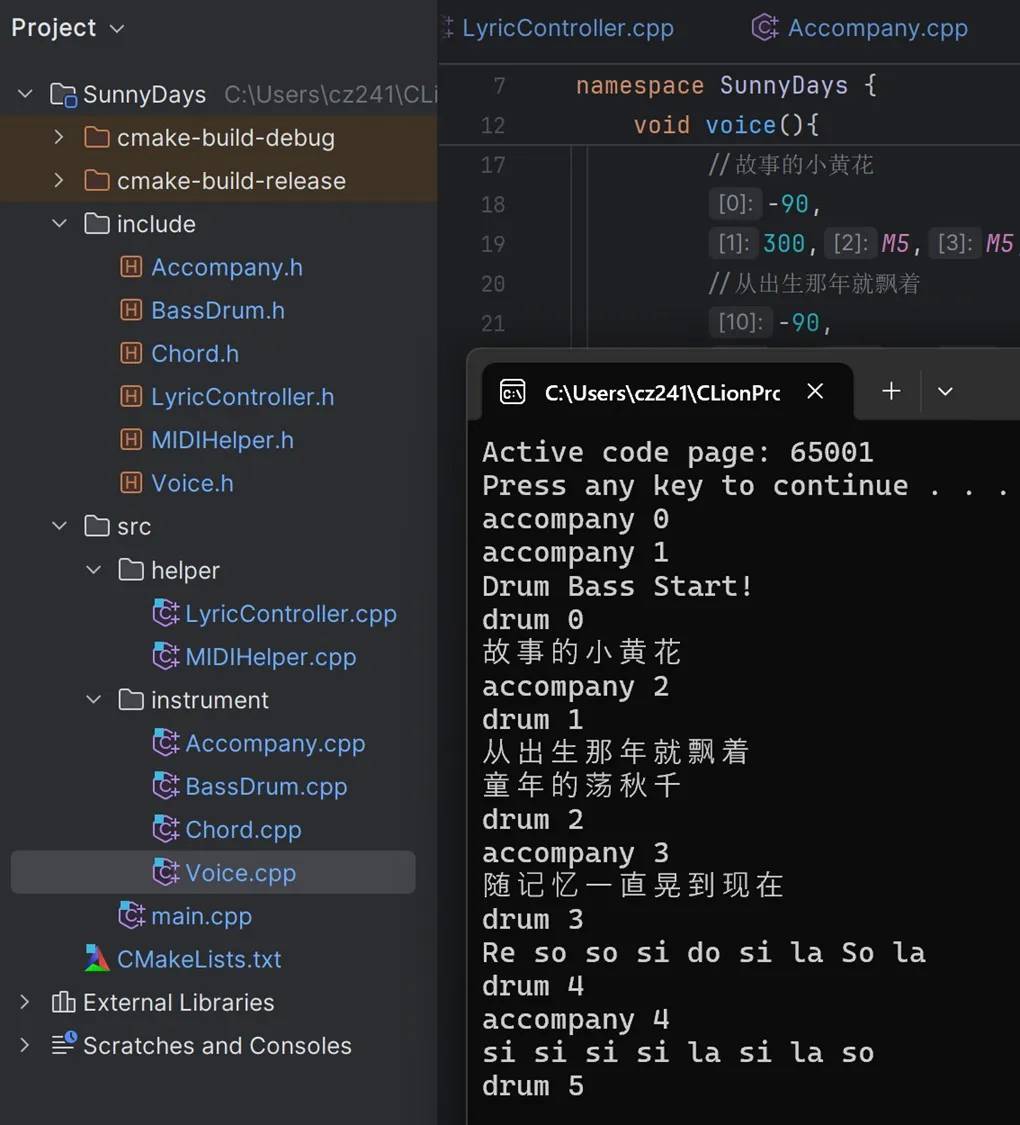

幸運的話能得到以下效果：

下面來簡單講講如何使用C++和MIDI庫作曲吧。

開始工作

1. 引入MIDI庫和相關控制類

在CMakeLists.txt中：

target_link_libraries(SunnyDays winmm)

在MIDIHelper.h中：

#include <windows.h>
#pragma comment(lib,"winmm.lib")

定義Scale(音階), Instrument(樂器, 僅包括部分)等枚舉。我把Drum單獨提了出來。

enum Scale
{
    X1 = 36, X2 = 38, X3 = 40, X4 = 41, X5 = 43, X6 = 45, X7 = 47,
    L1 = 48, L2 = 50, L3 = 52, L4 = 53, L5 = 55, L6 = 57, L7 = 59,
    M1 = 60, M2 = 62, M3 = 64, M4 = 65, M5 = 67, M6 = 69, M7 = 71,
    H1 = 72, H2 = 74, H3 = 76, H4 = 77, H5 = 79, H6 = 81, H7 = 83,
    LOW_SPEED = 500, MIDDLE_SPEED = 400, HIGH_SPEED = 300,
    _ = 0XFF
};
enum Drum{
    BassDrum = 36, SnareDrum = 38, ClosedHiHat = 42, OpenHiHat = 46
};
enum Instrument{
    AcousticGrandPiano = 0, BrightAcousticPiano = 1,
    ElectricGrandPiano = 2, HonkyTonkPiano = 3,
    ElectricPiano1 = 4, ElectricPiano2 = 5
};

一些基礎方法，包括初始化/關閉設備、設置參數、播放單個音符和播放和弦等。

void initDevice();
void closeDevice();
void setInstrument(int channel, int instrument);
void setVolume(int channel, int volume);

void PlayNote(HMIDIOUT handle, UINT channel, UINT note, UINT velocity);

void playChord(HMIDIOUT handle, UINT channel, UINT note1, UINT note2, UINT note3, UINT note4, UINT velocity);

void playChord(HMIDIOUT handle, UINT channel, UINT note1, UINT note2, UINT note3, UINT velocity);

在MIDIHelper.cpp中：

void initDevice(){
    midiOutOpen(&hMidiOut, 0, 0, 0, CALLBACK_NULL);
}

void closeDevice(){
    midiOutClose(hMidiOut);
}

void setInstrument(int channel,int instrument){
    if (channel > 15 || instrument > 127) return;
    DWORD message = 0xC0 | channel | (instrument << 8);
    midiOutShortMsg(hMidiOut, message);
}

void setVolume(int channel,int volume){
    if (channel > 15 || volume > 127) return;
    DWORD message = 0xB0 | channel | (7 << 8) | (volume << 16);
    midiOutShortMsg(hMidiOut, message);
}

//播放單個音符，note是音符，velocity是力度
void PlayNote(HMIDIOUT handle, UINT channel, UINT note, UINT velocity) {
    if (channel > 15 || note > 127 || velocity > 127) return;
    DWORD message = 0x90 | channel | (note << 8) | (velocity << 16);
    midiOutShortMsg(handle, message);
}

//四指和弦
void playChord(HMIDIOUT handle, UINT channel, UINT note1, UINT note2, UINT note3, UINT note4, UINT velocity){
    if (channel > 15 || note1 > 127 || note2 > 127 || note3 > 127 || note4 > 127 || velocity > 127) return;
    DWORD message1 = 0x90 | channel | (note1 << 8) | (velocity << 16);
    DWORD message2 = 0x90 | channel | (note2 << 8) | (velocity << 16);
    DWORD message3 = 0x90 | channel | (note3 << 8) | (velocity << 16);
    DWORD message4 = 0x90 | channel | (note4 << 8) | (velocity << 16);
    midiOutShortMsg(handle, message1);
    midiOutShortMsg(handle, message2);
    midiOutShortMsg(handle, message3);
    midiOutShortMsg(handle, message4);
}

//三指和弦
void playChord(HMIDIOUT handle, UINT channel, UINT note1, UINT note2, UINT note3, UINT velocity) {
    if (channel > 15 || note1 > 127 || note2 > 127 || note3 > 127 || velocity > 127) return;
    DWORD message1 = 0x90 | channel | (note1 << 8) | (velocity << 16);
    DWORD message2 = 0x90 | channel | (note2 << 8) | (velocity << 16);
    DWORD message3 = 0x90 | channel | (note3 << 8) | (velocity << 16);
    midiOutShortMsg(handle, message1);
    midiOutShortMsg(handle, message2);
    midiOutShortMsg(handle, message3);
}

2. 初始化和結束

先在頭文件中定義一個全局MIDI句柄:

extern HMIDIOUT hMidiOut;

在入口處初始化MIDI設備并在結束時關閉：

HMIDIOUT hMidiOut;
int main() {
    initDevice();
    //...
    closeDevice();
    return 0;
}

初始化MIDI設備之后，為每一個樂器分配一個通道channel（0~15，通常9分配給打擊類樂器,例如鼓組），控制音量volume，然后就可以開始演奏了。

自制簡易樂譜

以Voice.cpp為例,定義一個數組為頻譜，控制停頓和音符，遍歷數組播放：

 namespace SunnyDays{
      int channelVoice=1;
      void playVoice(int note, int velocity){
          PlayNote(hMidiOut, channelVoice, note, velocity);
      }
      void voice(){
         Sleep(13100);//等待前奏
          int sleep = 390;
          int data[] =
                 {
                     //故事的小黃花
                     -90,
                     300,M5,M5,M1,M1,_,M2,M3,_,
                     //從出生那年就飄著
                     -90,
                     M5,M5,M1,M1,0,M2,M3,300,M2,M1,_,
                    //童年的蕩秋千
                     -90,
                     300,M5,M5,M1,M1,_,M2,M3,_,
                     //隨記憶一直晃到現在
                     -90,
                     M3,_,500,M2,M3,M4,M3,M2,M4,M3,700,M2,700,_,
                     //...
                 }
         for (auto i : data) {
            if(i==-30){logTime("Enter chorus");continue;}//調試用
             if(i==-90){NextLyric(); continue;}
             if (i == 0) { sleep = 180; continue; }
             //...
             if (i == _) {
                 Sleep(390);
                 continue;
             }

             playVoice(i, 80);
             Sleep(sleep);
         }
     }
 }

打個鼓：

 namespace SunnyDays{
      int channelBassDrum=9;

      void playDrum(int note, int velocity, int duration){
          PlayNote(hMidiOut, channelBassDrum, note, velocity);
          if(duration>0) {
              Sleep(duration);
              PlayNote(hMidiOut, channelBassDrum, note, 0);
         }
     }

     void bassDrum(){
         Sleep(11260);
         cout<<"Drum Bass Start!"<<endl;
         playDrum(SnareDrum,100,180);
         playDrum(SnareDrum,100,210);
         playDrum(BassDrum, 100, 210);
         playDrum(SnareDrum,100,190);
         playDrum(BassDrum, 100, 210);
         playDrum(SnareDrum,100,200);
         playDrum(SnareDrum,100,200);
         playDrum(OpenHiHat,100,-1);
         Sleep(200);
         //...
     }
 }

簡易副歌和弦，是從B站一位up主那里學的（已經忘記是哪位了qwq）：

 namespace SunnyDays {
      int channelChord=2;
      void chordLevel(int level,int sleep,int repeat=2,int vel=70){
          repeat--;
          int down=8;
        if(level==1){
            //一級和弦 加右指
              playChord(hMidiOut, channelChord, M1, M3, M5, L1, vel);
              while(repeat--) {
               Sleep(sleep);
                playChord(hMidiOut, channelChord, M1, M3, M5, vel - down);
            }
         }else if(level==3){
             //三級和弦 加右指
             playChord(hMidiOut, channelChord, M3, M5, M7, L3, vel);
            while(repeat--) {
                Sleep(sleep);
                playChord(hMidiOut, channelChord, M3, M5, M7, vel - down);
             }
         }
         //...
     }
     void chord(){
         Sleep(63724);
         int sleep=740;
        int data[]={
                //刮風這天 我試過握著你手
                 1,4,
                 6,4,
                //但偏偏 雨漸漸
                 4,2,
                5,2,
                 //大到我看你不見
                 1,4,
                 //還有多久 我才能
                 3,4,
                 //↑ 在你身邊
                 6,4,
                 //↓ 等到放晴的那天
                 4,4,
                 //↑ 也許我會比較好一點
                 5,4,
                 //..
         }
         int count=sizeof(data)/sizeof(int);
        for(int i=0;i<count;i+=2){
             cout<<"chord "<<data[i]<<"  x"<<data[i+1]<<endl;
             chordLevel(data[i],sleep,data[i+1]);
             Sleep(sleep);
         }
         //...
     }
 }

合成演奏

我用了一個笨蛋方法，用多線程單獨控制每一個通道，然后在主線程中調用：

int main(){
      //...
      initDevice();
     //設置音量
      setVolume(channelChord,80);
      setVolume(channelMainLine,80);
      setVolume(channelVoice,120);
      setVolume(channelBassDrum,80);

    //設置樂器（特定音色）
     setInstrument(channelChord,ElectricPiano1);
     setInstrument(channelMainLine,ElectricPiano1);


     system("pause");//按下回車，就開始啦
     beginLogger();


     thread t0(voice);
     thread t1(mainLine);
     thread t2(bassDrum);
     thread t3(chord);
     t0.join();
     t1.join();
     t2.join();
     t3.join();

     closeDevice();
     //...
 }

（最后疊個甲，俺不懂音樂制作，更不會什么C++）
