MyBatis Generator配置生成接口和XML映射文件的實現

 更新時間:2025年02月16日 10:25:46   作者:HaYiBoy
本文介紹了配置MBG以生成Mapper接口和XML映射文件,過合理使用MBG和自定義生成策略,可以有效解決生成的Example類可能帶來的問題,使代碼更加簡潔和易于維護

在使用 MyBatis 進行項目開發時,MyBatis Generator(MBG)是一個非常實用的工具,它能夠根據數據庫表結構自動生成實體類、Mapper 接口以及 XML 映射文件,大大提高了開發效率。本文將詳細介紹如何配置 MyBatis Generator 以生成接口和 XML 映射文件,并對不同的 targetRuntime 風格進行介紹和推薦。

一、環境準備

在開始之前,確保你的項目中已經添加了 MyBatis Generator 的相關依賴。如果你使用的是 Maven 項目,可以在 pom.xml 文件中添加如下依賴:

<dependencies>
    <!-- MyBatis -->
    <dependency>
        <groupId>org.mybatis.spring.boot</groupId>
        <artifactId>mybatis-spring-boot-starter</artifactId>
        <version>2.2.2</version>
    </dependency>
    <!-- MySQL -->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-j</artifactId>
        <version>8.0.33</version>
    </dependency>
</dependencies>
<build>
    <plugins>
        <!-- MyBatis Generator 插件 -->
        <plugin>
            <groupId>org.mybatis.generator</groupId>
            <artifactId>mybatis-generator-maven-plugin</artifactId>
            <version>1.3.5</version>
            <configuration>
                <configurationFile>${basedir}/src/main/resources/generatorConfig.xml</configurationFile>
                <verbose>true</verbose>
                <overwrite>true</overwrite>
            </configuration>
            <dependencies>
                <dependency>
                    <groupId>mysql</groupId>
                    <artifactId>mysql-connector-j</artifactId>
                    <version>8.0.33</version>
                </dependency>
            </dependencies>
        </plugin>
    </plugins>
</build>

二、配置文件詳解

在 src/main/resources 目錄下創建 generatorConfig.xml 配置文件,以下是詳細的配置內容及注釋:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
    <!-- 配置上下文,id 唯一標識,targetRuntime 指定生成代碼的方式,風格 MyBatis3DynamicSql,MyBatis3,MyBatis3Simple,MyBatis3Kotlin -->
    <context id="mysqlTables" targetRuntime="MyBatis3" defaultModelType="flat">
        <!-- 自動檢查關鍵字,為關鍵字增加反引號,如:`type` -->
        <property name="autoDelimitKeywords" value="true"/>
        <property name="beginningDelimiter" value="`"/>
        <property name="endingDelimiter" value="`"/>
        <!-- 指定生成的 Java 文件編碼 -->
        <property name="javaFileEncoding" value="UTF-8"/>
        <!-- 對生成的注釋進行控制 -->
        <commentGenerator>
            <!-- 由于此插件生成的注釋不太美觀,這里設置不生成任何注釋 -->
            <property name="suppressAllComments" value="true"/>
        </commentGenerator>
        <!-- 數據庫鏈接 -->
        <jdbcConnection driverClass="com.mysql.cj.jdbc.Driver"
                        connectionURL="jdbc:mysql://127.0.0.1:3306/your_database"
                        userId="your_username"
                        password="your_password">
            <!-- 解決多個重名的表生成表結構不一致問題 -->
            <property name="nullCatalogMeansCurrent" value="true"/>
        </jdbcConnection>
        <!-- 不強制將所有的數值類型映射為 Java 的 BigDecimal 類型 -->
        <javaTypeResolver>
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>
        <!-- 配置生成實體類的位置和包名 -->
        <javaModelGenerator targetPackage="com.example.model" targetProject="src/main/java"/>
        <!-- 配置生成 XML 映射文件的位置和包名 -->
        <sqlMapGenerator targetPackage="com.example.mapper" targetProject="src/main/resources"/>
        <!-- 配置生成 Mapper 接口的位置和包名,type="XMLMAPPER" 表示生成 XML 映射文件 -->
        <javaClientGenerator type="XMLMAPPER" targetPackage="com.example.mapper" targetProject="src/main/java"/>
        <!-- 配置要生成代碼的表,tableName 指定數據庫中的表名,domainObjectName 指定生成的實體類名 -->
<!-- 要生成對應表配置,若想要生成全部表 使用 tableName="%" 即可 -->
        <!-- 訂單詳情表 -->
        <table tableName="order_detail" domainObjectName="OrderDetail"
               <!-- 不生成Example -->
               enableCountByExample="false"
               enableDeleteByExample="false"
               enableSelectByExample="false"
               enableUpdateByExample="false">
            <!-- 自增主鍵列 -->
            <generatedKey column="id" sqlStatement="MYSQL" identity="true"/>
            <!-- 根據實際需求添加其他列的映射配置 -->
        </table>

    </context>
</generatorConfiguration>

三、生成代碼

在項目根目錄下打開終端,運行以下命令生成代碼:

mvn mybatis-generator:generate

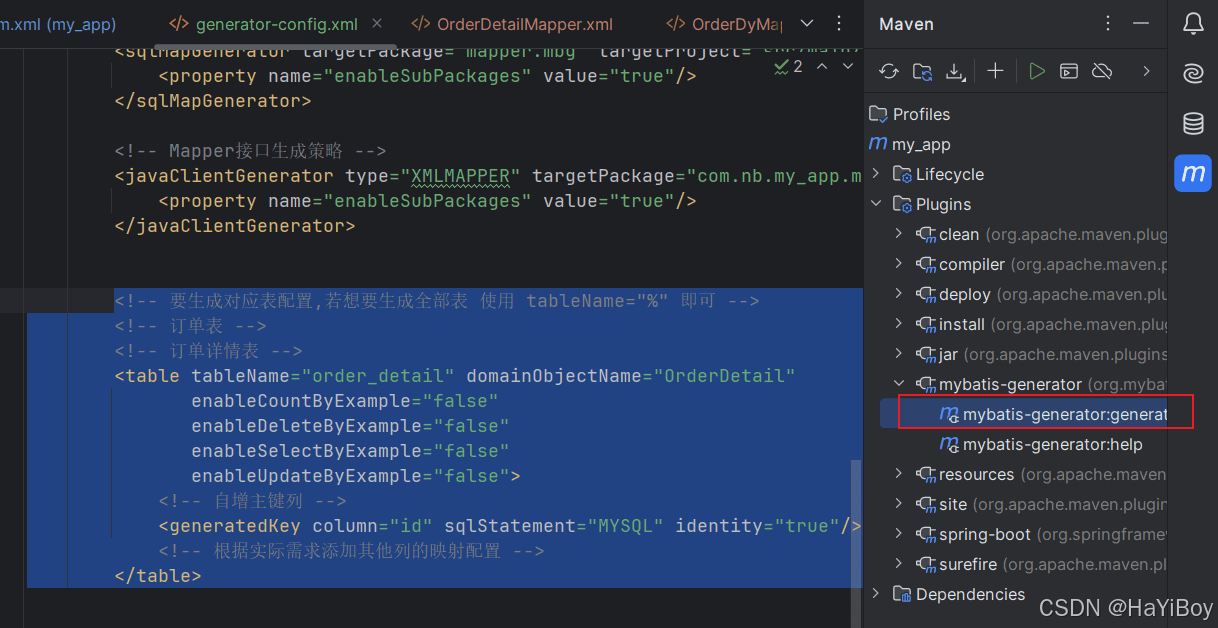

或者點擊 mybatis-generator 組件

運行命令后,MyBatis Generator 會根據 generatorConfig.xml 配置文件生成 Mapper 接口和對應的 XML 映射文件。

四、不同 targetRuntime 風格介紹和推薦

1. MyBatis3

  • 描述:生成兼容 MyBatis 3.x 的代碼。這是最常用的目標,支持 MyBatis 的基礎功能,生成 Example 類、SQL 語句和常規的 Mapper 接口。

  • 使用場景:當使用 MyBatis 3.x 時,這是最常見的選擇。

  • 推薦:如果你的項目需要使用 MyBatis 3.x 的所有功能,包括復雜的查詢和條件類,選擇 MyBatis3 風格是一個不錯的選擇。

2. MyBatis3Simple

  • 描述:生成更加簡化的代碼,省略了 Example 類和其他復雜功能。

  • 使用場景:當項目不需要復雜查詢或額外的功能時,可以選擇該選項,以減少生成的代碼量。

  • 推薦:如果你的項目只需要基本的 CRUD 操作,不需要復雜的查詢條件,選擇 MyBatis3Simple 風格可以減少生成的代碼量,使項目更加簡潔。

3. MyBatis3DynamicSql

  • 描述:生成使用 MyBatis3 風格的動態 SQL 的代碼。該選項支持通過 MyBatis 提供的動態 SQL 功能(如 Example 類、Criteria 和動態 SQL 構建器)生成更加靈活和復雜的 SQL 查詢。

  • 使用場景:如果你需要?jiǎng)討B(tài)生成復雜的 SQL 語句,并使用 MyBatis 3.x 的動態 SQL 構建功能,選擇該選項。

  • 推薦:官方推薦使用 MyBatis3DynamicSql 風格,因?yàn)樗峁┝烁叩撵`活性和更強大的動態 SQL 支持,使用 Lambda 表達式可以避免條件對象滲透到上一層,代碼更加簡潔和易于維護。

4. MyBatis3Kotlin

  • 描述:生成 Kotlin 代碼。

  • 使用場景:如果你的項目使用 Kotlin 語言,可以選擇該選項。

  • 推薦:如果你的項目是基于 Kotlin 開發的,選擇 MyBatis3Kotlin 風格可以生成與 Kotlin 語言兼容的代碼,利用 Kotlin 的語言特性,使代碼更加簡潔和高效。

五、生成的 Example 類及解決辦法

1. 生成的 Example 類

當使用 MyBatis3 風格時,MyBatis Generator 會生成 Example 類,這些類用于構建復雜的查詢條件。例如,生成的 UserExample 類可能如下所示:

package com.example.model;

import java.util.ArrayList;
import java.util.List;

public class UserExample {
    protected String orderByClause;
    protected boolean distinct;
    protected List<Criteria> oredCriteria;

    public UserExample() {
        oredCriteria = new ArrayList<Criteria>();
    }

    public void setOrderByClause(String orderByClause) {
        this.orderByClause = orderByClause;
    }

    public String getOrderByClause() {
        return orderByClause;
    }

    public void setDistinct(boolean distinct) {
        this.distinct = distinct;
    }

    public boolean isDistinct() {
        return distinct;
    }

    public List<Criteria> getOredCriteria() {
        return oredCriteria;
    }

    public void or(Criteria criteria) {
        oredCriteria.add(criteria);
    }

    public Criteria or() {
        Criteria criteria = createCriteriaInternal();
        oredCriteria.add(criteria);
        return criteria;
    }

    public Criteria createCriteria() {
        Criteria criteria = createCriteriaInternal();
        if (oredCriteria.size() == 0) {
            oredCriteria.add(criteria);
        }
        return criteria;
    }

    protected Criteria createCriteriaInternal() {
        Criteria criteria = new Criteria();
        return criteria;
    }

    public void clear() {
        oredCriteria.clear();
        orderByClause = null;
        distinct = false;
    }

    protected abstract static class GeneratedCriteria {
        protected List<Criterion> criteria;

        protected GeneratedCriteria() {
            super();
            criteria = new ArrayList<Criterion>();
        }

        public boolean isValid() {
            return criteria.size() > 0;
        }

        public List<Criterion> getAllCriteria() {
            return criteria;
        }

        public List<Criterion> getCriteria() {
            return criteria;
        }

        protected void addCriterion(String condition) {
            if (condition == null) {
                throw new RuntimeException("Value for condition cannot be null");
            }
            criteria.add(new Criterion(condition));
        }

        protected void addCriterion(String condition, Object value, String property) {
            if (value == null) {
                throw new RuntimeException("Value for " + property + " cannot be null");
            }
            criteria.add(new Criterion(condition, value));
        }

        protected void addCriterion(String condition, Object value1, Object value2, String property) {
            if (value1 == null || value2 == null) {
                throw new RuntimeException("Between values for " + property + " cannot be null");
            }
            criteria.add(new Criterion(condition, value1, value2));
        }

        public Criteria andIdIsNull() {
            addCriterion("id is null");
            return (Criteria) this;
        }

        public Criteria andIdIsNotNull() {
            addCriterion("id is not null");
            return (Criteria) this;
        }

        public Criteria andIdEqualTo(Integer value) {
            addCriterion("id =", value, "id");
            return (Criteria) this;
        }

        // 其他條件方法...
    }

    public static class Criteria extends GeneratedCriteria {

        protected Criteria() {
            super();
        }
    }

    public static class Criterion {
        private String condition;
        private Object value;
        private Object secondValue;
        private boolean noValue;
        private boolean singleValue;
        private boolean betweenValue;
        private boolean listValue;
        private String typeHandler;

        public String getCondition() {
            return condition;
        }

        public Object getValue() {
            return value;
        }

        public Object getSecondValue() {
            return secondValue;
        }

        public boolean isNoValue() {
            return noValue;
        }

        public boolean isSingleValue() {
            return singleValue;
        }

        public boolean isBetweenValue() {
            return betweenValue;
        }

        public boolean isListValue() {
            return listValue;
        }

        public String getTypeHandler() {
            return typeHandler;
        }

        protected Criterion(String condition) {
            super();
            this.condition = condition;
            this.noValue = true;
        }

        protected Criterion(String condition, Object value, String typeHandler) {
            super();
            this.condition = condition;
            this.value = value;
            this.typeHandler = typeHandler;
            if (value instanceof List<?>) {
                this.listValue = true;
            } else {
                this.singleValue = true;
            }
        }

        protected Criterion(String condition, Object value) {
            this(condition, value, null);
        }

        protected Criterion(String condition, Object value, Object secondValue, String typeHandler) {
            super();
            this.condition = condition;
            this.value = value;
            this.secondValue = secondValue;
            this.typeHandler = typeHandler;
            this.betweenValue = true;
        }

        protected Criterion(String condition, Object value, Object secondValue) {
            this(condition, value, secondValue, null);
        }
    }
}

2. 問題及解決辦法

問題 1:Example 類過于復雜,導致代碼冗余

解決辦法

  • 使用 MyBatis3Simple 風格:如果你的項目不需要復雜的查詢條件,可以選擇 MyBatis3Simple 風格,這樣可以避免生成 Example 類,減少代碼冗余。

  • 自定義生成策略:如果你仍然需要使用 MyBatis3 風格,但希望減少 Example 類的復雜性,可以通過自定義生成策略來簡化 Example 類。例如,可以修改 generatorConfig.xml 文件中的 <commentGenerator> 配置,減少生成的注釋和不必要的代碼。

問題 2:Example 類的使用導致代碼可讀性差

解決辦法

  • 使用 Lambda 表達式:在 MyBatis3DynamicSql 風格中,可以使用 Lambda 表達式來構建查詢條件,使代碼更加簡潔和易于理解。例如:

List<User> users = userMapper.selectMany(SelectStatementProvider.builder()
    .select(UserDynamicSqlSupport.id, UserDynamicSqlSupport.name, UserDynamicSqlSupport.email)
    .from(UserDynamicSqlSupport.user)
    .where(UserDynamicSqlSupport.name, isEqualTo("張三"))
    .build());
  • 封裝查詢條件:可以封裝查詢條件的構建邏輯,使代碼更加模塊化和易于維護。例如,可以創建一個查詢條件構建器類,將復雜的查詢條件封裝起來:

public class UserQuery {
    private UserExample example;

    public UserQuery() {
        this.example = new UserExample();
    }

    public UserQuery idIsNull() {
        example.createCriteria().andIdIsNull();
        return this;
    }

    public UserQuery idIsNotNull() {
        example.createCriteria().andIdIsNotNull();
        return this;
    }

    public UserQuery idEqualTo(Integer id) {
        example.createCriteria().andIdEqualTo(id);
        return this;
    }

    // 其他條件方法...

    public UserExample build() {
        return example;
    }
}

// 使用封裝的查詢條件構建器
List<User> users = userMapper.selectByExample(new UserQuery().idEqualTo(1).build());

六、總結

通過以上步驟,我們成功配置了 MyBatis Generator 以生成接口和 XML 映射文件。在實際開發中,合理使用 MyBatis Generator 可以顯著提高開發效率,減少手動編寫重復代碼的工作量。不同的 targetRuntime 風格各有優缺點,根據項目的具體需求選擇合適的風格可以更好地滿足開發需求。

生成的 Example 類雖然功能強大,但也可能導致代碼冗余和可讀性差。通過選擇合適的風格或自定義生成策略,可以有效解決這些問題,使代碼更加簡潔和易于維護。

到此這篇關于MyBatis Generator配置生成接口和XML映射文件的實現的文章就介紹到這了,更多相關MyBatis Generator 生成接口和XML映射文件內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!

相關文章

  • Springboot中@Value失效問題

    Springboot中@Value失效問題

    這篇文章主要介紹了Springboot中@Value失效問題,具有很好的參考價值,希望對大家有所幫助,如有錯誤或未考慮完全的地方,望不吝賜教
    2024-11-11
  • SpringCloud Alibaba項目實戰之nacos-server服務搭建過程

    SpringCloud Alibaba項目實戰之nacos-server服務搭建過程

    Nacos 是阿里巴巴推出來的一個新開源項目,這是一個更易于構建云原生應用的動態服務發現、配置管理和服務管理平臺。本章節重點給大家介紹SpringCloud Alibaba項目實戰之nacos-server服務搭建過程,感興趣的朋友一起看看吧
    2021-06-06
  • java.lang.OutOfMemoryError: Metaspace異常解決的方法

    java.lang.OutOfMemoryError: Metaspace異常解決的方法

    這篇文章主要介紹了java.lang.OutOfMemoryError: Metaspace異常解決的方法,文中通過示例代碼介紹的非常詳細,對大家的學習或者工作具有一定的參考學習價值,需要的朋友們下面隨著小編來一起學習學習吧
    2021-03-03
  • socket編程時的發送與接收數據時的問題解析

    socket編程時的發送與接收數據時的問題解析

    這篇文章主要為大家介紹了socket編程時的發送與接收數據時的問題解析,有需要的朋友可以借鑒參考下,希望能夠有所幫助,祝大家多多進步,早日升職加薪
    2023-06-06
  • java實現播放背景音樂

    java實現播放背景音樂

    這篇文章主要為大家詳細介紹了java實現播放背景音樂,文中示例代碼介紹的非常詳細,具有一定的參考價值,感興趣的小伙伴們可以參考一下
    2021-03-03
  • Java文件操作之序列化與對象處理流詳解

    Java文件操作之序列化與對象處理流詳解

    這篇文章主要為大家詳細介紹了Java文件操作中的序列化與對象處理流,文中的示例代碼講解詳細,感興趣的小伙伴可以跟隨小編一起學習一下
    2022-09-09
  • SpringBoot統一返回結果問題

    SpringBoot統一返回結果問題

    這篇文章主要介紹了SpringBoot統一返回結果問題,具有很好的參考價值,希望對大家有所幫助。如有錯誤或未考慮完全的地方,望不吝賜教
    2023-07-07
  • Spring boot 在idea中添加熱部署插件的圖文教程

    Spring boot 在idea中添加熱部署插件的圖文教程

    這篇文章主要介紹了Spring boot 在idea中添加熱部署插件的圖文教程,本文通過圖文并茂的形式給大家展示具體步驟,對大家的學習或工作具有一定的參考借鑒價值,需要的朋友可以參考下
    2021-10-10
  • @Autowired與@Resource在實現對象注入時的區別

    @Autowired與@Resource在實現對象注入時的區別

    這篇文章主要介紹了@Autowired與@Resource在實現對象注入時的區別,有需要的朋友可以借鑒參考下,希望能夠有所幫助
    2023-04-04
  • 淺談JDK7和JDK8的區別在哪

    淺談JDK7和JDK8的區別在哪

    面試總是遇到這個問題,做一個小總結,文中有非常詳細的介紹,對正在學習java的小伙伴們很有幫助,需要的朋友可以參考下
    2021-06-06

最新評論
