springboot + elasticsearch 實現聚合查詢的詳細代碼

更新時間：2025年02月17日 14:28:47 作者：筆墨登場說說

文章介紹了如何在Spring Boot 2.2.6中使用Elasticsearch進行聚合查詢,重點在于通過API創建索引和映射,而不是使用Spring Data Elasticsearch的自動創建功能,文章還提到在創建映射時,Elasticsearch會自動為keyword類型添加keyword屬性,感興趣的朋友一起看看吧

需求背景：

終端上報表讀數 記錄在elasticsearch

統計每天最大值最小值

springboot版本：2.2.6

默認的elasticsearch

 <groupId>org.springframework.data</groupId>
      <artifactId>spring-data-elasticsearch</artifactId>
      <version>3.2.6.RELEASE</version>

版本 elasticsearch

{
  "name" : "node1",
  "cluster_name" : "docker-cluster",
  "cluster_uuid" : "Lg0bD-E-Thuaw4cDN5uQrQ",
  "version" : {
    "number" : "7.4.2",
    "build_flavor" : "default",
    "build_type" : "tar",
    "build_hash" : "2f90bbf7b93631e52bafb59b3b049cb44ec25e96",
    "build_date" : "2019-10-28T20:40:44.881551Z",
    "build_snapshot" : false,
    "lucene_version" : "8.2.0",
    "minimum_wire_compatibility_version" : "6.8.0",
    "minimum_index_compatibility_version" : "6.0.0-beta1"
  },
  "tagline" : "You Know, for Search"
}

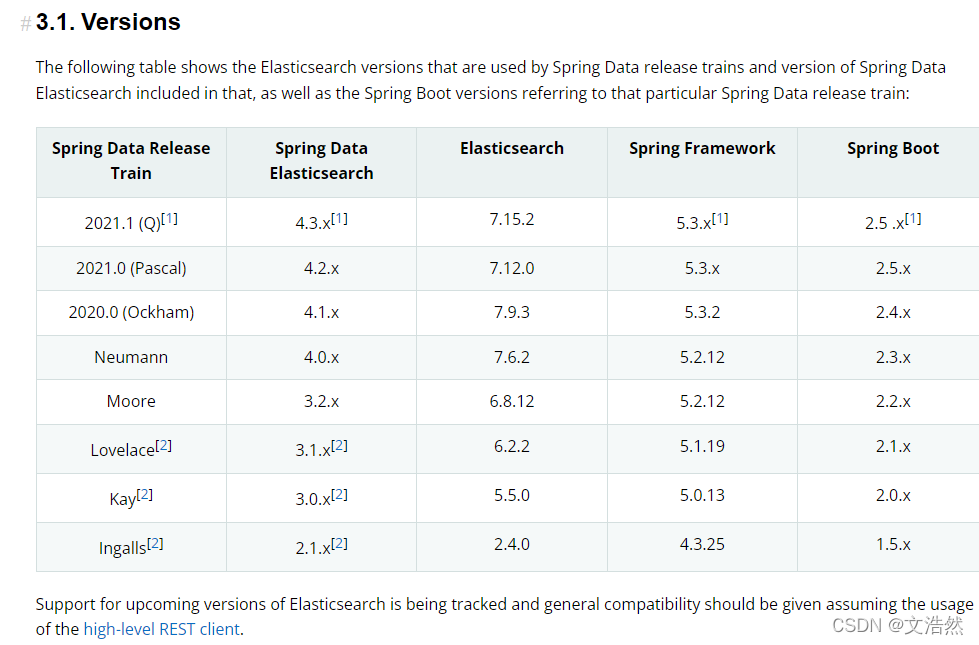

根據springdata官網

Spring Data Elasticsearch - Reference Documentation

版本符合

這里為了方便采用的是 api創建索引

切記這里沒有采用spring-data 去創建索引而是采用的是 api 接口創建原因后面再提

    @PutMapping("/createIndex")
    @ApiOperation(value = "創建索引")
    public R<Object> createIndex() {
        boolean index = elasticsearchRestTemplate.createIndex(DataUploadInfo.class);
        elasticsearchRestTemplate.putMapping(DataUploadInfo.class);
        return R.success();
    }


import io.swagger.annotations.ApiModelProperty;
import lombok.Data;
import org.springframework.data.annotation.Id;
import org.springframework.data.annotation.TypeAlias;
import org.springframework.data.elasticsearch.annotations.DateFormat;
import org.springframework.data.elasticsearch.annotations.Document;
import org.springframework.data.elasticsearch.annotations.Field;
import org.springframework.data.elasticsearch.annotations.FieldType;
/**
 *  {
 *   "busId": "1000010814",
 *   "createTime": 1649408879000,
 *   "deviceNum": "AE0007A1GMBC00047P",
 *   "gunNo": "1",
 *   "rdChargeCurrent": 5.617,
 *   "rdChargingPower": 1220.0,
 *   "rdChargingVoltage": 225.11,
 *   "totalElectricalPower": 270305.0
 * }
 *
 *
 *
 * @Field(type=FieldType.Text, analyzer=“ik_max_word”) 表示該字段是一個文本，并作最大程度拆分，默認建立索引
 * @Field(type=FieldType.Text,index=false) 表示該字段是一個文本，不建立索引
 * @Field(type=FieldType.Date) 表示該字段是一個文本，日期類型，默認不建立索引
 * @Field(type=FieldType.Long) 表示該字段是一個長整型，默認建立索引
 * @Field(type=FieldType.Keyword) 表示該字段內容是一個文本并作為一個整體不可分，默認建立索引
 * @Field(type=FieldType.Float) 表示該字段內容是一個浮點類型并作為一個整體不可分，默認建立索引
 * <p>
 * date 、float、long都是不能夠被拆分的
 */
@Data
@Document(indexName = "charging-monitor-data", indexStoreType = "_doc", useServerConfiguration = true, createIndex = false)
@TypeAlias("_doc")
public class DataUploadInfo {
    /**
     * 主鍵
     */
    @Id
    @ApiModelProperty(value = "主鍵", example = "11", hidden = true)
    private String id;
    @ApiModelProperty(value = "槍號", example = "1")
    @Field(type = FieldType.Keyword )
    private String gunNo;
    @ApiModelProperty(value = "樁號", example = "DG1120B1CN1C000125")
    @Field(type = FieldType.Keyword)
    private String deviceNum;
    @ApiModelProperty(value = "流水ID", example = "AU22188888888888")
    @Field(type = FieldType.Keyword )
    private String busId;
    @ApiModelProperty(value = "充電電流（毫安）", example = "21.21")
    @Field(type = FieldType.Double, index = false)
    private Double rdChargeCurrent;
    @ApiModelProperty(value = "充電電壓(毫伏)", example = "212.21")
    @Field(type = FieldType.Double, index = false)
    private Double rdChargingVoltage;
    @ApiModelProperty(value = "充電電能（瓦）", example = "212.21")
    @Field(type = FieldType.Double, index = false)
    private Double rdChargingPower;
    @ApiModelProperty(value = "剩余時間（分鐘）", example = "21")
    @Field(type = FieldType.Integer, index = false)
    private Integer rdTimeLeft;
    @ApiModelProperty(value = "電量百分比", example = "29")
    @Field(type = FieldType.Integer, index = false)
    private Integer rdCurrentSoc;
    @ApiModelProperty(value = "電表讀數 單位kwh 保留三位小數,啟動成功時才有", example = "2.292")
    @Field(type = FieldType.Double, index = false)
    private Double totalElectricalPower;
    @ApiModelProperty(value = "正極溫度", example = "22")
    @Field(type = FieldType.Integer, index = false)
    private Integer gunPositiveTemperature;
    @ApiModelProperty(value = "負極溫度", example = "83")
    @Field(type = FieldType.Integer, index = false)
    private Integer gunNegativeTemperature;
    @ApiModelProperty(value = "電量上報時間", example = "1648646486000")
    @Field(type = FieldType.Date, format = DateFormat.custom, pattern = "yyyy-MM-dd HH:mm:ss||yyyy-MM-dd||epoch_millis")
    private Long createTime;
}

這里是創建映射的Java文件注意配置 createIndex = false

這里不自動創建索引

我們調用上面的rest 接口創建索引

查看_mapping 會發現

{
-"charging-monitor-data": {
-"mappings": {
-"properties": {
-"busId": {
"type": "keyword"
},
-"createTime": {
"format": "yyyy-MM-dd HH:mm:ss||yyyy-MM-dd||epoch_millis",
"type": "date"
},
-"deviceNum": {
"type": "keyword"
},
-"gunNegativeTemperature": {
"index": false,
"type": "integer"
},
-"gunNo": {
"type": "keyword"
},
-"gunPositiveTemperature": {
"index": false,
"type": "integer"
},
-"id": {
-"fields": {
-"keyword": {
"ignore_above": 256,
"type": "keyword"
}
},
"type": "text"
},
-"rdChargeCurrent": {
"index": false,
"type": "double"
},
-"rdChargingPower": {
"index": false,
"type": "double"
},
-"rdChargingVoltage": {
"index": false,
"type": "double"
},
-"rdCurrentSoc": {
"index": false,
"type": "integer"
},
-"rdTimeLeft": {
"index": false,
"type": "integer"
},
-"totalElectricalPower": {
"index": false,
"type": "double"
}
}
}
}
}

keyword類型會增加keyword屬性而不是直接增加到我定義gunNegativeTemperature的屬性下面

"pojo里面定義的屬性": {
   -"fields": {
     -"keyword": {
        "ignore_above": 256,
        "type": "keyword"
      }
    },
   "type": "text"
}

下面按照樁槍做每日電表的最大最小值

上代碼


import com.haoran.cloud.app.monitor.entity.DataUploadInfo;
import com.haoran.cloud.app.monitor.ocpp.OcppResult;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.extern.log4j.Log4j2;
import org.elasticsearch.index.query.BoolQueryBuilder;
import org.elasticsearch.index.query.QueryBuilders;
import org.elasticsearch.search.aggregations.Aggregation;
import org.elasticsearch.search.aggregations.AggregationBuilders;
import org.elasticsearch.search.aggregations.Aggregations;
import org.elasticsearch.search.aggregations.bucket.terms.ParsedStringTerms;
import org.elasticsearch.search.aggregations.bucket.terms.Terms;
import org.elasticsearch.search.aggregations.bucket.terms.TermsAggregationBuilder;
import org.elasticsearch.search.aggregations.metrics.max.MaxAggregationBuilder;
import org.elasticsearch.search.aggregations.metrics.max.ParsedMax;
import org.elasticsearch.search.aggregations.metrics.min.MinAggregationBuilder;
import org.elasticsearch.search.aggregations.metrics.min.ParsedMin;
import org.joda.time.DateTime;
import org.springframework.data.elasticsearch.core.ElasticsearchRestTemplate;
import org.springframework.data.elasticsearch.core.query.NativeSearchQuery;
import org.springframework.data.elasticsearch.core.query.NativeSearchQueryBuilder;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.*;
import javax.annotation.Resource;
import java.text.DateFormat;
import java.text.ParseException;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.List;
import java.util.Map;
/**
 * @author wenhaoran
 * @version 1.0
 */
@RestController
@RequestMapping("/test")
@Api(value = "test", tags = "test")
@Log4j2
@Validated
public class PileMonitorController1 {
    /**
     * @return
     */
    @GetMapping("/dailySummaryEnergy")
    @ApiOperation(value = "每日電力匯總")
    public OcppResult<Object> dailySummaryEnergy() throws ParseException {
        BoolQueryBuilder queryBuilder = QueryBuilders.boolQuery();
        DateTime now = DateTime.now();
        DateTime plus = now.plusDays(1);
        String fromDateStr = df.format(now.toDate());
        Date fromDate = df.parse(fromDateStr);
        String toDateStr = df.format(plus.toDate());
        Date toDate = df.parse(toDateStr);
        queryBuilder.must(QueryBuilders.rangeQuery("createTime").gte(fromDate.getTime()).lt(toDate.getTime()));
        NativeSearchQueryBuilder nativeSearchQueryBuilder = new NativeSearchQueryBuilder().withQuery(queryBuilder);
        TermsAggregationBuilder pile = AggregationBuilders.terms("group_deviceNum").field("deviceNum");
        TermsAggregationBuilder gun = AggregationBuilders.terms("group_gunNo").field("gunNo");
        MinAggregationBuilder minNumber = AggregationBuilders.min("minNumber").field("totalElectricalPower");
        MaxAggregationBuilder maxNumber = AggregationBuilders.max("maxNumber").field("totalElectricalPower");
        gun.subAggregation(minNumber).subAggregation(maxNumber);
        pile.subAggregation(gun);
        nativeSearchQueryBuilder.addAggregation(pile);
        NativeSearchQuery nativeSearchQuery = nativeSearchQueryBuilder.build();
        Aggregations query = elasticsearchRestTemplate.query(nativeSearchQuery, searchResponse -> searchResponse.getAggregations());
        Map<String, Aggregation> stringAggregationMap = query.asMap();
        ParsedStringTerms stringTerms = (ParsedStringTerms) stringAggregationMap.get("group_deviceNum");
        List<? extends Terms.Bucket> buckets = stringTerms.getBuckets();
        for (Terms.Bucket bucket : buckets) {
            Map<String, Aggregation> pileMap = bucket.getAggregations().asMap();
            ParsedStringTerms gunAgg = (ParsedStringTerms) pileMap.get("group_gunNo");
            List<? extends Terms.Bucket> gunBucketList = gunAgg.getBuckets();
            for (Terms.Bucket gunBucket : gunBucketList) {
                Aggregations aggregations = gunBucket.getAggregations();
                Map<String, Aggregation> asMap = aggregations.getAsMap();
                if (asMap.containsKey("minNumber")) {
                    ParsedMin aggregation = (ParsedMin) asMap.get("minNumber");
                    System.out.println("minNumber=" + aggregation.getValue());
                }
                if (asMap.containsKey("maxNumber")) {
                    ParsedMax aggregation = (ParsedMax) asMap.get("maxNumber");
                    System.out.println("maxNumber=" + aggregation.getValue());
                }
            }
        }
        return OcppResult.success("success");
    }
    @DeleteMapping("/deleteIndex")
    @ApiOperation(value = "刪除索引")
    public OcppResult<Object> deleteIndex() {
        elasticsearchRestTemplate.deleteIndex(DataUploadInfo.class);
        return OcppResult.success();
    }
    @PutMapping("/createIndex")
    @ApiOperation(value = "創建索引")
    public OcppResult<Object> createIndex() {
        boolean index = elasticsearchRestTemplate.createIndex(DataUploadInfo.class);
        elasticsearchRestTemplate.putMapping(DataUploadInfo.class);
        return OcppResult.success();
    }
    final DateFormat df = new SimpleDateFormat("yyyy-MM-dd");
    @Resource
    private ElasticsearchRestTemplate elasticsearchRestTemplate;
}

到此這篇關于springboot + elasticsearch 實現聚合查詢的文章就介紹到這了,更多相關springboot elasticsearch聚合查詢內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
