MyBatis與其使用方法示例詳解

更新時間：2025年03月07日 08:55:48 作者：ihav2carryon

MyBatis是一個支持自定義SQL的持久層框架,通過XML文件實現SQL配置和數據映射,簡化了JDBC代碼的編寫,本文給大家介紹MyBatis與其使用方法講解,感興趣的朋友一起看看吧

ORM

在講解Mybatis之前,我們需了解一個概念ORM(Object-Relational Mapping)對象關系映射,其是數據庫與Java對象進行映射的一個技術.通過使用ORM,我們可以不用編寫負責的Sql語句,而是通過操作對象來實現增刪改查操作

缺優分析

優點
- 提高開發效率,減少代碼的重復性和維護成本
- 增加代碼的可讀性,降低復雜度
- 對數據庫查詢的細節進行抽象,隱藏了sql語句
缺點
- 在進行多表聯查時,或存在where條件時,ORM語句會變得復雜

MyBatis

mybatis是一個支持自定義SQL的持久層框架,通過XML文件來實現SQL配置和數據映射,MyBatis允許開發者手動編寫SQL語句,提高靈活性

Mybatis通過mapper文件,將sql查詢和Java對象綁定到一起,簡化了JDBC代碼的編寫,手動設置參數,獲取結果集的工作

MyBatis的工作流程

其分為以下幾步

MyBatis的基本使用

環境準備

引入依賴包:

<!--springboot的mybatis >
<dependency>
		<groupId>org.mybatis.spring.boot</groupId>
		<artifactId>mybatis-spring-boot-starter</artifactId>
		<version>3.0.3</version>
</dependency>
<!-- MySQL 連接器 -->
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>8.0.23</version>
</dependency>

創建mybatis配置文件(mybatis-config.xml)

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <!-- mybatis環境 -->
    <environments default="mysql">
        <environment id="mysql">
            <!-- 配置事務的類型 -->
            <transactionManager type="JDBC"></transactionManager>
            <!-- 配置數據源（連接池） -->
            <dataSource type="POOLED">
                <property name="driver" value="com.mysql.cj.jdbc.Driver"/>
                <property name="url" value="jdbc:mysql://localhost:3306/數據庫名稱?userSSL=false&amp;serverTimezone=Asia/Shanghai"/>
                <property name="username" value="帳號"/>
                <property name="password" value="密碼"/>
            </dataSource>
        </environment>
    </environments>
    <!-- mybatis映射配置位置 -->
    <!-- 按模塊映射不同的配置文件，讓配置文件看起來更簡潔 -->
    <mappers>
        <mapper resource="映射配置文件全路徑"></mapper>
    </mappers>
</configuration>

springboot中的application.yml

mybatis:
  # mapper配置文件
  mapper-locations: classpath:mapper/*.xml
  # resultType別名，沒有這個配置resultType包名要寫全，配置后只要寫類名
  type-aliases-package: com.mashang.xiaomistore.domain
  configuration:
    #下劃線自動轉駝峰
    map-underscore-to-camel-case: true

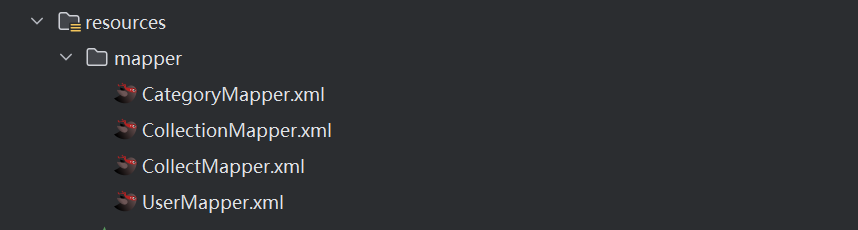

創建Mapper映射文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.company.mapper.StudentMapper">
    <select id="queryAll" resultType="com.company.entity.Student">
        SELECT * FROM student
    </select>
</mapper>

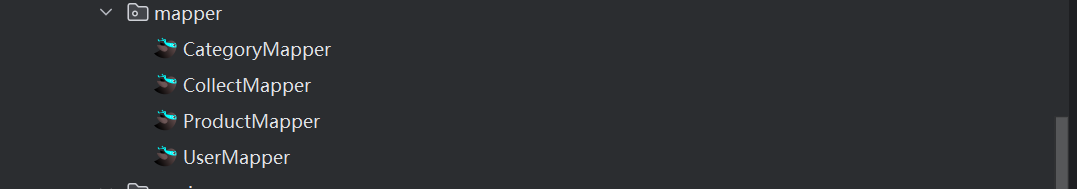

創建Mapper接口:

public interface StudentMapper {
    List<Student> queryAll();
}

MyBatis日志配置

引入SpringBoot中的log4j

<!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-log4j2 -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-log4j2</artifactId>
    <version>3.4.3</version>
</dependency>

在SpringBoot中在application.yml中mybatis配置項中進行配置

mybatis:
  configuration:
    log-impl: org.apache.ibatis.logging.log4j.Log4jImpl

配置log4j.properties文件

### 設置###
log4j.rootLogger = debug,stdout,D,E
### 輸出信息到控制抬 ###
log4j.appender.stdout = org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target = System.out
log4j.appender.stdout.layout = org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern = [%-5p] %d{yyyy-MM-dd HH:mm:ss,SSS} method:%l%n%m%n
### 輸出DEBUG 級別以上的日志到=D://logs/error.log ###
log4j.appender.D = org.apache.log4j.DailyRollingFileAppender
log4j.appender.D.File = D://logs/log.log
log4j.appender.D.Append = true
log4j.appender.D.Threshold = DEBUG
log4j.appender.D.layout = org.apache.log4j.PatternLayout
log4j.appender.D.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss}  [ %t:%r ] - [ %p ]  %m%n
### 輸出ERROR 級別以上的日志到=D://logs/error.log ###
log4j.appender.E = org.apache.log4j.DailyRollingFileAppender
log4j.appender.E.File =D://logs/error.log
log4j.appender.E.Append = true
log4j.appender.E.Threshold = ERROR
log4j.appender.E.layout = org.apache.log4j.PatternLayout
log4j.appender.E.layout.ConversionPattern = %-d{yyyy-MM-dd HH:mm:ss}  [ %t:%r ] - [ %p ]  %m%n

一個基本的mybatis的XML模板如下

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
    "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.mapper.UserMapper">
    <!-- CRUD 配置 -->
</mapper>

CURD實現

select查詢

使用<select>標簽實現基本查詢

<select id ="getUserById" resultType="com.company.domain.entity.User">
		SELECT * FORM user
</select>

id:對應Mapper接口中的方法名,必須一致
resultType:指定返回結果映射到哪個Java類
傳參#{}與${}的區別
- #{}的特點
  - 事先進行預編譯:使用#{}的參數會被Mybatis當作JDBC中的?占位符
  - 防止sql注入:由于會事先進行預編譯,Mybatis能夠防止Sql注入
  - 類型轉換:會根據參數類型進行適當?shù)念愋娃D(zhuǎn)換
- ${}的特點
  - 字符串拼接:&{}直接將字符串進行替換,相當于在Sql中直接拼接傳入的參數
  - 存在sql注入的風險:沒有預編譯,會引發sql注入問題

多條件查詢

<select id="getUserByNameAndAge" resultType="User">
    SELECT * FROM user
    WHERE name = #{name} AND age = #{age}
</select>

模糊查詢

<select>
        SELECT *
        FROM user
        WHERE name LIKE CONCAT('%', #{name}, '%')
</select>

使用LIKE關鍵字和CONCAT()函數進行查詢

insert插入

使用<insert>標簽實現基本插入操作

    <insert id="insertUser" parameterType="User">
        INSERT INTO user(name, age)
        VALUES (#{name}, #{age})
    </insert>

parameterType:表示入?yún)㈩愋?/li>

實現回填自增主鍵

<insert id="insertUser" useGeneratedKeys="true" keyProperty="id">
    INSERT INTO user (name, age)
    VALUES (#{name}, #{age})
</insert>

使用userGeneratedKeys和keyProperty實現
userGeneratedKeys:表示是否啟動自增
keyProperty:表示將生成的主鍵賦值給哪個java對象的哪個屬性如user.id

update更新

使用<update>標簽實現基本更新

 <update id="updateUser" parameterType="User">
        UPDATE user
        SET name=#{name},
            age =#{age}
        WHERE id = #{id}
    </update>

delete刪除

使用<delete>標簽基本查詢

    <delete id="deleteUserById" parameterType="Integer">
        DELETE
        FROM user
        WHERE id = #{id}
    </delete>

傳參方式

多參數傳參(使用@Param)

<select id="getUserByNameAndAge" resultType="User">
    SELECT * FROM user
    WHERE name = #{name} AND age = #{age}
</select>

    User getUserByNameAndAge(
            @Param("name") String name,
            @Param("age") Integer age);

當方法有多個參數時,使用@Param注解明確參數名
Mapper接口

對象參數

<insert id="insertUser" parameterType="User">
    INSERT INTO user (name, age)
    VALUES (#{name}, #{age})
</insert>

void insertUser(User user);

當參數為一個Java對象時,MyBatis自動將對象屬性映射到Sql語句中的占位符
#{name}對應user.name,#{age}對應user.age
Mapper接口

Map參數

<select id="getUserByMap" resultType="User">
    SELECT * FROM user
    WHERE name = #{name} AND age = #{age}
</select>

User getUserByMap(Map<String, Object> params);

通過Map傳遞多個參數或動態參數
Mapper接口

集合/數組參數

<select id="getUsersByIds" resultType="User">
    SELECT * FROM user
    WHERE id IN
    <foreach collection="ids" item="id" open="(" separator="," close=")">
        #{id}
    </foreach>
</select>

List<User> getUsersByIds(@Param("ids") List<Integer> ids);

適用于批量查詢,比如WHERE id IN (…)
<foreach>是動態sql中的知識點等下會系統講解
Mapper接口

動態sql

與標簽

<where>:生成WHERE子句,并自動判斷去掉開頭多余的AND/OR關鍵字,使sql更簡潔
<if>:用于判斷傳參條件,根據條件決定是否拼接某段SQL語句,適用于傳參條件不固定,只有在滿足條件時接入某個子串

<select id="getUserByCondition" resultType="User">
    SELECT * FROM user
    <where>
        <if test="name != null and name != ''">
            AND name LIKE CONCAT('%', #{name}, '%')
        </if>
        <if test="age != null">
            AND age = #{age}
        </if>
    </where>
</select>

當name為非空,會添加AND name LIKE CONCAT('%', #{name}, '%') 當age為非空時會添加 AND age = #{age}
結合標簽使用,能自動處理首個AND,使得SQL語句正確
其作用在于動態拼接SQL片段前添加或去除特點字符,比如前綴,后綴,以及多余的分隔符如,
常用于INSERT和UPDATE語句,避免出現多余逗號

INSERT語句

<insert id="insertUserSelective" parameterType="User">
    INSERT INTO user
    <trim prefix="(" suffix=")" suffixOverrides=",">
        <if test="name != null">name,</if>
        <if test="age != null">age,</if>
        <if test="email != null">email,</if>
    </trim>
    VALUES
    <trim prefix="(" suffix=")" suffixOverrides=",">
        <if test="name != null">#{name},</if>
        <if test="age != null">#{age},</if>
        <if test="email != null">#{email},</if>
    </trim>
</insert>

標簽包裹字段列表和對應值部分
suffixOverrides=”,” 表示自動去除多余的逗號,確保sql語法正確

UPDATE語句

<set>標簽是<trim>的特性化

<update id="updateUserDynamic" parameterType="User">
    UPDATE user
    <set>
        <if test="name != null">name = #{name},</if>
        <if test="age != null">age = #{age},</if>
        <if test="email != null">email = #{email},</if>
    </set>
    WHERE id = #{id}
</update>

<set>標簽內部原理類似<trim>,會自動去除多余逗號
<foreach>用于遍歷集合,數組和Map,常用于批量操作或動態生成IN子句
其主要屬性
- collection:集合或數組名稱(可用@Param()指定對應名稱,默認為list或array)
- item:循環時每個元素的別名
- open:循環生成sql片段的前綴
- separator:循環時的分隔符
- close:循環生成sql片段的后綴

<select id="getUsersByIds" resultType="User">
    SELECT * FROM user
    <where>
        <if test="ids != null">
            AND id IN
            <foreach collection="ids" item="id" open="(" separator="," close=")">
                #{id}
            </foreach>
        </if>
    </where>
</select>

當ids不為null時,進入<if test="ids != null">生成的sql片段為 SELECT * FROM AND WHERE id IN(#{id},#{id},…)
其中標簽遍歷集合ids,用逗號進行分隔,并在開頭添加(括號,結尾添加)括號
最終標簽會去除第一個AND,使sql合法SELECT * FROM id WHERE IN(#{id},#{id},…)

MyBatis的映射

基本映射

用于單一的字段對應

假設有一個user表,其中有字段id,name,age其在Java中有個簡單的對應類User,其屬性分別也是id,name,age那么在Mapper.xml進行select查詢時

SELECT id, name, age FROM user WHERE id = #{id}

MyBatis會將查詢的結果中每一列值自動賦值給User對象中相同的屬性
- 數據庫列表的id→User對象的id
- 數據庫列表的name→User對象的name
- 數據庫列表的age→User對象的age

這樣可能就會出現一種情況,數據庫列表的列名與對象的屬性名不一致,通常使用開啟駝峰轉換來解決→在application.yml的mybatis配置中添加如下配置:

mybatis:
    map-underscore-to-camel-case: true

一對一映射

當查詢中需要查詢一個對象時

現假設,數據庫有兩張表一個user(用戶)表,另一個user_detail(用戶詳細信息)表,在Java中我們可以創建兩個類User和UserDetail類
然后再創建一個UserVo類,其中包含User的屬性和一個UserDatail對象

public class User {
    private Integer id;
    private String name;
    private Integer age;
}
public class UserDetail {
    private Integer detailId;
    private String address;
    private String phone;
}
public class UserVo {
    private Integer id;
    private String name;
    private Integer age;
    private UserDetail userDetail;  // 一對一關系：一個用戶對應一份詳細信息
}

XML配置如下:

<resultMap id="userVoMap" type="com.example.UserVo">
    <id property="id" column="id"/>
    <result property="name" column="name"/>
    <result property="age" column="age"/>
    <!-- 一對一映射 -->
    <association property="userDetail" javaType="com.example.UserDetail">
        <id property="detailId" column="detail_id"/>
        <result property="address" column="address"/>
        <result property="phone" column="phone"/>
    </association>
</resultMap>
<select id="getUserVoById" resultMap="userVoMap" parameterType="int">
    SELECT u.id, u.name, u.age, ud.detail_id, ud.address, ud.phone
    FROM user u
    LEFT JOIN user_detail ud ON u.id = ud.user_id
    WHERE u.id = #{id}
</select>

<resultMap>標簽
- 用于定義一組映射規則,將查詢的結果轉換為一個指定類型的Java對象
- 屬性
  - id:為該映射指定一個唯一標識,供其在XML中引用使用,如<resultMap id="userResultMap" type="com.example.User">
  - type:指定映射結果對應的Java類型(對象的全路徑)
<result>標簽
- 用于將數據庫列映射到Java對象的屬性,在<resultMap>中使用
- 屬性
  - property:Java對象中的屬性名稱,如<result property="userName" column="user_name"/>其表示將查詢到的user_name列的值賦值給userName屬性
  - cloumn:數據庫查詢結果中的列名,如column="user_name”表示sql查詢列名為user_name的值
<id>標簽
- <id>類似于<result>主要用于映射主鍵字段
- 屬性
  - property:與<result>相同,映射到Java對象的主鍵屬性
  - column:對應數據庫中的主鍵列名
<association>標簽
- 表示一個一對一關連
- 當查詢到結果時,MyBatis會將用戶的基本字段{id,name,age}直接映射到UserVo中,同時將詳細信息{detail_id,address,phone}封裝為一個UserDetail對象,并賦值到UserVo的userDetail對象中

一對多映射

提供用于有列表對象的查詢

現假設一個老師(Teacher)類和一個學生(student)類,一個老師可以對應多個學生,在Java中我們可以設計Teacher類, 使用List屬性來存放老師的所有學生

public class Teacher {
    private Integer id;
    private String teacherName;
    private Integer age;
    private List<Student> students; // 一對多關系：一個老師對應多個學生
}
public class Student {
    private Integer id;
    private String name;
    private Integer age;
}

XML配置如下:

<resultMap id="teacherMap" type="com.example.Teacher">
    <id property="id" column="teacher_id"/>
    <result property="teacherName" column="teacher_name"/>
    <result property="age" column="teacher_age"/>
    <!-- 一對多映射 -->
    <collection property="students" ofType="com.example.Student">
        <id property="id" column="student_id"/>
        <result property="name" column="student_name"/>
        <result property="age" column="student_age"/>
    </collection>
</resultMap>
<select id="getTeacherWithStudents" resultMap="teacherMap" parameterType="int">
    SELECT t.id as teacher_id, t.teacher_name, t.age as teacher_age,
           s.id as student_id, s.name as student_name, s.age as student_age
    FROM teacher t
    LEFT JOIN student s ON t.id = s.teacher_id
    WHERE t.id = #{id}
</select>
