SpringBoot調用WebService接口的實現示例

更新時間：2025年03月12日 08:27:18 作者：m0_74823827

本文主要介紹了SpringBoot調用WebService接口的實現示例,文中通過示例代碼介紹的非常詳細,對大家的學習或者工作具有一定的參考學習價值,需要的朋友們下面隨著小編來一起學習學習吧

前言

調用WebService接口的方式有很多，今天記錄一下，使用 Spring Web Services 調用 SOAP WebService接口

一.導入依賴

        <!-- Spring Boot Web依賴 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- Spring Web Services -->
        <dependency>
            <groupId>org.springframework.ws</groupId>
            <artifactId>spring-ws-core</artifactId>
        </dependency>

        <!-- Apache HttpClient 作為 WebService 客戶端 -->
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
        </dependency>

        <!-- JAXB API -->
        <dependency>
            <groupId>javax.xml.bind</groupId>
            <artifactId>jaxb-api</artifactId>
            <version>2.3.1</version>
        </dependency>

        <!-- JAXB 運行時 -->
        <dependency>
            <groupId>org.glassfish.jaxb</groupId>
            <artifactId>jaxb-runtime</artifactId>
            <version>2.3.5</version>
        </dependency>

二.創建請求類和響應類

根據SOAP的示例，創建請求類和響應類

SOAP示例

請求
POST *****************
Host: **************
Content-Type: text/xml; charset=utf-8
Content-Length: length
SOAPAction: "http://*******/DownloadFileByMaterialCode"

<?xml version="1.0" encoding="utf-8"?>
<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
  <soap:Body>
    <DownloadFileByMaterialCode xmlns="http://*******/">
      <MaterialCode>string</MaterialCode>
      <FileType>string</FileType>
      <Category>string</Category>
    </DownloadFileByMaterialCode>
  </soap:Body>
</soap:Envelope>


響應
HTTP/1.1 200 OK
Content-Type: text/xml; charset=utf-8
Content-Length: length

<?xml version="1.0" encoding="utf-8"?>
<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
  <soap:Body>
    <DownloadFileByMaterialCodeResponse xmlns="http://********/">
      <DownloadFileByMaterialCodeResult>string</DownloadFileByMaterialCodeResult>
    </DownloadFileByMaterialCodeResponse>
  </soap:Body>
</soap:Envelope>

根據我的這個示例，我創建的請求類和響應類，是這樣的

請求類

@Data
@XmlRootElement(name = "DownloadFileByMaterialCode", namespace = "http://*******/")
@XmlAccessorType(XmlAccessType.FIELD)
public class DownloadFileByMaterialCodeRequest {
    @XmlElement(name = "MaterialCode", namespace = "http://*******/")
    private String MaterialCode;
    @XmlElement(name = "FileType", namespace = "http://*******/")
    private String FileType;
    @XmlElement(name = "Category", namespace = "http://*******/")
    private String Category;
}

響應類

@Data
@XmlRootElement(name = "DownloadFileByMaterialCodeResponse", namespace = "http://********/")
@XmlAccessorType(XmlAccessType.FIELD)
public class DownloadFileByMaterialCodeResponse {
    @XmlElement(name = "DownloadFileByMaterialCodeResult", namespace = "http://********/")
    private String DownloadFileByMaterialCodeResult;
}

三.創建ObjectFactory類

@XmlRegistry
public class ObjectFactory {
    // 創建 DownloadFileByMaterialCodeRequest 的實例
    public DownloadFileByMaterialCodeRequest createDownloadFileByMaterialCodeRequest() {
        return new DownloadFileByMaterialCodeRequest();
    }

    // 創建 DownloadFileByMaterialCodeResponse 的實例
    public DownloadFileByMaterialCodeResponse createDownloadFileByMaterialCodeResponse() {
        return new DownloadFileByMaterialCodeResponse();
    }
}

四.配置WebServiceTemplate

@Configuration
public class WebServiceConfig {

    @Bean
    public WebServiceTemplate webServiceTemplate() {
        Jaxb2Marshaller marshaller = new Jaxb2Marshaller();
        marshaller.setContextPath("org.jeecg.modules.webservice");  // 包路徑，包含請求和響應對象類

        WebServiceTemplate template = new WebServiceTemplate(marshaller);

        return template;
    }
}

五.調用WebService接口

@Service
public class DownloadFileService {
    @Autowired
    private WebServiceTemplate webServiceTemplate;

    public List<ResponseJsonObject> downloadFile(String materialCode, String fileType, String category) throws JsonProcessingException {
        String uri = "http://192.168.***.***/DYDServiceTest/PlmService.asmx";  // WebService 的 URL

        // 創建請求對象并設置參數
        DownloadFileByMaterialCodeRequest request = new DownloadFileByMaterialCodeRequest();
        request.setMaterialCode(materialCode);
        request.setFileType(fileType);
        request.setCategory(category);

        // 設置 SOAPAction
        String soapAction = "http://********/DownloadFileByMaterialCode";  // Web 服務指定的 SOAPAction

        // 使用 SoapActionCallback 來設置 SOAPAction 頭
        SoapActionCallback soapActionCallback = new SoapActionCallback(soapAction);

        // 發送 SOAP 請求并獲取響應
        DownloadFileByMaterialCodeResponse response = (DownloadFileByMaterialCodeResponse)
                webServiceTemplate.marshalSendAndReceive(uri, request, soapActionCallback);

        // 獲取并返回 DownloadFileByMaterialCodeResult
        String downloadFileByMaterialCodeResult = response.getDownloadFileByMaterialCodeResult();
        System.out.println(downloadFileByMaterialCodeResult);

        //字符串轉換為ResponseJsonObject對象
        ObjectMapper objectMapper = new ObjectMapper();
        // 忽略未知字段
        objectMapper.configure(DeserializationFeature.FAIL_ON_UNKNOWN_PROPERTIES, false);
        List<ResponseJsonObject> ResponseJsonObjects = objectMapper.readValue(downloadFileByMaterialCodeResult, objectMapper.getTypeFactory().constructCollectionType(List.class, ResponseJsonObject.class));

        return ResponseJsonObjects;
    }
}

六.測試代碼

    @Test
    public void test1() throws JsonProcessingException {
        List<ResponseJsonObject> responseJsonObjects = downloadFileService.downloadFile("CCPT0016-QBY-7", "", "");
        for (ResponseJsonObject responseJsonObject : responseJsonObjects) {
            System.out.println(responseJsonObject.getDocName());
        }
    }

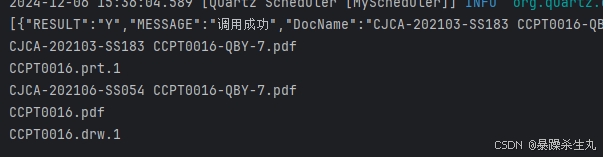

測試效果

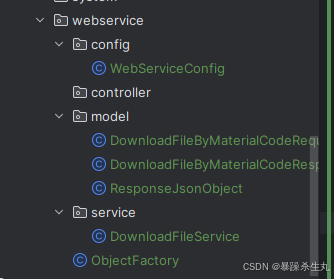

這里在附上所有文件的路勁圖，可以參考一下

總結

根據接口給出的SAOP的示例，封裝好對應的實體類，因?yàn)槲疫@里的類型都是String，大家也可以根據實際情況，封裝好對應的類

注意注解的參數，namespace = “http://*******/” 給接口提供的域名地址

到此這篇關于SpringBoot調用WebService接口的實現示例的文章就介紹到這了,更多相關SpringBoot調用WebService接口內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
