Java Poi-tl根據模板導出Word文件

更新時間：2025年03月13日 10:10:28 作者：桃花面包

這篇文章主要為大家詳細介紹了Java如何使用Poi-tl根據模板實現導出Word文件,文中的示例代碼講解詳細,感興趣的小伙伴可以跟隨小編一起學習一下

簡單說一下為什么使用Poi-tl，最開始想用的是poi實現，但是結果就是poi不好控制圖片的位置，因?yàn)閳D片插入之后是“浮于文字上方”，單純的插入圖片會占行數，為了方便控制格式后續就采用了poi-tl但是他同樣也不支持插入圖片之后將圖片設置為“浮于文字上方”，也是找了一些博客參考，最終實現了想要的效果

參考博客：poi-tl導出word實現圖片環繞方式為浮于在文字上方辦法

老樣子上效果圖：

實現步驟

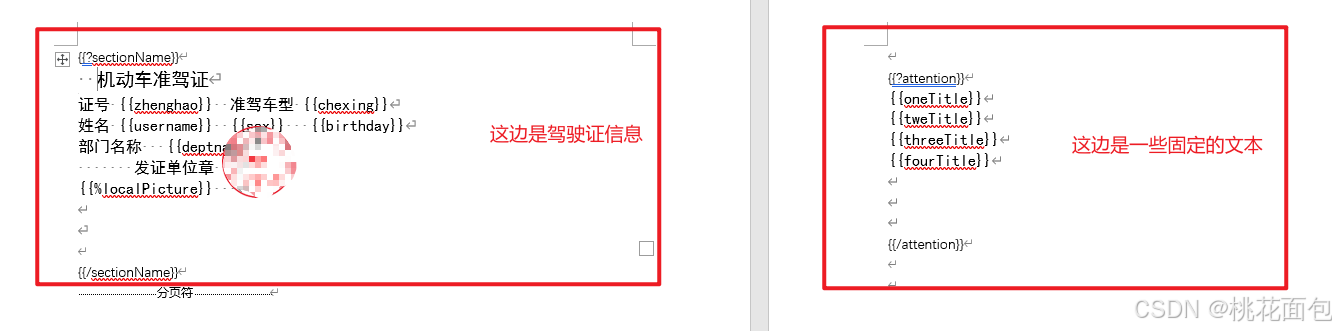

1.準備模板

2.添加依賴

        <dependency>
            <groupId>com.deepoove</groupId>
            <artifactId>poi-tl</artifactId>
            <version>1.10.0-beta</version>
        </dependency>

        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi</artifactId>
            <version>5.2.3</version>
        </dependency>

        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi-ooxml</artifactId>
            <version>5.2.3</version>
        </dependency>

        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi-ooxml-schemas</artifactId>
            <version>4.1.2</version>
        </dependency>

3.代碼實現

package com.example.demo;

import cn.hutool.core.util.URLUtil;
import com.deepoove.poi.XWPFTemplate;
import com.deepoove.poi.config.Configure;
import com.deepoove.poi.config.ConfigureBuilder;
import com.deepoove.poi.data.PictureRenderData;
import com.deepoove.poi.data.Pictures;
import com.deepoove.poi.plugin.table.LoopRowTableRenderPolicy;
import com.example.controller.MyPictureRenderPolicy;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;

import java.io.*;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class StudentCardExporter001 {

    public static void main(String[] args) {
        // 創建數據映射列表
        List<Map<String, Object>> sectionList = new ArrayList<>();
        HashMap<String, Object> sectionMap = new HashMap<>();
        sectionMap.put("zhenghao", "AS011");
        sectionMap.put("chexing", "C2");
        sectionMap.put("username", "楊無敵");
        sectionMap.put("sex", "男");
        sectionMap.put("birthday", "1983-12-06");
        sectionMap.put("deptname", "北京XXXXXXX");
        sectionMap.put("date", "2025-12-09");
        sectionMap.put("localPicture",  Pictures.ofLocal( "D:\\xiazai\\1212.jpg").size(45, 65).create());


        sectionList.add(sectionMap);

        // 這里可以設置多條數據
        /*sectionMap.put("zhenghao", "AS011");
        sectionMap.put("chexing", "C2");
        sectionMap.put("username", "光頭強");
        sectionMap.put("sex", "男");
        sectionMap.put("birthday", "1983-12-06");
        sectionMap.put("deptname", "北京XXXXXXX");
        sectionMap.put("date", "2025-12-09");
        sectionMap.put("localPicture",  Pictures.ofLocal( "D:\\xiazai\\1212.jpg").size(45, 65).create());
        sectionList.add(sectionMap);*/

        HashMap<String, Object> paramMap = new HashMap<>();
        paramMap.put("sectionName", sectionList);
        ArrayList<Object> titleList = new ArrayList<>();
        // 創建最終的數據映射
        for (int i = 0; i < 2; i++) {


            HashMap<String, Object> titleMap = new HashMap<>();
            titleMap.put("oneTitle", "                          1、駕駛車輛必須攜帶此證，以備檢查。");
            titleMap.put("tweTitle", "                          2、持證人必須遵守本公司車輛管理規定及《中華\n" +
                    "                             人民共和國道路交通安全法》。");
            titleMap.put("threeTitle", "                          3、遺失此證必須及時報告發證單位。");
            titleMap.put("fourTitle", "                          4、此證不得偽造、涂改，不得轉借他人；一經發\n" +
                    "                             現，立即取消其本人準駕資格并收回其此證。\n");

            titleList.add(titleMap);
        }
        paramMap.put("attention", titleList);
        // 加載模板文件
        PathMatchingResourcePatternResolver resolver = new PathMatchingResourcePatternResolver();
        try {
            org.springframework.core.io.Resource[] resources = resolver.getResources("classpath:excelTemplate/model1.docx");
            if (resources.length == 0) {
                throw new IOException("Template file not found.");
            }
            InputStream inputStream = resources[0].getInputStream();

            ConfigureBuilder builder = Configure.builder();
            builder.addPlugin('%', new MyPictureRenderPolicy());

            // 編譯并渲染模板
            XWPFTemplate template = XWPFTemplate.compile(inputStream, builder.build()).render(paramMap);
//            XWPFTemplate compile = XWPFTemplate.compile(inputStream, builder.build()).render(paramMap);

            // 輸出生成的文檔
            try (FileOutputStream out = new FileOutputStream("D:\\xiazai\\1209.docx")) {
                template.write(out);
            }
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

自定義MyPictureRenderPolicy

package com.example.controller;

import com.deepoove.poi.data.PictureRenderData;
import com.deepoove.poi.data.PictureType;
import com.deepoove.poi.data.Pictures;
import com.deepoove.poi.data.style.PictureStyle;
import com.deepoove.poi.exception.RenderException;
import com.deepoove.poi.policy.AbstractRenderPolicy;
import com.deepoove.poi.render.RenderContext;
import com.deepoove.poi.util.BufferedImageUtils;
import com.deepoove.poi.util.SVGConvertor;
import com.deepoove.poi.util.UnitUtils;
import com.deepoove.poi.xwpf.BodyContainer;
import com.deepoove.poi.xwpf.BodyContainerFactory;
import com.deepoove.poi.xwpf.WidthScalePattern;
import com.deepoove.poi.xwpf.XWPFRunWrapper;
import com.example.demo.ExportUtil;
import org.apache.poi.util.Units;
import org.apache.poi.xwpf.usermodel.IBodyElement;
import org.apache.poi.xwpf.usermodel.ParagraphAlignment;
import org.apache.poi.xwpf.usermodel.XWPFParagraph;
import org.apache.poi.xwpf.usermodel.XWPFRun;
import org.openxmlformats.schemas.drawingml.x2006.main.CTGraphicalObject;
import org.openxmlformats.schemas.drawingml.x2006.wordprocessingDrawing.CTAnchor;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTDrawing;

import java.awt.image.BufferedImage;
import java.io.ByteArrayInputStream;
import java.io.InputStream;
import java.util.function.Supplier;

public class MyPictureRenderPolicy extends AbstractRenderPolicy<Object> {

    @Override
    protected boolean validate(Object data) {
        if (null == data) {
            return false;
        } else if (data instanceof PictureRenderData) {
            return null != ((PictureRenderData) data).getPictureSupplier();
        } else {
            return true;
        }
    }

    @Override
    public void doRender(RenderContext<Object> context) throws Exception {
        MyPictureRenderPolicy.Helper.renderPicture(context.getRun(), wrapper(context.getData()));
    }

    @Override
    protected void afterRender(RenderContext<Object> context) {
        this.clearPlaceholder(context, false);
    }

    @Override
    protected void reThrowException(RenderContext<Object> context, Exception e) {
        this.logger.info("Render picture " + context.getEleTemplate() + " error: {}", e.getMessage());
        String alt = "";
        if (context.getData() instanceof PictureRenderData) {
            alt = ((PictureRenderData) context.getData()).getAltMeta();
        }

        context.getRun().setText(alt, 0);
    }

    private static PictureRenderData wrapper(Object object) {
        return object instanceof PictureRenderData ? (PictureRenderData) object : Pictures.of(object.toString()).fitSize().create();
    }


    public static class Helper {
        public static void renderPicture(XWPFRun run, PictureRenderData picture) throws Exception {
            Supplier<byte[]> supplier = picture.getPictureSupplier();
            byte[] imageBytes = (byte[]) supplier.get();
            if (null == imageBytes) {
                throw new IllegalStateException("Can't read picture byte arrays!");
            } else {
                PictureType pictureType = picture.getPictureType();
                if (null == pictureType) {
                    pictureType = PictureType.suggestFileType(imageBytes);
                }

                if (null == pictureType) {
                    throw new RenderException("PictureRenderData must set picture type!");
                } else {
                    PictureStyle style = picture.getPictureStyle();
                    if (null == style) {
                        style = new PictureStyle();
                    }

                    int width = style.getWidth();
                    int height = style.getHeight();
                    if (pictureType == PictureType.SVG) {
                        imageBytes = SVGConvertor.toPng(imageBytes, (float) width, (float) height);
                        pictureType = PictureType.PNG;
                    }

                    if (!isSetSize(style)) {
                        BufferedImage original = BufferedImageUtils.readBufferedImage(imageBytes);
                        width = original.getWidth();
                        height = original.getHeight();
                        if (style.getScalePattern() == WidthScalePattern.FIT) {
                            BodyContainer bodyContainer = BodyContainerFactory.getBodyContainer(((IBodyElement) run.getParent()).getBody());
                            int pageWidth = UnitUtils.twips2Pixel(bodyContainer.elementPageWidth((IBodyElement) run.getParent()));
                            if (width > pageWidth) {
                                double ratio = (double) pageWidth / (double) width;
                                width = pageWidth;
                                height = (int) ((double) height * ratio);
                            }
                        }
                    }

                    InputStream stream = new ByteArrayInputStream(imageBytes);
                    Throwable var25 = null;

                    try {
                        PictureStyle.PictureAlign align = style.getAlign();
                        if (null != align && run.getParent() instanceof XWPFParagraph) {
                            ((XWPFParagraph) run.getParent()).setAlignment(ParagraphAlignment.valueOf(align.ordinal() + 1));
                        }

                        XWPFRunWrapper wrapper = new XWPFRunWrapper(run, false);
                        wrapper.addPicture(stream, pictureType.type(), "Generated", Units.pixelToEMU(width), Units.pixelToEMU(height));

                        CTDrawing drawing = run.getCTR().getDrawingArray(0);
                        CTGraphicalObject graphicalobject = drawing.getInlineArray(0).getGraphic();
                        //拿到新插入的圖片替換添加CTAnchor 設置浮動屬性 刪除inline屬性
                        CTAnchor anchor = ExportUtil.getAnchorWithGraphic(graphicalobject, "Generated",
                                Units.toEMU(width), Units.toEMU(height),//圖片大小
                                Units.toEMU(180), Units.toEMU(-60), false);//相對當前段落位置 需要計算段落已有內容的左偏移

                        drawing.setAnchorArray(new CTAnchor[]{anchor});//添加浮動屬性
                        drawing.removeInline(0);//刪除行內屬性
                    } catch (Throwable var20) {
                        var25 = var20;
                        throw var20;
                    } finally {
                        if (stream != null) {
                            if (var25 != null) {
                                try {
                                    stream.close();
                                } catch (Throwable var19) {
                                    var25.addSuppressed(var19);
                                }
                            } else {
                                stream.close();
                            }
                        }

                    }

                }
            }
        }

    }

    private static boolean isSetSize(PictureStyle style) {
        return (style.getWidth() != 0 || style.getHeight() != 0) && style.getScalePattern() == WidthScalePattern.NONE;
    }

}

圖片處理

package com.example.demo;

import org.apache.xmlbeans.XmlException;
import org.openxmlformats.schemas.drawingml.x2006.main.CTGraphicalObject;
import org.openxmlformats.schemas.drawingml.x2006.wordprocessingDrawing.CTAnchor;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTDrawing;

import java.math.BigInteger;

public class ExportUtil {


    /**
     * @param ctGraphicalObject 圖片數據
     * @param deskFileName      圖片描述
     * @param width             寬
     * @param height            高
     * @param leftOffset        水平偏移 left
     * @param topOffset         垂直偏移 top
     * @param behind            文字上方，文字下方
     * @return
     * @throws Exception
     */
    public static CTAnchor getAnchorWithGraphic(CTGraphicalObject ctGraphicalObject,
                                                String deskFileName, int width, int height,
                                                int leftOffset, int topOffset, boolean behind) {
        String anchorXML =
                "<wp:anchor xmlns:wp=\"http://schemas.openxmlformats.org/drawingml/2006/wordprocessingDrawing\" "
                        + "simplePos=\"0\" relativeHeight=\"0\" behindDoc=\"" + ((behind) ? 1 : 0) + "\" locked=\"0\" layoutInCell=\"1\" allowOverlap=\"1\">"
                        + "<wp:simplePos x=\"0\" y=\"0\"/>"
                        + "<wp:positionH relativeFrom=\"character\">"
                        + "<wp:posOffset>" + leftOffset + "</wp:posOffset>"
                        + "</wp:positionH>"
                        + "<wp:positionV relativeFrom=\"paragraph\">"
                        + "<wp:posOffset>" + topOffset + "</wp:posOffset>"
                        + "</wp:positionV>"
                        + "<wp:extent cx=\"" + width + "\" cy=\"" + height + "\"/>"
                        + "<wp:effectExtent l=\"0\" t=\"0\" r=\"0\" b=\"0\"/>"
                        + "<wp:wrapNone/>"
                        + "<wp:docPr id=\"1\" name=\"Drawing 0\" descr=\"" + deskFileName + "\"/><wp:cNvGraphicFramePr/>"
                        + "</wp:anchor>";

        CTDrawing drawing = null;
        try {
            drawing = CTDrawing.Factory.parse(anchorXML);
        } catch (XmlException e) {
            e.printStackTrace();
        }
        CTAnchor anchor = drawing.getAnchorArray(0);
        anchor.setGraphic(ctGraphicalObject);

        // 減少左偏移量以使圖片更靠前
        leftOffset = Math.max(0, leftOffset - 500); // 根據需要調整減去的值

        anchor.getPositionH().setPosOffset(leftOffset);
        anchor.getPositionV().setPosOffset(topOffset);

        return anchor;
    }


}

到此這篇關于Java Poi-tl根據模板導出Word文件的文章就介紹到這了,更多相關Java Poi-tl導出Word內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
