java導出pdf文件的詳細實現方法
使用注意點
因為原來制作的pdf表單內容過于復雜,下面代碼只包含前兩行的操作。
本次操作需要前端向后端發起請求,后端返回數據給前端用于下載,所以沒有在本地進行保存。
第 1 步制作pdf模板需要的pdf編輯軟件基本上都需要錢,可以去買一個
第 2 步獲取的pdf導出的中文需要的文件,如果pdf輸出的內容有中文就需要去弄一下這個文件,在代碼中用于讀取設置中文字體
包含內容
1、導出pdf
2、設置斜體水印
1、制作pdf模板

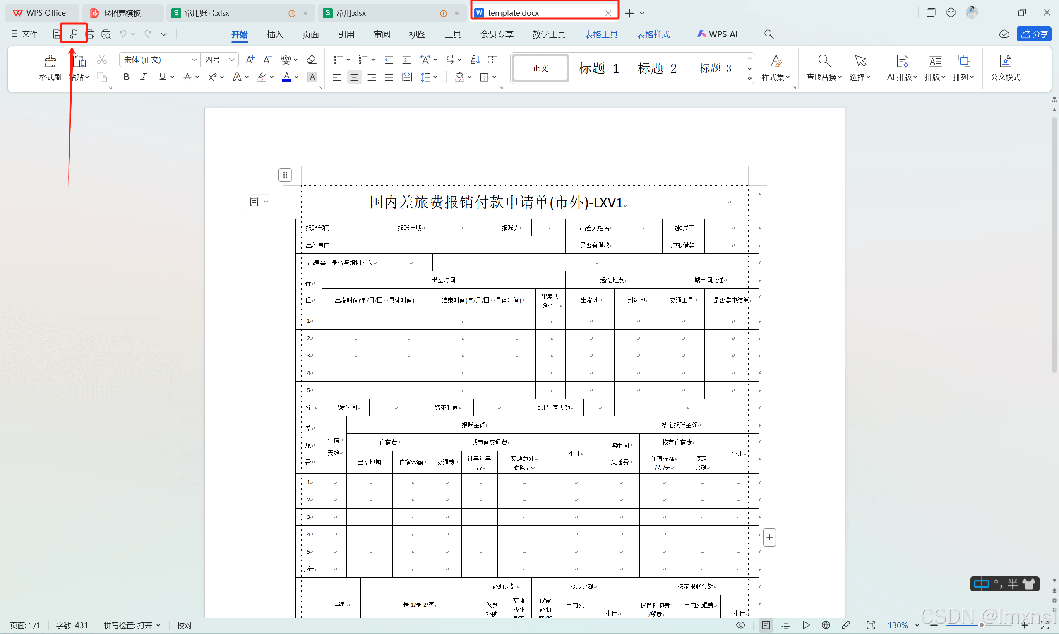

先將需要的pdf模板通過word制作出來,然后導出為pdf

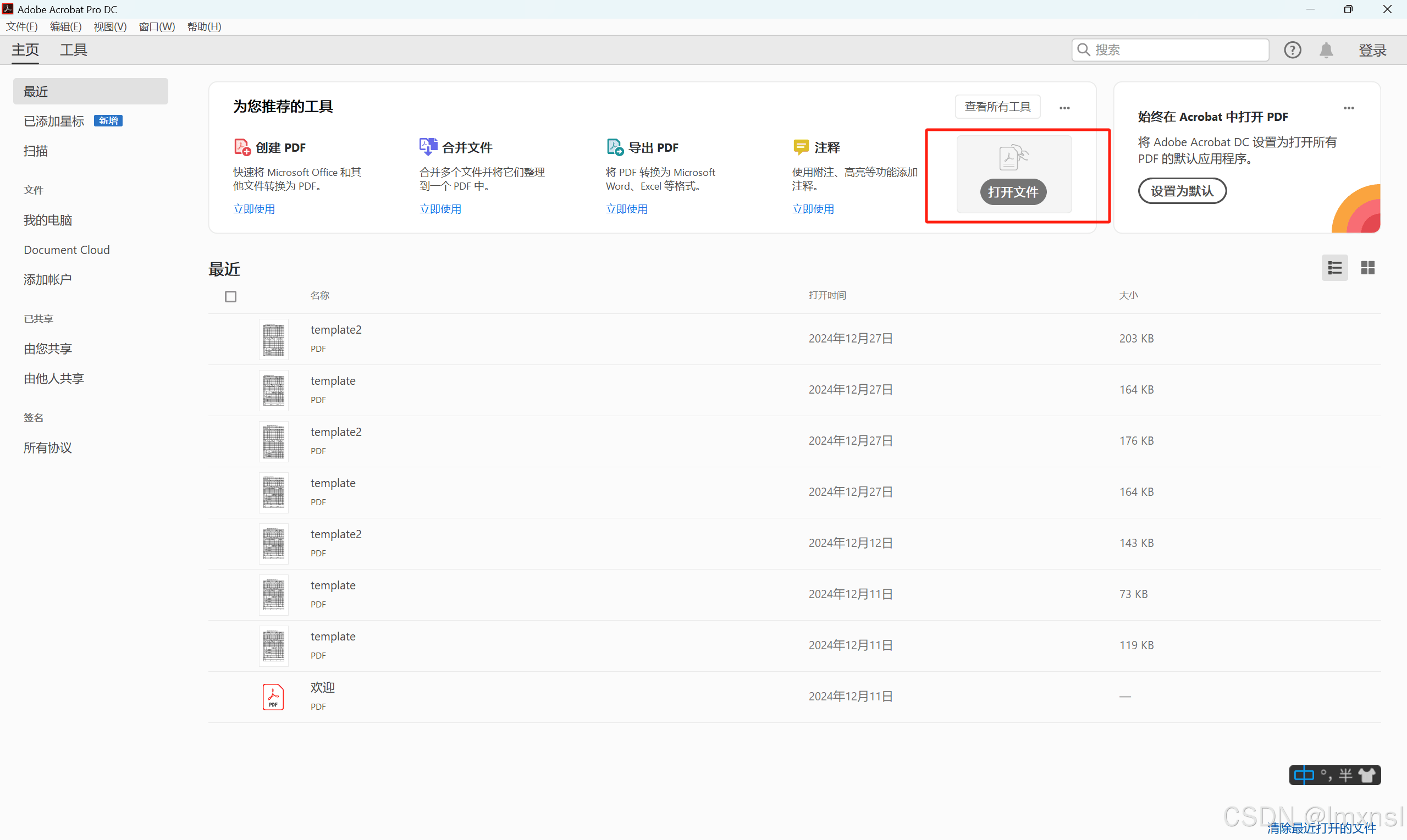

使用Adobe Acrobat DC 打開并制作模板(其他pdf編輯軟件也可以)

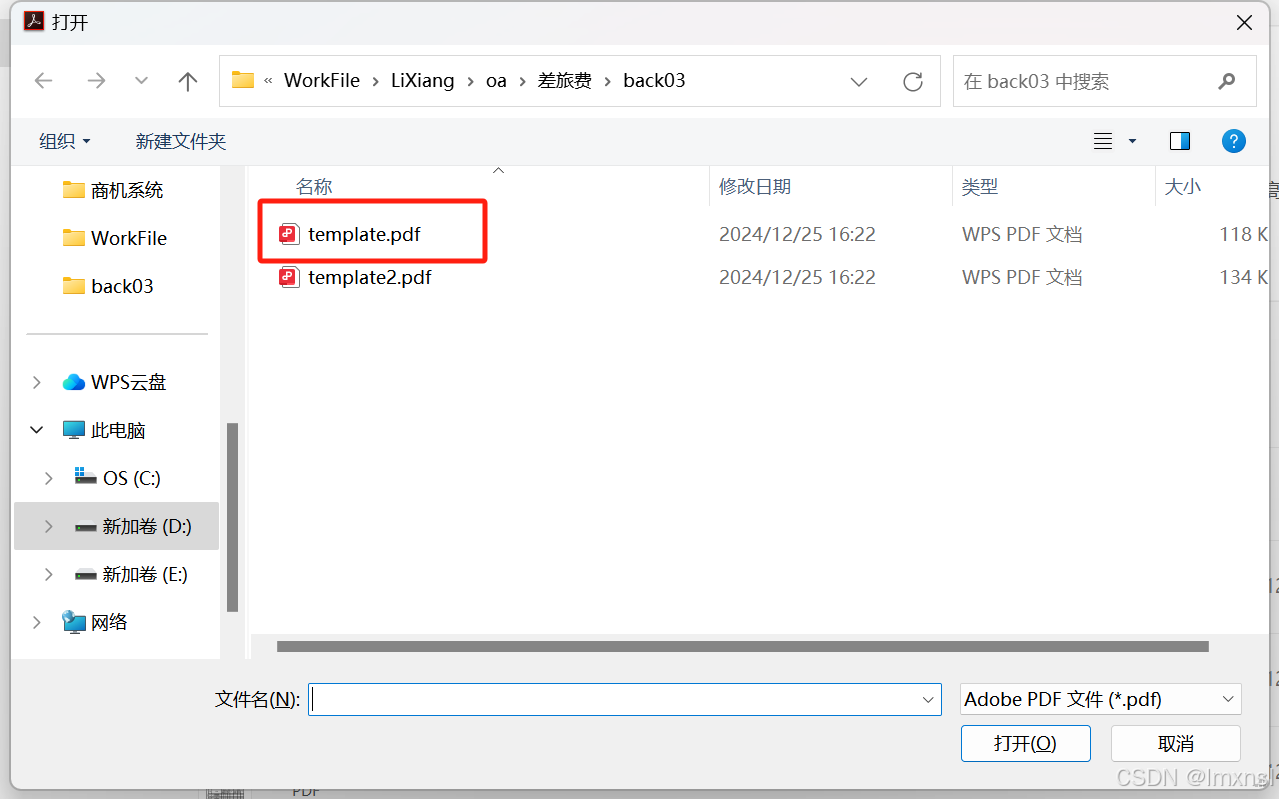

選擇打開前面導出的pdf模板

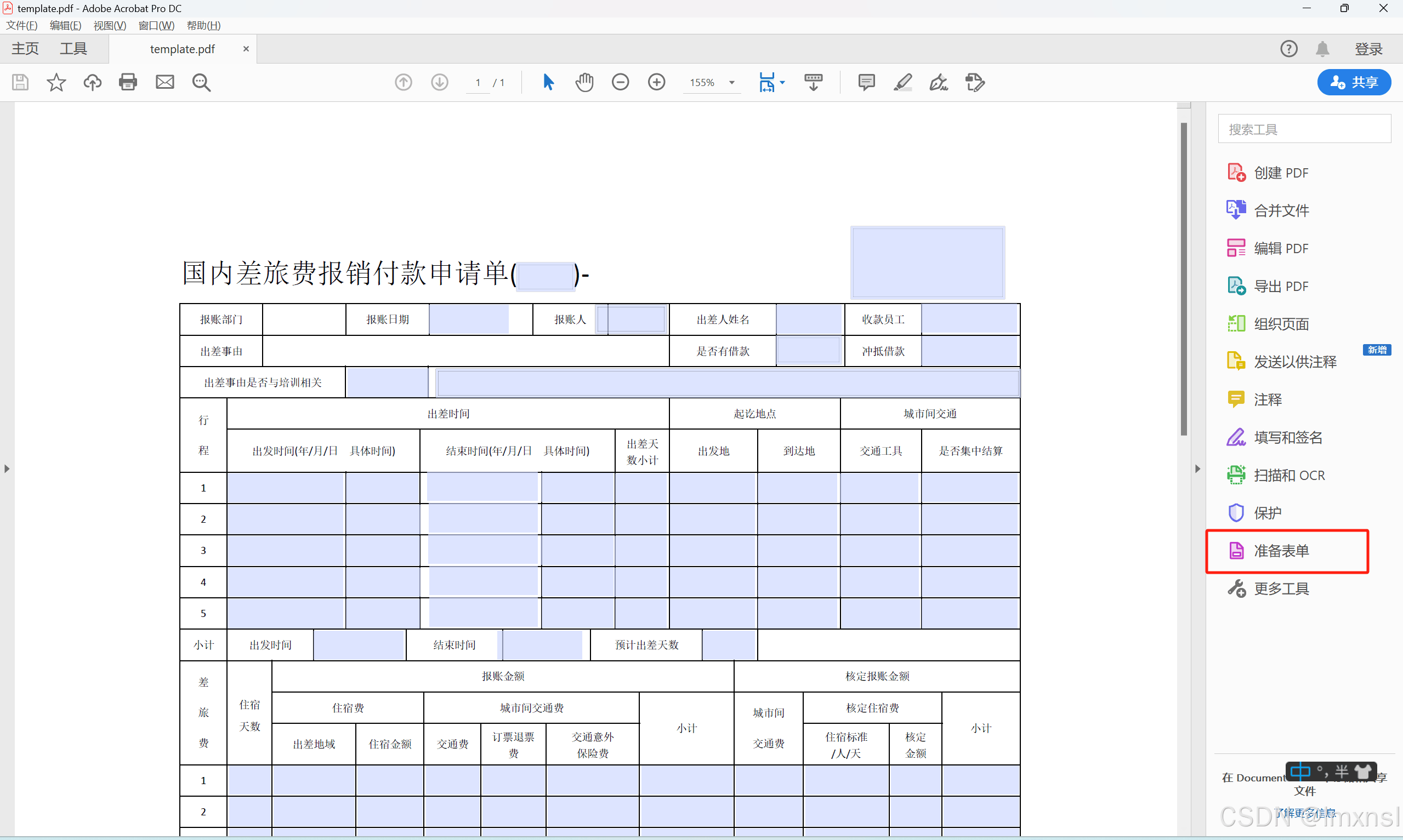

點擊準備表單

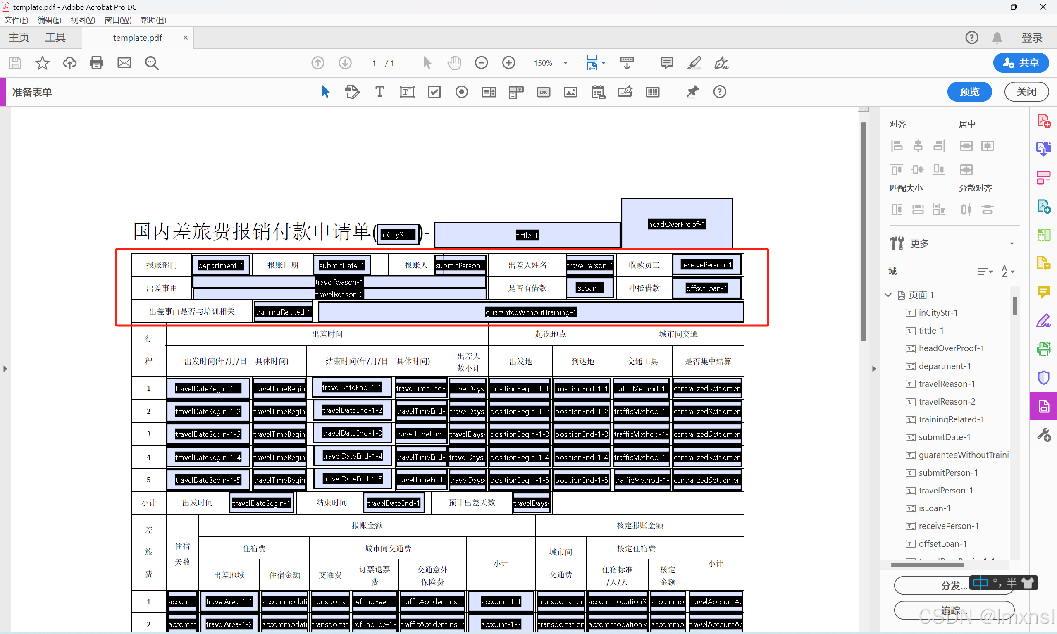

點擊之后,可以針對沒一個位置進行編輯,選中雙擊就可以進行編輯了,要注意,每個位置的名字都需要是唯一的
全部賦值后保存即可
2、獲取pdf導出中文需要的文件
獲取中文字體需要的文件

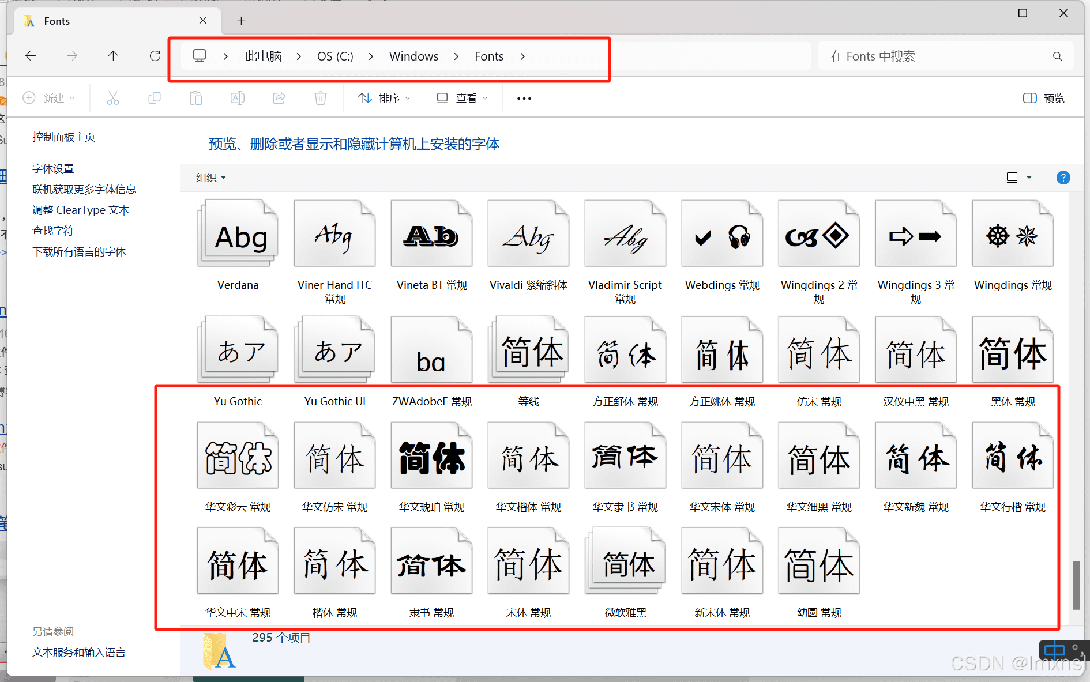

在電腦這個路徑下選擇下載一個就行
3、實現
pom依賴
<dependency> <groupId>com.itextpdf</groupId> <artifactId>itext7-core</artifactId> <version>7.2.3</version> <type>pom</type> </dependency> <dependency> <groupId>org.apache.pdfbox</groupId> <artifactId>pdfbox</artifactId> <version>2.0.24</version> </dependency>
controller接口
@GetMapping("/exportPDF/{applyId}") public ResponseEntity<byte[]> exportPDF(@PathVariable("applyId") String applyId, HttpServletResponse response) throws IOException,ParseException,Exception { byte[] res = applyService.exportPDF(applyId); HttpHeaders headers = new HttpHeaders(); headers.add("Content-Disposition", "attachment; filename=filled_form.pdf"); headers.add("Content-Type", "application/pdf"); return ResponseEntity.ok() .headers(headers) .body(res); }
service具體實現

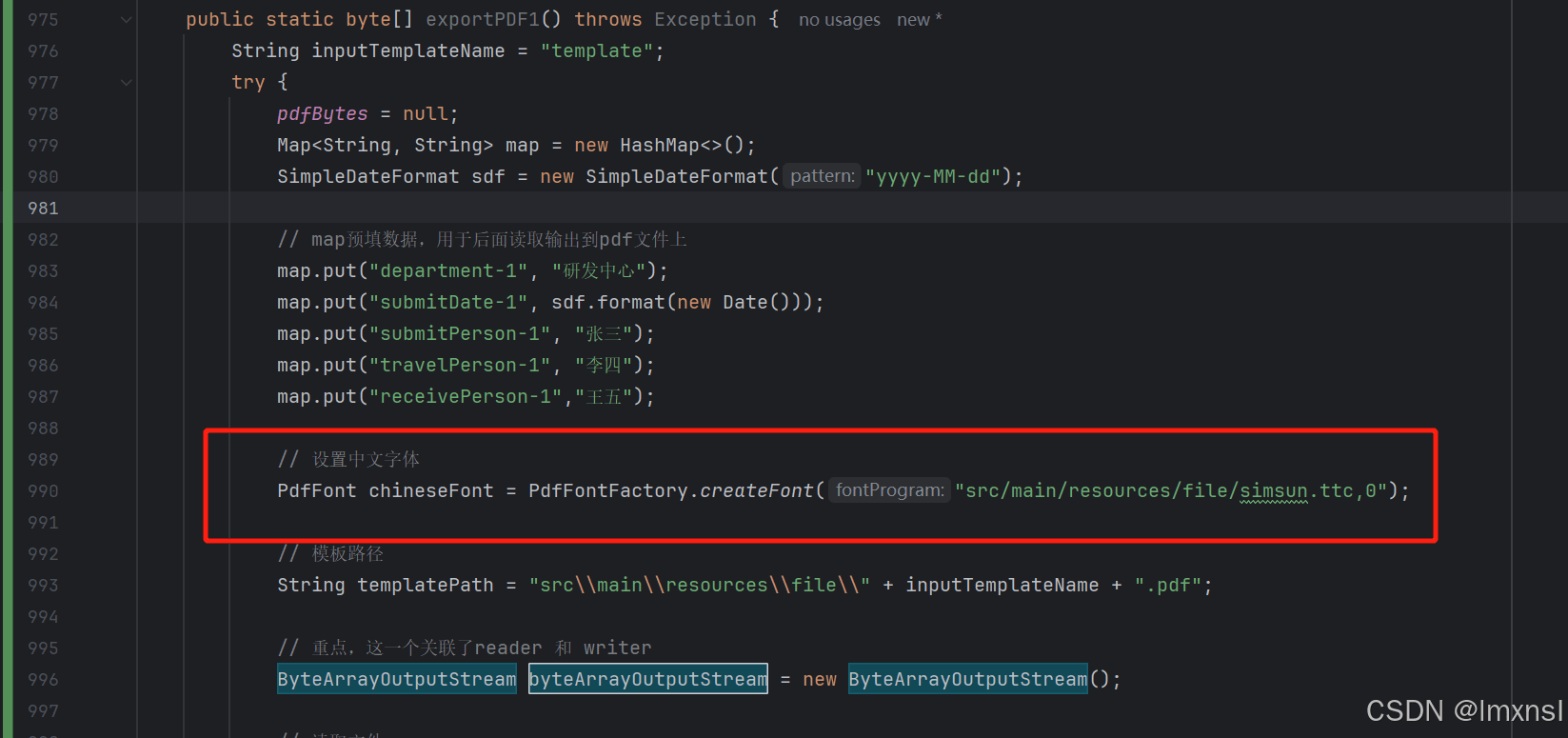

public static byte[] exportPDF1() throws Exception { String inputTemplateName = "template"; try { pdfBytes = null; Map<String, String> map = new HashMap<>(); SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd"); // map預填數據,用于后面讀取輸出到pdf文件上 map.put("department-1", "研發中心"); map.put("submitDate-1", sdf.format(new Date())); map.put("submitPerson-1", "張三"); map.put("travelPerson-1", "李四"); map.put("receivePerson-1","王五"); // 設置中文字體 PdfFont chineseFont = PdfFontFactory.createFont("src/main/resources/file/simsun.ttc,0"); // 模板路徑 String templatePath = "src\\main\\resources\\file\\" + inputTemplateName + ".pdf"; // 重點,這一個關聯了reader 和 writer ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream(); // 讀取文件 FileInputStream pdfInputStream = new FileInputStream(new File(templatePath)); // 定義 reader 和writer PdfReader reader = new PdfReader(pdfInputStream); PdfWriter writer = new PdfWriter(byteArrayOutputStream,new WriterProperties().setStandardEncryption( null, null, EncryptionConstants.ALLOW_PRINTING, // 允許打印 EncryptionConstants.ENCRYPTION_AES_128 // 加密方式 )); // 根據 reader 和writer 創建 PdfDocument PdfDocument pdfDocument = new PdfDocument(reader,writer); // 下面是給文件添加水印,不需要的可以直接刪掉 // 獲取 pdf 模板頁數 int numberOfPages = pdfDocument.getNumberOfPages(); // 遍歷每一頁并添加水印 for (int i = 1; i <= numberOfPages; i++) { PdfPage page = pdfDocument.getPage(i); // 獲取頁面尺寸(在這里我沒有用) int pageWidth = (int) Math.floor(page.getPageSize().getWidth()); int pageHeight = (int) Math.floor(page.getPageSize().getHeight()); // 創建一個 PdfCanvas 對象 PdfCanvas canvas = new PdfCanvas(page); // 保存當前坐標系狀態 canvas.saveState(); // 水印內容旋轉 double angle = Math.toRadians(45); double cos = Math.cos(angle); double sin = Math.sin(angle); canvas.concatMatrix(cos, sin, -sin, cos, 0, 0); // 設置水印的字體和透明度 canvas.setFontAndSize(PdfFontFactory.createFont(), 20); canvas.setFillColorRgb(0.75f, 0.75f, 0.75f); // 灰色 canvas.setLineWidth(2); // 正常應該根據獲取到的頁面尺寸進行 x y 軸的遍歷并 // 但是我這邊沒有鋪滿,就自己設置了遍歷的范圍 for (int x = -90; x < 2000; x += 300) { for (int y = -190; y < 2000; y += 200) { // 繪制水印文字 canvas.beginText(); canvas.setTextMatrix(x, y); // 設置水印位置 canvas.showText("Watermark Text this is just a test"); // 水印文字內容 canvas.endText(); } } // 恢復坐標系狀態 canvas.restoreState(); } // form 可以理解為把pdf文件看做一個form表單,以key value鍵值對保存 PdfAcroForm form = PdfAcroForm.getAcroForm(pdfDocument, true); // 遍歷上面預填的 map 并將值根據 key 賦值到form for (Map.Entry<String, String> entry : map.entrySet()) { form.getField(entry.getKey()).setValue(entry.getValue()); form.getField(entry.getKey()).setFont(chineseFont).setFontSize(8); } pdfDocument.close(); // 返回文件流 pdfBytes = byteArrayOutputStream.toByteArray(); return pdfBytes; } catch (Exception e) { e.printStackTrace(); }finally { return pdfBytes; } }
4、前端發起請求并生成下載鏈接
exportPdf(applyId) { exportPDF(applyId).then(res => { // 創建一個 Blob 對象,指定類型為 PDF 文件 const blob = new Blob([res.data], { type: 'application/pdf' }); // 創建一個 URL 對象,指向 Blob 數據 const url = URL.createObjectURL(blob); // 創建一個下載鏈接 const link = document.createElement('a'); link.href = url; link.download = 'generated_with_form.pdf'; // 設置下載文件名 // 模擬點擊下載鏈接 link.click(); // 下載完成后釋放 URL 對象 URL.revokeObjectURL(url); }) },
總結
到此這篇關于java導出pdf文件的詳細實現方法的文章就介紹到這了,更多相關java導出pdf文件內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
