SpringIoC與SpringDI詳解
一、IoC與DI
名詞解釋:
- spring是一個裝了眾多工具對象的IoC容器。
- IoC思想:對象交給Spring管理,就是IoC思想。
- IoC:Inversion of Control,控制反轉。
控制權反轉,需要某個對象時, 傳統開發模式中需要??通過 new 創建對象, 現在不需要再進?創建, 把創建對象的任務交給容器(IoC容器. Spring是?個IoC容器, 所以有時Spring 也稱為Spring容器), 程序中只需要依賴注? (Dependency Injection, DI)就可以了.
1.1 IoC

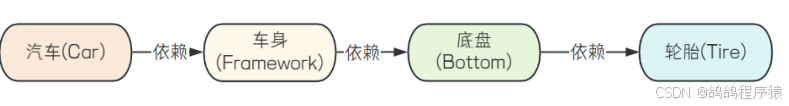

實現下面的需求:
在傳統的實現中,我們將每個模塊當成一個類:
public class NewCarExample { public static void main(String[] args) { Car car = new Car(); car.run(); } /** * 汽?對象 */ static class Car { private Framework framework; public Car() { framework = new Framework(); System.out.println("Car init...."); } public void run(){ System.out.println("Car run..."); } } /** * ??類 */ static class Framework { private Bottom bottom; public Framework() { bottom = new Bottom(); System.out.println("Framework init..."); } } /** * 底盤類 */ static class Bottom { private Tire tire; public Bottom() { this.tire = new Tire(); System.out.println("Bottom init..."); } } /** * 輪胎類 */ static class Tire { // 尺? private int size; public Tire(){ this.size = 17; System.out.println("輪胎尺?:" + size); } } }

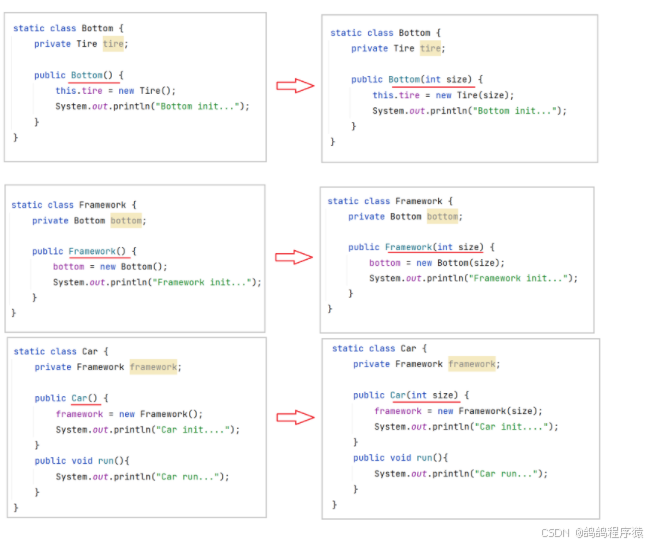

但是如上面的代碼,如果我們要修改一個參數,會導致整個調用鏈都跟著修改。
我們?yōu)榻鉀Q上面耦合度過高,可以采取:
把由??創建的下級類,改為傳遞的?式(也就是注?的?式),
每次調整只需要調整對應那個類的代碼即可。
這樣?論底層類如何變化,整個調?鏈?zhǔn)遣?做任何改變的。
public class IocCarExample { public static void main(String[] args) { Tire tire = new Tire(20); Bottom bottom = new Bottom(tire); Framework framework = new Framework(bottom); Car car = new Car(framework); car.run(); } static class Car { private Framework framework; public Car(Framework framework) { this.framework = framework; System.out.println("Car init...."); } public void run() { System.out.println("Car run..."); } } static class Framework { private Bottom bottom; public Framework(Bottom bottom) { this.bottom = bottom; System.out.println("Framework init..."); } } static class Bottom { private Tire tire; public Bottom(Tire tire) { this.tire = tire; System.out.println("Bottom init..."); } } static class Tire { private int size; public Tire(int size) { this.size = size; System.out.println("輪胎尺?:" + size); } } }
1.2 DI
DI: Dependency Injection(依賴注?)
容器在運?期間, 動態的為應?程序提供運?時所依賴的資源,稱之為依賴注?。

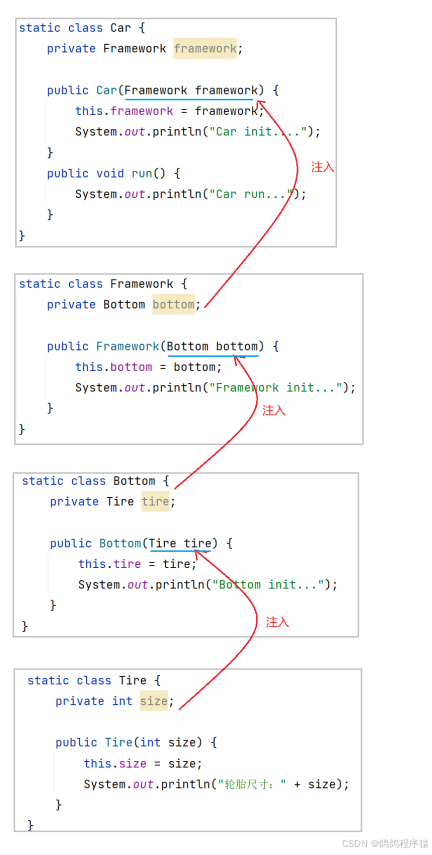

就像上面調用關系中:
二、IoC與DI的使用
Spring 是?個 IoC(控制反轉)容器,作為容器, 那么它就具備兩個最基礎的功能:
• 存
• 取
Spring 容器 管理的主要是對象, 這些對象, 我們稱之為"Bean". 我們把這些對象交由Spring管理, 由 Spring來負責對象的創建和銷毀. 我們程序只需要告訴Spring, 哪些需要存, 以及如何從Spring中取出對象
我們實現這樣的功能,主要靠兩個注解:
- Service層及Dao層的實現類,交給Spring管理: 使?注解: @Component
- 在Controller層 和Service層 注?運?時依賴的對象: 使?注解 @Autowired
像把前面的圖書管理系統的BookController重構。
BookController類:
package com.example.project.controller; import com.example.project.model.BookInfo; import com.example.project.service.BookService; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Component; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; import java.util.List; @RequestMapping("/book") @RestController @Component public class BookController { @Autowired private BookService bookService; @RequestMapping("/getList") public List<BookInfo> getList() { return bookService.getList(); } }
BookService類:
package com.example.project.service; import com.example.project.dao.BookDao; import com.example.project.model.BookInfo; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Component; import java.util.ArrayList; import java.util.List; @Component public class BookService { @Autowired BookDao bookDao ; public List<BookInfo> getList() { List<BookInfo> books = new ArrayList<>(); books = bookDao.mockData(); for (BookInfo book: books) { if(book.getStatus() == 1) { book.setStatusCN("可借閱"); } else { book.setStatusCN("不可借閱"); } } return books; } }
BookDao類:
package com.example.project.dao; import com.example.project.model.BookInfo; import org.springframework.stereotype.Component; import java.math.BigDecimal; import java.util.ArrayList; import java.util.List; import java.util.Random; @Component public class BookDao { public List<BookInfo> mockData() { List<BookInfo> books = new ArrayList<>(); for (int i = 0; i < 5; i++) { BookInfo book = new BookInfo(); book.setId(i); book.setBookName("書籍" + i); book.setAuthor("作者" + i); book.setCount(i * 5 + 3); book.setPrice(new BigDecimal(new Random().nextInt(100))); book.setPublish("出版社" + i); book.setStatus(1); books.add(book); } return books; } }
可以看到在類的調用之間,我們是使用的注解,將類作為另一個類的成員。不用自己去new實例。
三、IoC詳解
3.1 Bean的存儲
Bean在上面我們也說了,就是Spring管理起來的對象。
實現將對象交給Spring管理,
共有兩類注解類型可以:
- 類注解:@Controller、@Service、@Repository、@Component、@Configuration.
- ?法注解:@Bean.
3.2 @Controller(控制器存儲)
先使用@Controller將類存儲:
package com.example.springioc.controller; import org.springframework.stereotype.Controller; @Controller public class UserController { public void hello() { System.out.println("Hello"); } }
從Spring容器中獲取對象:
先獲取Spring上下?對象
從Spring上下?中獲取對象
package com.example.springioc.controller; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.context.ApplicationContext; @SpringBootApplication public class SpringIocDemoApplication { public static void main(String[] args) { //先獲取Spring上下?對象 ApplicationContext context = SpringApplication.run(SpringIocDemoApplication.class,args); //從Spring上下?中獲取對象 UserController userController = context.getBean(UserController.class); userController.hello(); } }
3.3 獲取Bean對象

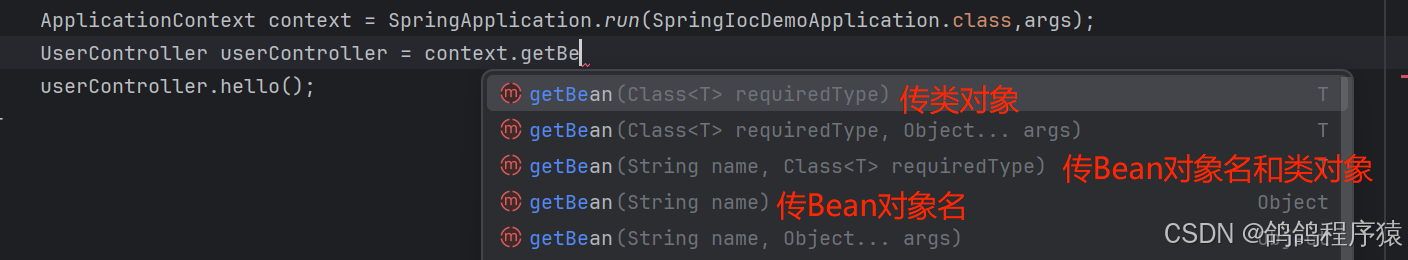

獲取Bean對象主要是ApplicationContext 類下的getBean方法,有下圖中重載。
使用五大類注解讓Spring管理Bean對象的默認取名方式如下官方文檔:
- 將類名轉換為小駝峰形式。
UserController -》 userController
- 當前面是兩個即多個大寫字母連在一起,Bean對象名就是類名。
USController -》 USController
Bean對象名也可以使用注解指定名稱,在使用五大注解加上括號即可。栗子: @Controller("name")
使用如下:
package com.example.springioc.controller; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.context.ApplicationContext; @SpringBootApplication public class SpringIocDemoApplication { public static void main(String[] args) { ApplicationContext context = SpringApplication.run(SpringIocDemoApplication.class,args); UserController bean1 = context.getBean(UserController.class); bean1.hello(); UserController bean2 = (UserController) context.getBean("userController"); bean2.hello(); UserController bean3 = context.getBean("userController", UserController.class); bean3.hello(); } }
3.4 @Service(服務存儲)
使用就加上@Service注解,拿到Bean對象方法不變。
package com.example.springioc.service; import org.springframework.stereotype.Service; @Service public class UserService { void print() { System.out.println("do Service"); } }
3.5 @Repository(倉庫存儲)
使用就加上@Repository 注解,拿到Bean對象方法不變。
package com.example.springioc.service; import org.springframework.stereotype.Repository; @Repository public class UserRepository { void print() { System.out.println("do Repository"); } }
3.6 @Component(組件存儲)
使用就加上@Component 注解,拿到Bean對象方法不變。
package com.example.springioc.service; import org.springframework.stereotype.Component; @Component public class UserComponent { void print() { System.out.println("do Component"); } }
3.7 @Configuration(配置存儲)
使用就加上@Configuration注解,拿到Bean對象方法不變。
package com.example.springioc.service; import org.springframework.context.annotation.Configuration; @Configuration public class UserConfiguration { void print() { System.out.println("do Configuration"); } }
3.8 五大注解區別

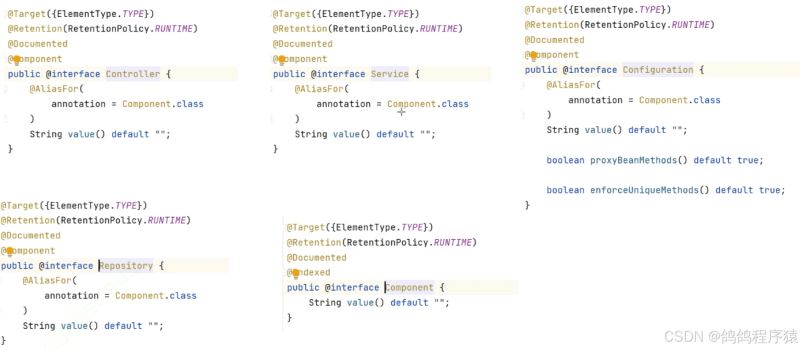

@Controller @Service @Repository @Configuration這四個注解都是@Component注解的衍生注解。
分這么多注解就是為了更好地分層(邊界在使用中也沒非常清晰):
- @Controller代表控制層。接收參數返回響應,控制層一定要使用@Controller
- @Service代表服務層
- @Repository代表數據層
- @Configuration代表配置層
- @Component代表組件層
3.9 ?法注解@Bean
使用:
package com.example.springioc.controller; import com.example.springioc.model.User; import org.springframework.context.annotation.Bean; import org.springframework.stereotype.Controller; @Controller public class UserController { @Bean public User user() { return new User("zhangsan",11); } public void hello() { System.out.println("Hello"); } }
package com.example.springioc.controller; import com.example.springioc.model.User; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.context.ApplicationContext; @SpringBootApplication public class SpringIocDemoApplication { public static void main(String[] args) { ApplicationContext context = SpringApplication.run(SpringIocDemoApplication.class,args); User bean1 = (User) context.getBean("user"); System.out.println(bean1.getName()); } }
注意事項:
- 使用@Bean注解默認方法名就是管理的Bean對象名。

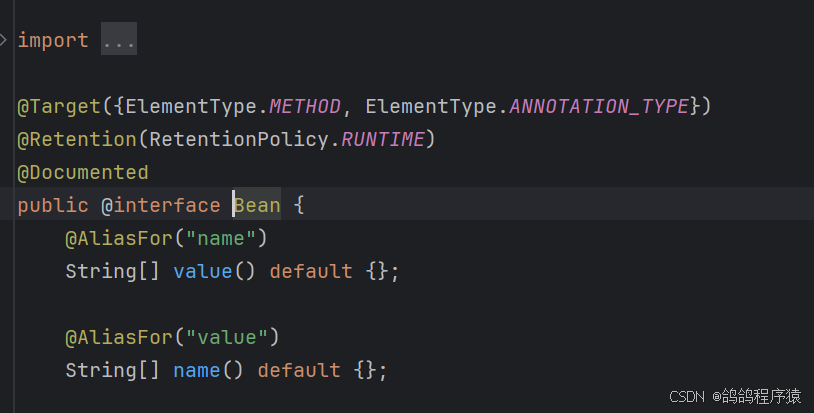

- @Bean對象重命名可以直接加括號
@Bean("name1")
,還可以使用name屬性@Bean(name = "name1")
,還可以使用value屬性@Bean(value = "name1")
,并且可以傳String數組。
- @Bean注解必須搭配五大類注解使用。
- 當方法有參數的時候,Spring會從容器中根據參數類型去找,是否有這個類型的對象,如果沒有,或者有多個不唯一都會報錯,有唯一一個就會拿這個對象賦值。
四、Spring掃描路徑
Spring默認的掃描路徑是啟動類所在路徑及其子路徑。

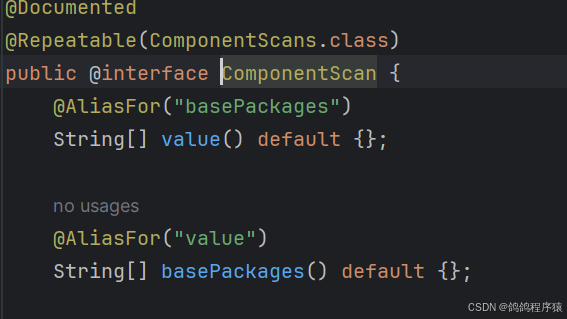

當我們要掃描其它路徑的時候,可以使用注解@ComponentScan("需要掃描路徑")
,可以傳數組。
其實不怎么用這個注解,直接啟動類放在所有需要掃描的路徑的最上層包下即可。
五、DI詳解
依賴注?是?個過程,是指IoC容器在創建Bean時, 去提供運?時所依賴的資源,?資源指的就是對象。
依賴注?, Spring給我們提供了三種?式:
- 屬性注?(Field Injection)
- 構造?法注?(Constructor Injection)
- Setter 注?(Setter Injection)
5.1屬性注入@Autowired
屬性注?是使? @Autowired 注解實現的
注意事項:
- 注入的對象必須是容器中已經有的,也就是使用五大類注解交給Spring管理的。
- @Autowired不能修飾final修飾的成員。
使用:
package com.example.springioc.controller; import com.example.springioc.service.UserService; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Controller; @Controller public class UserController { @Autowired private UserService us; public void hello() { System.out.println("Hello"); us.print(); } }
package com.example.springioc; import com.example.springioc.controller.UserController; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.context.ApplicationContext; @SpringBootApplication public class SpringIocDemoApplication { public static void main(String[] args) { ApplicationContext context = SpringApplication.run(SpringIocDemoApplication.class,args); UserController bean = context.getBean(UserController.class); bean.hello(); } }
打印結果為
Hello
do Service、
5.2 構造方法注入
直接使用構造函數,將上面代碼改成如下也可以使用。
package com.example.springioc.controller; import com.example.springioc.service.UserService; import org.springframework.stereotype.Controller; @Controller public class UserController { private UserService us; public UserController(UserService us) { this.userService = us; } public void hello() { System.out.println("Hello"); us.print(); } }
注意事項:
- 當只有一個構造函數的時候,直接可以注入。
- 當有兩個及以上構造函數的時候,Spring無法辨別使用哪一個構造函數注入,需要在使用的構造函數前加上@Autowired注解。
- 只能在一個構造方法上加上@Autowired注解。
5.3 setter方法注入
直接加上set方法,加上@Autowired注解,將上面代碼改成如下也可以使用。
package com.example.springioc.controller; import com.example.springioc.service.UserService; import org.springframework.stereotype.Controller; @Controller public class UserController { private UserService us; @Autowired public void setUserService(UserService us) { this.us = us; } public void hello() { System.out.println("Hello"); us.print(); } }
注意事項:
- set方法必須加上@Autowired注解,可以給多個set方法使用注解。
- 不能修飾final修飾的成員的set方法。
優缺點比較:
- 屬性注?
- 優點:簡潔,使??便;
- 缺點:
- 只能?于 IoC 容器,如果是? IoC 容器不可?,并且只有在使?的時候才會出現NPE(空指針異常)
- 不能注??個Final修飾的屬性
- 構造函數注?(Spring 4.X推薦)
- 優點:
- 可以注?final修飾的屬性
- 注?的對象不會被修改
- 依賴對象在使?前?定會被完全初始化,因為依賴是在類的構造?法中執?的,?構造?法是在類加載階段就會執?的?法.
- 通?性好,構造?法是JDK?持的, 所以更換任何框架,他都是適?的
- 缺點:
- 注?多個對象時, 代碼會?較繁瑣
- Setter注?(Spring 3.X推薦)
- 優點:?便在類實例之后, 重新對該對象進?配置或者注?
- 缺點:
- 不能注??個Final修飾的屬性
- 注?對象可能會被改變, 因為setter?法可能會被多次調?,就有被修改的?險
5.4 @Autowired注解問題及解決
當一個類交給Spring多個對象后,使用@Autowired注解,會無法分辨。
package com.example.springioc.service; import com.example.springioc.model.User; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Primary; import org.springframework.stereotype.Service; @Service public class UserService { @Bean public User u1(String name) { return new User(name,11); } @Bean public User u2() { return new User("lisi",18); } @Bean public String name () { return "zhangsan"; } public void print() { System.out.println("do Service"); } }
package com.example.springioc.controller; import com.example.springioc.model.User; import jakarta.annotation.Resource; import org.springframework.stereotype.Controller; @Controller public class UserController { @Resource(name = "u1") private User user; public void hello() { System.out.println("Hello"); System.out.println(user.toString()); } }

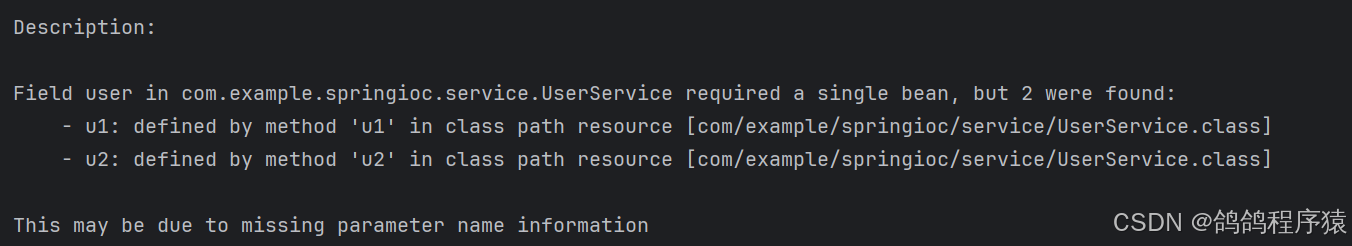

報錯信息:
解決方法:
提供了以下?種注解解決:
- @Primary
- @Qualifier
- @Resource
使?@Primary注解:當存在多個相同類型的Bean注?時,加上@Primary注解,來確定默認的實現。例如上面代碼:
@Bean @Primary public String name () { return "zhangsan"; }
使?@Qualifier注解:指定當前要注?的bean對象。在@Qualifier的value屬性中,指定注?的bean的名稱,必須與@Autowired一起用。例如上面代碼:
@Autowired @Qualifier("u1") private User user;
使?@Resource注解:是按照bean的名稱進?注?。通過name屬性指定要注?的bean的名稱。@Resource是JDK提供的注解。
例如上面代碼:
@Resource(name = "u2") private User user;

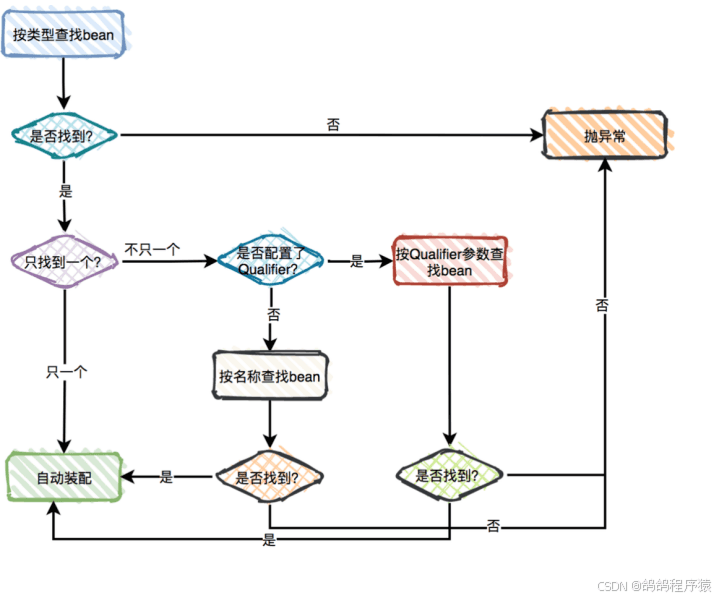

@Autowired工作流程
