C#調用WebService的方法步驟
前言
在日常工作中,如果涉及到與第三方進行接口對接,有的會使用WebService的方式,這篇文章主要講解在.NET Framework中如何調用WebService。
創建WebService
(1)新建項目——模板選擇ASP.NET Web 應用程序
(2)選擇空項目模板

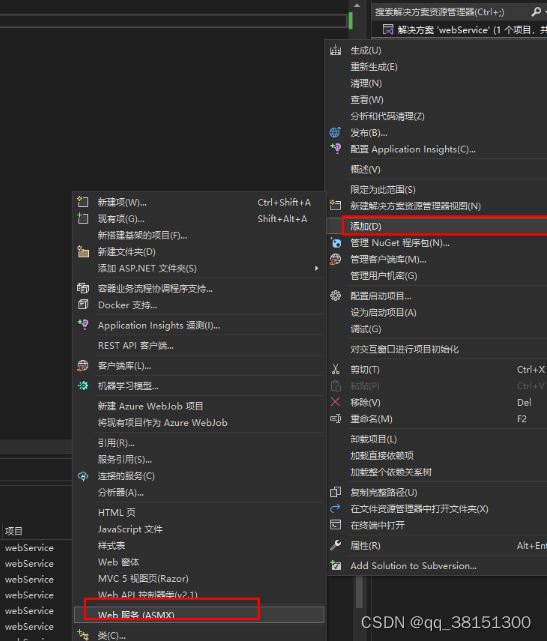

(3)右擊項目-添加-Web服務(ASMX)

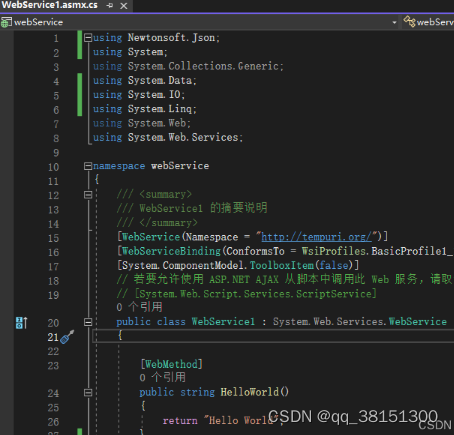

(4)新建后會自動生成一個測試服務HelloWorld并返回執行字符串

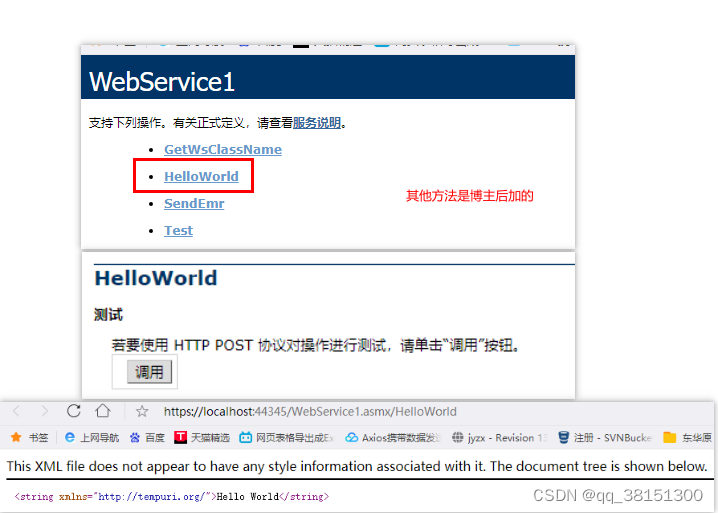

(5)點擊運行,并調用返回
方法一:靜態引用
這種方式是通過添加靜態引用的方式調用WebService

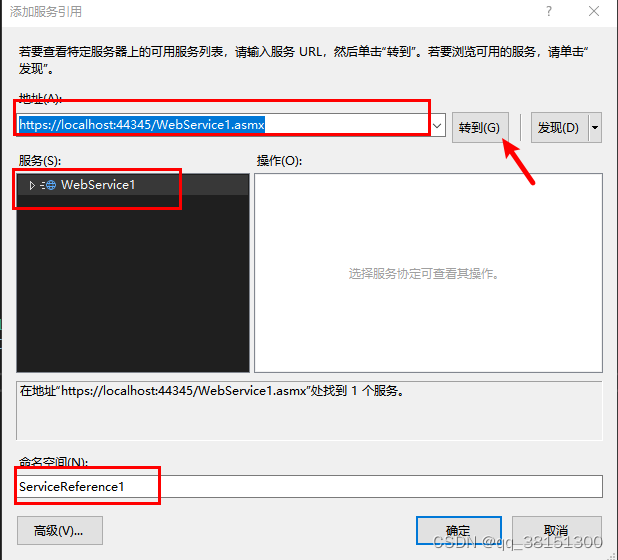

1.首先創建一個Winform程序,右擊引用-添加服務引用。地址即為 運行的WebService地址,命名空間可自命名

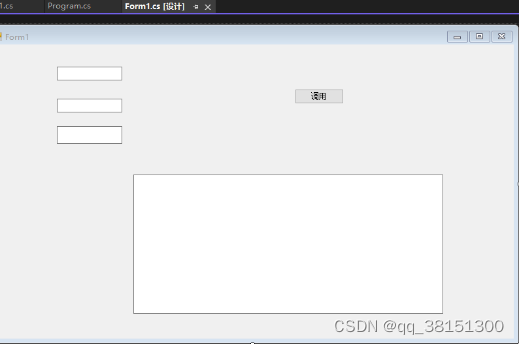

2.設計Winform窗體,可選擇工具箱button調用,TextBox入?yún)?/p>
3.根據所需,調用WebService服務即可拿到返回參數
方法二:動態調用
上面使用靜態引用的方式調用WebService,但是這種方式有一個缺點:如果發布的WebService地址改變,那么就要重新添加WebService的引用。如果是現有的WebService發生了改變,也要更新現有的服務引用,這需要把代碼放到現場才可以。
使用動態調用WebService的方法可以解決該問題。

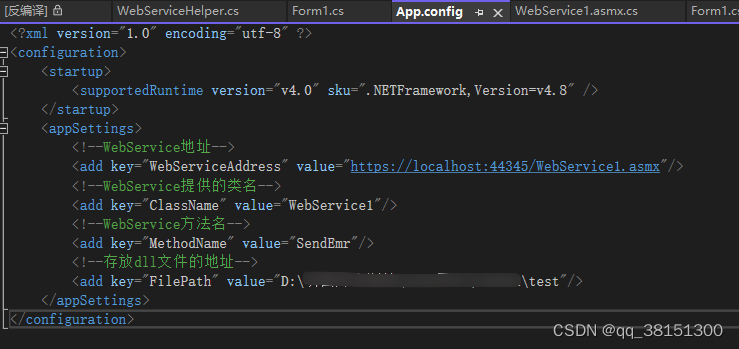

1.我們?cè)谂渲梦募锩嫣砑优渲?,把WebService的地址、WebService提供的類名、要調用的方法名稱,都寫在配置文件里面
2.同樣設計Winform界面,添加按鈕,調用WebService服務
添加幫助類
using System; using System.CodeDom.Compiler; using System.CodeDom; using System.Collections.Generic; using System.IO; using System.Linq; using System.Net; using System.Text; using System.Threading.Tasks; using System.Xml.Serialization; using System.Web; using System.Xml.Serialization; using System.Web.Caching; using System.Web.Services.Description; namespace ApiTest1 { internal class WebServiceHelper { /// <summary> /// 生成dll文件保存到本地 /// </summary> /// <param name="url">WebService地址</param> /// <param name="className">類名</param> /// <param name="methodName">方法名</param> /// <param name="filePath">保存dll文件的路徑</param> public static void CreateWebServiceDLL(string url, string className, string methodName, string filePath) { // 1. 使用 WebClient 下載 WSDL 信息。 WebClient web = new WebClient(); Stream stream = web.OpenRead(url + "?WSDL"); // 2. 創建和格式化 WSDL 文檔。 ServiceDescription description = ServiceDescription.Read(stream); //如果不存在就創建file文件夾 if (Directory.Exists(filePath) == false) { Directory.CreateDirectory(filePath); } if (File.Exists(filePath + className + "_" + methodName + ".dll")) { //判斷緩存是否過期 var cachevalue = HttpRuntime.Cache.Get(className + "_" + methodName); if (cachevalue == null) { //緩存過期刪除dll File.Delete(filePath + className + "_" + methodName + ".dll"); } else { // 如果緩存沒有過期直接返回 return; } } // 3. 創建客戶端代理代理類。 ServiceDescriptionImporter importer = new ServiceDescriptionImporter(); // 指定訪問協議。 importer.ProtocolName = "Soap"; // 生成客戶端代理。 importer.Style = ServiceDescriptionImportStyle.Client; importer.CodeGenerationOptions = CodeGenerationOptions.GenerateProperties | CodeGenerationOptions.GenerateNewAsync; // 添加 WSDL 文檔。 importer.AddServiceDescription(description, null, null); // 4. 使用 CodeDom 編譯客戶端代理類。 // 為代理類添加命名空間,缺省為全局空間。 CodeNamespace nmspace = new CodeNamespace(); CodeCompileUnit unit = new CodeCompileUnit(); unit.Namespaces.Add(nmspace); ServiceDescriptionImportWarnings warning = importer.Import(nmspace, unit); CodeDomProvider provider = CodeDomProvider.CreateProvider("CSharp"); CompilerParameters parameter = new CompilerParameters(); parameter.GenerateExecutable = false; // 可以指定你所需的任何文件名。 parameter.OutputAssembly = filePath + className + "_" + methodName + ".dll"; parameter.ReferencedAssemblies.Add("System.dll"); parameter.ReferencedAssemblies.Add("System.XML.dll"); parameter.ReferencedAssemblies.Add("System.Web.Services.dll"); parameter.ReferencedAssemblies.Add("System.Data.dll"); // 生成dll文件,并會把WebService信息寫入到dll里面 CompilerResults result = provider.CompileAssemblyFromDom(parameter, unit); if (result.Errors.HasErrors) { // 顯示編譯錯誤信息 System.Text.StringBuilder sb = new StringBuilder(); foreach (CompilerError ce in result.Errors) { sb.Append(ce.ToString()); sb.Append(System.Environment.NewLine); } throw new Exception(sb.ToString()); } //記錄緩存 var objCache = HttpRuntime.Cache; // 緩存信息寫入dll文件 objCache.Insert(className + "_" + methodName, "1", null, DateTime.Now.AddMinutes(5), TimeSpan.Zero, CacheItemPriority.High, null); } /// <summary> /// 根據WebService的url地址獲取className /// </summary> /// <param name="wsUrl">WebService的url地址</param> /// <returns></returns> //private string GetWsClassName(string wsUrl) //{ // string[] parts = wsUrl.Split('/'); // string[] pps = parts[parts.Length - 1].Split('.'); // return pps[0]; //} } }
3.動態調用WebService代碼:
using System; using System.Collections.Generic; using System.ComponentModel; using System.Configuration; using System.Data; using System.Drawing; using System.IO; using System.Linq; using System.Reflection; using System.Text; using System.Threading.Tasks; using System.Windows.Forms; namespace ApiTest1 { public partial class Form1 : Form { public Form1() { InitializeComponent(); } private void button1_Click(object sender, EventArgs e) { // 讀取配置文件,獲取配置信息 string url = ConfigurationManager.AppSettings["WebServiceAddress"]; string className = ConfigurationManager.AppSettings["ClassName"]; string methodName = ConfigurationManager.AppSettings["MethodName"]; string filePath = ConfigurationManager.AppSettings["FilePath"]; // 調用WebServiceHelper WebServiceHelper.CreateWebServiceDLL(url, className, methodName, filePath); // 讀取dll內容 byte[] filedata = File.ReadAllBytes(filePath + className + "_" + methodName + ".dll"); // 加載程序集信息 Assembly asm = Assembly.Load(filedata); Type t = asm.GetType(className); // 創建實例 object o = Activator.CreateInstance(t); MethodInfo method = t.GetMethod(methodName); // 參數 string MsgCode = textBox1.Text; string SendXml = textBox2.Text; //string UserCode = textBox3.Text; object[] args = { MsgCode, SendXml}; //object[] args = { "動態調用WebService" }; // 調用訪問,獲取方法返回值 string value = method.Invoke(o, args).ToString(); //輸出返回值 MessageBox.Show($"返回值:{value}"); } } }

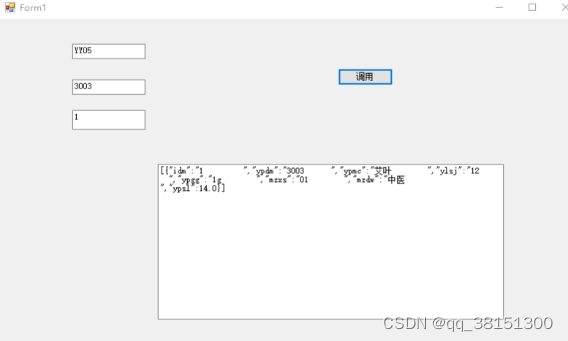

程序運行結果
如果說類名沒有提供,可以根據url來自動獲取類名:
見幫助類(WebServiceHelper)中GetWsClassName 方法。
到此這篇關于C#調用WebService的方法步驟的文章就介紹到這了,更多相關C#調用WebService內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
