Java使用AOP技術實現通用接口驗簽工具

更新時間：2025年03月31日 08:50:12 作者：帥氣的濤啊

這篇文章主要為大家詳細介紹了Java如何使用AOP技術實現通用接口驗簽工具,文中的示例代碼講解詳細,感興趣的小伙伴可以跟隨小編一起學習一下吧

一、背景

在給第三方提供接口時，我們需要對接口進行驗簽。具體來說，當外部系統調用我們的接口時，請求中需要攜帶一個簽名，我們接收到請求后，會解析數據并校驗簽名是否正確，以確保請求的合法性和安全性。

為了在不同項目中方便地使用這一功能，我們將簽名校驗規則封裝成一個工具包。使用方只需通過簡單的注解即可輕松集成驗簽功能，無需重復編寫驗簽邏輯，從而提高開發效率并確保一致性。

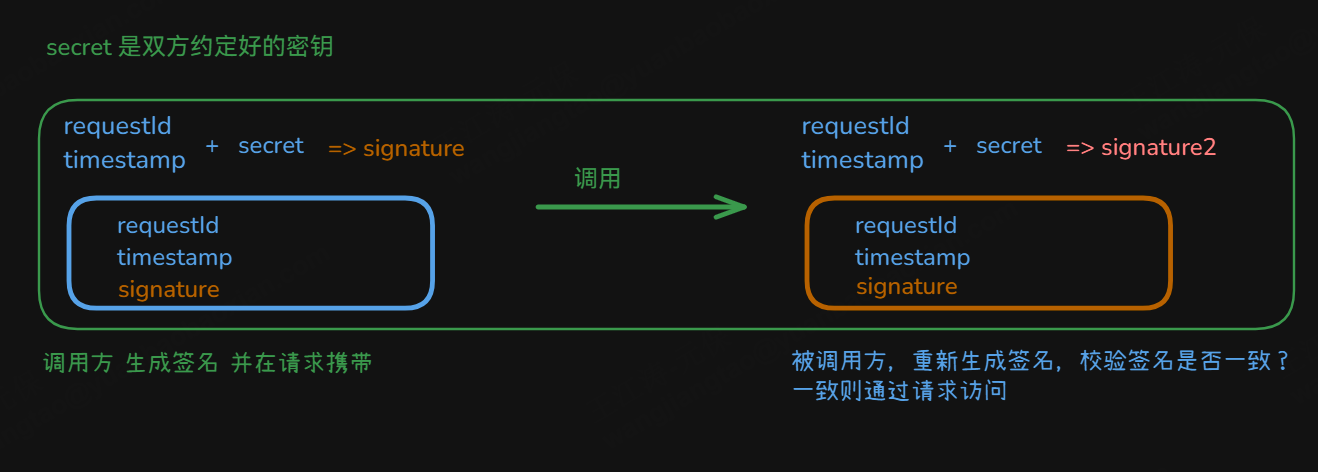

二、實現原理

使用AOP來攔截方法

獲取參數值進行組裝、校驗簽名是否一致

三、設計思路

通過倆個注解進行標記所需要進行驗簽的方法

@Target(ElementType.METHOD) // 注解只能用于方法
@Retention(RetentionPolicy.RUNTIME) // 注解在運行時可見
public @interface SignatureChecker {

    // 服務Code
    String serviceCode();
    // 密鑰
    String secretKey() default "";
    // 默認為true，表示需要驗證簽名
    boolean required() default true;
    // 過期時間，單位為分鐘
    int expireMinutes() default -1;

}

serviceCode：服務編碼，進行區分不同的服務/業務

secretKey：雙方約定好的密鑰，進行生成簽名，可以寫在配置文件中。

expireMinutes：標識簽名有效時長，默認5分鐘，可以配置文件中進行全局修改。

@Target(ElementType.PARAMETER)
@Retention(RetentionPolicy.RUNTIME)
public @interface SignatureParam {

    String requestIdField() default "";
    String timestampField() default "";
    String signatureField() default "";

}

對于不同的請求實體，可能對應的字段名不相同，所以我們需要使用一個注解進行標注當前實體驗簽字段的名稱。

當簽名字段發生變化時，可以使用requestIdField、timestampField、signatureField 字段進行指定。

四、代碼

4.1 代碼結構

4.2 詳細代碼

SignatureChecker.class

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

@Target(ElementType.METHOD) // 注解只能用于方法
@Retention(RetentionPolicy.RUNTIME) // 注解在運行時可見
public @interface SignatureChecker {

    // 服務Code
    String serviceCode();
    // 密鑰
    String secretKey() default "";
    // 默認為true，表示需要驗證簽名
    boolean required() default true;
    // 過期時間，單位為分鐘
    int expireMinutes() default -1;

}

SignatureParam.class

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

@Target(ElementType.PARAMETER)
@Retention(RetentionPolicy.RUNTIME)
public @interface SignatureParam {

    String requestIdField() default "";
    String timestampField() default "";
    String signatureField() default "";

}

SignatureAspect.class

import com.alibaba.fastjson2.JSON;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.reflect.MethodSignature;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;
import org.springframework.util.StringUtils;
import org.tao.anno.SignatureChecker;
import org.tao.anno.SignatureParam;
import org.tao.config.SignatureProperties;
import org.tao.ecxeption.SignatureValidationException;
import org.tao.util.SignatureUtil;

import javax.annotation.Resource;
import java.lang.annotation.Annotation;
import java.lang.reflect.Method;
import java.util.Map;

@Aspect
@Component
public class SignatureAspect {
    private static final Logger logger = LoggerFactory.getLogger(SignatureAspect.class);

    @Resource
    private SignatureProperties signatureProperties;

    @Around("@annotation(org.tao.anno.SignatureChecker)")
    public Object validateSignature(ProceedingJoinPoint joinPoint) throws Throwable {
        MethodSignature signature = (MethodSignature) joinPoint.getSignature();
        Method method = signature.getMethod();
        // 獲取方法的所有參數
        Annotation[][] parameterAnnotations = method.getParameterAnnotations();
        Object[] args = joinPoint.getArgs();

        Map<String, Object> paramMap = null;
        SignatureChecker signatureChecker = method.getAnnotation(SignatureChecker.class);
        if (signatureChecker != null && signatureChecker.required()) {
            SignatureParam signatureParam = null;
            // 遍歷參數注解，找到被 @SignatureParam 注解修飾的參數
            outerLoop:
            for (int i = 0; i < parameterAnnotations.length; i++) {
                for (Annotation anno : parameterAnnotations[i]) {
                    if (anno instanceof SignatureParam) {
                        signatureParam = (SignatureParam) anno;
                        Object paramValue = args[i];
                        try {
                            paramMap = JSON.parseObject(JSON.toJSONString(paramValue), Map.class);
                        } catch (Exception e) {
                            logger.error("[簽名校驗] 失敗，請檢查參數是否正確, paramValue => {}, message => {}", JSON.toJSONString(paramValue), e.getMessage());
                        }
                        break outerLoop;
                    }
                }
            }
            try {
                validateSignature(signatureChecker, signatureParam, paramMap);
            } catch (SignatureValidationException e) {
                logger.warn("[簽名校驗] 校驗失敗，paramMap => {}, message => {}", JSON.toJSONString(paramMap), e.getMessage());
                throw e;
            }
        }

        // 繼續執行原方法
        return joinPoint.proceed();
    }

    private void validateSignature(SignatureChecker checker, SignatureParam signatureParam, Map<String, Object> paramMap) throws SignatureValidationException {
        // 獲取服務編碼
        String servicedCodeNew = checker.serviceCode();
        if (StringUtils.isEmpty(servicedCodeNew)) {
            throw new SignatureValidationException("缺失服務編碼，請聯系管理員配置！");
        }
        // 獲取密鑰
        String secretKey = StringUtils.isEmpty(checker.secretKey()) ? signatureProperties.getSecretKeys().get(servicedCodeNew) : checker.secretKey();
        if (StringUtils.isEmpty(secretKey)) {
            throw new SignatureValidationException("缺失驗簽密鑰，請聯系管理員配置！");
        }

        String signatureField = StringUtils.isEmpty(signatureParam.signatureField()) ? signatureProperties.getSignatureField() : signatureParam.signatureField();
        String requestIdField = StringUtils.isEmpty(signatureParam.requestIdField()) ? signatureProperties.getRequestIdField() : signatureParam.requestIdField();
        String timestampField = StringUtils.isEmpty(signatureParam.timestampField()) ? signatureProperties.getTimestampField() : signatureParam.timestampField();
        // 獲取請求參數
        String requestId = paramMap.get(requestIdField) == null ? null : paramMap.get(requestIdField).toString();
        String signature = paramMap.get(signatureField) == null ? null : paramMap.get(signatureField).toString();
        Long timestamp = paramMap.get(timestampField) == null ? null : Long.parseLong(paramMap.get(timestampField).toString());

        if (requestId == null || signature == null || timestamp == null) {
            throw new SignatureValidationException("缺失驗簽參數，請檢查！");
        }

        // 校驗時間戳
        validateTimestamp(timestamp, checker.expireMinutes());
        // 校驗簽名
        if (!SignatureUtil.verifySignature(requestId + timestamp, secretKey, signature)) {
            throw new SignatureValidationException("簽名校驗不通過！");
        }
    }

    private void validateTimestamp(long timestamp, int expireMinutes) throws SignatureValidationException {
        // 如果是-1，則使用配置文件中的默認值
        expireMinutes = expireMinutes == -1 ? signatureProperties.getExpireMinutes() : expireMinutes;
        // 如果是0，則代表永久有效，不進行時間判斷
        if (expireMinutes == 0) {
            return;
        } else if (expireMinutes <= 0) {
            throw new SignatureValidationException("過期時間配置無效，請檢查！");
        }

        long currentTime = System.currentTimeMillis();
        if (timestamp > currentTime + 5 * 60 * 1000) {
            throw new SignatureValidationException("調用端時間與服務器時間未同步，請檢查！");
        } else if (currentTime - timestamp > (long) expireMinutes * 60 * 1000) {
            throw new SignatureValidationException("請求已過期，請重新請求！");
        }
    }
}

SignatureAutoConfiguration.class

import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.tao.aop.SignatureAspect;

/**
 * @author: handsometaoa
 * @description
 * @date: 2025/3/29 11:00
 */


@Configuration
@EnableConfigurationProperties(SignatureProperties.class)
public class SignatureAutoConfiguration {

    @Bean
    @ConditionalOnMissingBean
    public SignatureAspect signatureAspect() {
        return new SignatureAspect();
    }


}

SignatureProperties.class

import org.springframework.boot.context.properties.ConfigurationProperties;

import java.util.HashMap;
import java.util.Map;

@ConfigurationProperties(prefix = "signature")
public class SignatureProperties {

    private String requestIdField = "requestId";
    private String timestampField = "timestamp";
    private String signatureField = "signature";
    private Integer expireMinutes = 5;
    private Map<String, String> secretKeys = new HashMap<>();

    public Map<String, String> getSecretKeys() {
        return secretKeys;
    }

    public void setSecretKeys(Map<String, String> secretKeys) {
        this.secretKeys = secretKeys;
    }

    public Integer getExpireMinutes() {
        return expireMinutes;
    }

    public void setExpireMinutes(Integer expireMinutes) {
        this.expireMinutes = expireMinutes;
    }

    public String getRequestIdField() {
        return requestIdField;
    }

    public void setRequestIdField(String requestIdField) {
        this.requestIdField = requestIdField;
    }

    public String getSignatureField() {
        return signatureField;
    }

    public void setSignatureField(String signatureField) {
        this.signatureField = signatureField;
    }

    public String getTimestampField() {
        return timestampField;
    }

    public void setTimestampField(String timestampField) {
        this.timestampField = timestampField;
    }
}

GlobalExceptionHandler

import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;

import java.util.HashMap;
import java.util.Map;

@RestControllerAdvice
public class GlobalExceptionHandler {

    @ExceptionHandler(SignatureValidationException.class)
    public ResponseEntity<Map<String, Object>> handleSignatureValidationException(SignatureValidationException ex) {
        Map<String, Object> response = new HashMap<>();
        response.put("code", 500);
        response.put("message", ex.getMessage());
        return new ResponseEntity<>(response, HttpStatus.INTERNAL_SERVER_ERROR);
    }
}

SignatureValidationException.class

public class SignatureValidationException extends RuntimeException {
    public SignatureValidationException(String message) {
        super(message);
    }
}

SignatureUtil.class

import org.springframework.util.DigestUtils;

/**
 * @author: handsometaoa
 * @description
 * @date: 2025/3/29 11:00
 */
public class SignatureUtil {

    /**
     * 校驗簽名是否正確
     *
     * @param params    請求參數
     * @param sign      客戶端傳遞的簽名
     * @param secretKey 密鑰
     * @return 是否校驗通過
     */
    public static boolean verifySignature(String params, String secretKey, String sign) {
        String serverSign = generateSignature(params, secretKey);
        return serverSign.equals(sign);
    }

    /**
     * 生成簽名
     *
     * @param params    請求參數
     * @param secretKey 密鑰
     * @return 生成的簽名
     */
    private static String generateSignature(String params, String secretKey) {
        String rawData = params + secretKey;
        return DigestUtils.md5DigestAsHex(rawData.getBytes());
    }


}

spring.factories.class

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
org.tao.config.SignatureAutoConfiguration

pom.xml

  <dependencies>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-aop</artifactId>
      <version>2.1.3.RELEASE</version>
      <optional>true</optional>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-autoconfigure</artifactId>
      <version>2.1.3.RELEASE</version>
      <optional>true</optional>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
      <version>2.1.3.RELEASE</version>
      <optional>true</optional>
    </dependency>
    <dependency>
      <groupId>com.alibaba.fastjson2</groupId>
      <artifactId>fastjson2</artifactId>
      <version>2.0.31</version>
      <optional>true</optional>
    </dependency>
  </dependencies>

五、使用方式

5.1 集成方式（倆種方式）

打成 jar 包引入依賴

直接將代碼拷進自己項目

5.2 使用說明

1.在方法上添加 @SignatureChecker 注解，包含密鑰的參數前添加 @SignatureParam 注解；舉例：假設需要給XX業務進行驗簽，約定密鑰為XXX，請求參數分別為 request_id、timeStamp、signature

@PostMapping("test")
@SignatureChecker(serviceCode = "XX", secretKey = "XXX")
public String test(@RequestBody @SignatureParam(requestIdField = "request_id", timestampField = "timeStamp") Request request) {
    return "test";
}

2.基于注解值 > 配置值 > 默認值（約定大于配置）

密鑰 secretKey : 注解(secretKey) > 配置值（signature.secretKeys 中定義的）
有效期 expireMinutes：注解（expireMinutes）> 配置值（signature.expireMinutes）> 默認值（5）
驗簽字段：注解（requestIdField、timestampField、signatureField）> 配置值（signature.requestIdField) > 默認值（requestId、timestamp、signature）

3.請求接口
