SpringBoot實現文件斷點續傳功能詳解
更新時間：2025年04月02日 08:36:54 作者：風象南
在處理大文件傳輸或網絡不穩定的情況下,文件斷點續傳功能顯得尤為重要,本文將詳細介紹如何使用Spring Boot實現文件的斷點續傳功能,需要的可以了解下
在處理大文件傳輸或網絡不穩定的情況下，文件斷點續傳功能顯得尤為重要。本文將詳細介紹如何使用Spring Boot實現文件的斷點續傳功能，并提供完整的前后端代碼實現。
一、斷點續傳技術原理
斷點續傳的核心原理是將文件分片傳輸并記錄進度，主要包括
- 客戶端將大文件分割成小塊逐一上傳
- 服務端保存已上傳塊信息
- 傳輸中斷后只需繼續傳未上傳部分
二、服務端代碼實現
項目依賴配置
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<version>2.7.18</version>
</dependency>
<dependency>
<groupId>cn.hutool</groupId>
<artifactId>hutool-all</artifactId>
<version>5.8.1</version>
</dependency>
</dependencies>
application.yaml配置
file:
upload:
dir: D:/tmp
spring:
servlet:
multipart:
enabled: true
max-file-size: 100MB
max-request-size: 100MB
file-size-threshold: 2KB
文件塊信息實體類
public class FileChunkDTO {
/**
* 當前文件塊，從1開始
*/
private Integer chunkNumber;
/**
* 分塊大小
*/
private Long chunkSize;
/**
* 當前分塊大小
*/
private Long currentChunkSize;
/**
* 總大小
*/
private Long totalSize;
/**
* 文件標識
*/
private String identifier;
/**
* 文件名
*/
private String filename;
/**
* 相對路徑
*/
private String relativePath;
/**
* 總塊數
*/
private Integer totalChunks;
public Integer getChunkNumber() {
return chunkNumber;
}
public void setChunkNumber(Integer chunkNumber) {
this.chunkNumber = chunkNumber;
}
public Long getChunkSize() {
return chunkSize;
}
public void setChunkSize(Long chunkSize) {
this.chunkSize = chunkSize;
}
public Long getCurrentChunkSize() {
return currentChunkSize;
}
public void setCurrentChunkSize(Long currentChunkSize) {
this.currentChunkSize = currentChunkSize;
}
public Long getTotalSize() {
return totalSize;
}
public void setTotalSize(Long totalSize) {
this.totalSize = totalSize;
}
public String getIdentifier() {
return identifier;
}
public void setIdentifier(String identifier) {
this.identifier = identifier;
}
public String getFilename() {
return filename;
}
public void setFilename(String filename) {
this.filename = filename;
}
public String getRelativePath() {
return relativePath;
}
public void setRelativePath(String relativePath) {
this.relativePath = relativePath;
}
public Integer getTotalChunks() {
return totalChunks;
}
public void setTotalChunks(Integer totalChunks) {
this.totalChunks = totalChunks;
}
}
通用響應類
public class FileUploadResponse {
private boolean success;
private String message;
private Object data;
public FileUploadResponse(boolean success, String message, Object data) {
this.success = success;
this.message = message;
this.data = data;
}
public static FileUploadResponse success(String message, Object data) {
return new FileUploadResponse(true, message, data);
}
public static FileUploadResponse success(String message) {
return new FileUploadResponse(true, message, null);
}
public static FileUploadResponse error(String message) {
return new FileUploadResponse(false, message, null);
}
public boolean isSuccess() {
return success;
}
public void setSuccess(boolean success) {
this.success = success;
}
public String getMessage() {
return message;
}
public void setMessage(String message) {
this.message = message;
}
public Object getData() {
return data;
}
public void setData(Object data) {
this.data = data;
}
}
文件上傳服務
import cn.hutool.core.io.FileUtil;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;
import org.springframework.web.multipart.MultipartFile;
import java.io.File;
import java.io.IOException;
import java.io.RandomAccessFile;
@Service
public class FileUploadService {
private static final Logger logger = LoggerFactory.getLogger(FileUploadService.class);
@Value("${file.upload.dir}")
private String uploadDir;
/**
* 檢查文件是否已上傳過
*/
public boolean checkFileExists(FileChunkDTO chunk) {
String storeChunkPath = uploadDir + File.separator + "chunks" + File.separator + chunk.getIdentifier() + File.separator + chunk.getChunkNumber();
File storeChunk = new File(storeChunkPath);
return storeChunk.exists() && chunk.getChunkSize() == storeChunk.length();
}
/**
* 上傳文件塊
*/
public FileUploadResponse uploadChunk(FileChunkDTO chunk, MultipartFile file) {
try {
if (file.isEmpty()) {
return FileUploadResponse.error("文件塊為空");
}
// 創建塊文件目錄
String chunkDirPath = uploadDir + File.separator + "chunks" + File.separator + chunk.getIdentifier();
File chunkDir = new File(chunkDirPath);
if (!chunkDir.exists()) {
chunkDir.mkdirs();
}
// 保存分塊
String chunkPath = chunkDirPath + File.separator + chunk.getChunkNumber();
file.transferTo(new File(chunkPath));
return FileUploadResponse.success("文件塊上傳成功");
} catch (IOException e) {
logger.error(e.getMessage(),e);
return FileUploadResponse.error("文件塊上傳失敗: " + e.getMessage());
}
}
/**
* 合并文件塊
*/
public FileUploadResponse mergeChunks(String identifier, String filename, Integer totalChunks) {
try {
String chunkDirPath = uploadDir + File.separator + "chunks" + File.separator + identifier;
if(!FileUtil.exist(chunkDirPath)){
return FileUploadResponse.error("文件合并失敗, 目錄不存在" );
}
File chunkDir = new File(chunkDirPath);
// 創建目標文件
String filePath = uploadDir + File.separator + filename;
File destFile = new File(filePath);
if (destFile.exists()) {
destFile.delete();
}
// 使用RandomAccessFile合并文件塊
try (RandomAccessFile randomAccessFile = new RandomAccessFile(destFile, "rw")) {
byte[] buffer = new byte[1024];
for (int i = 1; i <= totalChunks; i++) {
File chunk = new File(chunkDirPath + File.separator + i);
if (!chunk.exists()) {
return FileUploadResponse.error("文件塊" + i + "不存在");
}
try (java.io.FileInputStream fis = new java.io.FileInputStream(chunk)) {
int len;
while ((len = fis.read(buffer)) != -1) {
randomAccessFile.write(buffer, 0, len);
}
}
}
}
// 清理臨時文件塊
FileUtil.del(chunkDir);
return FileUploadResponse.success("文件合并成功", filePath);
} catch (IOException e) {
logger.error(e.getMessage(),e);
return FileUploadResponse.error("文件合并失敗: " + e.getMessage());
}
}
}
控制器
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.multipart.MultipartFile;
@RestController
@RequestMapping("/api/upload")
@CrossOrigin // 允許跨域請求
public class FileUploadController {
private static Logger logger = LoggerFactory.getLogger(FileDownloadService.class);
@Autowired
private FileUploadService fileUploadService;
/**
* 檢查文件或文件塊是否已存在
*/
@GetMapping("/check")
public ResponseEntity<Void> checkFileExists(FileChunkDTO chunk) {
boolean exists = fileUploadService.checkFileExists(chunk);
if (exists) {
// 分片存在，返回 200
return ResponseEntity.ok().build();
} else {
// 分片不存在，返回 404
return ResponseEntity.notFound().build();
}
}
/**
* 上傳文件塊
*/
@PostMapping("/chunk")
public FileUploadResponse uploadChunk(
@RequestParam(value = "chunkNumber") Integer chunkNumber,
@RequestParam(value = "chunkSize") Long chunkSize,
@RequestParam(value = "currentChunkSize") Long currentChunkSize,
@RequestParam(value = "totalSize") Long totalSize,
@RequestParam(value = "identifier") String identifier,
@RequestParam(value = "filename") String filename,
@RequestParam(value = "totalChunks") Integer totalChunks,
@RequestParam("file") MultipartFile file) {
String identifierName = identifier;
// 如果 identifierName 包含逗號，取第一個值
if (identifierName.contains(",")) {
identifierName = identifierName.split(",")[0];
}
FileChunkDTO chunk = new FileChunkDTO();
chunk.setChunkNumber(chunkNumber);
chunk.setChunkSize(chunkSize);
chunk.setCurrentChunkSize(currentChunkSize);
chunk.setTotalSize(totalSize);
chunk.setIdentifier(identifierName);
chunk.setFilename(filename);
chunk.setTotalChunks(totalChunks);
return fileUploadService.uploadChunk(chunk, file);
}
/**
* 合并文件塊
*/
@PostMapping("/merge")
public FileUploadResponse mergeChunks(
@RequestParam("identifier") String identifier,
@RequestParam("filename") String filename,
@RequestParam("totalChunks") Integer totalChunks) {
return fileUploadService.mergeChunks(identifier, filename, totalChunks);
}
}
三、前端實現
完整HTML頁面
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>文件斷點續傳示例</title>
<link rel="external nofollow" rel="stylesheet">
<style>
.upload-container, .download-container {
margin-top: 30px;
padding: 20px;
border: 1px solid #ddd;
border-radius: 5px;
}
.progress {
margin-top: 10px;
height: 25px;
}
.file-list {
margin-top: 20px;
}
.file-item {
padding: 10px;
margin-bottom: 5px;
border: 1px solid #eee;
border-radius: 5px;
display: flex;
justify-content: space-between;
align-items: center;
}
</style>
</head>
<body>

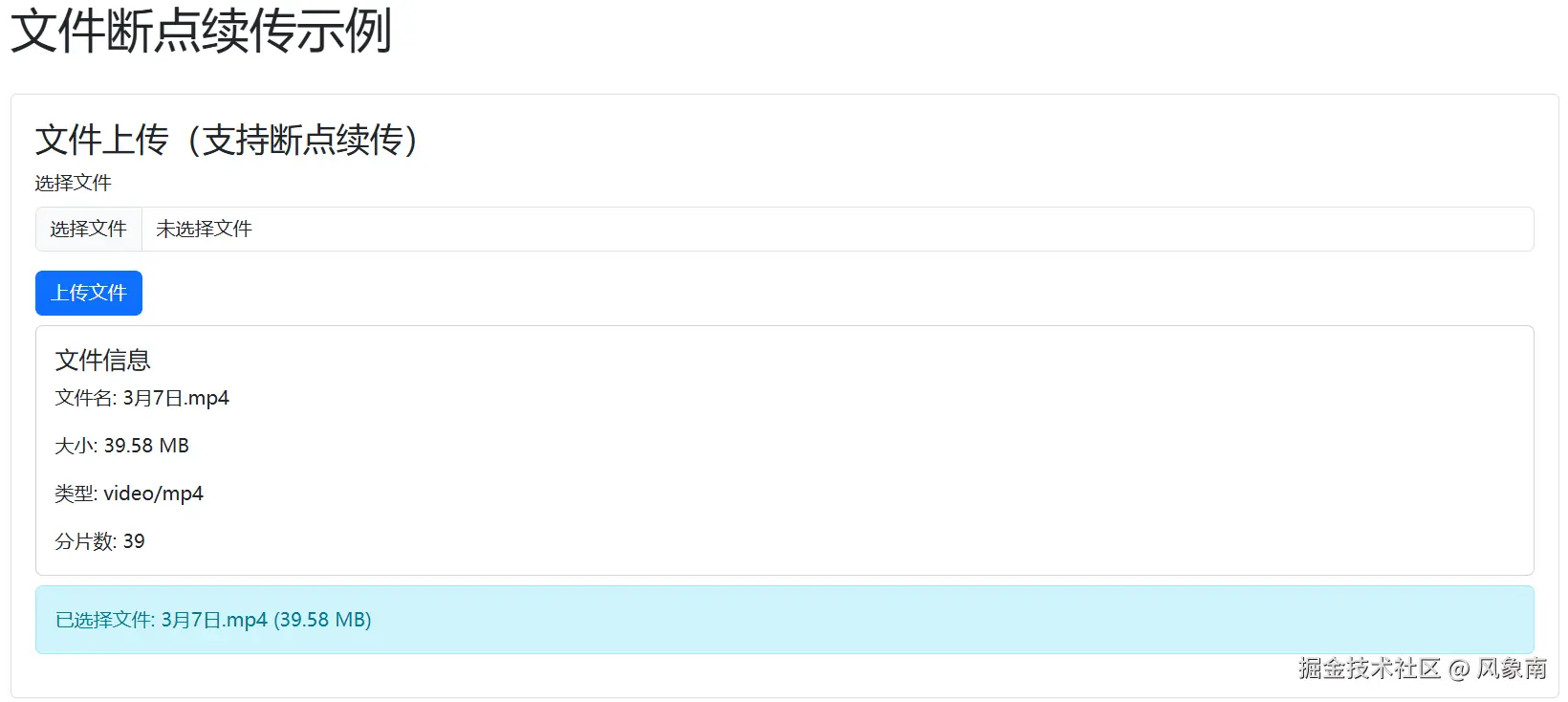

<div class="container">
<h1 class="mt-4 mb-4">文件斷點續傳示例</h1>
<!-- 上傳區域 -->
<div class="upload-container">
<h3>文件上傳（支持?jǐn)帱c(diǎn)續傳）</h3>
<div class="mb-3">
<label for="fileUpload" class="form-label">選擇文件</label>
<input class="form-control" type="file" id="fileUpload">
</div>
<button id="uploadBtn" class="btn btn-primary">上傳文件</button>
<div class="progress d-none" id="uploadProgress">
<div class="progress-bar" role="progressbar" style="width: 0%;" id="uploadProgressBar">0%</div>
</div>
<div id="uploadStatus" class="mt-2"></div>
</div>
<div class="download-container">

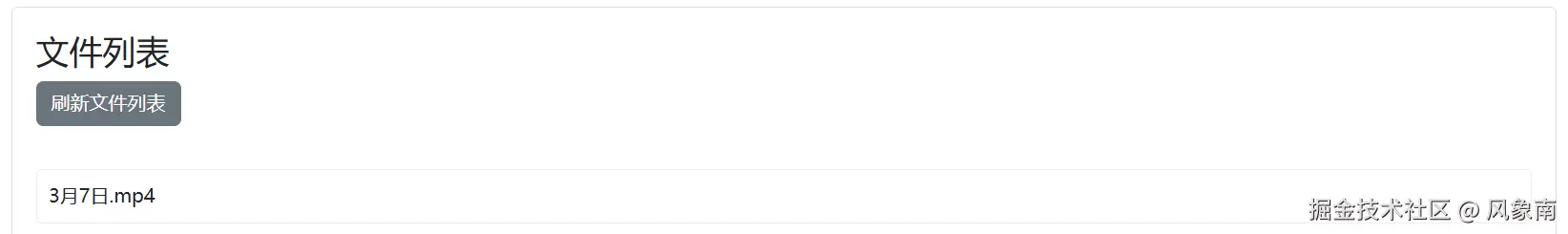

<h3>文件列表</h3>
<button id="refreshBtn" class="btn btn-secondary mb-3">刷新文件列表</button>
<div id="fileList" class="file-list">
<div class="alert alert-info">點擊刷新按鈕獲取文件列表</div>
</div>
</div>
</div>
<script src="https://cdn.jsdelivr.net/npm/axios/dist/axios.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/spark-md5@3.0.2/spark-md5.min.js"></script>
<script src="https://cdn.jsdelivr.net/npm/resumablejs@1.1.0/resumable.min.js"></script>
<script>
// 基礎配置
const API_BASE_URL = 'http://localhost:8080/api';
// DOM元素
const uploadBtn = document.getElementById('uploadBtn');
const fileUpload = document.getElementById('fileUpload');
const uploadProgress = document.getElementById('uploadProgress');
const uploadProgressBar = document.getElementById('uploadProgressBar');
const uploadStatus = document.getElementById('uploadStatus');
const refreshBtn = document.getElementById('refreshBtn');
const fileList = document.getElementById('fileList');
const downloadProgress = document.getElementById('downloadProgress');
const downloadProgressBar = document.getElementById('downloadProgressBar');
const downloadStatus = document.getElementById('downloadStatus');
// 初始化resumable.js
const resumable = new Resumable({
target: `${API_BASE_URL}/upload/chunk`,
query: {},
chunkSize: 1 * 1024 * 1024, // 分片大小為1MB
simultaneousUploads: 3,
testChunks: true,
throttleProgressCallbacks: 1,
chunkNumberParameterName: 'chunkNumber',
chunkSizeParameterName: 'chunkSize',
currentChunkSizeParameterName: 'currentChunkSize',
totalSizeParameterName: 'totalSize',
identifierParameterName: 'identifier',
fileNameParameterName: 'filename',
totalChunksParameterName: 'totalChunks',
method: 'POST',
headers: {
'Accept': 'application/json'
},
testMethod: 'GET',
testTarget: `${API_BASE_URL}/upload/check`
});
// 分配事件監聽器
resumable.assignBrowse(fileUpload);
// 文件添加事件 - 顯示文件名
resumable.on('fileAdded', function(file) {
console.log('File added:', file);
// 顯示已選擇的文件名
uploadStatus.innerHTML = `<div class="alert alert-info">已選擇文件: ${file.fileName} (${formatFileSize(file.size)})</div>`;
// 顯示文件信息卡片
const fileInfoDiv = document.createElement('div');
fileInfoDiv.className = 'card mt-2 mb-2';
fileInfoDiv.innerHTML = `
<div class="card-body">
<h5 class="card-title">文件信息</h5>
<p class="card-text">文件名: ${file.fileName}</p>
<p class="card-text">大小: ${formatFileSize(file.size)}</p>
<p class="card-text">類型: ${file.file.type || '未知'}</p>
<p class="card-text">分片數: ${file.chunks.length}</p>
</div>
`;
// 清除舊的文件信息
const oldFileInfo = document.querySelector('.card');
if (oldFileInfo) {
oldFileInfo.remove();
}
// 插入到uploadStatus之前
uploadStatus.parentNode.insertBefore(fileInfoDiv, uploadStatus);
});
// 格式化文件大小
function formatFileSize(bytes) {
if (bytes === 0) return '0 Bytes';
const k = 1024;
const sizes = ['Bytes', 'KB', 'MB', 'GB', 'TB'];
const i = Math.floor(Math.log(bytes) / Math.log(k));
return parseFloat((bytes / Math.pow(k, i)).toFixed(2)) + ' ' + sizes[i];
}
// 分塊開始事件
resumable.on('chunkingStart', function(file) {
console.log('開始分塊:', file.fileName);
});
// 分塊進度事件
resumable.on('chunkingProgress', function(file, ratio) {
console.log('分塊進度:', Math.floor(ratio * 100) + '%');
});
// 分塊完成事件
resumable.on('chunkingComplete', function(file) {
console.log('分塊完成');
});
// 上傳開始事件
resumable.on('uploadStart', function() {
console.log('開始上傳');
uploadStatus.innerHTML = '<div class="alert alert-info">開始上傳文件塊...</div>';
window.mergeCalled = false;
});
// 上傳進度事件
resumable.on('fileProgress', function(file) {
const progress = Math.floor(file.progress() * 100);
uploadProgress.classList.remove('d-none');
uploadProgressBar.style.width = `${progress}%`;
uploadProgressBar.textContent = `${progress}%`;
// 顯示當前上傳塊信息
const uploadedChunks = file.chunks.filter(chunk => chunk.status === 2).length;
const totalChunks = file.chunks.length;
uploadStatus.innerHTML = `<div class="alert alert-info">正在上傳: ${uploadedChunks}/${totalChunks} 塊 (${progress}%)</div>`;
});
// 總體進度事件
resumable.on('progress', function() {
console.log('總體進度:', Math.floor(resumable.progress() * 100) + '%');
});
// 上傳成功事件
resumable.on('fileSuccess', function(file, response) {
console.log('文件上傳成功，準備合并');
const parsedResponse = JSON.parse(response);
if (parsedResponse.success) {
// 避免重復調用合并接口
if (window.mergeCalled) {
console.log('合并已經調用過，跳過');
return;
}
window.mergeCalled = true;
uploadStatus.innerHTML = '<div class="alert alert-info">所有分塊上傳成功，正在合并文件...</div>';
// 使用FormData發送合并請求
const formData = new FormData();
formData.append('identifier', file.uniqueIdentifier);
formData.append('filename', file.fileName);
formData.append('totalChunks', file.chunks.length);
axios.post(`${API_BASE_URL}/upload/merge`, formData)
.then(function(response) {
if (response.data.success) {
uploadStatus.innerHTML = `<div class="alert alert-success">文件上傳并合并成功！</div>`;
// 刷新文件列表
refreshFileList();
} else {
uploadStatus.innerHTML = `<div class="alert alert-danger">文件合并失敗: ${response.data.message}</div>`;
}
})
.catch(function(error) {
uploadStatus.innerHTML = `<div class="alert alert-danger">合并請求出錯: ${error.message}</div>`;
});
} else {
uploadStatus.innerHTML = `<div class="alert alert-danger">上傳失敗: ${parsedResponse.message}</div>`;
}
});
// 塊上傳錯誤事件
resumable.on('chunkUploadError', function(file, chunk, message) {
console.error('塊上傳錯誤:', chunk.offset, message);
uploadStatus.innerHTML = `<div class="alert alert-warning">塊 ${chunk.offset+1}/${file.chunks.length} 上傳失敗，系統將重試</div>`;
});
// 上傳錯誤事件
resumable.on('fileError', function(file, response) {
try {
const parsedResponse = JSON.parse(response);
uploadStatus.innerHTML = `<div class="alert alert-danger">上傳錯誤: ${parsedResponse.message || '未知錯誤'}</div>`;
} catch (e) {
uploadStatus.innerHTML = `<div class="alert alert-danger">上傳錯誤: ${response || '未知錯誤'}</div>`;
}
});
// 點擊上傳按鈕事件
uploadBtn.addEventListener('click', function() {
if (!resumable.files.length) {
uploadStatus.innerHTML = '<div class="alert alert-warning">請先選擇文件！</div>';
return;
}
uploadStatus.innerHTML = '<div class="alert alert-info">開始上傳...</div>';
resumable.upload();
});
// 獲取文件列表
function refreshFileList() {
axios.get(`${API_BASE_URL}/download/files`)
.then(function(response) {
if (response.data.length > 0) {
let html = '';
response.data.forEach(function(fileName) {
html += `
<div class="file-item">
<span>${fileName}</span>
</div>
`;
});
fileList.innerHTML = html;
} else {
fileList.innerHTML = '<div class="alert alert-info">沒有文件</div>';
}
})
.catch(function(error) {
fileList.innerHTML = `<div class="alert alert-danger">獲取文件列表失敗: ${error.message}</div>`;
});
}
// 刷新按鈕事件
refreshBtn.addEventListener('click', refreshFileList);
// 初始加載文件列表
document.addEventListener('DOMContentLoaded', function() {
refreshFileList();
});
</script>
</body>
</html>
四、核心實現原理詳解
文件分片：使用Resumable.js將大文件分割成多個小塊（默認1MB），每塊單獨上傳
檢查已上傳部分：上傳前先調用/api/upload/check檢查服務器已保存的分片
斷點續傳流程：
- 文件的唯一標識符由文件名和大小計算得出
- 服務端在臨時目錄下按標識符創建文件夾存儲分片
- 上傳完成后調用合并接口，服務端將分片按順序合并
文件合并：服務端使用RandomAccessFile實現高效文件合并
五、效果演示

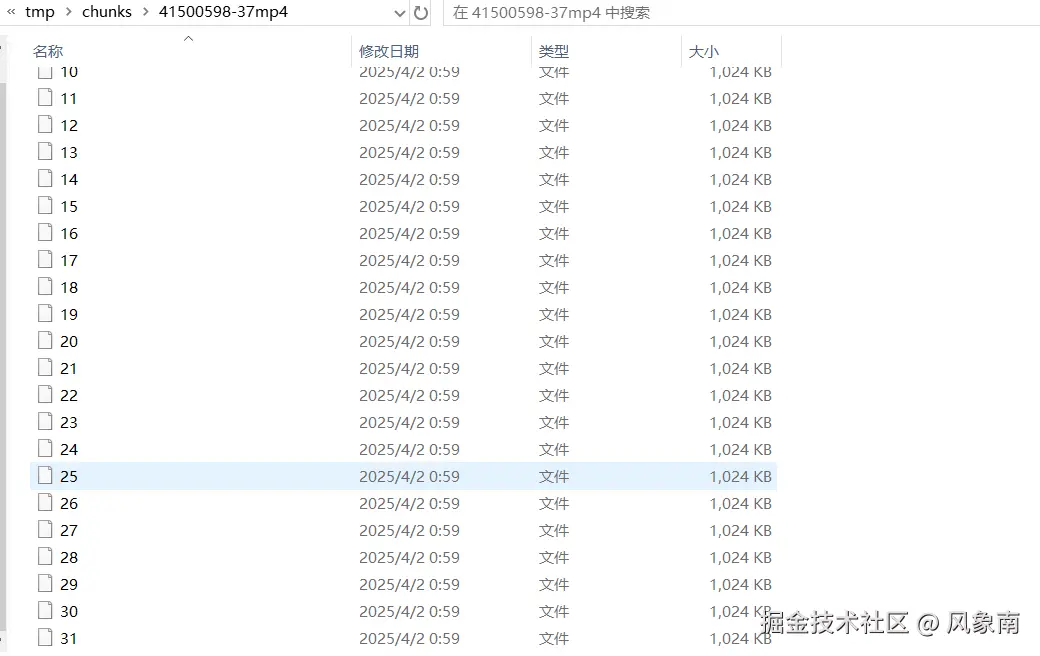

上傳文件一半后觸發終止
再次上傳文件

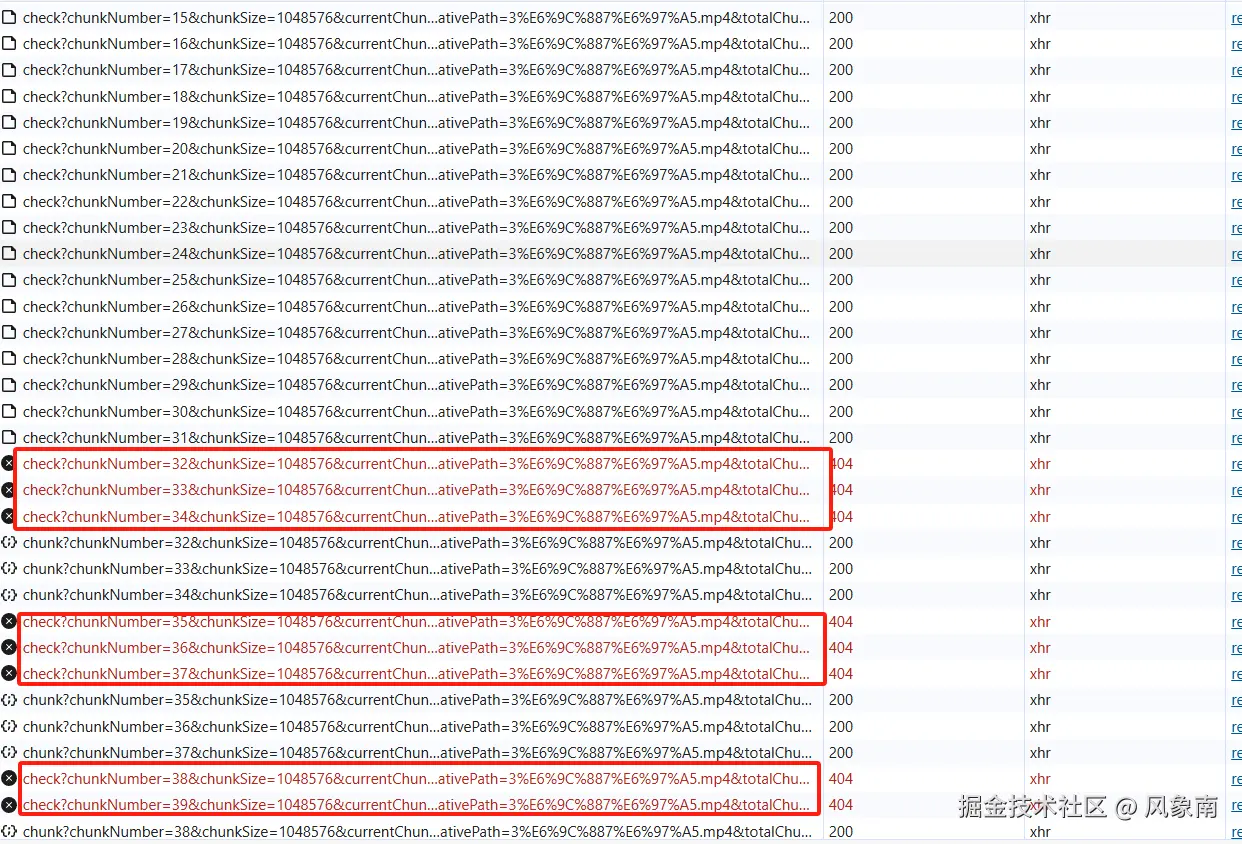

通過請求可以看到，紅色的8個文件塊 (32-39) 檢查失敗后進行了上傳，其他的已上傳 (1-31) 塊并沒有重新上傳。
最終結果
到此這篇關于SpringBoot實現文件斷點續傳功能詳解的文章就介紹到這了,更多相關SpringBoot文件斷點續傳內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
您可能感興趣的文章:
- SpringBoot 中大文件（分片上傳）斷點續傳與極速秒傳功能的實現
- springboot大文件上傳、分片上傳、斷點續傳、秒傳的實現
- springboot整合vue2-uploader實現文件分片上傳、秒傳、斷點續傳功能
- SpringBoot基于Minio實現分片上傳、斷點續傳的實現
- springboot項目實現斷點續傳功能
- 在SpringBoot中實現斷點續傳的實例代碼
- springboot斷點上傳、續傳、秒傳實現方式
相關文章
淺談Java內存區域與對象創建過程
下面小編就為大家?guī)硪黄獪\談Java內存區域與對象創建過程。小編覺得挺不錯的，現在就分享給大家，也給大家做個參考。一起跟隨小編過來看看吧2017-07-07
SM2算法和RSA算法都是公鑰密碼算法,SM2算法是一種更先進安全的算法,在我們國家商用密碼體系中被用來替換RSA算法,這篇文章主要給大家介紹了關于如何通過三步輕松實現Java的SM2前端加密后端解密的相關資料,需要的朋友可以參考下2024-01-01
本篇文章主要介紹了java 生成文字圖片的示例代碼，小編覺得挺不錯的，現在分享給大家，也給大家做個參考。一起跟隨小編過來看看吧2017-08-08
Java使用POI導出Excel(二)：多個sheet
這篇文章介紹了Java使用POI導出Excel的方法，文中通過示例代碼介紹的非常詳細。對大家的學習或工作具有一定的參考借鑒價值，需要的朋友可以參考下2022-10-10
解決jasperreport導出的pdf每頁顯示的記錄太少問題
這篇文章主要介紹了解決jasperreport導出的pdf每頁顯示的記錄太少問題，具有很好的參考價值，希望對大家有所幫助。如有錯誤或未考慮完全的地方，望不吝賜教2021-06-06
Java實現Word/Pdf/TXT轉html的實例代碼
本文主要介紹了Java實現Word/Pdf/TXT轉html的實例代碼，代碼簡單易懂，非常不錯，具有一定的參考借鑒價值,需要的朋友可以參考下2020-02-02
工廠類的目的是將對象的創建邏輯封裝在一個類中,以便客戶端代碼無需了解具體的實現細節,本文主要介紹了MyBatis工廠類封裝與簡化實現,具有一定的參考價值,感興趣的可以了解一下2024-01-01
這篇文章主要介紹了詳解java 單例模式及方法總結的相關資料,需要的朋友可以參考下2017-05-05
Java內部類_動力節點Java學院整理
內部類是指在一個外部類的內部再定義一個類。下面通過本文給大家java內部類的使用小結，需要的朋友參考下吧2017-04-04
這篇文章主要介紹了java 多線程死鎖詳解及簡單實例的相關資料,需要的朋友可以參考下2017-01-01
