Spring?Cloud?Gateway服務網關限流問題及解決
網關是所有請求的公共入口,所以可以在網關進行限流,而且限流的方式也很多,我們本次采用前面學過的 Sentinel 組件來實現網關的限流。

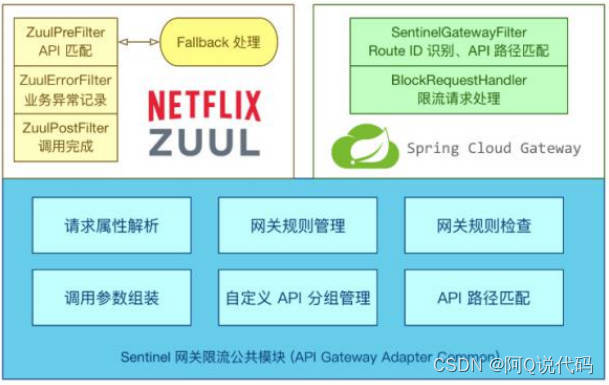

Sentinel 支持對 SpringCloud Gateway、Zuul等主流網關進行限流。

從1.6.0版本開始,Sentinel提供了SpringCloud Gateway的適配模塊,可以提供兩種資源維度的限流:
- route維度:即在Spring配置文件中配置的路由條目,資源名為對應的routeld;
- 自定義API維度:用戶可以利用Sentinel提供的API來自定義一些API分組;
route限流
導入依賴
<dependency> <groupId>com.alibaba.csp</groupId> <artifactId>sentinel-spring-cloud-gateway-adapter</artifactId> </dependency>
編寫配置類
基于Sentinel的Gateway限流是通過其提供的Filter來完成的,使用時只需注入對應的SentinelGatewayFilter實例以及SentinelGatewayBlockExceptionHandler實例即可。
@Configuration
public class GatewayConfiguration {
private final List<ViewResolver> viewResolvers;
private final ServerCodecConfigurer serverCodecConfigurer;
public GatewayConfiguration(ObjectProvider<List<ViewResolver>> viewResolversProvider, ServerCodecConfigurer serverCodecConfigurer) {
this.viewResolvers = viewResolversProvider.getIfAvailable(Collections::emptyList);
this.serverCodecConfigurer = serverCodecConfigurer;
}
//初始化一個限流的過濾器
@Bean
@Order(Ordered.HIGHEST_PRECEDENCE)
public GlobalFilter sentinelGatewayFilter() {
return new SentinelGatewayFilter();
}
//配置初始化的限流參數
@PostConstruct
public void initGatewayRules() {
Set<GatewayFlowRule> rules = new HashSet<>();
rules.add(new GatewayFlowRule("shop-product")//資源名稱,對應路由id
.setCount(1)//限流閥值
.setIntervalSec(1)//統計時間窗口,單位是秒,默認是1秒
);
GatewayRuleManager.loadRules(rules);
}
//配置限流異常處理器
@Bean
@Order(Ordered.HIGHEST_PRECEDENCE)
public SentinelGatewayBlockExceptionHandler sentinelGatewayBlockExceptionHandler() {
return new SentinelGatewayBlockExceptionHandler(viewResolvers, serverCodecConfigurer);
}
//自定義限流異常頁面
@PostConstruct
public void initBlockHandlers() {
BlockRequestHandler blockRequestHandler = new BlockRequestHandler() {
@Override
public Mono<ServerResponse> handleRequest(ServerWebExchange serverWebExchange, Throwable throwable) {
Map map= new HashMap<>();
map.put("code", 0);
map.put("message", "接口被限流了");
return ServerResponse
.status(HttpStatus.OK)
.contentType(MediaType.APPLICATION_JSON_UTF8)
.body(BodyInserters.fromObject(map));
}
} ;
GatewayCallbackManager.setBlockHandler(blockRequestHandler);
}
}其中,GatewayFlowRule 網關限流規則中提供了如下屬性:
resource:資源名稱,可以是網關中的route名稱或者用戶自定義的API分組名稱。resourceMode:資源模型,限流規則是針對API Gateway的 route(RESOURCE_MODE_ROUTE_ID)還是用戶在Sentinel 中定義的API分組(RESOURCE_MODE_CUSTOM_API_NAME),默認route。grade:限流指標維度,同限流規則的 grade 字段。count:限流閾值。intervalSec:統計時間窗口,單位是秒, 默認是1 秒。controlBehavior:流量整形的控制效果,同限流規則的controlBehavior字段,目前支持快速失敗和勻速排隊兩種模式,默認快速失敗。burst:應對突發請求時額外允許的請求數目。maxQueueingTimeoutMs:勻速排隊模式下的最長排隊時間,單位是毫秒,僅在勻速排隊模式下生效。paramItem:參數限流配置。若不提供,則代表針對參數進行限流,該網關規則將會被轉換成普通流控規則;否則會轉換熱點規則。其中的字段如下:arseStrategy:從請求中提取參數的策略,目前支持提取來源IP(PARAM_PARSE_STRATEGY_CLIENT_IP)、Host(PARAM_PARSE_STRATEGY_HOST)、任意Header(PARAM_PARSE_STRATEGY_HEADER)和任意URL 參數(PARAM_PARSE_STRATEGY_URL_PARAM)四種模式。fieldName:若提取策略選擇Header模式或者URL參數模式,則需要指定對應的Header名稱或URL參數名稱。pattern和matchStrategy:為后續參數匹配特性預留,目前末實現。

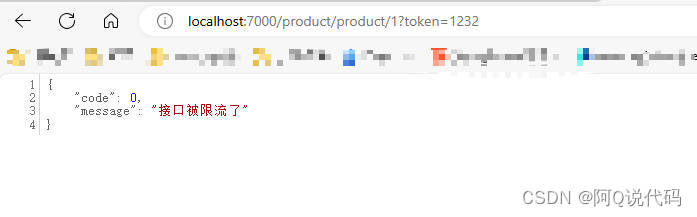

測試
在一秒鐘內多次訪問http://localhost:7000/product/product/1?token=1232就可以看到限流啟作用了。

自定義API分組
自定義API分組是一種更細粒度的限流規則定義
//配置初始化的限流參數
@PostConstruct
public void initGatewayRules() {
Set<GatewayFlowRule> rules = new HashSet<>();
rules.add(new GatewayFlowRule("shop_product_api").setCount(1).setIntervalSec(1));
rules.add(new GatewayFlowRule("shop_order_api").setCount(1).setIntervalSec(1));
GatewayRuleManager.loadRules(rules);
}
//自定義API分組
@PostConstruct
private void initCustomizedApis(){
Set<ApiDefinition> definitions = new HashSet<>();
//定義小組1
ApiDefinition api1 = new ApiDefinition("shop_product_api")
.setPredicateItems(new HashSet<ApiPredicateItem>(){{
//以/product/product/api1開頭的請求
add(new ApiPathPredicateItem().setPattern("/product/product/**")
.setMatchStrategy(SentinelGatewayConstants.URL_MATCH_STRATEGY_PREFIX));
}});
//定義小組2
ApiDefinition api2 = new ApiDefinition("shop_order_api")
.setPredicateItems(new HashSet<ApiPredicateItem>(){{
//完全匹配/order/order2/message
add(new ApiPathPredicateItem().setPattern("/order/order2/message"));
}});
definitions.add(api1);
definitions.add(api2);
GatewayApiDefinitionManager.loadApiDefinitions(definitions);
}在一秒鐘內多次訪問http://localhost:7000/product/product/1?token=1232也可以看到限流啟作用了。

總結
到這兒,Gateway 服務網關限流的內容就已經介紹完了。
以上為個人經驗,希望能給大家一個參考,也希望大家多多支持腳本之家。
