public class TigerView extends GLSurfaceView {
    private TigerRender mTigerRender;
    //默認正常速度
    private Speed mSpeed = Speed.MODE_NORMAL;
    public void setSpeed(Speed speed) {
        mSpeed = speed;
    }
    public enum Speed {
        MODE_EXTRA_SLOW, MODE_SLOW, MODE_NORMAL, MODE_FAST, MODE_EXTRA_FAST
    }
    public TigerView(Context context) {
        super(context);
    }
    public TigerView(Context context, AttributeSet attrs) {
        super(context, attrs);
        /**
         * 設置egl版本
         */
        setEGLContextClientVersion(2);
        /**
         * 設置渲染器
         */
        mTigerRender = new TigerRender(this);
        setRenderer(mTigerRender);
        /**
         * 設置按需渲染，當我們調用requestRender()的時候就會調用GlThread回調一次onDrawFrame()
         */
        setRenderMode(RENDERMODE_WHEN_DIRTY);
    }
    public void startRecord() {
        float speed = 1.f;
        switch (mSpeed) {
            case MODE_EXTRA_SLOW:
                speed = 0.3f;
                break;
            case MODE_SLOW:
                speed = 0.5f;
                break;
            case MODE_NORMAL:
                speed = 1.f;
                break;
            case MODE_FAST:
                speed = 1.5f;
                break;
            case MODE_EXTRA_FAST:
                speed = 3.f;
                break;
        }
        mTigerRender.startRecord(speed);
    }
    public void stopRecord() {
        mTigerRender.stopRecord();
    }
}

public class TigerRender implements GLSurfaceView.Renderer, SurfaceTexture.OnFrameAvailableListener {
    private final TigerView mView;
    private CameraHelper mCameraHelper;
    private SurfaceTexture mSurfaceTexture;
    float[] mtx = new float[16];
    private ScreeFilter mScreeFilter;
    private int[] mTextures;
    private CameraFilter mCameraFilter;
    private MediaRecorder mMediaRecorder;
    public TigerRender(TigerView tigerView) {
        mView = tigerView;
    }
    /**
     * 畫布創建好了
     *
     * @param gl     the GL interface. Use <code>instanceof</code> to
     *               test if the interface supports GL11 or higher interfaces.
     * @param config the EGLConfig of the created surface. Can be used
     *               to create matching pbuffers.
     */
    @Override
    public void onSurfaceCreated(GL10 gl, EGLConfig config) {
        mCameraHelper = new CameraHelper(Camera.CameraInfo.CAMERA_FACING_BACK);
        //準備好攝像頭繪制的畫布
        //通過open gl創建一個紋理id
        mTextures = new int[1];
        GLES20.glGenTextures(mTextures.length, mTextures, 0);
        mSurfaceTexture = new SurfaceTexture(mTextures[0]);
        //設置有一幀新的數據到來的時候，回調監聽
        mSurfaceTexture.setOnFrameAvailableListener(this);
        //必須要在GlThread里面創建著色器程序
        mCameraFilter = new CameraFilter(mView.getContext());
        mScreeFilter = new ScreeFilter(mView.getContext());
        EGLContext eglContext = EGL14.eglGetCurrentContext();
        mMediaRecorder = new MediaRecorder(mView.getContext(), "/mnt/sdcard/test.mp4", CameraHelper.HEIGHT, CameraHelper.WIDTH, eglContext);
    }
    /**
     * 畫布發生改變
     *
     * @param gl     the GL interface. Use <code>instanceof</code> to
     *               test if the interface supports GL11 or higher interfaces.
     * @param width
     * @param height
     */
    @Override
    public void onSurfaceChanged(GL10 gl, int width, int height) {
        mCameraHelper.startPreview(mSurfaceTexture);
        mCameraFilter.onReady(width, height);
        mScreeFilter.onReady(width, height);
    }
    /**
     * 畫畫
     *
     * @param gl the GL interface. Use <code>instanceof</code> to
     *           test if the interface supports GL11 or higher interfaces.
     */
    @Override
    public void onDrawFrame(GL10 gl) {
        //告訴open gl需要把屏幕清理成 什么樣子的顏色
        GLES20.glClearColor(0, 0, 0, 0);
        //開始真正的屏幕顏色清理，也就是上一次設置的屏幕顏色
        GLES20.glClear(GLES20.GL_COLOR_BUFFER_BIT);
        //把攝像頭采集的數據輸出出來
        //更新紋理，然后我們才可以使用opengl從SurfaceTexure當中獲取數據，進行渲染
        mSurfaceTexture.updateTexImage();
        //mSurfaceTexture比較特殊，在設置坐標的時候，需要一個變換矩陣，使用的是特殊的采樣器samplerExternalOES
        //這種采樣器,正常的是sample2D
        mSurfaceTexture.getTransformMatrix(mtx);
        mCameraFilter.setMatrix(mtx);
        int id = mCameraFilter.onDrawFrame(mTextures[0]);

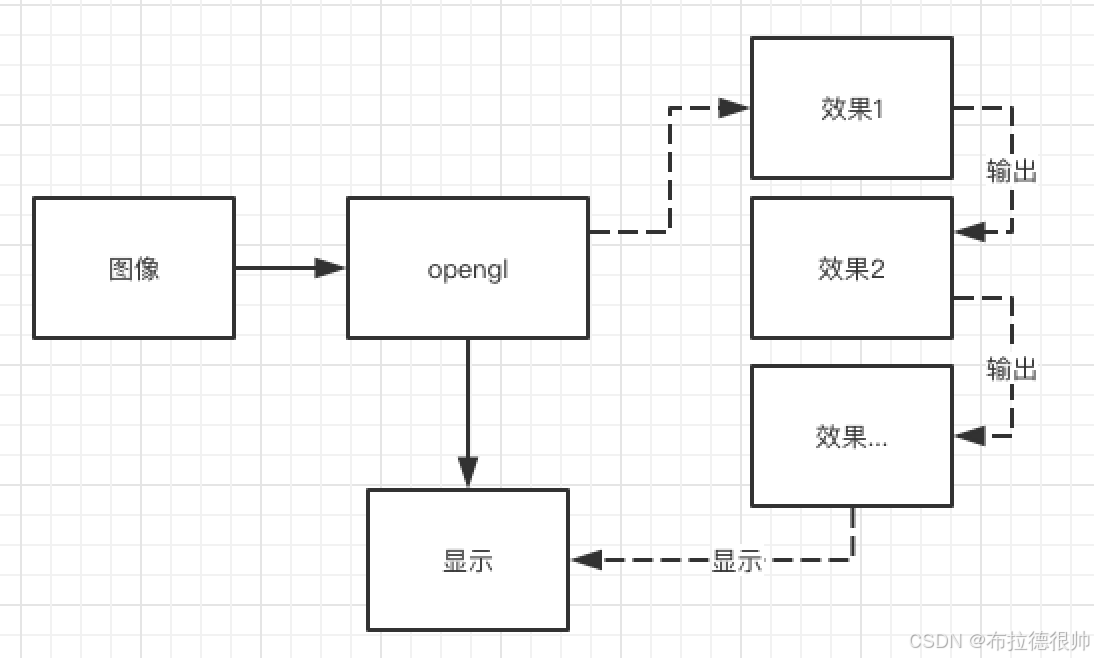

        //在這里添加各種效果，相當于責任鏈
        //開始畫畫
        mScreeFilter.onDrawFrame(id);
        mMediaRecorder.encodeFrame(id, mSurfaceTexture.getTimestamp());
    }
    /**
     * SurfaceTexture有一個新的有效的圖片的時候會被回調，此時可以把這個數據回調給GLSurfaceView的onDrawFrame
     *
     * @param surfaceTexture
     */
    @Override
    public void onFrameAvailable(SurfaceTexture surfaceTexture) {
        if (mView != null) {
            //開始渲染，有一幀新的圖像，就開始調用GLSurfaceView的onDrawFrame進行繪制
            mView.requestRender();
        }
    }
    public void startRecord(float speed) {
        try {
            mMediaRecorder.start(speed);
        } catch (IOException e) {
            throw new RuntimeException(e);
        }
    }
    public void stopRecord() {
        mMediaRecorder.stop();
    }
}

/**
 * 視頻錄制
 */
public class MediaRecorder {
    private final Context mContext;
    private final String mPath;
    private final int mWidth;
    private final int mHeight;
    private final EGLContext mEglContext;
    private MediaCodec mMediaCodec;
    private Surface mInputSurface;
    private MediaMuxer mMediaMuxer;
    private Handler mHandler;
    private EGLBase mEglBase;
    private boolean isStart;
    private int index;
    private float mSpeed;
    /**
     * @param context
     * @param path    視頻保存地址
     * @param width   視頻寬
     * @param height  視頻高
     */
    public MediaRecorder(Context context, String path, int width, int height, EGLContext eglContext) {
        mContext = context.getApplicationContext();
        mPath = path;
        mWidth = width;
        mHeight = height;
        mEglContext = eglContext;
    }
    /**
     * 開始錄制視頻
     */
    public void start(float speed) throws IOException {
        /**
         * 配置MediaCodec編碼器，視頻編碼的寬，高，幀率，碼率
         * 錄制成mp4格式，視頻編碼格式是h264 MIMETYPE_VIDEO_AVC 高級編碼
         */
        mSpeed = speed;
        MediaFormat videoFormat = MediaFormat.createVideoFormat(MediaFormat.MIMETYPE_VIDEO_AVC, mWidth, mHeight);
        //配置碼率 1500kbs
        videoFormat.setInteger(MediaFormat.KEY_BIT_RATE, 1500_000);
        //幀率
        videoFormat.setInteger(MediaFormat.KEY_FRAME_RATE, 20);
        //關鍵字間隔
        videoFormat.setInteger(MediaFormat.KEY_I_FRAME_INTERVAL, 20);
        //創建視頻高級編碼器
        mMediaCodec = MediaCodec.createEncoderByType(MediaFormat.MIMETYPE_VIDEO_AVC);
        //因?yàn)槭菑腟urface中讀取的，所以不需要設置這個顏色格式
        videoFormat.setInteger(MediaFormat.KEY_COLOR_FORMAT, MediaCodecInfo.CodecCapabilities.COLOR_FormatSurface);
        //配置編碼器，CONFIGURE_FLAG_ENCODE，
        mMediaCodec.configure(videoFormat, null, null, MediaCodec.CONFIGURE_FLAG_ENCODE);
        //交給虛擬屏幕，通過opengl 將預覽的紋理繪制到這一個虛擬屏幕中，這樣子Mediacodc 就會自動編碼這一幀圖像
        mInputSurface = mMediaCodec.createInputSurface();
        //mp4 播放流程  解復用--》解碼 》繪制
        //mp4 編碼流程  封裝器--》編碼
        //MUXER_OUTPUT_MPEG_4 MP4格式封裝器，將h.264通過他寫出到文件就可以了
        mMediaMuxer = new MediaMuxer(mPath, MediaMuxer.OutputFormat.MUXER_OUTPUT_MPEG_4);
        /**
         * 配置EGL環境，也就是配置我們的虛擬屏幕環境
         */
        HandlerThread handlerThread = new HandlerThread("ViewoCodec");
        handlerThread.start();
        Looper looper = handlerThread.getLooper();
        //子線程和子線程之間的通信
        mHandler = new Handler(looper);
        //EGl的綁定線程，對我們自己創建的EGl環境，都是在這個線程里面進行
        mHandler.post(() -> {
            //創建我們的EGL環境(虛擬設備，EGL上下文 )
            mEglBase = new EGLBase(mContext, mWidth, mHeight, mInputSurface, mEglContext);
            //啟動編碼器
            mMediaCodec.start();
            isStart = true;
        });
    }
    /**
     * textureId 紋理id
     * 調用一次，就有一個新的圖片需要編碼
     */
    public void encodeFrame(int textureId, long timesnap) {
        if (!isStart) {
            return;
        }
        //切換到子線程中編碼
        mHandler.post(() -> {
            //把圖像紋理畫到虛擬屏幕里面
            mEglBase.draw(textureId, timesnap);
            //此時我們需要從編碼器里面的輸出緩沖區獲取編碼以后的數據就可以了，
            getCodec(false);
        });
    }
    private void getCodec(boolean endOfStream) {
        if (endOfStream) {
            //表示停止錄制，此時我們不錄制了，需要給mediacoic 通知
            mMediaCodec.signalEndOfInputStream();
        }
        MediaCodec.BufferInfo bufferInfo = new MediaCodec.BufferInfo();
        //希望將已經編碼完成的數據都獲取到，然后寫出到mp4文件中
        while (true) {
            //并不是傳給mediacodec一幀數據就表示可以編碼出一幀數據，有可能需要好多幀數據才可以同時編碼出數據出來
            //輸出緩沖區
            //傳遞-1表示一直等到輸出緩沖區有一個編碼好的有效的數據以后才會繼續向下走，不然就會一直卡在127行，
            //10_000超時時間
            int status = mMediaCodec.dequeueOutputBuffer(bufferInfo, 10_000);
            if (status == MediaCodec.INFO_TRY_AGAIN_LATER) {
                //如果是停止，就繼續循環，
                // 繼續循環就表示不會接收到新的等待編碼的圖像了
                //相當于保證mediacodic中所有待編碼的數據都編碼完成
                // 標記不是停止，我們退出，下一輪接收到更多的數據才來輸出編碼以后的數據，我們就讓繼續走
                // 表示需要更多數據才可以編碼出圖像  false是繼續錄制，未來還有機會在調用getCodec
                if (!endOfStream) {
                    //結束錄制了
                    break;
                }
                //否則繼續
            } else if (status == MediaCodec.INFO_OUTPUT_FORMAT_CHANGED) {
                //開始編碼，就會調用一次
                MediaFormat outputFormat = mMediaCodec.getOutputFormat();
                //配置封裝器，增加一路指定格式的媒體流
                index = mMediaMuxer.addTrack(outputFormat);
                //啟動封裝器
                mMediaMuxer.start();
            } else if (status == MediaCodec.INFO_OUTPUT_BUFFERS_CHANGED) {
                //忽略
            } else {
                //成功取出一個有效的輸出
                ByteBuffer outputBuffer = mMediaCodec.getOutputBuffer(status);
                if ((bufferInfo.flags & MediaCodec.BUFFER_FLAG_CODEC_CONFIG) != 0) {
                    //如果獲取的ByteBuffer是配置信息，那么就不需要寫出到mp4文件中
                    bufferInfo.size = 0;
                }
                if (bufferInfo.size != 0) {
                    bufferInfo.presentationTimeUs = (long) (bufferInfo.presentationTimeUs / mSpeed);
                    //寫出到 mp4文件中
                    //根據偏移定位去獲取數據，而不是從0開始
                    outputBuffer.position(bufferInfo.offset);
                    //設置可讀可寫的總長度
                    outputBuffer.limit(bufferInfo.offset + bufferInfo.size);
                    mMediaMuxer.writeSampleData(index, outputBuffer, bufferInfo);
                }
                //輸出緩沖區使用完畢了， 此時就可以回收了，讓mediacodec繼續使用
                mMediaCodec.releaseOutputBuffer(status, false);
                if ((bufferInfo.flags & MediaCodec.BUFFER_FLAG_END_OF_STREAM) != 0) {
                    //結束了，
                    break;
                }
            }
        }
    }
    public void stop() {
        isStart = false;
        mHandler.post(() -> {
            getCodec(true);
            mMediaCodec.stop();
            mMediaCodec.release();
            mMediaCodec = null;
            mMediaMuxer.stop();
            mMediaMuxer.release();
            mMediaMuxer = null;
            mEglBase.release();
            mEglBase = null;
            mInputSurface = null;
            mHandler.getLooper().quitSafely();
            mHandler = null;
        });
    }
}

/**
 * EGL配置 和錄制opengl的操作
 */
public class EGLBase {
    private final EGLSurface mEglSurface;
    private final ScreeFilter mScreeFilter;
    private EGLDisplay mEglDisplay;
    private EGLConfig mEglConfig;
    private EGLContext mEGLContext;
    /**
     * @param context
     * @param width
     * @param height
     * @param surface MediaCodec創建的surface, 我們需要將這個surface貼到虛擬屏幕里面
     */
    public EGLBase(Context context, int width, int height, Surface surface, EGLContext eglContext) {
        createEGL(eglContext);
        //把surface貼到EGLDisplay 虛擬屏幕里面
        int[] attrib_list = {
                //不需要配置什么屬性
                EGL14.EGL_NONE};
        //就是向mEglDisplay這個虛擬屏幕上面畫畫
        mEglSurface = EGL14.eglCreateWindowSurface(mEglDisplay, mEglConfig, surface, attrib_list, 0);
        //必須要綁定當前線程的顯示上下文，不然就繪制不上去，這樣子之后操作的opelgl就是在這個虛擬屏幕上操作,讀和寫都是在同一個surface里面
        if (!EGL14.eglMakeCurrent(mEglDisplay, mEglSurface, mEglSurface, mEGLContext)) {
            throw new RuntimeException("eglMakeCurrent failed");
        }
        //向虛擬屏幕畫畫
        mScreeFilter = new ScreeFilter(context);
        mScreeFilter.onReady(width, height);
    }
    private void createEGL(EGLContext eglContext) {
        //創建虛擬顯示器
        mEglDisplay = EGL14.eglGetDisplay(EGL14.EGL_DEFAULT_DISPLAY);
        if (mEglDisplay == EGL14.EGL_NO_DISPLAY) {
            throw new RuntimeException("eglGetDisplay failed");
        }
        int[] version = new int[2];
        //初始化虛擬設備
        if (!EGL14.eglInitialize(mEglDisplay, version, 0, version, 1)) {
            throw new RuntimeException("eglInitialize failed");
        }
        int[] attrib_list = new int[]{//rgba 紅綠藍透明度
                EGL14.EGL_RED_SIZE, 8, EGL14.EGL_GREEN_SIZE, 8, EGL14.EGL_BLUE_SIZE, 8, EGL14.EGL_ALPHA_SIZE, 8, EGL14.EGL_RENDERABLE_TYPE, EGL14.EGL_OPENGL_ES2_BIT,//和egl的版本有關系
                EGL14.EGL_NONE//這個很重要，一定要配置為NONE，表示配置結束了
        };
        EGLConfig[] configs = new EGLConfig[1];
        int[] num_config = new int[1];
        boolean eglChooseConfig = EGL14.eglChooseConfig(mEglDisplay, attrib_list, 0, configs, 0, configs.length, num_config, 0);
        if (!eglChooseConfig) {
            //如果配置失敗
            throw new IllegalArgumentException("eglChooseConfig failed");
        }
        mEglConfig = configs[0];
        int[] attriblist = {EGL14.EGL_CONTEXT_CLIENT_VERSION, 2, EGL14.EGL_NONE};
        //創建EGL上下文
        //share_context 共享上下，傳遞繪制線程的(GLThread)EGL上下文，達到共享資源的目的
        mEGLContext = EGL14.eglCreateContext(mEglDisplay, mEglConfig, eglContext, attriblist, 0);
        if (mEGLContext == null || mEGLContext == EGL14.EGL_NO_CONTEXT) {
            mEGLContext = null;
            throw new RuntimeException("createContex error !");
        }
    }
    /**
     * @param textureId 紋理id,代表一張圖片
     * @param timesnap  時間戳
     */
    public void draw(int textureId, long timesnap) {
        //必須要綁定當前線程的顯示上下文，不然就繪制不上去，這樣子之后操作的opelgl就是在這個虛擬屏幕上操作,讀和寫都是在同一個surface里面
        //畫畫之前也必須要綁定
        if (!EGL14.eglMakeCurrent(mEglDisplay, mEglSurface, mEglSurface, mEGLContext)) {
            throw new RuntimeException("eglMakeCurrent failed");
        }
        //向虛擬屏幕畫畫
        mScreeFilter.onDrawFrame(textureId);
        //刷新eglSurface時間戳
        EGLExt.eglPresentationTimeANDROID(mEglDisplay, mEglSurface, timesnap);
        //交換數據,EGL工作模式，雙緩存模式，內部有兩個frameBuff,當EGL將一個frame顯示到屏幕上以后，
        // 另一個frame就在后臺等待opengl進行交換
        //也就是畫完一次，交換一次
        EGL14.eglSwapBuffers(mEglDisplay, mEglSurface);
    }
    public void release() {
        EGL14.eglDestroySurface(mEglDisplay, mEglSurface);
        EGL14.eglMakeCurrent(mEglDisplay, EGL14.EGL_NO_SURFACE, EGL14.EGL_NO_SURFACE, EGL14.EGL_NO_CONTEXT);
        EGL14.eglDestroyContext(mEglDisplay, mEGLContext);
        EGL14.eglReleaseThread();
        EGL14.eglTerminate(mEglDisplay);
    }
}

public class AbstractFilter {
    protected FloatBuffer mGLVertexBuffer;
    protected FloatBuffer mGLTextureBuffer;
    //頂點著色
    protected int mVertexShaderId;
    //片段著色
    protected int mFragmentShaderId;
    protected int mGLProgramId;
    /**

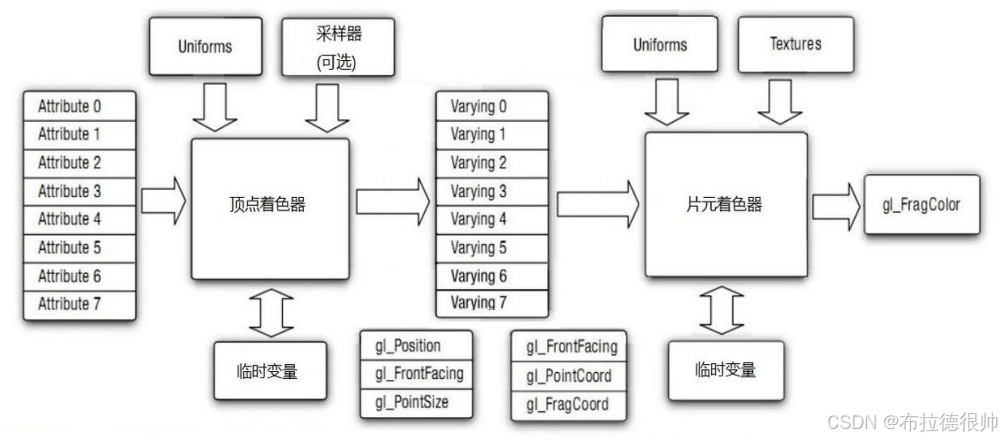

     * 頂點著色器
     * attribute vec4 position;
     * 賦值給gl_Position(頂點)
     */
    protected int vPosition;
    /**
     * varying vec2 textureCoordinate;
     */
    protected int vCoord;
    /**
     * uniform mat4 vMatrix;
     */
    protected int vMatrix;
    /**
     * 片元著色器
     * Samlpe2D 擴展 samplerExternalOES
     */
    protected int vTexture;
    protected int mOutputWidth;
    protected int mOutputHeight;
    public AbstractFilter(Context context, int vertexShaderId, int fragmentShaderId) {
        this.mVertexShaderId = vertexShaderId;
        this.mFragmentShaderId = fragmentShaderId;
        // 4個點 x，y = 4*2 float 4字節 所以 4*2*4
        mGLVertexBuffer = ByteBuffer.allocateDirect(4 * 2 * 4).order(ByteOrder.nativeOrder()).asFloatBuffer();
        mGLVertexBuffer.clear();

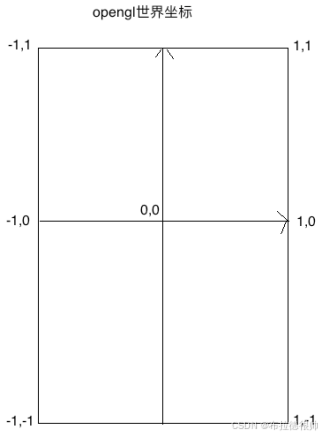

        float[] VERTEX = {-1.0f, -1.0f, 1.0f, -1.0f, -1.0f, 1.0f, 1.0f, 1.0f};
        mGLVertexBuffer.put(VERTEX);
        mGLTextureBuffer = ByteBuffer.allocateDirect(4 * 2 * 4).order(ByteOrder.nativeOrder()).asFloatBuffer();
        mGLTextureBuffer.clear();

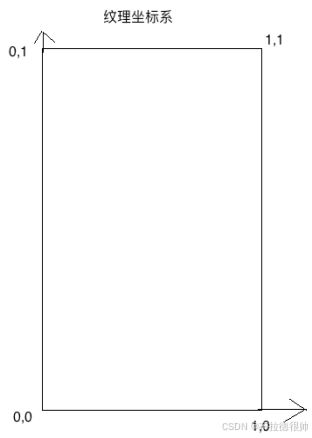

        float[] TEXTURE = {0.0f, 1.0f, 1.0f, 1.0f, 0.0f, 0.0f, 1.0f, 0.0f};
        mGLTextureBuffer.put(TEXTURE);
        initilize(context);
        initCoordinate();
    }
    protected void initilize(Context context) {
        String vertexSharder = OpenGLUtils.readRawTextFile(context, mVertexShaderId);
        String framentShader = OpenGLUtils.readRawTextFile(context, mFragmentShaderId);
        mGLProgramId = OpenGLUtils.loadProgram(vertexSharder, framentShader);
        // 獲得著色器中的 attribute 變量 position 的索引值
        vPosition = GLES20.glGetAttribLocation(mGLProgramId, "vPosition");
        vCoord = GLES20.glGetAttribLocation(mGLProgramId, "vCoord");
        vMatrix = GLES20.glGetUniformLocation(mGLProgramId, "vMatrix");
        // 獲得Uniform變量的索引值
        vTexture = GLES20.glGetUniformLocation(mGLProgramId, "vTexture");
    }
    public void onReady(int width, int height) {
        mOutputWidth = width;
        mOutputHeight = height;
    }
    public void release() {
        GLES20.glDeleteProgram(mGLProgramId);
    }
    public int onDrawFrame(int textureId) {
        //設置顯示窗口
        GLES20.glViewport(0, 0, mOutputWidth, mOutputHeight);
        //使用著色器
        GLES20.glUseProgram(mGLProgramId);
        //傳遞坐標
        mGLVertexBuffer.position(0);
        GLES20.glVertexAttribPointer(vPosition, 2, GLES20.GL_FLOAT, false, 0, mGLVertexBuffer);
        GLES20.glEnableVertexAttribArray(vPosition);
        mGLTextureBuffer.position(0);
        GLES20.glVertexAttribPointer(vCoord, 2, GLES20.GL_FLOAT, false, 0, mGLTextureBuffer);
        GLES20.glEnableVertexAttribArray(vCoord);
        GLES20.glActiveTexture(GLES20.GL_TEXTURE0);
        //綁定
        GLES20.glBindTexture(GLES20.GL_TEXTURE_2D, textureId);
        GLES20.glUniform1i(vTexture, 0);
        GLES20.glDrawArrays(GLES20.GL_TRIANGLE_STRIP, 0, 4);
        //解綁
        GLES20.glBindTexture(GLES20.GL_TEXTURE_2D, 0);
        return textureId;
    }
    //修改坐標
    protected void initCoordinate() {
    }
}
