Java實現Socket服務端與客戶端雙向通信功能

更新時間：2025年04月09日 11:16:09 作者：kimloner

大家好,由于工作上業務的需要,在java項目中引入了socket通信,特此記錄一下,用以備份,本文章中的socket通信實現了,服務端與客戶端的雙向通訊,以及二者之間的心跳通信,服務端重啟之后,客戶端的自動重連功能,需要的朋友可以參考下

原理

Socket通信是計算機網絡中常用的一種通信機制，它是基于TCP/IP協議實現的，提供了兩個應用程序之間通過網絡進行數據交換的能力。Socket本質上是一種抽象概念，為網絡服務提供了一組API接口。

Socket通信模型

Socket通信模型通常包括客戶端和服務器端兩部分。服務器端：負責在特定的端口監聽來自客戶端的連接請求，當一個請求到達時，服務器會與客戶端建立連接，并為客戶端提供相應的服務。客戶端：主動向服務器的特定IP地址和端口發起連接請求，連接成功后，客戶端可以通過建立的連接向服務器發送請求并接收響應。

Socket通信過程

Socket通信過程一般包括以下幾個步驟：

服務器監聽：

服務器通過socket()函數創建一個Socket，并通過bind()函數將其綁定到一個IP地址和端口上。然后，服務器調用listen()函數開始監聽該端口上的連接請求。

客戶端請求連接：

客戶端也通過socket()函數創建一個Socket，然后調用connect()函數嘗試與服務器的指定IP地址和端口建立連接。

服務器接受連接：

服務器在接收到客戶端的連接請求后，通過accept()函數接受這個連接。如果成功，accept()函數會返回一個新的Socket（通常稱為“子Socket”），用于與該客戶端進行通信。

數據傳輸：連接建立成功后，客戶端和服務器就可以通過新建立的Socket進行數據傳輸了。數據傳輸可以是單向的也可以是雙向的。應用程序可以使用send(), write(), recv(), read()等函數進行數據發送和接收操作。

斷開連接：

當通信結束后，客戶端和服務器都可以調用close()函數來關閉自己持有的Socket，從而斷開兩者之間的連接。 TCP vs UDP 在實際使用中，基于Socket的通信方式主要有兩種：基于TCP和基于UDP。 TCP Socket：提供可靠、面向連接、基于字節流的通信方式。適用對數據完整性和順序有要求的應用場景。 UDP Socket：提供無連接、不保證可靠性、基于消息（數據報）的通信方式。適用于對實時性要求高、容忍部分?jǐn)?shù)據丟失或亂序的應用場景。

代碼實現

服務端

服務端主體邏輯：和每個接入的客戶端都會使用獨立線程建立起長連接，二者之間使用心跳保持聯系，使用clientSockets 存儲了每個客戶端的信息便于和客戶端建立起聯系。

package com.example.demo2.server.socket;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.DisposableBean;
import org.springframework.stereotype.Component;

import javax.annotation.PostConstruct;
import java.io.*;
import java.net.ServerSocket;
import java.net.Socket;
import java.util.Map;
import java.util.concurrent.*;

/**
 * @author kim
 */
@Component
public class TcpServer implements DisposableBean {
    private static final Logger logger = LoggerFactory.getLogger(TcpServer.class);

    private final SocketServerConfig config;
    private ServerSocket serverSocket;
    private ExecutorService executorService;
    private volatile boolean running = true;

    // 存儲客戶端連接
    private final Map<String, Socket> clientSockets = new ConcurrentHashMap<>();

    public TcpServer(SocketServerConfig config) {
        this.config = config;
    }

    @PostConstruct
    public void start() throws IOException {
        executorService = Executors.newFixedThreadPool(config.getMaxThreads());
        serverSocket = new ServerSocket(config.getPort());
        logger.info("平臺socket服務已啟動, 監聽端口為 {}", config.getPort());

        new Thread(this::acceptConnections).start();
    }

    private void acceptConnections() {
        while (running) {
            try {
                Socket clientSocket = serverSocket.accept();
                String clientAddress = clientSocket.getInetAddress().getHostAddress();
                clientSockets.put(clientAddress, clientSocket);
                executorService.execute(new ClientHandler(clientSocket, clientAddress));
            } catch (IOException e) {
                if (running) {
                    logger.error("Connection accept error", e);
                }
            }
        }
    }

    // 用于發送消息到特定客戶端
    public void sendMessageToClient(String clientAddress, String message) throws IOException {
        Socket socket = clientSockets.get(clientAddress);
        if (socket != null && !socket.isClosed()) {
            PrintWriter out = new PrintWriter(socket.getOutputStream(), true);
            out.println(message);
            logger.info("Sent message to {}: {}", clientAddress, message);
        } else {
            logger.warn("Client {} is not connected or socket is closed", clientAddress);
        }
    }

    @Override
    public void destroy() throws Exception {
        running = false;
        executorService.shutdown();
        for (Socket socket : clientSockets.values()) {
            if (!socket.isClosed()) {
                socket.close();
            }
        }
        if (serverSocket != null && !serverSocket.isClosed()) {
            serverSocket.close();
        }
        logger.info("TCP Server stopped");
    }

    private class ClientHandler implements Runnable {
        private final Socket clientSocket;
        private final String clientAddress;

        ClientHandler(Socket socket, String address) {
            this.clientSocket = socket;
            this.clientAddress = address;
        }

        @Override
        public void run() {
            try (BufferedReader in = new BufferedReader(
                    new InputStreamReader(clientSocket.getInputStream()));
                 PrintWriter out = new PrintWriter(
                         clientSocket.getOutputStream(), true)) {
                logger.info("Client connected: {}", clientAddress);
                String input;
                while ((input = in.readLine()) != null) {
                    logger.debug("Received: {}", input);
                    out.println(input);
                    logger.info("Client connected: {}", clientAddress);
                }
            } catch (IOException e) {
                logger.warn("Client connection closed: {}", e.getMessage());
            } finally {
                try {
                    clientSockets.remove(clientAddress);
                    clientSocket.close();
                } catch (IOException e) {
                    logger.error("Error closing socket", e);
                }
            }
        }


    }
}

配置類

package com.example.demo2.server.socket;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Configuration;

@Configuration
@ConfigurationProperties(prefix = "socket.server")
@Data
public class SocketServerConfig {
    private int port;
    private int maxThreads;

    // Getters and Setters
}

配置文件

server:
  port: 8080

socket:
  server:
    port: 8088
    maxThreads: 50

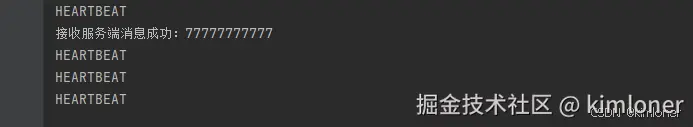

向客戶端發送測試信息

 @GetMapping("/send")
    public String sendMessage(String clientAddress) throws IOException {
       tcpServer.sendMessageToClient("192.168.3.8","77777777777");
       return "success";
    }

服務端發送日志

客戶端

客戶端主體邏輯，使用自己設計的心跳機制，監聽服務端狀態，如果服務端斷開連接，則客戶端會嘗試重新建立聯系。

package com.example.demo1.socketclient;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.DisposableBean;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.ApplicationArguments;
import org.springframework.boot.ApplicationRunner;
import org.springframework.stereotype.Service;

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.PrintWriter;
import java.net.InetSocketAddress;
import java.net.Socket;
import java.net.SocketTimeoutException;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.atomic.AtomicBoolean;

@Service
public class TcpClientService implements ApplicationRunner, DisposableBean {
    private static final Logger logger = LoggerFactory.getLogger(TcpClientService.class);

    private final SocketClientConfig config;
    private Socket socket;
    private PrintWriter out;
    private BufferedReader in;
    private final AtomicBoolean running = new AtomicBoolean(true);
    private final ExecutorService executor = Executors.newSingleThreadExecutor();
    private final MessageListener messageListener;

    @Autowired
    public TcpClientService(SocketClientConfig config, MessageListener messageListener) {
        this.config = config;
        this.messageListener = messageListener;
    }

    @Override
    public void run(ApplicationArguments args) throws Exception {
        initializeConnection();
    }

    @Override
    public void destroy() throws Exception {
        running.set(false);
        closeResources();
        executor.shutdown();
    }

    private synchronized void initializeConnection() {
        new Thread(() -> {
            while (running.get()) {
                try {
                    socket = new Socket();
                    socket.setKeepAlive(true);
                    socket.setSoTimeout(config.getHeartbeatTimeout());
                    socket.connect(new InetSocketAddress(config.getHost(), config.getPort()), config.getTimeout());

                    out = new PrintWriter(socket.getOutputStream(), true);
                    in = new BufferedReader(new InputStreamReader(socket.getInputStream()));

                    logger.info("Connected to server {}:{}", config.getHost(), config.getPort());

                    executor.execute(this::listenToServer);

                    startHeartbeat();

                    while (!socket.isClosed() && socket.isConnected()) {
                        Thread.sleep(1000);
                    }
                } catch (Exception e) {
                    logger.warn("Connection error: {}", e.getMessage());
                } finally {
                    closeResources();
                    if (running.get()) {
                        logger.info("Attempting to reconnect in 5 seconds...");
                        sleepSafely(5000);
                    }
                }
            }
        }, "tcp-client-connector").start();
    }

    private void listenToServer() {
        try {
            String response;
            while (running.get() && !socket.isClosed()) {
                try {
                    response = in.readLine();
                    if (response == null) {
                        logger.warn("Server closed connection");
                        break; // 終止循環，表示連接已關閉
                    }
                    logger.debug("Received server message: {}", response);
                    messageListener.onMessage(response);
                } catch (SocketTimeoutException e) {
                    logger.debug("Socket read timeout");
                } catch (IOException e) {
                    if (!socket.isClosed()) {
                        logger.warn("Connection lost: {}", e.getMessage());
                        break; // 終止循環，表示連接已中斷
                    }
                }
            }
        } finally {
            closeResources(); // 確保資源關閉
        }
    }

    private void startHeartbeat() {
        new Thread(() -> {
            while (running.get() && !socket.isClosed()) {
                try {
                    sendMessageInternal("HEARTBEAT");
                    sleepSafely(config.getHeartbeatInterval());
                } catch (Exception e) {
                    logger.warn("Heartbeat failed: {}", e.getMessage());
                    break;
                }
            }
        }, "heartbeat-thread").start();
    }

    public synchronized void sendMessage(String message) throws IOException {
        if (socket == null || !socket.isConnected()) {
            throw new IOException("Not connected to server");
        }
        out.println(message);
        logger.debug("Sent message: {}", message);
    }

    private synchronized void sendMessageInternal(String message) {
        try {
            if (socket != null && socket.isConnected()) {
                out.println(message);
            }
        } catch (Exception e) {
            logger.warn("Failed to send heartbeat");
        }
    }

    private synchronized void closeResources() {
        try {
            if (out != null) out.close();
            if (in != null) in.close();
            if (socket != null) socket.close();
        } catch (IOException e) {
            logger.warn("Error closing resources: {}", e.getMessage());
        }
    }

    private void sleepSafely(long millis) {
        try {
            Thread.sleep(millis);
        } catch (InterruptedException e) {
            Thread.currentThread().interrupt();
        }
    }

    public interface MessageListener {
        void onMessage(String message);
    }
}

消息監聽：監聽服務發送的消息

package com.example.demo1.socketclient;

import org.apache.commons.lang3.StringUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;

@Component
public class ServerMessageHandler implements TcpClientService.MessageListener {
    private static final Logger logger = LoggerFactory.getLogger(ServerMessageHandler.class);

    @Override
    public void onMessage(String message) {
       if(StringUtils.isNotEmpty(message)){
           if (!message.contains("HEARTBEAT")){
               //處理其他邏輯
               System.out.println("接收服務端消息成功："+message);
           }else{
               //心跳消息
               System.out.println(message);
           }
       }
    }


}

配置類

package com.example.demo1.socketclient;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Configuration;

@Configuration
@ConfigurationProperties(prefix = "socket.client")
@Data
public class SocketClientConfig {
    private String host;
    private int port;
    private int timeout;
    private int heartbeatInterval;
    private int heartbeatTimeout;

    // Getters and Setters
}

發送測試方法

 @GetMapping("/send")
    public ResponseEntity<String> sendMessage() {
        try {
            tcpClient.sendMessage("客戶端發送信息");
            return ResponseEntity.ok("Message sent");
        } catch (IOException e) {
            return ResponseEntity.status(503).body("Server unavailable");
        }
    }

配置文件

socket:
  client:
    host: 192.168.3.8 #服務端ip地址
    port: 8088 #監聽端口
    timeout: 5000
    heartbeat-interval: 3000    # 心跳間隔30秒
    heartbeat-timeout: 6000     # 心跳超時60秒
server:
  port: 8082

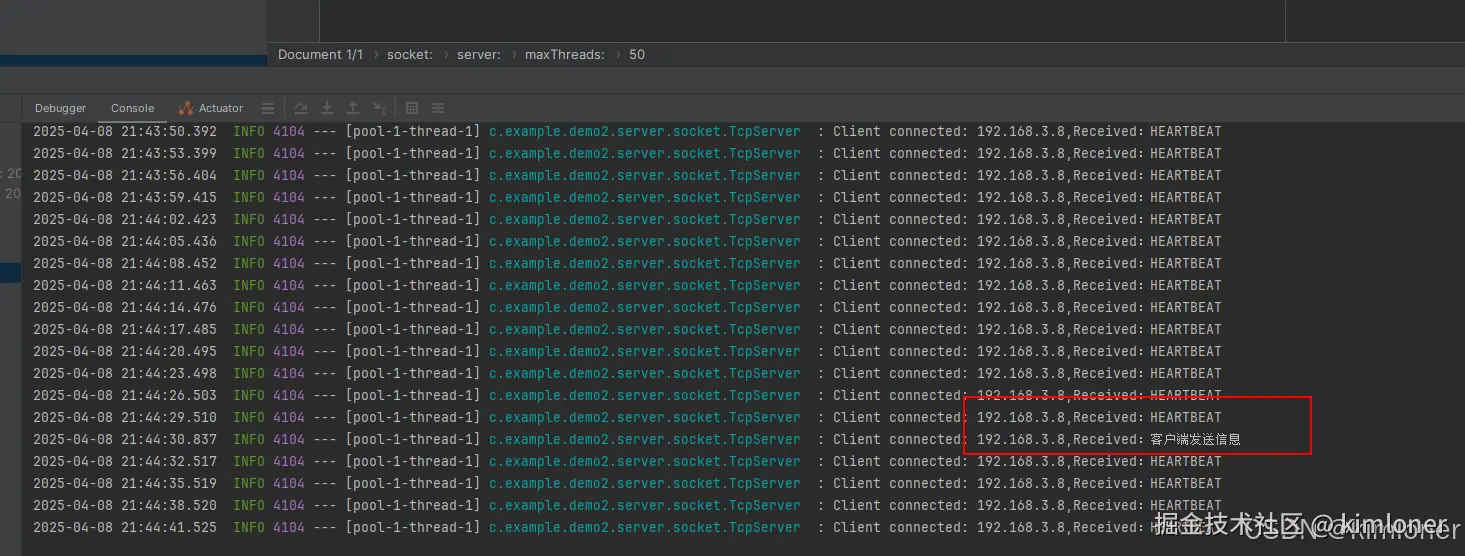

客戶端發送信息后，服務端會接收到信息。
