springboot集成mybaits-generator自動生成代碼的流程分析

更新時間：2025年04月17日 09:27:06 作者：冉成未來

這篇文章主要介紹了springboot集成mybaits-generator自動生成代碼的流程分析,本文給大家介紹的非常詳細,對大家的學習或工作具有一定的參考借鑒價值,感興趣的朋友一起看看吧

概述

創建springboot項目，在這里使用的是springboot 2.6.13版本，引入的項目依賴包如pom文件所寫，jdk使用1.8，集成swagger。

創建springboot項目

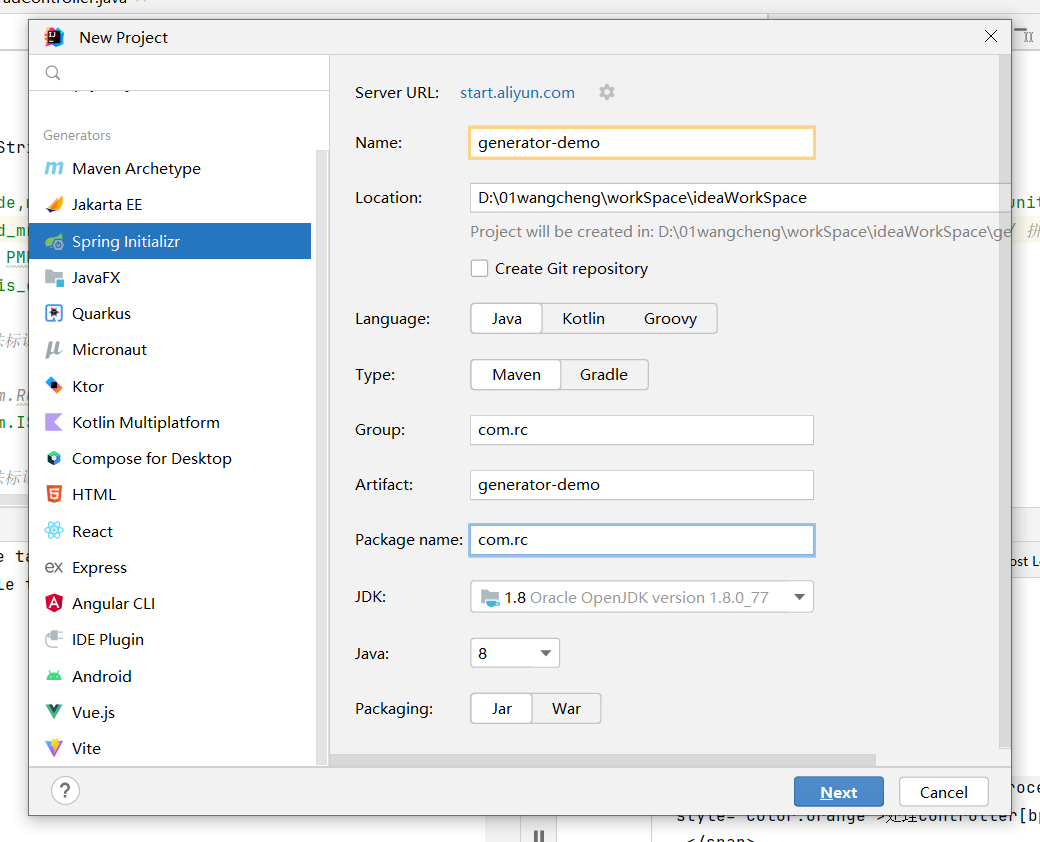

使用start.aliyun.com創建springboot項目

pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.rc</groupId>
    <artifactId>generator-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>generator-demo</name>
    <description>generator-demo</description>
    <properties>
        <java.version>1.8</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <spring-boot.version>2.6.13</spring-boot.version>
    </properties>
    <dependencies>
        <!--web-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--springboot-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <!--mysql連接驅動-->
        <dependency>
            <groupId>com.mysql</groupId>
            <artifactId>mysql-connector-j</artifactId>
        </dependency>
        <!--lombok類-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <!--mybatis-plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.4.2</version>
        </dependency>
        <!--druid數據源-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.2.20</version>
        </dependency>
        <!--swagger-->
        <dependency>
            <groupId>com.spring4all</groupId>
            <artifactId>swagger-spring-boot-starter</artifactId>
            <version>1.9.1.RELEASE</version>
        </dependency>
        <!--熱啟動-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
        </dependency>
        <!--mybatis-plus代碼生成-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-generator</artifactId>
            <version>3.4.0</version>
        </dependency>
        <!--freemarker模板引擎-->
        <dependency>
            <groupId>org.freemarker</groupId>
            <artifactId>freemarker</artifactId>
            <version>2.3.31</version>
        </dependency>
        <!--lang3工具類-->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
        </dependency>
        <!--測試-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>${spring-boot.version}</version>
                <configuration>
                    <mainClass>com.rc.GeneratorDemoApplication</mainClass>
                    <skip>true</skip>
                </configuration>
                <executions>
                    <execution>
                        <id>repackage</id>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

使用mybatis-plus-generator時需要注意版本號，本項目使用的是3.4.0版本

aplication.yml

server:
  port: 8096
  servlet:
    context-path: /
spring:
  datasource:
    url: jdbc:mysql://127.0.0.1:3306/you_table?useUnicode=true&characterEncoding=utf-8&serverTimezone=GMT
    username: root
    password: root

代碼生成類

public class CodeGenerator {
    public static String tables = "user";  //需要自動生成代碼的表，以英文逗號隔開
    public static void main(String[] args) {
        //代碼生成器對象
        AutoGenerator autoGenerator = new AutoGenerator();
        //全局配置
        GlobalConfig gc = new GlobalConfig();
        //獲取項目目錄
        String projectPath = System.getProperty("user.dir");
        gc.setOutputDir(projectPath+"/src/main/java");
        gc.setAuthor("rc");
        gc.setOpen(false);
        gc.setServiceName("%sService");
        autoGenerator.setGlobalConfig(gc);
        //數據源配置
        DataSourceConfig dsc = new DataSourceConfig();
        dsc.setUrl("jdbc:mysql://192.168.1.229:3306/rcdb?useUnicode=true&useSSL=false&characterEncoding=utf-8&serverTimezone=UTC");
        dsc.setDriverName("com.mysql.cj.jdbc.Driver");
        dsc.setUsername("root");
        dsc.setPassword("wangcheng");
        autoGenerator.setDataSource(dsc);
        //包配置
        PackageConfig pc = new PackageConfig();
        pc.setModuleName(null);
        pc.setParent("com.rc");
        autoGenerator.setPackageInfo(pc);
        //自定義配置
        InjectionConfig cfg = new InjectionConfig() {
            @Override
            public void initMap() {
            }
        };
        //模板引擎是freemarker
        String templatePath = "/template/mapper.xml.ftl";
        //模版引擎是velocity
        //String templatePath = "/template/mapper.xml.vm";
        List<FileOutConfig> focList = new ArrayList<>();
        //需要生成*mapper.xml時需要配置
        focList.add(new FileOutConfig(templatePath) {
            @Override
            public String outputFile(TableInfo tableInfo) {
                return projectPath+"/src/main/resources/mapper/" + "/" + tableInfo.getEntityName() + "Mapper" + StringPool.DOT_XML;
            }
        });
        cfg.setFileOutConfigList(focList);
        autoGenerator.setCfg(cfg);
        //配置模板
        TemplateConfig templateConfig = new TemplateConfig();
        templateConfig.setController("template/Controller.java");
        templateConfig.setXml(null);
        autoGenerator.setTemplate(templateConfig);
        //策略配置
        StrategyConfig strategyConfig = new StrategyConfig();
        strategyConfig.setNaming(NamingStrategy.underline_to_camel);
        strategyConfig.setColumnNaming(NamingStrategy.underline_to_camel);
        strategyConfig.setEntityLombokModel(true);
        strategyConfig.setRestControllerStyle(true);
        strategyConfig.setInclude(tables.split(","));
        strategyConfig.setControllerMappingHyphenStyle(true);
        strategyConfig.setTablePrefix("m_");
        autoGenerator.setStrategy(strategyConfig);
        autoGenerator.setTemplateEngine(new FreemarkerTemplateEngine());
        autoGenerator.execute();
    }
}

mybatis-plus提供的變量

{
    "date": "2018-10-30",
    "superServiceImplClassPackage": "com.baomidou.mybatisplus.extension.service.impl.ServiceImpl",
    "baseResultMap": true,
    "superMapperClass": "BaseMapper",
    "activeRecord": true,
    "superServiceClass": "IService",
    "superServiceImplClass": "ServiceImpl",
    "table": {
        "comment": "表備注",
        "commonFields": [],
        "controllerName": "AirStatLiveDataController",
        "convert": false,
        "entityName": "AirStatLiveData",
        "entityPath": "airStatLiveData",
        "fieldNames": "table_id, citycode, cityname, createtime, time, info, devid, stationname, aqi, pm25, pm10, co, so2, no2, o3, prkey",
        "fields": [{
            "capitalName": "TableId",
            "columnType": "LONG",
            "comment": "表單id",
            "convert": false,
            "keyFlag": true,
            "keyIdentityFlag": true,
            "name": "table_id",
            "propertyName": "tableId",
            "propertyType": "Long",
            "type": "bigint(20)"
        }...],
        "importPackages": ["com.baomidou.mybatisplus.annotation.IdType", "com.baomidou.mybatisplus.extension.activerecord.Model", "com.baomidou.mybatisplus.annotation.TableId", "java.io.Serializable"],
        "mapperName": "xxxMapper",
        "name": "tableName",
        "serviceImplName": "xxxServiceImpl",
        "serviceName": "xxxService",
        "xmlName": "xxxMapper"
    },
    "package": {
        "Entity": "com.cy.entity",
        "Mapper": "com.cy.mapper",
        "Xml": "com.cy.mapper",
        "ServiceImpl": "com.cy.service.impl",
        "Service": "com.cy.service",
        "Controller": "com.cy.controller"
    },
    "author": "author",
    "swagger2": false,
    "baseColumnList": false,
    "kotlin": false,
    "entityLombokModel": false,
    "superMapperClassPackage": "com.baomidou.mybatisplus.core.mapper.BaseMapper",
    "restControllerStyle": false,
    "entityBuilderModel": true,
    "superServiceClassPackage": "com.baomidou.mybatisplus.extension.service.IService",
    "entityBooleanColumnRemoveIsPrefix": false,
    "entityColumnConstant": false,
    "config": {
        "globalConfig": {
            "activeRecord": true,
            "author": "author",
            "baseColumnList": false,
            "baseResultMap": true,
            "controllerName": "%sController",
            "dateType": "TIME_PACK",
            "enableCache": false,
            "fileOverride": false,
            "kotlin": false,
            "mapperName": "%sMapper",
            "open": false,
            "outputDir": "",
            "serviceImplName": "%sServiceImpl",
            "serviceName": "%sService",
            "swagger2": false,
            "xmlName": "%sMapper"
        },
        "packageInfo": {
            "$ref": "$.package"
        },
        "pathInfo": {
            "entity_path": "",
            "controller_path": "",
            "xml_path": "",
            "service_path": "",
            "mapper_path": "",
            "service_impl_path": ""
        },
        "strategyConfig": {
            "capitalMode": false,
            "columnNaming": "underline_to_camel",
            "controllerMappingHyphenStyle": false,
            "entityBooleanColumnRemoveIsPrefix": false,
            "entityBuilderModel": true,
            "entityColumnConstant": false,
            "entityLombokModel": false,
            "entityTableFieldAnnotationEnable": false,
            "include": ["air_stat_live_data"],
            "naming": "underline_to_camel",
            "restControllerStyle": false,
            "skipView": false,
            "superMapperClass": "com.baomidou.mybatisplus.core.mapper.BaseMapper",
            "superServiceClass": "com.baomidou.mybatisplus.extension.service.IService",
            "superServiceImplClass": "com.baomidou.mybatisplus.extension.service.impl.ServiceImpl"
        },
        "superMapperClass": "com.baomidou.mybatisplus.core.mapper.BaseMapper",
        "superServiceClass": "com.baomidou.mybatisplus.extension.service.IService",
        "superServiceImplClass": "com.baomidou.mybatisplus.extension.service.impl.ServiceImpl",
        "tableInfoList": [{
            "$ref": "$.table"
        }],
        "template": {
            "controller": "/templates/controller.java",
            "mapper": "/templates/mapper.java",
            "service": "/templates/service.java",
            "serviceImpl": "/templates/serviceImpl.java",
            "xml": "/templates/mapper.xml"
        }
    },
    "enableCache": false,
    "entity": "AirStatLiveData"
}

模板中的動態數據可以根據mybatis-plus提供的變量進行填充

controller模板

Controller.java.ftl

package ${package.Controller};
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import ${package.Entity}.${entity};
import ${package.Service}.${table.serviceName};
import com.rc.entity.web.PageParam;
import com.rc.entity.web.Result;
import io.swagger.annotations.Api;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
@RestController
@Api(tags="$(table.comment)")
@RequestMapping("/${entity?uncap_first}")
public class ${entity}Controller {
    @Autowired
    private ${table.serviceName} ${entity?uncap_first}Service;
    /**
    * 根據id獲取對象
    * @param id
    * @return
    */
    @GetMapping("/{id}")
    public ${entity} getById(@PathVariable Long id) {
        return ${entity?uncap_first}Service.getById(id);
    }
    /**
    * 分頁查詢
    * @param pageParam
    * @return
    */
    @PostMapping("/queryByPage")
    public Result queryUserByPage(PageParam pageParam){
        QueryWrapper<${entity}> ${entity?uncap_first}QueryWrapper = new QueryWrapper<>();
        Map<String, String> queryMap = pageParam.getQueryMap();
        if (StringUtils.isNotBlank(queryMap.get("id"))){
            ${entity?uncap_first}QueryWrapper.like("id",queryMap.get("id"));
        }
        Page<${entity}> ${entity?uncap_first}Page = ${entity?uncap_first}Service.page(new Page<>(pageParam.getCurrentPage(), pageParam.getPageSize()), ${entity?uncap_first}QueryWrapper);
        return Result.SUCCESS(${entity?uncap_first}Page);
    }
}

mapper模板

mapper.xml.ftl

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="${package.Mapper}.${table.mapperName}">
</mapper>

總結

通過繼承mybaits-generotar可以快速根據表生成后端代碼，簡化開發，開發過程中只需要專注于開發業務邏輯的梳理。
項目地址：https://gitee.com/wangcheng626/generator-demo.git

到此這篇關于springboot集成mybaits-generator自動生成代碼的文章就介紹到這了,更多相關springboot集成mybaits-generator內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！

您可能感興趣的文章:
