Qt中QStackedWidget控件的實現
引言
QStackedWidget是 Qt 框架中的一個非常有用的控件,它允許你堆疊多個窗口部件(widgets),但一次只顯示一個。這種機制非常適合于實現向?qū)?、多視圖應用程序、選項卡界面(雖然它沒有內置的選項卡頭)以及表單向?qū)У葓鼍?。通過改變當前索引,可以輕松地切換顯示的窗口部件。
一、基礎功能
QStackedWidget是Qt框架中的一個容器控件,用于在同一區域內動態地堆疊和顯示不同的子部件(如窗口、對話框、頁面等)。它一次只顯示一個子部件,但允許開發者通過編程方式輕松地在這些子部件之間切換。
- 頁面堆疊:QStackedWidget通過堆疊的方式管理多個頁面(子部件),每個頁面都有一個唯一的索引值。只有當前索引對應的頁面是可見的,其他頁面則會被隱藏。
- 動態切換:開發者可以通過設置當前索引或當前子部件來動態地切換顯示的頁面。這種切換是即時的,且可以響應各種事件或用戶操作。
- 靈活布局:QStackedWidget本身并不提供布局管理功能,但它可以與其他布局管理器(如QVBoxLayout、QHBoxLayout等)結合使用,以實現復雜的界面布局。
二、屬性設置
2.1 屬性介紹
雖然QStackedWidget沒有像QWidget那樣眾多的屬性需要直接設置,但它通過其API函數提供了豐富的控制手段。以下是一些與屬性設置相關的要點:
- 當前頁面索引(currentIndex):這是一個只讀屬性,用于獲取當前顯示的頁面的索引值。雖然不能直接設置該屬性,但可以通過調用setCurrentIndex()函數來改變當前頁面。
- 當前頁面(currentWidget):這同樣是一個只讀屬性,返回當前顯示的頁面的指針。同樣地,不能直接設置該屬性,但可以通過setCurrentWidget()函數來改變當前頁面。
- 頁面計數(count):這是一個只讀屬性,返回QStackedWidget中子部件的數量。這有助于在編程時遍歷或檢查子部件。
2.2 代碼示例
以下是為QStackedWidget的currentIndex、currentWidget和count屬性提供代碼示例的方式。需要注意的是,由于currentIndex和currentWidget是只讀屬性,我們不能直接“設置”它們,但可以通過調用相關函數來改變它們所代表的狀態。
#include <QApplication> #include <QStackedWidget> #include <QPushButton> #include <QVBoxLayout> #include <QWidget> #include <QLabel> int main(int argc, char *argv[]) { QApplication app(argc, argv); // 創建主窗口 QWidget window; QVBoxLayout *layout = new QVBoxLayout(&window); // 創建QStackedWidget QStackedWidget *stackedWidget = new QStackedWidget; // 添加幾個頁面到QStackedWidget QWidget *page1 = new QWidget; QLabel *label1 = new QLabel("Page 1", page1); QVBoxLayout *page1Layout = new QVBoxLayout(page1); page1Layout->addWidget(label1); QWidget *page2 = new QWidget; QLabel *label2 = new QLabel("Page 2", page2); QVBoxLayout *page2Layout = new QVBoxLayout(page2); page2Layout->addWidget(label2); QWidget *page3 = new QWidget; QLabel *label3 = new QLabel("Page 3", page3); QVBoxLayout *page3Layout = new QVBoxLayout(page3); page3Layout->addWidget(label3); stackedWidget->addWidget(page1); stackedWidget->addWidget(page2); stackedWidget->addWidget(page3); // 將QStackedWidget添加到主窗口布局 layout->addWidget(stackedWidget); // 創建按鈕來切換頁面 QPushButton *prevButton = new QPushButton("Previous"); QPushButton *nextButton = new QPushButton("Next"); QHBoxLayout *buttonLayout = new QHBoxLayout; buttonLayout->addWidget(prevButton); buttonLayout->addWidget(nextButton); layout->addLayout(buttonLayout); // 初始時禁用“Previous”按鈕 prevButton->setEnabled(false); // 連接信號與槽以切換頁面 QObject::connect(nextButton, &QPushButton::clicked, [stackedWidget, prevButton]() { int currentIndex = stackedWidget->currentIndex(); if (currentIndex < stackedWidget->count() - 1) { stackedWidget->setCurrentIndex(currentIndex + 1); prevButton->setEnabled(true); } }); QObject::connect(prevButton, &QPushButton::clicked, [stackedWidget]() { int currentIndex = stackedWidget->currentIndex(); if (currentIndex > 0) { stackedWidget->setCurrentIndex(currentIndex - 1); if (currentIndex == 1) { // 在這個簡單的例子中,我們總是啟用“Previous”按鈕 // 但在更復雜的應用中,你可能需要根據實際情況來決定是否禁用它 } } }); // 示例:打印當前頁面索引和頁面計數 qDebug() << "Initial current index:" << stackedWidget->currentIndex(); qDebug() << "Total page count:" << stackedWidget->count(); // 示例:通過currentWidget獲取當前頁面并打印其標簽文本(假設標簽是頁面的直接子部件) if (QLabel *currentLabel = stackedWidget->currentWidget()->findChild<QLabel*>()) { qDebug() << "Current page label text:" << currentLabel->text(); } window.setWindowTitle("QStackedWidget Example"); window.resize(400, 300); window.show(); return app.exec(); }
2.3 代碼解析
在這個示例中:
- 我們創建了一個QStackedWidget并向其中添加了三個頁面。
- 每個頁面都是一個包含QLabel的QWidget。
- 我們添加了兩個按鈕來在頁面之間切換,并根據當前頁面索引啟用或禁用“Previous”按鈕。
- 使用qDebug()打印了初始的當前頁面索引和頁面總數,展示了如何訪問這些只讀屬性。
- 我們還展示了如何通過currentWidget()獲取當前頁面,并使用findChild<QLabel*>()查找并打印當前頁面上QLabel的文本(注意:這種方法假設
QLabel
是頁面的直接子部件,且頁面上只有一個QLabel)。在實際應用中,你可能需要更復雜的邏輯來定位特定的子部件。
三、常用API
QStackedWidget提供了豐富的API函數,以便開發者能夠靈活地管理和控制其包含的頁面。以下是一些常用的API函數及其說明:
3.1 添加子部件
addWidget(QWidget *widget, int index = -1):向QStackedWidget中添加一個子部件。如果指定了索引,則子部件將被插入到該索引位置;如果未指定索引(或指定為-1),則子部件將被添加到末尾。
// 創建一個主窗口 QWidget window; QVBoxLayout *layout = new QVBoxLayout(&window); // 創建一個QStackedWidget QStackedWidget *stackedWidget = new QStackedWidget; // 創建幾個頁面 QWidget *page1 = new QWidget; QLabel *label1 = new QLabel("Page 1", page1); QVBoxLayout *page1Layout = new QVBoxLayout(page1); page1Layout->addWidget(label1); QWidget *page2 = new QWidget; QLabel *label2 = new QLabel("Page 2", page2); QVBoxLayout *page2Layout = new QVBoxLayout(page2); page2Layout->addWidget(label2); QWidget *page3 = new QWidget; QLabel *label3 = new QLabel("Page 3", page3); QVBoxLayout *page3Layout = new QVBoxLayout(page3); page3Layout->addWidget(label3); // 使用addWidget添加頁面到末尾 stackedWidget->addWidget(page1); stackedWidget->addWidget(page2);
3.2 插入子部件
insertWidget(int index, QWidget *widget):在指定索引處插入一個子部件。如果索引超出當前范圍,則子部件將被添加到末尾。
// 使用insertWidget在指定索引處插入頁面 stackedWidget->insertWidget(1, page3); // 這將page3插入到page1和page2之間
3.3 移除子部件
removeWidget(QWidget *widget):從QStackedWidget中移除一個子部件。子部件本身不會被刪除,只是從布局中移除,從而被隱藏。
// 假設現在想要移除page2 stackedWidget->removeWidget(page2);
3.4 設置當前頁面索引值
setCurrentIndex(int index):設置當前顯示的頁面的索引值。如果索引值超出范圍,則不會改變當前頁面。
// 設置當前頁面索引 stackedWidget->setCurrentIndex(0); // 顯示page1
3.5 設置當前顯示子部件
setCurrentWidget(QWidget *widget):設置當前顯示的子部件。如果指定的子部件已經存在于QStackedWidget中,則它將成為當前頁面;如果不存在,則什么也不會發生。
3.6 返回索引處子部件指針
widget(int index):返回指定索引處的子部件的指針。如果索引超出范圍,則返回nullptr。
// 獲取并顯示指定索引處的子部件 QWidget *currentPage = stackedWidget->widget(0); if (currentPage) { QLabel *currentLabel = currentPage->findChild<QLabel*>(); if (currentLabel) { qDebug() << "Current page label text:" << currentLabel->text(); } }
3.7 返回子部件索引值
indexOf(QWidget *widget):返回子部件在QStackedWidget中的索引值。如果子部件不存在于QStackedWidget中,則返回-1。
// 獲取子部件在QStackedWidget中的索引 int index = stackedWidget->indexOf(page3); qDebug() << "Index of page3:" << index; // 應該輸出1,除非在添加/移除后修改了索引
四、信號與槽
QStackedWidget還提供了幾個信號,以便在頁面切換或頁面被移除時通知開發者。這些信號可以與槽函數(即回調函數)連接,以執行特定的操作。
4.1 currentChanged
currentChanged(int index):當當前顯示的頁面改變時發射。參數index是新顯示的頁面的索引值。
// 連接currentChanged信號 connect(stackedWidget, &QStackedWidget::currentChanged, this, [=](int index) { qDebug() << "Current page changed to index:" << index; });
4.2 widgetRemoved
widgetRemoved(int index):當一個小部件(頁面)從QStackedWidget中移除時發射。參數是被移除的小部件的索引值。
// 連接widgetRemoved信號 connect(stackedWidget, &QStackedWidget::widgetRemoved, this, [=](int index) { qDebug() << "Widget removed from index:" << index; });
五、應用示例
5.1 代碼
以下是一個簡化的向?qū)纠?,展示了如何使用QStackedWidget來實現一個多步驟的向?qū)Ы缑妗?/p>
#include <QApplication> #include <QStackedWidget> #include <QLabel> #include <QPushButton> #include <QVBoxLayout> #include <QHBoxLayout> class Wizard : public QWidget { Q_OBJECT public: Wizard(QWidget *parent = nullptr) : QWidget(parent) { auto *stackedWidget = new QStackedWidget(this); // 創建向?qū)ы撁? QWidget *page1 = createPage("Welcome", "This is the first page of the wizard."); QWidget *page2 = createPage("Name", "Enter your name:"); QWidget *page3 = createPage("Finish", "Thank you! You have completed the wizard."); stackedWidget->addWidget(page1); stackedWidget->addWidget(page2); stackedWidget->addWidget(page3); // 導航按鈕 auto *backButton = new QPushButton("Back", this); auto *nextButton = new QPushButton("Next", this); // 禁用“后退”按鈕在第一頁 backButton->setEnabled(false); // 布局 auto *mainLayout = new QVBoxLayout(this); mainLayout->addWidget(stackedWidget); auto *buttonLayout = new QHBoxLayout(); buttonLayout->addWidget(backButton); buttonLayout->addWidget(nextButton); mainLayout->addLayout(buttonLayout); // 連接信號和槽 connect(nextButton, &QPushButton::clicked, [=]() { if(nextButton->text() == "Finish") { this->close(); } int currentIndex = stackedWidget->currentIndex(); if (currentIndex < stackedWidget->count() - 1) { stackedWidget->setCurrentIndex(currentIndex + 1); if (currentIndex == 1) { // 假設第二頁是最后一頁需要處理的 // 在這里處理用戶輸入,如驗證名稱等 // ... } backButton->setEnabled(true); if (currentIndex == stackedWidget->count() - 2) { // 在最后一頁設置“下一步”按鈕文本 nextButton->setText("Finish"); } } }); connect(backButton, &QPushButton::clicked, [=]() { int currentIndex = stackedWidget->currentIndex(); if (currentIndex > 0) { stackedWidget->setCurrentIndex(currentIndex - 1); backButton->setEnabled(currentIndex > 0); if (currentIndex == 1) { nextButton->setText("Next"); nextButton->setEnabled(true); } } }); // 初始顯示第一步 stackedWidget->setCurrentIndex(0); } private: QWidget *createPage(const QString &title, const QString &text) { QWidget *page = new QWidget(); QLabel *label = new QLabel(text, page); QVBoxLayout *layout = new QVBoxLayout(page); layout->addWidget(new QLabel(title, page)); layout->addWidget(label); return page; } }; // ... (main函數和QApplication的實例化)
5.2 實現效果

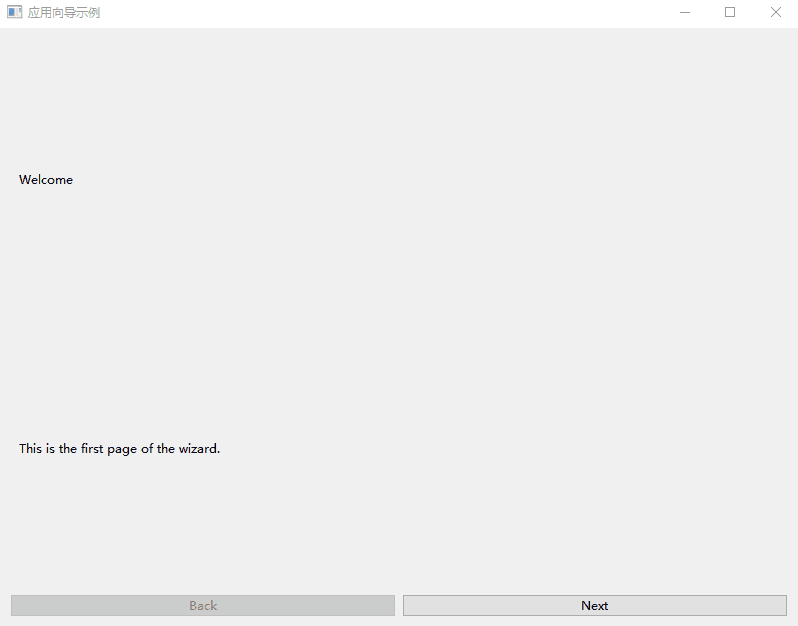

5.3 代碼解析
在這個示例中,我們創建了一個簡單的向?qū)?,它有三個頁面:歡迎頁、名稱輸入頁和完成頁。通過createPage輔助函數,我們簡化了頁面創建的過程。導航按鈕根據當前頁面的索引啟用或禁用,并在最后一頁時將“下一步”按鈕的文本更改為“完成”并且在判斷識別到文本更改為”Finsh“,并點擊時,關閉窗口。這個示例展示了如何在頁面切換時執行簡單的邏輯,并管理按鈕的啟用/禁用狀態。
結語
QStackedWidget是Qt框架中一個非常實用的控件,它允許開發者在一個固定區域內堆疊多個子窗口或頁面,并通過切換來顯示不同的內容。通過使用QStackedWidget,我們可以輕松地創建多頁的用戶界面,如向?qū)А⑦x項卡等。希望本文的詳細解析和示例代碼能夠幫助你更好地理解和使用QStackedWidget。
到此這篇關于Qt中QStackedWidget控件的實現的文章就介紹到這了,更多相關Qt QStackedWidget控件內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
