SpringBoot中登錄驗證碼的4種實現方案

更新時間：2025年04月29日 08:27:15 作者：風象南

這篇文章主要介紹了在SpringBoot應用中實現四種登錄驗證碼的技術方案,包括圖形驗證碼、短信驗證碼、郵箱驗證碼和滑動拼圖驗證碼,需要的可以參考下

在當今互聯網安全形勢日益嚴峻的環境下，驗證碼已成為保護用戶賬戶安全、防止破解和自動化攻擊的重要手段。尤其在登錄系統中，合理使用驗證碼不僅能有效阻止機器人批量嘗試賬號密碼，還能降低賬戶被盜風險，提升系統安全性。

本文將詳細介紹在SpringBoot應用中實現四種登錄驗證碼的技術方案，包括圖形驗證碼、短信驗證碼、郵箱驗證碼和滑動拼圖驗證碼。

方案一：基于Kaptcha的圖形驗證碼

原理介紹

圖形驗證碼是最傳統且應用最廣泛的驗證碼類型，原理是在服務端生成隨機字符串并渲染成圖片，用戶需要識別圖片中的字符并輸入。圖形驗證碼實現簡單，對用戶體驗影響較小，是中小型應用的理想選擇。

實現步驟

1. 添加Kaptcha依賴

<dependency>
    <groupId>com.github.penggle</groupId>
    <artifactId>kaptcha</artifactId>
    <version>2.3.2</version>
</dependency>

2. 配置Kaptcha生成器

@Configuration
public class KaptchaConfig {

    @Bean
    public Producer kaptchaProducer() {
        Properties properties = new Properties();
        // 圖片寬度
        properties.setProperty(Constants.KAPTCHA_IMAGE_WIDTH, "150");
        // 圖片高度
        properties.setProperty(Constants.KAPTCHA_IMAGE_HEIGHT, "50");
        // 字體大小
        properties.setProperty(Constants.KAPTCHA_TEXTPRODUCER_FONT_SIZE, "32");
        // 字體顏色
        properties.setProperty(Constants.KAPTCHA_TEXTPRODUCER_FONT_COLOR, "black");
        // 文本集合，驗證碼值從此集合中獲取
        properties.setProperty(Constants.KAPTCHA_TEXTPRODUCER_CHAR_STRING, "0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ");
        // 驗證碼長度
        properties.setProperty(Constants.KAPTCHA_TEXTPRODUCER_CHAR_LENGTH, "4");
        // 干擾線顏色
        properties.setProperty(Constants.KAPTCHA_NOISE_COLOR, "blue");
        // 去除背景漸變
        properties.setProperty(Constants.KAPTCHA_OBSCURIFICATOR_IMPL, "com.google.code.kaptcha.impl.ShadowGimpy");

        Config config = new Config(properties);
        return config.getProducerImpl();
    }
}

3. 創建驗證碼存儲服務

@Service
public class CaptchaService {

    @Autowired
    private RedisTemplate<String, String> redisTemplate;

    // 驗證碼有效期（秒）
    private static final long CAPTCHA_EXPIRATION = 300;

    // 存儲驗證碼
    public void storeCaptcha(String sessionId, String captchaCode) {
        redisTemplate.opsForValue().set(
                "CAPTCHA:" + sessionId,
                captchaCode,
                CAPTCHA_EXPIRATION,
                TimeUnit.SECONDS);
    }

    // 驗證驗證碼
    public boolean validateCaptcha(String sessionId, String userInputCaptcha) {
        String key = "CAPTCHA:" + sessionId;
        String storedCaptcha = redisTemplate.opsForValue().get(key);

        if (storedCaptcha != null && storedCaptcha.equalsIgnoreCase(userInputCaptcha)) {
            // 驗證成功后立即刪除，防止重復使用
            redisTemplate.delete(key);
            return true;
        }

        return false;
    }
}

4. 實現驗證碼生成控制器

@RestController
@RequestMapping("/captcha")
public class CaptchaController {

    @Autowired
    private Producer kaptchaProducer;

    @Autowired
    private CaptchaService captchaService;

    @GetMapping("/image")
    public void getImageCaptcha(HttpServletResponse response, HttpServletRequest request) throws IOException {
        // 清除瀏覽器緩存
        response.setDateHeader("Expires", 0);
        response.setHeader("Cache-Control", "no-store, no-cache, must-revalidate");
        response.addHeader("Cache-Control", "post-check=0, pre-check=0");
        response.setHeader("Pragma", "no-cache");
        response.setContentType("image/jpeg");

        // 創建驗證碼文本
        String capText = kaptchaProducer.createText();

        // 獲取會話ID
        String sessionId = request.getSession().getId();

        // 存儲驗證碼
        captchaService.storeCaptcha(sessionId, capText);

        // 創建驗證碼圖片
        BufferedImage image = kaptchaProducer.createImage(capText);
        ServletOutputStream out = response.getOutputStream();

        // 輸出圖片
        ImageIO.write(image, "jpg", out);
        out.flush();
        out.close();
    }
}

5. 登錄控制器集成驗證碼校驗

@RestController
@RequestMapping("/auth")
public class AuthController {

    @Autowired
    private CaptchaService captchaService;

    @Autowired
    private UserService userService;

    @PostMapping("/login")
    public ResponseEntity<?> login(@RequestBody LoginRequest loginRequest, HttpServletRequest request) {
        // 獲取會話ID
        String sessionId = request.getSession().getId();

        // 驗證驗證碼
        if (!captchaService.validateCaptcha(sessionId, loginRequest.getCaptcha())) {
            return ResponseEntity.badRequest().body(new ApiResponse(false, "驗證碼錯誤或已過期"));
        }

        // 用戶名密碼驗證
        boolean authenticated = userService.authenticate(
                loginRequest.getUsername(),
                loginRequest.getPassword());

        if (authenticated) {
            // 生成Token或設置會話
            String token = jwtTokenProvider.generateToken(loginRequest.getUsername());
            return ResponseEntity.ok(new JwtAuthResponse(token));
        } else {
            return ResponseEntity.badRequest().body(new ApiResponse(false, "用戶名或密碼錯誤"));
        }
    }
}

6. 前端集成示例

<div class="login-form">
    <form id="loginForm">
        <div class="form-group">
            <label for="username">用戶名</label>
            <input type="text" class="form-control" id="username" name="username" required>
        </div>
        <div class="form-group">
            <label for="password">密碼</label>
            <input type="password" class="form-control" id="password" name="password" required>
        </div>
        <div class="form-group">
            <label for="captcha">驗證碼</label>
            <div class="captcha-container">
                <input type="text" class="form-control" id="captcha" name="captcha" required>
                <img id="captchaImg" src="/captcha/image" alt="驗證碼" onclick="refreshCaptcha()">
            </div>
        </div>
        <button type="submit" class="btn btn-primary">登錄</button>
    </form>
</div>
<script>
function refreshCaptcha() {
    document.getElementById('captchaImg').src = '/captcha/image?t=' + new Date().getTime();
}

document.getElementById('loginForm').addEventListener('submit', function(e) {
    e.preventDefault();

    const data = {
        username: document.getElementById('username').value,
        password: document.getElementById('password').value,
        captcha: document.getElementById('captcha').value
    };

    fetch('/auth/login', {
        method: 'POST',
        headers: {
            'Content-Type': 'application/json'
        },
        body: JSON.stringify(data)
    })
    .then(response => response.json())
    .then(data => {
        if (data.token) {
            localStorage.setItem('token', data.token);
            window.location.href = '/dashboard';
        } else {
            alert(data.message);
            refreshCaptcha();
        }
    })
    .catch(error => {
        console.error('Error:', error);
        refreshCaptcha();
    });
});
</script>

優缺點分析

優點

實現簡單，開發成本低
對服務器資源占用少
用戶體驗相對友好
無需第三方服務，降低依賴

缺點

安全性較低，容易被OCR識別破解
對視障用戶不友好
在移動設備上體驗不佳
隨著AI發展，圖形驗證碼的安全性逐漸降低

方案二：基于短信驗證碼

原理介紹

短信驗證碼通過向用戶手機發送一次性驗證碼實現身份驗證。用戶需要輸入收到的驗證碼完成登錄過程。這種方式不僅驗證了賬號密碼的正確性，還確認了用戶對手機號的控制權，大幅提高了安全性。

實現步驟

1. 添加阿里云SDK依賴

<dependency>
    <groupId>com.aliyun</groupId>
    <artifactId>aliyun-java-sdk-core</artifactId>
    <version>4.5.3</version>
</dependency>

2. 配置短信服務參數

@Configuration
@ConfigurationProperties(prefix = "aliyun.sms")
@Data
public class SmsProperties {
    private String accessKeyId;
    private String accessKeySecret;
    private String signName;
    private String templateCode;
    private String endpoint = "dysmsapi.aliyuncs.com";
}

# application.properties
aliyun.sms.access-key-id=YOUR_ACCESS_KEY_ID
aliyun.sms.access-key-secret=YOUR_ACCESS_KEY_SECRET
aliyun.sms.sign-name=YOUR_SMS_SIGN_NAME
aliyun.sms.template-code=SMS_TEMPLATE_CODE

3. 實現短信服務

@Service
@Slf4j
public class SmsService {

    @Autowired
    private SmsProperties smsProperties;

    @Autowired
    private RedisTemplate<String, String> redisTemplate;

    private static final long SMS_EXPIRATION = 300; // 5分鐘過期
    private static final String SMS_PREFIX = "SMS_CAPTCHA:";

    /**
     * 發送短信驗證碼
     * @param phoneNumber 手機號
     * @return 是否發送成功
     */
    public boolean sendSmsCaptcha(String phoneNumber) {
        try {
            // 生成6位隨機驗證碼
            String captcha = generateCaptcha(6);

            // 存儲驗證碼
            redisTemplate.opsForValue().set(
                    SMS_PREFIX + phoneNumber,
                    captcha,
                    SMS_EXPIRATION,
                    TimeUnit.SECONDS);

            // 構建短信客戶端
            DefaultProfile profile = DefaultProfile.getProfile(
                    "cn-hangzhou",
                    smsProperties.getAccessKeyId(),
                    smsProperties.getAccessKeySecret());
            IAcsClient client = new DefaultAcsClient(profile);

            // 構建短信請求
            CommonRequest request = new CommonRequest();
            request.setSysMethod(MethodType.POST);
            request.setSysDomain(smsProperties.getEndpoint());
            request.setSysVersion("2017-05-25");
            request.setSysAction("SendSms");
            request.putQueryParameter("RegionId", "cn-hangzhou");
            request.putQueryParameter("PhoneNumbers", phoneNumber);
            request.putQueryParameter("SignName", smsProperties.getSignName());
            request.putQueryParameter("TemplateCode", smsProperties.getTemplateCode());

            // 設置模板參數，將驗證碼作為參數傳入
            Map<String, String> templateParam = Map.of("code", captcha);
            request.putQueryParameter("TemplateParam", new ObjectMapper().writeValueAsString(templateParam));

            // 發送短信
            CommonResponse response = client.getCommonResponse(request);
            log.info("短信發送結果: {}", response.getData());

            // 解析響應
            JsonNode responseJson = new ObjectMapper().readTree(response.getData());
            return "OK".equals(responseJson.get("Code").asText());

        } catch (Exception e) {
            log.error("發送短信驗證碼失敗", e);
            return false;
        }
    }

    /**
     * 驗證短信驗證碼
     * @param phoneNumber 手機號
     * @param captcha 用戶輸入的驗證碼
     * @return 是否驗證成功
     */
    public boolean validateSmsCaptcha(String phoneNumber, String captcha) {
        String key = SMS_PREFIX + phoneNumber;
        String storedCaptcha = redisTemplate.opsForValue().get(key);

        if (storedCaptcha != null && storedCaptcha.equals(captcha)) {
            // 驗證成功后刪除驗證碼，防止重復使用
            redisTemplate.delete(key);
            return true;
        }

        return false;
    }

    /**
     * 生成指定長度的隨機數字驗證碼
     */
    private String generateCaptcha(int length) {
        StringBuilder captcha = new StringBuilder();
        Random random = new Random();

        for (int i = 0; i < length; i++) {
            captcha.append(random.nextInt(10));
        }

        return captcha.toString();
    }
}

4. 實現短信驗證碼控制器

@RestController
@RequestMapping("/captcha")
public class SmsCaptchaController {

    @Autowired
    private SmsService smsService;

    @PostMapping("/sms/send")
    public ResponseEntity<?> sendSmsCaptcha(@RequestBody PhoneNumberRequest request) {
        String phoneNumber = request.getPhoneNumber();

        // 驗證手機號格式
        if (!isValidPhoneNumber(phoneNumber)) {
            return ResponseEntity.badRequest().body(new ApiResponse(false, "手機號格式不正確"));
        }

        // 發送短信驗證碼
        boolean sent = smsService.sendSmsCaptcha(phoneNumber);

        if (sent) {
            return ResponseEntity.ok(new ApiResponse(true, "驗證碼已發送，請注意查收"));
        } else {
            return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR)
                    .body(new ApiResponse(false, "驗證碼發送失敗，請稍后再試"));
        }
    }

    // 驗證手機號格式（簡化版）
    private boolean isValidPhoneNumber(String phoneNumber) {
        return phoneNumber != null && phoneNumber.matches("^1[3-9]\d{9}$");
    }
}

5. 登錄控制器集成短信驗證碼

@RestController
@RequestMapping("/auth")
public class SmsLoginController {

    @Autowired
    private SmsService smsService;

    @Autowired
    private UserService userService;

    @Autowired
    private JwtTokenProvider jwtTokenProvider;

    @PostMapping("/sms-login")
    public ResponseEntity<?> smsLogin(@RequestBody SmsLoginRequest request) {
        String phoneNumber = request.getPhoneNumber();
        String captcha = request.getCaptcha();

        // 驗證短信驗證碼
        if (!smsService.validateSmsCaptcha(phoneNumber, captcha)) {
            return ResponseEntity.badRequest().body(new ApiResponse(false, "驗證碼錯誤或已過期"));
        }

        // 查找或創建用戶
        User user = userService.findOrCreateByPhone(phoneNumber);

        if (user != null) {
            // 生成JWT令牌
            String token = jwtTokenProvider.generateToken(user.getUsername());
            return ResponseEntity.ok(new JwtAuthResponse(token));
        } else {
            return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR)
                    .body(new ApiResponse(false, "登錄失敗，請稍后再試"));
        }
    }
}

6. 前端集成示例

<div class="sms-login-form">
    <form id="smsLoginForm">
        <div class="form-group">
            <label for="phoneNumber">手機號</label>
            <input type="text" class="form-control" id="phoneNumber" name="phoneNumber" required>
        </div>
        <div class="form-group">
            <label for="smsCaptcha">驗證碼</label>
            <div class="captcha-container">
                <input type="text" class="form-control" id="smsCaptcha" name="smsCaptcha" required>
                <button type="button" class="btn btn-outline-primary" id="sendSmsBtn">獲取驗證碼</button>
            </div>
        </div>
        <button type="submit" class="btn btn-primary">登錄</button>
    </form>
</div>
<script>
let countdown = 60;

document.getElementById('sendSmsBtn').addEventListener('click', function() {
    const phoneNumber = document.getElementById('phoneNumber').value;

    if (!phoneNumber || !/^1[3-9]\d{9}$/.test(phoneNumber)) {
        alert('請輸入正確的手機號');
        return;
    }

    // 發送短信驗證碼請求
    fetch('/captcha/sms/send', {
        method: 'POST',
        headers: {
            'Content-Type': 'application/json'
        },
        body: JSON.stringify({ phoneNumber: phoneNumber })
    })
    .then(response => response.json())
    .then(data => {
        alert(data.message);
        if (data.success) {
            startCountdown();
        }
    })
    .catch(error => {
        console.error('Error:', error);
        alert('發送驗證碼失敗，請稍后再試');
    });
});

function startCountdown() {
    const btn = document.getElementById('sendSmsBtn');
    btn.disabled = true;

    let timer = setInterval(() => {
        btn.textContent = `${countdown}秒后重新獲取`;
        countdown--;

        if (countdown < 0) {
            clearInterval(timer);
            btn.disabled = false;
            btn.textContent = '獲取驗證碼';
            countdown = 60;
        }
    }, 1000);
}

document.getElementById('smsLoginForm').addEventListener('submit', function(e) {
    e.preventDefault();

    const data = {
        phoneNumber: document.getElementById('phoneNumber').value,
        captcha: document.getElementById('smsCaptcha').value
    };

    fetch('/auth/sms-login', {
        method: 'POST',
        headers: {
            'Content-Type': 'application/json'
        },
        body: JSON.stringify(data)
    })
    .then(response => response.json())
    .then(data => {
        if (data.token) {
            localStorage.setItem('token', data.token);
            window.location.href = '/dashboard';
        } else {
            alert(data.message);
        }
    })
    .catch(error => {
        console.error('Error:', error);
        alert('登錄失敗，請稍后再試');
    });
});
</script>

優缺點分析

優點

安全性高，驗證了用戶對手機的控制權
可以作為無密碼登錄的方式，簡化用戶操作
適合移動應用和需要高安全性的場景
可與其他驗證方式結合，實現多因素認證

缺點

依賴第三方短信服務，存在成本
可能受網絡和運營商影響，導致延遲
對國際用戶不友好
用戶頻繁登錄時，體驗不佳

方案三：基于Spring Mail的郵箱驗證碼

原理介紹

郵箱驗證碼通過向用戶注冊的電子郵箱發送一次性驗證碼實現身份驗證。這種方式與短信驗證碼類似，但使用電子郵件作為傳遞媒介，適合對成本敏感或不需要實時驗證的場景。

實現步驟

1. 添加Spring Mail依賴

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-mail</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>

2. 配置郵件服務

# application.properties
spring.mail.host=smtp.gmail.com
spring.mail.port=587
spring.mail.username=your-email@gmail.com
spring.mail.password=your-app-password
spring.mail.properties.mail.smtp.auth=true
spring.mail.properties.mail.smtp.starttls.enable=true
spring.mail.properties.mail.smtp.starttls.required=true

# 自定義配置
app.email.from=noreply@yourapp.com
app.email.personal=Your App Name

3. 創建郵件驗證碼服務

@Service
@Slf4j
public class EmailCaptchaService {

    @Autowired
    private JavaMailSender mailSender;

    @Autowired
    private RedisTemplate<String, String> redisTemplate;

    @Autowired
    private TemplateEngine templateEngine;

    @Value("${app.email.from}")
    private String fromEmail;

    @Value("${app.email.personal}")
    private String emailPersonal;

    private static final long EMAIL_CAPTCHA_EXPIRATION = 600; // 10分鐘過期
    private static final String EMAIL_CAPTCHA_PREFIX = "EMAIL_CAPTCHA:";

    /**
     * 發送郵箱驗證碼
     * @param email 電子郵箱
     * @return 是否發送成功
     */
    public boolean sendEmailCaptcha(String email) {
        try {
            // 生成6位隨機驗證碼
            String captcha = generateCaptcha(6);

            // 存儲驗證碼
            redisTemplate.opsForValue().set(
                    EMAIL_CAPTCHA_PREFIX + email,
                    captcha,
                    EMAIL_CAPTCHA_EXPIRATION,
                    TimeUnit.SECONDS);

            // 準備郵件內容
            Context context = new Context();
            context.setVariable("captcha", captcha);
            context.setVariable("expirationMinutes", EMAIL_CAPTCHA_EXPIRATION / 60);
            String emailContent = templateEngine.process("email/captcha-template", context);

            // 創建MIME郵件
            MimeMessage message = mailSender.createMimeMessage();
            MimeMessageHelper helper = new MimeMessageHelper(message, true, "UTF-8");

            // 設置發件人、收件人、主題和內容
            helper.setFrom(new InternetAddress(fromEmail, emailPersonal));
            helper.setTo(email);
            helper.setSubject("登錄驗證碼");
            helper.setText(emailContent, true);

            // 發送郵件
            mailSender.send(message);
            log.info("郵箱驗證碼已發送至: {}", email);

            return true;
        } catch (Exception e) {
            log.error("發送郵箱驗證碼失敗", e);
            return false;
        }
    }

    /**
     * 驗證郵箱驗證碼
     * @param email 電子郵箱
     * @param captcha 用戶輸入的驗證碼
     * @return 是否驗證成功
     */
    public boolean validateEmailCaptcha(String email, String captcha) {
        String key = EMAIL_CAPTCHA_PREFIX + email;
        String storedCaptcha = redisTemplate.opsForValue().get(key);

        if (storedCaptcha != null && storedCaptcha.equals(captcha)) {
            // 驗證成功后刪除驗證碼，防止重復使用
            redisTemplate.delete(key);
            return true;
        }

        return false;
    }

    /**
     * 生成指定長度的隨機數字驗證碼
     */
    private String generateCaptcha(int length) {
        StringBuilder captcha = new StringBuilder();
        Random random = new Random();

        for (int i = 0; i < length; i++) {
            captcha.append(random.nextInt(10));
        }

        return captcha.toString();
    }
}

4. 創建郵件模板

<!-- src/main/resources/templates/email/captcha-template.html -->
<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>登錄驗證碼</title>
    <style>
        body {
            font-family: Arial, sans-serif;
            line-height: 1.6;
            color: #333;
        }
        .container {
            max-width: 600px;
            margin: 0 auto;
            padding: 20px;
            border: 1px solid #ddd;
            border-radius: 5px;
        }
        .header {
            text-align: center;
            padding-bottom: 10px;
            border-bottom: 1px solid #eee;
        }
        .content {
            padding: 20px 0;
        }
        .code {
            font-size: 24px;
            font-weight: bold;
            text-align: center;
            padding: 10px;
            margin: 20px 0;
            background-color: #f5f5f5;
            border-radius: 5px;
            letter-spacing: 5px;
        }
        .footer {
            font-size: 12px;
            color: #777;
            text-align: center;
            padding-top: 10px;
            border-top: 1px solid #eee;
        }
    </style>
</head>
<body>
    <div class="container">
        <div class="header">
            <h2>登錄驗證碼</h2>
        </div>
        <div class="content">
            <p>您好，</p>
            <p>您正在進行登錄操作，請使用以下驗證碼完成驗證：</p>
            <div class="code" th:text="${captcha}">123456</div>
            <p>驗證碼有效期為 <span th:text="${expirationMinutes}">10</span> 分鐘，請及時使用。</p>
            <p>如果這不是您的操作，請忽略此郵件。</p>
        </div>
        <div class="footer">
            <p>此郵件由系統自動發送，請勿回復。</p>
        </div>
    </div>
</body>
</html>

5. 實現郵箱驗證碼控制器

@RestController
@RequestMapping("/captcha")
public class EmailCaptchaController {

    @Autowired
    private EmailCaptchaService emailCaptchaService;

    @PostMapping("/email/send")
    public ResponseEntity<?> sendEmailCaptcha(@RequestBody EmailRequest request) {
        String email = request.getEmail();

        // 驗證郵箱格式
        if (!isValidEmail(email)) {
            return ResponseEntity.badRequest().body(new ApiResponse(false, "郵箱格式不正確"));
        }

        // 發送郵箱驗證碼
        boolean sent = emailCaptchaService.sendEmailCaptcha(email);

        if (sent) {
            return ResponseEntity.ok(new ApiResponse(true, "驗證碼已發送，請查收郵件"));
        } else {
            return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR)
                    .body(new ApiResponse(false, "驗證碼發送失敗，請稍后再試"));
        }
    }

    // 驗證郵箱格式
    private boolean isValidEmail(String email) {
        String regex = "^[\w-\.]+@([\w-]+\.)+[\w-]{2,4}$";
        return email != null && email.matches(regex);
    }
}

6. 登錄控制器集成郵箱驗證碼

@RestController
@RequestMapping("/auth")
public class EmailLoginController {

    @Autowired
    private EmailCaptchaService emailCaptchaService;

    @Autowired
    private UserService userService;

    @Autowired
    private JwtTokenProvider jwtTokenProvider;

    @PostMapping("/email-login")
    public ResponseEntity<?> emailLogin(@RequestBody EmailLoginRequest request) {
        String email = request.getEmail();
        String captcha = request.getCaptcha();

        // 驗證郵箱驗證碼
        if (!emailCaptchaService.validateEmailCaptcha(email, captcha)) {
            return ResponseEntity.badRequest().body(new ApiResponse(false, "驗證碼錯誤或已過期"));
        }

        // 查找或創建用戶
        User user = userService.findOrCreateByEmail(email);

        if (user != null) {
            // 生成JWT令牌
            String token = jwtTokenProvider.generateToken(user.getUsername());
            return ResponseEntity.ok(new JwtAuthResponse(token));
        } else {
            return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR)
                    .body(new ApiResponse(false, "登錄失敗，請稍后再試"));
        }
    }
}

優缺點分析

優點

成本低廉，適合預算有限的項目
無需依賴第三方服務，可自行部署
可發送富文本內容，支持品牌定制
適合注冊和找回密碼等非實時場景

缺點

郵件可能被歸類為垃圾郵件或延遲送達
用戶體驗不如短信驗證碼直接
郵件服務器配置相對復雜
不適合對實時性要求高的場景

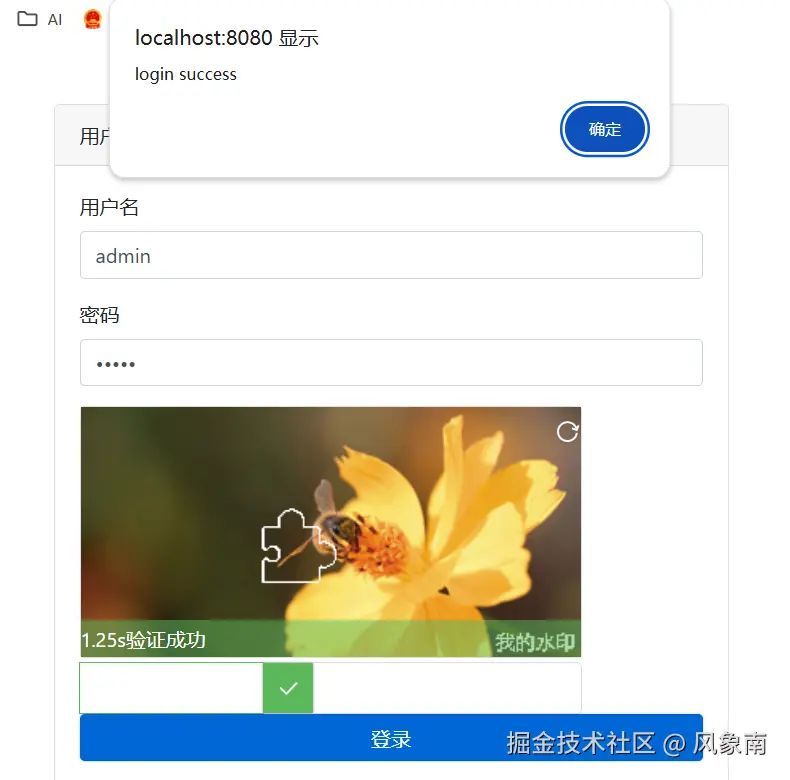

方案四：基于AJ-Captcha的滑動拼圖驗證碼

原理介紹

滑動拼圖驗證碼是一種更現代的驗證方式，通過讓用戶拖動滑塊完成拼圖來驗證人機交互。這種驗證碼在用戶體驗和安全性之間取得了很好的平衡，既能有效防止自動化攻擊，又不會像傳統圖形驗證碼那樣影響用戶體驗。

實現步驟

1. 添加AJ-Captcha依賴

<dependency>
   <groupId>com.anji-plus</groupId>
   <artifactId>captcha-spring-boot-starter</artifactId>
   <version>1.4.0</version>
</dependency>

2. 配置滑動驗證碼參數

aj:
  captcha:
    cache-type: local
    expires-in: 300
    req-frequency-limit-count: 50
    cache-number: 1000
    jigsaw: classpath:images/jigsaw
    pic-click: classpath:images/pic-click

3. 自定義滑動驗證碼控制器

@RestController
@RequestMapping("/captcha")
public class JigsawCaptchaController {

    @Autowired
    private CaptchaService captchaService;

    @RequestMapping(value = "/get", method = {RequestMethod.GET, RequestMethod.POST})
    public ResponseModel get(@RequestParam(value = "type", defaultValue = "slide") String captchaType) {
        CaptchaVO captchaVO = new CaptchaVO();
        captchaVO.setCaptchaType(captchaType);
        return captchaService.get(captchaVO);
    }

    @PostMapping("/check")
    public ResponseModel check(@RequestBody CaptchaVO captchaVO) {
        return captchaService.check(captchaVO);
    }
}

4. 登錄控制器集成滑動驗證碼

@RestController
@RequestMapping("/auth")
public class JigsawLoginController {

    @Autowired
    private CaptchaService captchaService;

    @PostMapping("/jigsaw-login")
    public ResponseEntity<?> jigsawLogin(@RequestBody JigsawLoginRequest request) {
        // 驗證滑動驗證碼
        CaptchaVO captchaVO = new CaptchaVO();
        captchaVO.setCaptchaVerification(request.getCaptchaVerification());

        ResponseModel response = captchaService.verification(captchaVO);

        if (!response.isSuccess()) {
            return ResponseEntity.badRequest().body(new ApiResponse(false, "驗證碼校驗失敗"));
        }

        // TODO 模擬驗證用戶名密碼
        boolean authenticated = request.getPassword().equals("admin");

        if (authenticated) {
            // TODO 模擬生成令牌
            String token = IdUtil.simpleUUID();
            return ResponseEntity.ok(new JwtAuthResponse(token));
        } else {
            return ResponseEntity.badRequest().body(new ApiResponse(false, "用戶名或密碼錯誤"));
        }
    }
}

@SpringBootApplication
public class Main {

    public static void main(String[] args) {
        SpringApplication.run(Main.class, args);
    }

    @Bean
    public CaptchaService captchaService(){
        BlockPuzzleCaptchaServiceImpl clickWordCaptchaService = new BlockPuzzleCaptchaServiceImpl();
        Properties properties = new Properties();
        properties.setProperty(Const.CAPTCHA_FONT_TYPE,"WenQuanZhengHei.ttf");
        clickWordCaptchaService.init(properties);
        return clickWordCaptchaService;
    }

}

5. 前端集成示例

注：依賴的本地js文件可從 https://github.com/anji-plus/captcha/tree/master/view/html 獲取

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>滑動驗證碼登錄</title>
    <link rel="stylesheet" >
    <link rel="stylesheet" >
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8">
    <meta name="viewport" content="width=device-width,initial-scale=1,minimum-scale=1,maximum-scale=1,user-scalable=no"/>
    <link rel="stylesheet" type="text/css" href="css/verify.css">
    <style>

    </style>
</head>
<body>
<div class="container mt-5">
    <div class="row justify-content-center">
        <div class="col-md-6">
            <div class="card">
                <div class="card-header">用戶登錄</div>
                <div class="card-body">
                    <form id="loginForm">
                        <div class="form-group">
                            <label for="username">用戶名</label>
                            <input type="text" class="form-control" id="username" name="username" required>
                        </div>
                        <div class="form-group">
                            <label for="password">密碼</label>
                            <input type="password" class="form-control" id="password" name="password" required>
                        </div>
                        <div class="form-group">
                            <div id="captcha"></div>
                            <input type="hidden" id="captchaVerification" name="captchaVerification">
                        </div>

                        <div id="slidePanel" ></div>

                        <button type="submit" class="btn btn-primary btn-block">登錄</button>
                    </form>
                </div>
            </div>
        </div>
    </div>
</div>
<script src="https://cdn.jsdelivr.net/npm/jquery@3.5.1/dist/jquery.min.js"></script>
<script>
    (function () {
      if (!window.Promise) {
        document.writeln('<script src="https://cdnjs.cloudflare.com/ajax/libs/es6-promise/4.1.1/es6-promise.min.js"><' + '/' + 'script>');
      }
    })();
</script>
<script src="./js/crypto-js.js"></script>
<script src="./js/ase.js"></script>
<script src="./js/verify.js" ></script>
<script>
    let captchaVerification;
    // 初始化驗證碼  嵌入式
    $('#slidePanel').slideVerify({
        baseUrl:'http://localhost:8080',  // 服務器請求地址;
        mode:'fixed',
        imgSize : {       //圖片的大小對象
            width: '400px',
            height: '200px',
        },
        barSize:{
            width: '400px',
            height: '40px',
        },
        ready : function() {  //加載完畢的回調
        },
        success : function(params) { //成功的回調
            // 返回的二次驗證參數 合并到驗證通過之后的邏輯 參數中回傳服務器
            captchaVerification = params.captchaVerification;
        },
        error : function() {        //失敗的回調
        }
    });

    // 表單提交處理
    document.getElementById('loginForm').addEventListener('submit', function(e) {
        e.preventDefault();

        if (!captchaVerification) {
            alert('請先完成滑動驗證');
            return;
        }

        var data = {
            username: document.getElementById('username').value,
            password: document.getElementById('password').value,
            captchaVerification: captchaVerification
        };

        fetch('/auth/jigsaw-login', {
            method: 'POST',
            headers: {
                'Content-Type': 'application/json'
            },
            body: JSON.stringify(data)
        })
        .then(response => response.json())
        .then(data => {
            if (data.token) {
                localStorage.setItem('token', data.token);
                alert('login success');
            } else {
                alert(data.message);
            }
        })
        .catch(error => {
            console.error('Error:', error);
        });
    });
</script>
</body>
</html>

優缺點分析

優點

用戶體驗良好，交互更加自然
安全性較高，難以被自動化工具破解
支持移動端和桌面端
可定制化程度高，支持品牌化設計

缺點

實現相對復雜，需要前后端配合
依賴JavaScript，不支持純靜態環境

四種驗證碼方案對比

特性/方案	圖形驗證碼	短信驗證碼	郵箱驗證碼	滑動拼圖驗證碼
安全性	中	高	中高	高
實現復雜度	低	中	中	高
適用場景	簡單應用	高安全性需求	注冊、找回密碼	現代Web應用
防機器人效果	一般	優秀	良好	優秀
是否需要第三方	否	是	否	否
