WPF封裝實現懶加載下拉列表控件(支持搜索)
更新時間：2025年04月30日 11:11:33 作者：流浪阿丁
WPF這種懶加載的控件未找到現成可用的組件,所以本文我們就自己封裝一個懶加載和支持模糊過濾的下拉列表控件,有需要的小伙伴可以參考一下
因?yàn)轫?xiàng)目中PC端前端針對基礎數據選擇時的下拉列表做了懶加載控件，PC端使用現成的組件，為保持兩端的選擇方式統一，WPF客戶端上也需要使用懶加載的下拉選擇。
WPF這種懶加載的控件未找到現成可用的組件，于是自己封裝了一個懶加載和支持模糊過濾的下拉列表控件，控件使用了虛擬化加載，解決了大數據量時的渲染數據卡頓問題，下面是完整的代碼和示例：
一、控件所需的關鍵實體類
/// <summary>
/// 下拉項
/// </summary>
public class ComboItem
{
/// <summary>
/// 實際存儲值
/// </summary>
public string? ItemValue { get; set; }
/// <summary>
/// 顯示文本
/// </summary>
public string? ItemText { get; set; }
}
/// <summary>
/// 懶加載下拉數據源提供器
/// </summary>
public class ComboItemProvider : ILazyDataProvider<ComboItem>
{
private readonly List<ComboItem> _all;
public ComboItemProvider()
{
_all = Enumerable.Range(1, 1000000)
.Select(i => new ComboItem { ItemValue = i.ToString(), ItemText = $"Item {i}" })
.ToList();
}
public async Task<PageResult<ComboItem>> FetchAsync(string filter, int pageIndex, int pageSize)
{
await Task.Delay(100);
var q = _all.AsQueryable();
if (!string.IsNullOrEmpty(filter))
q = q.Where(x => x.ItemText.Contains(filter, StringComparison.OrdinalIgnoreCase));
var page = q.Skip(pageIndex * pageSize).Take(pageSize).ToList();
bool has = q.Count() > (pageIndex + 1) * pageSize;
return new PageResult<ComboItem> { Items = page, HasMore = has };
}
}
/// <summary>
/// 封裝獲取數據的接口
/// </summary>
/// <typeparam name="T"></typeparam>
public interface ILazyDataProvider<T>
{
Task<PageResult<T>> FetchAsync(string filter, int pageIndex, int pageSize);
}
/// <summary>
/// 懶加載下拉分頁對象
/// </summary>
/// <typeparam name="T"></typeparam>
public class PageResult<T>
{
public IReadOnlyList<T> Items { get; set; }
public bool HasMore { get; set; }
}二、懶加載控件視圖和數據邏輯
<UserControl
x:Class="LazyComboBoxFinalDemo.Controls.LazyComboBox"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:local="clr-namespace:LazyComboBoxFinalDemo.Controls">
<UserControl.Resources>
<local:ZeroToVisibleConverter x:Key="ZeroToVisibleConverter" />
<!-- 清除按鈕樣式：透明背景、圖標 -->
<Style x:Key="ClearButtonStyle" TargetType="Button">
<Setter Property="Background" Value="Transparent" />
<Setter Property="BorderThickness" Value="0" />
<Setter Property="Padding" Value="0" />
<Setter Property="Cursor" Value="Hand" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="Button">
<ContentPresenter HorizontalAlignment="Center" VerticalAlignment="Center" />
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<!-- ToggleButton 樣式 -->
<Style x:Key="ComboToggleButtonStyle" TargetType="ToggleButton">
<Setter Property="Background" Value="White" />
<Setter Property="BorderBrush" Value="#CCC" />
<Setter Property="BorderThickness" Value="1" />
<Setter Property="Padding" Value="4" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="ToggleButton">
<Border
Padding="{TemplateBinding Padding}"
Background="{TemplateBinding Background}"
BorderBrush="{TemplateBinding BorderBrush}"
BorderThickness="{TemplateBinding BorderThickness}"
CornerRadius="4">
<Grid>
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition Width="20" />
<ColumnDefinition Width="20" />
</Grid.ColumnDefinitions>
<!-- 按鈕文本 -->
<ContentPresenter
Grid.Column="0"
Margin="4,0,0,0"
VerticalAlignment="Center"
Content="{TemplateBinding Content}" />
<!-- 箭頭 -->
<Path
x:Name="Arrow"
Grid.Column="2"
VerticalAlignment="Center"
Data="M 0 0 L 4 4 L 8 0 Z"
Fill="Gray"
RenderTransformOrigin="0.5,0.5">
<Path.RenderTransform>
<RotateTransform Angle="0" />
</Path.RenderTransform>
</Path>
<!-- 清除按鈕 -->
<Button
x:Name="PART_ClearButton"
Grid.Column="1"
Width="16"
Height="16"
VerticalAlignment="Center"
Click="OnClearClick"
Style="{StaticResource ClearButtonStyle}"
Visibility="Collapsed">
<Path
Data="M0,0 L8,8 M8,0 L0,8"
Stroke="Gray"
StrokeThickness="2" />
</Button>
</Grid>
</Border>
<ControlTemplate.Triggers>
<Trigger Property="IsMouseOver" Value="True">
<Setter TargetName="PART_ClearButton" Property="Visibility" Value="Visible" />
</Trigger>
<DataTrigger Binding="{Binding IsOpen, ElementName=PART_Popup}" Value="True">
<Setter TargetName="Arrow" Property="RenderTransform">
<Setter.Value>
<RotateTransform Angle="180" />
</Setter.Value>
</Setter>
</DataTrigger>
</ControlTemplate.Triggers>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<!-- ListBoxItem 懸停／選中樣式 -->
<Style TargetType="ListBoxItem">
<Setter Property="HorizontalContentAlignment" Value="Stretch" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="ListBoxItem">
<Border
x:Name="Bd"
Padding="4"
Background="Transparent">
<ContentPresenter />
</Border>
<ControlTemplate.Triggers>
<Trigger Property="IsMouseOver" Value="True">
<Setter TargetName="Bd" Property="Background" Value="#EEE" />
</Trigger>
<Trigger Property="IsSelected" Value="True">
<Setter TargetName="Bd" Property="Background" Value="#CCC" />
</Trigger>
</ControlTemplate.Triggers>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<!-- Popup 邊框 -->
<Style x:Key="PopupBorder" TargetType="Border">
<Setter Property="CornerRadius" Value="5" />
<Setter Property="Background" Value="White" />
<Setter Property="BorderBrush" Value="#CCC" />
<Setter Property="BorderThickness" Value="2" />
<Setter Property="Padding" Value="10" />
</Style>
<!-- 水印 TextBox -->
<Style x:Key="WatermarkTextBox" TargetType="TextBox">
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="TextBox">
<Grid>
<ScrollViewer x:Name="PART_ContentHost" />
<TextBlock
Margin="4,2,0,0"
Foreground="Gray"
IsHitTestVisible="False"
Text="搜索…"
Visibility="{Binding Text.Length, RelativeSource={RelativeSource TemplatedParent}, Converter={StaticResource ZeroToVisibleConverter}}" />
</Grid>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
</UserControl.Resources>
<Grid>
<ToggleButton
x:Name="PART_Toggle"
Click="OnToggleClick"
Style="{StaticResource ComboToggleButtonStyle}">
<Grid>
<!-- 顯示文本 -->
<TextBlock
Margin="4,0,24,0"
VerticalAlignment="Center"
Text="{Binding DisplayText, RelativeSource={RelativeSource AncestorType=UserControl}}" />
<!-- 箭頭已在模板內，略 -->
</Grid>
</ToggleButton>
<Popup
x:Name="PART_Popup"
AllowsTransparency="True"
PlacementTarget="{Binding ElementName=PART_Toggle}"
PopupAnimation="Fade"
StaysOpen="False">
<!-- AllowsTransparency 啟用透明，PopupAnimation 彈窗動畫 -->
<Border Width="{Binding ActualWidth, ElementName=PART_Toggle}" Style="{StaticResource PopupBorder}">
<Border.Effect>
<DropShadowEffect
BlurRadius="15"
Opacity="0.7"
ShadowDepth="0"
Color="#e6e6e6" />
</Border.Effect>
<Grid Height="300">
<Grid.RowDefinitions>
<RowDefinition Height="Auto" />
<RowDefinition Height="*" />
</Grid.RowDefinitions>
<!-- 搜索框 -->
<TextBox
x:Name="PART_SearchBox"
Margin="0,0,0,8"
VerticalAlignment="Center"
Style="{StaticResource WatermarkTextBox}"
TextChanged="OnSearchChanged" />
<!-- 列表 -->
<ListBox
x:Name="PART_List"
Grid.Row="1"
DisplayMemberPath="ItemText"
ItemsSource="{Binding Items, RelativeSource={RelativeSource AncestorType=UserControl}}"
ScrollViewer.CanContentScroll="True"
ScrollViewer.ScrollChanged="OnScroll"
SelectionChanged="OnSelectionChanged"
VirtualizingStackPanel.IsVirtualizing="True"
VirtualizingStackPanel.VirtualizationMode="Recycling" />
</Grid>
</Border>
</Popup>
</Grid>
</UserControl>LazyComboBox.cs
public partial class LazyComboBox : UserControl, INotifyPropertyChanged
{
public static readonly DependencyProperty ItemsProviderProperty =
DependencyProperty.Register(nameof(ItemsProvider), typeof(ILazyDataProvider<ComboItem>),
typeof(LazyComboBox), new PropertyMetadata(null));
public ILazyDataProvider<ComboItem> ItemsProvider
{
get => (ILazyDataProvider<ComboItem>)GetValue(ItemsProviderProperty);
set => SetValue(ItemsProviderProperty, value);
}
public static readonly DependencyProperty SelectedItemProperty =
DependencyProperty.Register(nameof(SelectedItem), typeof(ComboItem),
typeof(LazyComboBox),
new FrameworkPropertyMetadata(null, FrameworkPropertyMetadataOptions.BindsTwoWayByDefault, OnSelectedItemChanged));
public ComboItem SelectedItem
{
get => (ComboItem)GetValue(SelectedItemProperty);
set => SetValue(SelectedItemProperty, value);
}
private static void OnSelectedItemChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)
{
if (d is LazyComboBox ctrl)
{
ctrl.Notify(nameof(DisplayText));
}
}
public ObservableCollection<ComboItem> Items { get; } = new ObservableCollection<ComboItem>();
private string _currentFilter = "";
private int _currentPage = 0;
private const int PageSize = 30;
public bool HasMore { get; private set; }
public string DisplayText => SelectedItem?.ItemText ?? "請選擇...";
public LazyComboBox()
{
InitializeComponent();
}
public event PropertyChangedEventHandler PropertyChanged;
private void Notify(string prop) => PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(prop));
private async void LoadPage(int pageIndex)
{
if (ItemsProvider == null) return;
var result = await ItemsProvider.FetchAsync(_currentFilter, pageIndex, PageSize);
if (pageIndex == 0) Items.Clear();
foreach (var it in result.Items) Items.Add(it);
HasMore = result.HasMore;
PART_Popup.IsOpen = true;
}
private void OnClearClick(object sender, RoutedEventArgs e)
{
e.Handled = true; // 阻止事件冒泡，不觸發 Toggle 打開
SelectedItem = null; // 清空選中
Notify(nameof(DisplayText)); // 刷新按鈕文本
PART_Popup.IsOpen = false; // 確保關掉彈窗
}
private void OnToggleClick(object sender, RoutedEventArgs e)
{
_currentPage = 0;
LoadPage(0);
PART_Popup.IsOpen = true;
}
private void OnSearchChanged(object sender, TextChangedEventArgs e)
{
_currentFilter = PART_SearchBox.Text;
_currentPage = 0;
LoadPage(0);
}
private void OnScroll(object sender, ScrollChangedEventArgs e)
{
if (!HasMore) return;
if (e.VerticalOffset >= e.ExtentHeight - e.ViewportHeight - 2)
LoadPage(++_currentPage);
}
private void OnSelectionChanged(object sender, SelectionChangedEventArgs e)
{
if (PART_List.SelectedItem is ComboItem item)
{
SelectedItem = item;
Notify(nameof(DisplayText));
PART_Popup.IsOpen = false;
}
}
}
轉換器
/// <summary>
/// 下拉彈窗搜索框根據數據顯示專用轉換器
/// 用于將0轉換為可見
/// </summary>
public class ZeroToVisibleConverter : IValueConverter
{
public object Convert(object value, Type targetType, object parameter, CultureInfo culture)
{
if (value is int i && i == 0)
return Visibility.Visible;
return Visibility.Collapsed;
}
public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)
=> throw new NotImplementedException();
}
三、視圖頁面使用示例
xmlns:ctrl="clr-namespace:LazyComboBoxFinalDemo.Controls"
<Grid Margin="10">
<ctrl:LazyComboBox
Width="200"
Height="40"
ItemsProvider="{Binding MyDataProvider}"
SelectedItem="{Binding PartSelectedItem, Mode=TwoWay}" />
</Grid>對應視圖的VM中綁定數據：
public ILazyDataProvider<ComboItem> MyDataProvider { get; }
= new ComboItemProvider();
/// <summary>
/// 當前選擇值
/// </summary>
[ObservableProperty]

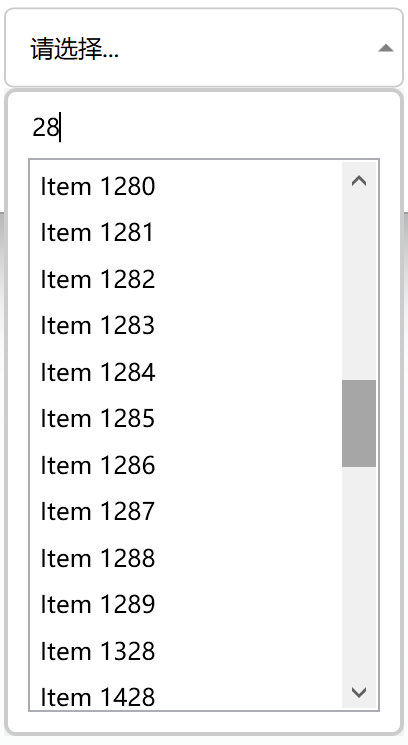

private ComboItem partSelectedItem;四、效果圖
以上就是WPF封裝實現懶加載下拉列表控件(支持搜索)的詳細內容，更多關于WPF下拉列表控件的資料請關注腳本之家其它相關文章！
相關文章
C#實現格式化SQL語句的示例代碼
這篇文章主要為大家詳細介紹了C#如何實現格式化SQL語句的功能,文中的示例代碼簡潔易懂,具有一定的借鑒價值,感興趣的小伙伴可以跟隨小編一起學習一下2023-08-08
C#實現NPOI的Excel導出詳解
這篇文章主要介紹了C#實現NPOI的Excel導出的示例代碼，文中的實現過程講解詳細，對我們的學習或工作有一定的幫助，感興趣的可以跟隨小編一起學習一下2022-01-01
這篇文章主要介紹了c# 線程同步的相關資料，文中講解非常細致，示例代碼幫助大家更好的理解和學習c# 多線程，感興趣的朋友可以了解下2020-07-07
Unity3D實現人物移動示例
這篇文章主要為大家詳細介紹了Unity3D實現人物移動示例，文中示例代碼介紹的非常詳細，具有一定的參考價值，感興趣的小伙伴們可以參考一下2020-01-01
C# 中的IComparable和IComparer的使用及區別
這篇文章主要介紹了C# 中的IComparable和IComparer的使用及區別，文中通過示例代碼介紹的非常詳細，對大家的學習或者工作具有一定的參考學習價值，需要的朋友們下面隨著小編來一起學習學習吧2020-01-01
這篇文章主要介紹了C#監控文件夾變化的方法,通過FileSystemWatcher類的方法來實現對文件夾的監控,是非常實用的技巧,需要的朋友可以參考下2014-11-11
c#數據綁定之將datatabel的data添加listView
這篇文章主要介紹了c#將DataTabel的data添加ListView的示例，實現功能是通過響應UI Textbox 的值向ListView 綁定新添加的紀錄。 ,需要的朋友可以參考下2014-04-04
淺析JAVA中過濾器、監聽器、攔截器的區別
本文通過代碼分析和文字說明的方式給大家淺析JAVA中過濾器、監聽器、攔截器的區別，感興趣的朋友一起看下吧2015-09-09
在C#中,多線程編程是處理并發操作、提高程序性能的重要手段,C#提供了多種方式來創建和管理線程,下面將介紹四種常用的開啟線程的方法,并附上相應的實現代碼,需要的朋友可以參考下2024-06-06
C#模擬瀏覽器實現自動操作
這篇文章主要為大家詳細介紹了如何使用C#實現模擬瀏覽器實現自動操作,文中的示例代碼講解詳細,感興趣的小伙伴可以跟隨小編一起學習一下2024-11-11
