Java使用POI實現Excel文件的創建與處理

 更新時間:2025年05月07日 09:08:43   作者:csdn_freak_dd
這篇文章主要為大家詳細介紹了Java如何采用POI原生方式實現自定義Excel表格表頭并生成Excel文件,文中的示例代碼講解詳細,有需要的小伙伴可以了解下

1、背景

需求中有需要用戶自定義Excel表格表頭,然后生成Excel文件,使用EasyExcel更適合生成固定表頭的Excel文檔,所以此處采用POI原生方式進行開發。文檔如下:

2、創建表格

主要的代碼邏輯如下,非主要方法可以在完整代碼中找到。

2.1 定義表頭對象

根據需求,表頭需要制定2級表頭,我們先定義一個Excel表頭對象。

@Data
@NoArgsConstructor
@AllArgsConstructor
public class ExcelModelDto {

    /*** 名稱 */
    private String fieldName;
    /*** 提示語 */
    private String comment;
    /*** 類型 */
    private Integer type;
    /*** 背景色 */
    private short backgroundColor;
    /*** 子標題 */
    private List<Child> children;

    @Data
    @NoArgsConstructor
    @AllArgsConstructor
    public static class Child {
        /*** 字段編碼 */
        private String fieldCode;
        /*** 字段名稱 */
        private String fieldName;
        /*** 提示語 */
        private String comment;
        /*** 類型 */
        private Integer type;
        /*** 下拉框選項 */
        private String[] items;

    }

}

2.2 Excel生成器

創建一個Excel文件生成對象,包含多個屬性,其中包括:文件路徑、文件名稱、是否需要下拉框、文件后綴名、最大文本行數等。

@Slf4j
public class ExcelGenerator {

    private final String localPath;
    private final String sheetName;
    private final String fileName;
    private final String file;
    private final Boolean needItems;
    private final List<ExcelModelDto> data;
    /*** 字段編碼集合,從data中解析 */
    private final List<String> fieldCodeList;

    public static final Integer FIRST_ROW = 2;
    public static final Integer LAST_ROW = 65535;
    public static final String FILE_SUFFIX = ".xlsx";
    public static final String PATH_SUFFIX = "/";
    public static final String ITEM_SHEET_NAME = "itemSheet";
    public static final String END_FLAG = "*";
    public static final Integer MAX_CONTENT_ROW_NUMBER = 1002;

    /**
     * 擴展字段sheet頁行數記錄key值
     */
    public static final String EXTEND_PAGE_ROW_NUMBER_KEY = "extend";

    public ExcelGenerator(String localPath, String fileName, String sheetName, List<ExcelModelDto> data) {
        this(localPath, fileName, sheetName, true, data);
    }

    public ExcelGenerator(String localPath, String fileName, String sheetName, Boolean needItems, List<ExcelModelDto> data) {
        this.localPath = localPath;
        this.fileName = fileName;
        this.sheetName = sheetName;
        this.file = localPath + fileName;
        this.needItems = needItems;
        this.data = data;
        fieldCodeList = this.parseField(data);
    }
}

2.3 創建模板

/**
     * 生成模板
     *
     * @throws IOException 異常
     */
    public void createTemplate() throws IOException {
        this.doCreateSheet(Paths.get(file), sheetName, data);
    }

/**
     * 向Excel文件新增一個新的工作表,并處理表頭。
     *
     * @param pathForFile 新工作表將要保存的文件路徑。
     * @throws IOException 如果讀寫文件時發生異常。
     */
    private void doCreateSheet(Path pathForFile, String sheetName, List<ExcelModelDto> data)
            throws IOException {
        long startTime = System.currentTimeMillis();
        Workbook workbook = new XSSFWorkbook();
        Sheet sheet = this.getSheetByName(workbook, sheetName, false);
        // 處理Excel表頭
        this.dealExcelHeadingCell(workbook, sheet, data);
        // 處理Excel內容單元格,默認都是有二級標題
        this.dealExcelContentCell(workbook, sheet, data);

        // 將inputStream轉換為outputStream,并重新寫入文件
        try (OutputStream outputStream = Files.newOutputStream(pathForFile)) {
            workbook.write(outputStream);
        } finally {
            long endTime = System.currentTimeMillis();
            log.info("創建Excel模板文件共耗時:{}秒。", (endTime - startTime) / 1000);
        }
    }

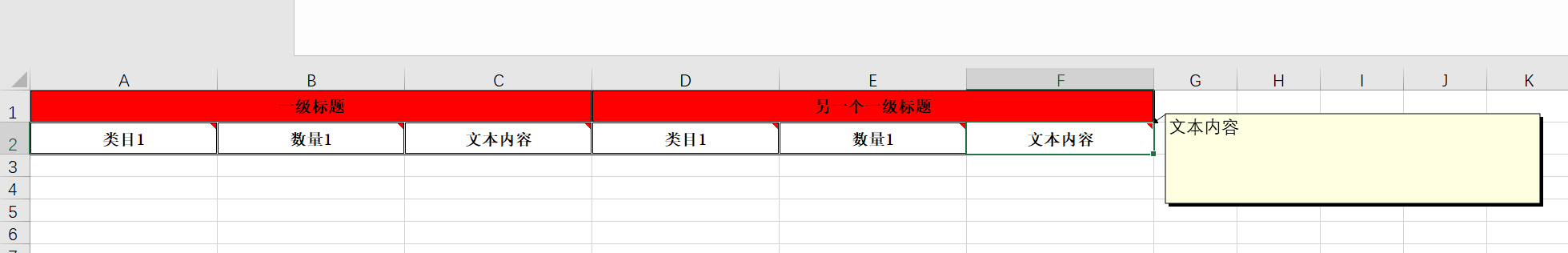

2.4 處理Excel表頭

/**
     * 處理 Excel 表頭數據,包括第一行和第二行的標題單元格樣式設置、數據填充和合并單元格。
     *
     * @param workbook 工作簿對象
     * @param sheet    主表的工作表對象
     * @param data     表頭數據
     */
    private void dealExcelHeadingCell(Workbook workbook, Sheet sheet, List<ExcelModelDto> data) {
        // 創建第一行和第二行表頭數據,并設置行高
        Row row1 = this.getRow(sheet, 0);
        Row row2 = this.getRow(sheet, 1);
        row1.setHeightInPoints(20);
        row2.setHeightInPoints(20);

        // 已經存在的列號
        int lastCellNum = this.getLastCellNum(sheet, 1);
        int currentCellNum = lastCellNum;
        int startCellNum = lastCellNum;
        int endCellNum;

        for (ExcelModelDto excelModelDto : data) {
            // 一級標題名稱
            String firstTitleName = excelModelDto.getFieldName();
            // 一級標題單元格樣式
            CellStyle firstTitleCellStyle = this.buildFirstTitleCellStyle(workbook, excelModelDto);
            // 二級標題的單元格樣式
            CellStyle secondTitleCellStyle = this.getCellStyle(workbook, IndexedColors.WHITE.getIndex());

            List<ExcelModelDto.Child> children = excelModelDto.getChildren();
            if (children == null || children.size() == 0) {
                continue;
            }

            for (ExcelModelDto.Child child : children) {
                // 處理表頭單元格
                this.dealTitleCell(workbook, sheet, child, firstTitleName, firstTitleCellStyle, secondTitleCellStyle, currentCellNum);
                // 處理完后列號加一
                currentCellNum++;
            }
            endCellNum = currentCellNum - 1;

            // POI 版本升級后,合并單元格需要大于一個單元格
            if (startCellNum != endCellNum) {
                CellRangeAddress region = new CellRangeAddress(0, 0, startCellNum, endCellNum);
                sheet.addMergedRegion(region);
            }
            startCellNum = endCellNum + 1;
        }
    }

2.5 處理Excel內容單元格樣式

/**
     * 格式化內容單元格。
     *
     * @param sheet    工作表對象。
     * @param workbook 工作簿對象。
     */
    private void dealExcelContentCell(Workbook workbook, Sheet sheet, List<ExcelModelDto> data) {
        // 獲取統一的單元格樣式,不用每個單元格獲取一個對象,防止對象過多
        CellStyle childCellStyle = this.getContentCellStyle(workbook);
        // 只格式化內容單元格,且有上限
        int maxContentRowNumber = MAX_CONTENT_ROW_NUMBER;
        // 跳過表頭,從文本行開始
        for (int rowNumber = 2; rowNumber < maxContentRowNumber; rowNumber++) {
            Row row = sheet.createRow(rowNumber);
            // 列號從0開始
            int cellNumber = 0;
            for (ExcelModelDto excelModelDto : data) {
                List<ExcelModelDto.Child> children = excelModelDto.getChildren();
                for (ExcelModelDto.Child child : children) {
                    String[] items = child.getItems();
                    if (Objects.isNull(items) || items.length == 0) {
                        Cell cell = row.createCell(cellNumber);
                        cell.setCellStyle(childCellStyle);
                    }
                    // 每處理完一個單元格,列號加1
                    cellNumber++;
                }
            }
        }
    }

2.6 處理單個表頭

在處理表頭過程中,如果items 不為空,則說明此列需要下拉框,數組為供用戶選擇的下拉內容,防止下拉框內容過大,所以將下拉內容單獨生成到一個隱藏的sheet頁中,并且使用表達式來表達下拉框內容,設定到單元格中。

/**
     * 處理Excel表格的標題單元格。
     *
     * @param workbook             工作簿對象
     * @param sheet                工作表對象
     * @param child                ExcelModelDto.Child 對象,包含字段名、注釋和下拉框選項等信息
     * @param firstTitleName       一級標題名稱
     * @param firstTitleCellStyle  一級標題單元格樣式
     * @param secondTitleCellStyle 二級標題單元格樣式
     * @param index                當前處理的列索引
     */
    private void dealTitleCell(Workbook workbook, Sheet sheet,
                               ExcelModelDto.Child child, String firstTitleName,
                               CellStyle firstTitleCellStyle, CellStyle secondTitleCellStyle,
                               int index) {
        Row row1 = this.getRow(sheet, 0);
        Row row2 = this.getRow(sheet, 1);

        String secondFieldName = child.getFieldName();
        String comment = child.getComment();
        String[] items = child.getItems();

        // 一級表頭
        Cell cell1 = row1.createCell(index);
        cell1.setCellValue(firstTitleName);
        cell1.setCellStyle(firstTitleCellStyle);

        // 二級表頭,標題如果以* 號結尾,則* 置為紅色
        Cell cell2 = row2.createCell(index);
        RichTextString textString = this.parseCellValue(workbook, Font.COLOR_NORMAL, true, secondFieldName);
        cell2.setCellValue(textString);
        cell2.setCellStyle(secondTitleCellStyle);

        // 設置下拉框
        if (items != null && items.length > 0 && needItems) {
            this.appendItems(workbook, sheet, secondTitleCellStyle, secondFieldName, items, index);
        }
        // 設置表頭備注
        if (!org.apache.commons.lang.StringUtils.isEmpty(comment)) {
            this.setComment(sheet, cell2, comment);
        }
        // 根據字段長度自動調整列的寬度
        sheet.setColumnWidth(index, 100 * 50);
    }

/**
     * 在指定的工作簿和工作表中追加枚舉類型的項,并設置公式引用。
     *
     * @param workbook        工作簿對象
     * @param sheet           工作表對象
     * @param childCellStyle  子單元格樣式
     * @param secondTitleName 第二級標題名稱
     * @param items           枚舉類型的項數組
     * @param index           當前項在總體中的索引位置
     */
    private void appendItems(Workbook workbook, Sheet sheet, CellStyle childCellStyle, String secondTitleName, String[] items, int index) {
        // 如果有序列單元格,則創建一個sheet頁,來保存所有的枚舉類型,同時隱藏該sheet頁
        Sheet itemsSheet = this.getSheetByName(workbook, ITEM_SHEET_NAME, true);
        // 追加sheet的時候,需要看隱藏sheet的列已經到哪一列了,避免追加時將原有隱藏列覆蓋掉
        int existItemCell = this.getLastCellNum(itemsSheet, 0);
        // 將枚舉數組寫入到獨立的sheet頁中,同時設置表頭格式
        String formula = this.writeItems(itemsSheet, childCellStyle, secondTitleName, existItemCell, items);
        // 設置公式到模板的sheet頁中,格式化后的最終公式為
        // =itemSheet!$B$1:$B$88
        // 表明該單元格引用的是 itemSheet sheet頁中 B1~B88的數據
        formula = String.format("=%s!%s", ITEM_SHEET_NAME, formula);
        this.setItems(sheet, formula, FIRST_ROW, LAST_ROW, index, index);
    }

3、追加sheet

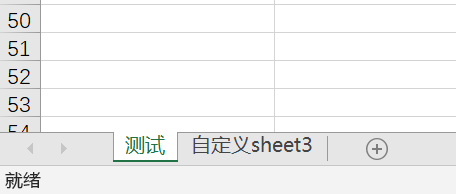

有些需要在已有的Excel文檔中追加新的sheet表格內容,效果如下:

/**
     * 在指定的 Excel 文件中添加一個新的工作表,并填充數據。
     *
     * @param sheetName 新工作表的名稱
     * @param data      要填充的數據列表
     * @throws IOException 如果在操作文件時發生了 I/O 錯誤
     */
    public void appendSheet(String sheetName, List<ExcelModelDto> data) throws IOException {
        long startTime = System.currentTimeMillis();

        // 路徑不存在則創建,保證路徑是存在的
        Path pathForLocalPath = Paths.get(localPath);
        boolean existPath = Files.exists(pathForLocalPath);
        if (!existPath) {
            Files.createDirectories(pathForLocalPath);
        }

        // 如果文件不存在,則走創建sheet邏輯
        Path pathForFile = Paths.get(file);
        if (!Files.exists(pathForFile)) {
            this.doCreateSheet(pathForFile, sheetName, data);
            return;
        }

        // 如果文件存在則走追加sheet邏輯
        try (InputStream inputStream = Files.newInputStream(pathForFile)) {
            this.doAppendSheet(inputStream, pathForFile, sheetName, data);
            long endTime = System.currentTimeMillis();
            log.info("追加Excel模板文件共耗時:{}秒。", (endTime - startTime) / 1000);
        } catch (Exception e) {
            log.error("追加Excel模板文件失?。?, e);
            throw new BizException(e);
        }
    }

/**
     * 向Excel文件追加一個新的工作表,并處理表頭。
     *
     * @param inputStream Excel文件的輸入流。
     * @param pathForFile 新工作表將要保存的文件路徑。
     * @throws IOException 如果讀寫文件時發生異常。
     */
    private void doAppendSheet(InputStream inputStream, Path pathForFile, String sheetName, List<ExcelModelDto> data)
            throws IOException {
        Workbook workbook = new XSSFWorkbook(inputStream);
        Sheet sheet = this.getSheetByName(workbook, sheetName, false);
        // 處理Excel表頭
        this.dealExcelHeadingCell(workbook, sheet, data);
        // 處理Excel內容單元格,默認都是有二級標題
        this.dealExcelContentCell(workbook, sheet, data);

        // 將inputStream轉換為outputStream,并重新寫入文件
        try (OutputStream outputStream = Files.newOutputStream(pathForFile)) {
            IOUtils.copy(inputStream, outputStream);
            workbook.write(outputStream);
        }
    }

4、靜態工具

每次使用都需要new一個對象來創建Excel文件,所以創建一個靜態工具類,來通過靜態方法實現文檔的創建與追加。

public class ExcelGeneratorExecutors {

    /**
     * 創建 Excel 模板文件。
     *
     * @param localPath 本地路徑
     * @param fileName  文件名
     * @param sheetName 工作表名稱
     * @param data      數據列表
     * @throws IOException 如果創建模板文件失敗
     */
    public static void createTemplate(String localPath, String fileName, String sheetName, List<ExcelModelDto> data) throws IOException {
        ExcelGenerator excelGenerator = new ExcelGenerator(localPath, fileName, sheetName, data);
        excelGenerator.createTemplate();
    }

    /**
     * 在指定路徑的Excel文件中追加一個新的工作表,并填充數據。
     *
     * @param localPath Excel文件的本地路徑。
     * @param fileName  Excel文件的名稱。
     * @param sheetName 新增工作表的名稱。
     * @param data      填充到新增工作表的數據。
     * @throws IOException 如果在追加工作表或填充數據時發生I/O錯誤。
     */
    public static void appendSheet(String localPath, String fileName, String sheetName, List<ExcelModelDto> data) throws IOException {
        ExcelGenerator excelGenerator = new ExcelGenerator(localPath, fileName, sheetName, data);
        excelGenerator.appendSheet(sheetName, data);
    }

}

5、單元測試

@Test
    public void testGenerate() {
        String localPath = "D:\\mytmp\\template\\";
        String dateTime = DateUtils.format(new Date(), DateUtils.DATE_FORMAT_COMMENT_2);
        String fileName = String.format("生成模板-%s.xlsx", dateTime);
        String sheetName = "測試";
        List<ExcelModelDto> data = this.buildExcelModelDtoList();
        ExcelGenerator excelGenerator = new ExcelGenerator(localPath, fileName, sheetName, data);
        try {
            excelGenerator.createTemplate();

            List<ExcelModelDto> data2 = this.buildExcelModelDtoList2();
            excelGenerator.appendSheet("自定義sheet", data);
            excelGenerator.appendSheet("自定義sheet2", data2);
            excelGenerator.appendSheet("自定義sheet3", data2);
            log.info("模板文件生成,名稱為:{}", fileName);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    @Test
    public void testGenerate2() {
        String localPath = "D:\\mytmp\\template\\";
        String dateTime = DateUtils.format(new Date(), DateUtils.DATE_FORMAT_COMMENT_2);
        String fileName = String.format("生成模板-%s.xlsx", dateTime);
        String sheetName = "測試";
        List<ExcelModelDto> data = this.buildExcelModelDtoList();
        try {
            ExcelGeneratorExecutors.createTemplate(localPath, fileName, sheetName, data);
            ExcelGeneratorExecutors.appendSheet(localPath, fileName, sheetName, data);
            ExcelGeneratorExecutors.appendSheet(localPath, fileName, "自定義sheet3", data);
            log.info("模板文件生成,名稱為:{}", fileName);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

public List<ExcelModelDto> buildExcelModelDtoList() {
        List<ExcelModelDto> data = new ArrayList<>();
        ExcelModelDto excelModelDto = new ExcelModelDto();
        excelModelDto.setFieldName("電器");
        excelModelDto.setComment("song");
        excelModelDto.setType(2);
        excelModelDto.setBackgroundColor((short) 2);

        List<ExcelModelDto.Child> children = new ArrayList<>();
        ExcelModelDto.Child child1 = new ExcelModelDto.Child();
        child1.setComment("類目1");
        child1.setFieldCode("category");
        child1.setFieldName("類目1");
        List<String> list1 = Lists.newArrayList("冰箱", "洗衣機", "空調");
        child1.setItems(list1.toArray(new String[0]));

        ExcelModelDto.Child child2 = new ExcelModelDto.Child();
        child2.setComment("數量1");
        child2.setFieldCode("qty");
        child2.setFieldName("數量1");
        List<String> list2 = Lists.newArrayList("1", "2", "3");
        child2.setItems(list2.toArray(new String[0]));

        ExcelModelDto.Child child3 = new ExcelModelDto.Child();
        child3.setComment("文本內容");
        child3.setFieldCode("textValue");
        child3.setFieldName("文本內容");

        children.add(child1);
        children.add(child2);
        children.add(child3);
        excelModelDto.setChildren(children);
        data.add(excelModelDto);
        return data;
    }

    public List<ExcelModelDto> buildExcelModelDtoList2() {
        List<ExcelModelDto> data = new ArrayList<>();

        ExcelModelDto excelModelDto0 = new ExcelModelDto();
        excelModelDto0.setFieldName("商家運單號");
        excelModelDto0.setComment("商家運單號");
        excelModelDto0.setType((int) IndexedColors.TURQUOISE1.getIndex());
        excelModelDto0.setBackgroundColor(IndexedColors.TURQUOISE1.getIndex());

        ExcelModelDto.Child child0 = new ExcelModelDto.Child();
        child0.setComment("關聯第一個sheet頁的商家運單號");
        child0.setFieldCode("orderNo");
        child0.setFieldName("商家運單號*");

        List<ExcelModelDto.Child> children0 = new ArrayList<>();
        children0.add(child0);
        excelModelDto0.setChildren(children0);

        ExcelModelDto excelModelDto = new ExcelModelDto();
        excelModelDto.setFieldName("購買電器");
        excelModelDto.setComment("song");
        excelModelDto.setType((int) IndexedColors.TURQUOISE1.getIndex());
        excelModelDto.setBackgroundColor(IndexedColors.TURQUOISE1.getIndex());


        ExcelModelDto.Child child1 = new ExcelModelDto.Child();
        child1.setComment("類目");
        child1.setFieldCode("category");
        child1.setFieldName("類目");
        List<String> list1 = Lists.newArrayList("冰箱", "洗衣機", "空調");
        child1.setItems(list1.toArray(new String[0]));

        ExcelModelDto.Child child2 = new ExcelModelDto.Child();
        child2.setComment("數量");
        child2.setFieldCode("qty");
        child2.setFieldName("數量");
        //List<String> list2 = Lists.newArrayList("1", "2", "3");
        //child2.setItems(list2.toArray(new String[0]));

        List<ExcelModelDto.Child> children = new ArrayList<>();
        children.add(child1);
        children.add(child2);
        excelModelDto.setChildren(children);

        data.add(excelModelDto0);
        data.add(excelModelDto);
        return data;
    }

6、完整代碼示例

@Slf4j
public class ExcelGenerator {

    private final String localPath;
    private final String sheetName;
    private final String fileName;
    private final String file;
    private final Boolean needItems;
    private final List<ExcelModelDto> data;
    /*** 字段編碼集合,從data中解析 */
    private final List<String> fieldCodeList;

    public static final Integer FIRST_ROW = 2;
    public static final Integer LAST_ROW = 65535;
    public static final String FILE_SUFFIX = ".xlsx";
    public static final String PATH_SUFFIX = "/";
    public static final String ITEM_SHEET_NAME = "itemSheet";
    public static final String END_FLAG = "*";
    public static final Integer MAX_CONTENT_ROW_NUMBER = 1002;

    /**
     * 擴展字段sheet頁行數記錄key值
     */
    public static final String EXTEND_PAGE_ROW_NUMBER_KEY = "extend";

    public ExcelGenerator(String localPath, String fileName, String sheetName, List<ExcelModelDto> data) {
        this(localPath, fileName, sheetName, true, data);
    }

    public ExcelGenerator(String localPath, String fileName, String sheetName, Boolean needItems, List<ExcelModelDto> data) {
        this.localPath = localPath;
        this.fileName = fileName;
        this.sheetName = sheetName;
        this.file = localPath + fileName;
        this.needItems = needItems;
        this.data = data;
        fieldCodeList = this.parseField(data);
    }

    /**
     * 創建對象時,將ExcelModel中的字段按順序排好,保存到List中
     *
     * @param data 入?yún)?
     * @return 返回值
     */
    public List<String> parseField(List<ExcelModelDto> data) {
        List<String> fieldCodeList = new ArrayList<>();
        for (ExcelModelDto modelDto : data) {
            List<ExcelModelDto.Child> children = modelDto.getChildren();
            for (ExcelModelDto.Child child : children) {
                String fieldCode = child.getFieldCode();
                fieldCodeList.add(fieldCode);
            }
        }
        return fieldCodeList;
    }

    /**
     * 生成模板
     *
     * @throws IOException 異常
     */
    public void createTemplate() throws IOException {
        this.doCreateSheet(Paths.get(file), sheetName, data);
    }

    /**
     * 在指定的 Excel 文件中添加一個新的工作表,并填充數據。
     *
     * @param sheetName 新工作表的名稱
     * @param data      要填充的數據列表
     * @throws IOException 如果在操作文件時發生了 I/O 錯誤
     */
    public void appendSheet(String sheetName, List<ExcelModelDto> data) throws IOException {
        long startTime = System.currentTimeMillis();

        // 路徑不存在則創建,保證路徑是存在的
        Path pathForLocalPath = Paths.get(localPath);
        boolean existPath = Files.exists(pathForLocalPath);
        if (!existPath) {
            Files.createDirectories(pathForLocalPath);
        }

        // 如果文件不存在,則走創建sheet邏輯
        Path pathForFile = Paths.get(file);
        if (!Files.exists(pathForFile)) {
            this.doCreateSheet(pathForFile, sheetName, data);
            return;
        }

        // 如果文件存在則走追加sheet邏輯
        try (InputStream inputStream = Files.newInputStream(pathForFile)) {
            this.doAppendSheet(inputStream, pathForFile, sheetName, data);
            long endTime = System.currentTimeMillis();
            log.info("追加Excel模板文件共耗時:{}秒。", (endTime - startTime) / 1000);
        } catch (Exception e) {
            log.error("追加Excel模板文件失??!", e);
            throw new BizException(e);
        }
    }

    /**
     * 向Excel文件新增一個新的工作表,并處理表頭。
     *
     * @param pathForFile 新工作表將要保存的文件路徑。
     * @throws IOException 如果讀寫文件時發生異常。
     */
    private void doCreateSheet(Path pathForFile, String sheetName, List<ExcelModelDto> data)
            throws IOException {
        long startTime = System.currentTimeMillis();
        Workbook workbook = new XSSFWorkbook();
        Sheet sheet = this.getSheetByName(workbook, sheetName, false);
        // 處理Excel表頭
        this.dealExcelHeadingCell(workbook, sheet, data);
        // 處理Excel內容單元格,默認都是有二級標題
        this.dealExcelContentCell(workbook, sheet, data);

        // 將inputStream轉換為outputStream,并重新寫入文件
        try (OutputStream outputStream = Files.newOutputStream(pathForFile)) {
            workbook.write(outputStream);
        } finally {
            long endTime = System.currentTimeMillis();
            log.info("創建Excel模板文件共耗時:{}秒。", (endTime - startTime) / 1000);
        }
    }

    /**
     * 向Excel文件追加一個新的工作表,并處理表頭。
     *
     * @param inputStream Excel文件的輸入流。
     * @param pathForFile 新工作表將要保存的文件路徑。
     * @throws IOException 如果讀寫文件時發生異常。
     */
    private void doAppendSheet(InputStream inputStream, Path pathForFile, String sheetName, List<ExcelModelDto> data)
            throws IOException {
        Workbook workbook = new XSSFWorkbook(inputStream);
        Sheet sheet = this.getSheetByName(workbook, sheetName, false);
        // 處理Excel表頭
        this.dealExcelHeadingCell(workbook, sheet, data);
        // 處理Excel內容單元格,默認都是有二級標題
        this.dealExcelContentCell(workbook, sheet, data);

        // 將inputStream轉換為outputStream,并重新寫入文件
        try (OutputStream outputStream = Files.newOutputStream(pathForFile)) {
            IOUtils.copy(inputStream, outputStream);
            workbook.write(outputStream);
        }
    }

    /**
     * 處理 Excel 表頭數據,包括第一行和第二行的標題單元格樣式設置、數據填充和合并單元格。
     *
     * @param workbook 工作簿對象
     * @param sheet    主表的工作表對象
     * @param data     表頭數據
     */
    private void dealExcelHeadingCell(Workbook workbook, Sheet sheet, List<ExcelModelDto> data) {
        // 創建第一行和第二行表頭數據,并設置行高
        Row row1 = this.getRow(sheet, 0);
        Row row2 = this.getRow(sheet, 1);
        row1.setHeightInPoints(20);
        row2.setHeightInPoints(20);

        // 已經存在的列號
        int lastCellNum = this.getLastCellNum(sheet, 1);
        int currentCellNum = lastCellNum;
        int startCellNum = lastCellNum;
        int endCellNum;

        for (ExcelModelDto excelModelDto : data) {
            // 一級標題名稱
            String firstTitleName = excelModelDto.getFieldName();
            // 一級標題單元格樣式
            CellStyle firstTitleCellStyle = this.buildFirstTitleCellStyle(workbook, excelModelDto);
            // 二級標題的單元格樣式
            CellStyle secondTitleCellStyle = this.getCellStyle(workbook, IndexedColors.WHITE.getIndex());

            List<ExcelModelDto.Child> children = excelModelDto.getChildren();
            if (children == null || children.size() == 0) {
                continue;
            }

            for (ExcelModelDto.Child child : children) {
                // 處理表頭單元格
                this.dealTitleCell(workbook, sheet, child, firstTitleName, firstTitleCellStyle, secondTitleCellStyle, currentCellNum);
                // 處理完后列號加一
                currentCellNum++;
            }
            endCellNum = currentCellNum - 1;

            // POI 版本升級后,合并單元格需要大于一個單元格
            if (startCellNum != endCellNum) {
                CellRangeAddress region = new CellRangeAddress(0, 0, startCellNum, endCellNum);
                sheet.addMergedRegion(region);
            }
            startCellNum = endCellNum + 1;
        }
    }

    /**
     * 格式化內容單元格。
     *
     * @param sheet    工作表對象。
     * @param workbook 工作簿對象。
     */
    private void dealExcelContentCell(Workbook workbook, Sheet sheet, List<ExcelModelDto> data) {
        // 獲取統一的單元格樣式,不用每個單元格獲取一個對象,防止對象過多
        CellStyle childCellStyle = this.getContentCellStyle(workbook);
        // 只格式化內容單元格,且有上限
        int maxContentRowNumber = MAX_CONTENT_ROW_NUMBER;
        // 跳過表頭,從文本行開始
        for (int rowNumber = 2; rowNumber < maxContentRowNumber; rowNumber++) {
            Row row = sheet.createRow(rowNumber);
            // 列號從0開始
            int cellNumber = 0;
            for (ExcelModelDto excelModelDto : data) {
                List<ExcelModelDto.Child> children = excelModelDto.getChildren();
                for (ExcelModelDto.Child child : children) {
                    String[] items = child.getItems();
                    if (Objects.isNull(items) || items.length == 0) {
                        Cell cell = row.createCell(cellNumber);
                        cell.setCellStyle(childCellStyle);
                    }
                    // 每處理完一個單元格,列號加1
                    cellNumber++;
                }
            }
        }
    }

    /**
     * 處理Excel表格的標題單元格。
     *
     * @param workbook             工作簿對象
     * @param sheet                工作表對象
     * @param child                ExcelModelDto.Child 對象,包含字段名、注釋和下拉框選項等信息
     * @param firstTitleName       一級標題名稱
     * @param firstTitleCellStyle  一級標題單元格樣式
     * @param secondTitleCellStyle 二級標題單元格樣式
     * @param index                當前處理的列索引
     */
    private void dealTitleCell(Workbook workbook, Sheet sheet,
                               ExcelModelDto.Child child, String firstTitleName,
                               CellStyle firstTitleCellStyle, CellStyle secondTitleCellStyle,
                               int index) {
        Row row1 = this.getRow(sheet, 0);
        Row row2 = this.getRow(sheet, 1);

        String secondFieldName = child.getFieldName();
        String comment = child.getComment();
        String[] items = child.getItems();

        // 一級表頭
        Cell cell1 = row1.createCell(index);
        cell1.setCellValue(firstTitleName);
        cell1.setCellStyle(firstTitleCellStyle);

        // 二級表頭,標題如果以* 號結尾,則* 置為紅色
        Cell cell2 = row2.createCell(index);
        RichTextString textString = this.parseCellValue(workbook, Font.COLOR_NORMAL, true, secondFieldName);
        cell2.setCellValue(textString);
        cell2.setCellStyle(secondTitleCellStyle);

        // 設置下拉框
        if (items != null && items.length > 0 && needItems) {
            this.appendItems(workbook, sheet, secondTitleCellStyle, secondFieldName, items, index);
        }
        // 設置表頭備注
        if (!org.apache.commons.lang.StringUtils.isEmpty(comment)) {
            this.setComment(sheet, cell2, comment);
        }
        // 根據字段長度自動調整列的寬度
        sheet.setColumnWidth(index, 100 * 50);
    }

    /**
     * 設置單元格下拉框
     * 下拉框引用單獨一個sheet頁中的數據
     *
     * @param sheet    sheet
     * @param formula  公式
     * @param firstRow 起始行
     * @param lastRow  結束行
     * @param firstCol 起始列
     * @param lastCol  結束列
     */
    public void setItems(Sheet sheet, String formula, int firstRow, int lastRow, int firstCol, int lastCol) {
        CellRangeAddressList addressList = new CellRangeAddressList(firstRow, lastRow, firstCol, lastCol);
        DataValidationHelper helper = sheet.getDataValidationHelper();
        DataValidationConstraint constraint = helper.createFormulaListConstraint(formula);
        DataValidation validation = helper.createValidation(constraint, addressList);
        validation.setShowErrorBox(true);
        sheet.addValidationData(validation);
    }

    /**
     * 設置單元格備注信息
     *
     * @param sheet      sheet
     * @param cell       單元格
     * @param textString 提示信息
     */
    public void setComment(Sheet sheet, Cell cell, String textString) {
        Drawing<?> drawing = sheet.createDrawingPatriarch();
        CreationHelper factory = sheet.getWorkbook().getCreationHelper();

        // 設置提示框大小,默認根據 提示信息的大小來確認提示框高度
        /// ClientAnchor anchor = factory.createClientAnchor();
        textString = StringUtils.defaultIfBlank(textString, "");
        int length = textString.length();
        int row2 = length / 25 + 6;
        // (int dx1, int dy1, int dx2, int dy2, short col1, int row1, short col2, int row2)
        // 前四個參數是坐標點,后四個參數是編輯和顯示批注時的大小.
        ClientAnchor anchor = new XSSFClientAnchor(0, 0, 0, 0, (short) 4, 2, (short) 6, row2);
        Comment comment = drawing.createCellComment(anchor);
        RichTextString str = factory.createRichTextString(textString);
        comment.setString(str);
        comment.setAuthor("Auto+");
        // 以上參數不設置時會有默認值,當一個被重復設置批注時會報錯
        // Multiple cell comments in one cell are not allowed
        // 故在設置批注前檢查錨點位置有無批注,有的話移除
        if (cell.getCellComment() != null) {
            cell.removeCellComment();
        }
        cell.setCellComment(comment);
    }

    /**
     * 獲取單元格樣式對象
     *
     * @param workbook        工作簿
     * @param backGroundColor 背景色
     * @return 返回樣式對象
     */
    public CellStyle getCellStyle(Workbook workbook, short backGroundColor) {
        CellStyle cellStyle = workbook.createCellStyle();
        CreationHelper createHelper = workbook.getCreationHelper();
        cellStyle.setDataFormat(createHelper.createDataFormat().getFormat("yyyy-MM-dd HH:mm:ss"));

        // IndexedColors.YELLOW.getIndex()
        cellStyle.setFillForegroundColor(backGroundColor);
        cellStyle.setFillPattern(FillPatternType.SOLID_FOREGROUND);
        // 水平居中
        cellStyle.setAlignment(HorizontalAlignment.CENTER);
        // 垂直居中
        cellStyle.setVerticalAlignment(VerticalAlignment.CENTER);

        // 設置邊框及顏色
        cellStyle.setBorderTop(BorderStyle.DOUBLE);
        cellStyle.setBorderBottom(BorderStyle.DOUBLE);
        cellStyle.setBorderLeft(BorderStyle.DOUBLE);
        cellStyle.setBorderRight(BorderStyle.DOUBLE);
        cellStyle.setTopBorderColor(IndexedColors.BLACK.getIndex());
        cellStyle.setBottomBorderColor(IndexedColors.BLACK.getIndex());
        cellStyle.setLeftBorderColor(IndexedColors.BLACK.getIndex());
        cellStyle.setRightBorderColor(IndexedColors.BLACK.getIndex());

        return cellStyle;
    }

    /**
     * 向sheet中寫入 序列內容
     *
     * @param sheet     sheet
     * @param cellStyle 單元格格式,表頭格式
     * @param itemsType 序列類型
     * @param col       列號
     * @param items     序列數組
     * @return 返回坐標
     */
    protected String writeItems(Sheet sheet, CellStyle cellStyle, String itemsType, int col, String[] items) {
        // 第一行為表頭數據
        Row row = sheet.getRow(0);
        if (row == null) {
            row = sheet.createRow(0);
        }
        Cell cell = row.createCell(col);
        // 獲取單元格列所對應的字母,即 0=A,1=B ...
        String columnLetter = CellReference.convertNumToColString(col);
        cell.setCellValue(itemsType);
        cell.setCellStyle(cellStyle);
        int length = items.length;
        for (int i = 0; i < length; i++) {
            Row itemRow = sheet.getRow(i + 1);
            if (itemRow == null) {
                itemRow = sheet.createRow(i + 1);
            }
            Cell itemRowCell = itemRow.createCell(col);
            itemRowCell.setCellValue(items[i]);
        }
        // 格式化后的公式坐標為  $B$1:$B$88
        return String.format("$%s$%s:$%s$%s", columnLetter, 2, columnLetter, items.length + 1);
    }

    /**
     * 格式化單元格字體樣式
     *
     * @param workbook  工作簿
     * @param fontColor 字體顏色
     * @param isBold    是否加粗
     * @param value     單元格值
     */
    public RichTextString parseCellValue(Workbook workbook, short fontColor, boolean isBold, String value) {
        value = StringUtils.defaultIfBlank(value, "");
        XSSFRichTextString textString = new XSSFRichTextString(value);
        Font font1 = getFontStyle(workbook, fontColor, isBold);
        if (StringUtils.isNotBlank(value)) {
            int length = value.length();
            // 如果內容是以 * 號結尾的,則將 * 號置為紅色,默認黑色
            if (value.endsWith(END_FLAG)) {
                int point = length - 1;
                textString.applyFont(0, point, font1);
                Font font2 = getFontStyle(workbook, Font.COLOR_RED, isBold);
                textString.applyFont(point, length, font2);
            } else {
                textString.applyFont(0, length, font1);
            }
        }
        return textString;
    }

    /**
     * 獲取字體樣式
     *
     * @param workbook  工作簿
     * @param fontColor 字體顏色
     * @param isBold    是否加粗
     * @return 返回值
     */
    public Font getFontStyle(Workbook workbook, short fontColor, boolean isBold) {
        Font font = workbook.createFont();
        font.setColor(fontColor);
        if (isBold) {
            font.setBold(true);
        }
        font.setFontName("宋體");
        // 字體大小
        font.setFontHeightInPoints((short) 10);
        return font;
    }

    /**
     * 獲取指定行在給定工作表中的最后一個單元格的索引。
     *
     * @param sheet  工作表對象
     * @param rowNum 行號(從0開始計數)
     * @return 最后一個單元格的索引,若行不存在則返回0
     */
    private int getLastCellNum(Sheet sheet, int rowNum) {
        int existCell = 0;
        // 指定sheet頁不為空,則獲取已經有多少列
        Row row = sheet.getRow(rowNum);
        if (Objects.nonNull(row)) {
            existCell = row.getLastCellNum();
            // 如果不存在返回的是-1,業務上從0開始計算
            if (existCell < 0) {
                existCell = 0;
            }
        }
        return existCell;
    }

    /**
     * 獲取或創建指定名稱的工作表并將其隱藏。
     *
     * @param workbook 工作簿對象
     * @return 指定名稱的工作表對象
     */
    private Sheet getSheetByName(Workbook workbook, String sheetName, boolean hide) {
        Sheet itemsSheet = workbook.getSheet(sheetName);
        // 指定sheet頁為空則創建
        if (Objects.isNull(itemsSheet)) {
            itemsSheet = workbook.createSheet(sheetName);
            int sheetIndex = workbook.getSheetIndex(sheetName);
            workbook.setSheetHidden(sheetIndex, hide);
        }
        return itemsSheet;
    }

    /**
     * 根據行號獲取或創建指定Sheet中的Row對象。
     *
     * @param sheet  要操作的Sheet對象。
     * @param rowNum 需要獲取或創建的行號。
     * @return 指定行號的Row對象。
     */
    private Row getRow(Sheet sheet, int rowNum) {
        Row row = sheet.getRow(rowNum);
        if (Objects.isNull(row)) {
            row = sheet.createRow(rowNum);
        }
        return row;
    }

    /**
     * 構建第一行標題單元格樣式。
     *
     * @param workbook      工作簿對象。
     * @param excelModelDto Excel模型數據傳輸對象。
     * @return 第一行標題單元格樣式。
     */
    private CellStyle buildFirstTitleCellStyle(Workbook workbook, ExcelModelDto excelModelDto) {
        // 根據字段類型來獲取背景色
        short backGroundColor = excelModelDto.getBackgroundColor();
        CellStyle cellStyle = this.getCellStyle(workbook, backGroundColor);
        Font font = this.getFontStyle(workbook, Font.COLOR_NORMAL, true);
        cellStyle.setFont(font);
        return cellStyle;
    }

    /**
     * 在指定的工作簿和工作表中追加枚舉類型的項,并設置公式引用。
     *
     * @param workbook        工作簿對象
     * @param sheet           工作表對象
     * @param childCellStyle  子單元格樣式
     * @param secondTitleName 第二級標題名稱
     * @param items           枚舉類型的項數組
     * @param index           當前項在總體中的索引位置
     */
    private void appendItems(Workbook workbook, Sheet sheet, CellStyle childCellStyle, String secondTitleName, String[] items, int index) {
        // 如果有序列單元格,則創建一個sheet頁,來保存所有的枚舉類型,同時隱藏該sheet頁
        Sheet itemsSheet = this.getSheetByName(workbook, ITEM_SHEET_NAME, true);
        // 追加sheet的時候,需要看隱藏sheet的列已經到哪一列了,避免追加時將原有隱藏列覆蓋掉
        int existItemCell = this.getLastCellNum(itemsSheet, 0);
        // 將枚舉數組寫入到獨立的sheet頁中,同時設置表頭格式
        String formula = this.writeItems(itemsSheet, childCellStyle, secondTitleName, existItemCell, items);
        // 設置公式到模板的sheet頁中,格式化后的最終公式為
        // =itemSheet!$B$1:$B$88
        // 表明該單元格引用的是 itemSheet sheet頁中 B1~B88的數據
        formula = String.format("=%s!%s", ITEM_SHEET_NAME, formula);
        this.setItems(sheet, formula, FIRST_ROW, LAST_ROW, index, index);
    }

    /**
     * 獲取單元格樣式對象
     *
     * @param workbook 工作簿
     * @return 返回樣式對象
     */
    public CellStyle getContentCellStyle(Workbook workbook) {
        CellStyle cellStyle = workbook.createCellStyle();
        CreationHelper createHelper = workbook.getCreationHelper();
        cellStyle.setDataFormat(createHelper.createDataFormat().getFormat("yyyy-MM-dd HH:mm:ss"));

        // 背景色為純色
        cellStyle.setFillPattern(FillPatternType.NO_FILL);

        // 設置單元格格式為文本格式
        DataFormat format = workbook.createDataFormat();
        cellStyle.setDataFormat(format.getFormat("@"));
        return cellStyle;
    }

}

到此這篇關于Java使用POI實現Excel文件的創建與處理的文章就介紹到這了,更多相關Java POI創建Excel內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!

相關文章

最新評論
