SpringBoot+ MySQL多線程查詢與聯表查詢性能對比

更新時間：2025年05月16日 11:28:47 作者：sjsjsbbsbsn

本文主要介紹了SpringBoot+ MySQL多線程查詢與聯表查詢性能對比,文中通過示例代碼介紹的非常詳細,對大家的學習或者工作具有一定的參考學習價值,需要的朋友們下面隨著小編來一起學習學習吧

背景

在現代 Web 應用開發中，數據庫性能是影響系統響應時間和用戶體驗的關鍵因素之一。隨著業務需求的不斷增長，單表查詢和聯表查詢的效率問題日益凸顯。特別是在 Spring Boot 項目中，結合 MySQL 數據庫進行復雜查詢時，如何優化查詢性能已成為開發者必須面對的重要問題。

在本實驗中，我們使用了 Spring Boot 框架結合 MySQL 數據庫，進行了兩種常見查詢方式的性能對比：多線程查詢 和 聯表查詢。通過對比這兩種查詢方式的響應時間，本文旨在探討在實際業務場景中，選擇哪種方式能帶來更高的查詢效率，尤其是在面對大數據量和復雜查詢時的性能表現。

實驗?zāi)康?/h2>
本實驗的主要目的是通過對比以下兩種查詢方式的性能，幫助開發者選擇在不同業務場景下的查詢方式：

聯表查詢（使用 SQL 語句中的 LEFT JOIN 等連接操作）
多線程查詢（通過 Spring Boot 異步處理，分批查詢不同表的數據）

實驗環境

開發框架：Spring Boot
數據庫：MySQL
數據庫表結構：
- test_a：主表，包含與其他表（test_b、test_c、test_d、test_e）的關聯字段。
- test_b、test_c、test_d、test_e：附表，分別包含不同的數據字段。
這些表通過外鍵(邏輯)關聯，test_a 表中的 test_b_id、test_c_id、test_d_id 和 test_e_id 字段指向各自的附表。
數據量：約 100,000 條數據，分別在主表和附表中填充數據。

一.建表語句

主表A

CREATE TABLE `test_a` (
  `id` int NOT NULL AUTO_INCREMENT,
  `name` varchar(255) NOT NULL,
  `description` varchar(255) DEFAULT NULL,
  `test_b_id` int DEFAULT NULL,
  `test_c_id` int DEFAULT NULL,
  `test_d_id` int DEFAULT NULL,
  `test_e_id` int DEFAULT NULL,
  `created_at` timestamp NULL DEFAULT CURRENT_TIMESTAMP,
  `updated_at` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;

附表b,c,d,e

CREATE TABLE `test_b` (
  `id` int NOT NULL AUTO_INCREMENT,
  `field_b1` varchar(255) DEFAULT NULL,
  `field_b2` int DEFAULT NULL,
  `created_at` timestamp NULL DEFAULT CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=792843462 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;

CREATE TABLE `test_c` (
  `id` int NOT NULL AUTO_INCREMENT,
  `field_c1` varchar(255) DEFAULT NULL,
  `field_c2` datetime DEFAULT NULL,
  `created_at` timestamp NULL DEFAULT CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=100096 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;

CREATE TABLE `test_d` (
  `id` int NOT NULL AUTO_INCREMENT,
  `field_d1` text,
  `field_d2` tinyint(1) DEFAULT NULL,
  `created_at` timestamp NULL DEFAULT CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=100300 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;


CREATE TABLE `test_e` (
  `id` int NOT NULL AUTO_INCREMENT,
  `field_e1` int DEFAULT NULL,
  `field_e2` varchar(255) DEFAULT NULL,
  `created_at` timestamp NULL DEFAULT CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=100444 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;

二.填充數據

@SpringBootTest
class DemoTestQuerySpringbootApplicationTests {

    @Autowired
    private TestAMapper testAMapper;
    @Autowired
    private TestBMapper testBMapper;
    @Autowired
    private TestCMapper testCMapper;
    @Autowired
    private TestDMapper testDMapper;
    @Autowired
    private TestEMapper testEMapper;

    @Test
    void contextLoads() {
        // 隨機數生成器
        Random random = new Random();

        for (int i = 1; i <= 100000; i++) {
            // 插入 test_b 數據
            int testBId = insertTestB(random);

            // 插入 test_c 數據
            int testCId = insertTestC(random);

            // 插入 test_d 數據
            int testDId = insertTestD(random);

            // 插入 test_e 數據
            int testEId = insertTestE(random);

            // 插入 test_a 數據
            insertTestA(testBId, testCId, testDId, testEId, random);
        }
    }

    private int insertTestB(Random random) {
        TestB testB = new TestB();
        testB.setFieldB1("B Field " + random.nextInt(1000));
        testB.setFieldB2(random.nextInt(1000));
        testBMapper.insert(testB);  // 插入數據
        return testB.getId();
    }

    private int insertTestC(Random random) {
        TestC testC = new TestC();
        testC.setFieldC1("C Field " + random.nextInt(1000));
        testC.setFieldC2(new java.sql.Timestamp(System.currentTimeMillis()));
        testCMapper.insert(testC);  // 插入數據
        return testC.getId();
    }

    private int insertTestD(Random random) {
        TestD testD = new TestD();
        testD.setFieldD1("D Field " + random.nextInt(1000));
        testD.setFieldD2(random.nextBoolean());
        testDMapper.insert(testD);  // 插入數據
        return testD.getId();
    }

    private int insertTestE(Random random) {
        TestE testE = new TestE();
        testE.setFieldE1(random.nextInt(1000));
        testE.setFieldE2("E Field " + random.nextInt(1000));
        testEMapper.insert(testE);  // 插入數據
        return testE.getId();
    }

    private void insertTestA(int testBId, int testCId, int testDId, int testEId, Random random) {
        TestA testA = new TestA();
        testA.setName("Test A Name " + random.nextInt(1000));
        testA.setDescription("Test A Description " + random.nextInt(1000));
        testA.setTestBId(testBId);
        testA.setTestCId(testCId);
        testA.setTestDId(testDId);
        testA.setTestEId(testEId);
        testAMapper.insert(testA);  // 插入數據
    }

}

三.配置線程池

3.1配置

/**
 * 實現AsyncConfigurer接口
 * 并重寫了 getAsyncExecutor方法，
 * 這個方法返回 myExecutor()，
 * Spring 默認會將 myExecutor 作為 @Async 方法的線程池。
 */
@Configuration
@EnableAsync
public class ThreadPoolConfig implements AsyncConfigurer {
    /**
     * 項目共用線程池
     */
    public static final String TEST_QUERY = "testQuery";


    @Override
    public Executor getAsyncExecutor() {
        return myExecutor();
    }

    @Bean(TEST_QUERY)
    @Primary
    public ThreadPoolTaskExecutor myExecutor() {
        //spring的線程池
        ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
        //線程池優雅停機的關鍵
        executor.setWaitForTasksToCompleteOnShutdown(true);
        executor.setCorePoolSize(10);
        executor.setMaxPoolSize(10);
        executor.setQueueCapacity(200);
        executor.setThreadNamePrefix("my-executor-");
        //拒絕策略->滿了調用線程執行，認為重要任務
        executor.setRejectedExecutionHandler(new ThreadPoolExecutor.CallerRunsPolicy());
        //自己就是一個線程工程
        executor.setThreadFactory(new MyThreadFactory(executor));
        executor.initialize();
        return executor;
    }

}

3.2異常處理

public class MyUncaughtExceptionHandler implements Thread.UncaughtExceptionHandler {
    private static final Logger log = LoggerFactory.getLogger(MyUncaughtExceptionHandler.class);

    @Override
    public void uncaughtException(Thread t, Throwable e) {
        log.error("Exception in thread",e);
    }
}

3.3線程工廠

@AllArgsConstructor
public class MyThreadFactory implements ThreadFactory {

    private static final MyUncaughtExceptionHandler MyUncaughtExceptionHandler = new MyUncaughtExceptionHandler();
    private ThreadFactory original;

    @Override
    public Thread newThread(Runnable r) {
        //執行Spring線程自己的創建邏輯
        Thread thread = original.newThread(r);
        //我們自己額外的邏輯
        thread.setUncaughtExceptionHandler(MyUncaughtExceptionHandler);
        return thread;
    }
}

四.Service查詢方法

4.1left join連接查詢

    @Override
    public IPage<TestAll> getTestAllPage_1(int current, int size) {
        // 創建 Page 對象，current 為當前頁，size 為每頁大小
        Page<TestAll> page = new Page<>(current, size);
        return testAMapper.selectAllWithPage(page);
    }

對應的xml 的sql語句

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="org.fth.demotestqueryspringboot.com.test.mapper.TestAMapper">

  <!-- 基本的 ResultMap 映射 -->
  <resultMap id="BaseResultMap" type="org.fth.demotestqueryspringboot.com.test.entity.vo.TestAll">
    <id column="test_a_id" jdbcType="INTEGER" property="testAId" />
    <result column="name" jdbcType="VARCHAR" property="name" />
    <result column="description" jdbcType="VARCHAR" property="description" />
    <result column="test_b_id" jdbcType="INTEGER" property="testBId" />
    <result column="test_c_id" jdbcType="INTEGER" property="testCId" />
    <result column="test_d_id" jdbcType="INTEGER" property="testDId" />
    <result column="test_e_id" jdbcType="INTEGER" property="testEId" />
    <result column="created_at" jdbcType="TIMESTAMP" property="createdAt" />
    <result column="updated_at" jdbcType="TIMESTAMP" property="updatedAt" />
    <!-- TestB -->
    <result column="field_b1" jdbcType="VARCHAR" property="fieldB1" />
    <result column="field_b2" jdbcType="INTEGER" property="fieldB2" />
    <result column="test_b_created_at" jdbcType="TIMESTAMP" property="testBCreatedAt" />
    <!-- TestC -->
    <result column="field_c1" jdbcType="VARCHAR" property="fieldC1" />
    <result column="field_c2" jdbcType="TIMESTAMP" property="fieldC2" />
    <result column="test_c_created_at" jdbcType="TIMESTAMP" property="testCCreatedAt" />
    <!-- TestD -->
    <result column="field_d1" jdbcType="VARCHAR" property="fieldD1" />
    <result column="field_d2" jdbcType="BOOLEAN" property="fieldD2" />
    <result column="test_d_created_at" jdbcType="TIMESTAMP" property="testDCreatedAt" />
    <!-- TestE -->
    <result column="field_e1" jdbcType="INTEGER" property="fieldE1" />
    <result column="field_e2" jdbcType="VARCHAR" property="fieldE2" />
    <result column="test_e_created_at" jdbcType="TIMESTAMP" property="testECreatedAt" />
  </resultMap>

  <!-- 分頁查詢 TestA 和其他表的數據 -->
  <select id="selectAllWithPage" resultMap="BaseResultMap">
    SELECT
    a.id AS test_a_id,
    a.name,
    a.description,
    a.test_b_id,
    a.test_c_id,
    a.test_d_id,
    a.test_e_id,
    a.created_at,
    a.updated_at,
    -- TestB
    b.field_b1,
    b.field_b2,
    b.created_at AS test_b_created_at,
    -- TestC
    c.field_c1,
    c.field_c2,
    c.created_at AS test_c_created_at,
    -- TestD
    d.field_d1,
    d.field_d2,
    d.created_at AS test_d_created_at,
    -- TestE
    e.field_e1,
    e.field_e2,
    e.created_at AS test_e_created_at
    FROM test_a a
    LEFT JOIN test_b b ON a.test_b_id = b.id
    LEFT JOIN test_c c ON a.test_c_id = c.id
    LEFT JOIN test_d d ON a.test_d_id = d.id
    LEFT JOIN test_e e ON a.test_e_id = e.id

  </select>

</mapper>

4.2多線程查詢

 @Override
    public IPage<TestAll> getTestAllPage_2(int current, int size) {
        IPage<TestA> testAPage = testAMapper.selectPage(new Page<>(current, size), null);
        List<TestA> testAS = testAPage.getRecords();
        CompletableFuture<List<TestB>> futureBs = selectTestBids(testAS.stream().map(TestA::getTestBId).collect(Collectors.toSet()));
        CompletableFuture<List<TestC>> futureCs = selectTestCids(testAS.stream().map(TestA::getTestCId).collect(Collectors.toSet()));
        CompletableFuture<List<TestD>> futureDs = selectTestDids(testAS.stream().map(TestA::getTestDId).collect(Collectors.toSet()));
        CompletableFuture<List<TestE>> futureEs = selectTestEids(testAS.stream().map(TestA::getTestEId).collect(Collectors.toSet()));
        // 等待所有異步任務完成并收集結果
        CompletableFuture<Void> allFutures = CompletableFuture.allOf(futureBs, futureCs, futureDs, futureEs);

        try {
            // 等待所有異步任務完成
            allFutures.get();
        } catch (InterruptedException | ExecutionException e) {
            e.printStackTrace();
            throw new RuntimeException("Failed to fetch data", e);
        }
        // 獲取異步查詢的結果
        List<TestB> bs = futureBs.join();
        List<TestC> cs = futureCs.join();
        List<TestD> ds = futureDs.join();
        List<TestE> es = futureEs.join();

        // 將結果映射到Map以便快速查找
        Map<Integer, TestB> bMap = bs.stream().collect(Collectors.toMap(TestB::getId, b -> b));
        Map<Integer, TestC> cMap = cs.stream().collect(Collectors.toMap(TestC::getId, c -> c));
        Map<Integer, TestD> dMap = ds.stream().collect(Collectors.toMap(TestD::getId, d -> d));
        Map<Integer, TestE> eMap = es.stream().collect(Collectors.toMap(TestE::getId, e -> e));
        List<TestAll> testAllList = testAS.stream().map(testA -> {
            TestAll testAll = new TestAll();
            testAll.setTestAId(testA.getId());
            testAll.setName(testA.getName());
            testAll.setDescription(testA.getDescription());
            testAll.setCreatedAt(testA.getCreatedAt());

            // 根據 testBId 填充 TestB 的字段
            if (testA.getTestBId() != null) {
                TestB testB = bMap.get(testA.getTestBId());
                if (testB != null) {
                    testAll.setFieldB1(testB.getFieldB1());
                    testAll.setFieldB2(testB.getFieldB2());
                    testAll.setTestBCreatedAt(testB.getCreatedAt());
                }
            }

            // 根據 testCId 填充 TestC 的字段
            if (testA.getTestCId() != null) {
                TestC testC = cMap.get(testA.getTestCId());
                if (testC != null) {
                    testAll.setFieldC1(testC.getFieldC1());
                    testAll.setFieldC2(testC.getFieldC2());
                    testAll.setTestCCreatedAt(testC.getCreatedAt());
                }
            }

            // 根據 testDId 填充 TestD 的字段
            if (testA.getTestDId() != null) {
                TestD testD = dMap.get(testA.getTestDId());
                if (testD != null) {
                    testAll.setFieldD1(testD.getFieldD1());
                    testAll.setFieldD2(testD.getFieldD2());
                    testAll.setTestDCreatedAt(testD.getCreatedAt());
                }
            }

            // 根據 testEId 填充 TestE 的字段
            if (testA.getTestEId() != null) {
                TestE testE = eMap.get(testA.getTestEId());
                if (testE != null) {
                    testAll.setFieldE1(testE.getFieldE1());
                    testAll.setFieldE2(testE.getFieldE2());
                    testAll.setTestECreatedAt(testE.getCreatedAt());
                }
            }
            return testAll;
        }).collect(Collectors.toList());

        // 創建并返回新的分頁對象
        IPage<TestAll> page = new Page<>(testAPage.getCurrent(), testAPage.getSize(), testAPage.getTotal());
        page.setRecords(testAllList);
        return page;
    }


    @Async
    public CompletableFuture<List<TestB>> selectTestBids(Set<Integer> bids) {
        return CompletableFuture.supplyAsync(() -> testBMapper.selectBatchIds(bids));
    }

    @Async
    public CompletableFuture<List<TestC>> selectTestCids(Set<Integer> cids) {
        return CompletableFuture.supplyAsync(() -> testCMapper.selectBatchIds(cids));
    }

    @Async
    public CompletableFuture<List<TestD>> selectTestDids(Set<Integer> dids) {
        return CompletableFuture.supplyAsync(() -> testDMapper.selectBatchIds(dids));
    }

    @Async
    public CompletableFuture<List<TestE>> selectTestEids(Set<Integer> eids) {
        return CompletableFuture.supplyAsync(() -> testEMapper.selectBatchIds(eids));
    }

五.結果測試

5.1連接查詢

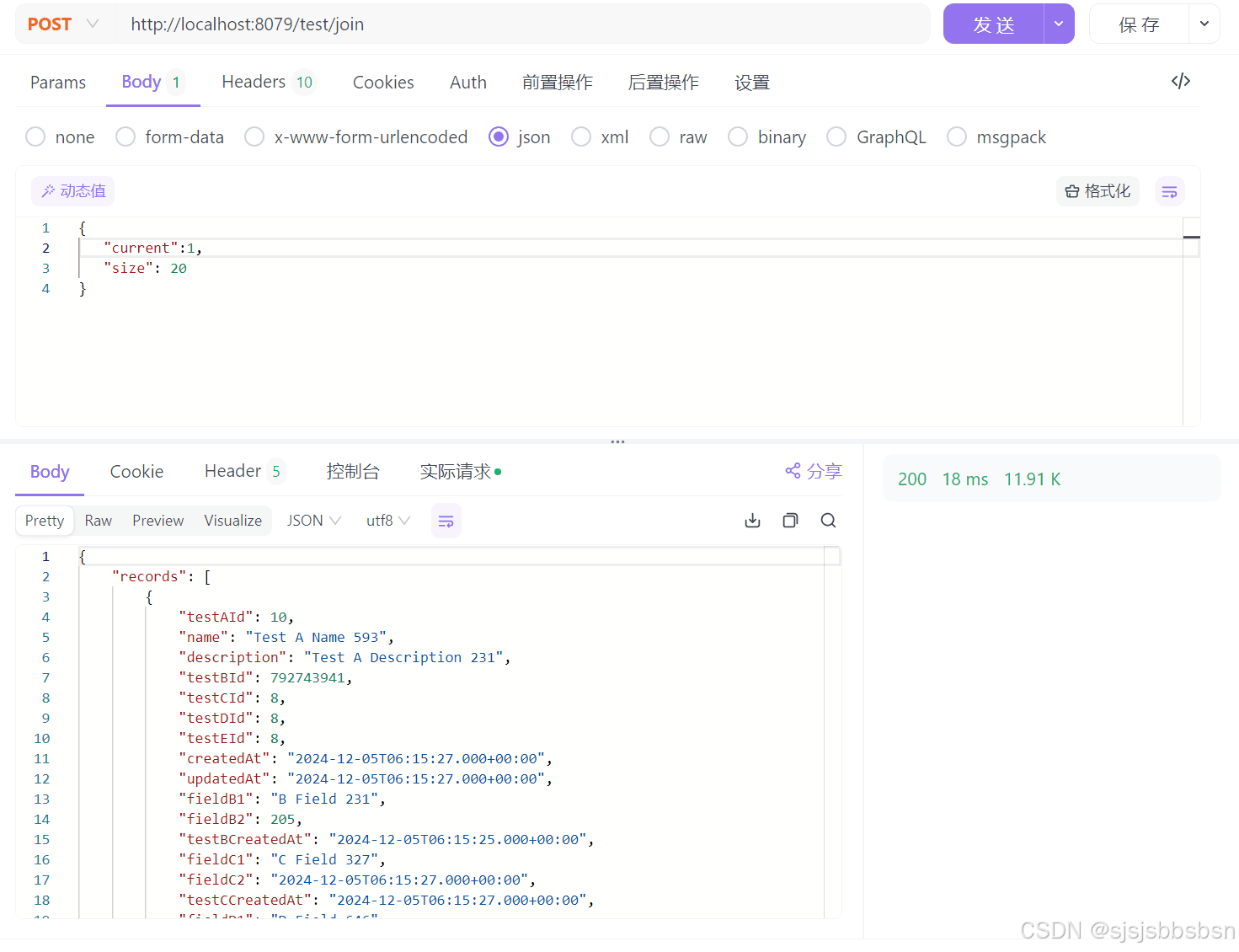

在這里插入圖片描述

查詢結果表格

current	size	響應時間
1	20	16ms
50	20	23ms
100	20	22ms
500	20	52ms
200	200	213ms
500	200	517ms

5.2多線程查詢

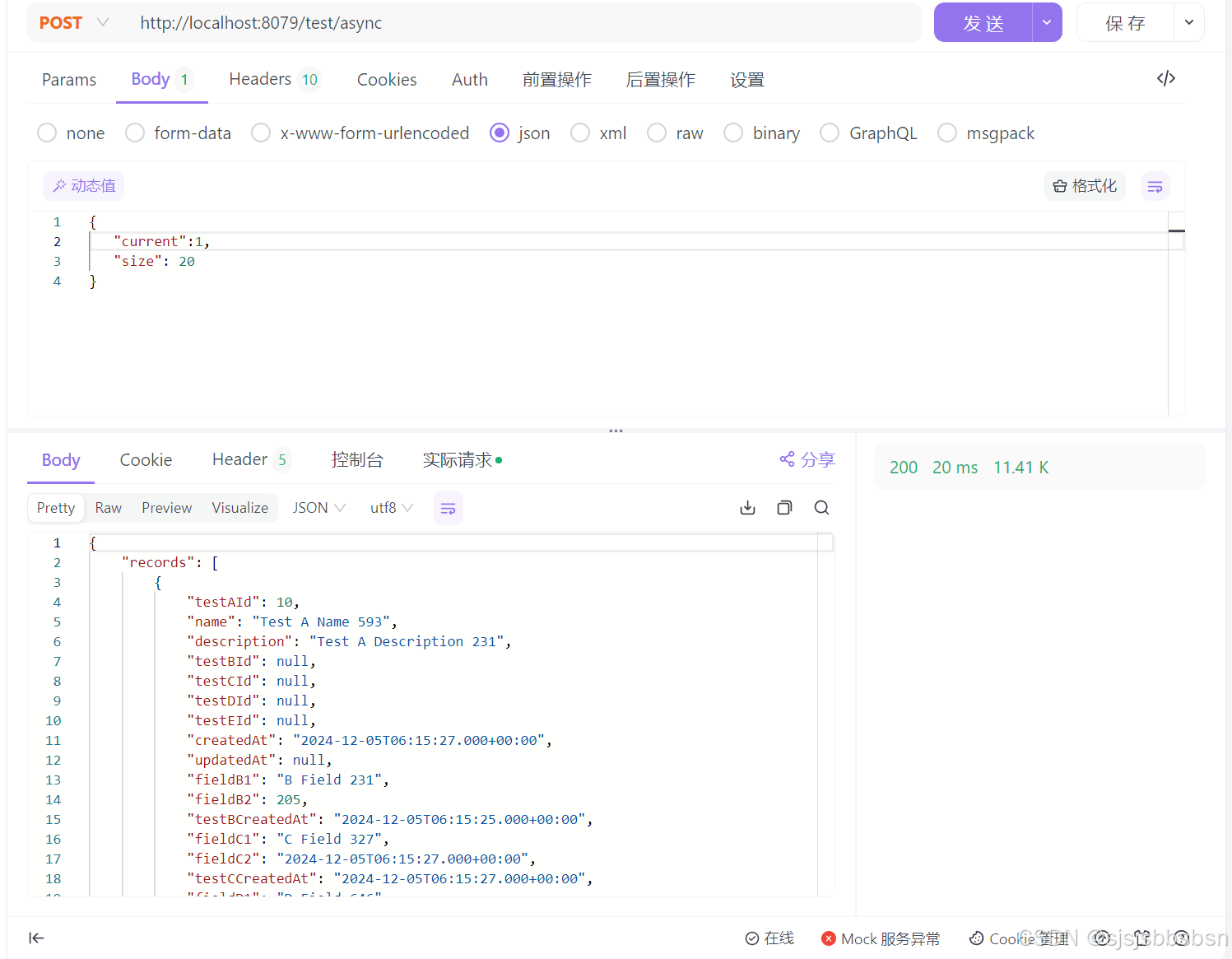

在這里插入圖片描述

查詢結果表格

current	size	響應時間
1	20	18ms
50	20	17ms
100	20	17ms
500	20	21ms
200	200	56ms
500	200	80ms

總結與建議

選擇聯表查詢：當數據量較小，或者查詢邏輯較為簡單時，使用聯表查詢可以更簡單直接，查詢性能也較為優秀。
選擇多線程查詢：當面對大數據量或者復雜查詢時，采用多線程查詢將帶來更顯著的性能提升。通過異步并行查詢，可以有效縮短響應時間，提升系統的整體性能。

在實際開發中，可以根據具體的業務需求和數據庫的規模，合理選擇查詢方式，從而提高數據庫查詢效率，優化系統性能

到此這篇關于SpringBoot+ MySQL多線程查詢與聯表查詢性能對比的文章就介紹到這了,更多相關SpringBoot+ MySQL多線程查詢與聯表查詢內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！

您可能感興趣的文章:
