spring整合mybatis的底層原理分析

 更新時間：2025年05月21日 09:46:45   作者：神雕大俠mu
這篇文章主要介紹了spring整合mybatis的底層原理分析,具有很好的參考價值,希望對大家有所幫助,如有錯誤或未考慮完全的地方,望不吝賜教

spring整合mybatis的底層原理

原理：

  • FactoryBean的自定義對象
  • jdk動態代理Mapper接口對象

一、手寫一個spring集成mybatis

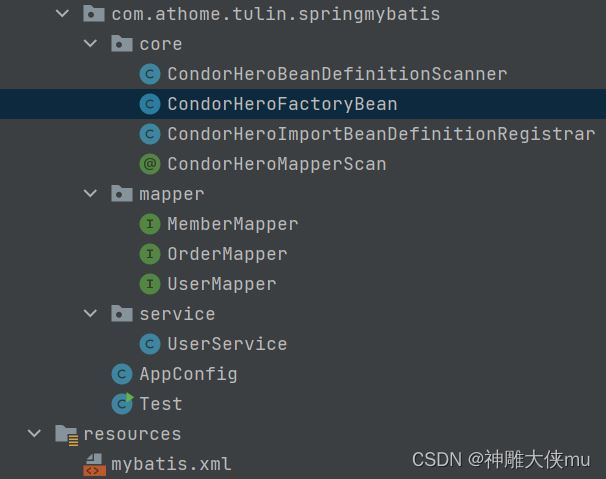

目錄結構：

1.1 入口類

public class Test {
    public static void main(String[] args) {

        AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext();
        context.register(AppConfig.class);
        context.refresh();

        UserService userService = (UserService)context.getBean("userService");
        userService.test();
    }
}

1.2 配置類

@CondorHeroMapperScan("com.athome.tulin.springmybatis.mapper")
@ComponentScan("com.athome.tulin.springmybatis")
public class AppConfig {
    @Bean
    public SqlSessionFactory sqlSessionFactory() throws IOException {
        System.out.println("4.依賴注入MemberMapper需要先創建對象………AppConfig…………SqlSessionFactory………");
        InputStream inputStream = Resources.getResourceAsStream("mybatis.xml");
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
        return sqlSessionFactory;
    }
}

1.3 業務類

@Component
public class UserService {

    public UserService() {
        System.out.println("3.…………創建UserService…………");
    }

    //如何把mybatis生成的UserMapper的代理對象賦值給UserMapper
    @Autowired
    private UserMapper userMapper;

    @Autowired
    private OrderMapper orderMapper;

    @Autowired
    private MemberMapper memberMapper;

    public void test(){
        System.out.println("7.……UserService…test…");
        System.out.println(userMapper.selectById());
        System.out.println(orderMapper.selectById());
        System.out.println(memberMapper.selectById());
    }
}

1.4 創建3個Mapper接口

public interface MemberMapper {

    @Select("select 'member' ")
    String selectById();
}
public interface OrderMapper {
    @Select("select 'order' ")
    String selectById();
}
public interface UserMapper {
    @Select("select 'user' ")
    String selectById();
}

1.5 自定義注解

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Import(CondorHeroImportBeanDefinitionRegistrar.class)
public @interface CondorHeroMapperScan {
    String value();
}

1.6 自定義fanctoryBean

public class CondorHeroFactoryBean implements FactoryBean {

    private Class mapperInterface;

    private SqlSession sqlSession;
    public CondorHeroFactoryBean(Class mapperInterface) {
        this.mapperInterface = mapperInterface;
    }
    /**
     * 從容器查找SqlSessionFactory 并獲取sqlSession 賦值于sqlSession
     * 掃描的時候有 beanDefinition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE);
     * 那他就會自動找set方法
     * @param sqlSessionFactory
     */
    public void setSqlSession(SqlSessionFactory sqlSessionFactory) {
        System.out.println("5.……setSqlSession……");
        sqlSessionFactory.getConfiguration().addMapper(mapperInterface);
        this.sqlSession = sqlSessionFactory.openSession();
    }

    @Override
    public Object getObject() throws Exception {
        //動態代理獲取UserMapper接口對象
        System.out.println("6.……getObject……");

       return sqlSession.getMapper(mapperInterface);
    }

    @Override
    public Class<?> getObjectType() {
        return mapperInterface;
    }
}

1.7 自定義Bean注冊類

public class CondorHeroImportBeanDefinitionRegistrar implements ImportBeanDefinitionRegistrar {

    @Override
    public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry, BeanNameGenerator importBeanNameGenerator) {
        System.out.println("1.……registerBeanDefinitions……");
        //1.獲取注解上的指定路徑
        Map<String, Object> annotationAttributes = importingClassMetadata.getAnnotationAttributes(CondorHeroMapperScan.class.getName());
        String path = (String)annotationAttributes.get("value");
        //2.掃描
        CondorHeroBeanDefinitionScanner scanner = new CondorHeroBeanDefinitionScanner(registry);
       scanner.addIncludeFilter(new TypeFilter() {
           @Override
           public boolean match(MetadataReader metadataReader, MetadataReaderFactory metadataReaderFactory) throws IOException {
               return true;
           }
       });

        scanner.scan(path);
    }
}

1.8 自定義掃描類

public class CondorHeroBeanDefinitionScanner extends ClassPathBeanDefinitionScanner {
    public CondorHeroBeanDefinitionScanner(BeanDefinitionRegistry registry) {
        super(registry);
    }

    @Override
    protected boolean isCandidateComponent(AnnotatedBeanDefinition beanDefinition)  {
        //只關心接口(判斷是否是接口)
       return beanDefinition.getMetadata().isInterface();
    }

    /**
     * 掃描路徑并得到beanDefinition
     * @param basePackages
     * @return
     */
    @Override
    protected Set<BeanDefinitionHolder> doScan(String... basePackages) {
        System.out.println("2.……doScan……");
        Set<BeanDefinitionHolder> beanDefinitionHolders = super.doScan(basePackages);

        for (BeanDefinitionHolder beanDefinitionHolder: beanDefinitionHolders) {
            GenericBeanDefinition beanDefinition = (GenericBeanDefinition)beanDefinitionHolder.getBeanDefinition();
            //設置值
            beanDefinition.getConstructorArgumentValues().addGenericArgumentValue(beanDefinition.getBeanClassName());
            //設置名稱
            beanDefinition.setBeanClassName(CondorHeroFactoryBean.class.getName());

            //將MapperFactoryBean的注入模型設置為By-Type。也就是說，MapperFactoryBean中的setXxx中的屬性會從容器中來進行查找
            beanDefinition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE);
        }
        return beanDefinitionHolders;
    }
}

運行結果是:
1.……registerBeanDefinitions……
2.……doScan……
3.…………創建UserService…………
4.依賴注入MemberMapper需要先創建對象………AppConfig…………SqlSessionFactory………
5.……setSqlSession……
6.……getObject……
5.……setSqlSession……
6.……getObject……
5.……setSqlSession……
6.……getObject……
7.……UserService…test… user order member

二、原理解析

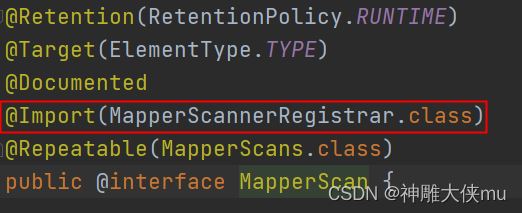

2.1 通過@MapperScan導入了MapperScannerRegistrar類

2.2 MapperScannerRegistrar類實現了ImportBeanDefinitionRegistrar接口，所以Spring在啟動時會調用MapperScannerRegistrar類中的registerBeanDefinitions方法

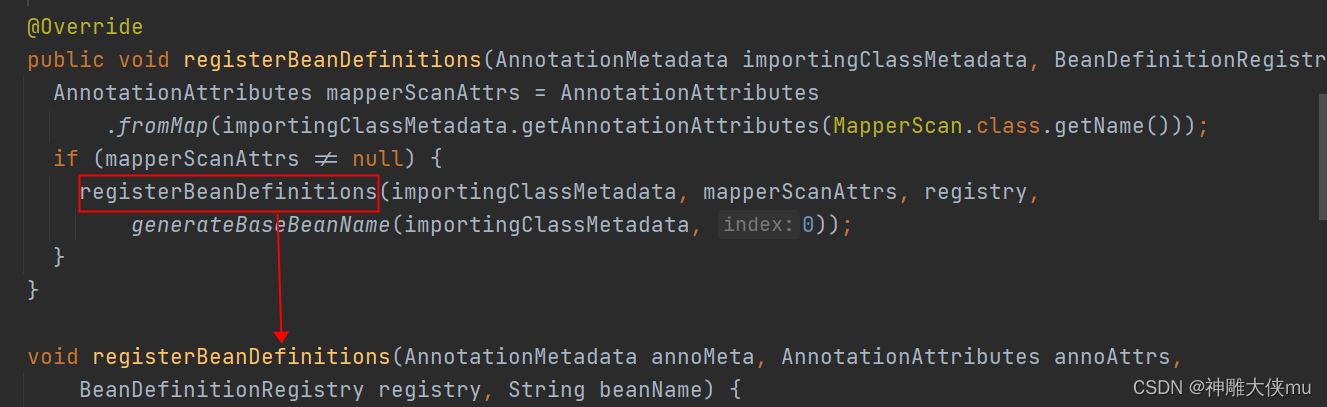

2.3 在registerBeanDefinitions方法中注冊一個MapperScannerConfigurer類型的BeanDefinition

2.4 而MapperScannerConfigurer實現了BeanDefinitionRegistryPostProcessor接口，所以Spring在啟動過程中時會調用它的postProcessBeanDefinitionRegistry()方法

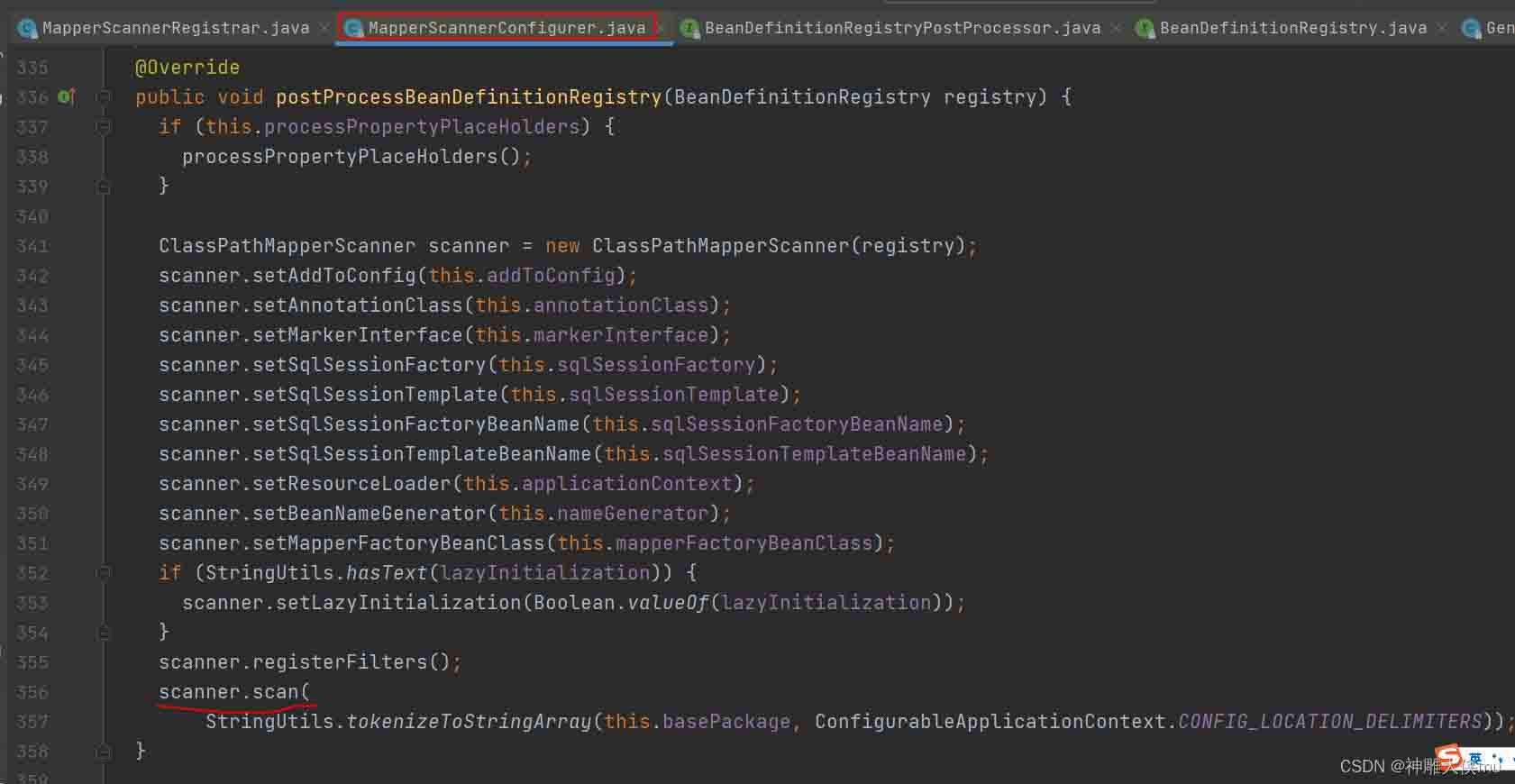

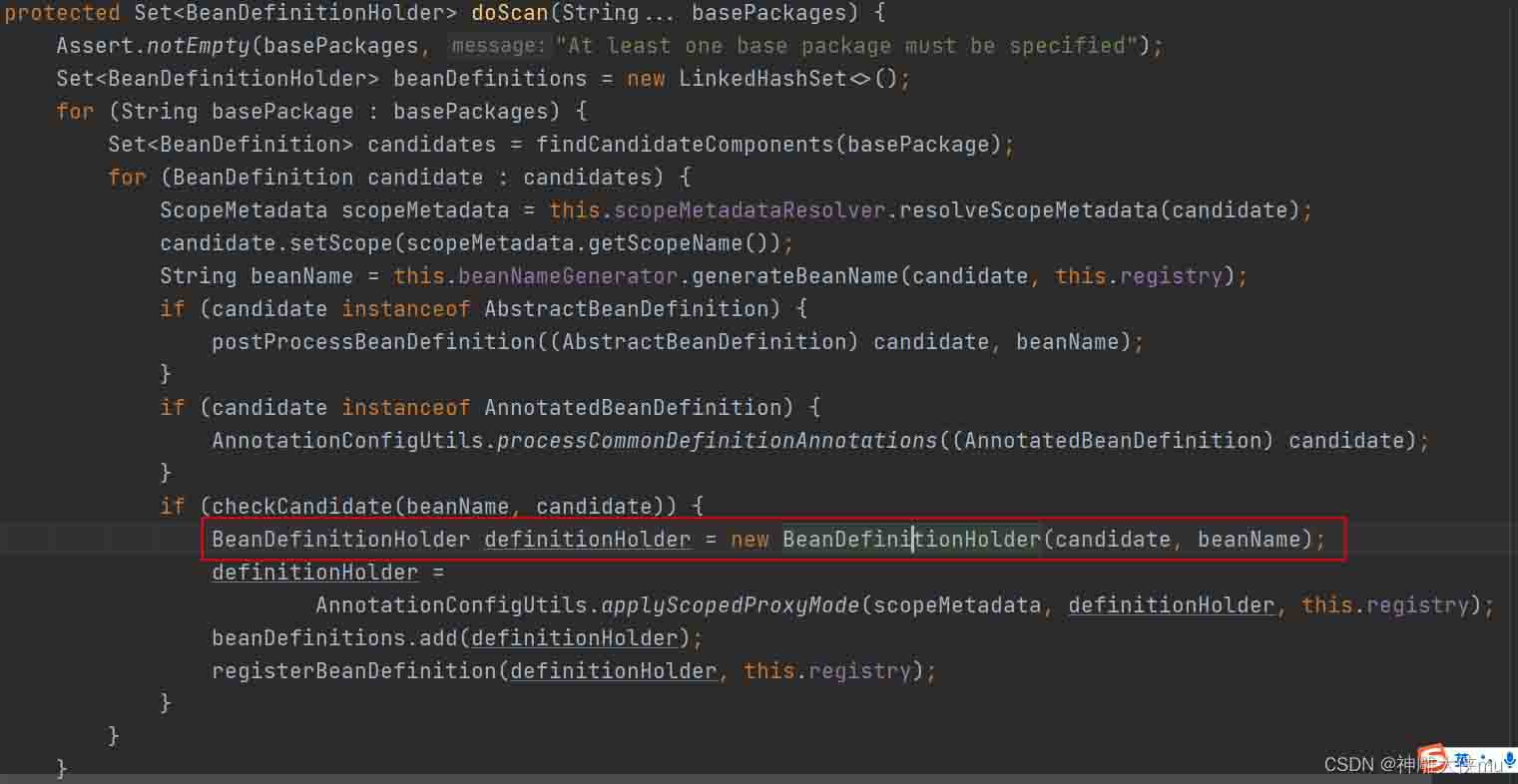

2.5 在postProcessBeanDefinitionRegistry方法中會生成一個ClassPathMapperScanner對象，然后進行掃描(scanner.scan)2.6 通過利用Spring的掃描后，會把接口掃描出來并且得到對應的BeanDefinition

2.7 接下來把掃描得到的BeanDefinition進行修改，把BeanClass修改為MapperFactoryBean，把AutowireMode修改為byType(在類ClassPathMapperScanner的方法processBeanDefinitions中)

private void processBeanDefinitions(Set<BeanDefinitionHolder> beanDefinitions) {
    GenericBeanDefinition definition;
    for (BeanDefinitionHolder holder : beanDefinitions) {
      definition = (GenericBeanDefinition) holder.getBeanDefinition();
      String beanClassName = definition.getBeanClassName();
      LOGGER.debug(() -> "Creating MapperFactoryBean with name '" + holder.getBeanName() + "' and '" + beanClassName
          + "' mapperInterface");

      // the mapper interface is the original class of the bean
      // but, the actual class of the bean is MapperFactoryBean
      //設置值
      definition.getConstructorArgumentValues().addGenericArgumentValue(beanClassName); // issue #59
      //設置名稱
      definition.setBeanClass(this.mapperFactoryBeanClass);

      definition.getPropertyValues().add("addToConfig", this.addToConfig);

      boolean explicitFactoryUsed = false;
      if (StringUtils.hasText(this.sqlSessionFactoryBeanName)) {
        definition.getPropertyValues().add("sqlSessionFactory",
            new RuntimeBeanReference(this.sqlSessionFactoryBeanName));
        explicitFactoryUsed = true;
      } else if (this.sqlSessionFactory != null) {
        definition.getPropertyValues().add("sqlSessionFactory", this.sqlSessionFactory);
        explicitFactoryUsed = true;
      }

      if (StringUtils.hasText(this.sqlSessionTemplateBeanName)) {
        if (explicitFactoryUsed) {
          LOGGER.warn(
              () -> "Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
        }
        definition.getPropertyValues().add("sqlSessionTemplate",
            new RuntimeBeanReference(this.sqlSessionTemplateBeanName));
        explicitFactoryUsed = true;
      } else if (this.sqlSessionTemplate != null) {
        if (explicitFactoryUsed) {
          LOGGER.warn(
              () -> "Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
        }
        definition.getPropertyValues().add("sqlSessionTemplate", this.sqlSessionTemplate);
        explicitFactoryUsed = true;
      }

      if (!explicitFactoryUsed) {
        LOGGER.debug(() -> "Enabling autowire by type for MapperFactoryBean with name '" + holder.getBeanName() + "'.");
        //將MapperFactoryBean的注入模型設置為By-Type。也就是說，MapperFactoryBean中的setXxx中的屬性會從容器中來進行查找
       definition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE);
      }
      definition.setLazyInit(lazyInitialization);
    }
  }

2.8 掃描完成后，Spring就會基于BeanDefinition去創建Bean了，相當于每個Mapper對應一個FactoryBean

2.9 在MapperFactoryBean中的getObject方法中，調用了getSqlSession()去得到一個sqlSession對象，然后根據對應的Mapper接口生成一個Mapper接口代理對象，這個代理對象就成為Spring容器中的Bean

public class MapperFactoryBean<T> extends SqlSessionDaoSupport implements FactoryBean<T> {}
 @Override
  public T getObject() throws Exception {
    return getSqlSession().getMapper(this.mapperInterface);
  }
  @Override
  public Class<T> getObjectType() {
    return this.mapperInterface;
  }

注意：這里的getObject調用時機是，在創建的對象依賴了Mapper對象就會去創建該Mapper對象，此時通過MapperFactoryBean去獲取

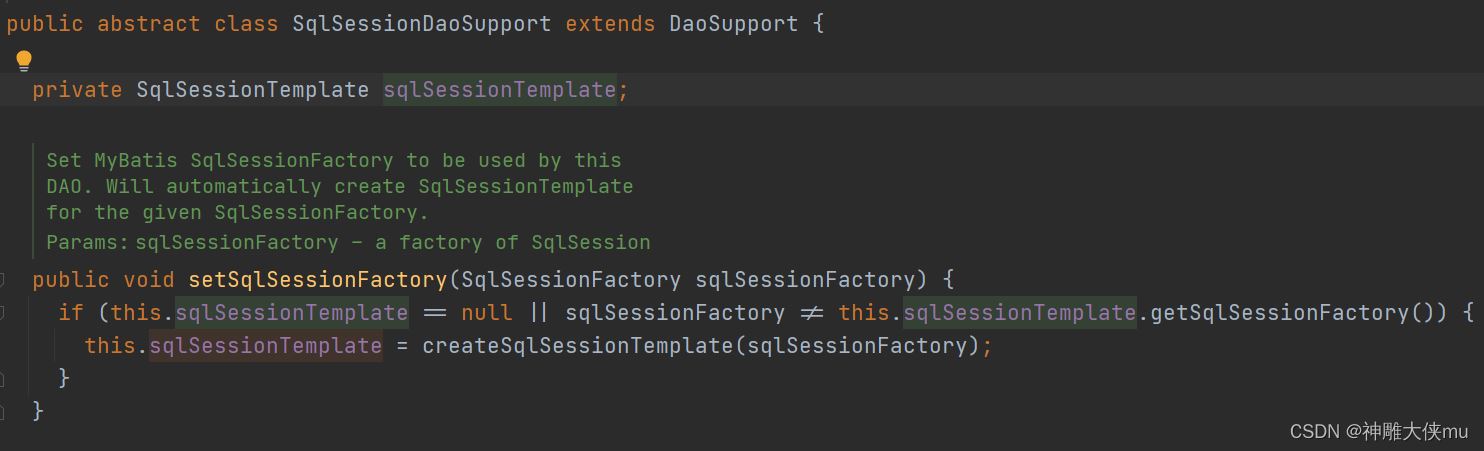

2.10 sqlSession對象是Mybatis中的，一個sqlSession對象需要SqlSessionFactory來產生

上面的getSqlSession()對應源碼是：

2.11 MapperFactoryBean的AutowireMode為byType，所以Spring會自動調用set方法，有兩個set方法，一個setSqlSessionFactory，一個setSqlSessionTemplate，而這兩個方法執行的前提是根據方法參數類型能找到對應的bean，所以Spring容器中要存在SqlSessionFactory類型的bean或者SqlSessionTemplate類型的bean

2.12 如果你定義的是一個SqlSessionFactory類型的bean，那么最終也會被包裝為一個SqlSessionTemplate對象，并且賦值給sqlSession屬性

這一步是程序員自己定義一個SqlSessionFactory，例如：

@CondorHeroMapperScan("com.athome.tulin.springmybatis.mapper")
@ComponentScan("com.athome.tulin.springmybatis")
public class AppConfig {
    @Bean
    public SqlSessionFactory sqlSessionFactory() throws IOException {
        System.out.println("4.依賴注入MemberMapper需要先創建對象………AppConfig…………SqlSessionFactory………");
        InputStream inputStream = Resources.getResourceAsStream("mybatis.xml");
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
        return sqlSessionFactory;
    }
}

這里定義的SqlSessionFactory 會賦值于2.10的sqlSessionTemplate

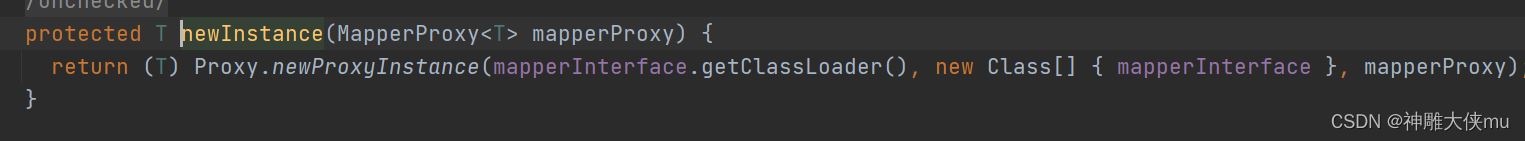

2.13 而在SqlSessionTemplate類中就存在一個getMapper方法，這個方法中就產生一個Mapper接口代理對象

2.14 當執行該代理對象的某個方法時，就會進入到Mybatis框架的底層執行流程

至此：業務類中的引入Mapper對象就復制成功。

 @Autowired
    private OrderMapper orderMapper;

即：這時候的orderMapper就 是賦值了代理對象的對象是有值 的。

總結

以上為個人經驗，希望能給大家一個參考，也希望大家多多支持腳本之家。
