SpringBoot+MybatisPlus+jdbc連接池配置多數據源的實現

更新時間：2025年05月23日 09:13:40 作者：Volunteer?Technology

本文主要介紹了SpringBoot+MybatisPlus+jdbc連接池配置多數據源的實現,文中通過示例代碼介紹的非常詳細,對大家的學習或者工作具有一定的參考學習價值,需要的朋友們下面隨著小編來一起學習學習吧

上pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.1.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.example</groupId>
	<artifactId>spring-dataSource</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>spring-dataSource</name>
	<description>Demo project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
		<spring-cloud.version>Greenwich.SR5</spring-cloud.version>
	</properties>

	<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            　　<artifactId>mybatis-plus-boot-starter</artifactId>
            　　<version>2.3</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            　　<artifactId>mybatis-plus</artifactId>
            　　<version>2.1.8</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
        	<groupId>org.springframework.boot</groupId>
        	<artifactId>spring-boot-configuration-processor</artifactId>
        	<optional>true</optional>
        </dependency>
	</dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

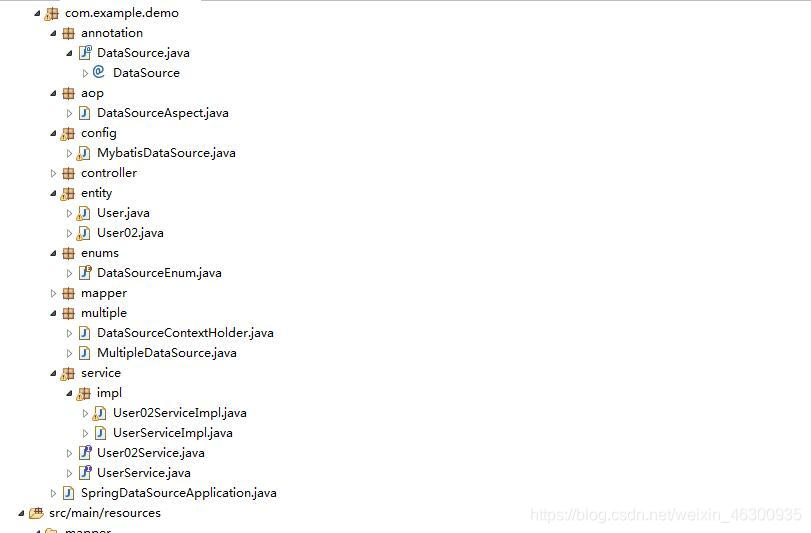

目錄結構

在這里插入圖片描述

application.xml的結構

server:
  port: 9086
spring:
  datasource: #database
    primary:  # 3.0 Datasource
      jdbc-url: jdbc:mysql://localhost:3306/user?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai&autoReconnect=true&zeroDateTimeBehavior=convertToNull
      username: root
      password: 123456
      driver-class-name: com.mysql.jdbc.Driver
    secondary:  # 2.0 Datasource
      jdbc-url: jdbc:mysql://localhost:3306/user02?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai&autoReconnect=true&zeroDateTimeBehavior=convertToNull
      username: root
      password: 123456
      driver-class-name: com.mysql.jdbc.Driver
  application:
      name: lixiaolong
#mybatis
mybatis-plus:
  mapper-locations: classpath:/mapper/*Mapper.xml
  #實體掃描，多個package用逗號或者分號分隔
  typeAliasesPackage: com.example.demo.entity;
  global-config:
    #主鍵類型  0:"數據庫ID自增", 1:"用戶輸入ID",2:"全局唯一ID (數字類型唯一ID)", 3:"全局唯一ID UUID";
    id-type: 0
    #字段策略 0:"忽略判斷",1:"非 NULL 判斷"),2:"非空判斷"
    field-strategy: 2
    #駝峰下劃線轉換
    db-column-underline: true
    #刷新mapper 調試神器
    refresh-mapper: true
    #數據庫大寫下劃線轉換
    #capital-mode: true
    logic-delete-value: -1
    logic-not-delete-value: 0
  configuration:
    map-underscore-to-camel-case: true
    cache-enabled: false
    call-setters-on-nulls: true

重要組成部分

1.數據源注解以及aop配置

一.

@Target({ElementType.METHOD,ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface DataSource {

    DataSourceEnum value() default DataSourceEnum.DB1;
}

二.

@Component
@Slf4j
@Aspect
@Order(-1)
public class DataSourceAspect {
	 @Pointcut("@within(com.example.demo.annotation.DataSource) || @annotation(com.example.demo.annotation.DataSource)")
	    public void pointCut(){
	    }
	    @Before("pointCut() && @annotation(dataSource)")
	    public void doBefore(DataSource dataSource){
	       // log.info("選擇數據源---"+dataSource.value().getValue());
	        DataSourceContextHolder.setDataSource(dataSource.value().getValue());
	    }

	    @After("pointCut()")
	    public void doAfter(){
	        DataSourceContextHolder.clear();
	    }
}

mybatisplus動態數據源的配置

一.mybatisplus動態數據源配置類

@Configuration // 注解到spring容器中
@MapperScan(basePackages = "com.example.demo.mapper*")
public class MybatisDataSource {

	/*
	 * 分頁插件，自動識別數據庫類型 多租戶，請參考官網【插件擴展】
	 */
	@Bean
	public PaginationInterceptor paginationInterceptor() {
		PaginationInterceptor paginationInterceptor = new PaginationInterceptor();
		// 開啟 PageHelper 的支持
		paginationInterceptor.setLocalPage(true);
		return paginationInterceptor;
	}

	/**
	 * SQL執行效率插件
	 */
	@Bean
	@Profile({ "dev", "qa" }) // 設置 dev test 環境開啟
	public PerformanceInterceptor performanceInterceptor() {
		PerformanceInterceptor performanceInterceptor = new PerformanceInterceptor();
		performanceInterceptor.setMaxTime(1000);
		performanceInterceptor.setFormat(true);
		return performanceInterceptor;
	}

	/**
	 * 返回data1數據庫的數據源
	 *
	 * @return
	 */
	@Bean(name = "primary")
	@ConfigurationProperties(prefix = "spring.datasource.primary")
	public DataSource primary() {
		return DataSourceBuilder.create().build();
	}

	@Bean(name = "secondary")
	// @Primary//主數據源
	@ConfigurationProperties(prefix = "spring.datasource.secondary")
	public DataSource secondary() {
		return DataSourceBuilder.create().build();
	}

	@Bean("sqlSessionFactory")
	public SqlSessionFactory sqlSessionFactory() throws Exception {
		MybatisSqlSessionFactoryBean sqlSessionFactory = new MybatisSqlSessionFactoryBean();
		sqlSessionFactory.setDataSource(multipleDataSource(primary(), secondary()));
		// sqlSessionFactory.setMapperLocations(new
		// PathMatchingResourcePatternResolver().getResources("classpath:/mapper/*/*Mapper.xml"));

		MybatisConfiguration configuration = new MybatisConfiguration();
		// configuration.setDefaultScriptingLanguage(MybatisXMLLanguageDriver.class);
		configuration.setJdbcTypeForNull(JdbcType.NULL);
		configuration.setMapUnderscoreToCamelCase(true);
		configuration.setCacheEnabled(false);
		sqlSessionFactory.setConfiguration(configuration);
		sqlSessionFactory.setPlugins(new Interceptor[] { // PerformanceInterceptor(),OptimisticLockerInterceptor()
				paginationInterceptor() // 添加分頁功能
		});
		// sqlSessionFactory.setGlobalConfig(globalConfiguration());
		return sqlSessionFactory.getObject();
	}

	/**
	 * 動態數據源配置
	 *
	 * @return
	 */
	@Bean
	@Primary
	public DataSource multipleDataSource(@Qualifier("primary") DataSource db1,
			@Qualifier("secondary") DataSource db2) {
		MultipleDataSource multipleDataSource = new MultipleDataSource();
		Map<Object, Object> targetDataSources = new HashMap<>();
		targetDataSources.put(DataSourceEnum.DB1.getValue(), db1);
		targetDataSources.put(DataSourceEnum.DB2.getValue(), db2);
		// 添加數據源
		multipleDataSource.setTargetDataSources(targetDataSources);
		// 設置默認數據源
		multipleDataSource.setDefaultTargetDataSource(db1);
		return multipleDataSource;
	}
}

二.配置其他

public class DataSourceContextHolder {
	 private static final ThreadLocal<String> contextHolder = new InheritableThreadLocal<>();

	    /**
	     *  設置數據源
	     * @param db
	     */
	    public static void setDataSource(String db){
	        contextHolder.set(db);
	    }

	    /**
	     * 取得當前數據源
	     * @return
	     */
	    public static String getDataSource(){
	        return contextHolder.get();
	    }

	    /**
	     * 清除上下文數據
	     */
	    public static void clear(){
	        contextHolder.remove();
	    }
}

三.

public class MultipleDataSource  extends AbstractRoutingDataSource {

	@Override
	protected Object determineCurrentLookupKey() {
		// TODO Auto-generated method stub
				return DataSourceContextHolder.getDataSource();
	}

}

測試是否成功

@RunWith(SpringRunner.class)
@SpringBootTest
@ActiveProfiles("dev")
public class SpringDataSourceApplicationTests {


	@Autowired
	private UserMapper  userService;

	@Autowired
	private User02Service user02Service;
	@Test
	public void contextLoads() {
		 User user =     userService.selectById(1);
	     User02 user02 = 	 new User02();
	     BeanUtils.copyProperties(user, user02);
		     user02Service.insert(user02);
	        System.out.printf("數據是:");
	    }



}

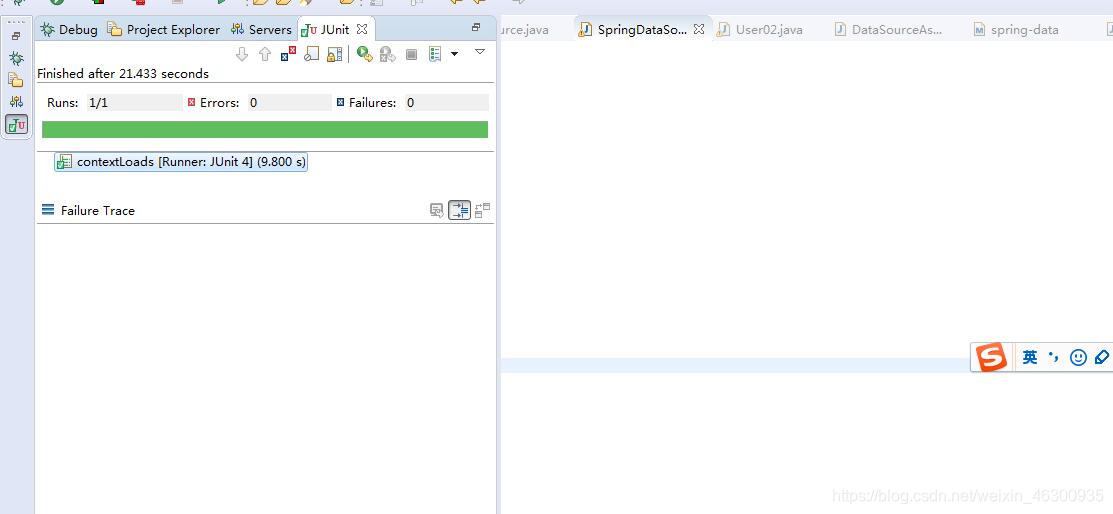

測試結果

在這里插入圖片描述

到此這篇關于SpringBoot+MybatisPlus+jdbc連接池配置多數據源的實現的文章就介紹到這了,更多相關SpringBoot MybatisPlus jdbc多數據源內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
