Java集成Onlyoffice的示例代碼及場景分析
更新時間：2025年05月27日 11:30:34 作者：想要變瘦的小碼頭
這篇文章主要介紹了Java集成Onlyoffice的示例代碼及場景分析,本文給大家介紹的非常詳細,對大家的學習或工作具有一定的參考借鑒價值,需要的朋友參考下吧
需求場景：實現文檔的在線編輯，團隊協作
總結：兩個接口 + 前端頁面 + 配置項
接口1：一個接口，將onlyoffice前端需要的配置項返回給前端（文檔地址、是否編輯模式...）
前端：接受配置項，集成onlyoffice的js文件，展示文檔
接口2：一個回調接口，用于onlyoffice前端的文件保存后的調用方法
一些配置項：application 里面配置 服務器的地址，token 等 ，maven 引入依賴。
文章結尾提供官方示例代碼：
注意：
1、docs-integration-sdk 2024年12月，國內騰訊的中央倉庫下不了，我不想換鏡像，就注釋掉，用的離線包。

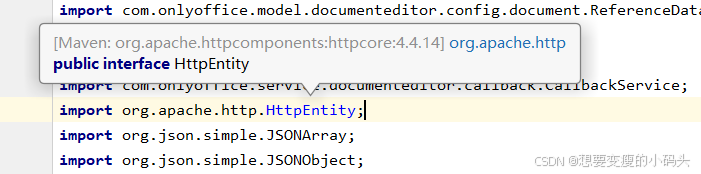

2、加了一個pom 的依賴，不加啟動報錯
<dependency> <groupId>org.apache.httpcomponents</groupId> <artifactId>httpclient</artifactId> <version>4.5.13</version> </dependency>
接口1：文檔地址必須可以讓onlyofficeu所在的服務器可以訪問到，可以是本地磁盤的映射，可以是 MINIO。文檔應當還有一個唯一的Key；
public String index(@RequestParam("fileName") final String fileName,
@RequestParam(value = "action", required = false) final String actionParam,
@RequestParam(value = "type", required = false) final String typeParam,
@RequestParam(value = "actionLink", required = false) final String actionLink,
@CookieValue(value = "uid") final String uid,
@CookieValue(value = "ulang") final String lang,
final Model model) throws JsonProcessingException {
Action action = null;
Type type = Type.DESKTOP;
Locale locale = new Locale("en");
if (actionParam != null) {
action = Action.valueOf(actionParam);
}
if (typeParam != null) {
type = Type.valueOf(typeParam.toUpperCase());
}
List<String> langsAndKeys = Arrays.asList(langs.split("\\|"));
for (String langAndKey : langsAndKeys) {
String[] couple = langAndKey.split(":");
if (couple[0].equals(lang)) {
String[] langAndCountry = couple[0].split("-");
locale = new Locale(langAndCountry[0], langAndCountry.length > 1 ? langAndCountry[1] : "");
}
}
Optional<User> optionalUser = userService.findUserById(Integer.parseInt(uid));
// if the user is not present, return the ONLYOFFICE start page
if (!optionalUser.isPresent()) {
return "index.html";
}
Config config = configService.createConfig(
fileName,
action,
type
);
JSONObject actionData = null;
if (actionLink != null && !actionLink.isEmpty()) {
actionData = new JSONObject(actionLink);
}
config.getEditorConfig().setActionLink(actionData);
config.getEditorConfig().setLang(locale.toLanguageTag());
model.addAttribute("model", config);
// create the document service api URL and add it to the model
model.addAttribute("docserviceApiUrl", urlManager.getDocumentServerApiUrl());
// get an image and add it to the model
model.addAttribute("dataInsertImage", getInsertImage());
// get a document for comparison and add it to the model
model.addAttribute("dataDocument", getCompareFile());
// get recipients data for mail merging and add it to the model
model.addAttribute("dataSpreadsheet", getSpreadsheet());
// get user data for mentions and add it to the model
model.addAttribute("usersForMentions", getUserMentions(uid));
model.addAttribute("usersInfo", getUsersInfo(uid));
// get user data for protect and add it to the model
model.addAttribute("usersForProtect", getUserProtect(uid));
return "editor.html";
}接口2：回調保存，其中的 {\"error\":\"0\"} 是告訴onlyOffice回調接口是沒問題的，這樣就可以在線編輯文檔了，否則的話會彈出窗口說明。
public String track(final HttpServletRequest request, // track file changes
@RequestParam("fileName") final String fileName,
@RequestParam("userAddress") final String userAddress,
@RequestBody final Callback body) {
Callback callback;
try {
String bodyString = objectMapper
.writeValueAsString(body); // write the request body to the object mapper as a string
if (bodyString.isEmpty()) { // if the request body is empty, an error occurs
throw new RuntimeException("{\"error\":1,\"message\":\"Request payload is empty\"}");
}
String authorizationHeader = request.getHeader(settingsManager.getSecurityHeader());
callback = callbackService.verifyCallback(body, authorizationHeader);
callbackService.processCallback(callback, fileName);
} catch (Exception e) {
String message = e.getMessage();
if (!message.contains("\"error\":1")) {
e.printStackTrace();
}
return message;
}
return "{\"error\":\"0\"}";
}前端展示
<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1, minimum-scale=1, user-scalable=no, minimal-ui" />
<meta name="apple-mobile-web-app-capable" content="yes" />
<meta name="mobile-web-app-capable" content="yes" />
<!--
*
* (c) Copyright Ascensio System SIA 2024
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*
-->
<title>ONLYOFFICE</title>
<link rel="icon" th:href="@{/css/img/{icon}.ico(icon=${model.getDocumentType()})}" rel="external nofollow" type="image/x-icon"/>
<link rel="stylesheet" type="text/css" href="css/editor.css" rel="external nofollow" />
<script type="text/javascript" th:src="@{${docserviceApiUrl}}"></script>
<script th:inline="javascript">
var docEditor;
var config;
var innerAlert = function (message, inEditor) {
if (console && console.log)
console.log(message);
if (inEditor && docEditor)
docEditor.showMessage(message);
};
// the application is loaded into the browser
var onAppReady = function () {
innerAlert("Document editor ready");
};
// the document is modified
var onDocumentStateChange = function (event) {
var title = document.title.replace(/\*$/g, "");
document.title = title + (event.data ? "*" : "");
};
// the user is trying to switch the document from the viewing into the editing mode
var onRequestEditRights = function () {
location.href = location.href.replace(RegExp("\&?action=\\w+", "i"), "") + "&action=edit";
};
// an error or some other specific event occurs
var onError = function (event) {
if (event) innerAlert(event.data);
};
// the document is opened for editing with the old document.key value
var onOutdatedVersion = function (event) {
location.reload(true);
};
// replace the link to the document which contains a bookmark
var replaceActionLink = function(href, linkParam) {
var link;
var actionIndex = href.indexOf("&actionLink=");
if (actionIndex != -1) {
var endIndex = href.indexOf("&", actionIndex + "&actionLink=".length);
if (endIndex != -1) {
link = href.substring(0, actionIndex) + href.substring(endIndex) + "&actionLink=" + encodeURIComponent(linkParam);
} else {
link = href.substring(0, actionIndex) + "&actionLink=" + encodeURIComponent(linkParam);
}
} else {
link = href + "&actionLink=" + encodeURIComponent(linkParam);
}
return link;
}
// the user is trying to get link for opening the document which contains a bookmark, scrolling to the bookmark position
var onMakeActionLink = function (event) {
var actionData = event.data;
var linkParam = JSON.stringify(actionData);
docEditor.setActionLink(replaceActionLink(location.href, linkParam));
};
// the meta information of the document is changed via the meta command
var onMetaChange = function (event) {
if (event.data.favorite !== undefined) {
var favorite = !!event.data.favorite;
var title = document.title.replace(/^\☆/g, "");
document.title = (favorite ? "☆" : "") + title;
docEditor.setFavorite(favorite);
}
innerAlert("onMetaChange: " + JSON.stringify(event.data));
};
var dataInsertImage = [[${dataInsertImage}]];
// the user is trying to insert an image by clicking the Image from Storage button
var onRequestInsertImage = function(event) {
const temp = Object.assign({}, {"c": event.data.c}, dataInsertImage);
docEditor.insertImage(temp);
};
var dataDocument = [[${dataDocument}]];
// the user is trying to select document for comparing by clicking the Document from Storage button
var onRequestSelectDocument = function(event) {
const temp = Object.assign({"c": event.data.c}, JSON.parse(dataDocument));
docEditor.setRequestedDocument(temp);
};
var dataSpreadsheet = [[${dataSpreadsheet}]];
// the user is trying to select recipients data by clicking the Mail merge button
var onRequestSelectSpreadsheet = function (event) {
const temp = Object.assign({"c": event.data.c}, JSON.parse(dataSpreadsheet));
docEditor.setRequestedSpreadsheet(temp);
};
config = [[${model}]];
if (config.editorConfig.user.name == "Anonymous") {
config.editorConfig.user.name = "";
}
var onRequestSaveAs = function (event) { // the user is trying to save file by clicking Save Copy as... button
var title = event.data.title;
var url = event.data.url;
var data = {
title: title,
url: url
};
let xhr = new XMLHttpRequest();
xhr.open("POST", "saveas");
xhr.setRequestHeader('Content-Type', 'application/json');
xhr.send(JSON.stringify(data));
xhr.onload = function () {
innerAlert(xhr.responseText);
innerAlert(JSON.parse(xhr.responseText).file, true);
}
};
var onRequestRename = function(event) { // the user is trying to rename file by clicking Rename... button
innerAlert("onRequestRename: " + JSON.stringify(event.data));
var newfilename = event.data;
var data = {
fileName: newfilename,
fileKey: config.document.key,
fileType: config.document.fileType
};
let xhr = new XMLHttpRequest();
xhr.open("POST", "rename");
xhr.setRequestHeader('Content-Type', 'application/json');
xhr.send(JSON.stringify(data));
xhr.onload = function () {
innerAlert(xhr.responseText);
}
};
var onRequestOpen = function(event) { // user open external data source
innerAlert("onRequestOpen");
var windowName = event.data.windowName;
requestReference(event.data, function (data) {
if (data.error) {
var winEditor = window.open("", windowName);
winEditor.close();
innerAlert(data.error, true);
return;
}
var link = data.link;
window.open(link, windowName);
});
};
var onRequestReferenceData = function(event) { // user refresh external data source
innerAlert("onRequestReferenceData");
requestReference(event.data, function (data) {
docEditor.setReferenceData(data);
});
};
var requestReference = function(data, callback) {
innerAlert(data);
let xhr = new XMLHttpRequest();
xhr.open("POST", "reference");
xhr.setRequestHeader("Content-Type", "application/json");
xhr.send(JSON.stringify(data));
xhr.onload = function () {
innerAlert(xhr.responseText);
callback(JSON.parse(xhr.responseText));
}
};
var onRequestHistory = function () {
var xhr = new XMLHttpRequest();
xhr.open("GET", "history?fileName=" + config.document.title, false);
xhr.send();
if (xhr.status == 200) {
var historyInfo = JSON.parse(xhr.responseText);
docEditor.refreshHistory(historyInfo);
}
};
var onRequestHistoryData = function (event) {
var version = event.data;
var historyDataUri = "historydata?fileName=" + config.document.title
+ "&version=" + version;
var xhr = new XMLHttpRequest();
xhr.open("GET", historyDataUri, false);
xhr.send();
if (xhr.status == 200) {
var historyData = JSON.parse(xhr.responseText);
docEditor.setHistoryData(historyData);
}
};
var onRequestHistoryClose = function() {
document.location.reload();
};
function onRequestRestore(event) {
const query = new URLSearchParams(window.location.search)
const payload = {
fileName: query.get('fileName'),
version: event.data.version
}
const request = new XMLHttpRequest()
request.open('PUT', 'restore')
request.setRequestHeader('Content-Type', 'application/json')
request.send(JSON.stringify(payload))
request.onload = function () {
const response = JSON.parse(request.responseText);
if (response.success && !response.error) {
var historyInfoUri = "history?fileName=" + config.document.title;
var xhr = new XMLHttpRequest();
xhr.open("GET", historyInfoUri, false);
xhr.send();
if (xhr.status == 200) {
var historyInfo = JSON.parse(xhr.responseText);
docEditor.refreshHistory(historyInfo);
}
} else {
innerAlert(response.error);
}
}
};
var onRequestUsers = function (event) {
if (event && event.data) {
var c = event.data.c;
}
switch (c) {
case "info":
users = [];
var allUsers = [[${usersInfo}]];
for (var i = 0; i < event.data.id.length; i++) {
for (var j = 0; j < allUsers.length; j++) {
if (allUsers[j].id == event.data.id[i]) {
users.push(allUsers[j]);
break;
}
}
}
break;
case "protect":
var users = [[${usersForProtect}]];
break;
default:
users = [[${usersForMentions}]];
}
docEditor.setUsers({
"c": c,
"users": users,
});
};
var onRequestSendNotify = function(event) { // the user is mentioned in a comment
event.data.actionLink = replaceActionLink(location.href, JSON.stringify(event.data.actionLink));
var data = JSON.stringify(event.data);
innerAlert("onRequestSendNotify: " + data);
};
config.width = "100%";
config.height = "100%";
config.events = {
"onAppReady": onAppReady,
"onDocumentStateChange": onDocumentStateChange,
"onError": onError,
"onOutdatedVersion": onOutdatedVersion,
"onMakeActionLink": onMakeActionLink,
"onMetaChange": onMetaChange,
"onRequestInsertImage": onRequestInsertImage,
"onRequestSelectDocument": onRequestSelectDocument,
"onRequestSelectSpreadsheet": onRequestSelectSpreadsheet
};
if (config.editorConfig.user.id != 4) {
// add mentions for not anonymous users
config.events['onRequestUsers'] = onRequestUsers;
config.events['onRequestSaveAs'] = onRequestSaveAs;
// the user is mentioned in a comment
config.events['onRequestSendNotify'] = onRequestSendNotify;
// prevent file renaming for anonymous users
config.events['onRequestRename'] = onRequestRename;
config.events['onRequestReferenceData'] = onRequestReferenceData;
// prevent switch the document from the viewing into the editing mode for anonymous users
config.events['onRequestEditRights'] = onRequestEditRights;
config.events['onRequestOpen'] = onRequestOpen;
config.events['onRequestHistory'] = onRequestHistory;
config.events['onRequestHistoryData'] = onRequestHistoryData;
if (config.editorConfig.user.id != 3) {
config.events['onRequestHistoryClose'] = onRequestHistoryClose;
config.events['onRequestRestore'] = onRequestRestore;
}
}
var сonnectEditor = function () {
docEditor = new DocsAPI.DocEditor("iframeEditor", config);
};
if (window.addEventListener) {
window.addEventListener("load", сonnectEditor);
} else if (window.attachEvent) {
window.attachEvent("load", сonnectEditor);
}
</script>
</head>
<body>
<div class="form">
<div id="iframeEditor"></div>
</div>
</body>

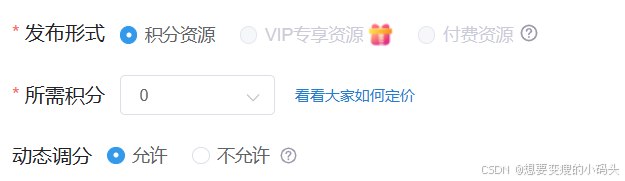

</html>完整代碼可以下載，不搞VIP、付費
到此這篇關于Java集成Onlyoffice的文章就介紹到這了,更多相關Java集成Onlyoffice內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
您可能感興趣的文章:
相關文章
這篇文章主要給大家介紹了關于Java?list移除元素相關操作的相關資料,文中介紹的方法包括增強for循環、迭代器、Stream流和removeIf()方法,同時還介紹了如何從一個列表中刪除包含另一個列表元素的方法,以及如何刪除指定下標位置的元素,需要的朋友可以參考下2024-12-12
詳解SpringBoot中的統一功能處理的實現
這篇文章主要為大家詳細介紹了SpringBoot如何實現統一功能處理，文中的示例代碼講解詳細，對我們學習或工作有一定借鑒價值，需要的可以參考一下2023-01-01
這篇文章主要為大家介紹了如何避免Apache?Beanutils屬性copy的分析詳解，有需要的朋友可以借鑒參考下，希望能夠有所幫助，祝大家多多進步，早日升職加薪2023-01-01
Java多線程實現方式有兩種，第一種是繼承Thread類，第二種是實現Runnable接口，兩種有很多差異，下面跟著本文一起學習吧，希望能給你帶來幫助2021-07-07
MyBatis 是支持定制化 SQL、存儲過程以及高級映射的優秀的持久層框架。這篇文章主要介紹了MyBatis配置文件的寫法和簡單使用，需要的朋友參考下2017-01-01
這篇文章主要介紹了maven的三種工程pom、jar、war的區別，詳細的介紹pom、jar、war和區別，具有一定的參考價值，感興趣的小伙伴們可以參考一下2018-11-11
java模擬微信打飛機游戲,大家參考使用吧2013-12-12
本文通過實例代碼給大家介紹了spring boot 與 ireport 整合問題，關于pom文件依賴的問題通過實例代碼給大家介紹的非常詳細，需要的朋友參考下吧2021-10-10
java編程中拷貝數組的方式及相關問題分析
這篇文章主要介紹了java編程中拷貝數組的方式及相關問題分析，分享了Java中數組復制的四種方式，其次對二維數組的簡單使用有一段代碼示例，具有一定參考價值，需要的朋友可以了解下。2017-11-11
這篇文章主要為大家詳細介紹了Java中List的正確的刪除方法，文中的示例代碼講解詳細，對我們學習有一定幫助，需要的可以參考一下2022-05-05
