spring-gateway filters添加自定義過濾器實現流程分析(可插拔)

更新時間：2025年05月28日 10:43:53 作者：木子李的Z

這篇文章主要介紹了spring-gateway filters添加自定義過濾器實現流程分析(可插拔),本文通過實例圖文相結合給大家介紹的非常詳細,對大家的學習或工作具有一定的參考借鑒價值,需要的朋友參考下吧

需求背景

公司要求，通過公司網絡代理訪問的請求需要做請求隔離，即，通過特定代理IP訪問的請求，需要除正常權限以外，還需要對請求路徑，及特定路徑下的請求參數做校驗，通過校驗正常訪問，否則拒絕通過代理IP的請求。

需求拆解

1.針對特定的服務做限制；

2.特定的代理IP來源請求做校驗；

3.特定的請求接口做限制；

4.特定的接口的特定的請求參數值做校驗；

大致可以細分如上四點，在網關層統一實現需求，參考spring-gateway過濾器原理，個性化一個過濾器，按需配置即可；

設計流程及作用域

在配置網關路由策略時按需配置，靈活使用。

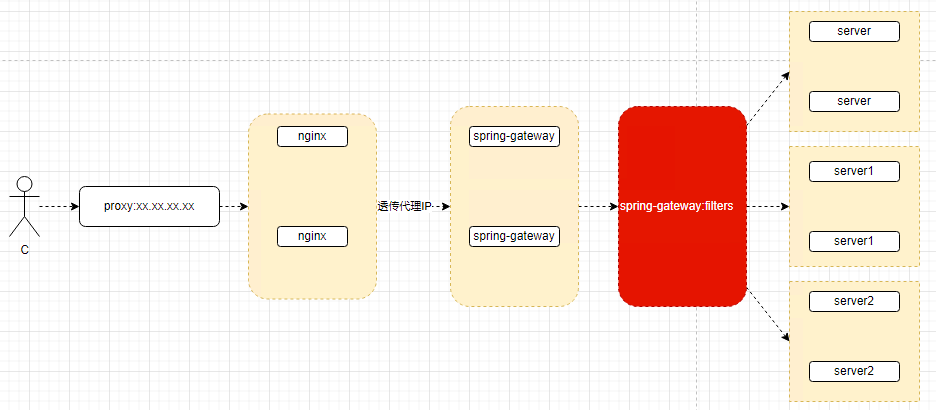

圖2.1過濾器位置

自定義過濾器名稱：InternalValidator

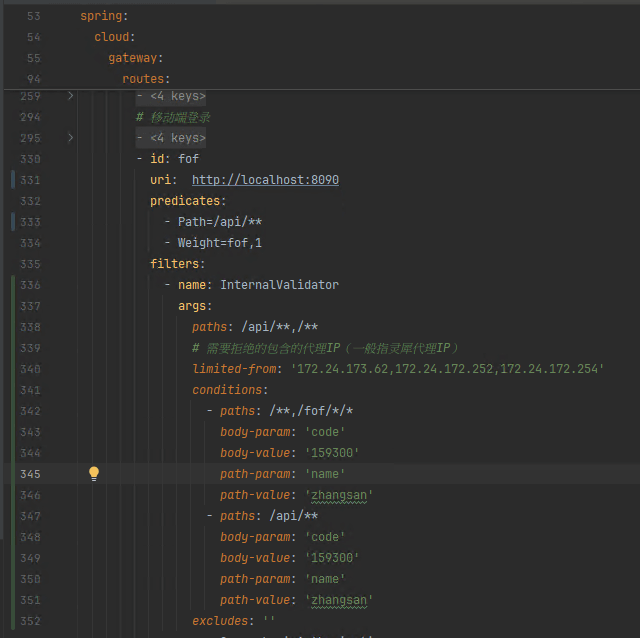

2.2spring-gateway使用配置示例

過濾器設計

1.name : InternalValidator 過濾器id （必須）

2.args : 過濾器參數 （個性化實現時必須）

2.1 paths: /api/**,/** 請求路徑校驗（通配符），前提條件1

2.2 limited-from: '172.24.173.62,172.24.172.252' 模擬代理IP地址，前提條件2

2.3 conditions: 條件過濾，這是個個性化配置集合

2.3.1 paths: /api/** 條件集合判斷路徑校驗（通配符）

2.3.2 body-param: 'code' 請求體參數名{'code':'159300'}

2.3.3 body-value:'159300' 參數名對應的參數值

2.3.4 path-param: 'name' 路徑參數名 ?name=zhangsan

2.3.5 path-value: 'zhangsan' 路徑參數值

3.excludes:'/api/login/*' 排除路徑（通配符）

邏輯處理

1.來自代理IP判斷

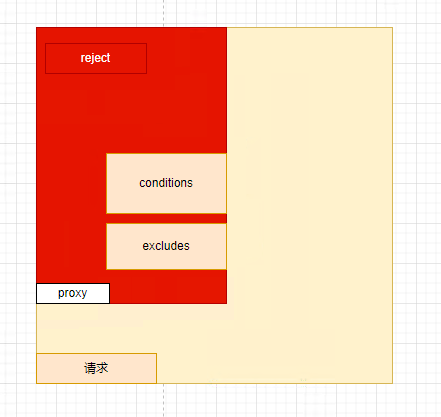

3.1邏輯處理

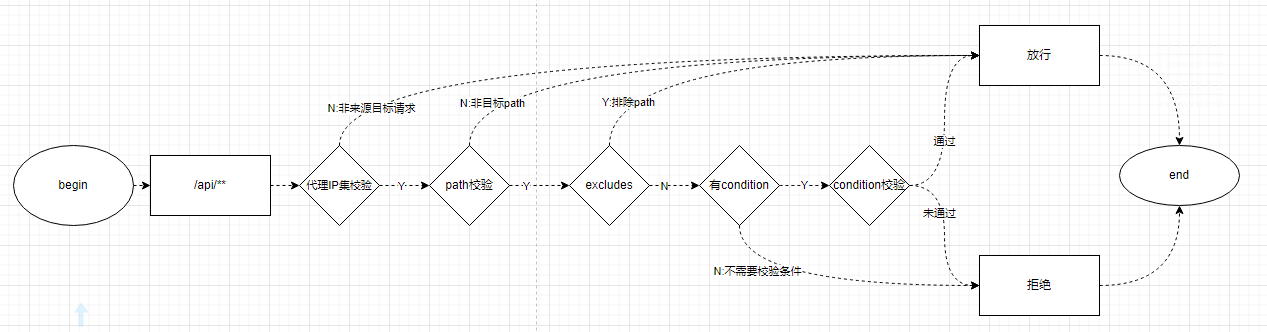

邏輯流程

3.2流程處理

代碼邏輯

1.名稱必須是InternalValidator + GatewayFilterFactory

2.config服從駝峰命名轉換即limited-from : limitedFrom

3.對config映射屬性必須要有set方法

@Component
@Slf4j
public class InternalValidatorGatewayFilterFactory extends AbstractGatewayFilterFactory<InternalValidatorGatewayFilterFactory.Config> implements Ordered {
    private final AntPathMatcher antPathMatcher = new AntPathMatcher();
    public InternalValidatorGatewayFilterFactory() {
        super(Config.class); // 指定配置類
    }
    @Override
    public GatewayFilter apply(Config config) {
        return (exchange, chain) -> {
            Set<String> limitedIps = config.getLimitedIps();
            ServerHttpRequest request = exchange.getRequest();
            //接口路徑
            String clientIp = IPHelp.getClientIp(request);
            if (!isLimitedIp(clientIp, limitedIps)) {
                return chain.filter(exchange);
            }
            String path = request.getPath().value();
            Set<String> includesPaths = config.getIncludesPaths();
            if (!pathMatch(path, includesPaths)) {
                log.info(" --> includesPaths: {}, 不包含: 請求路徑：{},", includesPaths, path);
                return chain.filter(exchange);
            }
            Set<String> excludesPaths = config.getExcludesPaths();
            if (pathMatch(path, excludesPaths)) {
                log.info(" --> excludesPaths: {}, contains: 請求路徑：{},", excludesPaths, path);
                return chain.filter(exchange);
            }
            Map<String, Map<String, String>> pathParamValueMap = config.getPathParamValueMap();
            Map<String, Map<String, String>> bodyParamValueMap = config.getBodyParamValueMap();
            Map<String, String> bodyParamMap = getPathParamValueMap(path, bodyParamValueMap);
            Map<String, String> queryParamMap = getPathParamValueMap(path, pathParamValueMap);
            if ((bodyParamMap == null || bodyParamMap.isEmpty()) && (
                    queryParamMap == null || queryParamMap.isEmpty()
            )) {
                exchange.getResponse().setStatusCode(HttpStatus.FORBIDDEN);
                return exchange.getResponse().setComplete();
            }
            if (queryParamMap != null && !queryParamMap.isEmpty()) {
                MultiValueMap<String, String> queryParams = request.getQueryParams();
                if (!queryParamMatch(queryParamMap, queryParams)) {
                    log.info(" --> path: {}, bodyParamConditions: {}, queryParamMap: {},校驗失敗！", path, bodyParamMap, queryParamMap);
                    exchange.getResponse().setStatusCode(HttpStatus.FORBIDDEN);
                    return exchange.getResponse().setComplete();
                }
                if (bodyParamMap == null || bodyParamMap.isEmpty()) {
                    return chain.filter(exchange);
                }
            }
            if (bodyParamMap != null && !bodyParamMap.isEmpty()) {
                String method = request.getMethodValue();
                if ("POST".equals(method)) {
                    return DataBufferUtils.join(exchange.getRequest().getBody())
                            .flatMap(dataBuffer -> {
                                byte[] bytes = new byte[dataBuffer.readableByteCount()];
                                dataBuffer.read(bytes);
                                try {
                                    String bodyString = new String(bytes, "utf-8");
                                    if (!bodyParamMatch(bodyParamMap, bodyString)) {
                                        exchange.getResponse().setStatusCode(HttpStatus.FORBIDDEN);
                                        return exchange.getResponse().setComplete();
                                    }
                                } catch (UnsupportedEncodingException e) {
                                }
                                DataBufferUtils.release(dataBuffer);
                                Flux<DataBuffer> cachedFlux = Flux.defer(() -> {
                                    DataBuffer buffer = exchange.getResponse().bufferFactory()
                                            .wrap(bytes);
                                    return Mono.just(buffer);
                                });
                                ServerHttpRequest mutatedRequest = new ServerHttpRequestDecorator(
                                        exchange.getRequest()) {
                                    @Override
                                    public Flux<DataBuffer> getBody() {
                                        return cachedFlux;
                                    }
                                };
                                return chain.filter(exchange.mutate().request(mutatedRequest).build());
                            });
                }
            }
            exchange.getResponse().setStatusCode(HttpStatus.FORBIDDEN);
            return exchange.getResponse().setComplete();
        };
    }
    @Override
    public int getOrder() {
        return 2;
    }
    private Map<String, String> getPathParamValueMap(String path, Map<String, Map<String, String>> paramValueMap) {
        if (paramValueMap == null || paramValueMap.isEmpty()) {
            return null;
        }
        Map<String, String> res = new HashMap<>();
        for (Map.Entry<String, Map<String, String>> paramValueEntry : paramValueMap.entrySet()) {
            String pathPredicate = paramValueEntry.getKey();
            if (antPathMatcher.match(pathPredicate, path)) {
                Map<String, String> paramValue = paramValueEntry.getValue();
                if (paramValue == null) {
                    continue;
                }
                res.putAll(paramValue);
            }
        }
        return res;
    }
    private String extractParam(String jsonStr, String key) {
        try {
            int startIndex = jsonStr.indexOf("\"" + key + "\"");
            if (startIndex != -1) {
                int valueStart = jsonStr.indexOf(':', startIndex);
                int valueEnd = jsonStr.indexOf(',', valueStart);
                if (valueEnd == -1) {
                    valueEnd = jsonStr.indexOf('}', valueStart);
                }
                if (valueStart != -1 && valueEnd != -1) {
                    String valuePart = jsonStr.substring(valueStart + 1, valueEnd).trim();
                    return valuePart.replaceAll("\"", "");
                }
            }
        } catch (Exception e) {
            // 可以記錄日志
            return null;
        }
        return null;
    }
    private boolean pathMatch(String path, Set<String> predicatePaths) {
        if (predicatePaths == null || predicatePaths.isEmpty()) {
            return false;
        }
        return predicatePaths.stream()
                .anyMatch(predicatePath -> antPathMatcher.match(predicatePath, path));
    }
    private boolean paramMatch(Map<String, String> bodyParamMap,
                               Map<String, String> queryParamMap,
                               ServerHttpRequest request,
                               ServerWebExchange exchange
    ) {
        return true;
    }
    private boolean bodyParamMatch(Map<String, String> bodyParamConditions, String bodyStr) {
        if (bodyStr == null) {
            return false;
        }
        for (Map.Entry<String, String> conditionMapEntry : bodyParamConditions.entrySet()) {
            String predicateParam = conditionMapEntry.getKey();
            String predicateValue = conditionMapEntry.getValue();
            String acValue = extractParam(bodyStr, predicateParam);
            if (!predicateValue.equals(acValue)) {
                log.info(" --> bodyParamMatch:::predicateParam:{}, predicateValue:{}, acValue:{},參數校驗不通過！",
                        predicateParam, predicateValue, acValue);
                return false;
            }
        }
        return true;
    }
    private boolean queryParamMatch(Map<String, String> conditionMap, MultiValueMap<String, String> queryParams) {
        for (Map.Entry<String, String> conditionMapEntry : conditionMap.entrySet()) {
            String predicateParam = conditionMapEntry.getKey();
            String predicateValue = conditionMapEntry.getValue();
            String acValue = queryParams.getFirst(predicateParam);
            if (!predicateValue.equals(acValue)) {
                log.info(" --> queryParamMatch:::predicateParam:{}, predicateValue:{}, acValue:{},參數校驗不通過！",
                        predicateParam, predicateValue, acValue);
                return false;
            }
        }
        return true;
    }
    private boolean isLimitedIp(String clientIp, Set<String> limitedIps) {
        if (clientIp == null || clientIp.isEmpty()) {
            log.warn(" --> clientIp:{} 為空！", clientIp);
            return true;
        }
        if (limitedIps == null || limitedIps.isEmpty()) {
            log.info(" --> limitedIps:{} 為空！", limitedIps);
            return false;
        }
        for (String limitedIp : limitedIps) {
            if (clientIp.contains(limitedIp)) {
                return true;
            }
        }
        return false;
    }
    // 配置類
    public static class Config {
        private String paths = "/**";
        private String limitedFrom;
        private List<ConditionConfig> conditions = new ArrayList<>();
        private String excludes;
        private Set<String> includesPaths;
        private Set<String> limitedIps = new HashSet<>();
        private Set<String> excludesPaths = new HashSet<>();
        private Map<String, Map<String, String>> bodyParamValueMap = new HashMap<>();
        private Map<String, Map<String, String>> pathParamValueMap = new HashMap<>();
        public void setPaths(String paths) {
            this.paths = paths;
            if (paths != null) {
                this.includesPaths = new HashSet<>(Arrays.asList(paths.split(",")));
            }
        }
        public void setLimitedFrom(String limitedFrom) {
            this.limitedFrom = limitedFrom;
            if (limitedFrom != null) {
                this.limitedIps = new HashSet<>(Arrays.asList(limitedFrom.split(",")));
            }
        }
        public void setConditions(List<ConditionConfig> conditions) {
            this.conditions = conditions;
            if (conditions != null && !conditions.isEmpty()) {
                for (ConditionConfig condition : conditions) {
                    String conditionPaths = condition.getPaths();
                    String bodyParam = condition.getBodyParam();
                    String bodyValue = condition.getBodyValue();
                    String pathParam = condition.getPathParam();
                    String pathValue = condition.getPathValue();
                    if (conditionPaths != null) {
                        if (bodyParam != null && bodyValue != null) {
                            for (String path : conditionPaths.split(",")) {
                                Map<String, String> bodyParamCondition = bodyParamValueMap.get(path);
                                if (bodyParamCondition == null) {
                                    bodyParamCondition = new HashMap<>();
                                }
                                bodyParamCondition.put(bodyParam, bodyValue);
                                bodyParamValueMap.put(path, bodyParamCondition);
                            }
                        }
                        if (pathParam != null && pathValue != null) {
                            for (String path : conditionPaths.split(",")) {
                                Map<String, String> pathParamCondition = pathParamValueMap.get(path);
                                if (pathParamCondition == null) {
                                    pathParamCondition = new HashMap<>();
                                }
                                pathParamCondition.put(pathParam, pathValue);
                                pathParamValueMap.put(path, pathParamCondition);
                            }
                        }
                    }
                }
            }
        }
        public void setExcludes(String excludes) {
            this.excludes = excludes;
            if (excludes != null) {
                this.excludesPaths = new HashSet<>(Arrays.asList(excludes.split(",")));
            }
        }
        public Set<String> getIncludesPaths() {
            return includesPaths;
        }
        public Set<String> getLimitedIps() {
            return limitedIps;
        }
        public Set<String> getExcludesPaths() {
            return excludesPaths;
        }
        public Map<String, Map<String, String>> getBodyParamValueMap() {
            return bodyParamValueMap;
        }
        public Map<String, Map<String, String>> getPathParamValueMap() {
            return pathParamValueMap;
        }
    }
    @Data
    public static class ConditionConfig {
        private String paths;
        private String bodyParam;
        private String bodyValue;
        private String pathParam;
        private String pathValue;
    }
}

借助了工具類IPHelp.java

import lombok.extern.slf4j.Slf4j;
import org.springframework.http.HttpHeaders;
import org.springframework.http.server.reactive.ServerHttpRequest;
import java.net.InetSocketAddress;
import java.util.Arrays;
import java.util.Collections;
import java.util.List;
@Slf4j
public class IPHelp {
    private static final List<String> IP_HEADERS = Collections.unmodifiableList(Arrays.asList(
            "X-Forwarded-For",
            "x-forwarded-for",
            "xff",
            "x-real-ip",
            "Proxy-Client-IP",
            "WL-Proxy-Client-IP",
            "HTTP_CLIENT_IP",
            "HTTP_X_FORWARDED_FOR"
    ));
    public static String getClientIp(ServerHttpRequest request) {
        String resultIp = null;
        HttpHeaders headers = request.getHeaders();
        for (String head : IP_HEADERS) {
            String ip = headers.getFirst(head);
            log.info(" --> IP_HEADER:{}, IP_VALUE:{}", head, ip);
            if (isValidIp(ip)) {
                resultIp = ip;
                break;
            }
        }
        if (resultIp == null && request.getRemoteAddress() != null) {
            InetSocketAddress remoteAddress = request.getRemoteAddress();
            resultIp = remoteAddress.getAddress().getHostAddress();
            log.info(" --> IP_HEADER: remoteAddress, IP_VALUE:{}", resultIp);
        }
        log.info(" --> getClientIp, IP_VALUE:{}", resultIp);
        return resultIp;
    }
    private static boolean isValidIp(String ip) {
        return ip != null && !ip.trim().isEmpty() && !"unknown".equalsIgnoreCase(ip.trim());
    }
}

RESPECT!

到此這篇關于spring-gateway filters添加自定義過濾器實現（可插拔）的文章就介紹到這了,更多相關spring-gateway filters自定義過濾器內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！

您可能感興趣的文章:
