Kotlin委托機制使用方式和原理解析
類委托
類委托有點類似于Java中的代理模式
interface Base{
fun text()
}
//被委托的類(真實的類)
class BaseImpl(val x:String): Base {
override fun text() {
println(x)
}
}
//委托類
class Devices(b:Base):Base by b
fun main(){
var b = BaseImpl("真實的類")
Devices(b).text()

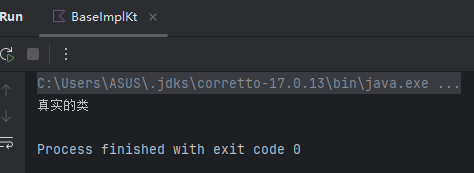

}輸出

委托類(代理類)持有真實類的對象,然后委托類(代理類)調用真實類的同名方法,最終真正實現的是方法的是真實類,這其實就是代理模式
kotlin中的委托借助于by關鍵字,by關鍵字后面就是被委托類
反編譯成java代碼
public final class BaseImpl implements Base {
@NotNull
private final String x;
public BaseImpl(@NotNull String x) {
Intrinsics.checkNotNullParameter(x, "x");
super();
this.x = x;
}
@NotNull
public final String getX() {
return this.x;
}
public void text() {
String var1 = this.x;
System.out.println(var1);
}
}
// Devices.java
package com.example.memoryoptimizing.delegate;
import kotlin.Metadata;
import kotlin.jvm.internal.Intrinsics;
import org.jetbrains.annotations.NotNull;
@Metadata(
mv = {1, 9, 0},
k = 1,
xi = 48,
d1 = {"\u0000\u0012\n\u0002\u0018\u0002\n\u0002\u0018\u0002\n\u0002\b\u0003\n\u0002\u0010\u0002\n\u0000\u0018\u00002\u00020\u0001B\r\u0012\u0006\u0010\u0002\u001a\u00020\u0001¢\u0006\u0002\u0010\u0003J\t\u0010\u0004\u001a\u00020\u0005H\u0096\u0001¨\u0006\u0006"},
d2 = {"Lcom/example/memoryoptimizing/delegate/Devices;", "Lcom/example/memoryoptimizing/delegate/Base;", "b", "(Lcom/example/memoryoptimizing/delegate/Base;)V", "text", "", "app_debug"}
)
public final class Devices implements Base {
// $FF: synthetic field
private final Base $$delegate_0;
public Devices(@NotNull Base b) {
Intrinsics.checkNotNullParameter(b, "b");
super();
this.$$delegate_0 = b;
}
public void text() {
this.$$delegate_0.text();
}
}
// BaseImplKt.java
package com.example.memoryoptimizing.delegate;
import kotlin.Metadata;
@Metadata(
mv = {1, 9, 0},
k = 2,
xi = 48,
d1 = {"\u0000\b\n\u0000\n\u0002\u0010\u0002\n\u0000\u001a\u0006\u0010\u0000\u001a\u00020\u0001¨\u0006\u0002"},
d2 = {"main", "", "app_debug"}
)
public final class BaseImplKt {
public static final void main() {
BaseImpl b = new BaseImpl("真實的類");
(new Devices((Base)b)).text();
}
// $FF: synthetic method
public static void main(String[] args) {
main();
}
}可以看到,Devices持有BaseImpl對象,重寫text方法,text方法內部調用的是BaseImpl.text()
屬性委托
屬性委托和類委托一樣,屬性委托其實是對屬性的set/get方法的委托,把set/get方法委托給setValue/getValue方法,因此被委托類(真實類)需要提供setValue/getValue方法,val屬性只需要提供setValue方法
屬性委托語法:
val/var <屬性名>:<類型> by <表達式>
class B{
//委托屬性
var a : String by Text()
}
class Text {
operator fun getValue(thisRef: Any?, property: KProperty<*>): String {
return "屬性擁有者 = $thisRef ,屬性的名字 = ‘${property.name}' 屬性的值"
}
operator fun setValue(thisRef: Any?, property: KProperty<*>, value: String) {
println("屬性的值 = $value 屬性的名字 = '${property.name}' 屬性擁有者 = $thisRef")
}
}
fun main(){
var b = B()
println(b.a)
b.a = "ahaha"

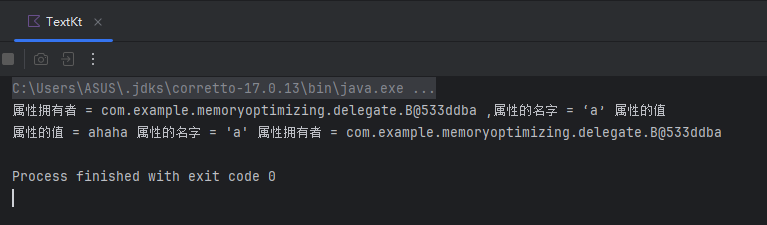

}輸出

屬性a委托給了Text,而且Text類中有setValue和getValue,所有當我們調用屬性a的set/get方法時候,會委托到Text的setValue/getValue。
thisRef:屬性的擁有者
property:對屬性的描述,是KProperty<*>類型或者父類
value:屬性的值
反編譯成Java代碼
public final class B {
// $FF: synthetic field
static final KProperty[] $$delegatedProperties;
@NotNull
private final Text a$delegate = new Text();
@NotNull
public final String getA() {
return this.a$delegate.getValue(this, $$delegatedProperties[0]);
}
public final void setA(@NotNull String var1) {
Intrinsics.checkNotNullParameter(var1, "<set-?>");
this.a$delegate.setValue(this, $$delegatedProperties[0], var1);
}
static {
KProperty[] var0 = new KProperty[]{Reflection.mutableProperty1((MutablePropertyReference1)(new MutablePropertyReference1Impl(B.class, "a", "getA()Ljava/lang/String;", 0)))};
$$delegatedProperties = var0;
}
}
// Text.java
package com.example.memoryoptimizing.delegate;
import kotlin.Metadata;
import kotlin.jvm.internal.Intrinsics;
import kotlin.reflect.KProperty;
import org.jetbrains.annotations.NotNull;
import org.jetbrains.annotations.Nullable;
@Metadata(
mv = {1, 9, 0},
k = 1,
xi = 48,
d1 = {"\u0000\"\n\u0002\u0018\u0002\n\u0002\u0010\u0000\n\u0002\b\u0002\n\u0002\u0010\u000e\n\u0002\b\u0002\n\u0002\u0018\u0002\n\u0000\n\u0002\u0010\u0002\n\u0002\b\u0002\u0018\u00002\u00020\u0001B\u0005¢\u0006\u0002\u0010\u0002J\u001f\u0010\u0003\u001a\u00020\u00042\b\u0010\u0005\u001a\u0004\u0018\u00010\u00012\n\u0010\u0006\u001a\u0006\u0012\u0002\b\u00030\u0007H\u0086\u0002J'\u0010\b\u001a\u00020\t2\b\u0010\u0005\u001a\u0004\u0018\u00010\u00012\n\u0010\u0006\u001a\u0006\u0012\u0002\b\u00030\u00072\u0006\u0010\n\u001a\u00020\u0004H\u0086\u0002¨\u0006\u000b"},
d2 = {"Lcom/example/memoryoptimizing/delegate/Text;", "", "()V", "getValue", "", "thisRef", "property", "Lkotlin/reflect/KProperty;", "setValue", "", "value", "app_debug"}
)
public final class Text {
@NotNull
public final String getValue(@Nullable Object thisRef, @NotNull KProperty property) {
Intrinsics.checkNotNullParameter(property, "property");
return "屬性擁有者 = " + thisRef + " ,屬性的名字 = ‘" + property.getName() + "' 屬性的值";
}
public final void setValue(@Nullable Object thisRef, @NotNull KProperty property, @NotNull String value) {
Intrinsics.checkNotNullParameter(property, "property");
Intrinsics.checkNotNullParameter(value, "value");
String var4 = "屬性的值 = " + value + " 屬性的名字 = '" + property.getName() + "' 屬性擁有者 = " + thisRef;
System.out.println(var4);
}
}
// TextKt.java
package com.example.memoryoptimizing.delegate;
import kotlin.Metadata;
@Metadata(
mv = {1, 9, 0},
k = 2,
xi = 48,
d1 = {"\u0000\b\n\u0000\n\u0002\u0010\u0002\n\u0000\u001a\u0006\u0010\u0000\u001a\u00020\u0001¨\u0006\u0002"},
d2 = {"main", "", "app_debug"}
)
public final class TextKt {
public static final void main() {
B b = new B();
String var1 = b.getA();
System.out.println(var1);
b.setA("ahaha");
}
// $FF: synthetic method
public static void main(String[] args) {
main();
}
}可以看到B類持有Text對象,當調用B.get()方法,內部調用了Text.getValue(),B中創建了KProperty來保存屬性的各種參數。
簡單的實現屬性委托
每次實現委托都要寫getValue/setValue方法,相對來說比較麻煩,Kotlin也提供了接口,方便我們重寫這些方法,ReadOnlyProperty和ReadWriterProperty
public fun interface ReadOnlyProperty<in T, out V> {
/**
* Returns the value of the property for the given object.
* @param thisRef the object for which the value is requested.
* @param property the metadata for the property.
* @return the property value.
*/
public operator fun getValue(thisRef: T, property: KProperty<*>): V
}
/**
* Base interface that can be used for implementing property delegates of read-write properties.
*
* This is provided only for convenience; you don't have to extend this interface
* as long as your property delegate has methods with the same signatures.
*
* @param T the type of object which owns the delegated property.
* @param V the type of the property value.
*/
public interface ReadWriteProperty<in T, V> : ReadOnlyProperty<T, V> {
/**
* Returns the value of the property for the given object.
* @param thisRef the object for which the value is requested.
* @param property the metadata for the property.
* @return the property value.
*/
public override operator fun getValue(thisRef: T, property: KProperty<*>): V
/**
* Sets the value of the property for the given object.
* @param thisRef the object for which the value is requested.
* @param property the metadata for the property.
* @param value the value to set.
*/
public operator fun setValue(thisRef: T, property: KProperty<*>, value: V)
}被委托類只需要實現接口重寫方法就行,val繼承ReadOnlyProperty
class Text1:ReadOnlyProperty<Any,String>{
override fun getValue(thisRef: Any, property: KProperty<*>): String {
return "屬性擁有者 = $thisRef ,屬性的名字 = ‘${property.name}' 屬性的值"
}
}
class Text2: ReadWriteProperty<Any,String>{
override fun getValue(thisRef: Any, property: KProperty<*>): String {
return "屬性擁有者 = $thisRef ,屬性的名字 = ‘${property.name}' 屬性的值"
}
override fun setValue(thisRef: Any, property: KProperty<*>, value: String) {
println("屬性的值 = $value 屬性的名字 = '${property.name}' 屬性擁有者 = $thisRef")
}
}class B{
val b :String by Text1()
var c : String by Text2()
}fun main(){
var b = B()
b.c = "1"
}
Kotlin標準庫中提供的幾個委托
- 延遲屬性(lazy properties):其值只在訪問時計算
- 可觀察屬性(observable properties):監聽器會收到此屬性的變更通知
- 把多個屬性映射到Map中,而不存在單個字段
延遲屬性Lazy
lazy()接收一個lambda,返回Lazy實例,返回的實例可以作為實現延遲屬性的委托,僅在第一次調用屬性進行初始化
class Lazy{
val name:String by lazy(LazyThreadSafetyMode.SYNCHRONIZED){
println("第一次初始化")
"aa"
}
}

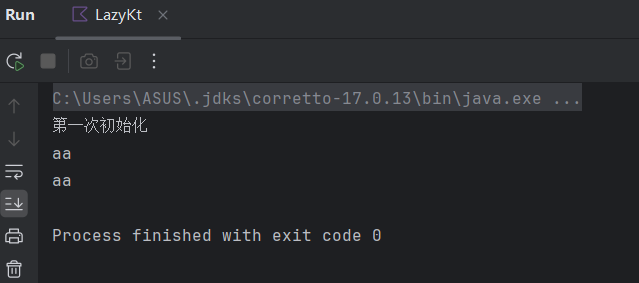

fun main(){
var lazy = Lazy()
println(lazy.name)
println(lazy.name)
}
反編譯Java代碼
public final class Lazy {
@NotNull
private final kotlin.Lazy name$delegate;
public Lazy() {
this.name$delegate = kotlin.LazyKt.lazy( (Function0)null.INSTANCE);
}
@NotNull
public final String getName() {
kotlin.Lazy var1 = this.name$delegate;
Object var2 = null;
return (String)var1.getValue();
}
}
// LazyKt.java
package com.example.memoryoptimizing.delegate;
import kotlin.Metadata;
@Metadata(
mv = {1, 9, 0},
k = 2,
xi = 48,
d1 = {"\u0000\b\n\u0000\n\u0002\u0010\u0002\n\u0000\u001a\u0006\u0010\u0000\u001a\u00020\u0001¨\u0006\u0002"},
d2 = {"main", "", "app_debug"}
)
public final class LazyKt {
public static final void main() {
Lazy lazy = new Lazy();
String var1 = lazy.getName();
System.out.println(var1);
var1 = lazy.getName();
System.out.println(var1);
}
// $FF: synthetic method
public static void main(String[] args) {
main();
}
}發現Lazy再初始化時生成了name $ delegate,變量是Kotlin.Lazy類型的,而getName()方法返回的其實就是name $ delegate.getValue()
name $ delegate是由kotlin.LazyKt.lazy (Function0)null.INSTANCE);生成的,可以看一下源碼
public actual fun <T> lazy(initializer: () -> T): Lazy<T> = SynchronizedLazyImpl(initializer)
最終是由SynchronizedLazyImpl生成
private class SynchronizedLazyImpl<out T>(initializer: () -> T, lock: Any? = null) : Lazy<T>, Serializable {
private var initializer: (() -> T)? = initializer
@Volatile private var _value: Any? = UNINITIALIZED_VALUE
// final field is required to enable safe publication of constructed instance
private val lock = lock ?: this
override val value: T
get() {
val _v1 = _value
if (_v1 !== UNINITIALIZED_VALUE) {
@Suppress("UNCHECKED_CAST")
return _v1 as T
}
return synchronized(lock) {
val _v2 = _value
if (_v2 !== UNINITIALIZED_VALUE) {
@Suppress("UNCHECKED_CAST") (_v2 as T)
} else {
val typedValue = initializer!!()
_value = typedValue
initializer = null
typedValue
}
}
}
override fun isInitialized(): Boolean = _value !== UNINITIALIZED_VALUE
override fun toString(): String = if (isInitialized()) value.toString() else "Lazy value not initialized yet."
private fun writeReplace(): Any = InitializedLazyImpl(value)
}可以直接看value的get方法,如果_v1 !== UNINITIALIZED_VALUE則表明已經初始化過了,就直接返回value,否則表明沒有初始化過,調用initializer方法,也就是lazy的lambda表達式
Lazy委托參數
public enum class LazyThreadSafetyMode {
/**
* Locks are used to ensure that only a single thread can initialize the [Lazy] instance.
*/
SYNCHRONIZED,
/**
* Initializer function can be called several times on concurrent access to uninitialized [Lazy] instance value,
* but only the first returned value will be used as the value of [Lazy] instance.
*/
PUBLICATION,
/**
* No locks are used to synchronize an access to the [Lazy] instance value; if the instance is accessed from multiple threads, its behavior is undefined.
*
* This mode should not be used unless the [Lazy] instance is guaranteed never to be initialized from more than one thread.
*/
NONE,
}- SYNCHRONIZED:添加同步鎖,使lazy延遲初始化線程安全
- PUBLICATION:初始化的lambda表達式,可以在同一時間多次調用,但是只有第一次的返回值作為初始化值
- NONE:沒有同步鎖,非線程安全
使用
val name :String by lazy(LazyThreadSafetyMode.SYNCHRONIZED) {
println("第一次調用初始化")
"aa" }
}可觀察屬性O(shè)bservable委托
可以觀察一個屬性的變化過程
class Observable {
var a:String by Delegates.observable("默認值"){
property, oldValue, newValue ->
println("${oldValue} -> ${newValue}")
}
}

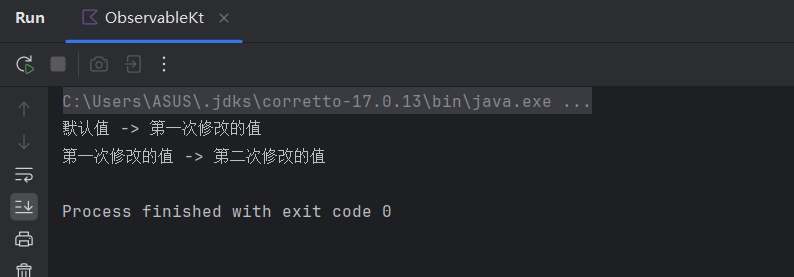

fun main(){
var observable = Observable()
observable.a = "第一次修改的值"
observable.a = "第二次修改的值"
}
vetoable委托
vetoable和Observable一樣,可以觀察屬性的變化,不同的是vetoable可以決定是否使用新值
class Vetoable {
var age:Int by Delegates.vetoable(0){
property, oldValue, newValue ->
println("oldValue = $oldValue -> oldValue = $newValue" )
newValue > oldValue
}
}
fun main() {
var c = Vetoable()
c.age = 5
println(c.age)
c.age = 10
println(c.age)
c.age = 8
println(c.age)
c.age = 20
println(c.age)
}

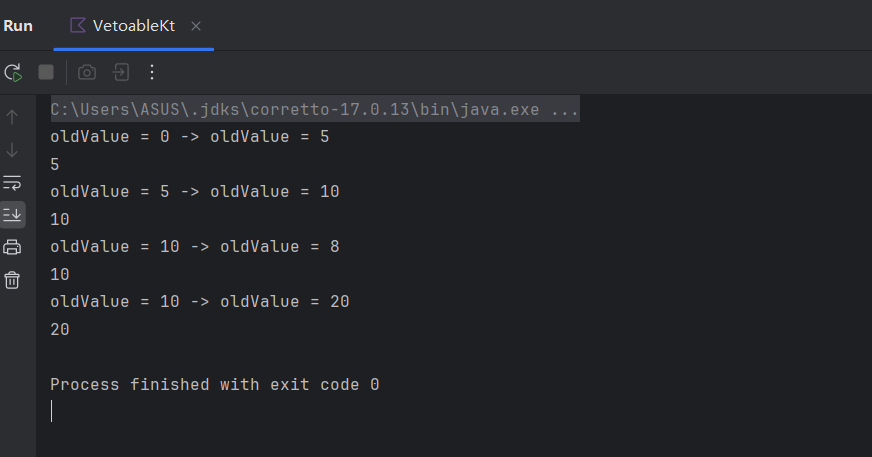

可以看到,當新值小于舊值,就會不生效
屬性儲存在Map中
class D(val map:Map<String,Any?>){
val name:String by map
val age:Int by map
}
fun main() {
var d = D(
mapOf(
"name" to "小明",
"age" to 12
)
)

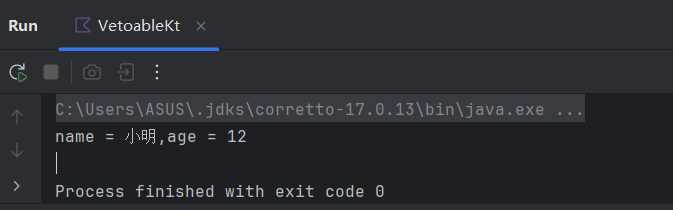

println("name = ${d.name},age = ${d.age}")
}
實踐方式
雙擊back退出
private var backPressedTime by Delegates.observable(0L){pre,old,new ->
//2次的時間間隔小于2秒就退出了
if(new - old < 2000){
finish()
}else{
Toast.makeText(this,"再按返回鍵退出",Toast.LENGTH_LONG)
}
}
override fun onBackPressed() {
super.onBackPressed()
backPressedTime = System.currentTimeMillis()
}Fragment/Activity傳參
在項目中經常需要給Fragment/Activity傳遞參數
模版代碼
private const val ARG_PARAM1 = "param1"
private const val ARG_PARAM2 = "param2"
class DelegateFragment : Fragment() {
// TODO: Rename and change types of parameters
private var param1: String? = null
private var param2: String? = null
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
arguments?.let {
param1 = it.getString(ARG_PARAM1)
param2 = it.getString(ARG_PARAM2)
}
}
override fun onCreateView(
inflater: LayoutInflater, container: ViewGroup?,
savedInstanceState: Bundle?
): View? {
// Inflate the layout for this fragment
return inflater.inflate(R.layout.fragment_delegate, container, false)
}
companion object {
/**
* Use this factory method to create a new instance of
* this fragment using the provided parameters.
*
* @param param1 Parameter 1.
* @param param2 Parameter 2.
* @return A new instance of fragment DelegateFragment.
*/
// TODO: Rename and change types and number of parameters
@JvmStatic
fun newInstance(param1: String, param2: String) =
DelegateFragment().apply {
arguments = Bundle().apply {
putString(ARG_PARAM1, param1)
putString(ARG_PARAM2, param2)
}
}
}
}我們可以把參數賦值和獲取的代碼抽取委托類,然后把param1和param2聲明為委托屬性
修改后的Fragment代碼
class DelegateFragment : Fragment() {
private var param1: String? by argumentNullable()
private var param2: String by argument("1")
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
Log.d("DelegateFragment","param1 ${param1} param2 ${param2}")
}
override fun onCreateView(
inflater: LayoutInflater, container: ViewGroup?,
savedInstanceState: Bundle?
): View? {
// Inflate the layout for this fragment
return inflater.inflate(R.layout.fragment_delegate, container, false)
}
companion object {
/**
* Use this factory method to create a new instance of
* this fragment using the provided parameters.
*
* @param param1 Parameter 1.
* @param param2 Parameter 2.
* @return A new instance of fragment DelegateFragment.
*/
// TODO: Rename and change types and number of parameters
@JvmStatic
fun newInstance(param1: String, param2: String) =
DelegateFragment().apply {
this.param1 = param1
this.param2 = param2
}
}
}委托類
import android.os.Bundle
import android.os.Parcelable
import android.util.Log
import androidx.fragment.app.Fragment
import java.io.Serializable
import kotlin.properties.ReadWriteProperty
import kotlin.reflect.KProperty
fun <T> Fragment.argumentNullable() = FragmentArgumentPropertyNullable<T>()
fun <T> Fragment.argument(defaultValue:T? = null) = FragmentArgumentProperty<T>(defaultValue)
class FragmentArgumentPropertyNullable<T> : ReadWriteProperty<Fragment,T?>{
override fun getValue(thisRef: Fragment, property: KProperty<*>): T? {
return thisRef.arguments?.getValue(property.name)
}
override fun setValue(thisRef: Fragment, property: KProperty<*>, value: T?) {
Log.d("DelegateFragment","property.name ${property.name} thisRef.arguments ${thisRef.arguments}")
val arguments = thisRef.arguments?:Bundle().also {
thisRef.arguments = it
}
if(arguments.containsKey(property.name)){
return
}
arguments[property.name] = value
}
}
class FragmentArgumentProperty<T> (private val defaultValue: T? = null): ReadWriteProperty<Fragment,T>{
override fun getValue(thisRef: Fragment, property: KProperty<*>): T {
return thisRef.arguments?.getValue(property.name) as? T
?:defaultValue
?:throw IllegalStateException("Property ${property.name} could not be read")
}
override fun setValue(thisRef: Fragment, property: KProperty<*>, value: T) {
val arguments = thisRef.arguments?:Bundle().also {
thisRef.arguments = it
}
if(arguments.containsKey(property.name)){
return
}
arguments[property.name] = value
}
}
fun <T> Bundle.getValue(key:String):T?{
return get(key) as T?
}
//操作符重載a[i] = b set() a.set(i, b)
operator fun <T> Bundle.set(key: String, value: T?) {
when (value) {
is Boolean -> putBoolean(key, value)
is Byte -> putByte(key, value)
is Char -> putChar(key, value)
is Short -> putShort(key, value)
is Int -> putInt(key, value)
is Long -> putLong(key, value)
is Float -> putFloat(key, value)
is Double -> putDouble(key, value)
is String? -> putString(key, value)
is CharSequence? -> putCharSequence(key, value)
is Serializable? -> putSerializable(key, value) // also ArrayList
is Parcelable? -> putParcelable(key, value)
is Bundle? -> putBundle(key, value)
is BooleanArray? -> putBooleanArray(key, value)
is ByteArray? -> putByteArray(key, value)
is CharArray? -> putCharArray(key, value)
is ShortArray? -> putShortArray(key, value)
is IntArray? -> putIntArray(key, value)
is LongArray? -> putLongArray(key, value)
is FloatArray? -> putFloatArray(key, value)
is DoubleArray? -> putDoubleArray(key, value)
is ArrayList<*>? -> throw IllegalStateException("ArrayList<*> $key is not supported")
is Array<*>? -> throw IllegalStateException("Array<*> $key is not supported")
else -> throw IllegalStateException("Type $key is not supported")
}
}相比于常規的寫法,使用屬性委托優勢會相對明顯,不需要定義Key字符串,而是使用變量名作為Key。不再需要編寫向Argument設置參數和讀取參數的代碼,聲明可空參數時也可以聲明默認值。
ViewBinding和委托
在Fragment中使用
class DelegateFragment : Fragment(R.layout.fragment_delegate) {
private var _binding: FragmentDelegateBinding? = null
private val binding get() = _binding!!
override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
super.onViewCreated(view, savedInstanceState)
_binding = FragmentDelegateBinding.bind(view)
binding.tvName.text = "This is Hello World"
}
override fun onDestroyView() {
super.onDestroyView()
//置空,防止內存泄漏
_binding = null
}
}ViewBinding綁定類的源碼,反編譯如下:
public final class FragmentDelegateBinding implements ViewBinding {
private final ConstraintLayout rootView;
public final TextView tvDisplay;
private FragmentDelegateBinding(ConstraintLayout paramConstraintLayout1, TextView paramTextView)
this.rootView = paramConstraintLayout1;
this.tvDisplay = paramTextView;
}
public static FragmentDelegateBindingbind(View paramView) {
TextView localTextView = (TextView)paramView.findViewById(2131165363);
if (localTextView != null) {
return new ActivityMainBinding((ConstraintLayout)paramView, localTextView);
}else {
paramView = "tvDisplay";
}
throw new NullPointerException("Missing required view with ID: ".concat(paramView));
}
public static FragmentDelegateBinding inflate(LayoutInflater paramLayoutInflater) {
return inflate(paramLayoutInflater, null, false);
}
public static FragmentDelegateBinding inflate(LayoutInflater paramLayoutInflater, ViewGroup paramViewGroup, boolean paramBoolean) {
paramLayoutInflater = paramLayoutInflater.inflate(2131361821, paramViewGroup, false);
if (paramBoolean) {
paramViewGroup.addView(paramLayoutInflater);
}
return bind(paramLayoutInflater);
}
public ConstraintLayout getRoot() {
return this.rootView;
}
}通過委托的方式進行優化
- 委托ViewBinding.bind()的調用 -> 反射
- 委托destroy時binding = null的調用 -> 監聽Fragment視圖生命周期
- 想要binding屬性聲明為非空不可變變量val -> 屬性委托ReadOnlyProperty<F,V>
編寫委托類,詳細內容可看注釋
package com.example.memoryoptimizing.delegate
import android.os.Handler
import android.os.Looper
import android.util.Log
import android.view.View
import androidx.fragment.app.Fragment
import androidx.lifecycle.Lifecycle
import androidx.lifecycle.LifecycleObserver
import androidx.lifecycle.LifecycleOwner
import androidx.viewbinding.ViewBinding
import kotlin.properties.ReadOnlyProperty
import kotlin.reflect.KProperty
//為什么使用inline fun<reified V>,方便直接拿到V::class.java
/**
* fun <V> printClass() {
* println(V::class.java) // ? 編譯錯誤:Cannot access 'java.lang.Class' for a type parameter V
* }
* inline fun <reified V> printClass() {
* println(V::class.java) // ? 輸出如:class kotlin.String
* }
*/
//在屬性委托中,編譯器可以通過屬性聲明的類型,如 FragmentDelegateBinding)來推斷泛型函數中的具體類型參數;
// 而在普通函數調用中,僅憑返回值或賦值目標無法反推出泛型參數的具體類型。
/**
? 場景一:屬性委托 + reified 泛型函數 ? 可以推斷
private val binding: FragmentDelegateBinding by viewBindingV1()
? 場景二:普通函數調用 ? 無法推斷
inline fun <reified V> getTypeName(): String {
return V::class.java.name
}
val name: String = getTypeName()
*/
private const val TAG = "ViewBindingProperty"
//使用inline fun <reified V>可以在調用泛型函數時省略參數的傳遞,Kotlin會自動根據泛型類型幫你找到對應的class<T>
public inline fun <reified V:ViewBinding> viewBindingV1() = viewBindingV1(V::class.java)
public inline fun <reified T:ViewBinding> viewBindingV1(clazz:Class<T>):FragmentViewBindingProperttV1<Fragment,T>{
val bindMethod = clazz.getMethod("bind", View::class.java)
return FragmentViewBindingProperttV1{ fragment->
/**
* 調用靜態方法bind(View view),第一個參數為null(因?yàn)槭庆o態方法) 第二個參數是View,來自Fragment的requireView()
* as T 將結果強制轉換為泛型T,即具體的ViewBinding子類(如FragmentDelegateBinding)
* FragmentDelegateBinding.bind(Fragment.requireView())
*/
bindMethod.invoke(null,fragment.requireView()) as T
}
}
/**
* viewBinder 創建綁定類對象
*/
class FragmentViewBindingProperttV1<in F:Fragment,out V: ViewBinding>(
private val viewBinder:(F) ->V //給定一個 Fragment(或其子類),返回一個對應的 ViewBinding 實例
):ReadOnlyProperty<F,V>{
private var viewBinding:V? = null
override fun getValue(thisRef: F, property: KProperty<*>): V {
//viewBinding不為空說明已經綁定,直接返回
viewBinding?.let {
return it
}
//Fragment視圖的生命周期
val lifecycle = thisRef.viewLifecycleOwner.lifecycle
//實例化綁定類對象
val viewBinding = viewBinder(thisRef)
if(lifecycle.currentState == Lifecycle.State.DESTROYED){
Log.w(
TAG, "Access to viewBinding after Lifecycle is destroyed or hasn't created yet. " +
"The instance of viewBinding will be not cached."
)
}else{
lifecycle.addObserver(ClearOnDestroyLifecycleObserver())
this.viewBinding = viewBinding
}
return viewBinding
}
fun clear(){
viewBinding = null
}
private inner class ClearOnDestroyLifecycleObserver : LifecycleObserver{
private val mainHandler = Handler(Looper.getMainLooper())
fun onDestroy(owner:LifecycleOwner){
owner.lifecycle.removeObserver(this)
mainHandler.post {
clear()
}
}
}
}使用例子:
class DelegateFragment : Fragment(R.layout.fragment_delegate) {
private val binding : FragmentDelegateBinding by viewBindingV1()
override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
super.onViewCreated(view, savedInstanceState)
binding.tvName.text = "This is Hello World"
}
}不使用反射的方式,反射調用bind函數的主要目的是獲得一個ViewBinding綁定類對象,我們可以把創建對象的行為交給外部去定義
inline fun <F:Fragment,V:ViewBinding> viewBindingV2(
crossinline viewBinder:(View) -> V,//接受一個View,返回Binding實例
crossinline viewProvider:(F) -> View = {
fragment -> fragment.requireView() //這里的fragment就是F
} //接受一個Fragment,返回它的View
) = FragmentViewBindingPropertyV2{ fragment:F ->
viewBinder(viewProvider(fragment)) //FragmentDelegateBinding.bind(Fragment.requireView())
}//fragment它是 Kotlin 屬性委托機制在訪問 binding 屬性時自動傳入的當前 Fragment 實例
class FragmentViewBindingPropertyV2<in F:Fragment , out V: ViewBinding>(
private val viewBinder:(F) -> V
):ReadOnlyProperty<F,V>{
private var viewBinding: V? = null
override fun getValue(thisRef: F, property: KProperty<*>): V {
//viewBinding不為空說明已經綁定,直接返回
viewBinding?.let {
return it
}
//Fragment視圖的生命周期
val lifecycle = thisRef.viewLifecycleOwner.lifecycle
//實例化綁定類對象
val viewBinding = viewBinder(thisRef)
if (lifecycle.currentState == Lifecycle.State.DESTROYED) {
Log.w(
TAG, "Access to viewBinding after Lifecycle is destroyed or hasn't created yet. " +
"The instance of viewBinding will be not cached."
)
} else {
lifecycle.addObserver(ClearOnDestroyLifecycleObserver())
this.viewBinding = viewBinding
}
return viewBinding
}
fun clear() {
viewBinding = null
}
private inner class ClearOnDestroyLifecycleObserver : LifecycleObserver {
private val mainHandler = Handler(Looper.getMainLooper())
fun onDestroy(owner: LifecycleOwner) {
owner.lifecycle.removeObserver(this)
mainHandler.post {
clear()
}
}
}
}使用方式
class DelegateFragment : Fragment(R.layout.fragment_delegate) {
private val binding : FragmentDelegateBinding by viewBindingV2(FragmentDelegateBinding::bind)
override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
super.onViewCreated(view, savedInstanceState)
binding.tvName.text = "This is Hello World"
}
}到此這篇關于Kotlin委托機制使用方式和原理的文章就介紹到這了,更多相關Kotlin委托內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
相關文章
JSON字符串轉成java的Map對象詳細步驟
這篇文章主要介紹了如何將JSON字符串轉換為Java對象的步驟,包括定義Element類、使用Jackson庫解析JSON和添加依賴,文中通過代碼介紹的非常詳細,需要的朋友可以參考下2025-01-01
IDEA啟動tomcat控制臺中文亂碼問題的解決方法(100%有效)
很多人在idea中啟動項目時會出現控制臺的中文亂碼,其實也無傷大雅,但是本人看著不舒服,下面這篇文章主要給大家介紹了關于IDEA啟動tomcat控制臺中文亂碼問題的解決方法,需要的朋友可以參考下2022-09-09
logback標記日志過濾器MarkerFilter源碼解讀
這篇文章主要為大家介紹了logback標記日志過濾器MarkerFilter源碼解讀,有需要的朋友可以借鑒參考下,希望能夠有所幫助,祝大家多多進步,早日升職加薪2023-11-11
SpringBoot整合Druid數據源過程詳解
這篇文章主要介紹了SpringBoot整合Druid數據源過程詳解,文中通過示例代碼介紹的非常詳細,對大家的學習或者工作具有一定的參考學習價值,需要的朋友可以參考下2019-12-12
java圖片和文本同時提交到表單的實例代碼
在本篇文章里小編給大家整理的是關于java實現圖片和文本同時提交到表單的相關內容,有需要的朋友們可以學習下。2020-02-02
Java中回調函數?(callback)?及其實際應用場景
在Java中回調函數(Callback)是一種常見的設計模式,用于實現異步操作或事件處理,這篇文章主要給大家介紹了關于Java中回調函數?(callback)?及其實際應用場景的相關資料,需要的朋友可以參考下2024-02-02
解讀為什么@Autowired在屬性上被警告,在setter方法上不被警告問題
在Spring開發中,@Autowired注解常用于實現依賴注入,它可以應用于類的屬性、構造器或setter方法上,然而,當@Autowired注解在屬性上使用時,IntelliJIDEA等IDE會給出Fieldinjectionisnotrecommended的警告,而在setter方法上使用@Autowired時卻不會出現這個警告2025-02-02
