java連接opcua的常見問題及解決方法
一、前言
OPC UA(Open Platform Communications Unified Architecture)是針對工業自動化領域的跨平臺通信協議標準。它在 OPC 經典版本的基礎上進行優化,可以在不同操作系統、設備和編程語言之間進行安全且可靠的數據交換。對于很多工業控制、設備監控以及物聯網相關項目,OPC UA 是常用的數據通信方式。
在 Java 中,我們常用的 OPC UA 客戶端開發庫包括:
- Eclipse Milo
- Prosys OPC UA SDK for Java
- 其他商業或開源的 Java SDK
本篇將使用 Eclipse Milo 作為示例庫,演示如何在 Java 中使用匿名、用戶名密碼以及證書加密三種方式連接到 OPC UA 服務器。若需要使用其他 SDK,原理大同小異,API 的調用方式會有所不同。
二、準備工作
JDK
建議至少使用 JDK 8 或更高版本。
Maven 或 Gradle
便于引入 Eclipse Milo 等依賴。如果使用 Maven,請?jiān)?pom.xml
中添加以下依賴:
<dependency> <groupId>org.eclipse.milo</groupId> <artifactId>sdk-client</artifactId> <version>0.6.15</version> <!-- 版本號可根據需要更新 --> </dependency> <dependency> <groupId>org.eclipse.milo</groupId> <artifactId>server-examples</artifactId> <version>0.6.15</version> </dependency>
如果使用 Gradle,則在 build.gradle
中添加:
implementation 'org.eclipse.milo:sdk-client:0.6.15'
OPC UA 服務器
本地或遠程的 OPC UA 服務器環境,用于測試連接。可以在虛擬機或本地主機上安裝開源的 OPC UA 服務器,也可以使用商業軟件自帶的模擬服務器。
證書文件(僅在證書加密方式時需要)
若您在服務器上開啟了證書加密,需要準備好客戶端證書(public key)和客戶端私鑰(private key),也可能需要服務器的信任證書。Eclipse Milo 提供了簡單的證書管理機制,或者您也可以使用標準 Java KeyStore 的方式來存儲并讀取證書和私鑰。
三、匿名方式連接
3.1 匿名方式簡介
匿名連接是最簡單的方式,不需要用戶名、密碼或任何證書。只要服務器允許匿名訪問,就可以通過匿名方式連接。適合在測試環境或?qū)Π踩蟛桓叩膱?chǎng)景下使用。
3.2 示例代碼
以下演示最基本的匿名連接流程,包括:
- 創建 OPC UA Client 配置
- 初始化并連接到服務器
- 讀取或?qū)懭霐?shù)據(僅作示例)
請確保替換示例中的 endpointUrl
與 nodeId
等信息為你自己的實際配置。
import org.eclipse.milo.opcua.sdk.client.OpcUaClient; import org.eclipse.milo.opcua.stack.core.security.SecurityPolicy; import org.eclipse.milo.opcua.sdk.client.api.config.OpcUaClientConfigBuilder; import org.eclipse.milo.opcua.stack.core.types.structured.EndpointDescription; import org.eclipse.milo.opcua.stack.core.types.structured.UserTokenPolicy; import org.eclipse.milo.opcua.stack.core.types.enumerated.UserTokenType; import org.eclipse.milo.opcua.sdk.client.api.identity.AnonymousProvider; import java.util.List; import java.util.concurrent.CompletableFuture; public class OpcUaAnonymousExample { public static void main(String[] args) { try { // OPC UA 服務器地址,例如 "opc.tcp://localhost:49320" String url= "opc.tcp://127.0.0.1:49320"; // 創建 client OpcUaClient client = OpcUaClient.create(url, endpoints -> endpoints.stream() .filter(e -> e.getSecurityPolicyUri().equals(SecurityPolicy.None.getUri())) .findFirst(), configBuilder -> configBuilder //訪問方式 .setIdentityProvider(new AnonymousProvider()) .setRequestTimeout(UInteger.valueOf(5000)) .build()); } // 連接到服務器 CompletableFuture<OpcUaClient> future = client.connect(); future.get(); // 等待連接完成 System.out.println("匿名連接成功!"); // 在此處可以進行讀寫操作,例如讀取節點的值 // client.readValue(0, TimestampsToReturn.Both, new ReadValueId(NodeId, ...)); // ... // 最后斷開連接 client.disconnect().get(); System.out.println("客戶端斷開連接。"); } catch (Exception e) { e.printStackTrace(); } } // 簡單選擇一個安全策略為 None 的端點(匿名方式一般使用安全策略None,具體看服務器配置) private static EndpointDescription chooseSecureEndpoint(List<EndpointDescription> endpoints) { EndpointDescription result = null; for (EndpointDescription e : endpoints) { if (e.getSecurityPolicyUri().equals(SecurityPolicy.None.getUri())) { result = e; break; } } return result; } }
在上述示例中,最關鍵的步驟是將身份認證方式設為 new AnonymousProvider()
并選擇一個 SecurityPolicy 為 None
的 endpoint。這樣即可使用匿名方式成功連接。
四、用戶名密碼方式連接
4.1 用戶名密碼方式簡介
在實際生產環境中,常常需要使用賬號密碼進行身份驗證,以限制訪問權限、保護關鍵信息。與匿名方式相比,多了用戶名密碼的配置,但整體流程類似。
4.2 示例代碼
import org.eclipse.milo.opcua.sdk.client.OpcUaClient; import org.eclipse.milo.opcua.stack.core.security.SecurityPolicy; import org.eclipse.milo.opcua.sdk.client.api.config.OpcUaClientConfigBuilder; import org.eclipse.milo.opcua.stack.core.types.structured.EndpointDescription; import org.eclipse.milo.opcua.stack.core.types.structured.UserTokenPolicy; import org.eclipse.milo.opcua.stack.core.types.enumerated.UserTokenType; import org.eclipse.milo.opcua.sdk.client.api.identity.UsernameProvider; import java.util.List; import java.util.concurrent.CompletableFuture; public class OpcUaUsernamePasswordExample { public static void main(String[] args) { try { String endpointUrl = "opc.tcp://127.0.0.1:4840"; List<EndpointDescription> endpoints = OpcUaClient .getEndpoints(endpointUrl).get(); EndpointDescription endpoint = chooseUserNameEndpoint(endpoints); OpcUaClientConfigBuilder configBuilder = new OpcUaClientConfigBuilder(); configBuilder.setEndpoint(endpoint); // 假設用戶名為 "user", 密碼為 "password" configBuilder.setIdentityProvider(new UsernameProvider("user", "password")); OpcUaClient client = OpcUaClient.create(configBuilder.build()); CompletableFuture<OpcUaClient> future = client.connect(); future.get(); System.out.println("用戶名密碼方式連接成功!"); // 進行后續讀寫操作 // ... client.disconnect().get(); System.out.println("客戶端斷開連接。"); } catch (Exception e) { e.printStackTrace(); } } private static EndpointDescription chooseUserNameEndpoint(List<EndpointDescription> endpoints) { // 通常 OPC UA 服務器也支持 SecurityPolicy.None + UserName 方式 // 也可能是 Basic128Rsa15, Basic256, etc. 具體看服務端配置 for (EndpointDescription e : endpoints) { if (e.getSecurityPolicyUri().equals(SecurityPolicy.None.getUri())) { // 確保端點支持 UserName 類型的認證 for (UserTokenPolicy tokenPolicy : e.getUserIdentityTokens()) { if (tokenPolicy.getTokenType() == UserTokenType.UserName) { return e; } } } } return null; } }
要點說明:
- 將 IdentityProvider 切換為 new UsernameProvider("username", "password")。
- 根據服務端提供的用戶名、密碼進行配置。
- 需要注意端點是否支持 UserName 類型認證。如果端點僅支持 Anonymous 或 Certificate,則無法使用用戶名密碼方式。
五、證書加密方式連接
5.1 證書加密方式簡介
在實際工業環境中,安全性要求更高時通常會啟用證書加密(基于 Public Key Infrastructure)。
- 每個客戶端都會持有一份證書(公鑰)和對應的私鑰,服務器端也有自己的證書。
- 當客戶端與服務器通信時,會先驗證雙方的證書簽名并進行加密傳輸,從而保證安全性與完整性。
在這種方式下,服務端可能要求:
- 客戶端必須提供已經被服務器信任(或在服務器端手動信任)的證書。
- 采用特定的安全策略(例如
Basic256Sha256
)并通過相應端點連接。
5.2 證書和私鑰獲取
- 可以通過第三方工具(例如 openssl、keytool 或 Eclipse Milo 提供的證書工具腳本)生成自簽名證書。
- 生成后的證書和私鑰,可以存儲在 Java KeyStore 中,或者存儲為
.der
、.pem
等格式并讓?xiě)?yīng)用程序讀取。
下方示例假設已經擁有 ClientCert.der
(客戶端公鑰)和 ClientKey.der
(客戶端私鑰),并且服務器端配置了對應的信任或信任鏈。
OPC UA訪問證書類
import org.eclipse.milo.opcua.sdk.server.util.HostnameUtil; import org.eclipse.milo.opcua.stack.core.util.SelfSignedCertificateBuilder; import org.eclipse.milo.opcua.stack.core.util.SelfSignedCertificateGenerator; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import java.io.InputStream; import java.io.OutputStream; import java.nio.file.Files; import java.nio.file.Path; import java.security.*; import java.security.cert.X509Certificate; import java.util.regex.Pattern; class KeyStoreLoader { private final Logger logger = LoggerFactory.getLogger(getClass()); private static final Pattern IP_ADDR_PATTERN = Pattern.compile( "^(([01]?\\d\\d?|2[0-4]\\d|25[0-5])\\.){3}([01]?\\d\\d?|2[0-4]\\d|25[0-5])$"); // 證書別名 private static final String CLIENT_ALIAS = "client-ai"; // 獲取私鑰的密碼 private static final char[] PASSWORD = "password".toCharArray(); // 證書對象 private X509Certificate clientCertificate; // 密鑰對對象 private KeyPair clientKeyPair; KeyStoreLoader load(Path baseDir) throws Exception { // 創建一個使用`PKCS12`加密標準的KeyStore。KeyStore在后面將作為讀取和生成證書的對象。 KeyStore keyStore = KeyStore.getInstance("PKCS12"); // PKCS12的加密標準的文件后綴是.pfx,其中包含了公鑰和私鑰。 // 而其他如.der等的格式只包含公鑰,私鑰在另外的文件中。 Path serverKeyStore = baseDir.resolve("example-client.pfx"); logger.info("Loading KeyStore at {}", serverKeyStore); // 如果文件不存在則創建.pfx證書文件。 if (!Files.exists(serverKeyStore)) { keyStore.load(null, PASSWORD); // 用2048位的RAS算法。`SelfSignedCertificateGenerator`為Milo庫的對象。 KeyPair keyPair = SelfSignedCertificateGenerator.generateRsaKeyPair(2048); // `SelfSignedCertificateBuilder`也是Milo庫的對象,用來生成證書。 // 中間所設置的證書屬性可以自行修改。 SelfSignedCertificateBuilder builder = new SelfSignedCertificateBuilder(keyPair) .setCommonName("Eclipse Milo Example Client") .setOrganization("digitalpetri") .setOrganizationalUnit("dev") .setLocalityName("Folsom") .setStateName("CA") .setCountryCode("US") .setApplicationUri("urn:eclipse:milo:examples:client") .addDnsName("localhost") .addIpAddress("127.0.0.1"); // Get as many hostnames and IP addresses as we can listed in the certificate. for (String hostname : HostnameUtil.getHostnames("0.0.0.0")) { if (IP_ADDR_PATTERN.matcher(hostname).matches()) { builder.addIpAddress(hostname); } else { builder.addDnsName(hostname); } } // 創建證書 X509Certificate certificate = builder.build(); // 設置對應私鑰的別名,密碼,證書鏈 keyStore.setKeyEntry(CLIENT_ALIAS, keyPair.getPrivate(), PASSWORD, new X509Certificate[]{certificate}); try (OutputStream out = Files.newOutputStream(serverKeyStore)) { // 保存證書到輸出流 keyStore.store(out, PASSWORD); } } else { try (InputStream in = Files.newInputStream(serverKeyStore)) { // 如果文件存在則讀取 keyStore.load(in, PASSWORD); } } // 用密碼獲取對應別名的私鑰。 Key serverPrivateKey = keyStore.getKey(CLIENT_ALIAS, PASSWORD); if (serverPrivateKey instanceof PrivateKey) { // 獲取對應別名的證書對象。 clientCertificate = (X509Certificate) keyStore.getCertificate(CLIENT_ALIAS); // 獲取公鑰 PublicKey serverPublicKey = clientCertificate.getPublicKey(); // 創建Keypair對象。 clientKeyPair = new KeyPair(serverPublicKey, (PrivateKey) serverPrivateKey); } return this; } // 返回證書 X509Certificate getClientCertificate() { return clientCertificate; } // 返回密鑰對 KeyPair getClientKeyPair() { return clientKeyPair; } }
5.3 示例代碼
public static OpcUaClient initClient(String url,SecurityPolicy securityPolicy) { try { if (securityPolicy.equals(SecurityPolicy.None)){ return OpcUaClient.create(url, endpoints -> endpoints.stream() .filter(e -> e.getSecurityPolicyUri().equals(securityPolicy.getUri())) .findFirst(), configBuilder -> configBuilder //訪問方式 .setIdentityProvider(new AnonymousProvider()) .setRequestTimeout(UInteger.valueOf(5000)) .build()); } Path securityTempDir = Paths.get(System.getProperty("java.io.tmpdir"), "security"); Files.createDirectories(securityTempDir); if (!Files.exists(securityTempDir)) { throw new Exception("unable to create security dir: " + securityTempDir); } KeyStoreLoader loader = new KeyStoreLoader().load(securityTempDir); File pkiDir = securityTempDir.resolve("pki").toFile(); DefaultTrustListManager trustListManager = new DefaultTrustListManager(pkiDir); DefaultClientCertificateValidator certificateValidator = new DefaultClientCertificateValidator(trustListManager); String hostName = InetAddress.getLocalHost().getHostName(); return OpcUaClient.create(url, endpoints -> endpoints.stream() .map(endpoint -> { // 構建一個新的 EndpointDescription(可選修改某些字段) return new EndpointDescription( url, endpoint.getServer(), endpoint.getServerCertificate(), endpoint.getSecurityMode(), // 或者強制改為某種模式 endpoint.getSecurityPolicyUri(), endpoint.getUserIdentityTokens(), endpoint.getTransportProfileUri(), endpoint.getSecurityLevel() ); }) .filter(e -> e.getSecurityPolicyUri().equals(securityPolicy.getUri())) .findFirst(), configBuilder -> configBuilder //訪問方式 .setApplicationName(LocalizedText.english("datacollector-driver")) .setApplicationUri(String.format("urn:%s:opcua-client", hostName)) // 必須與證書中的URI一致 .setKeyPair(loader.getClientKeyPair()) .setCertificate(loader.getClientCertificate()) .setCertificateChain(loader.getClientCertificateChain()) .setCertificateValidator(certificateValidator) .setIdentityProvider(new UsernameProvider("admin", "123456")) .setRequestTimeout(UInteger.valueOf(5000)) .build()); } catch (Exception e) { throw new RuntimeException(e); } }

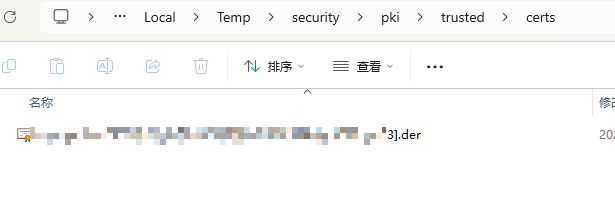

證書路徑
我們需要把服務器證書放在pki\trusted\certs
目錄下:
要點說明:
- 選擇合適的安全策略(如
Basic256Sha256
)。 - 使用客戶端證書和私鑰(可以自簽名,也可以通過權威 CA 簽發)。
- 服務端需信任此客戶端證書(在服務器配置中添加到信任列表)。
- 配置
CertificateManager
、CertificateValidator
以及X509IdentityProvider
。
六、常見問題與注意事項
端點選擇
- 不同 OPC UA 服務器可能同時暴露多個端點,包含不同的安全模式(Security Mode)和安全策略(Security Policy)。
- 在匿名或用戶名密碼方式時,如果選擇了需要證書的端點,就會出現認證失敗或連接被拒的情況。
- 在證書加密方式時,如果選擇了安全策略為 None 的端點,則證書不會被使用,同樣也會連接異?;蛘邔?dǎo)致安全策略不匹配。
服務器信任客戶端證書
- 大多數 OPC UA 服務器在默認情況下不信任任何客戶端的證書,需要在服務端管理界面或配置文件中手動將客戶端證書加入白名單。
- 記得查看服務器日志,若提示「Untrusted Certificate」,就需要在服務器端操作信任列表。
安全策略與性能
- 加密等級越高(如 Basic256Sha256),對 CPU 資源消耗越大,通信速度會相對降低,但數據安全性更強。
- 在測試環境或低安全需求的場景下可以先使用 SecurityPolicy.None ;正式項目上線時再切換到更高的安全策略。
兼容性
- 不同版本的 OPC UA SDK、服務器或 Java 版本之間可能存在兼容性問題;如果連接失敗,可以嘗試升級或降低 Milo 版本、換用不同的 JDK 版本等。
- OPC UA 服務器上若啟用特定的加密算法(例如 AES-256),客戶端也需要對應的加密套件。
斷線重連
- 工業現場環境中網絡抖動常見,客戶端需要實現斷線重連或重試機制,以確保數據采集的連續性與穩定性。
到此這篇關于java連接opcua的文章就介紹到這了,更多相關java連接opcua內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
